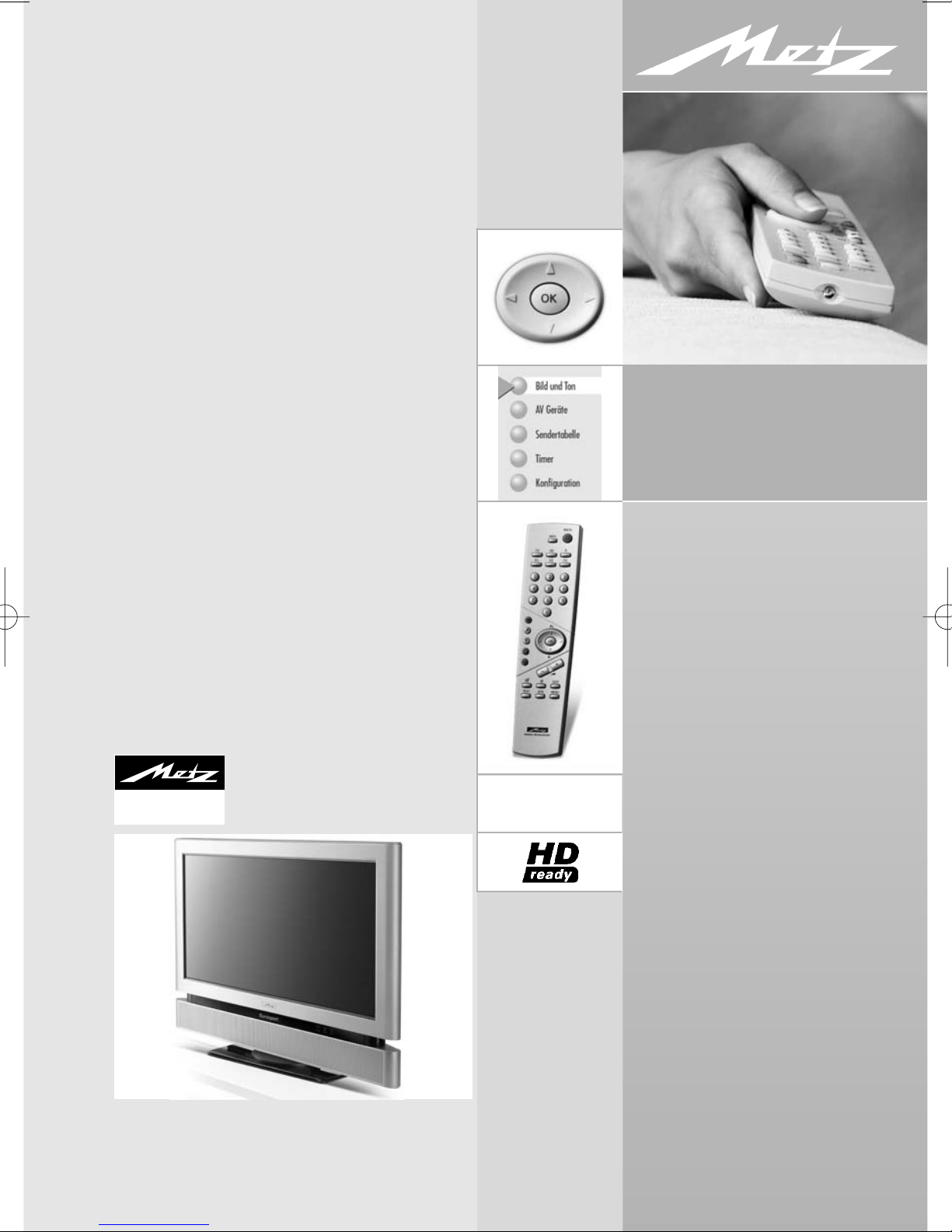

HOME ENTERTAINMENT
Operating instructions
for all LCD-TV (F)HDTV-sets
Metz - always first class.
607 47 2026.A1
07/40/01
LCD-TV
HDTV
integriert
Extended functions
1 Installation. . . . . . . . . . . . . . . . . . . . . . . . . 4
2. Safety notes . . . . . . . . . . . . . . . . . . . . . . . . 5
3. The Remote Control . . . . . . . . . . . . . . . . . . 6
4. Daily Operation. . . . . . . . . . . . . . . . . . . . . 8
5. Selecting the Operating Mode. . . . . . . . . . . 8
6. Station Selection. . . . . . . . . . . . . . . . . . . . . 9
7. User Help (Information). . . . . . . . . . . . . . . 10
8. Menu Control. . . . . . . . . . . . . . . . . . . . . . 11
9. Teletext . . . . . . . . . . . . . . . . . . . . . . . . . . 12
10. AV Playback . . . . . . . . . . . . . . . . . . . . . . 15
10.1 AV Playback VCR function . . . . . . . . . . . . 17
11. General Picture Settings . . . . . . . . . . . . . . 18
11.1 Picture Settings for Progr. via TV Menu. . . . 24
11.2 Picture Settings for Progr. via Station Table . 25
12. General Sound Settings . . . . . . . . . . . . . . 26
12.1 Sound Settings for Progr. via TV Menu . . . . 31
12.2 Sound Settings for Prog. via the Stat. Table. 34
13. Automatic Zoom. . . . . . . . . . . . . . . . . . . . 35
14. Childlock . . . . . . . . . . . . . . . . . . . . . . . . . 36
15. Reminder. . . . . . . . . . . . . . . . . . . . . . . . . 38
16. Timer Control. . . . . . . . . . . . . . . . . . . . . . 39
16.1 Setting the Time and Date . . . . . . . . . . . . . 40
16.2 Recording Control . . . . . . . . . . . . . . . . . . 41
17. Special Functions
- Picture-in-Picture . . . . . . . . . . . . . . . . . . 43
- Normal/Speech. . . . . . . . . . . . . . . . . . . 44
- Recording a programme with a timer . . . 44
- Direct Recording (OTR). . . . . . . . . . . . . . 46
- Picture format . . . . . . . . . . . . . . . . . . . . 47
- Picture Position. . . . . . . . . . . . . . . . . . . . 49
- Audio language selections . . . . . . . . . . . 50
- JPEG Photograph Display . . . . . . . . . . . . 51
18. Programming the Function Keys. . . . . . . . . 54
19. Sound Settings Mute Function . . . . . . . . . . 55
19.1 Data Logic Settings. . . . . . . . . . . . . . . . . . 56
20. EPG . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
20.1 Activating the EPG . . . . . . . . . . . . . . . . . . 57
20.2 Collecting EPG Data. . . . . . . . . . . . . . . . . 59
20.3 Using the EPG . . . . . . . . . . . . . . . . . . . . . 61
Using the EPG Recording a Programme . . . 64
21. Setting the Country and Language. . . . . . . 65
22. Setting Stations -
Setting the reception mode
. 66
22.1 TV-Standard
2)
for analogue stations. . . . . . 67
Analogue TV . . . . . . . . . . . . . . . . . . . . . . 68
Colour standard for analogue stations . . . . 69
22.2 DVB-T, Antenna suply voltage . . . . . . . . . . 70
2
Foreword
Dear customer,
thank you for selecting a Metz
LCD TV set.
We have equipped this TV set
with a menu system which uses
"file cards" and believe that this
will provide you with a user
interface that is easy to understand.
If you have any problems, you
can press the "INFO" key to
display a help function that will
assist you in setting up your TV
set.
However, you should read at
least sections 1 to 8 of the Operating Instructions before putting
your new TV set into service.
This LCD TV set is equipped for
HDTV operation. With its high-
resolution screen and the
HDMI sockets, it enables the
display of HDTV broadcasts.
This LCD TV is HD-ready and
supports HDTV broadcasts.
The HD ready Logo is a Trademark of EICTA.
Your METZ-WERKE
Metz-Werke GmbH & Co KG
Postfach 1267
D-90506 Zirndorf/Germany
Fon: +49 911/97060
Fax: +49 911/9706340
www.metz.de
info@metz.de
Basic functionsConfig.
Contents
3
Contents
Configuration
Worth knowing
Automatic DVB-T station search. . . . . . . . . 71
Manual DVB-T station search . . . . . . . . . . 72
22.3 Automatic DVB-C station search . . . . . . . . 73
Manual DVB-C station search . . . . . . . . . . 74
22.4 Setting up the Satellite Antenna System,
LNB Supply Voltage . . . . . . . . . . . . . . . . . 75
DiSEqC System . . . . . . . . . . . . . . . . . . . . 76
Selecting Satellites . . . . . . . . . . . . . . . . . . 77
22.5 Setting Stations, Search Settings . . . . . . . . 78
..., Automatic Search . . . . . . . . . . . . . . . . 79
..., Manual Search . . . . . . . . . . . . . . . . . . 80
..., Updating the Data. . . . . . . . . . . . . . . . 81
23. Station Logo. . . . . . . . . . . . . . . . . . . . . . . 82
24. Sorting Stations . . . . . . . . . . . . . . . . . . . . 83
25. Registering AV Devices . . . . . . . . . . . . . . . 84
- Data Logic. . . . . . . . . . . . . . . . . . . . . . . 85
- Setting the signal types RGB . . . . . . . . . . 87
- Setting the signal types DVI / HDMI. . . . . 88
- Setting the signal types YUV (HD) . . . . . . 89
25.1 Removing AV Devices . . . . . . . . . . . . . . . . 90
26. Initial Programme Position. . . . . . . . . . . . . 91
27. Sound via HiFi Amplifier - HiFi output . . . . 92
28. Display Configuration. . . . . . . . . . . . . . . . 94
29. DVB Radio Mode . . . . . . . . . . . . . . . . . . . 95
30. Scope of Operation . . . . . . . . . . . . . . . . . 96
31. Operation without the Remote Control . . . . 98
31.1 Connecting Headphones. . . . . . . . . . . . . . 98
32. Sound 1, Sound 2 . . . . . . . . . . . . . . . . . . 99
33. Cleaning the TV Set . . . . . . . . . . . . . . . . . 99

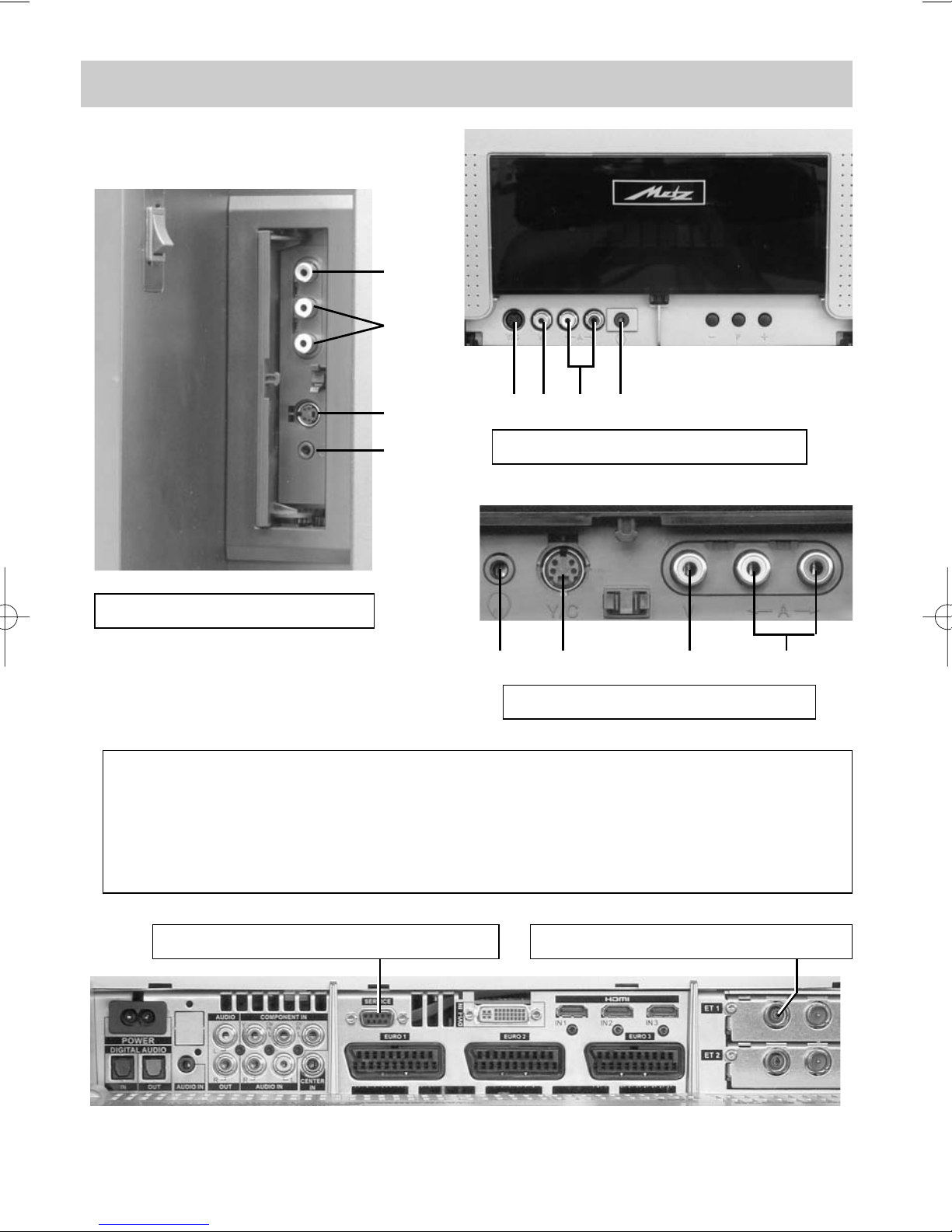

34. Connections on the Front . . . . . . . . . . . . 100
34.1 Connections on the Rear of the Set. . . . . . 101
35. Copying between AV Devices
Direct recording . . . . . . . . . . . . . . . . . . . 104
36. Setting the MPEG noise reduction . . . . . . 105
36.1 Setting the Picture Format . . . . . . . . . . . . 106
37. Glossary . . . . . . . . . . . . . . . . . . . . . . . . 107
38. Technical Data . . . . . . . . . . . . . . . . . . . . 110
38.1 Upgrade Kits . . . . . . . . . . . . . . . . . . . . . 112
39. Inserting/Removing CA Modules . . . . . . . 114
40. Basic differences between
analog terrestrial reception and DVB-T. . . 115
Problems, Possible Causes, Remedies . . . . . . . . 117
Connect a PC . . . . . . . . . . . . . . . . . . . . . . . . . 119
Portal stations. . . . . . . . . . . . . . . . . . . . . . . . . 120
Battery disposal . . . . . . . . . . . . . . . . . . . . . . . 121
Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
4
• Take care that no bright artificial light or sunshine falls directly on the screen. This could cause
reflections which have a negative effect on the
brilliance of the picture.
• The best viewing distance is five times the screen
diagonal, i.e.
- Approximately 2 m (6.3 ft) for 26" screens
- Approximately 2.4 m (7.6 ft) for 32" screens
- Approximately 2.8 m (9 ft) for 37" screens
• The antenna cable and any other components
(such as a video recorder) connected between
the antenna socket in the wall and the TV set
must comply with the European standard
EN 60966-2-4.
• The antenna cable used for connecting the TV
set must have a screening attenuation of at least
75 dB.
• The use of non-approved cables will invalidate
the operating permission for the TV set.
• For details of how to connect peripheral devices
such as video recorders, DVD players, etc. press
the „INFO“ key to call the help function, select
„Connecting AV devices“ with the cursor and
press „OK“ to display the information.
• Only use Metz bases as a stand for the LCD TV.
• Use the Metz wall bracket (item no. 604 99
0286.A1) or a suitable OmniMount wall bracket to hang the LCD TV on the wall. For an
OmniMount wall bracket, you also need the
Metz adapter plate 013ZM1091.
1. Installation
5
2. Safety notes
• Always place the monitor on a solid,
stable surface.
• If a cold TV set is moved to a warm
room, always allow any condensation
on the screen to evaporate before switching it on.
• The TV set is intended for use in a dry
room. If, in exceptional circumstances,
you use it outdoors, take care that is
protected against moisture (rain, splashed water, dew).
• TV sets need adequate ventilation.
Never cover the openings on the rear
of the set with curtains, doilies, newspapers, etc. Also take care that the
slits in the bottom of the case are freely
accessible so that the intake of the
cooling air is not hindered.
• If you place the TV set in a wall unit,
leave sufficient space on all sides for
the circulation of cooling air.
• Do not place the TV set close to a radiator, since this would effect adequate
cooling.
• Do not place
- burning candles or
vessels containing liquids (vases, etc.)
on top of the TV set, since any hot wax
or water dripping into the set could
cause serious damage to the electronic
components and could also jeopardize
the electrical safety of the set.
• Lightning can damage electrical equipment. A lightning flash entering the
power cable or the aerial cable can
damage the TV set even if it is switched off. You should therefore disconnect the power cable and aerial cable
from their outlets or from the TV set in
the case of a thunderstorm.
• The monitor may be opened and
repaired only by a qualified person.
CAUTION! HIGH VOLTAGES CAN KILL !
If repairs should be necessary, consult
your local dealer.
• Always switch off the TV set before cleaning it.
• Do not hold the remote control directly
in front of your eyes and press a button. The remote control emits infrared
radiation!
• Do not place rechargeable batteries in
the battery compartment of the remote
control. Use only two 1.5 V dry batteries of the type LR03/AM4/AAA
(Micro).
• The TV set is intended only for the
reception and reproduction of picture
and sound signals.
• The TV set may be operated only from
a mains voltage of 230-240V VAC,
50 Hz. Australia: 240 VAC.
• For maintenance and repair work, the
power plug or the power-cord input of the
TV represents a means to disconnect the
device from the mains and must therefore
be kept in a usable state in line with applicable standards.
•
Lay the power cable so that nothing
stands on it and no-one can trip over it.
• Do not display still images, logos, 4:3
pictures with stripes etc. over an extended period. These still images can
result in marks on the screen.
6

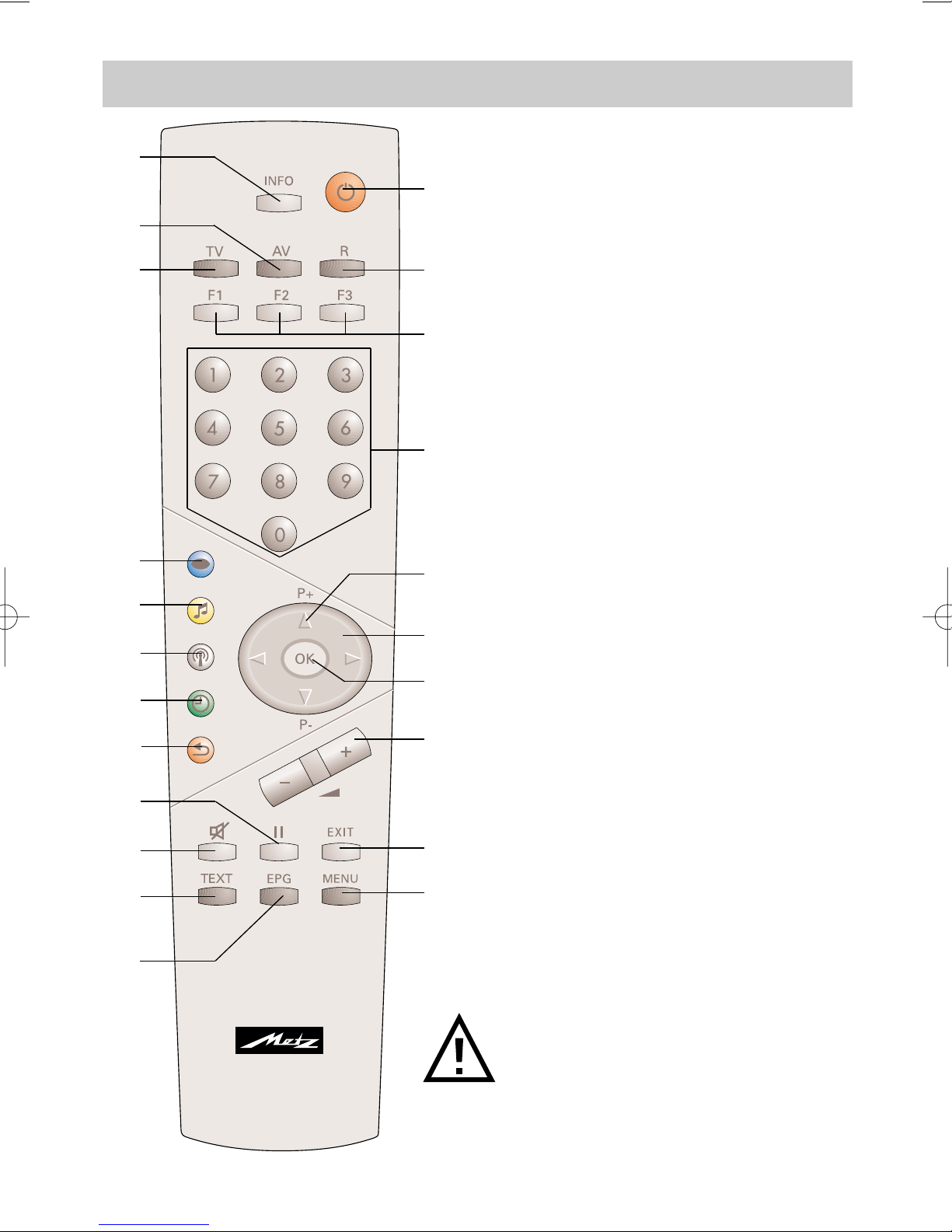

The remote control sends commands to
the TV set by means of an infrared signal. You must point it towards the TV set
when using it. Note that the remote control may interfere with the operation of
other devices which use infrared signals
(such as infrared headphones).
Sunlight falling directly on the TV set
may interfere with the operation of the
remote control, since the TV set cannot
detect the infrared signals from the
remote control under these conditions.
The TV set must be switched on with the
main power switch before it can be controlled with the remote control.
The most important keys
for normal use
ON
Switches the TV set on with programme position 1 or the programmed
initial programme position selected,
or switches it OFF (to the standby state).
Numeric keys (direct station selection).
P+ /P- Selects the next/previous pro-
gramme position.
Volume control.
Setting can be changed in the menu.
Back to the previously selected
station.
Displays the station table.
3. The Remote Control
Do not insert rechargeable batteries in
the battery compartment of the remote control.
Use only two dry batteries of the type
LR03/ AM4/AAA 1.5V.
21
22
Ǽ
7
3. The Remote Control
Overview of the functions of the keys
Switch to DVB radio mode.
Switch on from the standby state into radio mode1).
Function keys:
F1/F2/F3: press briefly to call the functions set in the factory.
F1/F2/F3: press and hold to display a selection of special functions.
AV: press to select one of the previously configured AV devices.
Cursor control key in the "Information" window and the “TV menu”.
OK: confirmation key.
Volume control; values can be set in the TV menu.
Exit key: exit from the menu without saving any changes you have made.
Open the TV menu.
In the menu: back to the main menu.

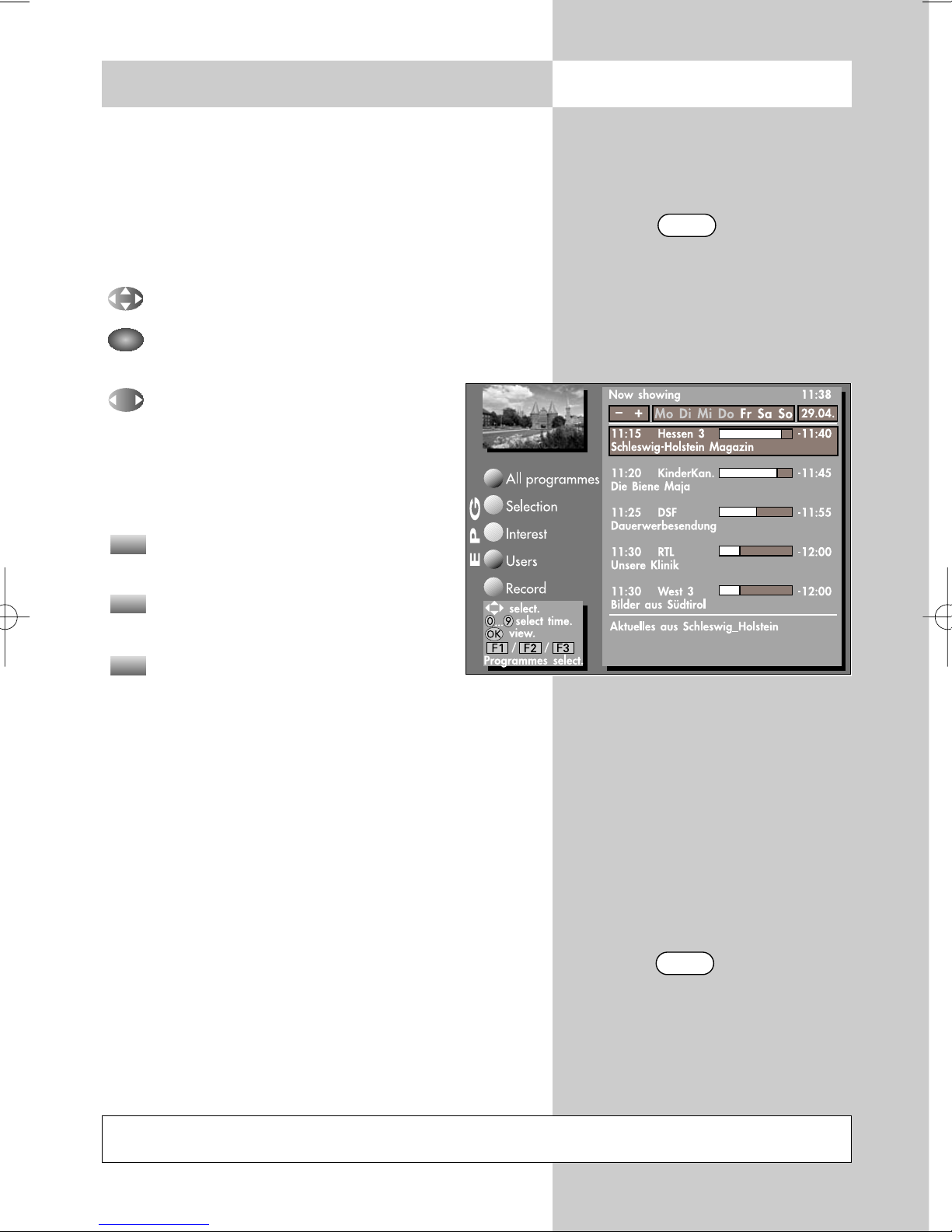

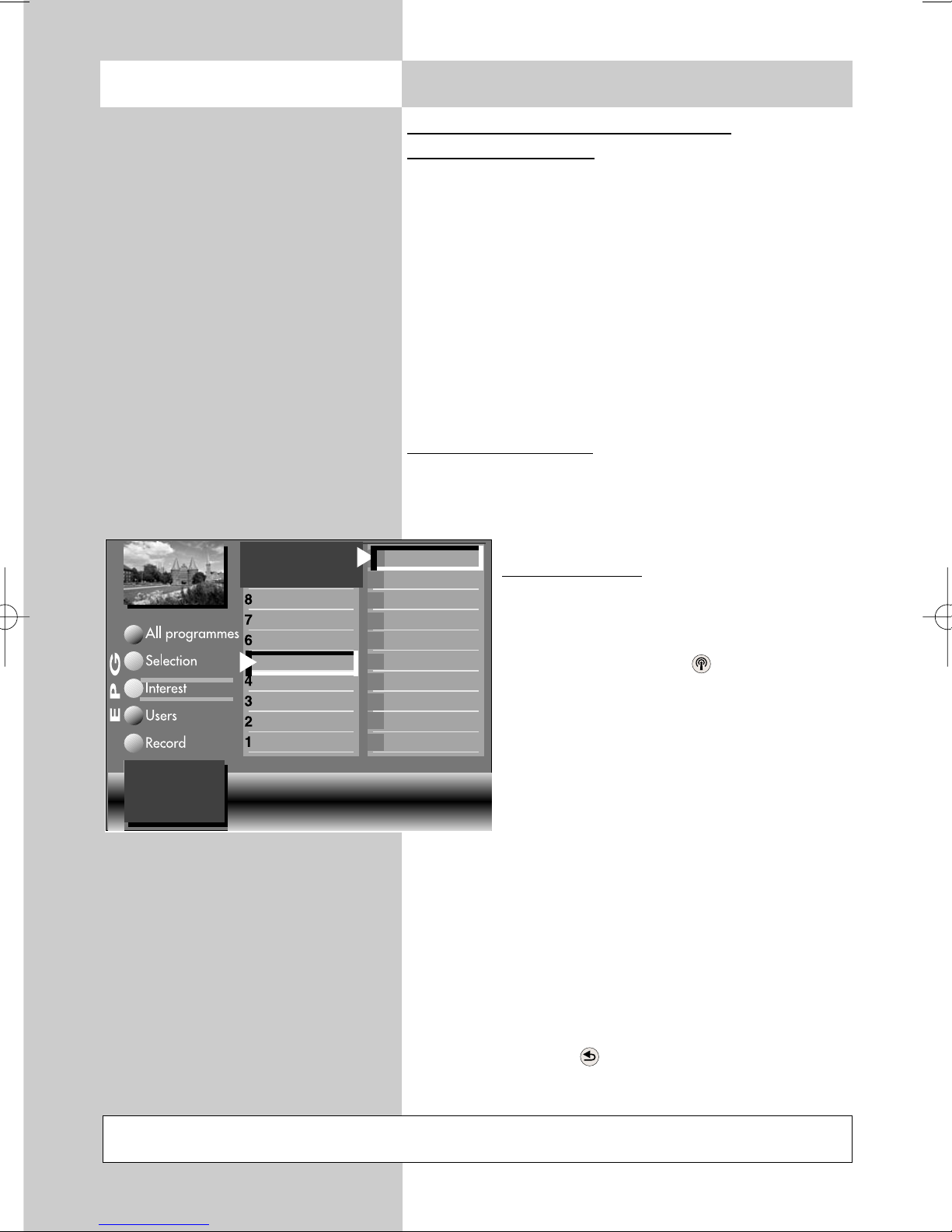

Open the electronic programme guide (EPG).
Open the Teletext window.
Mute.
Freeze frame.
Back to the previously selected station.
In the TV menu: open the "Configuration" menu.
Display the date and time.

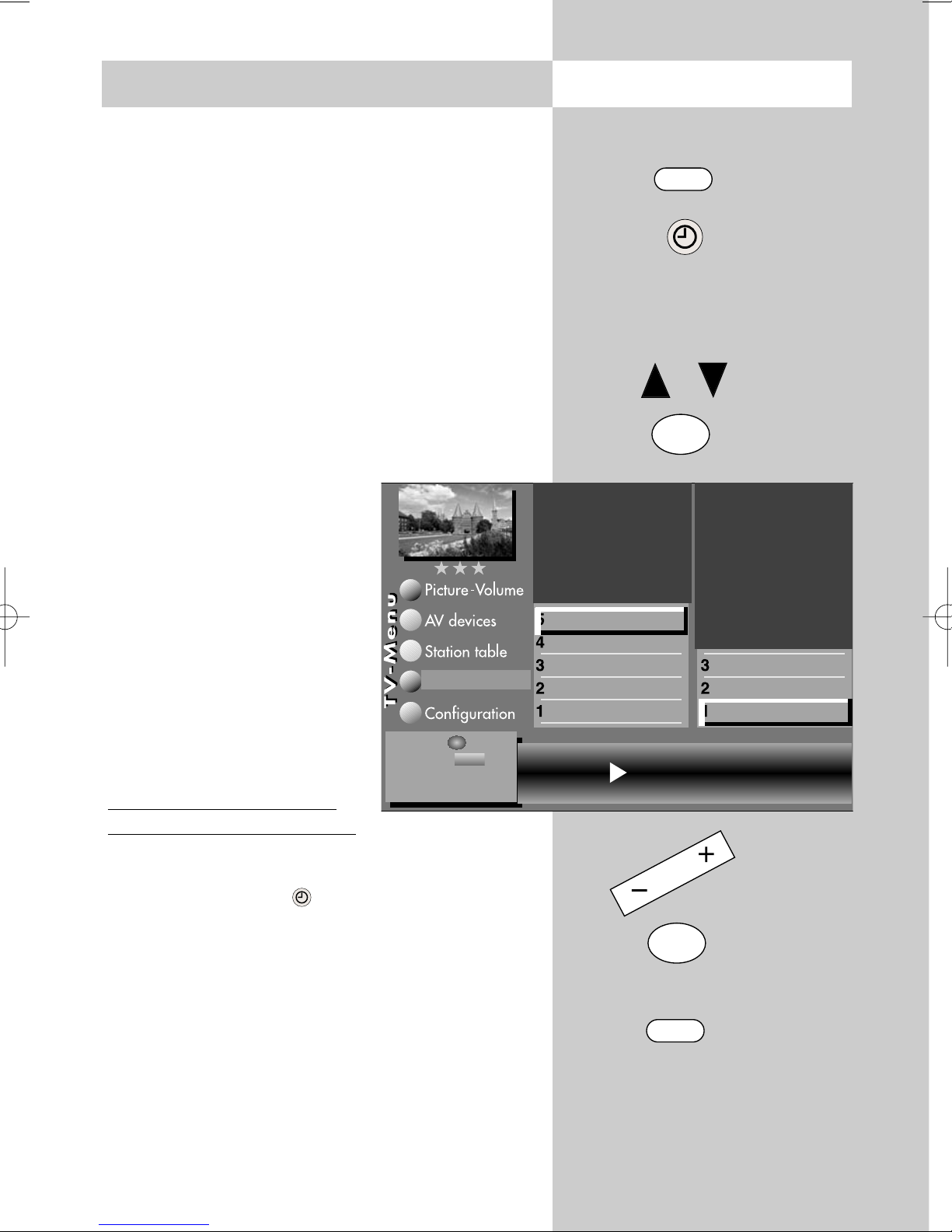

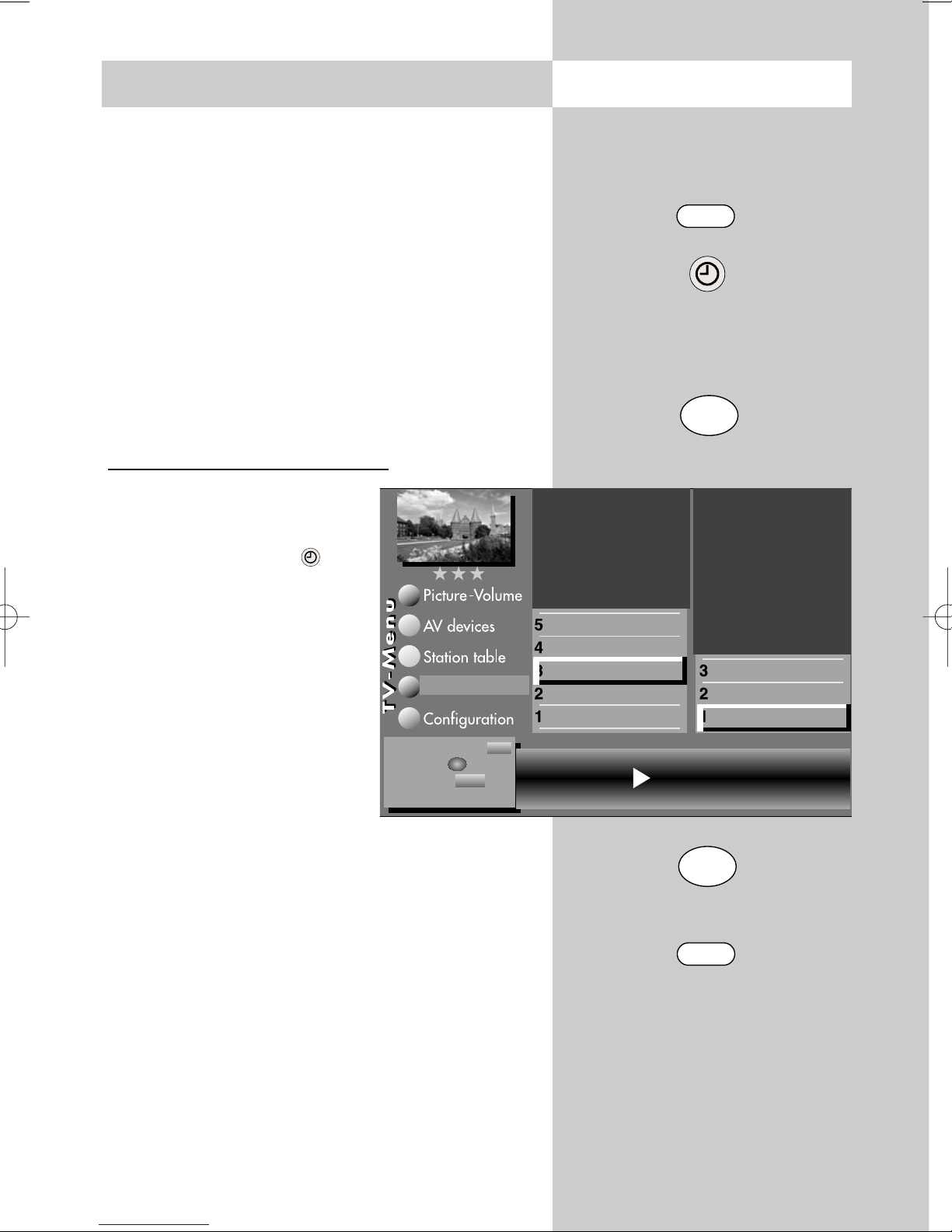

In the TV menu: open the "Timer" window.
Display the station table.
In the TV menu: open the station table or the station features window.
Display the sound functions.
In the TV menu: open the "AV devices" window.
Display the picture functions.
In the TV menu: open the "picture and sound" window.
Back to the TV picture.
Switch from radio mode
1)
to TV mode.
Switch on from standby mode into TV mode.
Split-Screen in Teletext
Display the AV menu "Replay/record".
Switch on from standby mode into AV mode.
Display the "Information" window. In the "Information" window:
back to the table of contents.
21
22
1)
Possible only in DVB mode !
8
4. Daily Operation
Switching on
Switch on the TV set with the main
switch.
The TV set is now in standby mode and
the red standby indicator lights.
After about five seconds, the TV set switches to programme position 1 or to the
programmed initial programme position.
If you press no further keys on the remote control, a window requesting that you
do so is displayed after about 10 minutes. If you do not do this, the TV set switches back to the standby state.
Use the numeric keys to select any desired programme position. Pressing the
key selects programme position 1 or,
if it is programmed, the initial programme position (see page 71).
Switching off
Press the key to switch the TV set to
standby mode. If you do not intend to
use the TV set for a longer period, switch
it off with the main power switch.
Adjusting the volume
The volume can be adjusted with
the
-
+
key.
Adjusting the picture and sound
settings
Call the picture settings with the blue key
or the sound settings with the yellow
key . The setting box with the various
functions is then displayed at the bottom
left of the screen. Use the rocker key
"P+/P-" to select the desired function
and then use the
-
+
key to adjust the
setting.
5. Selecting the Operating Mode
TV AV R
You can switch the TV set between its various operating modes with the keys "TV", "AV" and "R".
You can also switch from standby mode to the
desired operating mode with these keys.
TV = TV mode
AV = TV mode with input from AV devices
(e.g. video tape recorder, DVD player, etc.)
R = DVB Radio mode
1)
1)
Possible only in DVB mode !
9
Selecting stations from the station table
In normal TV or radio 1)mode, you can display
the station table by pressing the white key.
Press the white key repeatedly to display a virtual keyboard. Use the respective key to sort the
station list alphanumerically.
In the table which is then displayed, you can use
the oval rocker key "P+/P-" or the
numeric keys to select the desired station
and then press the "OK" key to display
this station.
If the station table contains more than
20 stations, you can display the next 10
stations by pressing the oval cursor control key .
Back to the last station
You can use the red key to switch
back and forth between the last two stations you have selected.
1)
Possible only in DVB mode !
Station selection and management of programme positions
The TV set can store the settings for up to
2000 TV stations and 2000 radio stations
in so-called programme positions. You
can select any of these programme positions with the numeric keys, with the oval
rocker key "P+/P-" or from the station
table.
If you use the numeric keys for station
selection, the first digit you enter is nor-
mally the "thousands" digit. If less than
1000 programme positions are occupied,
it automatically becomes the "hundreds"
digit.
If less than ten programme positions are
occupied, the first digit you enter automatically becomes the "units" digit.
After pressing any numeric key, you have
three seconds to press further numeric
keys
6. Station Selection
6. Station Selection
Opening the menu
10 Kabel 1
9 Nord 3
8RTL
7 PRO 7
6 Nord 3
5 PRO 7
4SAT1
3 Bayern 3
2 ZDF
1 ARD
56 Hessen 3
55 SW-BW
54 N-TV
53 West 3
52 Phönix
ABCDEF
GHIJKL
MNO
Select with
...
or .
Confirm with .
OK
Pr
Pr
10
During the design of this TV set, we have made
every effort to make it as easy a possible for you
to use it and we hope that you will enjoy familiarising yourself with your new TV set.
With the "Information" menu, the TV set is able to
answer the many questions which may come up
during installation and setup.
To display this menu, simply press the "INFO" key
for the table of contents.
The "Information" menu (user help)
In the table of contents or the index, you
can select the item of interest with the cursor
control key.
Use the cursor-right key to scroll forwards through the contents or index ...
Use the cursor-left key to scroll backwards through the contents or index ...
Use the cursor-up key to select the last
underlined item ...
Use the cursor-down key to select the
menu lines...
... and then press the "OK" key to display
the explanation of the selected item.
You can select any underlined word in the table of
contents, the index or the explanation of a selected item with the cursor. Pressing the "OK" key
then displays the explanation for this word.
You can also scroll forwards and backwards
through previously displayed pages with the aid
of the red and green keys.
7. User Help (Information)
OK
Opening the Info
INFO
Information
Contents
Index
Station selection
Picture settings
Sound settings
AV playback
Recording facilities:
- Timer recording
- Direct recording
- AV copying
Teletext
Function keys
DVB radio mode
Electronic Programm Guide (EPG)
Select the underlined text with the cursor.
: further information : table of contents
Visited pages: back forward
OK
INFO
11

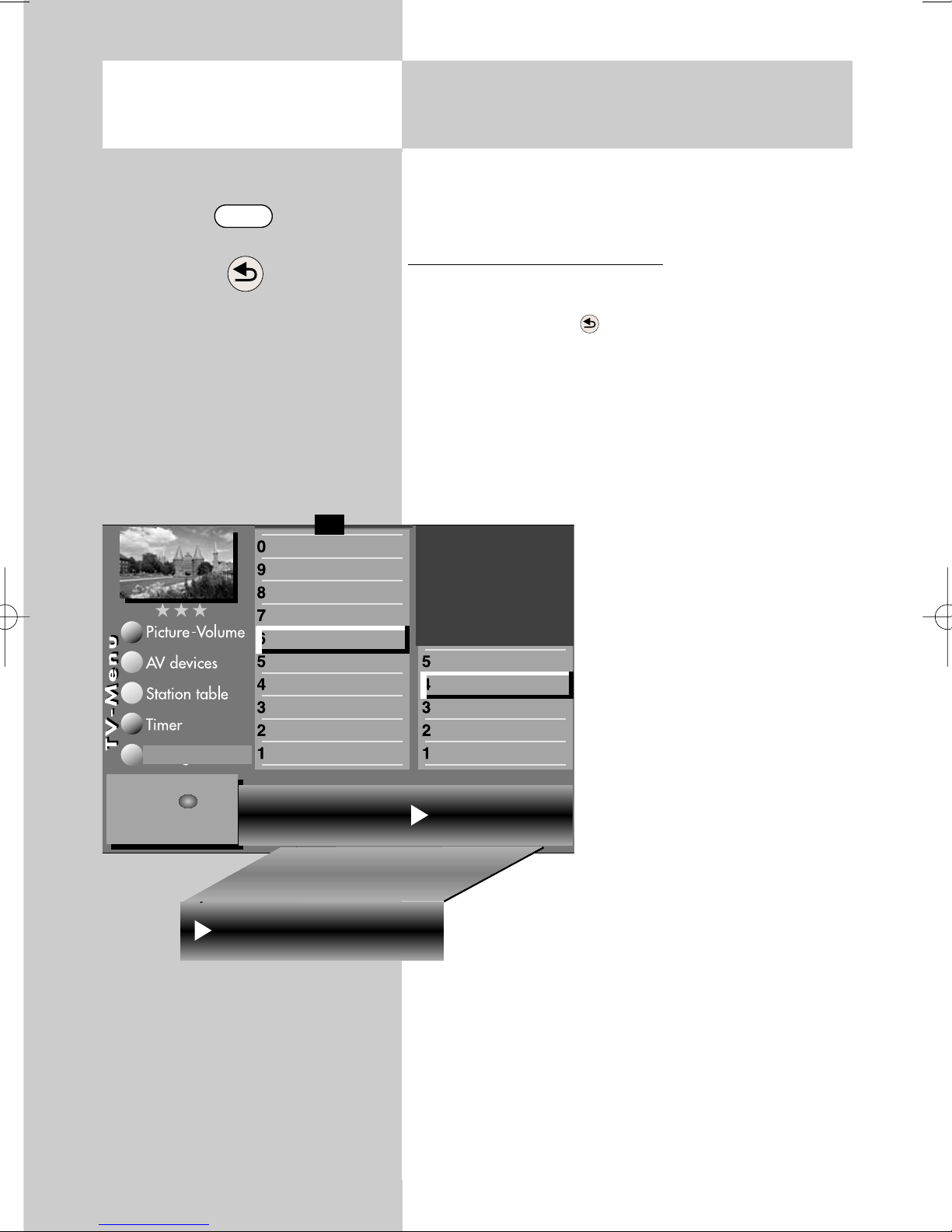

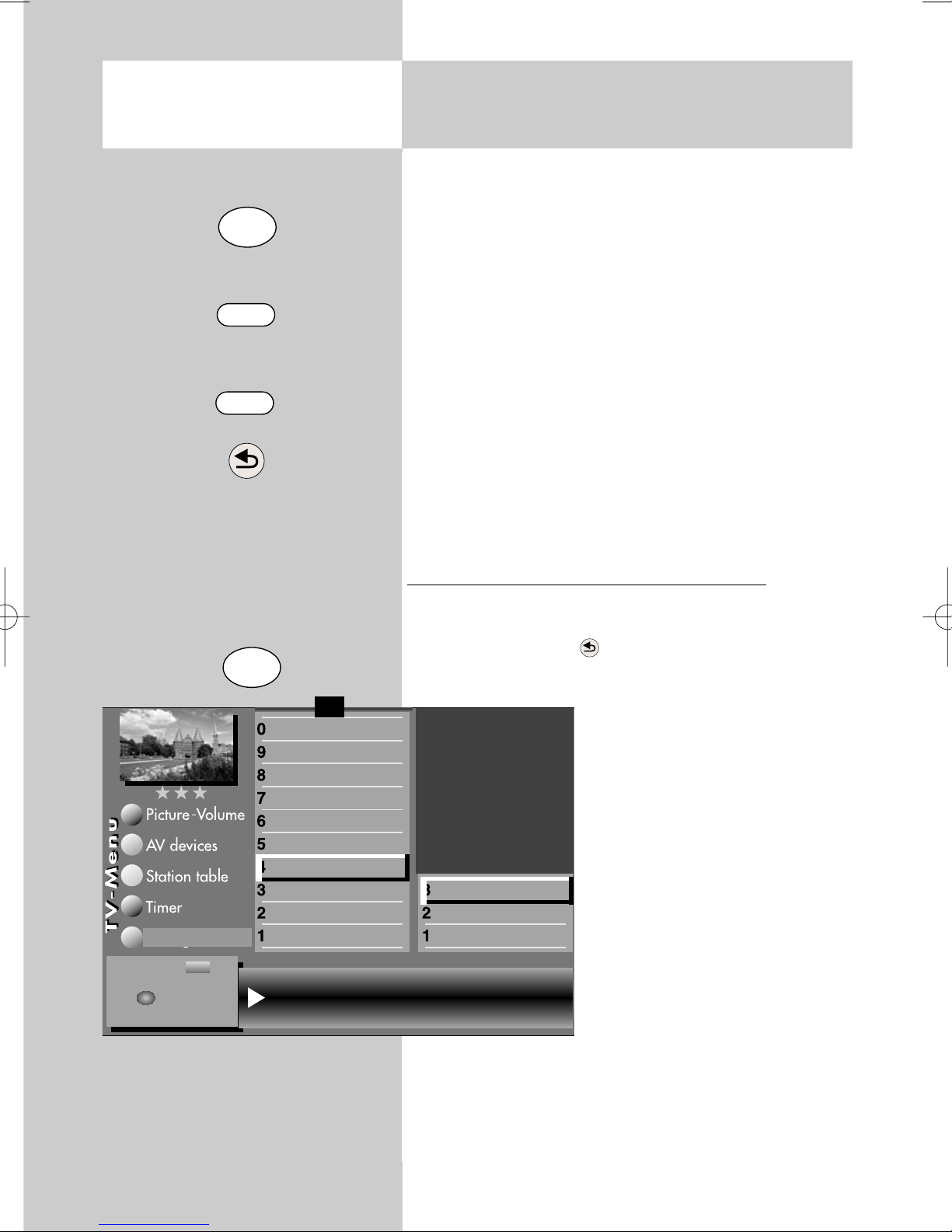

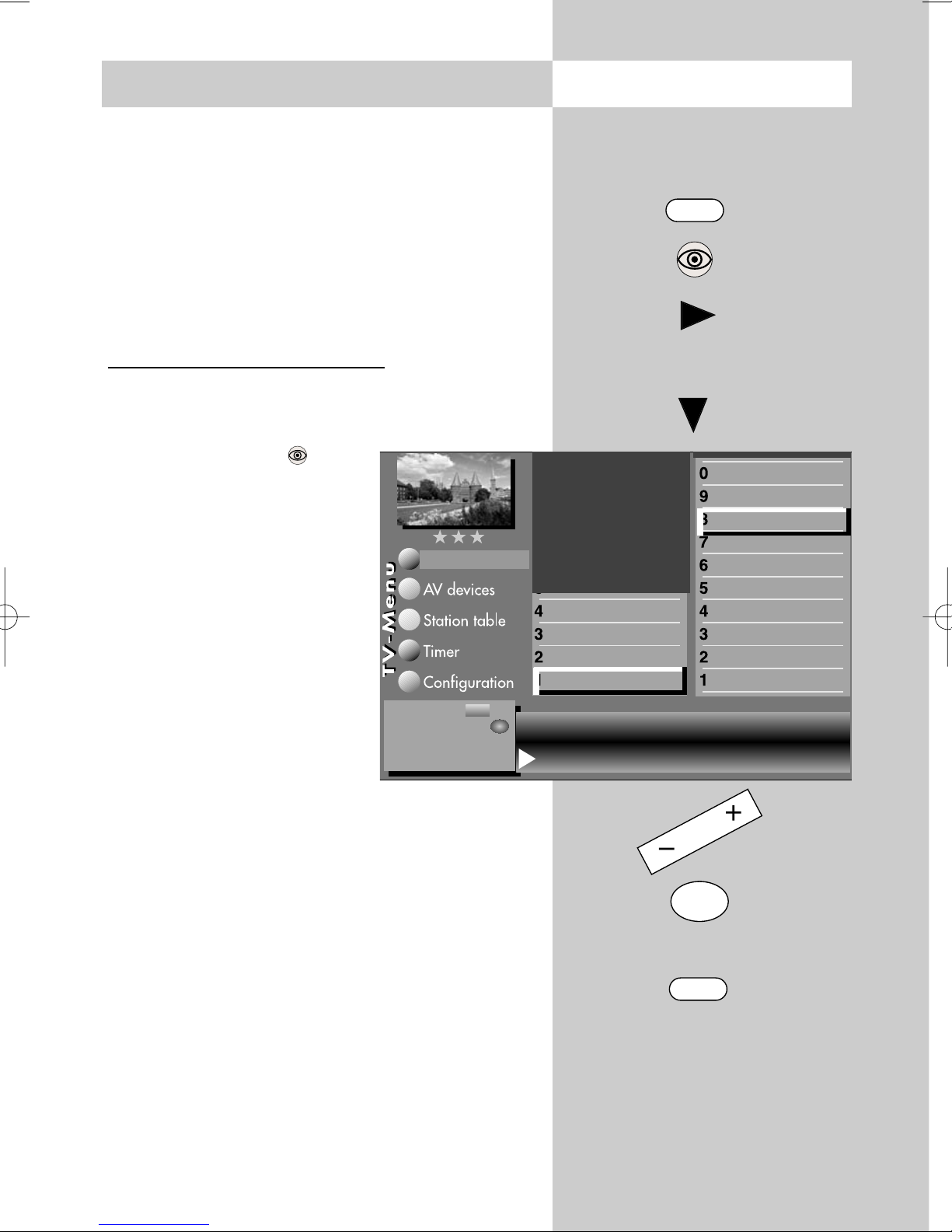

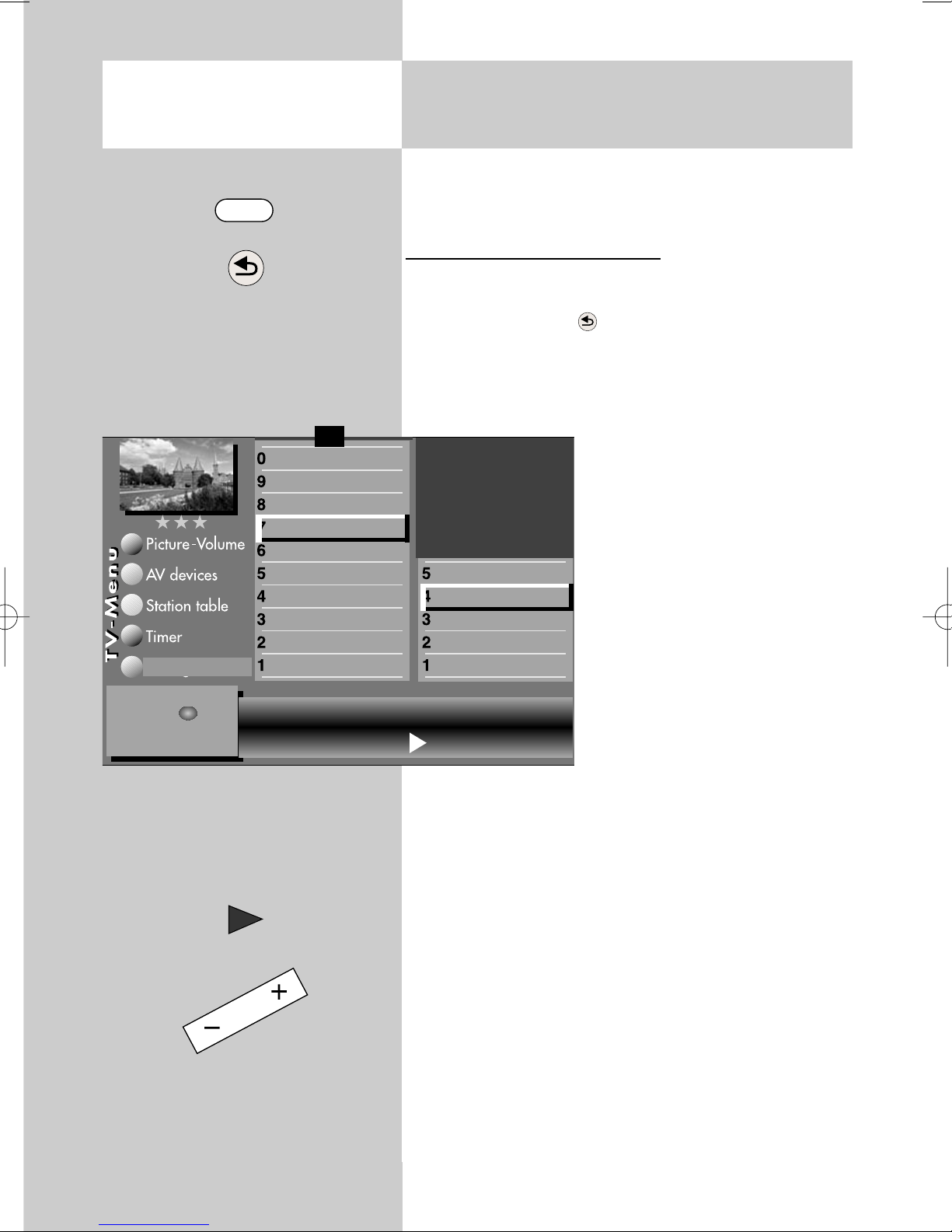

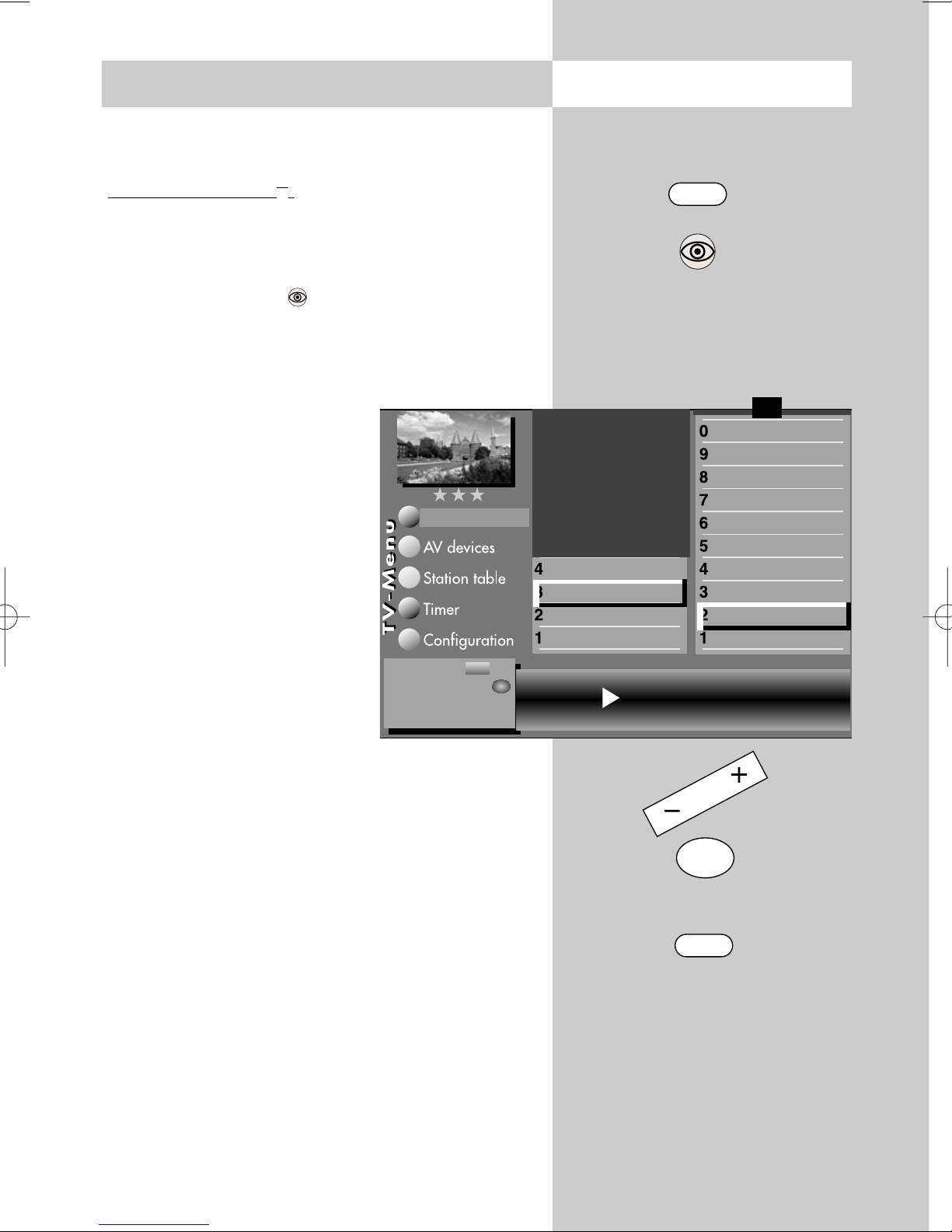

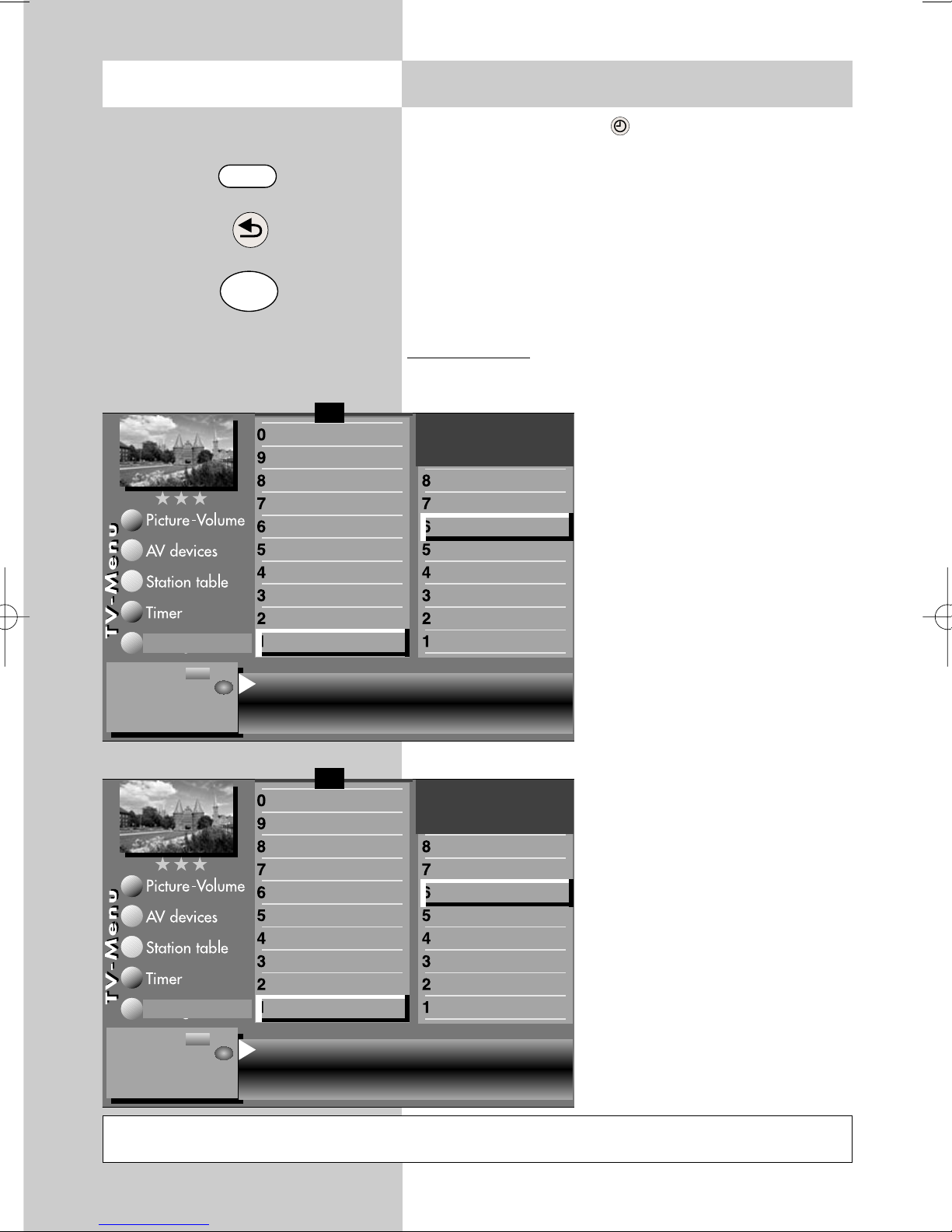

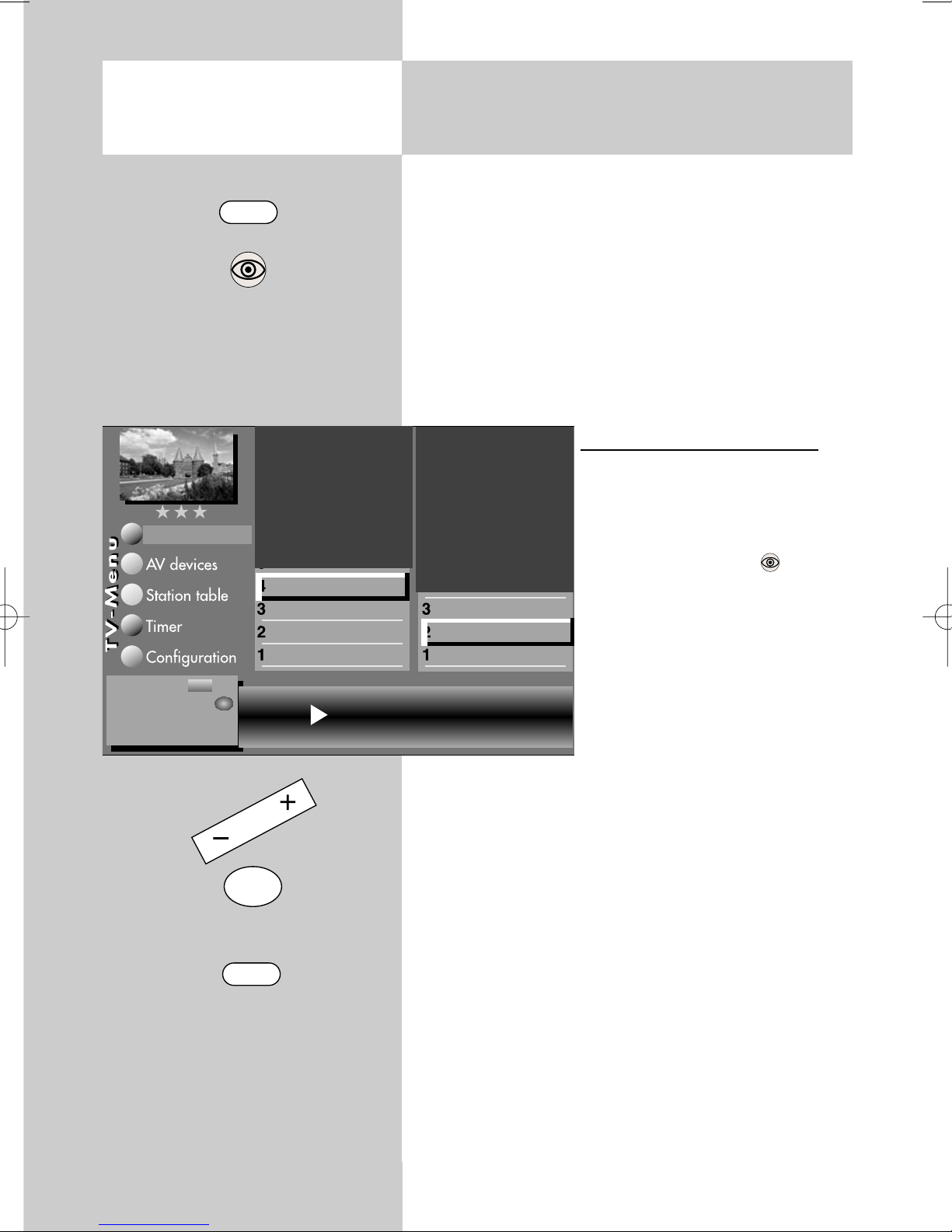

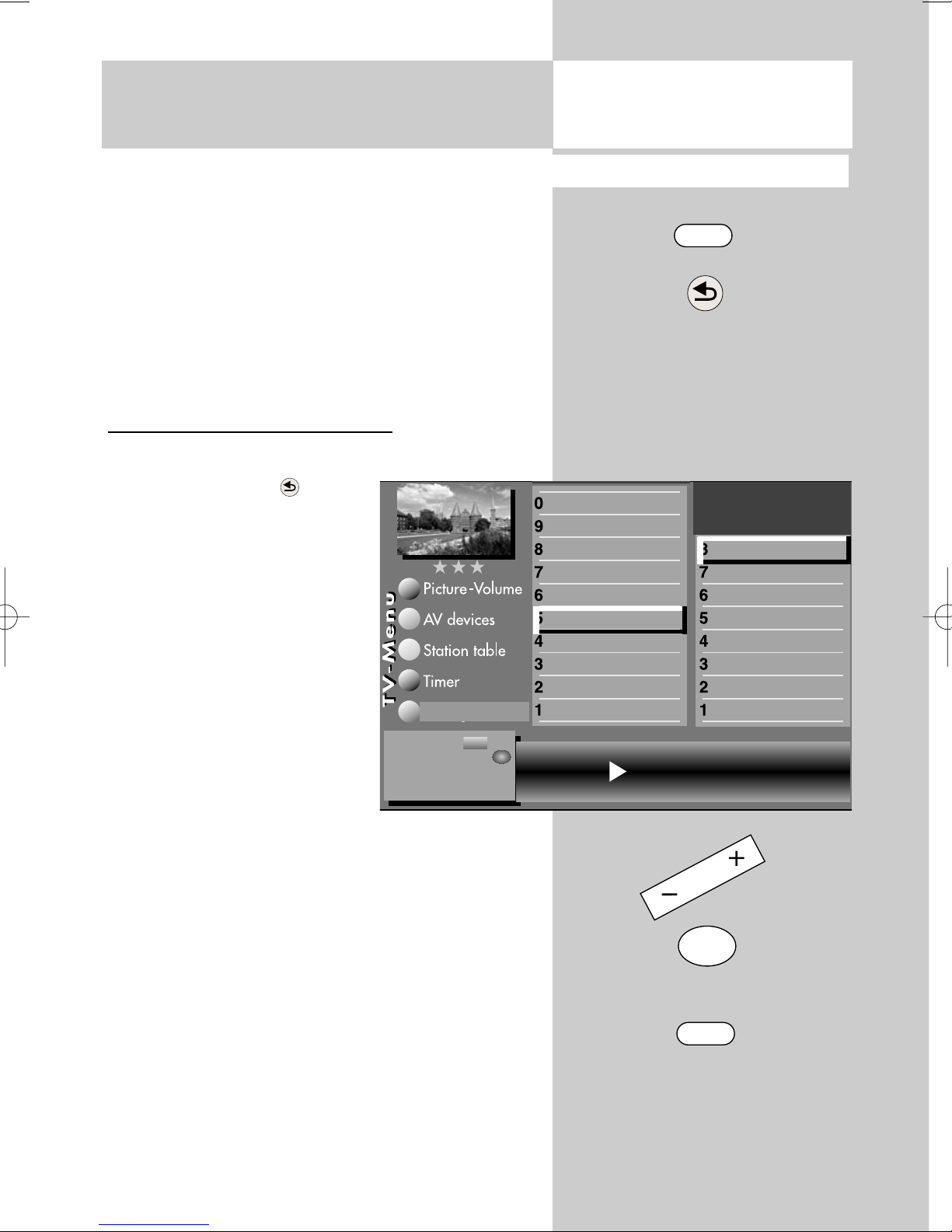

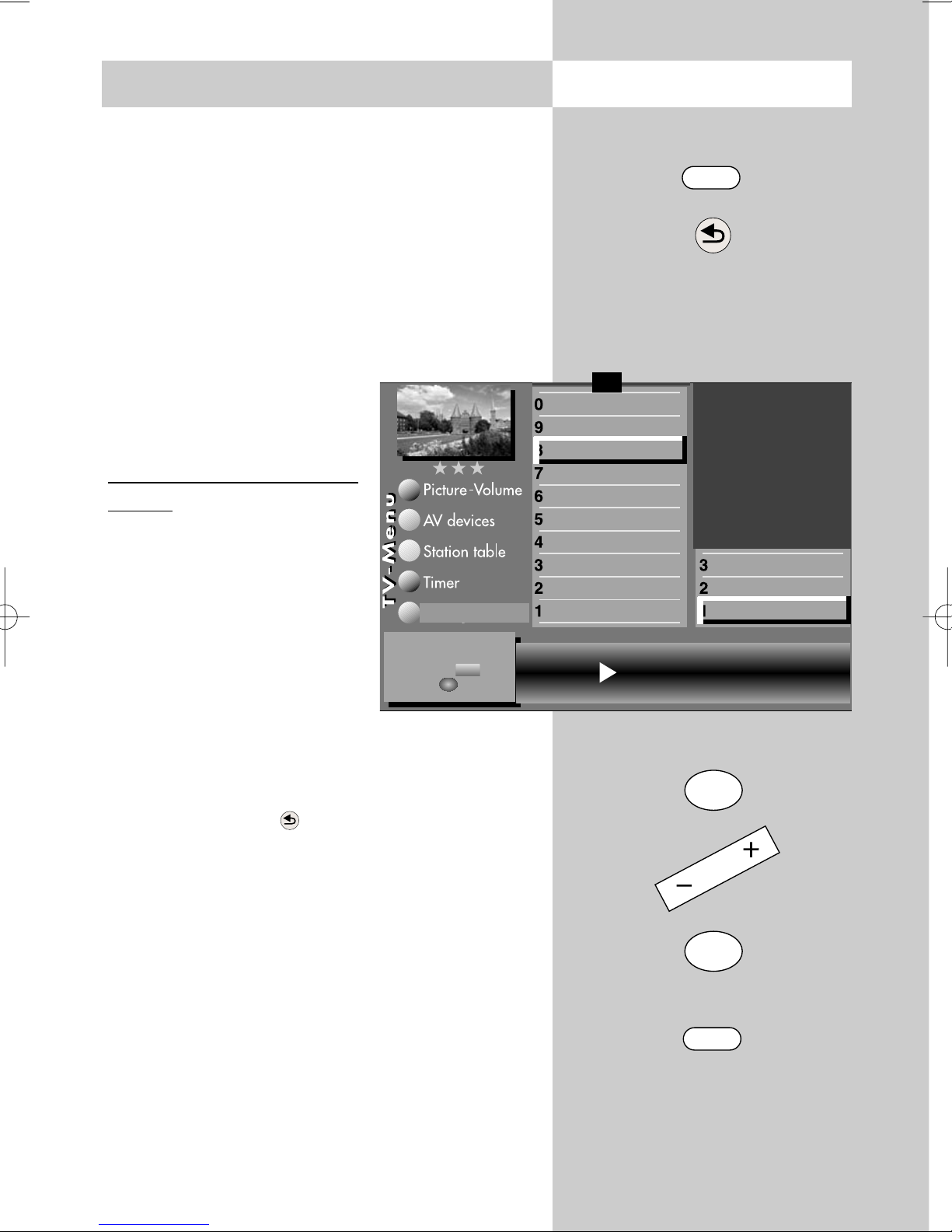

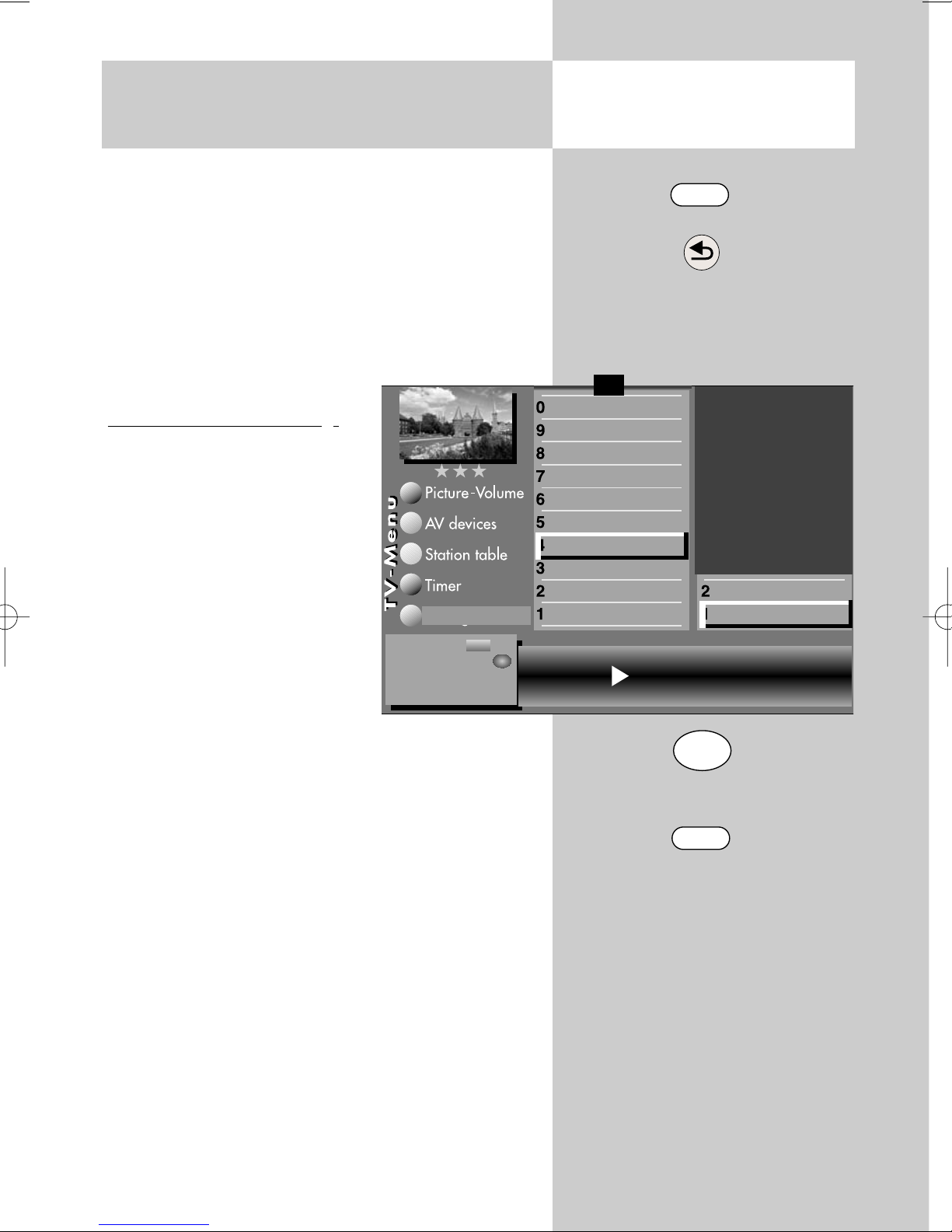

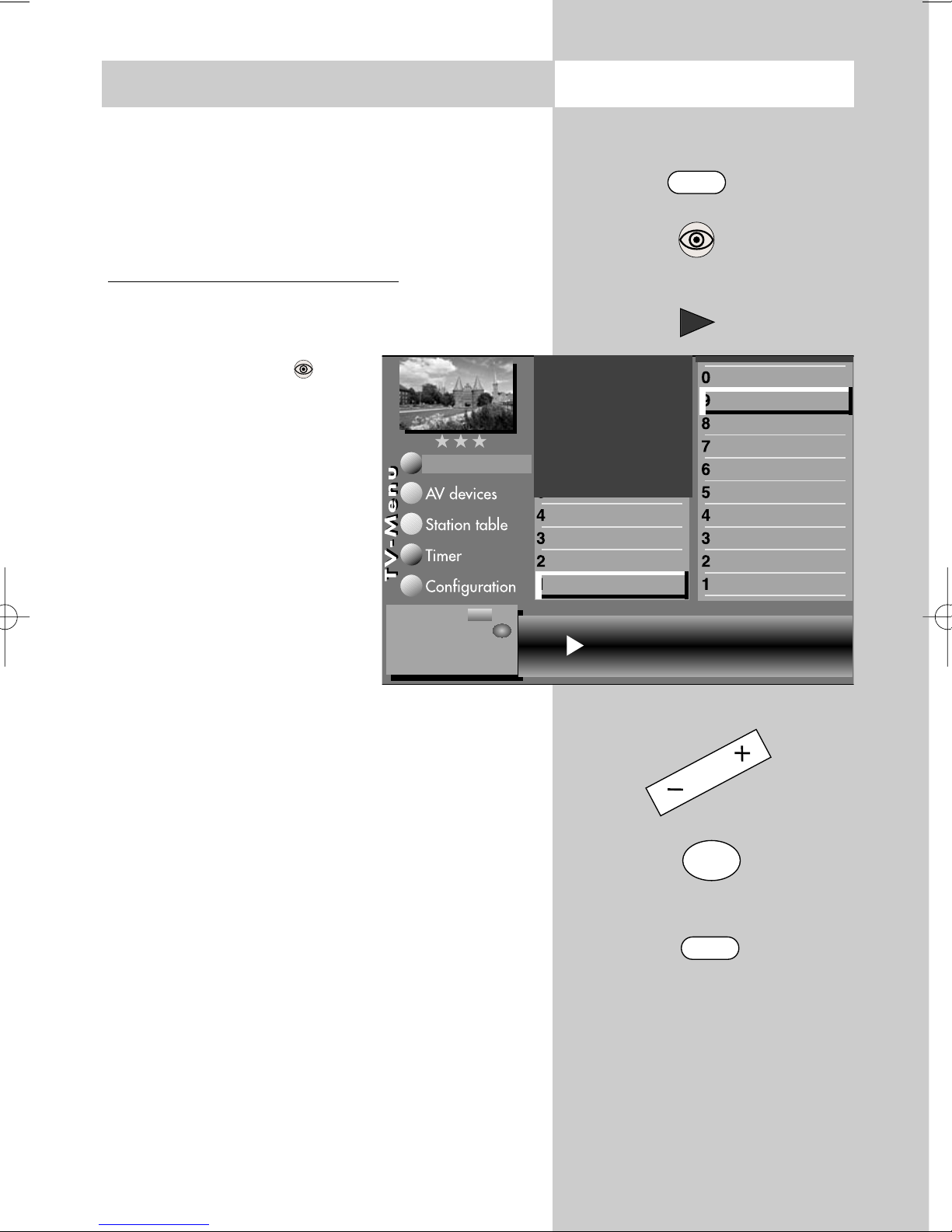

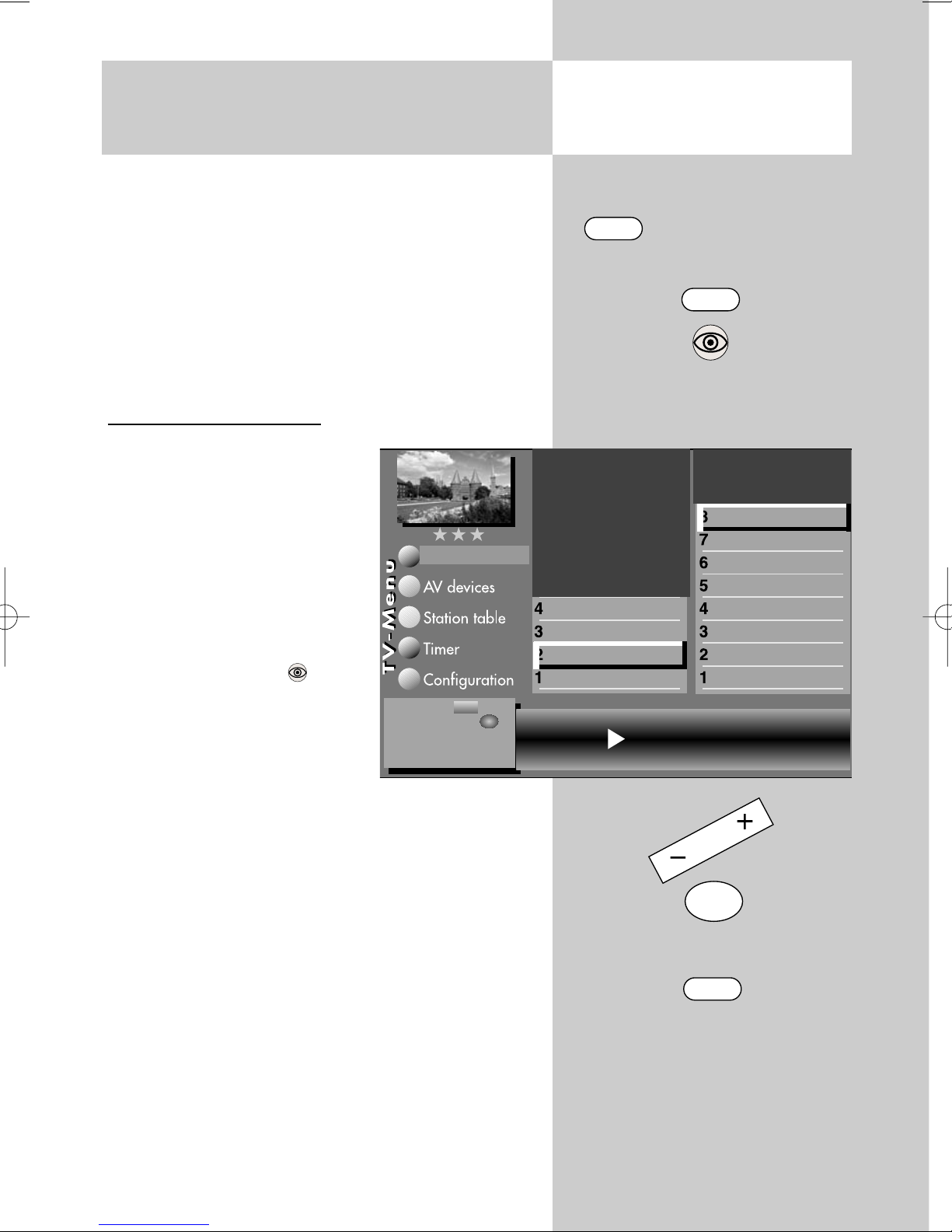

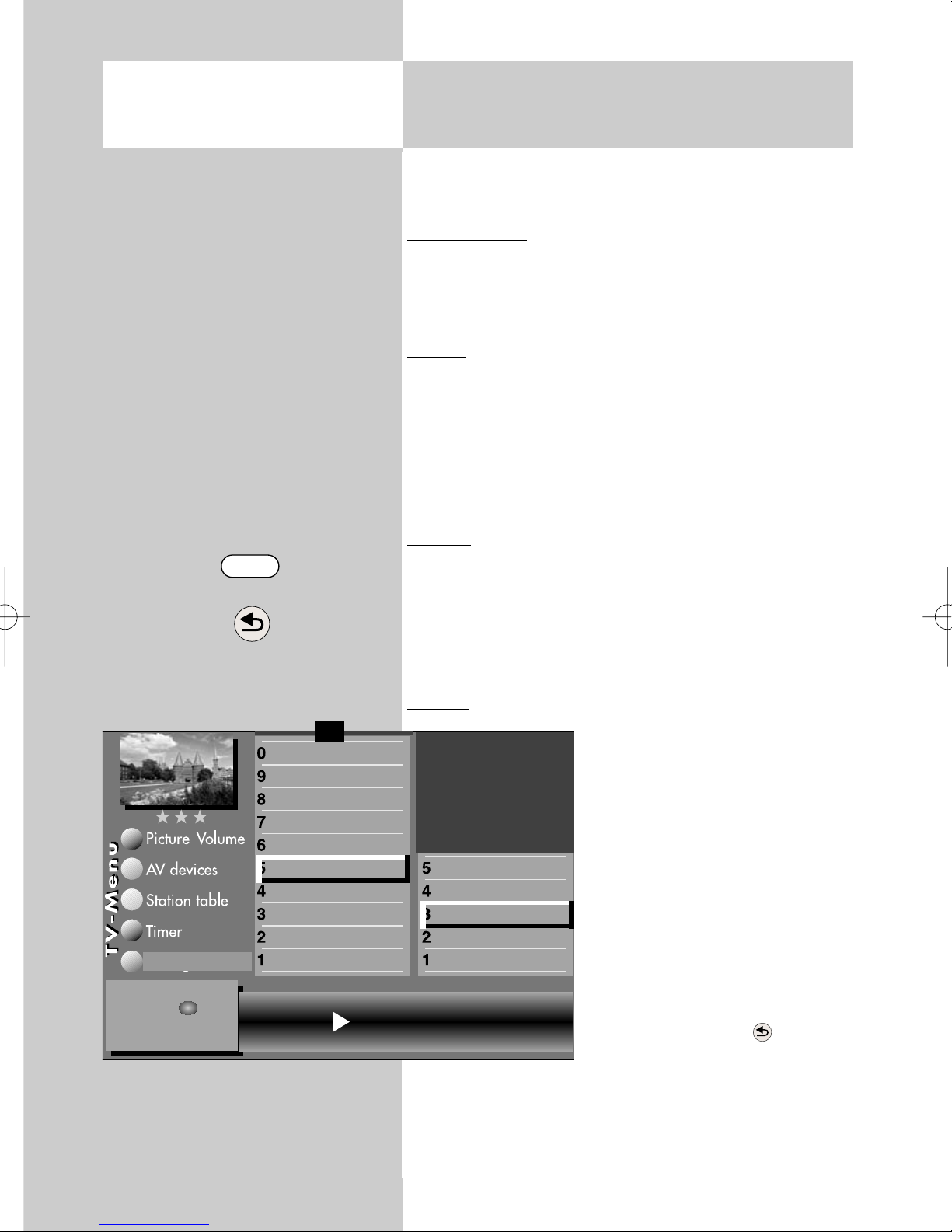

With the "TV menu", we provide you with an
assistant to help you find your way through the
many possible settings of the TV set.
Don't be afraid to change any settings in the
various menus. No changes will be saved unless
you press the "OK" key to confirm them. If you are not sure
whether you want to keep a
changed setting, you can exit
from the menu at any time,
without saving any changes,
by pressing the "EXIT" key.
Within the TV menu, you can
return to the previous main
menu item at any time by
pressing the "MENU" key. If
you are not sure what a menu
item does, press the "INFO"
key for more information.
In order to return to the menu,
press the "INFO" key twice.
You can open each of the five main sections of the
menu with the key of the corresponding colour.
The "card file" which is then displayed is subdivided into Subjects (on the left) and Sections (on the
right), and you can select these by moving the
red, triangular cursor with the oval cursor control
key or with the numeric keys.
When you press the "OK" key, the current setting
for the selected item is shown in the "Setting window" below the card file and can be adjusted
with the
-
+
key.
You can save the new setting by pressing the
"OK" key, which also returns you to the list of sections. If you do not want to save the new setting,
press the "MENU" key to return to the corresponding main menu item or press the "EXIT" key to
close the menu.
You can delete any incorrect inputs with the II key.
8. Menu Control Opening the menu
MENU
OK
* The number of subjects and sections depends
on the selected scope of operation. Depending on the configuration of the TV set, the
various menu items may be displayed in a
different order and numbered differently.
OK
EXIT
II
Factory settings
Motion compensation
Zoom/Panorama
Noise reduction
3)
Picture sharpness
Colour impr.
Colour intensity
Backlight control
Contrast
Brightness
Sound set,.prog.posn
Sound settings, gen.
Pict.set.,prog.posn.
Picture settings, gen.
Picture-Volume
Open the menu
with
: back
to TV picture
EXIT
Setting window
Related numeric keys
Cursor
Section*Subject*
12
Teletext is an additional service provided free of
charge by many TV stations. It is an "electronic
magazine" through which you can browse in
various ways.
Opening T
eletext:
• Press the "TEXT" key. If the selected
station offers "TOP-Text", a "card
file" is displayed (see the picture on
the left).
If "TOP-Text" is not available, Teletext
page 100 is displayed (see the picture below).
• In the TOP-Text card file, you can
select the desired cards with the cursor control key or with the numeric
keys.
• Press the "OK" key to open the selec-
ted card.
Controlling T
eletext with pages
displayed:
Blue key – next subject.
Yellow key – next section.
White key – next page.
After pressing the coloured pre-selec-
tion key, you can step through the subjects, sections or pages with the cursor
control key or with the numeric keys.
If you wish to select a specific page,
enter its page number on the numeric
keys.
If sub-pages exist for the selected page,
the page numbers are displayed in black. In the
example shown here, there are five sub-pages.
You can step through these sub-pages with the
cursor control key.
9. TeletextOpening the menu
TEXT
Page number
i
Gehörlose
Börse
Service
BR-Intern
Hörfunk
Fernsehen
Sport
Bayern
Schlagzeilen
Übersicht
Impressum
A-Z
100
100 ProSieben Datum Uhrzeit
100
Kartenlegen
Live
Gratis
09.56 talk talk talk. . . . . . . . . . . . . . . . . . . . . . 334
10.56 S.O.S.Style & Home. . . . . . . . . . . . . . . . 335
Aktuelle Meldungen. . . . . . . . . . . . . . . . . . . . . . . 112
Computer Wurm . . . . . . . . . . . . . . . . . . . . . . . . . 113
TED: Brauchen wir Schutz ? . . . . . . . . . . . . . . . . . 123
Weitere Meldungen. . . . . . . . . . . . . . . . . . . . . . . 135
458
00 01 02 03 04 05 06 07 08 09
Sub-pages
13
Double font size
You can double the size of the font used
for Teletext pages with the F1 key. Pres-
sing this key once displays an enlarged
picture of the upper third of the page.
Pressing it a second and third time displays the centre and lower thirds of the
page. Pressing a fourth time displays the
entire page again.
Riddle key (display hidden text)
Function key F2 is programmed in the
factory to display hidden text, such as
the answers to riddles.
Back to the last index page
You can return directly to the last index
page you have displayed by pressing
the numeric key .
Stop page scrolling
The II key or the "OK" key can be used
to stop the automatic scrolling executed
by some pages, and to enable this
again.
Page selection with the cursor
Press the "OK" key to stop page scrolling. The cursor is now positioned at
the top left corner of the page and you
can use the cursor control key
to position it anywhere on the displayed
page. This function is useful on index
pages (such as pages 100, 200, etc.) in
order to select a page you want to see.
After positioning the cursor on the desired page number, press the "OK" key to
display its contents.
Setting marks in Teletext
6)
As a user of Teletext, you will probably
want to visit certain pages (such as
stock-market news, news pages or the
weather forecast) regularly.
In order to find these pages quickly, you
can set marks to suit your personal
requirements.
To do this, open a page for which you
want to set a mark.
• Press the red key for "Set" to place
a mark on this page. The number of
the mark you have just set is displayed
above the window containing the number of the Teletext page. In the case of
multiple pages, the mark is always set
and displayed for the currently displayed sub-page.
Up to 10 marks can be set for
each programme position.
Scrolling through marked
Teletext pages
6)
With the Teletext window open, you can
step sequentially through the marked
pages with the green key.
An even easier method is by pressing the
"TEXT" key while the TV programme is
displayed. Each time you press this key,
the next marked page is displayed. After
the last marked page, the TV picture is
displayed again.
☞
9. Teletext
6) Not possible with an external receiver !
14
Displaying all Teletext marks
6)
If you have set marks for a programme position,
you can display an overview of these marks by
pressing the F3 key. The displayed list shows whe-
re the marks are set. Press F3 again to hide the
list.
You can select the individual marks in the list with
the numeric keys.
Clearing T
eletext marks
6)
Open the Teletext page whose mark is to be deleted and press the red key "Delete" to delete the
mark.
Subtitles in T
eletext
Your TV set is capable of displaying subtitles.
When a programme for which subtitles exist
starts, the TV station displays a box showing the
Teletext page on which these can be found.
• Press the "TEXT" key to open Teletext.
• If this is a "TOP-Text" station, the card file is displayed. Press the "OK" key and open any available page.
• Use the numeric keys to enter the number of the
page containing the subtitles.
Split-Screen
In Teletxt mode, the TV-Programm window in the
upper left corner can be enlarged to half of your
screen by pressing the „TV“ button.
If you press „TV“ button again, it will be used to
the orginal size.
9. Teletext
6) Not possible with an external receiver !
15
Opening the menu
AV playback (devices with switching voltage)
Before they can be used, AV devices must
be registered and assigned to the appropriate input sockets in the menu "AV devices".
Playing back a recording from a video cassette,
DVD, etc. on a connected AV device is called AV
playback.
In order to see the picture, you must programme
your TV set to execute an
automatic programme change
at the EURO socket to which
the AV device is connected.
Programming a programme
change
This menu item is not
available in a 2 ** menu
(see Section 30,
Scope of Operation).
The automatic programme change is set in the
factory to "ON" for all
EURO sockets.

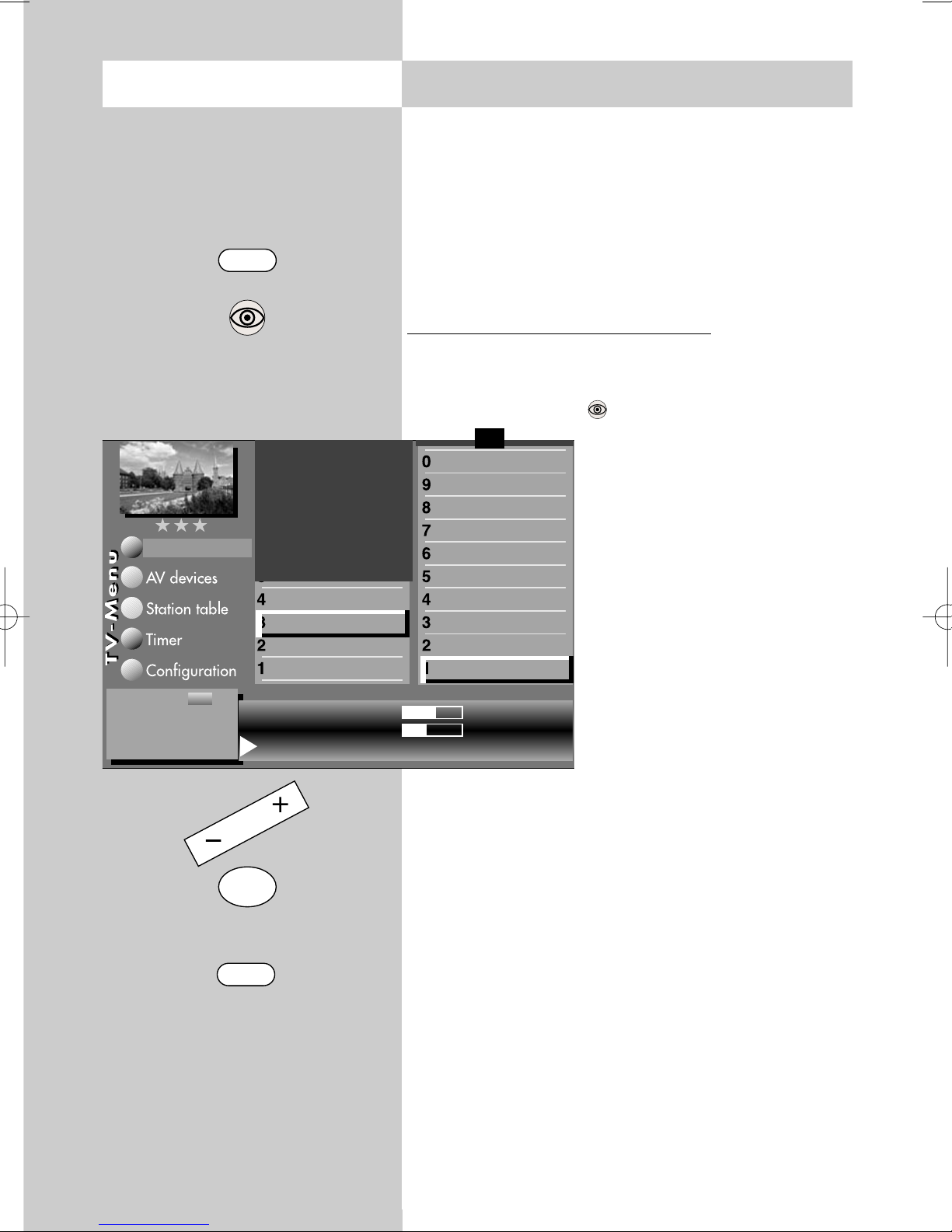

• Press the "MENU" key.
The TV menu appears on the screen.
• Press the red key . The menu
"Configuration" is displayed.
• Use the corresponding numeric key
(in this example:
) to select the menu item
"EURO sockets".
• Use the cursor control key to select "EURO 1,
"EURO 2" or "EURO 3".
• Press the "OK" key and then, in the setting win-
dow, use the
-
+
key to select "Programme chan-
ge on".
• Press the "OK" key to save the new setting.
• Press the "EXIT" key to close the TV menu.
☞
☞
☞
10. AV Playback
MENU
OK
OK
EXIT
The number of subjects and sections depends
on the selected scope of operation. Depending
on the configuration of the TV set, the various
menu items may be displayed in a different
order and numbered differently.
Change stations on
EURO 3
EURO 2
EURO 1
Function for F2
Function for F1
EURO sockets
DVB-C
DVB-T
DVB-S
Analog-TV
Country
Language
Operating
Configuration
Programm change
of switching line.
Change with .
Save with .
– +
OK
F1
➔
16
If you now start to play back a recording on the
connected AV device, the TV set changes automatically from any other programme position to the
playback mode.

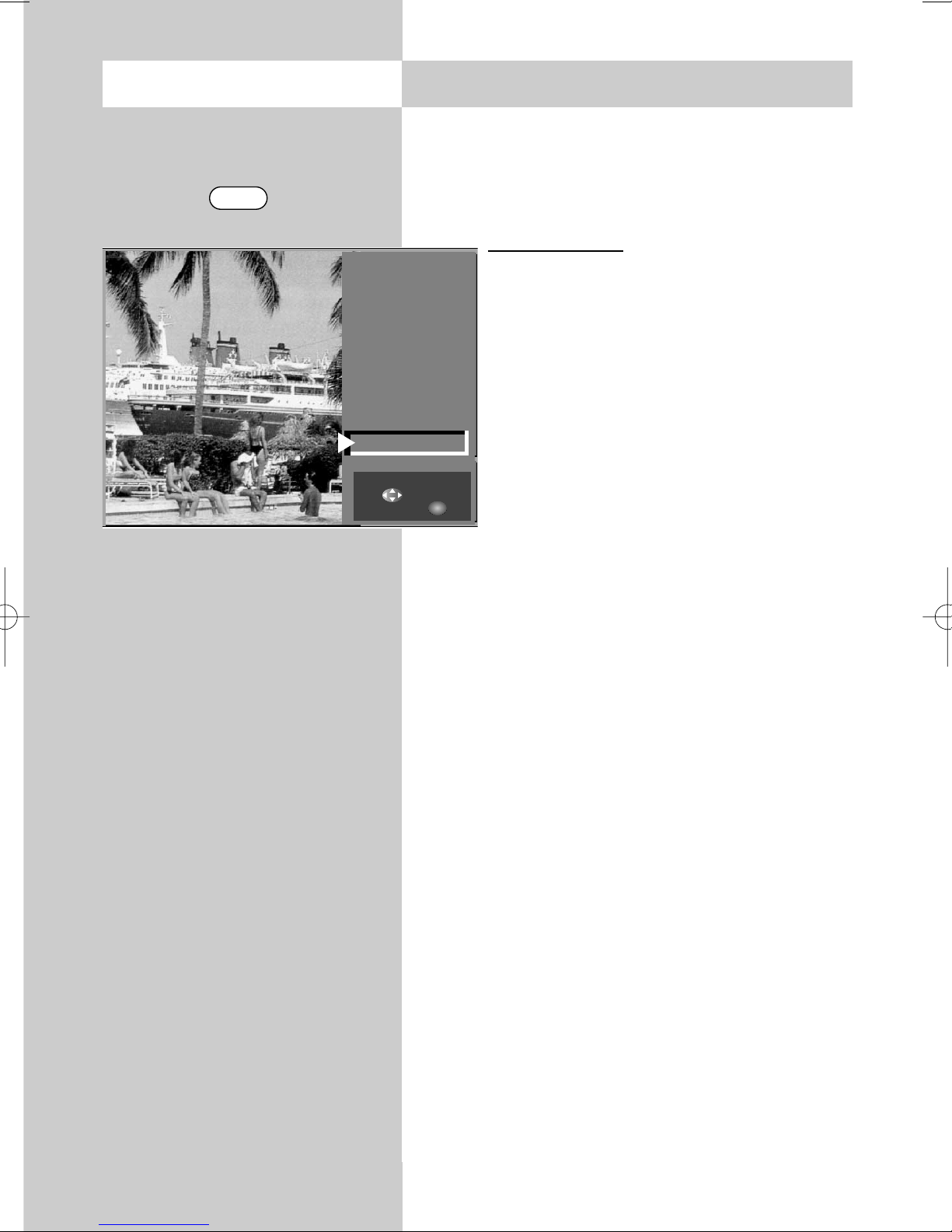

AV playback
(devices without switching voltage)
Before they can be used, AV devices must be registered and assigned to the appropriate input sokkets in the menu "AV devices".
In order to see the played back picture,
you must switch the TV set to playback
mode.
• Select any programme position.
• Press the "AV " key.
• Use the corresponding numeric key to select the
AV device you want to use.
• The TV set now changes from the current programme to the selected playback device.
• Start the replay function on the AV device. This
AV selection remains active until you switch to
any other programme position.
• After watching the film from the AV device,
press the "TV" key to return to normal TV mode.
☞
10. AV PlaybackOpening the menu
9 HDMI
8 DVI
5 Front
4 YCbCr
3 Foto
2 DVD Player 1
1 DVD/Videorec.1
AV
Select with ...
or .
Confirm with .
OK
17
10.1 AV Playback
VCR function
The menu item "VCR" is not available in a
2 ** menu.
Picture quality when playing back from
tape devices
The VCR function ensures an optimum picture
quality when playing back recordings from tape
devices such as video cassette recorders or camcorders.
Setting the VCR function
• Select the appropriate AV
level by pressing the "AV "
key and using the numeric
keys to select the AV device
which is to supply the pictures.
• Press the "MENU" key to
open the TV menu.
• Press the blue key . The
menu
"Picture and sound" and the
menu item "General picture
settings" are pre-selected.
• Use the corresponding numeric key (in the
example:
)
to select the menu item "Pict.set-
tings for Pr."
• Use the corresponding numeric key (in the
example:
)
to select the menu item "VCR".
• Use the
-
+
key to select "Opt.1". If this setting
does not produce a satisfactory result, you can
try using "Opt.2".
• Press the "OK" key to save the new setting.
• Press the "EXIT" key to close the TV menu.
☞
Opening the menu
The number of subjects and sections depends
on the selected scope of operation. Depending
on the configuration of the TV set, the various
menu items may be displayed in a different
order and numbered differently.
5) Available only for DVB stations!
7) Available only for analogue stations!
MENU
AV
. . . .
OK
EXIT
VCR settings Opt.1
VCR
3)
Picture format
5)
Colour standard
3)7)
Colour offset
3)7)
Noise reduction
3)
Picture sharpness
Colour intensity
Contrast
Sound set,.prog.posn
Sound settings, gen.
Pict.set.,prog.posn.
Picture settings, gen.
Picture-Volume
Change with
Accept value with
– +
OK
18
11. General Picture Settings
Some of the menu items are not available
in a 2 ** menu.
The picture settings brightness, contrast, colour
intensity, sharpness and noise reduction can be set
generally for all programme positions and saved
as standard values which can be recalled at any
time by pressing the "OK" key.
Opening the picture settings menu:
This example describes how the brightness is
adjusted. The other picture
settings can be adjusted in a
similar manner.

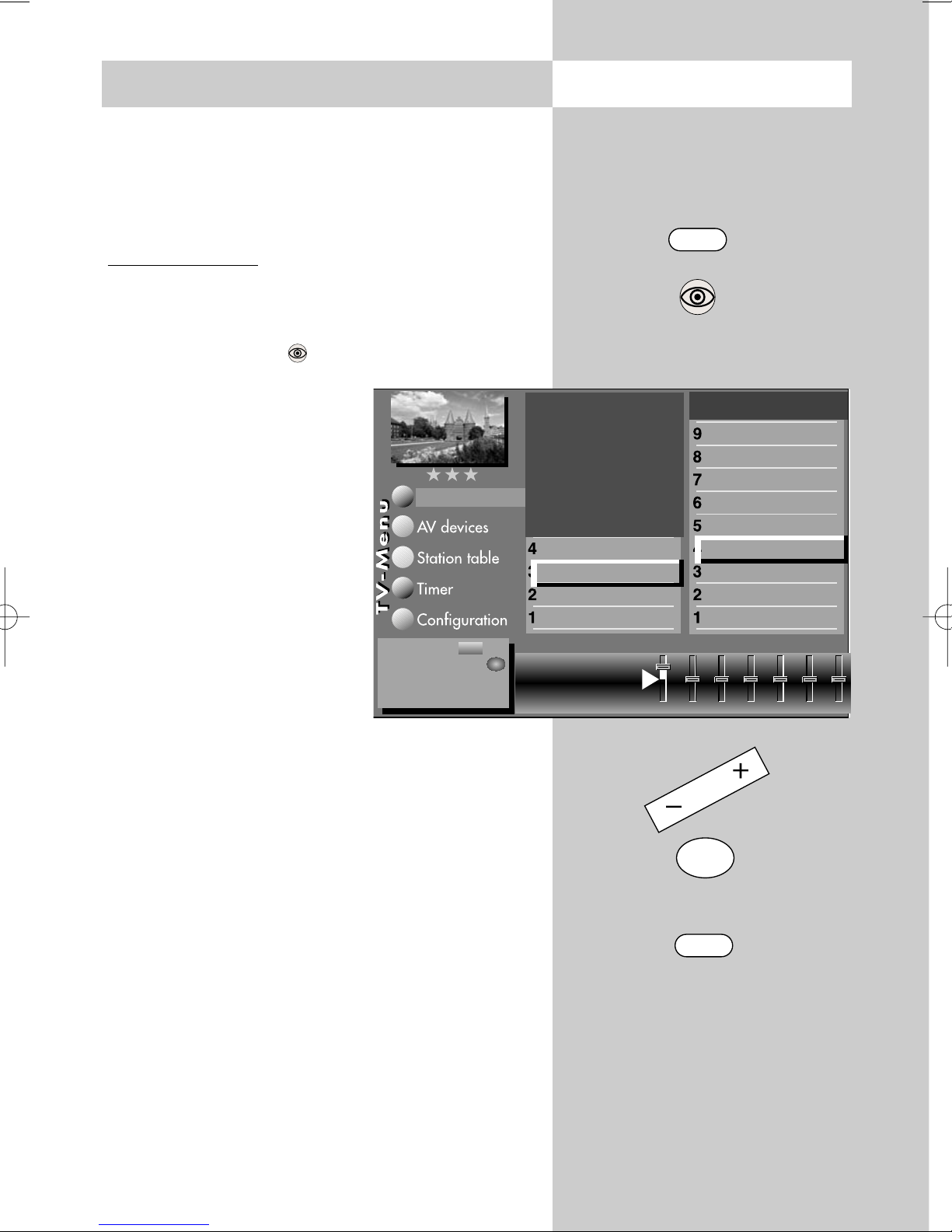

• Press the "MENU" key.
The TV menu appears on
the screen.
• Press the blue key . The
menu "Picture and sound"
and the menu item "General
picture settings" are preselected.
• Use the cursor control key
to select the menu item
"Brightness".
• The various menu items can be selected with the
aid of the numeric keys.
• In the setting window, use the
-
+
key to change
the setting.
• Use the cursor control key to select the third
line "Save as standard values".
• If you wish to save the new setting, use the
-
+
key to select "Yes".
• Press the "OK" key to save the changed setting
as a standard value.
• Press the "EXIT" key to close the TV menu.
If the standard values do not provide a satisfactory picture in some programme positions, you
can make settings for these positions which differ from the standard values. See the next sections. 11.1 and 11.2.
☞
☞
Opening the menu
MENU
OK
EXIT
The number of subjects and sections depends
on the selected scope of operation. Depending
on the configuration of the TV set, the various
menu items may be displayed in a different
order and numbered differently.
Brightness
61
Standard value
50
Use as default value: Yes
Factory settings
Motion compensation
Zoom/Panorama
Noise reduction
3)
Picture sharpness
Colour impr.
Colour intensity
Backlight control
Contrast
Brightness
Picture-Volume
Change with
Accept current
value as default
value.
– +
Sound set,.prog.posn
Sound settings, gen.
Pict.set.,prog.posn.
Picture settings, gen.
19
Opening the menu
MENU
11. General Picture Settings
Some of the menu items are not available
in a 2 ** menu.
The backlight control (factory setting "off") can be
set to "dynamic" or "automatic". With "dynamic"
the backlight control is adjusted according to the
picture contents.
With "automatic" the backlight control is adjusted
according to the ambient brightness.
The backlight control can be
set generally for all programs
and saved.
Set backlight control:
• Press the "MENU" key.
The TV menu appears on
the screen.
• Press the blue key . The
menu "Picture and sound"
and the menu item "General
picture settings" are preselected.
• Use the cursor control key to select the menu
item "Brightness".
• Use the corresponding numeric keys (in this
example:
for the Backlight control) to select
the desired menu items.
• Use the
—
+
key to change the settings for
"Backlight control".
• Press the "OK" key to save the changed setting
as a standard value.
• Press the "EXIT" key to close the TV menu.
☞
OK
EXIT
The number of subjects and sections depends
on the selected scope of operation. Depending
on the configuration of the TV set, the various
menu items may be displayed in a different
order and numbered differently.
Backlight control off
Factory settings
Motion compensation
Zoom/Panorama
Noise reduction
3)
Picture sharpness
Colour impr.
Colour intensity
Backlight control
Contrast
Brightness
Picture-Volume
Change with
Accept value with .
– +
OK
Sound set,.prog.posn
Sound settings, gen.
Pict.set.,prog.posn.
Picture settings, gen.
20
11. General Picture Settings
Some of the menu items are not available
in a 2 ** menu.
Depending on the brightness of the picture shown,
with the setting "Picture improvment on" there is
an extension of the bright area in the case of dark
picture contents.
As a result, dark pictures are reproduced with
greater accuracy of detail.
The picture improvement can be set to "Level 1-3"
or "off".
Setting the Picture improv
-
ment
• Press the "MENU" key.
The TV menu appears on
the screen.
• Press the blue key . The
menu "Picture and sound"
and the menu item "General
picture settings" are preselected.
• Use the cursor control key
to select the menu item
"Brightness".
• The various menu items can be selected with the
aid of the numeric keys.
• Use the
-
+
key to change the settings for "Pictu-
re improvment".
• Press the "OK" key to save the new settings.
The picture shows the factory settings.
• Press the "EXIT" key to close the TV menu.
☞
Opening the menu
MENU
OK
EXIT
The number of subjects and sections depends
on the selected scope of operation. Depending
on the configuration of the TV set, the various
menu items may be displayed in a different
order and numbered differently.
Picture improvment Level 1
Picture improvment
Factory settings
Motion compensation
Zoom/Panorama
Noise reduction
3)
Picture sharpness
Colour impr.
Colour intensity
Backlight control
Contrast
Picture-Volume
Change with
Accept value with .
– +
OK
Sound set,.prog.posn
Sound settings, gen.
Pict.set.,prog.posn.
Picture settings, gen.
21
11. General Picture Settings
Some of the menu items are not available
in a 2 ** menu.
This function provides a better picture for blackand-white films or cinema films. Movement are
more fluid and the picture looks more plastic.
Setting the Motion compensation
• Press the "MENU" key.
The TV menu appears on the screen.
• Press the blue key . The
menu "Picture and sound"
and the menu item "General
picture settings" are preselected.
• Use the cursor control key
to select the menu item
"Brightness".
• The various menu items can
be selected with the aid of
the numeric keys.
• Use the
-
+
key to change
the settings for "Motion compensation".
• Press the "OK" key to save the new settings.
The picture shows the factory settings.
• Press the "EXIT" key to close the TV menu.
☞
Opening the menu
MENU
OK
EXIT
The number of subjects and sections depends
on the selected scope of operation. Depending
on the configuration of the TV set, the various
menu items may be displayed in a different
order and numbered differently.
Motion compensation medium
Factory settings
Motion compensation
Zoom/Panorama
Noise reduction
3)
Picture sharpness
Colour impr.
Colour intensity
Backlight control
Contrast
Brightness
Picture-Volume
Change with
Accept value with .
– +
OK
Sound set,.prog.posn
Sound settings, gen.
Pict.set.,prog.posn.
Picture settings, gen.
22
11. General Picture Settings
Some of the menu items are not available
in a 2 ** menu.
Displays that do not fill the screen produce black
border. These border can be changed to a grey
tone to avoid "image sticking"3).
Displaying the picture in 4:3 format, for example,
produces these black border at the left and right.
Adjust border colour:
• Press the "MENU" key.
The TV menu appears on the
screen.
• Press the blue key . The
menu "Picture and sound"
and the menu item "General
picture settings" are preselected.
• Use the cursor control key
to select the menu item
"Brightness".
• Use the corresponding
numeric keys (in this example:
for Zoom/Panora-
ma) to select the desired
menu items.
• Use the cursor control key to select the desired
menu items.
• Use the
-
+
key to change the settings for "Bor-
der colour".
• Press the "OK" key to save the new settings.
The picture shows the factory settings.
• Press the "EXIT" key to close the TV menu.
☞
Opening the menu
MENU
OK
EXIT
The number of subjects and sections depends
on the selected scope of operation. Depending
on the configuration of the TV set, the various
menu items may be displayed in a different
order and numbered differently.
Zoom value 0 Panorama No
Picture pos., vert. 0%
Automatic zoom off Border colour grey
Factory settings
Motion compensation
Zoom/Panorama
Noise reduction
3)
Picture sharpness
Colour impr.
Colour intensity
Backlight control
Contrast
Brightness
Picture-Volume
Change with
Accept value with .
– +
OK
Sound set,.prog.posn
Sound settings, gen.
Pict.set.,prog.posn.
Picture settings, gen.
23
Opening the menu
MENU
11. General Picture Settings
Some of the menu items are not available
in a 2 ** menu.
The picture settings zoom, vertical position, automatic zoom and panorama can be set and saved
as general settings for all programme positions.
Setting the zoom/panorama mode:
• Press the "MENU" key.
The TV menu appears on the screen.
• Press the blue key . The
menu
"Picture and sound" and the
menu item "General picture
settings" are pre-selected.
• Use the cursor control key
to select the menu item
"Brightness".
• Press the corresponding
numeric key to select
"Zoom/Panorama".
• Use the cursor control key to
select the desired menu
items.
• Use the
-
+
key to change the settings for
"Zoom/Panorama".
• Press the "OK" key to save the new settings.
The picture shows the factory settings.
• Press the "EXIT" key to close the TV menu.
The functions "Panorama" and "Zoom"
can be combined with each other.
☞
☞
OK
EXIT
The number of subjects and sections depends
on the selected scope of operation. Depending
on the configuration of the TV set, the various
menu items may be displayed in a different
order and numbered differently.
3) See glossary for an explanation.
Zoom value 0 Panorama Yes
Picture pos., vert. 0% Pan. mode
Non-linear
Automatic zoom off
Picture improvment
Factory settings
Zoom/Panorama
3)
Noise reduction
3)
Picture sharpness
Colour impr.
Colour intensity
Backlight control
Contrast
Brightness
Picture-Volume
Change with
Accept value with .
– +
OK
Sound set,.prog.posn
Sound settings, gen.
Pict.set.,prog.posn.
Picture settings, gen.
24
11.1 Picture Settings for
Programmes via TV Menu
Opening the menu
Picture settings for individual programme
positions are not available in a 2 ** menu.
If the standard values do not provide a satisfactory picture in some programme positions, you can
make different settings for these positions which
override almost all of the general picture settings.
These individual settings apply only to the programme position for which they are made, and
they cannot be overwritten
with the standard values. In
addition to the general picture
settings, the individual settings
also include the settings
colour offset, colour standard
and VCR.
Individual picture settings for
programme position xy:
• Select the programme position whose picture settings
you wish to change.
• Press the "MENU" key.
The TV menu appears on
the screen.
• Press the blue key . The menu "Picture and
sound" and the menu item "General picture settings" are pre-selected.
•
Use the cursor control key to select the menu
item "Pic. settings for Pr." And press the "OK" key
.
• Use the corresponding numeric keys (in this
example:
for noise reduction) to select the
desired menu items.
• In the setting window, use the
-
+
key to change
the setting.
• Press the "OK" key to save the new setting.
• Press the "EXIT" key to close the TV menu.
☞
The number of subjects and sections depends on
the selected scope of operation. Depending on
the configuration of the TV set, the various menu
items may be displayed in a different order and
numbered differently.
2)
Possible only on sets equipped with this function.
3) See glossary for an explanation.
5) Available only for DVB stations!
7) Available only for analogue stations!
Noise reduction light
VCR
3)
Picture format
5)
Colour standard
3)7)
Colour offset
3)7)
Noise reduction
3)
Picture sharpness
Colour intensity
Contrast
Picture-Volume
Change with
Accept value with
– +
OK
MENU
OK
EXIT
OK
Sound set,.prog.posn
Sound settings, gen.
Pict.set.,prog.posn.
Picture settings, gen.
25

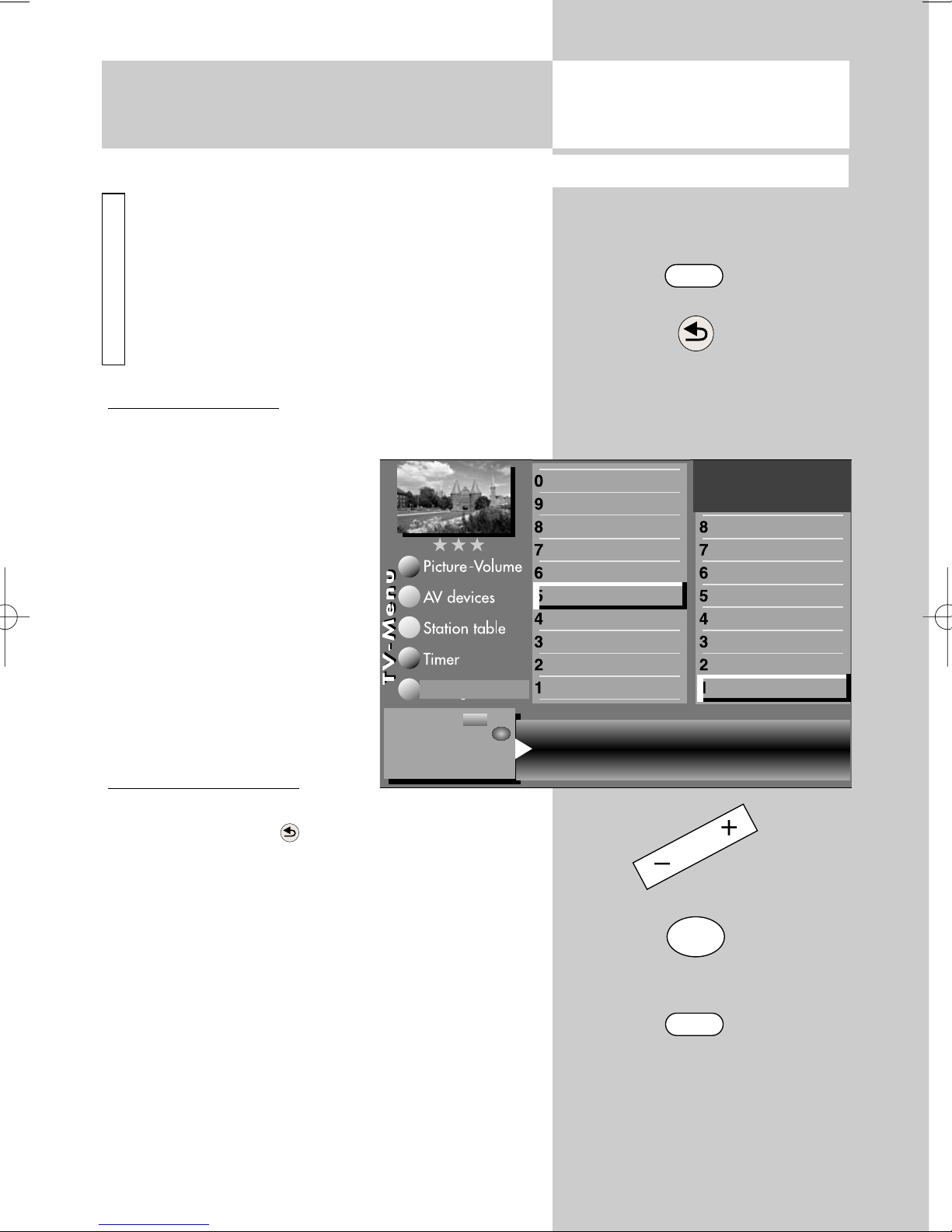

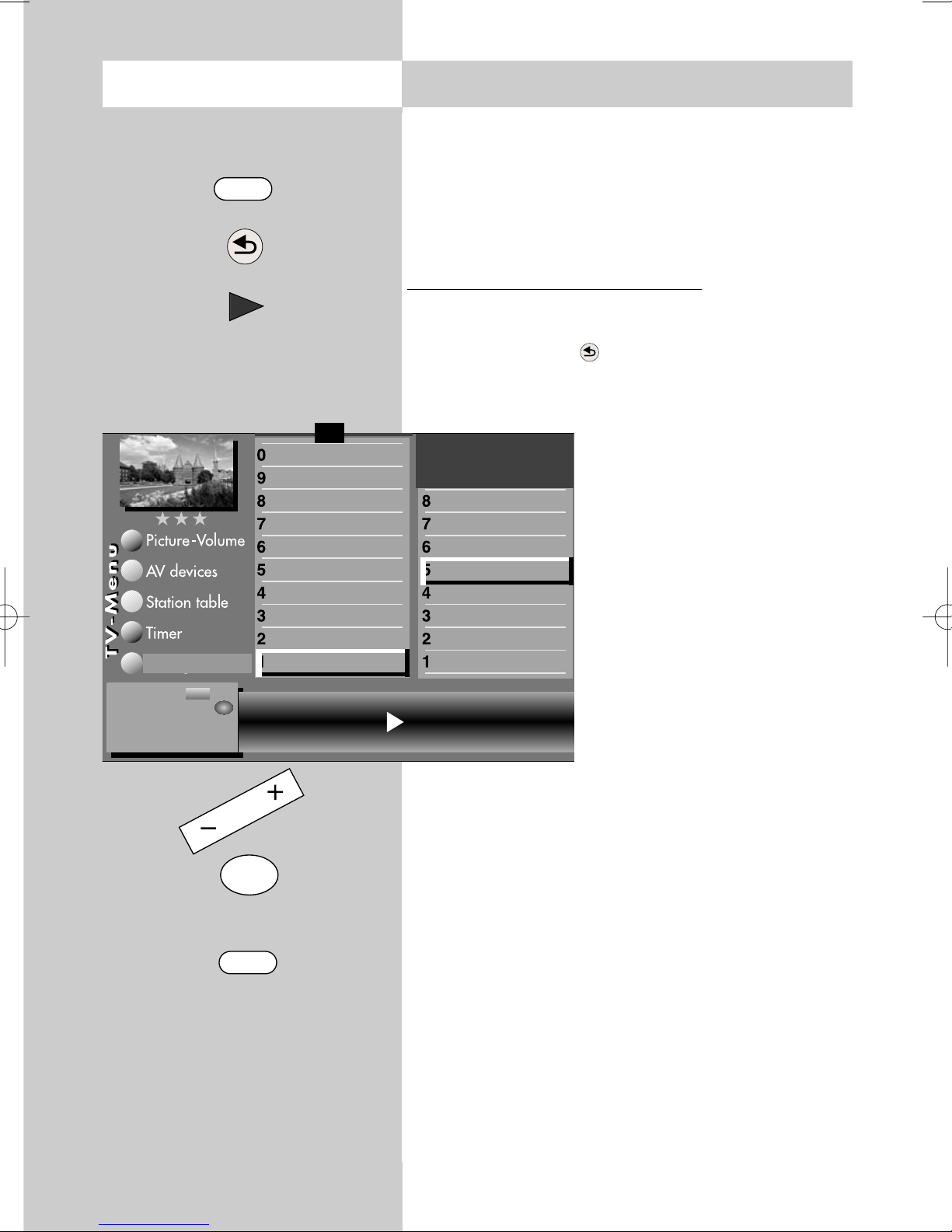

Opening the menu
11.2 Picture Settings for
Programme via Station Table
Individual picture settings for
programme position xy:
• Select the programme position whose picture
settings you wish to change.
• Press the "MENU" key.
The TV menu appears on the screen.
• Press the white key . The station table is displayed with the currently active programme
position highlighted.
• Press the F2 key to enable editing of the station
table.
• Press the cursor control key
to move to the subject
side.
• Use the corresponding
numeric keys (in this example:
for the picture quali-
ty) to select the desired
menu items.
• In the setting window, use
the cursor control key to
select the desired function.
• Use the
-
+
key to change the setting.
"gen." means here that the new setting will
overwrite the related general picture setting (see
pages 18 and 20).
The individual settings made here which
differ from the general settings remain
saved.
• Press the "OK" key to save the new settings.
• Press the "EXIT" key to close the TV menu.
☞
OK
EXIT
MENU
F2
Picture sharpness gen. Noise reduction gen.
Colour offset 0
VCR off
Sound corrections
Colour standard
3)7)
Picture quality
Picture correct.
Enter logo
Station contained in EPG
CA module
5)
Signal quality
5)
DVB-prog. info
5)
Frequency/channel
7)
0010 Hessen 3
0009 Südwest
0008 MDR
0007 PRO 7
0006 RTL 2
0005 RTL
0004 SAT 1
0003 Bayern 3
0002 ZDF
0001 ARD
Station table
Change with
Accept value with
– +
OK
✗
F1
➔
The number of subjects and sections depends on
the selected scope of operation. Depending on
the configuration of the TV set, the various menu
items may be displayed in a different order and
numbered differently.
5) Available only for DVB stations!
7) Available only for analogue stations!
3) See glossary for an explanation.
5) Available only for DVB stations!
7) Available only for analogue stations!
26
Opening the menu 12. General Sound Settings
Some of the menu items are not available
in a 2 ** menu.
The sound settings volume, treble, bass, stereo
wide and spatial sound can be set generally for
all programme positions and saved as standard
values which can be recalled at any time by pressing the "OK" key.
Opening the sound settings menu:
• Press the "MENU" key.
The TV menu appears on the screen.
• Press the blue key . The menu
"Picture and sound" and the
menu item "General picture
settings" are pre-selected.
• Use the corresponding
numeric key (in the example:
) to select
"General sound settings".
• Use the corresponding
numeric keys to select the
desired menu items in the
right-hand column.
• Press the "OK" key to open
the selected menu item for
editing.
• In the setting window, use the
-
+
key to change
the setting.
• Use the cursor control key to select the third
line "Save as standard value".
• If you wish to save the new setting, use the
-
+
key to select "Yes".
• Press the "OK" key to save the new settings as
standard values.
• Press the "EXIT" key to close the TV menu.
If the standard values do not provide satisfactory results for some programme positions, you can make different individual settings for these positions. See sections 12.1.
☞
☞
MENU
OK
EXIT
The number of subjects and sections depends
on the selected scope of operation. Depending
on the configuration of the TV set, the various
menu items may be displayed in a different
order and numbered differently.
2)
Possible only on sets equipped with this function.
3) See glossary for an explanation.
4) Available only if SRS WOW is switched off
Volume
61
Standard value
50
Use as default value:
Yes
Base width
4)
Spatial sound
4)
Balance
Tone setting
Volume headphones
Bass
Treble
Automatic volume control
3)
SRS WOW
2) 3)
Volume
Picture-Volume
Change with
Accept current
value as default
value.
– +
F1
➔
Sound set,.prog.posn
Sound settings, gen.
Pict.set.,prog.posn.
Picture settings, gen.
27
12. General Sound Settings
Some of the menu items are not available
in a 2 ** menu.
Setting SRS-WOW
2)
• Press the "MENU" key.
The TV menu appears on the screen.
• Press the blue key . The menu "Picture and
sound" and the menu item "General picture settings" are pre-selected.
• Press the numeric key
to select "General
sound settings".
• Use the corresponding
numeric key
(in the example:
) to
select "SRS–WOW" 2).
• In the setting window, use
the
-
+
key to change the
setting.
• Press the "OK" key to save
the changed setting.
• „Press the "EXIT" key to close the
TV menu.
If the SRS-WOW function is
active, the menu items "stereo wide" and
"spatial sound" are disabled.
☞
☞
Opening the menu
MENU
OK
EXIT
The number of subjects and sections depends
on the selected scope of operation. Depending
on the configuration of the TV set, the various
menu items may be displayed in a different
order and numbered differently.
2) Possible only on sets equipped with this
function.
3) See glossary for an explanation.
4) Available only if SRS WOW is switched off
SRS WOW
2)3)
on
Base width
4)
Spatial sound
4)
Balance
Tone setting
Volume headphones
Bass
Treble
Automatic volume control
3)
SRS WOW
2) 3)
Volume
Picture-Volume
Change with
Accept value with
– +
F1
➔
OK
Sound set,.prog.posn
Sound settings, gen.
Pict.set.,prog.posn.
Picture settings, gen.
28
Automatic volume correction
Some TV stations transmit their commercials at a
higher sound volume than that for the normal programme. In order to save you from adjusting the
volume each time with the remote control, you can
activate automatic volume correction.
With this function active, there is little difference in
the volume levels for the normal programme and
the commercials.
The setting made here applies
to all programme positions.
Opening the volume correc
-
tion menu:
• Press the "MENU" key.
The TV menu appears on
the screen.
• Press the blue key . The
menu
"Picture and sound" and the
menu item "General picture
settings" are pre-selected.
• Use the corresponding numeric key (in the
example:
) to select "General sound settings".
• Use the corresponding numeric key (in the
example:
) to select "Volume correction".
• In the setting window, use the
-
+
key to change
the setting.
• Press the "OK" key to save the new setting.
• Press the "EXIT" key to close the TV menu.
The function "Volume correction" in the
menu "General sound settings" does not
overwrite the function "Volume correction"
in the menu "Sound settings for Pr...".
☞
Opening the menu 12. General Sound Settings
MENU
OK
EXIT
The number of subjects and sections depends
on the selected scope of operation. Depending
on the configuration of the TV set, the various
menu items may be displayed in a different
order and numbered differently.
2) Possible only on sets equipped with this
function.
3) See glossary for an explanation.
4) Available only if SRS WOW is switched off
Volume control
3)
on
Base width
4)
Spatial sound
4)
Balance
Tone setting
Volume headphones
Bass
Treble
Automatic volume control
3)
SRS WOW
2) 3)
Volume
Picture-Volume
Change with
Accept value with
– +
F1
➔
OK
Sound set,.prog.posn
Sound settings, gen.
Pict.set.,prog.posn.
Picture settings, gen.
29
Bei einem 2 Menü sind verschiedene
Menüpunkte nicht einstellbar.
Audio frequencies can be individually adjusted to
your personal tastes in the "Equalizer" menu.
Adjust Equalizer:
• Press the "MENU" key.
The TV menu appears on the screen.
• Press the blue key . The menu
"Picture and sound" and
the menu item "General
picture settings" are preselected.
• Use the corresponding
numeric key (in the example:
) to select "General
sound settings".
• Use the corresponding
numeric key (in the example:
) to select "Equali-
zer".
• Press Cursor control key
and adjust each slider in
turn.
• Change the setting with the
-
+
key..
• With the cursor control key activate the line
"As standard".
• To save the new value press the
-
+
key and select
"Yes".
• Press the "OK" key to save the new setting.
• Press the "EXIT" key to close the TV menu.
☞
MENU
OK
EXIT
The number of subjects and sections depends
on the selected scope of operation. Depending
on the configuration of the TV set, the various
menu items may be displayed in a different
order and numbered differently.
2) Possible only on sets equipped with this
function.
3) See glossary for an explanation.
4) Available only if SRS WOW is switched off
Equalizer
Use a default value. No
Base width
4)
Spatial sound
4)
Balance
Tone setting
Volume headphones
Equalizer
Automatic volume control
3)
SRS WOW
2) 3)
Volume
Picture-Volume
12 kHz
7,5 kHz
3 kHz
1,2 kHz
500 Hz200 Hz100 Hz
00000010
12. General Sound Settings Opening the menu
Change with
Accept value with
– +
OK
Sound set,.prog.posn
Sound settings, gen.
Pict.set.,prog.posn.
Picture settings, gen.
30
12. General Sound Settings
Base width and spatial sound
The menu points base width and spatial
sound are only shown when the function
"SRR WOW" is turned off..
Base width
In the case of stereo transmissions, the base width
(= spatial distance between the loudspeakers) can
be artificially widened to achieve a larger stereo
triangle.
Spatial sound
In the case of mono transmissions, an artificial stereo effect
can be produced.
Activate base width/spatial
sound:
• Press the "MENU" key.
The TV menu appears on
the screen.
• Press the blue key . The
menu "Picture and sound"
and the menu item "General
picture settings" are preselected.
• Press the numeric key
to select "General
sound settings".
• Select "Spatial sound" or "Base width" with key
allocated, in the example
or 0.
• In the setting window, use the
-
+
key to change
the setting.
• Press the "OK" key to save the changed setting.
• „Press the "EXIT" key to close the
TV menu.
☞
Opening the menu
OK
EXIT
The number of subjects and sections depends
on the selected scope of operation. Depending
on the configuration of the TV set, the various
menu items may be displayed in a different
order and numbered differently.
2) Possible only on sets equipped with this
function.
3) See glossary for an explanation.
4) Available only if SRS WOW is switched off
MENU
Spatial sound on
Factory settings
Base width
4)
Spatial sound
4)
Balance
Tone setting
Volume headphones
Equalizer
Automatic volume control
3)
SRS WOW
2) 3)
Volume
Picture-Volume
Change with
Accept value with
– +
F1
➔
OK
Sound set,.prog.posn
Sound settings, gen.
Pict.set.,prog.posn.
Picture settings, gen.
31
12.1 Sound Settings for
Programmes via TV Menu
Opening the menu
Some of the menu items are not available
in a 2 ** menu.
Volume correction
Various TV stations broadcast their programmes
with different sound volumes. This volume difference can be minimised by correcting the volume.
This adjustment remains active even if the standard sound values are recalled.
Adjusting the volume correc
-
tion:
• Press the "MENU" key.
The TV menu appears on
the screen.
• Press the blue key . The
menu
"Picture and sound" and the
menu item "General picture
settings" are
pre-selected.
• Use the corresponding numeric key (in the
example:
) to select "Sound settings for Pr.".
• Press the "OK" key and then, in the setting
widow, use the
-
+
key to change the setting.
• Press the "OK" key to save the new settings.
• Press the "EXIT" key to close the TV menu.
Individual sound settings can also be made
in the station table.
☞
☞
MENU
OK
EXIT
OK
Volume correction -15
Forced mono
7)
Tone settings
Volume correction
Picture-Volume
Change with
Accept value with
– +
OK
The number of subjects and sections depends on
the selected scope of operation. Depending on
the configuration of the TV set, the various menu
items may be displayed in a different order and
numbered differently.
7) Available only for analogue stations!
Sound set,.prog.posn
Sound settings, gen.
Pict.set.,prog.posn.
Picture settings, gen.
32
12.1 Sound Settings for
Programmes via TV Menu
Opening the menu
Some of the menu items are not available
in a 2 ** menu.
Tone setting
The tone setting can be set to "Normal" or
"Speech". The setting "Speech" should be used
primarily for stations which broadcast mainly programmes with a lot of speech, such as news stations. The setting "Normal" is better for music programmes.
Adjusting the tone setting :
• Press the "MENU" key.
The TV menu appears on
the screen.
• Press the blue key . The
menu
"Picture and sound" and the
menu item "General picture
settings" are pre-selected.
• Use the corresponding
numeric key (in the example:
) to select
"Sound settings for Pr.".
• Use the corresponding numeric key (in the
example:
) to select
"Tone settings".
• In the setting window, use the
-
+
key to change
the setting.
• Press the "OK" key to save the new settings.
• Press the "EXIT" key to close the TV menu.
Individual sound settings can also be made
in the station table.
☞
☞
MENU
OK
EXIT
The number of subjects and sections depends
on the selected scope of operation. Depending
on the configuration of the TV set, the various
menu items may be displayed in a different
order and numbered differently.
Tone settings Speech
Forced mono
7)
Tone settings
Volume correction
Picture-Volume
Change with
Accept value with
– +
OK
Sound set,.prog.posn
Sound settings, gen.
Pict.set.,prog.posn.
Picture settings, gen.
33
12.1 Sound Settings for
Programmes via TV Menu
Some of the menu items are not available
in a 2 ** menu.
Forced mono
7)
It may happen that your TV set switches from
mono to stereo in the middle of a programme, although no stereo sound is being transmitted. This is
generally caused by the local reception conditions. If you activate "Forced mono" for the selected programme position, all
programmes from this station
will be reproduced in mono.
Activating forced mono:
• Press the "MENU" key.
The TV menu appears on
the screen.
•Press the blue key . The
menu
"Picture and sound" and the
menu
item "General picture settings" are
pre-selected.
• Use the corresponding numeric key (in the
example:
) to select "Sound settings for Pr.".
• Use the corresponding numeric key (in the
example:
) to select "Forced mono".
• In the setting window, use the
-
+
key to change
the setting.
• Press the "OK" key to save the new settings.
• Press the "EXIT" key to close the TV menu.
Individual sound settings can also be made
in the station table.
☞
☞
Opening the menu
MENU
OK
EXIT
Forced mono on
Forced mono
7)
Tone settings
Volume correction
Picture-Volume
Change with
Accept value with
– +
OK
The number of subjects and sections depends on
the selected scope of operation. Depending on
the configuration of the TV set, the various menu
items may be displayed in a different order and
numbered differently.
7) Available only for analogue stations!
Sound set,.prog.posn
Sound settings, gen.
Pict.set.,prog.posn.
Picture settings, gen.
34
12.2 Sound Settings for Prog.
via the Station Table
Opening the menu
Some of the menu items are not available
in a 2 ** menu.
Making sound corrections:
• Select the programme position whose sound settings you wish to change.
• Press the "MENU" key.
The TV menu appears on the screen.
• Press the white key . The station table is displayed with the currently active programme
position highlighted.
• Press the F2 key to enable
editing of the station table.
• Use the cursor control key
to move to the subjects side.
• Use the corresponding
numeric keys (in this example:
for sound correc-
tions) to select the desired
menu items.
• In the setting window, use
the cursor control key to
select the desired functions.
The use of the
-
+
key to change the selected setting. "gen." means here that the new setting will
overwrite the general sound settings (see pages
26).
The individual settings made here, which
differ from the standard values, remain
saved.
Press the "OK" key to save the new settings.
Press the "EXIT" key to close the TV menu.
☞
☞
MENU
F2
OK
EXIT
The number of subjects and sections depends
on the selected scope of operation. Depending
on the configuration of the TV set, the various
menu items may be displayed in a different
order and numbered differently.
3) See glossary for an explanation.
5) Available only for DVB stations!
7) Available only for analogue stations!
Volume correction 0 Tone settings gen.
Forced mono
7)
off
Sound corrections
Colour standard
3)7)
Picture quality
Picture correct.
Enter logo
Station contained in EPG
CA module
5)
Signal quality
5)
DVB-prog. info
5)
Frequency/channel
7)
0010 Hessen 3
0009 Südwest
0008 MDR
0007 PRO 7
0006 RTL 2
0005 RTL
0004 SAT 1
0003 Bayern 3
0002 ZDF
0001 ARD
Station table
Change with
Accept value with
– +
OK
✗
F1
➔
35
13. Automatic zoom
The menu item "Automatic zoom" is not
available in a 2 ** menu.
When the automatic zoom function is active, programmes in a "widescreen" format (such as programmes in 16:9) are expanded to fill as much of
the screen as possible.
If the function is inactive, the programmes are displayed in their original format.
Activating the automatic zoom
2)
• Press the "MENU" key. The TV menu appears on
the screen.
• Press the blue key . The
menu
"Picture and sound" and the
menu item "General picture
settings" are pre-selected.
• Use the cursor control key
to select the menu item
"Brightness".
• Use the corresponding
numeric key (in the example:
) to select the func-
tion "Zoom/Panorama".
• Use the cursor control key
to select the menu item "Automatic zoom".
• Use the
-
+
key to change the setting.
• Press the "OK" key to save the new setting.
• Press the "EXIT" key to close the TV menu.
☞
Opening the menu
MENU
OK
EXIT
The number of subjects and sections depends
on the selected scope of operation. Depending
on the configuration of the TV set, the various
menu items may be displayed in a different
order and numbered differently.
Zoom value 0 Panorama Yes
Picture pos., vert. 0% Pan. mode
Non-linear
Automatic zoom on
Factory settings
Motion compensation
Zoom/Panorama
Noise reduction
3)
Picture sharpness
Colour impr.
Colour intensity
Backlight control
Contrast
Brightness
Picture-Volume
Change with
Accept value with .
– +
OK
Sound set,.prog.posn
Sound settings, gen.
Pict.set.,prog.posn.
Picture settings, gen.
36
14. Childlock
With the aid of the childlock function, you can
determine whether or not the TV set can be switched on and which stations may be selected at
which times. The childlock can be set such that:
a) it is always active,
b) one to six TV, radio or AV programmes (Prog A
... Prog F) are exempted from the locking function (permitted programmes), or
c) all programmes, or programmes which are not
locked, may be viewed during a permitted time
period (TV start – TV end).
The childlock must be saved once with a 4-digit
"code" (password).
a) Activating the childlock
• Press the "MENU" key.
The TV menu appears on
the screen.
• Press the green key to
open the menu "Timer".
• Use the cursor control key
to select "Settings" and
press the "OK" key.
• In the setting window, use
the cursor control key to
select the menu item "Activate" and then use the
-
+
key to set the childlock to
"Active".
• Use the cursor control key to select "Code"
and enter your personal 4-digit code with the
numeric keys.
Make a note of this code!
• Press the "OK" key to save the new setting.
• Press the "EXIT" key to close the TV menu.
Opening the menu
The number of subjects and sections depends
on the selected scope of operation. Depending
on the configuration of the TV set, the various
menu items may be displayed in a different
order and numbered differently.
MENU
OK
OK
EXIT
Start viewing time --:-- End viewing time --:-Code **** Activation on
Permitted AV prog.
Permitted radio prog.
Permitted TV prog.
Settings
Recording control
Timer setting
Timer control
Reminder
Childlock
Timer
Change with
Accept value with .
– +
OK
37
Opening the menu
14. Childlock
b) Permitted programmes:
Activate the childlock as described in step a).
Use the corresponding numeric key to select the
menu item "Permitted xx progs." (xx = TV, radio
or AV). Press the "OK" key and, in the setting window, enter the programme positions with the
numeric keys or use the
-
+
key to select the desired programme positions.
• Press the "OK" key to save
the new settings.
c) TV star
t – TV end
Activate the childlock as described in step a). In the setting
window, use the cursor control
key to select the start and end
times and enter the desired
times with the numeric keys.
Press the "OK" key to save the
settings.
Protecting the childlock settings with your code
• Use the cursor control key to select "Code" and
enter your personal code (password) with the
numeric keys.
Make a note of this code, since the child
lock can be deactivated only if the correct
code is entered !
• Press the "OK" key to save the settings.
• Press the "EXIT" key to close the TV menu.
• Switch off the TV set with the key.
The childlock is not fully activated until the
TV set is switched off.
Deactivating the childlock
If the childlock is active, a window requesting your
personal code is displayed each time the TV set is
switched on. Entering the correct code enables the
TV set and it can then be used normally until it is
switched off again. To cancel the childlock function, proceed as described in step a), above, and
set the childlock to "Inactive".
☞
☞
É
Factory setting
Code: 0000
✂
Prog A Kabel 1 Prog B ----Prog C ----- Prog D ----Prog E ----- Prog F -----
Permitted AV prog.
Permitted radio prog.
Permitted TV prog.
Settings
Recording control
Timer setting
Timer control
Reminder
Childlock
Timer
Enter programme
position and save
with .
: clear.
OK
II
38
15. Reminder
The menu item "Reminder" is not available
in a 2 ** menu.
If you wish to be reminded of something while
watching TV, you can set a reminder for any desired time. At this time, a window with the reminder appears on the screen.
Setting the reminder time
• Press the "MENU" key to open the TV menu.
• Press the green key to open the "Timer"
menu.
• Press the numeric key
to
select "Reminder".
• Press the "OK" key and
then, in the setting window,
enter the desired time (four
digits) with the numeric
keys.
• Press the "OK" key to save
this setting.
• Press the "EXIT" key to close
the TV menu.
At the programmed time, a
window with the reminder is displayed on the
screen. You can close this window by pressing any
key on the remote control.
If you do not want the reminder
to appear every day, you must clear the
time in the menu by pressing the ll key.
☞
☞
Opening the menu
MENU
OK
EXIT
OK
The number of subjects and sections depends
on the selected scope of operation. Depending
on the configuration of the TV set, the various
menu items may be displayed in a different
order and numbered differently.
Time --:--
Reminder
Recording control
Timer setting
Timer control
Reminder
Childlock
Timer
Clear the time with
Save with
Abort with
OK
II
MENU
39
16. Timer Control
The menu items "On time" and "Off time"
are not available in a 2 ** menu.
In the menu item "Timer control", you can programme a switch-on time, a switch-off time and a
sleep timer (switch off after ...).
The switch-on time is the time at which the TV set
is to be switched on automatically.
The switch-off time is the time at which the TV set
is to be switched off automatically.
The sleep timer (switch off after...) switches off the
TV set after a programmed delay (which can be
set in steps of 15 minutes).
Setting the on time and of
f time
• Press the "MENU" key to
open the TV menu.
• Press the green key to
open the "Timer" menu.
• Press the numeric key
to
select "Timer control".
• Press the "OK" key and
then, in the setting window,
enter the desired time (four
digits) with the numeric
keys.
• Press the "OK" key to save
the setting.
• Press the "EXIT" key to close the TV menu.
At the programmed on time, the TV set is switched
on from the standby state (red LED lights). You
must confirm this automatic action by pressing
any key on the remote control. If this is not done,
the TV set will switch back to the standby state
after 10 minutes. This ensures that the TV set does
not stay on if you are not at home.
If you do not want to have the TV set switch
itself on each day, you must clear the on and off
times in the menu by pressing the ll key.
☞
☞
MENU
Opening the menu
OK
EXIT
OK
The number of subjects and sections depends
on the selected scope of operation. Depending
on the configuration of the TV set, the various
menu items may be displayed in a different
order and numbered differently.
Time --:--
Switch off after...
Switch-off time
Switch-on time
Recording control
Timer setting
Timer control
Reminder
Childlock
Timer
Clear the time with
Save with
Abort with
OK
II
MENU
40
16.1 Setting the Time and DateOpening the menu
Normally, the TV set will determine the current date
and time from the Teletext signals of the currently
selected station (providing this station sends Teletext).
Note: For this the device must be turned on with
the mains switch.
If this is not the case, or if an incorrect date or time is
displayed, you can set the date and time manually.
In almost all cases, you will not need to do this.
Even the changeover between winter time and
summer time is executed automatically.
Setting the time and date
manually:
• Press the "MENU" key to
open the TV menu.
• Press the green key to
open the "Timer" menu.
• Press the numeric key
to
select "Time settings".
• Press the "OK" key and
then, in the setting window,
enter the current time with
the numeric keys.
• You can then start the internal clock precisely by
pressing the "OK" key when the time you have
entered is reached.
• Press the numeric key
to select
"Current date".
• In the setting window, enter the date with the
numeric keys.
• Press the "OK" key to save the settings.
• Press the "EXIT" key to close the TV menu.
The local time offset is the difference between
the local time where the TV set is installed and
Greenwich Mean Time (GMT). The TV set normally detects this time offset and also the additional changeover to summer time.
The time needs to be set manually only if it is
not detected automatically.
i
MENU
OK
EXIT
OK
OK
The number of subjects and sections depends
on the selected scope of operation. Depending
on the configuration of the TV set, the various
menu items may be displayed in a different
order and numbered differently.
Time 20:00:00
Local time offset
Current date
Current lokal time
Recording control
Timer setting
Timer control
Reminder
Childlock
Timer
Save with
Abort with
OK
MENU
41

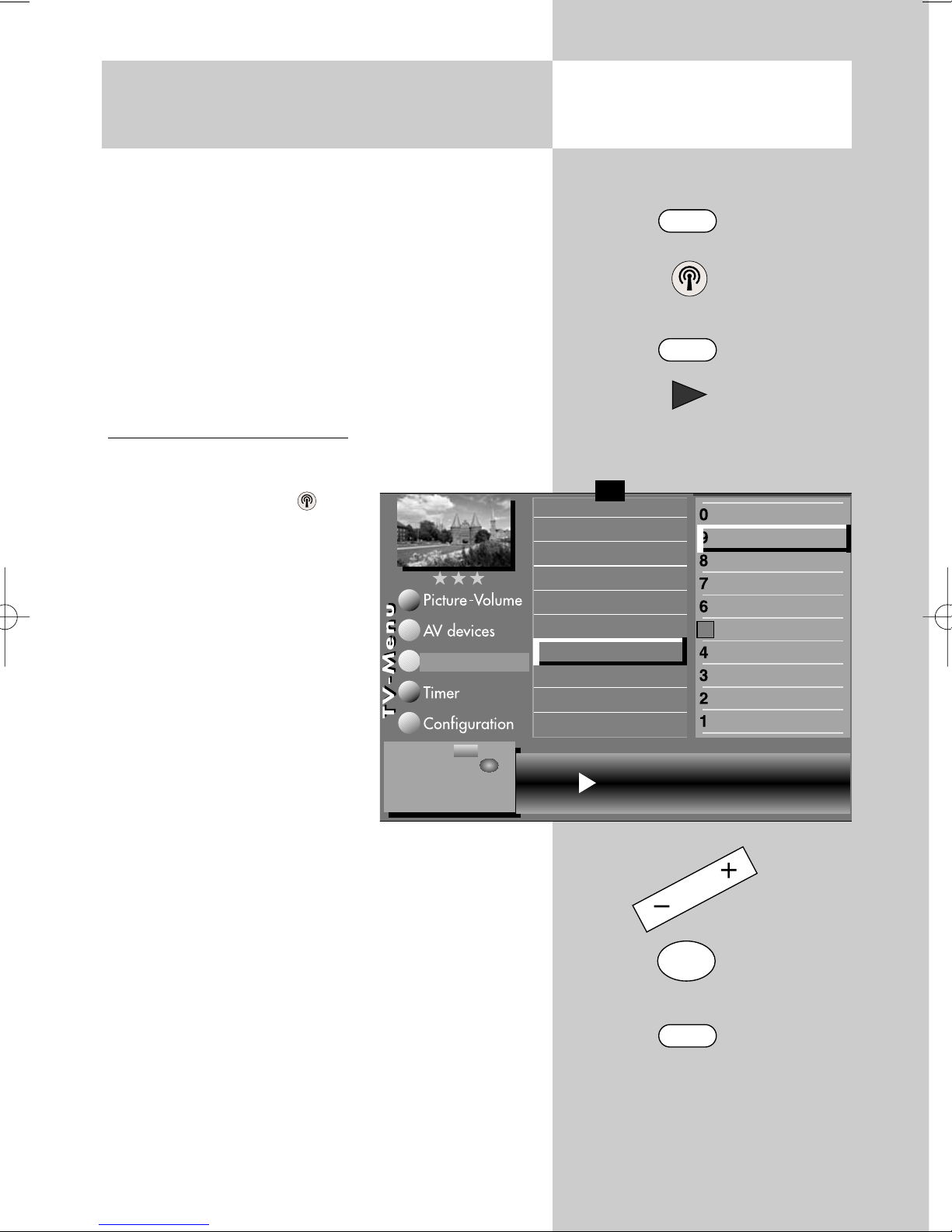

16.2 Recording Control Opening the menu
The number of subjects and sections depends
on the selected scope of operation. Depending
on the configuration of the TV set, the various
menu items may be displayed in a different
order and numbered differently.
This menu item is not available in a 2 **
menu.
In the menu item "Recording control", you can set a
lead time and an overrun time for timer recordings.
The TV set is automatically switched to the programme position from which the recording is to
be made at a time which is the number of minutes
programmed as the lead time before the pro-
grammed starting time for the recording.
At the end of the programmed recording time, the
TV set remains set to this programme position for
the period programmed as the overrun time.
For VPS recordings, the TV set is automatically
switched to the programme
position from which the recording is to be made at a time
which is the number of minutes
programmed as the VPS lead
time before the programmed
starting time for the recording.
By default, the TV set switches
to this programme position
about one hour before the programmed start time for a VPS
recording.
Setting the lead time, VPS
lead time and overrun time
• Press the "MENU" key to open the TV menu.
•
Press the green key to open the "Timer" menu.
•
Use the corresponding numeric key (in the example: ) to select the menu item "Recording control".
• Use the cursor control key to select the desired
menu item.
• Press the "OK" key and then, in the setting win-
dow, use the
-
+
key to set the desired lead or
overrun time.
☞
MENU
OK
EXIT
OK
Lead time 5 min
Lead time with VPS
Overrun time
Lead time
Recording control
Timer setting
Timer control
Reminder
Childlock
Timer
Save with
Abort with
OK
MENU
42
16.2 Recording control
• Press the "OK" key to save the settings.
• Press the "EXIT" key to close the TV menu.
Application example:
You wish to record a programme received via
DVB-T. The programme starts at 22:45 hours,
ends at 23:40 hours and is broadcast on ITV.
Set up a "manual timer" as described in Section
17, "Special Functions 2" or set a timer with the
aid of the EPG as described in Section 22.3
“Using EPG, Recording a Programme". The timer
recording does not use VPS.
Set the lead time to 3 minutes and the overrun
time to 10 minutes.
At the programmed start time minus the programmed lead time of three minutes, the TV set is
either:
- switched on from the standby state (red LED
lights) with the programme position for ITV selected, whereby the screen remains dark but the
programme is sent via the EURO socket to your
recorder, or
- switched to the programme position for ITV if it is
already switched on.
At the programmed end of the recording (at
23:40 hours) the programme position for ITV
remains selected for the programmed overrun time
of 10 minutes.
It is not possible to switch to another programme position during the programmed
lead and overrun times.
☞
43

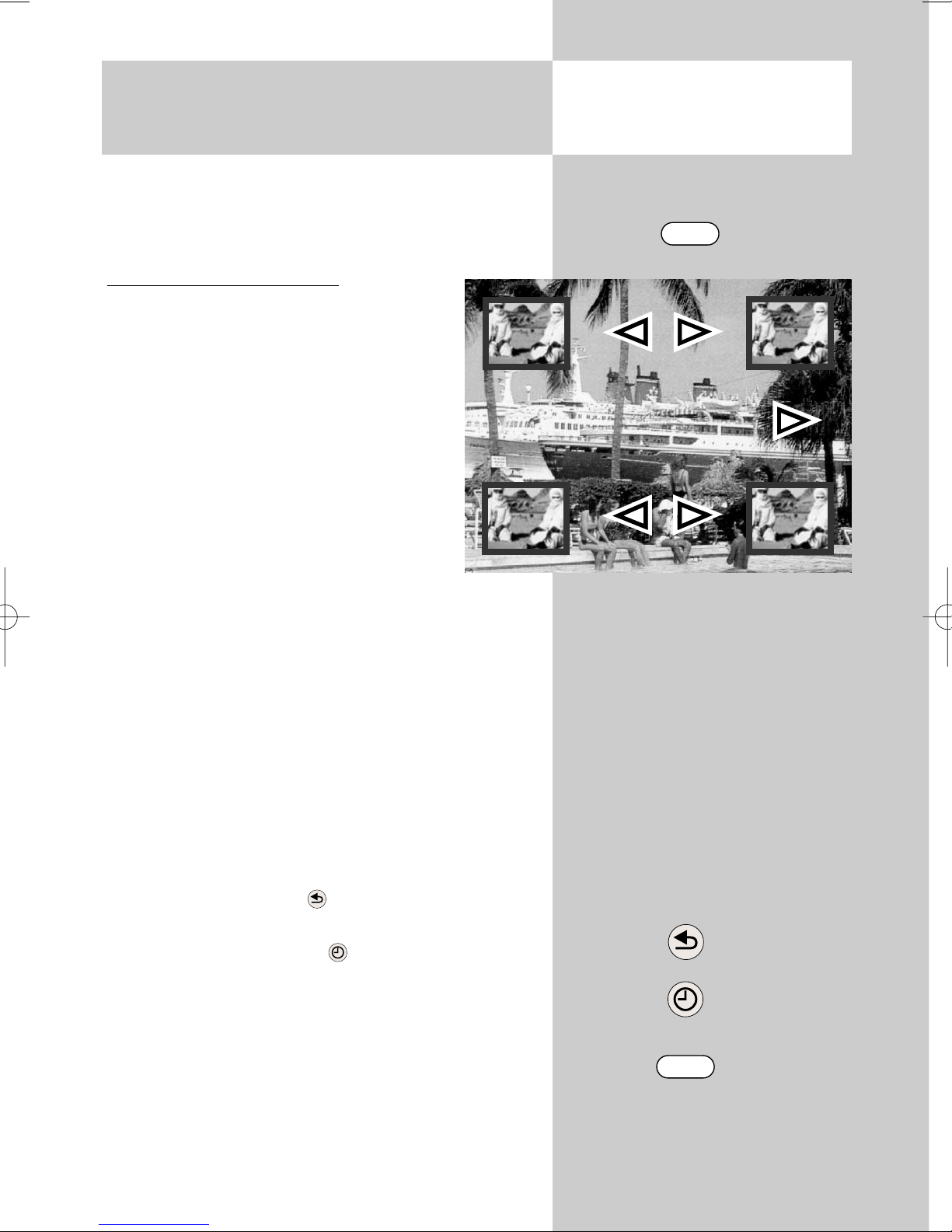

17. Special Functions
Picture-in-Picture
Opening the menu
In the case of TV sets with two receivers, it is possible to display a DVB channel and to open a window to show a different analogue channel from
the second receiver or from the AV channel slot.
Activating the PIP function
• The F1 key is pre-programmed with
the picture-in-picture function.
• You can use the cursor control keys
to move the PIP picture on the
screen. The last position to which this
picture was set is saved.
• By pressing the "OK" key, you can set
the frame of the PIP picture to active
(red) or inactive (white).
• The contents of the PIP picture can be
changed only if its frame is active
(red).
• By using the numeric keys or the "P+/P-" rocker
switch, it is possible to select a different AV
channel slot or an analogue channel from the
second receiver.
If you wish to display the picture from a connected
AV device as a picture-in-picture, press the "AV "
key and then use the numeric keys to select the
desired AV device.
If you wish to display the picture from another station, use the numeric keys to select the desired
programme position.
• Pressing the red key swaps the contents of
the two pictures.
• Pressing the green key causes the PIP picture
to expand to fill the screen and terminates the
PIP function.
• To close the PIP picture, press the "EXIT" key.
If a recording has been programmed in the
timer menu, activating the PIP function
displays the programme which is being
recorded.
☞
F1
EXIT
44

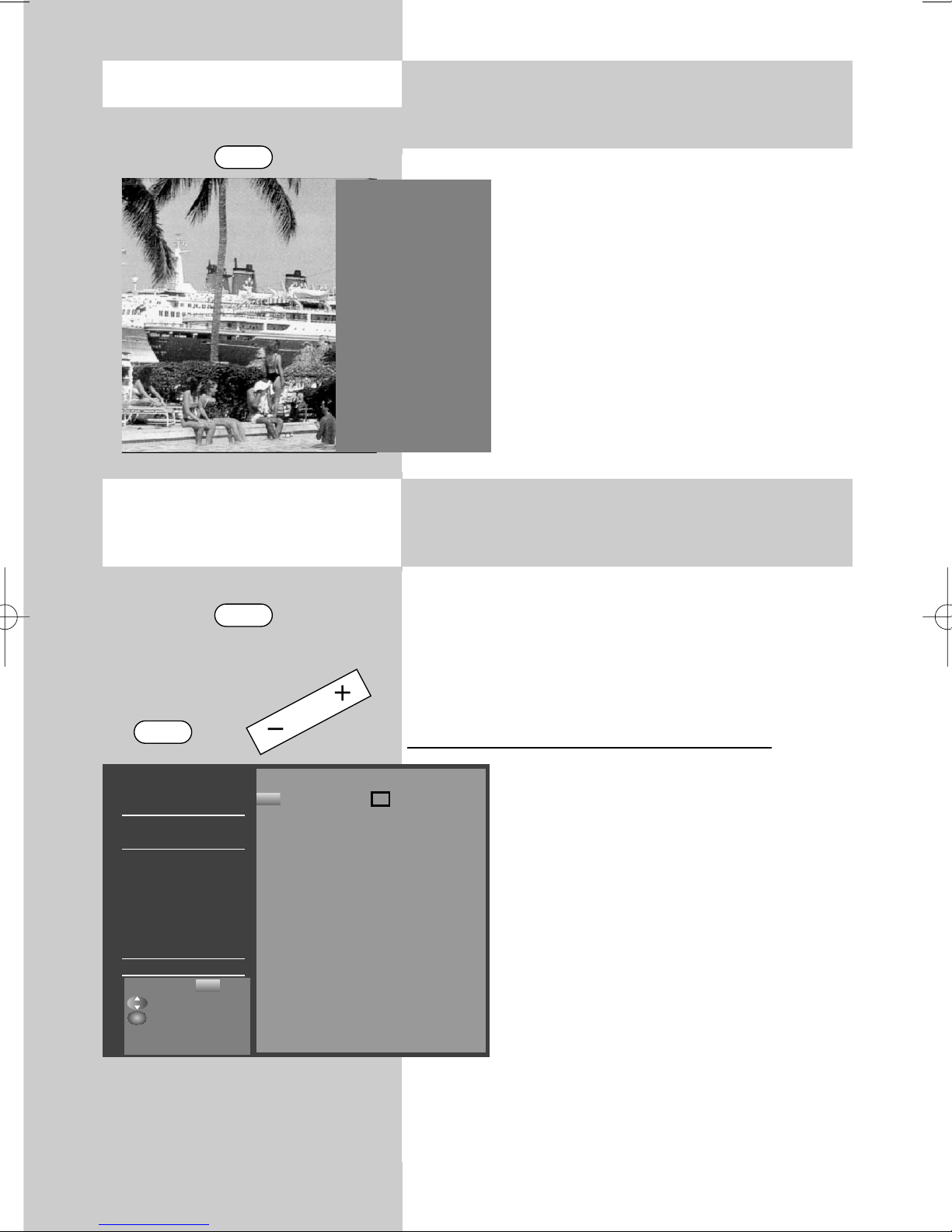

17. Special Functions
Normal/Speech
Opening the menu
Opening the menu
Selection of "Normal" or "Speech" is described in Section 12.1, "Tone Settings".
In this menu, you can temporarily select
"Normal" or "Speech". The selection
remains active until you switch to another programme position, switch to
standby mode or switch the TV set off
completely.
This setting has no effect of the setting
described in Section 12.1, "Tone Settings".
Special functions 2
1 Normal/Speech
9 Timer-Overview
0 Direct recording
F2
If you wish to record a programme which your
video recorder or DVD recorder cannot receive
directly because it does not have a suitable tuner
(such as DVB-T or DVB-C), you can use the "Timer
overview" to make such programmes available to
the recording device.
Setting a timer manually for a recording:
• Press the F2 key. If you press F2 brie-
fly, the function programmed for F2
(see Section 18. "Programming the
function keys") is executed.
If you hold down F2 for about two
seconds, all possible selections are displayed.
• If all possible selections are displayed,
press the corresponding numeric key
(in the example:
) to open the timer
menu.
• If a timer already exists, press the F1 key.
• The cursor is located at the left of the first line
"Record". The number of subjects and sections
Recording Yes
Reminder No
Pr ---
Date --.--.
Start --:-End --:-VPS No
Recording device
Videorecorder
Timer
Preview 17:23
Mon Tue Wed Thu Fri Sat Sun
29.04.
Change with .
:select.
:save the timer.
F2
F1
The number of subjects and sections depends
on the selected scope of operation. Depending
on the configuration of the TV set, the various
menu items may be displayed in a different
order and numbered differently.
17. Special Functions
Recording a programme with a timer
OK
– +
– +
45
depends on the selected scope of operation.
Depending on the configuration of the TV set, the
various menu items may be displayed in a different order and numbered differently.
Use the
-
+
key to set this menu item to "Yes".
• If desired, press cursor control key and use the
- + key to activate the reminder function. If the reminder function is active,
a reminder window is displayed on the
screen one minute before the start time
programmed for the timer.
•
Use the numeric keys to select the pro-
gramme position (see the station table of
the TV set) which is to make the programme available for recording.
• Press the cursor control key and use
the numeric keys to enter the date,
start time and end time of the programme you want to record..
If you inadvertently enter a wrong time, you
can delete it with the II key or overwrite it
with the numeric keys.
• Press the cursor control key and use the
-
+
key to select the recording device connected to
the TV set which is to be used for the recording.
•
Press the "OK" key to save the programmed set-
tings. The settings are stored in the timer memory.
• Press the "EXIT" key to close the TV menu.
Clearing a timer:
• Press the F2 key.
• Press numeric key
to open the timer menu.
• Use the cursor control key to select the timer you
wish to clear and press II to mark it for deletion.
A window is displayed on the screen, asking
whether you really want to clear this timer. Confirm the intended action by pressing the appropriate key.
☞
17. Special Functions
Recording a programme with a timer
Opening the menu
Recording Yes
Reminder No
Pr 6
SAT 1
Date 01.05.
Start 22:45
End 23:40
VPS Yes
Recording device
Videorecorder
Timer
Preview 17:23
Mon Tue Wed Thu Fri Sat Sun
29.04.
:select
0..9:set time
:new timer
:clear timer
:edit
20:00 ✓✓ Das Erste -20:15
Tagesschau
22:45 ✓✓ SAT 1 -23:40
Planetopia
F1
– +
– +
46
17. Special Functions
Direct recording of a programme
Opening the menu
If you wish to record the programme you are currently watching, you can start a direct (one-touch)
recording to make the current programme available to a recording device connected to the EURO
sockets.
Star
ting a direct recording:
• Press the F2 key.
If you press F2 briefly, the function programmed
for F2 (see Section 18. "Programming the Function keys") is executed.
If you hold down F2 for about two seconds, all
possible selections are displayed.
• Press numeric key
to open the
timer menu window.
The timer menu window displays the
programme position, the date and the
EPG data for the current programme
or for the next two hours.
• If there is more than one AV device
connected to your TV set, use the cursor control key to select the proposed recording device and use the
-
+
key to select the desired device.
• Press the "OK" key to save the settings.
On the recording device (e.g. video recorder), select the AV programme position and
start the recording by pressing the appropriate button (REC, OTR, etc.).
☞
Recording Yes
Reminder No
Pr 6
SAT 1
Date 01.05.
Start 22:45
End 23:40
VPS no
Recording device
Videorecorder
Change with
:select
:save the timer
OK
F2
– +
47

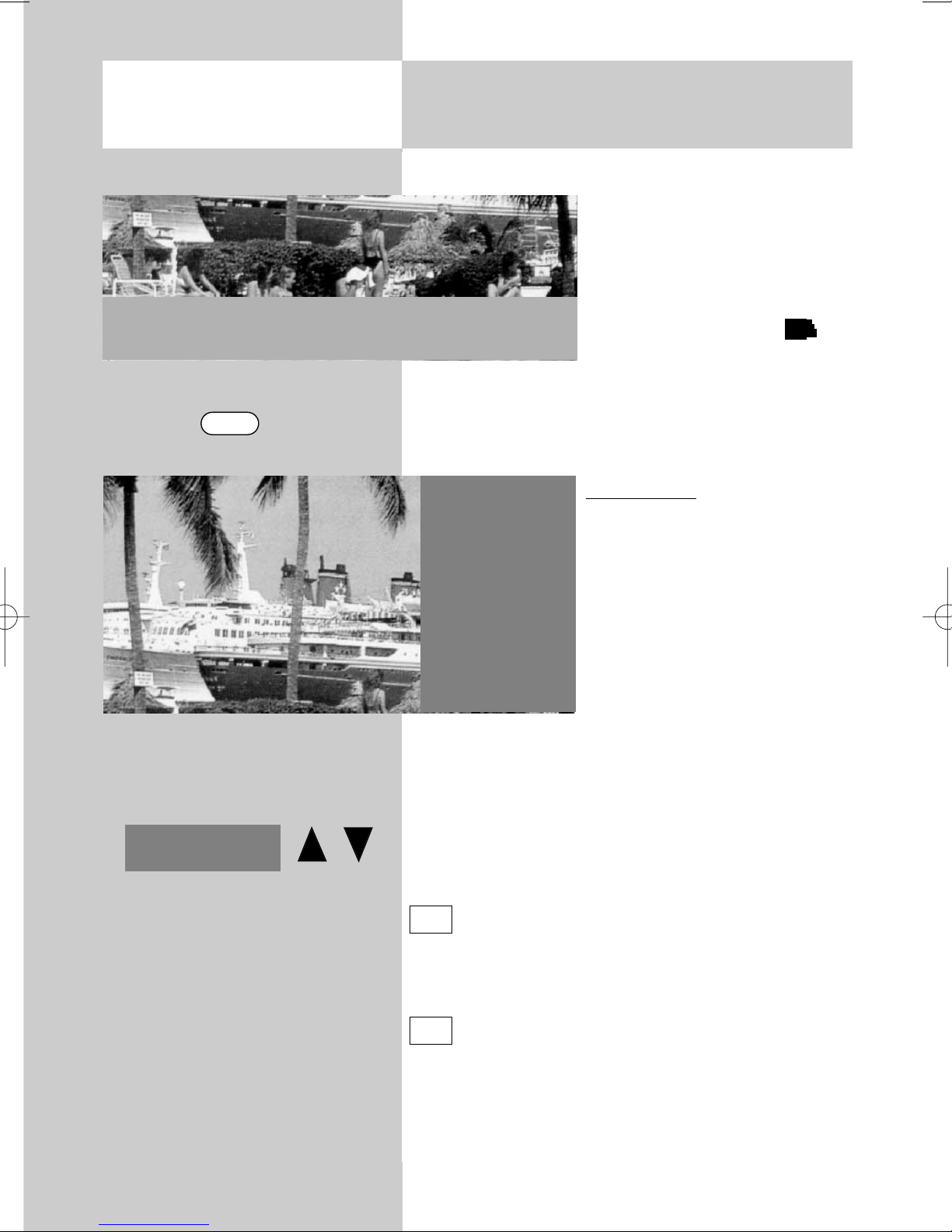

Adjusting the picture format:
• Press the F3 key.
If you press F3 briefly, the function programmed
for F3 (see Section 18. "Programming
the Function keys") is executed.
If you hold down F3 for about two
seconds, all possible selections are displayed.
• Press numeric key to select the
function "Picture format menu".
• Use the "P+/P-" rocker key to select the
desired function. After selection of a picture format, you can also adjust the
zoom setting by pressing the
-
+
key
within five seconds.
• The settings made here (except for the automatic
zoom set in the TV menu) remain active
until you switch to a different programme position or switch off the TV set.
Zoom / Picture position
After selecting the function "Zoom", you
can adjust the zoom factor with the - +
key. In addition, you can move the picture position 4) up and down on the screen
in order, for example, to keep the station
logo or the subtitles visible. To change the
picture position, press and hold the F3 key until
the selection is displayed. Then press numeric key
and use the "P+/P-" rocker key to move the
picture.
Standard 4:3
This is the standard setting for all programmes in
the 4:3 picture format.
17. Special Functions
Picture format
Opening the menu
F3
16:9
full picture
+
Zoom
Standard 4:3 —
Special functions 3 3
1 Picture format
2 Picture pos., vert.
48
Panorama
With the aid of the panorama function,
you can expand programmes broadcast
in 4:3 format to fill the screen of a 16:9
TV set. The picture is expanded uniformly
in the horizontal direction. You can also
zoom the picture. The panorama function
can be activated and deactivated in the
menu item "General picture settings" of
the menu "Picture and sound".
16:9 Full picture
This function serves to display pictures from external devices (such as a 16:9 video recorder) with
the correct aspect ratio.
17. Special Functions
Picture format
Standard 4:3 +
Panorama
16:9
full picture
—
Panorama
16:9
full picture
Zoom —
Opening the menu
49

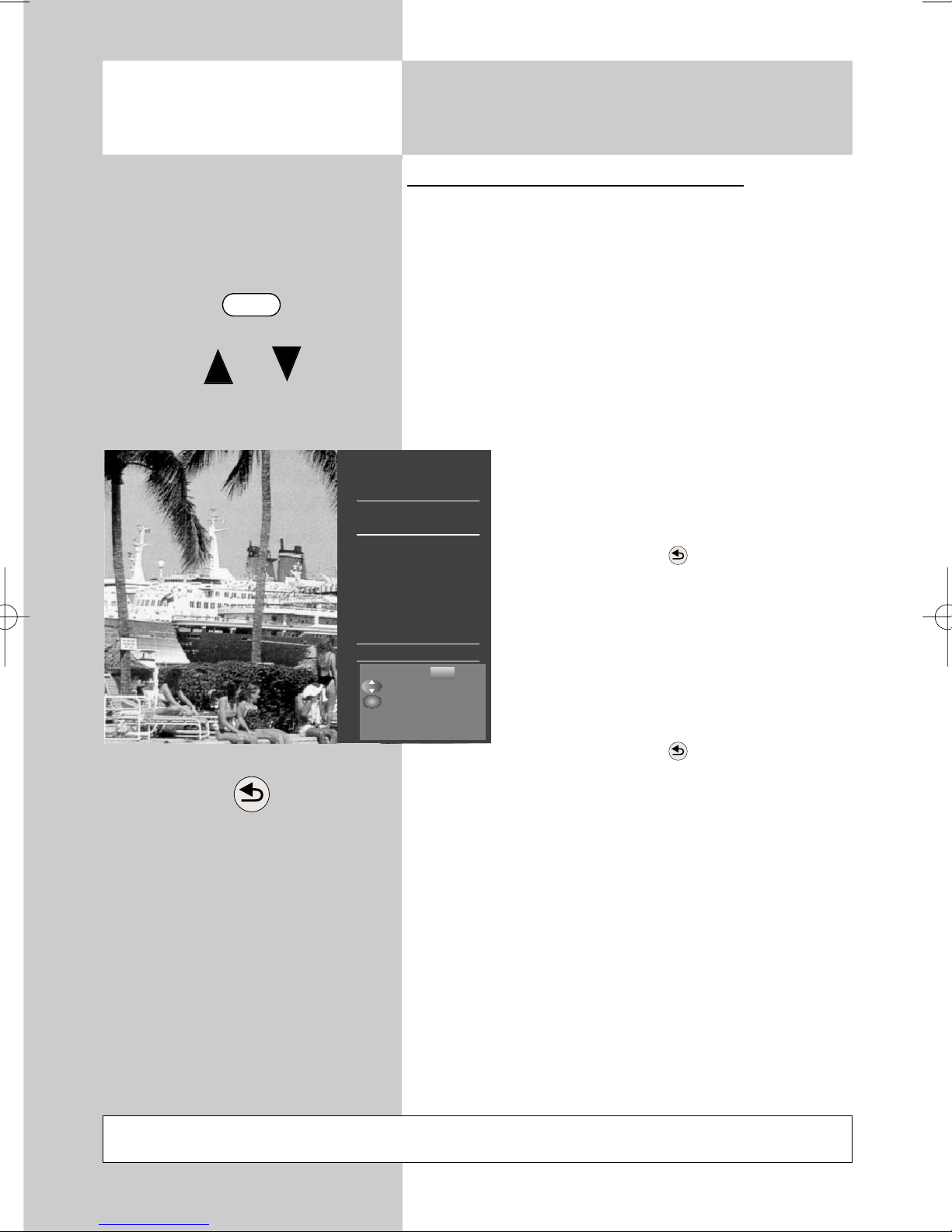

If desired, the picture can be shifted up or down in
order, for example, to make subtitles visible or to
hide "ticker" displays.
Adjusting the picture position:
• Press the F3 key.
If you press F3 briefly, the function programmed for F3 (see Section 18., "Programming the Function keys") is executed.
• Press numeric key to select the
function "Picture position vertical".
• You can now use the
-
+
key to move
the picture up and down on the screen
so that, for example, the station logo
or the subtitles are visible.
This setting is not saved. If you wish to save
it as a global setting, use the procedure
described in Section 11 to set it.
☞
17. Special Functions
Picture Position
F3
Special functions 3
1 Picture format
2 Pic. form., vertikal
Opening the menu
50
Various programs are transmitted with several
audio channels (e.g. multilingual or Digital Audio).
If you are receiving a multilingual programme the information box on the bottom left of
the screen features the
logo.
Press F2 to see the list of available languages.
Open menu:
• Press F2.
Press F2 briefly to run the
function programmed for
the key (see Chapter 18.
"Programming function
keys").
Press F2 for approx. 3
seconds and the max. possible selection is displayed.
• Press numeric key
and select the "Programme
language" function.
• Select a language with the cursor control key
.
Symbol in grey:
Other audio options e.g. dd = "Dolby digital" are
available but are not selected.
Symbol in white:
One of the audio options has been selected.
DIGTAL
AUDIO
DIGTAL
AUDIO
17. Special Functions
Audio/language selection
Pr 30 Stereo
arte
05.04.07
Calling the menu
Special fuctions 2
1 Normal/Speech
2
Language of progr.
9 Timer overview
0 Direct recording
1 German
2
France
F2

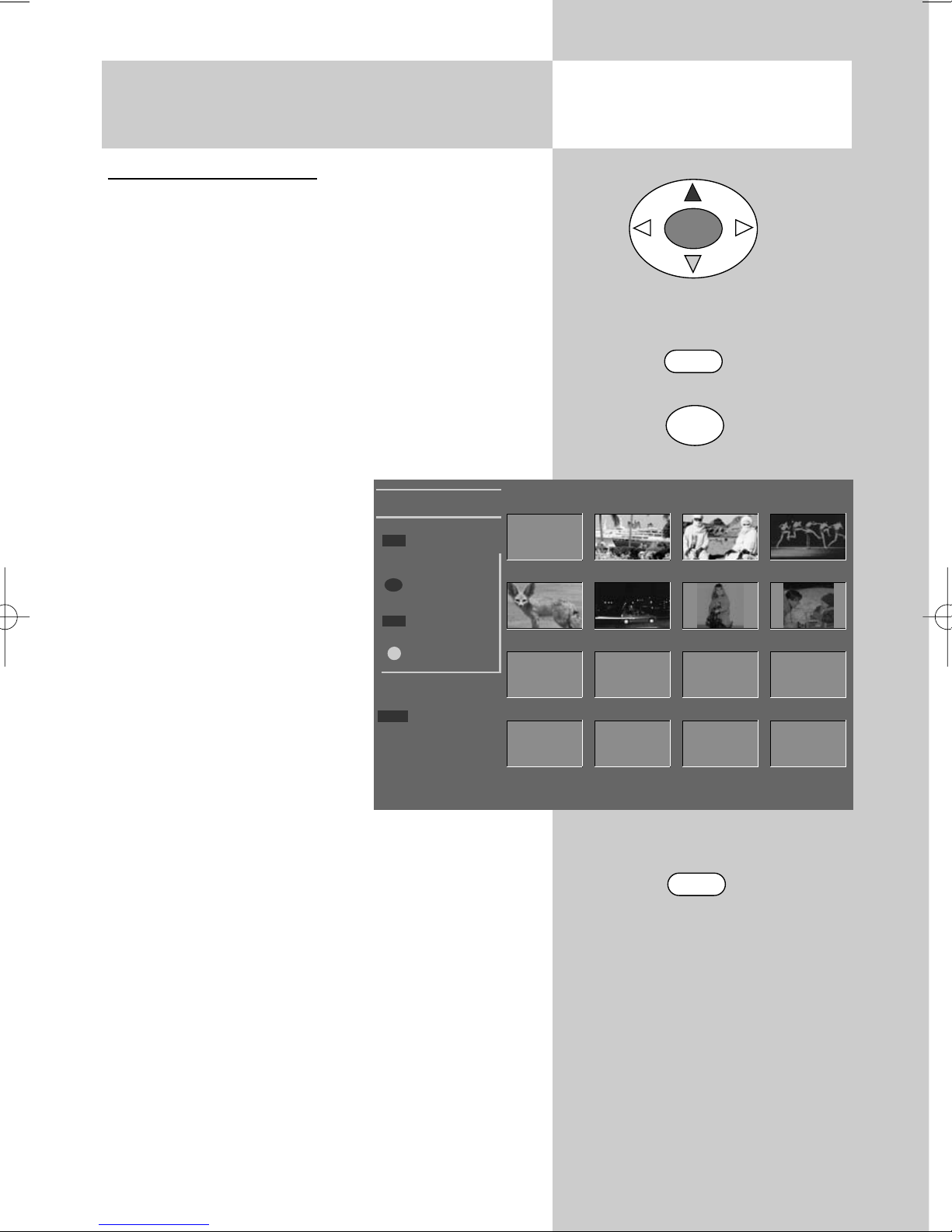

The JPEG photograph display is an image viewer
for JPEG formats. The automatic image resizing
and a full-picture mode ensure smooth, pleasant
display.
Star
ting the photograph viewer:
• Connect the memory stick (exchangeable storage medium) to the USB socket. The photograph
display overview appears on the screen. The
JPEG photograph display can also be started as
follows:
- Press the "F2" key for approximately 2
seconds. The maximum possible selection
appears.
- Press the numeric key
to call up the JPEG
photograph display. The
JPEG photograph display
menu appears on the
screen.
• Use the cursor control keys
to select the desired image folder.
• Press the "OK" key to open
the image folder.
• Use the cursor control keys
to select the individual images.
• Press the "OK" key to open the selected image.
• Using the green key, the selected image can be
rotated clockwise; with the red key, it can be
rotated counter-clockwise.
Note: Images that have already edited on a PC
cannot be rotated or displayed.
• To delete the image, press the II key.
Press the EXIT key to exit the photograph viewer.
51
Opening the menu
17. Special Functions
JPEG Photograph Display
Photo Viewer
Slide Show
Fullscreen
Select
Zoom
Rotate
Rotate
Delete
F2
Pictures
OK
– +
II
F2
EXIT
OK
Starting the zoom function:
• When an image is displayed, the zoom function
can be activated with the + key.
A red outlined quadrangle appears in the
image.
• Use the –+key to select the zoom factor (x2,
x4, x8).
• Use the cursor control keys to move
the red zoom quadrangle in the image in order
to determine the image section to be magnified.
• Press the "OK" key for a magnified display of
the selected image section.
• Use the cursor control keys
to scroll the
magnified image section.
• To return to the full screen,
press the – key repeatedly
until the "zoom" message
disappears.
52
Opening the menu
17. Special Functions
JPEG Photograph Display
Zoom x4
OK
53
17. Special Functions
JPEG Photograph Display
Opening the menu
Starting the slide show:
• Use the cursor control keys to select
the desired image folder.
• Press the "OK" key to open the selected image
folder.
• Press the "F2" key and select the "Slide Show"
function.
• The display of the individual images (display
time 3 - 60 seconds) can be adjusted with
the –+key.
• Press the "OK" key to start
the slide show.
• During the slide show, the
II key has the "Pause"
function.
Press the II key to resume
the slide show.
• When the slide show is
finished or stopped with
"OK" or "EXIT", the photograph viewer appears
again.
Press EXIT to return to the TV picture.
Slide Show
Photo Viewer
Start
Stop
Pause II
Endless
Time 3s
Bilder
W-Fuchs
Aida
Nacht
Beduinen
Claudia
Strobo
Schlitten
OK
F2
OK
– +
F2
OK
II
EXIT
54
The remote control has four function keys: F1, F2,
F3 and AV. You can programme these function
keys with any of the available functions.
If you press and hold any function key, a
window with the available functions is
displayed. The picture on the left shows
the functions available for the F2 key.
Programming function key F1, F2, F3 or
AV with a function
• Press the "MENU" key to open the TV
menu.
• Press the red key to open the "Configuration" menu.
• Continue pressing the "F1" key until all options
are displayed.
• Use the cursor control key or the correspon-
ding numeric keys to select the desired "Function for.." (in this example: F2).
• Press the "OK" key and then use the cursor con-
trol key to select one of the available functions.
• Press the "OK" key to assign this function to the
selected function key (the selected function is
marked with "X").
• Press the "EXIT" key to close
the TV menu.
If a function key is programmed with a function, this function can be
called by briefly pressing the function key.
Pressing and holding
the function key
displays a list of all
available functions.
☞
18. Programming the Function Keys
Opening the menu
F2
F1
MENU
Special functions 2
1 Normal/Speech
2 Language of progr.
9 Timer overview
0 Direct recording
OK
EXIT
Function for F2 Timer overview
Direct recording
Timer overview
Language of prog
Normal/Speech
Function for F3
Function for F2
Function for F1
EURO sockets
DVB-C
DVB-T
DVB-S
Analog-TV
Country
Language
Configuration
select
save and
clear.
F1
➔
OK
✗
55

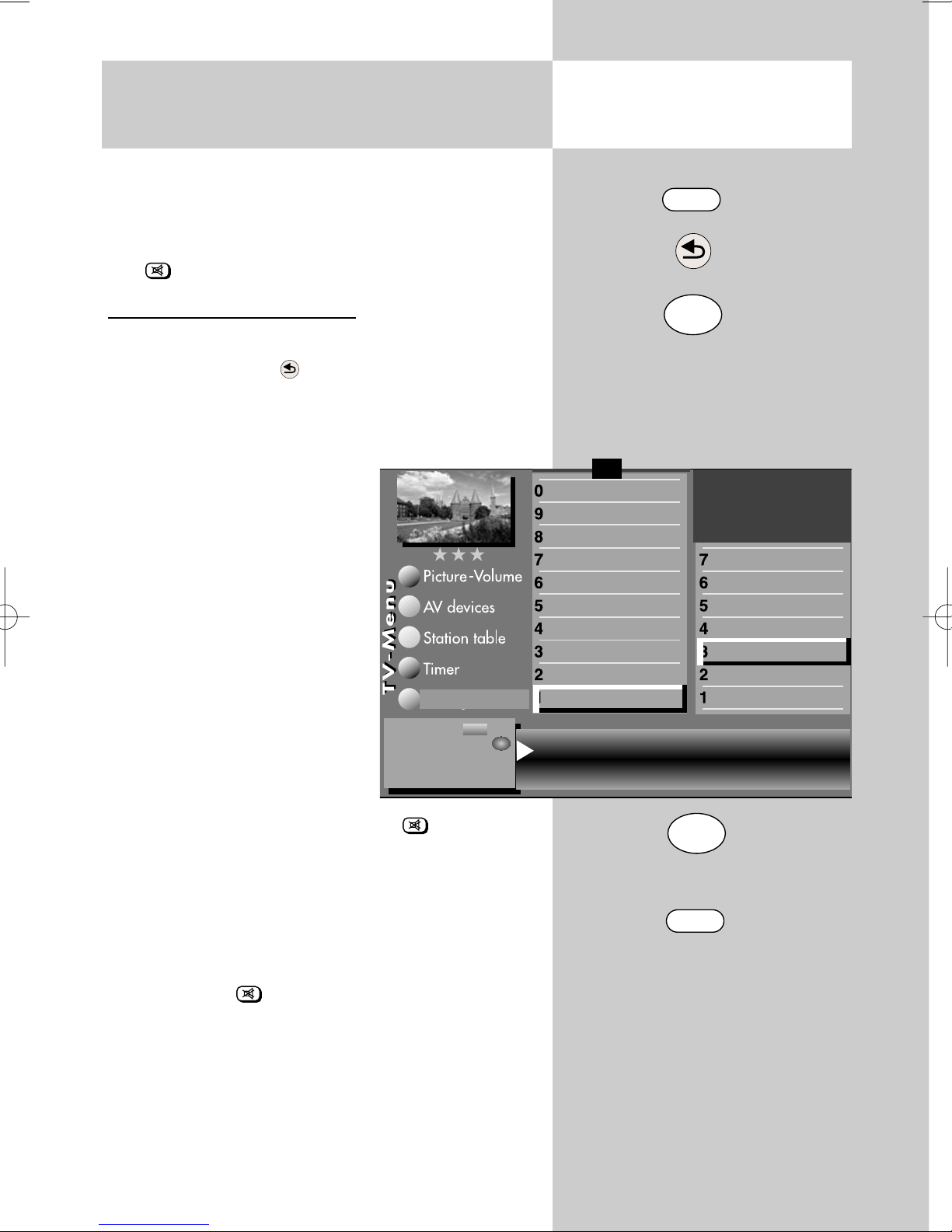

In the menu "Sound settings", you can activate a
two-stage mute function.
When this function is active, the volume in TV
mode can be reduced in two stages with the mute
key .
Activating the mute function
• Press the "MENU" key to open the TV menu.
• Press the red key to open the "Configuration" menu.
• Press the "OK" key to move to the right side of
the menu.
• Use the cursor control key
or the corresponding numeric key (in the example: (
)
to select the menu item
"Sound settings".
• In the setting window, use
the
-
+
key to set the function "Mute (2-stage)" to
"On".
• Press the "OK" key to save
the setting.
• Press the "EXIT" key to close
the TV menu.
In normal TV mode, the mute key is used as
follows:
• Press it once to reduce the volume by 12 scale
divisions.
• Press it again within five seconds to reduce the
volume to "00".
• Pressing the key once again restores the
volume to its original level.
During films for the blind, the scenes are described in the dialogue intervals. Under "Dual chan-
nel", select "Audio 2" if you want to receive films
for the blind (with audio descriptions).
19. Sound Settings
Mute Function
Opening the menu
MENU
OK
OK
EXIT
Mute (two-stage) on Sound via Loudsp.
Preselection of Sound 2 Channel 1
Data Logic adjustm.
CI dialogue via
EPG settings
Operating
Sound settings
HiFi output
2)
Init. prog.position
Function for F2
Function for F1
EURO sockets
DVB-C
DVB-T
DVB-S
Analog-TV
Country
Language
Operating
Configuration
Change with
Accept value with .
– +
OK
F1
➔
56
19.1 Data Logic Settings
Data Logic Mode 1 / Mode 2
Factory setting is Mode 1.
If the recording is stopped by the Data Logic
Videorecorder (self-dependent, 5-10sec. after the
start of the recording), switching to Mode 2 could
solve this problem.
Opening the menu
MENU
OK
EXIT
OK
Data Logic mode 2
Data Logic adjustm.
CI dialogue via
EPG settings
Display configuration
Operating
Sound settings
HiFi output
2)
Init. prog.position
Function for F2
Function for F1
EURO sockets
DVB-C
DVB-T
DVB-S
Analog-TV
Country
Language
Operating
Configuration
Change with
Accept value with .
– +
OK
F1
➔
57
Not possible with an external receiver !
20. EPG
EPG (Electronic Program Guide) is an electronic
TV guide covering all major channels.
The guide may be made up of details from
NexTView
8)
and/or DVB-SI.
The NexTView
8)
information is broadcast by
various channels and also includes information for
other broadcasting organizations.
DVB-SI (Digital Video Broadcasting-Service Infor-
mation) is a service provided by different broadcasters. Programme details are broadcast digitally
by each broadcaster exclusively for those programmes it offers.
NexTView
8)
and DVB-SI are similar in principle,
but their content may differ in the detail offered.
The function is activated by pressing the button
marked “EPG”.
NexTView details
8)
Before NexTView8)details can be received, a new
programme slot must be created in the menu. If
the menu does not contain a slot for NexTView8),
the following text applies.
A message will appear for all slots programmed
to receive NexTView:
In this way, the TV asks whether this slot should be
used to compile the information for the EPG programme guide.
☞
Accept this programme as an EPG programme ?
Yes
Any other key close the window.
20.1 Activating the EPG
EPG
8) NexTView is transmitted by
the following broadcasting
organizations:
D and A: Kabel1,
CH . . . .SF1, TSR1, TSI1,
TV5
F: . . . . . .Canal+, M6, TV5
Status as of 18 Aug 2006
58
20.1 Activating the EPG
Pressing the green key for yes activates the slot
in order to receive NexTView. The message will
not appear again.
If you know the NexTView
8)
slot, you can also
enter it using the numeric keys in the TV menu.
You can overwrite existing programme slot num-
bers or delete them with the II key.
DVB-SI details
To receive DVB-SI data, no slot in the TV menu is
needed.
Factory EPG settings:
• EPG NexTView & DVB-SI
• NexTView programme
slot - - - -
• DVB-SI selection TV
• Prog. selection in the channel table all free slots*)
*) In the menu, “retain” is dis-
played, i.e. when you make
an adjustment, this change
is displayed in plain text
after it is confirmed by
selecting “OK” in the menu.
“Retain” is then displayed in
the menu as an indication
that the previously confirmed setting has been retained.
In countries where NexTView
data
8)
is unavailable, the
menu setting should read
“EPG DVB-SI” as illustrated.
Not possible with an external receiver !
Opening the menu
MENU
OK
EPG NextView & DVB-SI Pr selection in stationtable
NextView
prog. Kabel 1 retain
DVB-SI selection TV
Data Logic adjustm.
CI dialogue via
EPG settings
Display configuration
Operating
Sound settings
HiFi output
2)
Init. prog.position
Function for F2
Function for F1
EURO sockets
DVB-C
DVB-T
DVB-S
Analog-TV
Country
Language
Operating
Configuration
Change with
Accept value with .
– +
OK
F1
➔
EPG DVB-SI Pr selection in stationtable
retain
DVB-SI selection TV
Data Logic adjustm.
CI dialogue via
EPG settings
Display configuration
Operating
Sound settings
HiFi output
2)
Init. prog.position
Function for F2
Function for F1
EURO sockets
DVB-C
DVB-T
DVB-S
Analog-TV
Country
Language
Operating
Configuration
Change with
Accept value with .
– +
OK
F1
➔
59
Not possible with an external receiver !
20.2 Collecting EPG data
NexTView data8)is transmitted by
various broadcasting organizations.
DVB-SI data is broadcast by each chan-
nel corresponding to its own content.
Information may therefore correspon-
dingly vary.
Switch on your TV, so that EPG data can
be compiled and/or updated. While
data is being compiled the green LED is
lit.
TV sets with one receiver unit:
• If a NexTView slot8)has been set:
Switch the TV to standby mode, using
the mains key on your remote.
• If no NexTView slot
8)
has been set and
only DVB-SI details can be received:
switch the set to standby.
After switching on the TV, data
compilation will continue stop until
it is switched to standby again.
TV sets with two receivers:
The TV set collects EPG data via the
second receiver, provided that the EPG
station has also been stored there. For
example: The EPG station (e.g. Kabel 1)
can be received via DVB-T or DVB-C (1st
receiver) and via DVB-S (2nd receiver)
☞
Special notes:
The TV set’s channel table lists all available channels in the programme guide,
provided you do not make another selection in the channel table menu.
Channels broadcasting on a time-shared
basis – e.g. arte/Kinderkanal – must be
saved in separate programme slots (see
24). If you include all channels in the
EPG, you won’t be able to see very far
ahead.
You can decide which channels should
appear in the EPG programme guide.
As a rule, the collection process gathers
data for all free channels. The following
options are available to exclude selected
channels from the EPG programme guide:
Solution 1:
• Press the MENU key. The TV menu
appears on the screen.
• Press the white key . The menu channel table appears with the active programme slot selected.
• Press F2 to permit editing of the channel list.
• Press to switch to the menu page.
• Using and select “Include channel
in EPG” and dedeselect rows marked
(x) with OK.
• To exclude other channels from the EPG
programme guide, use and
to select the channel and
repeatthe procedure.
60
Solution 2:
• Press the MENU key . The TV menu
appears on the screen.
• Press the white key. The menu channel
table appears with the active programme slot selected.
• Follow the steps described under “24.
Sort channels” to sort and save your
favourite channels so that they appear
at the top of the list, for example sort 150 and save them.
• Select “EPG Settings” from the Configuration menu and under “Prog. select. in
the channel table”, select “Channels 150” using the -+ key and save by pressing OK.
The collection process will be halted if:
- videotext is opened.
- a recording has been programmed
under AV Recording.
- a preset recording is running or will
begin in an hour.
- the videotext subtitle function is active.
If the TV is switched to standby during the
collection process, the green LED will
appear to indicate that the process is still
running.
20.2 Collecting EPG data
Mit externem Receiver nicht möglich !
61
20.3 Using the EPG
Once all of the EPG data have been collected,
briefly pressing the "EPG" key displays the EPG
with the current programme on the selected programme position highlighted.
The following keys have special functions in EPG
mode:
Select a programme.
View the selected programme or set a
reminder for it.
Scroll to earlier or later pro-
grammes.
0-9 Enter a time for display of the
programmes starting at or after
this time.
Back to the previous programme of the selected station.
Show all following programmes
of the selected station.
Forward to the following pro-
gramme of the selected station.
blue: Select all programmes.
yellow: Programme selection on the basis of the
selected user and his interests.
white: User can set interests.
green: Select user
(father, mother, teenager, child).
red: Make the selected programme available
for recording (see page 60).
EXIT: Back to the TV picture.
+ –: Scroll by days trough the EPG
Opening the menu
EPG
Not possible with an external receiver !
OK
EXIT
F2
F3
F1
62
20.3 Using the EPG
Selecting a programme and viewing
or setting a reminder
In the EPG, you can select a programme with the
cursor control key.
• Press the "OK" key in order to
- view the programme if it is already running, or
-
set a reminder for it if it has not yet started. A
green check mark is displayed after the start time.
• Press the "TEXT" key to display and hide a des-
cription of the programme.
This may not be possible for some programmes.
Setting a user profile
By pressing the green key several times, it is possible to set up the EPG for the current user (father,
mother, teenager, child).
Setting interests
Each user can set up the EPG to reflect
his or her special interests.
• Press the white key .
• Use the cursor control key or the corresponding numeric key to select one
of the subjects.
• Use the cursor control key to move
to the other side.
• Use the cursor control key or the corresponding
numeric keys to select one of the subjects and
mark X it by pressing the "OK" key.
Up to nine subjects of interest can be marked for each user.
• You can delete a mark X by pressing the "OK"
key again.
• Press the red key to save the selections.
☞
Opening the menu
Not possible with an external receiver !
Arts
Education
Children/School
Sport
Leicure
Shows
Current affairs
Feature film
detectiv documentary football/soccer
comedy
game/quiz/contest
motor sports
magazine tourism/travel winter sports
Up to 9 subjects
can be selected.
✗
✗
winter sport
water sport
motor sport
athletics
team sport
tennis/squash
football/soccer
sports magazin
special events
sport (general)
✗
63
20.3 Using the EPG Opening the menu
Programme Information (Now Showing: ..)
After switching to a channel, a box is displayed at
the bottom of the screen as shown in the picture.
This box contains the following information:
- Channel number (in this example:
Pr4).
- Audio mode (stereo/mono).
- Start/end time of the programme
- The time bar shows the elapsed programme time.
- Broadcasting station
- Programme title
- Date and time
- Time details and title of the following programme
Press the green key to view additional information about the programme
currently showing, provided the respective station broadcasts such information.
Repeatedly press the green key to
view additional information about the
following programme, provided the
respective station broadcasts such information.
This information can also be accessed
while a programme is running.
To hide the information, press "EXIT".
Not possible with an external receiver !
Pr 4 Stereo 13:45 - 14:40
RTL Skispringen: Top 50
04.01.06 11:35:12 14:40 - 15:00 Skispringen: Die Entscheidung
Pr 4 Stereo 13:45 - 14:40
RTL Skispringen: Top 50
04.01.06 11:35:12 14:40 - 15:00 Skispringen: Die Entscheidung
Erster Durchgang des dritten Springens der Vierschanzentournee auf der Bergisel-Schanze in Innsbruck
EXIT
64
20.3 Using the EPG
Recording a Programme
Selecting a programme for recording:
If you have a video recorder with the dialogue
system, the EPG permits you to start a recording
by pressing a single key.
• Press the "EPG" key to open the EPG.
• Use the cursor control key to select the programme you wish to record.
If a video recorder with dialogue system is connected
(see also Section 25):
- Switch on the video recorder.
- Insert a cassette.
- Press the red key on the remote
control.
If a normal video recorder is connec-
ted:
- Switch on the video recorder.
- Insert a cassette.
- Press the red key on the remote
control to programme the TV timer
(see also "Direct recording (OTR)").
- On the AV programme position of the video
recorder, programme a timer with the data and
time of the programme which will be provided
by the TV timer.
Opening the menu
Not possible with an external receiver !
Recording Yes
Reminder No
Pr 1
Das Erste
Date 01.05.
Start 22:45
End 23:40
VPS no
Recording device
Videorecorder
Change with
:select
:save the timer
OK
– +
EPG
65
21. Setting the
Country and Language
The menu items "Language" and "Country"
are not available in a 2 ** menu.
Selecting the language in the TV menu
You can select any of the available languages for
the TV menu. All texts in the menu and in the help
screen (Information) are then displayed in the
selected language.
Setting the country
After installation of the TV set,
you must enter the country in
which it is installed (such as
Great Britain) in order to
assign certain basic settings
(such as the channel assignments, the order in which the
stations are stored, etc.).
Setting language and
country:
• Press the "MENU" key to
open the TV menu.
• Press the red key to
open the menu "Configuration".
• Use the corresponding
numeric keys to select
"Language" or "Country".
• Press the "OK" key and then
use the cursor control key to
select the desired language
or country.
• Press the "OK" key to con-
firm your selection.
• Press the "EXIT" key to close the
TV menu.
☞
Opening the menu
MENU
OK
The number of subjects and sections depends
on the selected scope of operation. Depending
on the configuration of the TV set, the various
menu items may be displayed in a different
order and numbered differently.
Selected language English
Dansk
Suomi
Norsk
Português
Español
Français
Italiano
Nederlands
English
Deutsch
Function for F2
Function for F1
EURO sockets
DVB-C
DVB-T
DVB-S
Analog-TV
Country
Language
Operating
Configuration
:select.
:save
OK
F1
➔
✗
Selected country
Great Britan
Luxemburg
Italy
Great Britan
France
Finland
Germany
Denmark
Belgiun
Baltic states
Australia
Function for F2
Function for F1
EURO sockets
DVB-C
DVB-T
DVB-S
Analog-TV
Country
Language
Operating
Configuration
:select.
:save
OK
F1
➔
✗
66
22. Setting Stations
Setting the reception mode
This TV set is capable of operating in three different reception modes:
Analogue TV
:
The broadcasting technology which has been used
for many years. The signals can be received via a
rooftop antenna or a cable.
DVB-T
:
The new digital broadcasting technology whose
signals can be received via an existing (analogue)
rooftop antenna or an indoor antenna (depending
on the strength of the available signal). For more
details, please consult your local TV dealer or
search for “DVB-T” in the Internet.
DVB-C:
The new digital broadcasting technology whose
signals are received via a cable connection. For
further details, please consult your local cable
provider or TV dealer or search for “DVB-C” in
the Internet.
DVB-S:
The digital broadcasting technology that can be received
via a satellite. Ask your local
TV dealer about it, or find out
more at "www.lyngsat.de".
Select the reception mode to
match the broadcasting technology available in your area.
Setting the reception mode
• Press the "MENU" key to
open the TV menu.
• Press the red key to open
the menu "Configuration".
• Use the corresponding numeric key to select the
appropriate reception mode "Analogue TV",
"DVB-T", "DVB-C" or DVB-S.
Opening the menu
MENU
. . .
Start station search
General settings
Manual search
Automatic search
Search settings
Antenna
Function for F2
Function for F1
EURO sockets
DVB-C
DVB-T
DVB-S
Analog-TV
Country
Language
Operating
Configuration
Start station
search with .
OK
F1
➔
67
Various TV standards for picture and sound are
used in different countries. If the wrong TV standard is selected, you will not be able to hear the
sound, or it will be distorted. The TV standard "L"
also uses a different standard for transmission of
the picture. The TV standard must therefore be set
before you execute a station search.
The TV set is set in the factory to the TV standard
B/G.
Setting the TV standard
2)
• Press the "MENU" key to
open the
TV menu.
• Press the red key ® to open
the menu "Configuration".
• Use the corresponding
numeric key (in the example:
) to select "Analogue
TV".
• The menu item "Search settings" is already selected.
• Press the "OK" key and, in the setting window,
use the
-
+
key to select the desired TV standard.
• Press the "OK" key to confirm your selection.
• Press the "EXIT" key to close the TV menu.
Opening the menu
22.1 Setting Stations
TV-Standard 2)for analogue stations
MENU
The number of subjects and sections depends
on the selected scope of operation. Depending
on the configuration of the TV set, the various
menu items may be displayed in a different
order and numbered differently.
2) Possible only on sets equipped with this
function.
OK
EXIT
TV standard B/G
Terrestrial station search
Search settings
2)
Function for F2
Function for F1
EURO sockets
DVB-C
DVB-T
DVB-S
Analog-TV
Country
Language
Operating
Configuration
Change with
Accept value with .
OK
F1
➔
– +
68
Opening the menu
22.1 Setting Stations
Analogue TV
Terrestrial station search
The terrestrial station search automatically searches the entire range of available reception frequencies for stations. All stations which are found
are placed in the station table which is displayed
at the end of the search operation. If you are not
satisfied with the order in which the stations are
displayed, you can move them to other positions
or delete unwanted stations
(see Section 24., "Sorting stations".
Executing a terrestrial station search
• Press the "MENU" key to
open the TV menu.
• Press the red key to open
the menu "Configuration".
• Use the corresponding
numeric key (in the example: (
) to select
"Analogue TV".
• Use the corresponding
numeric key (in the example: (
) to select
"Terr. station search".
• Press the "OK" key and, in the setting window,
confirm the menu item
"Start station search" by pressing the "OK" key.
• The TV set starts to search for available stations.
A station table with the newly found stations is
displayed on the left half of the screen. If a station table already existed before the search, the
newly found stations are automatically appended after the last existing station.
• After completion of the search, all stations which
have been found are sorted.
• You can delete any unwanted stations from the
station table by selecting them with the cursor
control key and pressing the II key.
The number of subjects and sections depends
on the selected scope of operation. Depending
on the configuration of the TV set, the various
menu items may be displayed in a different
order and numbered differently.
2) Possible only on sets equipped with this
function.
OK
MENU
Start stadion search
Terrestrial station search
Search settings
2)
Function for F2
Function for F1
EURO sockets
DVB-C
DVB-T
DVB-S
Analog-TV
Country
Language
Operating
Configuration
Start station
search with .
OK
F1
➔
69
The TV set will normally detect the colour standard
(PAL, SECAM, NTSC, NTSC44, PAL60, PAL M)
automatically.
If this automatic selection does not provide satisfactory results (which should happen only rarely),
you can select the colour standard manually for
each programme position.
The colour standard is set in the factory to "Automatic".
Setting the colour standard
• Press the "MENU" key to open the TV menu.
• Press the white key to
open the station table.
• Press the F2 key to enable
editing of the station table.
• Use the cursor control key to
select the programme position whose colour standard
you wish to change.
• Press the cursor control key
to move to the left
column.
• Use the corresponding
numeric key (in the example:
) to select
"Colour standard".
• Use the
-
+
key to select the desired colour standard, or to step through the available colour
standards until the picture is displayed clearly.
• Press the "OK" key to confirm your selection.
• Press the "EXIT" key to close the TV menu.
Opening the menu
22.1 Setting Stations
Colour standard for analogue stations
MENU
F2
EXIT
OK
Colour standard SECAM
Sound corrections
Colour standard
3)7)
Picture quality
Picture correct.
Enter logo
Station contained in EPG
CA module
5)
Signal quality
5)
DVB-prog. info
5)
Frequency/channel
7)
0010 Hessen 3
0009 Südwest
0008 MDR
0007 PRO 7
0006 RTL 2
0005 RTL
0004 SAT 1
0003 Bayern 3
0002 ZDF
0001 ARD
Station table
Change with
Accept value with
– +
OK
✗
F1
➔
3) See glossary for an explanation.
5) Available only for DVB stations!
7) Available only for analogue stations!
70
With this menu item, you switch the supply voltage
for a DVB-T antenna on or off.
On: The antenna supply voltage is constantly on
(Select this setting if you have a TV-Set with
two DVB-T-Tuners but only one active antenna
or if you receive also analog stations via the
active antenna).
Switched: The antenna supply voltage is only acti-
ve for DVB-T-programmes
(e.g. for controlling a relay to switch
between DVB-T-antenna and broadband cable, if they coexist).
Off: For a passive antenna
or a community antenna
Setting the antenna supply
voltage
• Press the "MENU" key to
open the TV menu.
• Press the red key to open
the "Configuration" menu.
• Use the corresponding
numeric key (in the example:
) to select the func-
tion "DVB-T".
• Press the "OK" key and, in the setting window,
use the
-
+
key to select the antenna supply vol-
tage.
• Press the "OK" key to save the new settings.
• Press the "EXIT" key to close the TV menu.
22.2 Setting Stations
DVB-T, Antenna suply voltage
Opening the menu
MENU
OK
The number of subjects and sections depends
on the selected scope of operation. Depending
on the configuration of the TV set, the various
menu items may be displayed in a different
order and numbered differently.
EXIT
OK
Supply voltage on
General settings
Manual search
Automatic search
Search settings
Antenna
Function for F2
Function for F1
EURO sockets
DVB-C
DVB-T
DVB-S
Analog-TV
Country
Language
Operating
Configuration
F1
➔
Change with
Accept value with .
– +
OK
71
The DVB-T station search operation searches the
entire frequency band for TV and radio stations.
All stations which are found are placed in separate TV and radio station tables. See Section 29. for
details of DVB radio mode.
If you are not satisfied with the order in which the
stations are displayed, you can move them to
other positions or delete unwanted stations (see
Section 24., "Sorting stations".
Executing the automatic station search
• Press the "MENU" key to open the TV menu.
• Press the red key to open the menu "Configuration".
•
Use the corresponding numeric key (in the example: ) to select " DVB-T".
• In the setting window "Anten-
na", you can switch the
supply voltage for an antenna on or off with the
-
+
key.
Normal setting = Off !
The setting "On" may be used
only if you have an active
indoor antenna which needs
a supply voltage for its internal amplifier.
• Use the corresponding
numeric key (in the example:
) to select "Search
settings".
• In the setting window, use
the
-
+
key to select one of the following:
All = search for all stations.
FTA only = search for only unencrypted
(free-to-air) stations.
FTA +CICAM = search for FTA stations and sta-
tions which can be decoded with a CI module
(accessory).
• Press the "OK" key and use the corresponding
numeric key (in the example:
) to select
"Automatic search".
• Press the "OK" key to start the search. The TV
set now searches for available stations.
22.2 Setting Stations
Automatic DVB-T station search
Opening the menu
MENU
OK
The number of subjects and sections depends
on the selected scope of operation. Depending
on the configuration of the TV set, the various
menu items may be displayed in a different
order and numbered differently.
Start station search
General settings
Manual search
Automatic search
Search settings
Antenna
Function for F2
Function for F1
EURO sockets
DVB-C
DVB-T
DVB-S
Analog-TV
Country
Language
Operating
Configuration
Start station
search with .
OK
F1
➔
EXIT
72
For a manual station search, you must know the
channel number or the frequency of the station
you wish to find.
Executing the manual search
• Press the "MENU" key to open the TV menu.
• Press the red key to open the menu "Configuration".
• Use the corresponding numeric key (in the
example:
) to select " DVB-T".
• In the setting window "Antenna", you can switch
the supply voltage for an antenna on or off with
the - + key (see also page 66).
• Use the corresponding
numeric key (in the example:
) to select "search
settings".
• In the setting window, use
the - + key to select "All",
"FTA only" or "FTA +
CICAM" (see also page 67).
• Press the "OK" key and use
the corresponding numeric
key (in the example:
) to
select "Manual search".
• In the setting window, use
the numeric keys to enter the channel
number or the frequency.
If you know further data of the desired
station, select the menu item "Mod. parame-
ter" and use the
-
+
key to change the setting there
to "Manual". You can then enter further data.
• After input of the station data, use the cursor
control key to select the menu item "Station
search" and press the "OK" key to confirm your
selection.
The station settings are saved.
22.2 Setting Stations
Manual DVB-T station search
Opening the menu
MENU
The number of subjects and sections depends
on the selected scope of operation. Depending
on the configuration of the TV set, the various
menu items may be displayed in a different
order and numbered differently.
Channel 05 Frequency
177.500 Mhz
Mod.-Parameter
auto. Start station search
General settings
Manual search
Automatic search
Search settings
Antenna
Function for F2
Function for F1
EURO sockets
DVB-C
DVB-T
DVB-S
Analog-TV
Country
Language
Operating
Configuration
Start station
search with .
OK
F1
➔
Transmission 8k Mode Modulation64 QAM
Mod. Parameter manuell
Guard Intervall 1/8
Code rate 3/4 Start station search
73
The DVB-C station search operation searches the
entire frequency band for TV and radio stations.
All stations which are found are placed in separate TV and radio station tables. See Section 29 for
details of DVB radio mode.
If you are not satisfied with the order in which the
stations are displayed, you can move them to
other positions or delete unwanted stations (see
Section 24., "Sorting stations".
Executing the automatic
search
• Press the "MENU" key to
open the TV menu.
• Press the red key to open
the menu "Configuration".
• Press the numeric key
to
select "DVB-C".
• The cursor is now on the
menu line "Search settings".
•
Press the "OK" key and, in
the setting window, use the
-
+
key to select "All", "FTA
only" or "FTA +CICAM" (see
also page 67).
• Press the "OK" key and then press the corres-
ponding numeric key (in the example: ) to
select "Automatic search". The cursor is now on
the line "Symbol rate 1".
The most common symbol rates are already
preset. Usually these settings do not need to
be modified. If the symbol-rate settings do
not yield the desired result, set other symbol rates and save them by pressing "OK".
Ask your cable operator for details.
• Press the cursor control key to select the menu
line "Start station search".
• Press the "OK" key to start the search. The TV
set now searches for available stations.
☞
22.3 Setting Stations
Automatic DVB-C station search
Opening the menu
MENU
The number of subjects and sections depends
on the selected scope of operation. Depending
on the configuration of the TV set, the various
menu items may be displayed in a different
order and numbered differently.
OK
Symbol rate 13)6900 Precision search off
Symbol rate 2 6875 Start station search
Symbol rate 3
General settings
Manual search
Automatic search
Search settings
Function for F2
Function for F1
EURO sockets
DVB-C
DVB-T
DVB-S
Analog-TV
Country
Language
Operating
Configuration
Start station
search with .
OK
F1
➔
74
For a manual station search, you must know the
channel number or the frequency of the station you
wish to find.
Executing the manual search
• Press the "MENU" key to open the TV menu.
• Press the red key to open the menu
"Configuration".
• Use the corresponding numeric key (in the
example:
) to select "DVB-C".
• The cursor is on the menu
line "Search settings".
• Press the "OK" key and, in
the setting window, use the
-
+
key to select "All", "FTA
only" or "FTA +CICAM" (see
also page 67).
• Press the "OK" key and use
the corresponding numeric
key (in the example:
) to
select "Manual search".
• The cursor points to
"Channel".
• In the setting window, use the numeric keys to
enter the channel number (or special channel
number) or the frequency of the desired station.
If you know further data of the desired station,
select the menu items "Modulation" and "Symbol
rate" and use the
-
+
key or the numeric keys to
change the settings there.
• After input of the station data, use the cursor
control key to select the menu item "Station
search" and press the "OK" key to confirm your
selection.
The station settings are saved.
22.3 Setting Stations
Manual DVB-C station search
Opening the menu
MENU
The number of subjects and sections depends
on the selected scope of operation. Depending
on the configuration of the TV set, the various
menu items may be displayed in a different
order and numbered differently.
Channel 05 Cable channel -Frequency 64.500MHz
Symbol rate 6900
Madulation Auto.mode Start station search
General settings
Manual search
Automatic search
Search settings
Antenna
Function for F2
Function for F1
EURO sockets
DVB-C
DVB-T
DVB-S
Analog-TV
Country
Language
Operating
Configuration
Start station
search with .
OK
F1
➔
75
Calling the menu
MENU
The settings of the satellite antenna system must
be entered in the menu "Configuration" so that
the TV set knows them.
These settings should always be made in the
order in which they are shown in the right-hand
column of the menu, starting at the bottom, i.e.
LNB supply voltage, DiSEqC system, etc..
LNB supply voltage
The LNB voltages for selection of the polarisation (horizontal H = 18V, vertical V = 14V)
are already set and do not normally need to be changed.
If the cable to the satellite
antenna is very long, the voltages reaching the LNB may
be too low. In such cases, the
voltages can be increased by
1 V by activating the linecompensation function.
If any changes should be
necessary, they can be made
as follows.
Changing the settings
•
Press the MENU key to open the TV menu.
• Press the red key to open the menu "Configuration".
• Press the appropriate numeric key (in this example
to select "DVB-S".
• Press the OK key and, in the setting window,
use the
-
+
key to switch the LNB supply voltage
on or off.
• Press the Ok key to confirm the new setting.
• Press the EXIT key to close the TV menu.
If the TV set is connected to a community
antenna, the LNB supply voltage must
always be set to "Off".
☞
22.4. Set-up of satellite system
LNB supply voltage
i
The number of subjects and sections depends
on the selected scope of operation. Depending
on the configuration of the TV set, the various
menu items may be displayed in a different
order and numbered differently.
OK
EXIT
LNB supply voltage on Power compensation off
General settings
Manual search
Automatic search
Search settings
Satellit B
Astra 19,2°
DiSEqc system
LNB supply voltage
Function for F2
Function for F1
EURO sockets
DVB-C
DVB-T
DVB-S
Analog-TV
Country
Language
Operating
Configuration
Change with
Accept value with .
– +
OK
Section 22.4 only in the case of corresponding equipment or conversion.
☞
76
"DiSEqC" makes it possible to control the satellite antenna digitally via the existing antenna
cable and is a prerequisite for the reception of
signals from more than two satellites (e.g.
Astra, Eutelsat, Hotbird).
If you wish to receive signals from at least three
satellites (e.g. ASTRA 19.2°, Eutelsat 16°, Hotbird 13°) the antenna system can be controlled
only with the aid of "DiSEqC".
This menu item is not available in a 2**
menu.
Switching DiSEqC on and of
f
•
Press the MENU key to open
the TV menu.
• Press the red key to open
the menu "Configuration".
• Press the appropriate numeric key (in this example
to
select "DVB-S".
• Use the cursor control key to
select "DiSEqC system" and
press the OK key to confirm
the selection. The cursor is
now located in front of
"DiSEqC system" in the setting window.
• Use the
-
+
to select "Yes" or "No".
• Press the OK key to confirm the new setting.
• Press the EXIT key to close the TV menu.
☞
22.4 Set-up of satellite system
DiSEqC system
i
Calling the menu
MENU
The number of subjects and sections depends
on the selected scope of operation. Depending
on the configuration of the TV set, the various
menu items may be displayed in a different
order and numbered differently.
OK
EXIT
DiSEqc system
off
General settings
Manual search
Automatic search
Search settings
Satellit B
Astra 19,2°
DiSEqc system
LNB supply voltage
Function for F2
Function for F1
EURO sockets
DVB-C
DVB-T
DVB-S
Analog-TV
Country
Language
Operating
Configuration
Change with
Accept value with .
– +
OK
Section 22.4 only in the case of corresponding equipment or conversion.
☞
77
You can set up to four satellites in the menu "Configuration". No satellite is set in the factory.
The LNB frequency is used to switch between the
high and low frequency bands. The default frequencies Low band 9.75 GHz and High band
10.60 GHz are set in the factory.
Selecting satellites
• Press the MENU key to open the TV menu.
• Press the red key to open
the menu "Configuration".
• Press the appropriate numeric key (in this example
to
select "DVB-S".
• Press the appropriate numeric key (in this example
to
select "Satellite A".
• Use the
-
+
key to select the
desired satellite. The most
common satellites are displayed one after the other,
together with the symbol
rates for each one. Depending on the satellite, it may
be necessary to set additional symbol rates
manually if the selected satellite uses different
symbol rates and you wish to find the related
transponders in an automatic station search.
• Use the cursor control key to select "Low band"
or "High band". The settings depend on the
components installed in the satellite antenna. For
the correct settings, please consult the data sheet
or the label of the LNB(s) being used.
• Press the OK key to confirm the new settings.
• Press the EXIT key to close the TV menu.
Calling the menu
22.4 Set-up of satellite system
Selecting satellites
MENU
The number of subjects and sections depends
on the selected scope of operation. Depending
on the configuration of the TV set, the various
menu items may be displayed in a different
order and numbered differently.
OK
EXIT
Satellite Astra 19,2° Symbol rate 1 22000
Low band 9,75 GHz Symbol rate 2 27500
High band 10,60 GHz Symbol rate 3 - - - - -
General settings
Manual search
Automatic search
Search settings
Satellit B
Astra 19,2°
DiSEqc system
LNB supply voltage
Function for F2
Function for F1
EURO sockets
DVB-C
DVB-T
DVB-S
Analog-TV
Country
Language
Operating
Configuration
Change with
Accept value with .
– +
OK
Section 22.4 only in the case of corresponding equipment or conversion.
☞
78
Before executing a DVB station search, you must
make the appropriate search settings.
Depending on the features installed in the TV set
and your personal requirements, you can make
the following settings:
All = search for all stations on the selected satelli-
te.
FTA only = search only for unencrypted (free-to-
air) stations on the selected satellite.
FTA (CI) = search for all FTA
stations and stations which can be
received with the CI
module.
The menu item "FTA (CI)" is
available only if a CI module
has been installed and a CA
module is plugged into it.
Making the search settings
•
Press the MENU key to open
the TV menu.
• Press the red key to open
the menu "Configuration".
• Press the appropriate numeric key (in this example
to select "DVB-S".
• Press the appropriate numeric key (in this example
to select "Search settings".
• Use the
-
+
key to select the desired setting.
• Press the Ok key to confirm the new setting.
• Press the EXIT key to close the TV menu.
22.5 Setting the stations
Search settings
Calling the menu
MENU
The number of subjects and sections depends
on the selected scope of operation. Depending
on the configuration of the TV set, the various
menu items may be displayed in a different
order and numbered differently.
OK
EXIT
Stations Free-to-air only
General settings
Manual search
Automatic search
Search settings
Satellit B
Astra 19,2°
DiSEqc system
LNB supply voltage
Function for F2
Function for F1
EURO sockets
DVB-C
DVB-T
DVB-S
Analog-TV
Country
Language
Operating
Configuration
Change with
Accept value with .
– +
OK
Section 22.5 only in the case of corresponding equipment or conversion.
☞
79
The DVB-S station search scans the entire reception band for TV and radio stations and stores
them in separate TV and radio station tables. For
details of the DVB radio mode, see Section 29 in
the operating instructions for the TV set.
If you are not satisfied with the order in which the
stations are stored, you can move stations to other
positions in the table or delete them. For further
details, see Section 24, "Sorting stations" in the
operating instructions for the TV set.
☞
The station search will
function correctly only if
the LNB frequencies have
been set and stored correctly.
Executing the automatic sta
-
tion search
•
Press the MENU key to open
the TV menu.
• Press the red key to open
the menu "Configuration".
• Press the appropriate numeric key (in this example
to
select "DVB-S".
• Press the appropriate numeric key (in this example
to select "Automatic search".
•
In the setting window, use the
-
+
key to select the
desired satellite.
• Use the cursor control key to move to the
menu line "Start station search".
• Press the OK key to start the station search.
The TV set searches for the specified stations and places
them in a station table, which is then displayed.
If desired, you can sort or move stations to other
positions in the table or delete unwanted stations.
For details, see Section 24 of the operating
instructions for the TV set.
22.5 Setting the stations
Automatic search
Calling the menu
MENU
The number of subjects and sections depends
on the selected scope of operation. Depending
on the configuration of the TV set, the various
menu items may be displayed in a different
order and numbered differently.
OK
EXIT
Satellite Astra 19,2° Start station search
General settings
Manual search
Automatic search
Search settings
Satellit B
Astra 19,2°
DiSEqc system
LNB supply voltage
Function for F2
Function for F1
EURO sockets
DVB-C
DVB-T
DVB-S
Analog-TV
Country
Language
Operating
Configuration
Start station
search with
OK
Section 22.5 only in the case of corresponding equipment or conversion.
☞
80
For the manual search, you must know the frequency, the symbol rate and the polarisation of
the station for which you want to search.
Executing the manual search
•
Press the MENU key to open the TV menu.
• Press the red key to open the menu "Configuration"
• Press the appropriate numeric key (in this example
to select "DVB-S".
• The cursor is located on the line "LNB supply
voltage".
• Press the appropriate numeric key (in this example
to
select "Manual search".
• The cursor then moves to
"Satellite". If more than one
satellite is available, use the
-
+
key to select the desired
satellite.
• In the setting window, use
the cursor control key to
select the menu line "Frequency".
• Use the numeric keys or the
-
+
key to set the frequency.
• In the setting window, use the cursor control key
to select the line "Polarisation" and use the
-
+
key to select " H=Horizontal" or "V=Vertical".
• In the setting window, use the cursor control key
to select the line "Symbol rates" and enter the
symbol rate with the numeric keys.
• In the setting window, use the cursor control key
to select the line "Start station search" and
press the OK key to start the search.
The station is placed in the station table. If desired, you can sort or move stations to other positions in the table or delete unwanted stations.
For details, see Section 24 of the operating
instructions for the TV set.
22.5 Setting the stations
Manual search
Calling the menu
MENU
The number of subjects and sections depends
on the selected scope of operation. Depending
on the configuration of the TV set, the various
menu items may be displayed in a different
order and numbered differently.
OK
Satellite Astra 19,2° Frequency 11836 MHz
Symbol rates 27500 Polarisation H
Start station search
General settings
Manual search
Automatic search
Search settings
Satellit B
Astra 19,2°
DiSEqc system
LNB supply voltage
Function for F2
Function for F1
EURO sockets
DVB-C
DVB-T
DVB-S
Analog-TV
Country
Language
Operating
Configuration
Start station
search with
OK
Section 22.5 only in the case of corresponding equipment or conversion.
☞
81
With the menu item, "General settings", you can
specify whether or not the data are to be saved in
the non-volatile memory of the TV set when transmission parameters are changed.
This update function applies to stations which use
different transmission parameters at different times
of the day, such as when they transmit regional
programmes.
Setting the data update function
•
Press the MENU key to open the TV menu.
• Press the red key to open
the menu "Configuration".
• Press the appropriate numeric key (in this example
to
select "DVB-S".
• The cursor is located on the
line "LNB supply voltage".
• Press the appropriate numeric key (in this example
to
select "General settings".
• In the setting window, use
the
-
+
key to set "Update
data" to "On".
• Press the OK key to confirm the new setting.
• Press the EXIT key to close the TV menu.
Calling the menu
22.5 Setting the stations
Updating the data
The number of subjects and sections depends
on the selected scope of operation. Depending
on the configuration of the TV set, the various
menu items may be displayed in a different
order and numbered differently.
MENU
OK
EXIT
Update data on
General settings
Manual search
Automatic search
Search settings
Satellit B
Astra 19,2°
DiSEqc system
LNB supply voltage
Function for F2
Function for F1
EURO sockets
DVB-C
DVB-T
DVB-S
Analog-TV
Country
Language
Operating
Configuration
Change with
Accept value with .
– +
OK
Section 22.5 only in the case of corresponding equipment or conversion.
☞
82
23. Station Logo
With the aid of the VPS signal, a station logo with
a maximum length of 15 characters is automatically assigned to each station.
If this automatic assignment does not work, or if
you want to use a different logo, you can change
the setting manually.
Setting the station logo
• Press the "MENU" key.
• Press the white key to open the “station
table”.
• Press the F2 key to enable editing of the station
table.
• Select the programme position whose logo you
wish to change.
• Press the cursor control key
to move to the other
column.
• Use the corresponding
numeric key (in the example:
) to select
"Logo input".
• The various letters and digits
can be selected with the aid
of the cursor control key
.
• You can delete single characters with the red
key or the complete logo with the II key.
• Set the desired logo by repeatedly pressing the
various numeric keys. The lowercase letters are
displayed after the uppercase letters.
• Press the "OK" key to save the new logo.
• Press the "EXIT" key to close the TV menu.
Opening the menu
MENU
F2
EXIT
OK
The number of subjects and sections depends
on the selected scope of operation. Depending
on the configuration of the TV set, the various
menu items may be displayed in a different
order and numbered differently.
_ , ; ABC DEF
GHI JKL MNO RTL 2
PQRS
TUV WXYZ
Sound corrections
Colour standard
3)7)
Picture quality
Picture correct.
Enter logo
Station contained in EPG
CA module
5)
Signal quality
5)
DVB-prog. info
5)
Frequency/channel
7)
0010 Hessen 3
0009 Südwest
0008 MDR
0007 PRO 7
0006 RTL 2
0005 RTL
0004 SAT 1
0003 Bayern 3
0002 ZDF
0001 ARD
Station table
✗
F1
➔
clear all
delete character.
select position.
save
abort
II
MENU
OK
83
24. Sorting Stations
You can move, copy and delete individual stations
or groups of stations within the station table.
Moving, copying and deleting stations
• Press the "MENU" key to open the TV menu.
• Press the white key to open the station table.
• Use the cursor control key to select the pro-
gramme position which is to be moved, copied
or deleted. You can also mark a contiguous
block of positions by moving the cursor to the
programme position at the end of the block.
• Briefly press the OK key to mark the programme
position (in the example: position 008). Press
and hold the OK key to mark all programme
positions in the previously selected block.
• To copy this programme
position, use the cursor to
select the programme position before or after which
the selected station is to be
inserted. If the station(s) you
have selected were previously in programme positions with lower numbers
than the insertion position,
they are inserted before this
position; if they previously
had higher numbers, they
are inserted after this position.
• To move the selected station(s), select the programme position to which the station(s( is/are to
be moved.
• Use the
-
+
key to copy (+) or move (-) the sta-
tion(s).
• To delete a station, press the ll key.
• Press the "EXIT" key to close the TV menu.
Opening the menu
MENU
OK
EXIT
Select station with (hold down to select a block). Select new position with
the cursor
:move/copy, :delete.
Delete all marks with .
0010 Hessen 3
0009 Südwest
0008 MDR
0007 PRO 7
0006 RTL 2
0005 RTL
0004 SAT 1
0003 Bayern 3
0002 ZDF
0001 ARD
0020 BR alpha
0019 3 SAT
0018 Kinderkan.
0017 FRANKEN
0016 TELE-5
0015 9LIVE
0014 SuperRTL
0013 Kabel 1
0012 VOX
0011 West 3
F1
➔
F1
➔
F3
➔
F3
➔
Station table
: select
:edit
programme
attributes or
station list.
F2
OK
– +
II
84
25. Registering AV Devices
AV (audio/video) devices are external devices
which deliver video and/or audio signals (such
as video recorders, DVD players, DVD recorders, etc.) and which can be connected to TV
sets.
All commonly available AV devices are listed in
the menu "AV devices".
Note that you must always connect AV
devices exactly as shown in the connection
diagram in the TV menu of your TV set !
SVHS/Hi8 and Data Logic video recorders must always
be connected to the EURO1 socket of the TV set.
In the factory, the EURO1 socket is programmed
for a video recorder and the EURO2 socket is pro-
grammed for a DVD player.
Registering an A
V device on
the TV set
• Press the "MENU" key to
open the TV menu.
• Press the yellow key to
open the menu "AV devices".
• Use the cursor control key
to select the AV device you
wish to register and press
the "OK" key.
• Press numeric key
and use the
-
+
key to
select the appropriate signal types (OUT/IN) for
this device and press "OK" to confirm your
selection. For details of the signal types, see
page 66 and the operating instructions for the
AV device being connected.
• If desired, press numeric key
, enter a diffe-
rent name for this AV device and press "OK".
• Use the cursor control key to select "Connect"
and press the "OK" key. Then connect the AV
device to the corresponding EURO socket.
☞
i
Opening the menu
MENU
Caution! Connection of a
new device may cause an
existing connection diagram to be changed. If so,
you must reconnect the AV
devices accordingly.
☞
OK
OK
EXIT
Connect as follows:
Videorecorder CVBS CVBS EURO1
DataLogic
TV-SPDIF input
Name
Signal types
connect
Other device 3
Other device 2
Other device 1
PC
Satellit / set top
DVD Player 2
DVD Player 1
DVD/Videorec.3
DVD/Videorec.2
DVD/Videorec.1
F1
➔
select
connect
and clear
OK
✗
➔
➔
AV devices
VCR
85
Data Logic video recorder
"Data Logic" is a system which provides a dia-
logue between a TV set and a video recorder.
This "intelligent" system offers the features such
as:
- Automatic transfer of the settings for terrestrial or
cable TV stations (not DVB) to the video recorder.
- Immediate recording - the video recorder
records the programme currently displayed on
the TV screen.
- Automatic switching to the AV programme position.
- Direct control of the video recorder from the
timer menu of the TV set.
- Automatic switching off of the video recorder
when the TV set is switched to the standby state.
In the menu "AV devices" check X to the left of the
field "Data Logic" for "Video recorder 1" and
connect the video recorder to the EURO1 socket.
Data Logic will function correctly only if the
AV-1 socket on the video recorder is connected to the EURO 1 socket on the TV set.
Comparable dialogue systems
are: QLink (Panasonic), EasyLink (Philips), Megalogic
(Grundig), SMARTLINK
(Sony).
Registering a Data Logic
video recorder on the TV set
• Press the "MENU" key to
open the TV menu.
• Press the yellow key to
open the menu "AV devices".
☞
25. Registering AV Devices
Data Logic
i
Opening the menu
This menu item is not available in a 2 ** menu.
☞
MENU
Connect as follows:
Videorecorder CVBS CVBS EURO1
DataLogic
TV-SPDIF input
Name
Signal types
connect
Other device 3
Other device 2
Other device 1
PC
Satellit / set top
DVD Player 2
DVD Player 1
DVD/Videorec.3
DVD/Videorec.2
DVD/Videorec.1
F1
➔
select
connect
and clear
OK
✗
✗
VCR
➔
➔
AV devices
OK
86
25. Registering AV Devices
Data Logic
• Use the cursor control key to select the AV device to be connected and press the "OK" key.
• Press numeric key
, use the - + key to select
the correct signal types (OUT/IN) and press the
"OK" key.
(See also the operating instructions of the
AV device.)
• If desired, press numeric key
, enter a new
name for the AV device and press the "OK" key.
• Use the cursor control key to select "Data
Logic" and press the "OK" key.
• Use the cursor control key to select "Connect"
and press the "OK" key. Then connect the AV
device to the corresponding EURO socket.
Data Logic: transferring the station table
• Press the "MENU" key to open the TV menu.
• Press the red key to open the menu "Configuration".
• Press numeric key
to
select "Analogue TV".
• Press the "OK" key and then
press numeric key
to
select "Data Logic".
• Press the "OK" key to trans-
fer the programme positions
from the TV set to the video
recorder.
Opening the menu
OK
EXIT
MENU
OK
The number of subjects and sections depends
on the selected scope of operation. Depending
on the configuration of the TV set, the various
menu items may be displayed in a different
order and numbered differently.
Start data transfer Programme position
DataLogic
Terrestrial station search
Search settings
2)
Function for F2
Function for F1
EURO sockets
DVB-C
DVB-T
DVB-S
Analog-TV
Country
Language
Operating
Configuration
Change with
Start data transfer
with .
OK
F1
➔
– +
87
The signal type always refers to the input
and output of the AV device.
Some AV devices may use a composite video signal (FBAS) for recording and playback operations
and an RGB signal for displaying their menus.
It is not possible to make a general statement in
this respect. The operating instructions of the AV
device concerned may provide some indication.
If you connect such an AV device with the signal
type "composite video" (FBAS) and recordings are
played back correctly, but you cannot see the
menu of the AV device, you must change the signal type in the menu "AV devices" to "RGB".
Setting the signal type
• Press the "MENU" key to
open the TV menu.
• Press the yellow key to
open the menu "AV devices".
• Use the cursor control key to
select the AV device whose
signal type you wish to
change and press the "OK"
key.
• Press numeric key
, use
the cursor control key to
select " Signal OUT", and
use the - + key to change the setting to " RGB".
• Press the "OK" key to confirm your selection.
• Press the "EXIT" key to close the TV menu.
Caution ! This may cause an existing connection diagram to be modified. If so, you
must reconnect the AV devices accordingly.
☞
☞
25. Registering AV Devices
Setting signal types RGB
MENU
OK
OK
EXIT
Opening the menu
The number of subjects and sections depends
on the selected scope of operation. Depending
on the configuration of the TV set, the various
menu items may be displayed in a different
order and numbered differently.
Signal OUT RGB Signal IN CVBS
DataLogic
TV-SPDIF input
Name
Signal types
connect
Other device 3
Other device 2
Other device 1
PC
Satellit / set top
DVD Player 2
DVD Player 1
DVD/Videorec.3
DVD/Videorec.2
DVD/Videorec.1
F1
➔
✗
AV devices
Change with
Accept value with .
OK
– +
88
25. Registering AV Devices
Setting signal types DVI/HDMI
The signal type always refers to the input
and output of the AV device.
AV devices equipped with a DVI or HDMI socket
can be connected to the LCD TV with the aid of a
DVI or HDMI cable, respectively.
The connected device must be registered in the
menu "AV devices" with "Signal OUT" set to
"DVI" or "HDMI", as applicable. Connection via a
DVI or HDMI interface permits digital transfer of
the picture signal from the device to the TV set.
The sound signal must be connected with an additional Cinch or optical (Toslink) audio cable.
Setting the signal type DVI or HDMI
• Press the "MENU" key to open the TV menu.
• Press the yellow key to
open the menu "AV devices".
• Use the cursor control key
to select the AV device
whose signal type you wish
to change and press the
"OK" key.
• Press numeric key
, use
the cursor control key to
select " Signal OUT", and
use the - + key to change
the setting to " RGB".
• Press the "OK" key to confirm your selection.
• Press the "EXIT" key to close the TV menu.
Caution ! This may cause an existing connection diagram to be modified. If so, you
must reconnect the AV devices accordingly.
☞
☞
The number of subjects and sections depends
on the selected scope of operation. Depending
on the configuration of the TV set, the various
menu items may be displayed in a different
order and numbered differently.
MENU
OK
OK
EXIT
Opening the menu
Signal OUT HDMI Signal IN no Signal
DataLogic
TV-SPDIF input
Name
Signal types
connect
Other device 3
Other device 2
Other device 1
PC
Satellit / set top
DVD Player 2
DVD Player 1
DVD/Videorec.3
DVD/Videorec.2
DVD/Videorec.1
F1
➔
✗
AV devices
Change with
Accept value with .
OK
– +
89
Connection of external devices with YUV component output to the "COMPONENT IN" RCA jacks.
The signal type always refers to the input
and output of the AV device.
AV devices equipped with a YUV jack can be connected to the LCD TV by means of a YUV cable
(see page 97). In the "AV Devices" menu, the connected AV device must be registered with signal
OUT "YUV".
The connection of the analogue YUV source using
the RCA jacks to the YUV input of the LCD TV
depends on the output format of the signal source.
Configure the following settings, depending on the
output format of your signal source:
Setting the YUV Signal Type
- Enter the TV menu by pressing "MENU".
- Press the yellow key to open
the "AV Devices" menu.
- Use the cursor control to
select the AV device whose
signal type you want to
change and press "OK".
- Press numeric key
, use
the cursor control to select
"Signal OUT", and use the + key to set "YUV" or "YUV
(HD)".
- Confirm the setting by pressing "OK".
- Exit the "TV Menu" by pressing "EXIT".
Caution ! This may cause an existing connection diagram to be modified. If so, you
must reconnect the AV devices accordingly.
☞
☞
25. Registering AV Devices
Setting signal types YUV
MENU
OK
OK
EXIT
Opening the menu
The number of subjects and sections depends
on the selected scope of operation. Depending
on the configuration of the TV set, the various
menu items may be displayed in a different
order and numbered differently.
Signal OUT YUV Signal IN no Signal
DataLogic
TV-SPDIF input
Name
Signal types
connect
Other device 3
Other device 2
Other device 1
PC
Satellit / set top
DVD Player 2
DVD Player 1
DVD/Videorec.3
DVD/Videorec.2
DVD/Videorec.1
F1
➔
✗
AV devices
Change with
Accept value with .
OK
– +
90
25.1 Removing AV Devices
This menu item is not available in a 2 **
menu.
If desired, you can change the factory settings for
AV devices (a video recorder on the EURO1
socket and a DVD player on the EURO2 socket).
Removing an AV device from the TV set
• Press the "MENU" key to open the TV menu.
• Press the yellow key to open the menu "AV
devices".
• Use the cursor control key to select the device
you wish to remove and press the "OK" key.
The cursor is on the line "Connect".
• Press the "OK" key again. A message is displayed, asking if you really want to change the
connected device.
• Press the OK key again to
remove the connected device.
• Press the "EXIT" key to close the TV menu.
☞
Opening the menu
MENU
The number of subjects and sections depends
on the selected scope of operation. Depending
on the configuration of the TV set, the various
menu items may be displayed in a different
order and numbered differently.
Connect as follows:
DVD/Videorec.1
DataLogic
TV-SPDIF input
Name
Signal types
connect
Other device 3
Other device 2
Other device 1
PC
Satellit / set top
DVD Player 2
DVD Player 1
DVD/Videorec.3
DVD/Videorec.2
DVD/Videorec.1
F1
➔
select
connect
and clear
OK
AV devices
OK
OK
VCR
91
You can define an initial programme position in
this TV set. This initial programme position is used
primarily to select the AV programme position if
you use an external receiver.
Setting the initial programme position
This menu item is not available in a 2 **
menu.
Select a receiver (satellite or set-top box) in the
menu "AV devices" and connect the receiver to the
TV set (see also Section 25, Registering AV Devices").
• Press the "AV " key.
• Use the numeric keys to
select the position "Sat/Settop" in the AV menu.
• Press the "MENU" key to
open the TV menu.
• Press the red key to open
the menu "Configuration".
• Use the cursor control key to
select "Operation" and then
"Initial programme position".
• Press the "OK" key and, in the setting window,
use the
-
+
key to select "Yes".
• Press the "OK" key to save the new setting.
• Press the "EXIT" key to close the TV menu.
The AV programme position will now be
selected automatically when you switch on
the TV set with the main power switch.
☞
☞
26. Initial Programme Position Opening the menu
MENU
OK
OK
EXIT
The number of subjects and sections depends
on the selected scope of operation. Depending
on the configuration of the TV set, the various
menu items may be displayed in a different
order and numbered differently.
2) Possible only on sets equipped with this
function.
Mode of operation AV
Programm Satellite/set top
Data Logic adjustm.
CI dialogue via
EPG settings
Operating
Sound settings
HiFi output
2)
Init. prog.position
Function for F2
Function for F1
EURO sockets
DVB-C
DVB-T
DVB-S
Analog-TV
Country
Language
Operating
Configuration
Change with
Accept value with .
– +
OK
F1
➔
92
27. Sound via HiFi Amplifier
HiFi output
On the rear of the TV set, you will find audio
sockets and a digital audio-out socket (see page
90) which can be used to connect the TV set to a
HiFi system (HiFi amplifier).
Settings need to be made in the menu items "HiFi
output" and "Sound settings" only if the TV set is
connected to a HiFi system.
If you want adjust the sound settings exclusively on
the HiFi system, you must set the HiFi output to
constant.
You can then no longer adjust the volume and
tone with the Metz remote
control. The mute function
remains active.
If you want to be able to
change the sound settings
with the Metz remote control,
you must set the HiFi output to
variable.
Setting the HiFi output
• Press the "MENU" key to
open the TV menu.
• Press the red key to
open the menu "Configuration".
• Use the cursor control key to select
"Initial programme position".
• Use the corresponding numeric key (in the
example:
) to select " HiFi output".
• In the setting window, use the
-
+
key to set the
desired parameters.
• Press the "OK" key to save the new settings.
• Press the "EXIT" key to close the TV menu.
In normal TV Mode, the function "Sound via..."
can be activated temporarily by pressing the yellow key and using the
-
+
key.
MENU
The number of subjects and sections depends
on the selected scope of operation. Depending
on the configuration of the TV set, the various
menu items may be displayed in a different
order and numbered differently.
Opening the menu
OK
EXIT
Data Logic adjustm.
CI dialogue via
EPG settings
Operating
Sound settings
HiFi output
2)
Init. prog.position
Function for F2
Function for F1
EURO sockets
DVB-C
DVB-T
DVB-S
Analog-TV
Country
Language
Operating
Configuration
Change with
Accept value with .
– +
OK
F1
➔
HiFi output constant
Output level 50%
93
On the rear of the TV set, you will find audio
sockets and a digital audio-out socket (see page
90) which can be used to connect the TV set to a
HiFi system (HiFi amplifier).
If you wish to play back the sound only via a HiFi
system (HiFi amplifier) which is connected with the
aid of a Cinch cable, you must select the function
"Sound via HiFi".
If you wish to play back the sound only via a HiFi
system (HiFi amplifier) which is connected with the
aid of an optical audio cable
("Toslink", available as an
accessory), the following settings should not be made.
Setting sound via HiFi
• Press the "MENU" key to
open the TV menu.
• Press the red key to
open the menu "Configuration".
• Press the "OK" key to move
to the right-hand column.
• Use the cursor control key or the correspon-
ding numeric key (in the example:
) to select
"Sound settings".
• In the setting window, use the cursor control key
to select the menu item "Sound via…".
• Use the
-
+
key to select "Sound via HiFi".
• Press the "OK" key to save the new setting.
• Press the "EXIT" key to close the TV menu.
In normal TV Mode, the function "Sound via..."
can be activated temporarily by pressing the yellow key and using the
-
+
key.
27. Sound via HiFi Amplifier
HiFi output
Opening the menu
MENU
OK
OK
EXIT
The number of subjects and sections depends
on the selected scope of operation. Depending
on the configuration of the TV set, the various
menu items may be displayed in a different
order and numbered differently.
2) Possible only on sets equipped with this
function.
Data Logic adjustm.
CI dialogue via
EPG settings
Display configuration
Operating
Sound settings
HiFi output
2)
Init. prog.position
Function for F2
Function for F1
EURO sockets
DVB-C
DVB-T
DVB-S
Analog-TV
Country
Language
Operating
Configuration
Change with
Accept value with .
– +
OK
F1
➔
Mute (two-stage) on Sound via HiFi
Preselection of Sound 2 Channel 1
94
28. Display Configuration
This menu item is not available in a 2 **
menu.
The green digital display on the front of the TV set
can be programmed, as desired, to show the time
or the current programme position.
Setting the display configuration
2)
• Press the "MENU" key to open the TV menu.
• Press the red key to open the menu "Configuration".
• Use the cursor control key to select "Initial
programme position".
• Use the corresponding
numeric key (in the example:
) to select "Display
configuration".
• In the setting window, use
the
-
+
key to select the des-
ired setting.
• Press the "OK" key to save
the new setting.
• Press the "EXIT" key to close
the TV menu.
☞
MENU
Opening the menu
The number of subjects and sections depends
on the selected scope of operation. Depending
on the configuration of the TV set, the various
menu items may be displayed in a different
order and numbered differently.
OK
EXIT
Data Logic adjustm.
CI dialogue via
EPG settings
Display configuration
Operating
Sound settings
HiFi output
2)
Init. prog.position
Function for F2
Function for F1
EURO sockets
DVB-C
DVB-T
DVB-S
Analog-TV
Country
Language
Operating
Configuration
Change with
Accept value with .
– +
OK
F1
➔
Display brightness 3 Permanent display Time
95
29. DVB Radio Mode
To switch from TV mode to DVB radio mode, press
the "R" key.
The screen is automatically blanked after about
30 seconds.
To switch from DVB radio mode to TV mode, press
the "TV" key.
Setting DVB radio stations
The available DVB radio stations are automatically detected during a station search (see Section
22) and stored in a separate station table at the
operating level for radio mode.
The radio station table can be sorted (see Section
24) and the station logos can be changed (see
Section 23).
DVB radio stations are administered in the
same basic way as DVB TV stations.
The functions described in Sections 12,
12.1, 15 to 17.2 and 18 (Special functions,
Normal/speech, Timer overview and Direct
recording) are also available for radio stations.
☞
Opening the menu
R
TV
96
The adjustable scope of operation for the TV set
can be a great help in finding your way around
the complex operating functions of the TV set.
The scope of operation can be set to various
levels, which are identified by asterisks.
1
"Just watching TV"- in other words, it is
not possible to open the TV menu and
only the functions available on the
remote control can be used:
- Zapping
- Selection of programme positions with the numeric keys, the oval "P+/P-" rocker key or the
white key .
- Opening Teletext.
- Displaying help information (INFO).
- Playing back films from a video recorder or DVD
player by pressing the "AV " key.
- Selecting "Special functions 1" by pressing the
F1 key.
- Selecting "Special functions 2" by pressing the
F2 key.
- Selecting "Special functions 3" by pressing the
F3 key.
- Selecting connected AV devices by pressing the
"AV " key.
- Calling the standard picture functions by pressing the blue key .
- Calling the standard sound functions by pressing
the yellow key .
- Calling the "EPG" function with the "EPG" key.
If the scope of operation is set to a 1menu and
you subsequently want to open a menu, then:
• Press and hold the "MENU" key for at least five
seconds to open the TV menu.
• The menu item "Operation" is automatically
selected.
30. Scope of Operation
97
• Use the - + key to select the desired scope of
operation and press the "OK" key to save the
new setting.
2
This menu permits you to configure the
use of the TV set to a certain degree.
All of the functions listed for the 1
menu are available and are supplemented by the following functions:
- Childlock
- Timer control (sleep timer)
- Automatic station search
- Transfer of the TV station
table from the TV set to a
Data Logic video recorder.
- Editing functions in the sta-
tion table
3
This is the operating scope for persons who are interested in technology
who want to be able to use the full range of functions of the TV set.
Setting the scope of operation
• Press the "MENU" key to open the TV menu.
• Press the red key to open the menu "Configuration".
• Use the cursor control key to move to the
menu line "Initial programme position".
• Press the numeric key
to select "Scope of
operation".
• In the setting window, use the
-
+
key to select
the desired scope of operation.
Press the "OK" key to save the new setting.
Press the "EXIT" key to close the TV menu.
30. Scope of Operation Opening the menu
The number of subjects and sections depends
on the selected scope of operation. Depending
on the configuration of the TV set, the various
menu items may be displayed in a different
order and numbered differently.
MENU
OK
EXIT
Data Logic adjustm.
CI dialogue via
EPG settings
Display configuration
Operating
Sound settings
HiFi output
2)
Init. prog.position
Function for F2
Function for F1
EURO sockets
DVB-C
DVB-T
DVB-S
Analog-TV
Country
Language
Operating
Configuration
Change with
Accept value with .
– +
OK
F1
➔
Operation full
98
31.1 Connecting Headphones
31. Operation without the Remote Control
Operation without the remote control is
provided as an emergency measure in
case the batteries of your remote control
are exhausted or the remote control is
not readily available.
The manual controls can be found on
the underside of the TV set, behind a
flap that is opened by pressing •••.
Switching on
Press the main power switch on the TV
set. After about five seconds, the TV set
is switched on with programme position
1 or the programmed initial programme
position selected.
You can also use the following functions
directly on the TV set, without a remote
control. For functions which require further adjustments, the function remains
preselected for ten seconds.
Programme selection
Press the -/+ buttons.
V
olume
Press and hold the preselection key F until
the bar display for the volume appears
on the screen. Then press the "-" or "+"
button to adjust the volume.
Contrast
Press and hold the preselection key F until
the bar display for the contrast appears
on the screen. Then press the "-" or "+"
button to adjust the contrast.
The headphone socket is located behind
a flap on the left side of the TV set (see
Section 34).
Press ••• to open the flap.
See also ch. 34.
We recommend the use of headphones
with an impedance of at least 32 Ω. The
use of headphones with a lower impedance will reduce the dynamic range of
the sound.
You can save the headphone volume as
a standard value.
Setting the volume too high
when using headphones or
earphones can result in
damage to the ears - including the complete loss of
hearing.
99
When receiving a dual-language programme, you can switch between the
two sound channels.
In TV mode, press and hold the yellow
key until the sound function "Sound
mode" is selected.
Then use the
-
+
key to select Sound 1
or Sound 2.
33. Cleaning the TV Set
32. Sound 1, Sound 2
Headph. Vol.
Sound mode Cannel 2
Spatial
Spatial
Sound mode Cannel 2
Balance
Before cleaning the set, always switch it off with the mains switch!
Incorrect treatment and cleaning of the screen surface can cause irreparable
damage to it. You should therefore always observe the following instructions
for treatment and cleaning of the set.
Treatment:
Always treat the screen surface very carefully.
Take care not to damage it mechanically by shocks, impact, scratching or scraping.
Keep sharp, pointed and hard objects away from the surface of the screen.
Keep the surface of the screen clean.
For cleaning the case and the screen, use only a soft, dry cloth. For removing stub-
born marks, you may moisten the cloth slightly.
Cleaning and care:
The surface of the screen may be cleaned only with a soft, dry cloth (such as a microfleece duster). If any marks cannot be removed with this dry cloth, you may moisten
the cloth slightly.
Take care that no water or other liquid can enter the TV set, since this can cause
serious damage to the set.
If any liquid or other foreign object (pieces of metal, etc.) enters the set, immediately
disconnect the mains plug from the wall outlet.
Never insert your hands or tools into the set, since this may result in electric shocks.
☞
☞
34. Connections on the Front/Right Side of the Set
Headphone socket, diameter 3.5 mm
FBAS/Video in (e.g. digital camera or camcorder)
Audio in R/L (e.g. camcorder)
S-VHS or. Y/C in
(e.g. camcorder)
Talio, at the front under the flap
100
Service socket for use by your dealer
Linus, at the front under the flap
Primus, at the right side
Antenna socket DVB-C/T/analog
Loading...
