Metrologic SP5600 OptimusR User guide

METROLOGIC INSTRUMENTS, INC.

SP5600 OptimusR

User’s Guide

Copyright

© 2008 by Metrologic Instruments, Inc. All rights reserved. No part of this work may be reproduced, transmitted,
or stored in any form or by any means without prior written consent, except by reviewer, who may quote brief
passages in a review, or provided for in the Copyright Act of 1976.

Trademarks

Metrologic is a registered trademark of Metrologic Instruments, Inc. Products identified in this document are
hereby acknowledged as trademarks, registered or otherwise, of Metrologic Instruments, Inc. or their respective

TABLE OF CONTENTS

Introduction

Product Overview.................................................................................................................................................. 1

Scanner and Accessories ..................................................................................................................................... 1

General Features and Characteristics

Scanner Features.................................................................................................................................................. 2

Cradle Features..................................................................................................................................................... 3

Multifunctional Keypad .......................................................................................................................................... 4

LCD Screen........................................................................................................................................................... 5

Lithium Battery ...................................................................................................................................................... 5

Maintenance.......................................................................................................................................................... 5

Labels.................................................................................................................................................................... 6

Installation

Getting Started ...................................................................................................................................................... 7

Basic Operation..................................................................................................................................................... 8

Communication and Data Collection Setup .......................................................................................................... 9

Data Upload ........................................................................................................................................................ 10

System Menu ...................................................................................................................................................... 11

Application........................................................................................................................................................... 15

Programming the Terminal.................................................................................................................................. 15

Programming the Communication Cable ............................................................................................................ 15

Troubleshooting ....................................................................................................................................................... 16

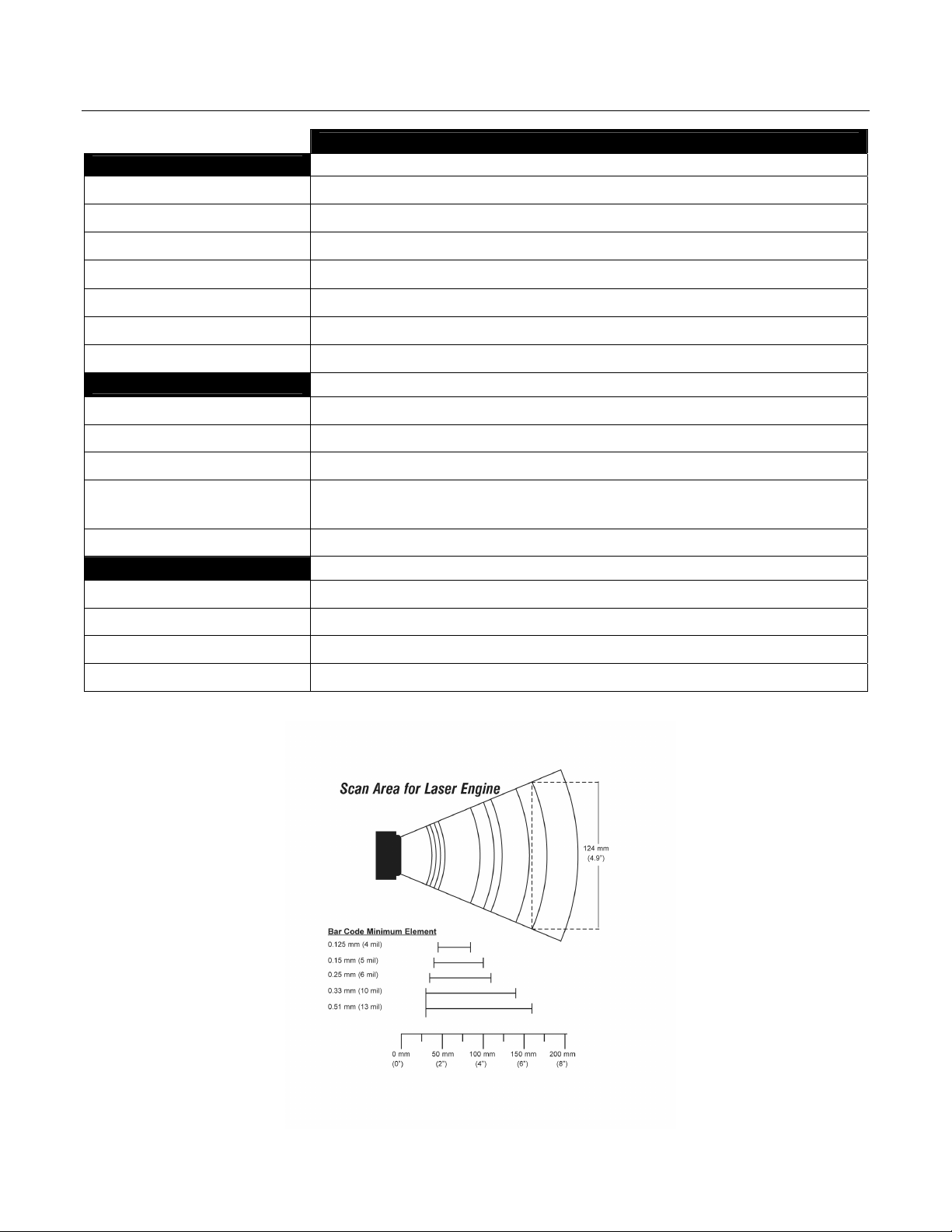

Specifications........................................................................................................................................................... 17

Limited Warranty...................................................................................................................................................... 19

Safety Notices.......................................................................................................................................................... 20

Patents..................................................................................................................................................................... 21

Index ........................................................................................................................................................................ 22

Contact Information and Office Locations ............................................................................................................... 23

ii

INTRODUCTION

PRODUCT OVERVIEW

The SP5600 OptimusR Portable Data Terminals are robust and versatile scanning devices designed to provide
exceptional performance, while enduring the demands of everyday use. The rugged exterior of the OptimusR
makes the Optimus the ideal PDT for applications that take place in more rigorous environments. The lithium-ion
rechargeable battery provides the Optimus with more than 200 hours of operation. The Optimus is supported by
a resourceful set of development tools, including a Windows-based program builder, ‘C’ compiler, and ‘BASIC’
compiler. The OptimusR has a fully integrated laser for scanning all 1D bar code symbologies, completely
enclosed by the protective ergonomic housing. The built-in functionality makes the Optimus an excellent choice
for numerous applications. In addition, when combined with the optional Wi-Fi module the Optimus is the ideal
solution for real time applications such as inventory control, shop floor management, warehousing operations, and
distribution operations.

Key Product Features

• Up to 8 MB RAM capable of storing over 400,000 records

• Easy to use Optimizer program builder and download software

• Auto-backlit LCD display

• Audible and visual indications

• Built-in laser bar code scan engine capable of scanning all 1-D bar code symbologies

• Powered by rechargeable Lithium-ion battery

• Upload/download data via RS232, USB, and Wi-Fi interfaces

SCANNER AND ACCESSORIES

METROLOGIC PART NUMBERS PART DESCRIPTION

SP5602 OptimusR laser batch unit with 2MB RAM

SP5604 OptimusR laser batch unit with 4MB RAM

SP5608 OptimusR laser batch unit with 8MB RAM

SP5650 OptimusR laser Wi-Fi standard unit

SP5652 OptimusR laser Wi-Fi unit with 2MB RAM

SP5654 OptimusR laser Wi-Fi unit with 4MB RAM

SP5658 OptimusR laser Wi-Fi unit with 8MB RAM

MI5600-614 OptimusR standard cradle

MI5600-6107 OptimusR modem cradle

52-52860A RS232 Cradle Cable

52-52861A USB cradle cable

* For information on additional accessories and scanner kits, contact your local Metrologic Instruments representative.

1

GENERAL FEATURES AND CHARACTERISTICS

SCANNER FEATURES

Figure 1. Scanner Features

ITEM NO. DESCRIPTION

1 Multi-functional Keypad

2 Scan Button

3 LCD display

4 Red Output Window (Laser Aperture)

5 Speaker for audible indicators

6 Protective rubber bumpers

7 Battery Compartment

8 Communication Ports (RS232 and IrDA), Power Adapter Port, and Battery Contacts

9 Comfort Strap

10 Battery Compartment Release

2

GENERAL FEATURES AND CHARACTERISTICS

CRADLE FEATURES

Figure 2. Cradle Features

ITEM NO. DESCRIPTION

1 LED Transmission Indicator

2 LED Power indicator

3 Battery Contacts

4 IR communication port

5 Rubber Footpads

6 RS232 Communication Port and Power Adapter Port

3

GENERAL FEATURES AND CHARACTERISTICS

MULTIFUNCTIONAL KEYPAD

Figure 3. Keypad Features

ITEM

NO

1

2

3

4

5

6

7

8

9

KEY NAME DESCRIPTION

The toggle key for Alphabet/Numeral input.
When the system is in alpha-mode, a small icon will be shown in the lower right
corner of the display. Each numeric key can be used to generate one of the
three capital letters located on that number key. For example, number 2 can be

ALPHA()

ALPHANUMERIC

ARROW

ESC

SCAN

ENTER

BS

FUNCTION(FN)

POWER

used to produce A, B, or C. Pressing the same key twice within one second, will
produce the letter B. Pressing the same key without halting longer than one
second will allow the user to toggle through the three letters. When the key
has been depressed for longer than one second or another key has been
pressed, the unit will send the real key code to the application program.
Alphanumeric. These 10 keys can be used for either alpha characters or
numerical input. (See Item 8 for further description of key operation)
Arrow. The four arrow keys located below the Scan key are used to toggle up
and down between menu selections.

Escape. This key is used to stop and exit current operation.

Scan a bar code. Pressing this button will trigger the scanner to read a bar

code.
Enter. There are two enter keys on the side of the scan key. Normally the enter
keys are used for command execution or input confirmation.
Back Space. This key can be used to toggle back one space or if pressed
down longer than one second, a clear code will be sent.

The function key.
This key cannot be activated alone; it must be pressed with one of the numeric
keys at the same time. For example, FN + 1 generates function #1, FN + 2
generates function #2, etc (up to 9 functions). Also, this key can be combined
with the UP/DOWN arrow keys to adjust the contrast of the LCD. And when this
key is combined with the ENTER key, it will turn ON/OFF the backlight.

Power On/Off. To prevent an accidental power down, it requires about

1.5 seconds of continuous pressing to turn On/Off the power.

4

GENERAL FEATURES AND CHARACTERISTICS

THE LCD SCREEN

The LCD screen of the OptimusR Portable Data Terminal displays program settings, operational parameters, data
collected, and much more. The display is a graphical LCD with the following characteristics:

y Display area of 64 pixels x 100 pixels
y Resolution:

y Maximum of 8 lines x 16 characters

y Minimum of 4 lines x 12 characters
y Displays alpha-characters, numbers, and symbols
y Automated back light

THE LITHIUM BATTERY

The OptimusR Portable Data Terminal includes a
lithium-ion rechargeable battery pack. The battery is
inserted (see Getting Started for battery installation) into
the battery compartment of the Optimus and recharges
with Optimus in the cradle and in charging mode.

MAINTENANCE

Smudges and dirt on the unit's window can interfere with the unit's performance. If the window requires cleaning,
use only a mild glass cleaner containing no ammonia. When cleaning the window, spray the cleaner onto a lint
free, non-abrasive cleaning cloth then gently wipe the window clean.

If the unit's case requires cleaning, use a mild cleaning agent that does not contain strong oxidizing chemicals.
Strong cleaning agents may discolor or damage the unit's exterior.

Figure 4. Lithium-Ion Battery

5

GENERAL FEATURES AND CHARACTERISTICS

LABELS

The scanner and cradle have labels that provide important information including the model number, date of
manufacture, serial number, safety and regulatory information. Figure 5 provides examples of these labels and
their locations.

6

Figure 5. Label Sample and Location
