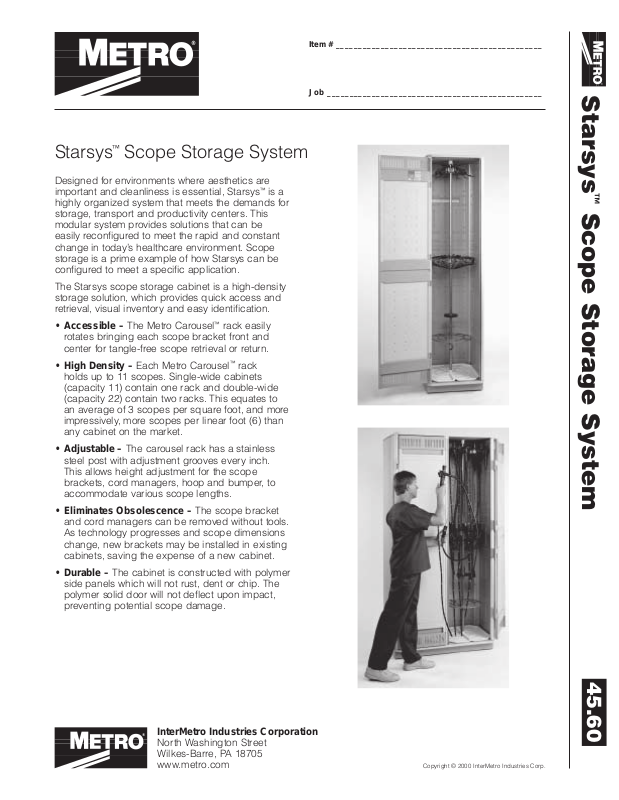

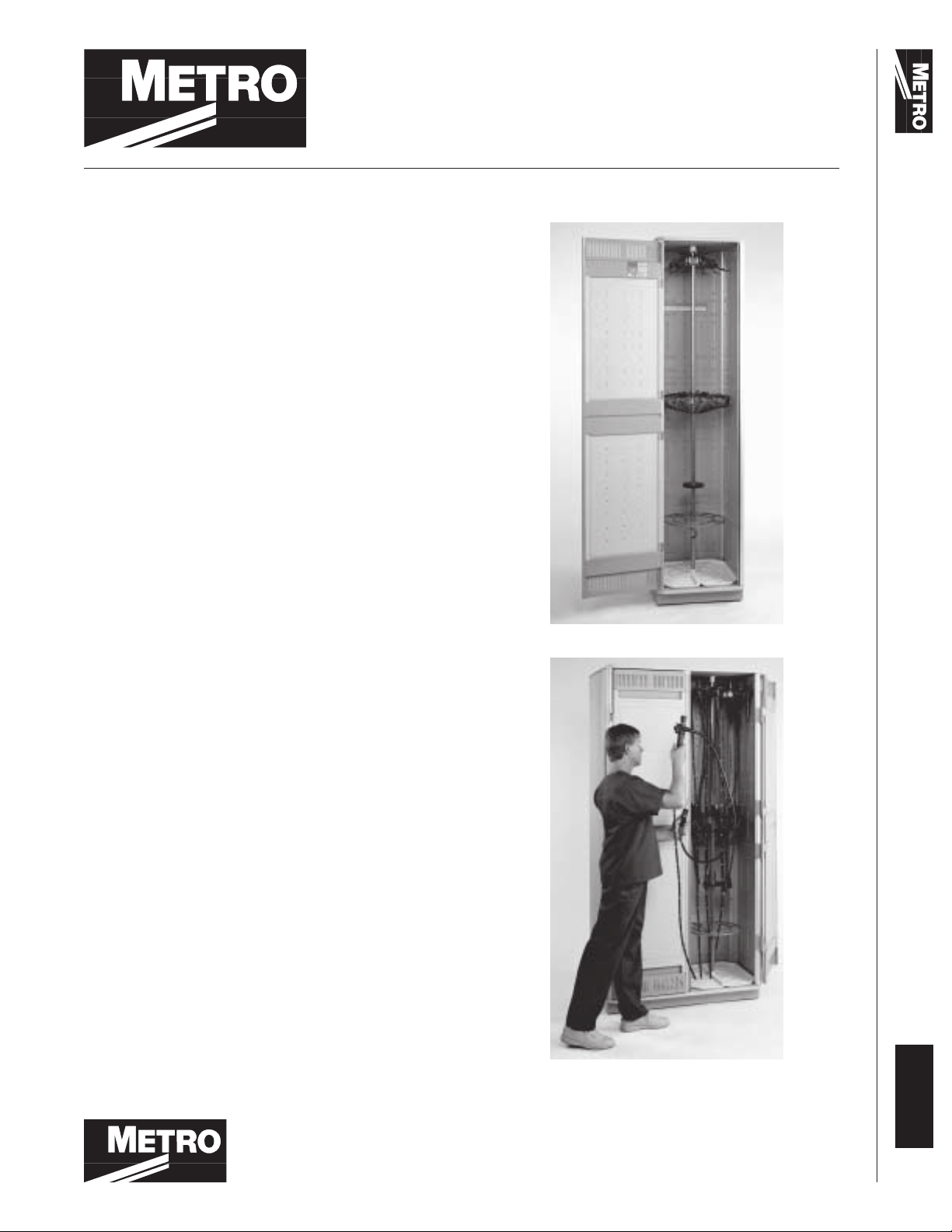

Starsys™ Scope Storage System
Designed for environments where aesthetics are
important and cleanliness is essential, Starsys™ is a
highly organized system that meets the demands for
storage, transport and productivity centers. This
modular system provides solutions that can be
easily reconfigured to meet the rapid and constant
change in today’s healthcare environment. Scope
storage is a prime example of how Starsys can be
configured to meet a specific application.
The Starsys scope storage cabinet is a high-density
storage solution, which provides quick access and
retrieval, visual inventory and easy identification.
• Accessible – The Metro Carousel™ rack easily
rotates bringing each scope bracket front and
center for tangle-free scope retrieval or return.
• High Density – Each Metro Carousel™ rack
holds up to 11 scopes. Single-wide cabinets
(capacity 11) contain one rack and double-wide
(capacity 22) contain two racks. This equates to
an average of 3 scopes per square foot, and more
impressively, more scopes per linear foot (6) than
any cabinet on the market.
• Adjustable – The carousel rack has a stainless
steel post with adjustment grooves every inch.
This allows height adjustment for the scope
brackets, cord managers, hoop and bumper, to
accommodate various scope lengths.
Job ________________________________________________
Starsys
™
Scope Storage System
• Eliminates Obsolescence – The scope bracket
and cord managers can be removed without tools.
As technology progresses and scope dimensions
change, new brackets may be installed in existing
cabinets, saving the expense of a new cabinet.
• Durable – The cabinet is constructed with polymer
side panels which will not rust, dent or chip. The
polymer solid door will not deflect upon impact,
preventing potential scope damage.
45.60
InterMetro Industries Corporation
®
North Washington Street
Wilkes-Barre, PA 18705
www.metro.com
Copyright © 2000 InterMetro Industries Corp.
Page 2
®
Starsys™ Scope Storage System

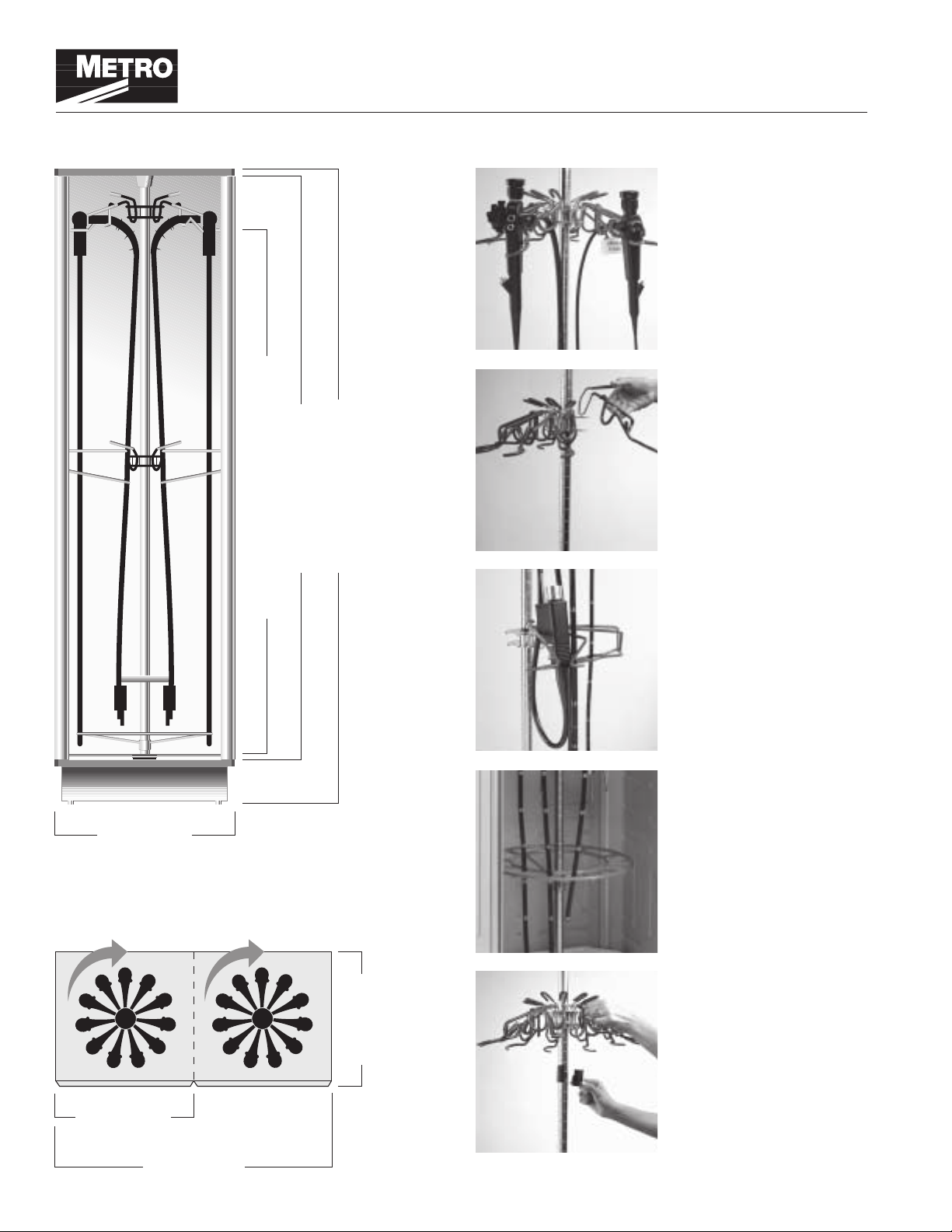

The scope brackets were
specifically designed for the two
different size scopes. They are
vinyl coated in colors:
Blue – Pulmonary
Orange – Gastrointestinal
Weight capacity: 5 lbs. (27kg)
Individual scope brackets and
cord managers are easy to remove
and interchange. This allows you
to mix and match different types of
scopes in the same cabinet. It
also eliminates obsolescence, as
newly developed brackets for
changing scope dimensions can
be easily retrofitted, saving the
expense of a new cabinet.
" (1975mm) Clearance (maximum)
4
/
3
Inside 83" (2108mm) Height
Overall 89" (2261mm) Height
Inside 77
215/8" (549mm) Wide
Single Cabinet
The Starsys Carousel™ rack rotates providing
access to any scope in the cabinet.
TOP VIEW
11 11
" (622mm)
Depth
2
/
1
24
The mid-level cord manager is
used for all types of scopes and is
also vinyl coated orange. It keeps
cords from tangling and provides
strain relief for light boxes or
connectors.
Vinyl-coated hoop and rubber
bumper restrain umbilical cords
and provide additional protection.
Scope brackets, cord manager
and bottom hoop are all adjustable
on 1" (25mm) increments. This
allows you to customize – without
tools – the interior to the length of
scope you are storing.
215/8" (549mm)
Single Cabinet
(11 scope capacity)
431/4" (1098mm)
Double Cabinet
(22 scope capacity)
Page 3
Starsys™ Scope Storage System
®
Optional scope bracket label
holders are available to identify the
type of scope or to help locate or
track scope inventory by serial
number. Holds pressure sensitive
labels (not included) up to 11/4"
Door/drawer label holders are
available to identify contents of
cabinet without having to open
door. Holds paper labels
(not included) up to 11/2"
(25mm) H x 16" (406mm) L.
(31mm) H x 3" (76mm) W.

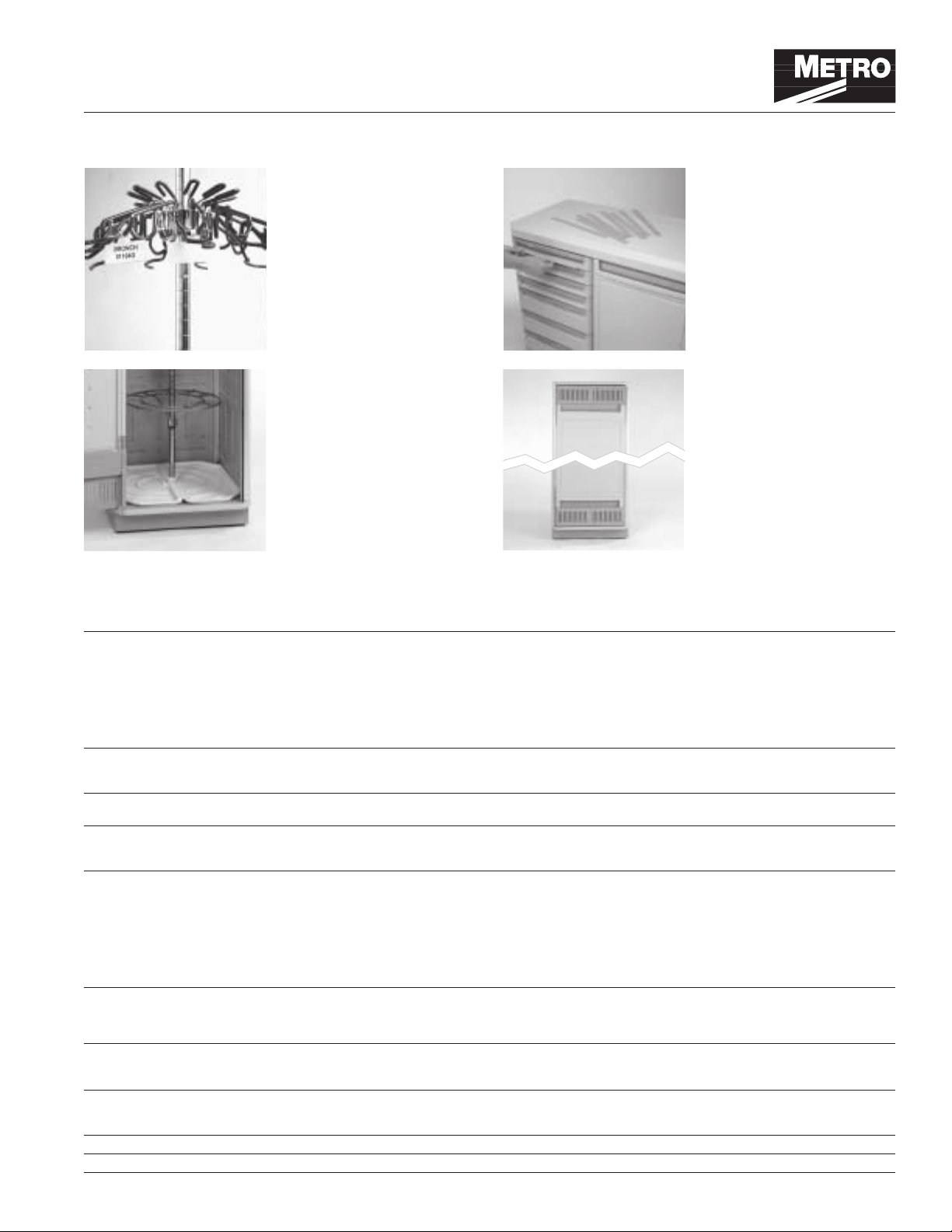

2-piece plastic drip pan contains
remaining fluids and is easily
removed for cleaning and drying.
Door vents are strategically located
at top and bottom of door to allow
maximum air flow. Bottom vent is
located near drip pan, which helps
prevent odors.
Cabinets
Height/Depth/Width
(in.) (mm) Description Cat. No.
89x241/2x215/8 2261x622x549 Single-wide with no Door or Top Level Scope Brackets SXS88WSC
89x241/2x215/8 2261x622x549 Single-wide with Left-hinged 90° Locking Door, and SXS88WSC1L
89x241/2x215/8 2261x622x549 Single-wide with Right-hinged 90° Locking Door, and SXS88WSC1R
89x241/2x431/4 2261x622x1098 Double-wide with no Door or Top Level Scope Brackets SXD88WSC
89x241/2x431/4 2261x622x1098 Double-wide with Left-hinged and Right-hinged 90° SXD88WSC1
11 GI Scope Brackets
11 GI Scope Brackets
Locking Door, and 11 GI Scope Brackets
Scope Brackets
Description Cat. No.
GI (large) Scope Bracket — Orange (maximum weight load 5 lbs. [2.7kg]) SXSCP1
Pulmonary (small) Scope Bracket — Blue (maximum weight load 5 lbs. [2.7kg]) SXSCP2
Doors
Description Cat. No.
83" H (2108mm), Left-hinged, 90° Locking, Solid, Vented SXDRA83L1BSV
83" H (2108mm), Left-hinged, 90° Non-locking, Solid, Vented SXDRA83L1NSV
83" H (2108mm), Left-hinged, 270° Locking, Solid, Vented SXDRA83L2BSV
83" H (2108mm), Left-hinged, 270° Non-locking, Solid, Vented SXDRA83L2NSV
83" H (2108mm), Right-hinged, 90° Locking, Solid, Vented SXDRA83R1BSV
83" H (2108mm), Right-hinged, 90° Non-locking, Solid, Vented SXDRA83R1NSV
83" H (2108mm), Right-hinged, 270° Locking, Solid, Vented SXDRA83R2BSV
83" H (2108mm), Right-hinged, 270° Non-locking, Solid, Vented SXDRA83R2NSV
Label Holders
Height/Width
(in.) (mm) Description Cat. No.
11/4x3 31x76 12 pk. Label Holder for Scope Bracket, SXSCPLBL
Holds Pressure-Sensitive Label (not included)
1x16 25x406 10 pk. Label Holder for Door, Holds Paper Labels (not included) SXLABKIT
Filler Kits
Description Cat. No.
Pair of 88" H (2235mm) Back of Cabinet to Wall Filler Kit SX88BKFLR*
One 83" H (2108mm) Unit to Unit Filler Kit for 88" (2235mm) Units SX88UUFLR**
* Back filler kit is used when cabinet is adjacent to a run of WorkCenters. It fills the gap behind the unit when the unit is pulled away from the wall to be flush with front of countertop.
** Unit to unit filler kit to hide the seam between two adjacent units.
Page 4
Job ________________________________________________
®
®
45.60
Starsys™ Scope Storage System
The Starsys System
Scope Storage System
™
A Bright New Way To Work
ISO
REGISTERED
Starsys
Manufactured by:
InterMetro Industries Corporation
®
North Washington Street, Wilkes-Barre, PA 18705
Phone: 570-825-2741 • Fax: 570-825-2852
For Product Information Call: 1-800-433-2232
Visit Our Web Site: www.metro.com
9001-9002
L03-211
Printed in U.S.A.
Information and specifications are subject to change
without notice. Please confirm at time of order.
7/00
