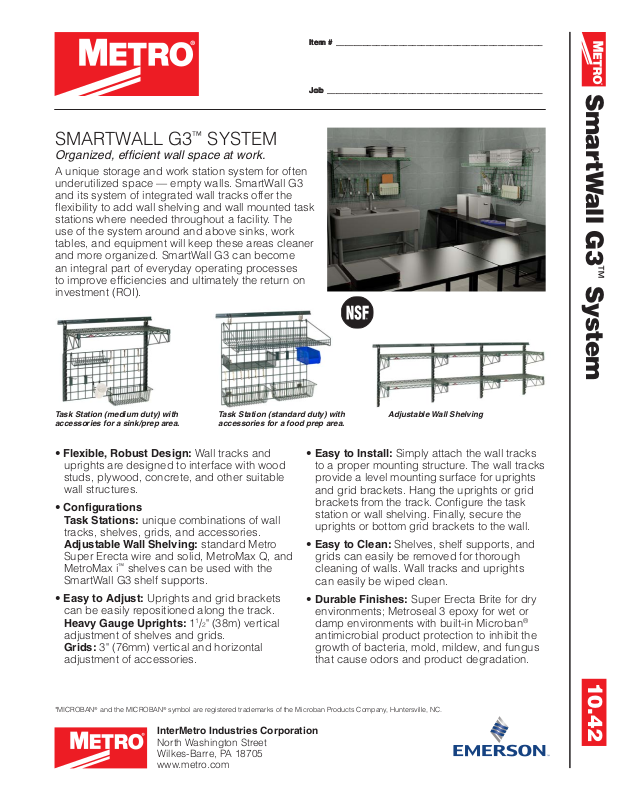

SMARTWALL G3™ SYSTEM

Organized, efficient wall space at work.

A unique storage and work station system for often
underutilized space — empty walls. SmartWall G3
and its system of integrated wall tracks offer the
flexibility to add wall shelving and wall mounted task
stations where needed throughout a facility. The
use of the system around and above sinks, work
tables, and equipment will keep these areas cleaner
and more organized. SmartWall G3 can become
an integral part of everyday operating processes
to improve efficiencies and ultimately the return on
investment (ROI).

SmartWall G3

™

System

Task Station (medium duty) with
accessories for a sink/prep area.

• Flexible, Robust Design: Wall tracks and
uprights are designed to interface with wood
studs, plywood, concrete, and other suitable
wall structures.

• Configurations
Task Stations: unique combinations of wall

tracks, shelves, grids, and accessories.
Adjustable Wall Shelving: standard Metro
Super Erecta wire and solid, MetroMax Q, and
MetroMax i™ shelves can be used with the
SmartWall G3 shelf supports.

• Easy to Adjust: Uprights and grid brackets
can be easily repositioned along the track.
Heavy Gauge Uprights: 11/2" (38m) vertical
adjustment of shelves and grids.
Grids: 3" (76mm) vertical and horizontal
adjustment of accessories.

Task Station (standard duty) with
accessories for a food prep area.

Adjustable Wall Shelving

• Easy to Install: Simply attach the wall tracks
to a proper mounting structure. The wall tracks
provide a level mounting surface for uprights
and grid brackets. Hang the uprights or grid
brackets from the track. Configure the task
station or wall shelving. Finally, secure the
uprights or bottom grid brackets to the wall.

• Easy to Clean: Shelves, shelf supports, and
grids can easily be removed for thorough
cleaning of walls. Wall tracks and uprights
can easily be wiped clean.

• Durable Finishes: Super Erecta Brite for dry
environments; Metroseal 3 epoxy for wet or
damp environments with built-in Microban®
antimicrobial product protection to inhibit the
growth of bacteria, mold, mildew, and fungus
that cause odors and product degradation.

10.42

*MICROBAN® and the MICROBAN® symbol are registered trademarks of the Microban Products Company, Huntersville, NC.

InterMetro Industries Corporation

North Washington Street
Wilkes-Barre, PA 18705
www.metro.com

SMARTWALL G3™ SYSTEM

Specifications

• Wall Tracks: 12 gauge cold rolled steel; obround
mounting holes located at 8" (204mm) increments; first
and last holes are located 4” (102mm) from the ends of
the track; obround hole dimensions (1/8" x 3/4" [3 x 19mm]).
Wall tracks include stop fasteners for the ends of the
tracks and joiner plates for connecting adjacent tracks.

• Uprights: 12 gauge cold rolled steel; slotted every
11/2" (38mm); 11/8" (29mm) diameter mounting holes are
spaced every 6" (152mm) along the upright.

• Shelf Supports: Cold rolled steel; sleeve is high density
polyethylene (HDPE).

• Shelves: Standard Super Erecta wire and solid,
MetroMax Q, or MetroMax i™ shelves may be used.
See catalog sheets 10.01, 10.20, 9.20, and 9.21 for
shelving specifications.

• Finishes: Standard finishes for components are Super
Erecta Brite for dry environments and Metroseal 3
epoxy for wet or damp environments. Metroseal 3
contains built-in Microban® antimicrobial product
protection to protect the product from bacteria, mold,
mildew, and fungus that cause odors and product
degradation.

• Wire Grids: 1/4" (6mm) diameter cold rolled steel wire.

• Grid Bracket Kits: 14 gauge, Type 304 stainless steel.

• Grid Accessories: See catalog sheet 10.43.

• Cleaning Instructions: Clean with mild detergents

and damp cloths. Do not use abrasive materials
because these may damage the protective coatings.

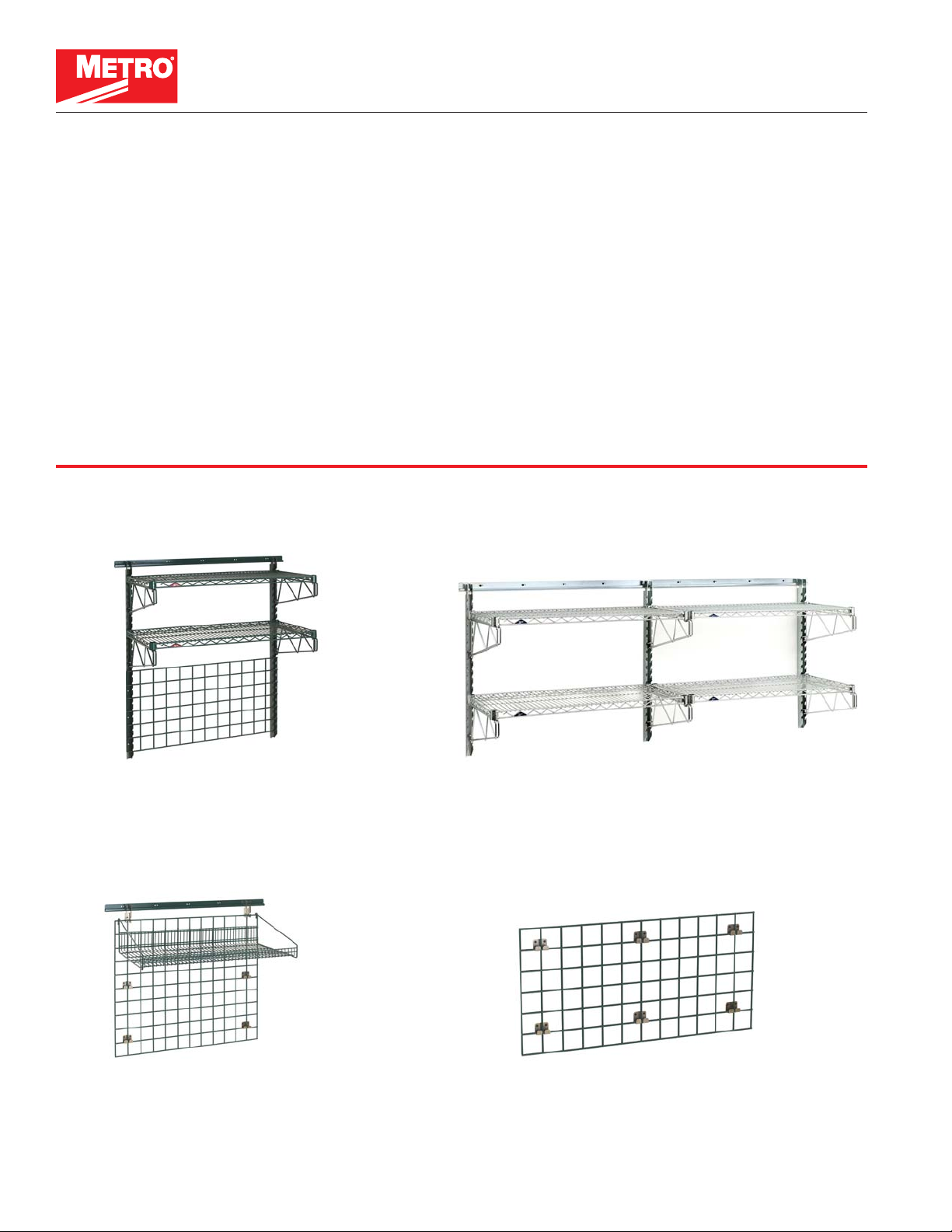

Configurations

SmartWall G3 offers limitless configurations. The following are examples and meant to
demonstrate how to configure the basic product. Accessories can be added to these base units.

Task Station (medium duty)

Components [qty]

[1] Wall Track
[2] Uprights
[4] Single Shelf Supports
[2] Super Erecta Shelves
[1] Grid (same length as shelf)

Task Station (standard duty)

Components [qty]

[1] Wall Track
[1] Grid Bracket Kit (Model No. SWGB1)
[1] Grid
[1] Grid Shelf with Retaining Edge

[1] (same length as grid)

Adjustable Wall Shelving

Components [qty]

[2] Wall Tracks
[3] Uprights
[4] Single Shelf Supports
[2] Double (Intermediate) Shelf Supports
[4] Super Erecta Shelves

Task Station (standard duty)

Components [qty]

[1] Grid Bracket Kit (Model No. SWGB2)
[1] Grid

SMARTWALL G3™ SYSTEM

Components

Wall Tracks (minimum one per system)

• Joiner plates and stop fastener hardware included. Does not include

hardware to mount wall tracks to the wall.

• Packed one track per carton.

• Replacement joiner plate (1) and stop fastener

hardware (2 sets): Model No. RPTRK-HDWE

Approx.
Model No. Model No. Actual Length Actual Depth Actual Width Pkd. Wt.
Super Erecta Brite Metroseal 3 (in.) (mm) (in.) (mm) (in.) (mm) (lbs.) (kg)

SW40BR SW40K3 40 1016
SW56BR SW56K3 56 1423
SW72BR SW72K3 72 1829

NOTE: Tracks can be cut to length, but Metro does not provide this service. Touch up paint for Metroseal 3 tracks is

available. Model No. TP-K2.

3

/4 19 19/16 40 5.0 2.2

3

/4 19 19/16 40 6.0 2.6

3

/4 19 19/16 40 7.0 3.1

Medium-duty configurations consist of wall tracks, uprights, shelf supports, and grids.

Uprights (for medium-duty applications, minimum two per system)

• Built-in slots allow shelf supports and grids to attach without tools or hardware.

• 11/2" (38mm) slot spacing allows shelves and grids to be adjusted on 11/2" (38mm) increments.

• Sold by the piece; packed two per carton.

Approx.
Model No. Model No. Number Actual Length Actual Width Actual Depth Pkd. Wt.
Super Erecta Brite Metroseal 3 of slots (in.) (mm) (in.) (mm) (in.) (mm) (lbs.) (kg)

SWU15BR SWU15K3 7 16 406 11/8 29 17/8 48 1.8 0.8
SWU30BR SWU30K3 17 31 787 11/8 29 17/8 48 3.5 1.5
SWU45BR SWU45K3 26 441/2 1130 11/8 29 17/8 48 5.3 2.3

Shelf Supports

• Mount directly to slotted uprights.

• Single shelf supports are used on each

end of a stand-alone unit or side-by-side
unit (pictured). Sold by the piece.

• Double (intermediate) shelf supports are
used when configuring side-by-side wall
shelving units. Sold by the piece.

Single Shelf Supports

Approx.
Model No. Model No. Actual Length Actual Width Actual Height Pkd. Wt.
Super Erecta Brite Metroseal 3 Fits Shelf Depth (in.) (mm) (in.) (mm) (in.) (mm) (lbs.) (kg)

SWS14BR SWS14K3 14" (355mm) 169/16 421 11/2 38 83/16 208 2.5 1.1
SWS18BR SWS18K3 18" (457mm) 209/16 522 11/2 38 83/16 208 3.0 1.3
SWS21BR SWS21K3 21" (530mm) 239/16 598 11/2 38 83/16 208 3.5 1.5
SWS24BR SWS24K3 24" (610mm) 269/16 675 11/2 38 83/16 208 3.5 1.5

Double (Intermediate) Shelf Supports

SWD14BR SWD14K3 14" (355mm) 169/16 421 11/2 38 83/16 208 2.5 1.1
SWD18BR SWD18K3 18" (457mm) 209/16 522 11/2 38 83/16 208 3.0 1.3
SWD21BR SWD21K3 21" (530mm) 239/16 598 11/2 38 83/16 208 3.5 1.5
SWD24BR SWD24K3 24" (610mm) 269/16 675 11/2 38 83/16 208 3.5 1.5

NOTE: Replacement plastic sleeve for shelf support; Model. No. RP-SPSLV.

B

Wall Track

x2

Hardware

x2 x2

A

Single Support

Double (Intermediate)
Support

x1

Uprights

A

B

Product Notes:

A. SmartWall G3 tracks, uprights, and shelf supports are not compatible with earlier generations of original SmartWall or SmartWall Plus.
B. When configuring task stations with uprights, choose shelves and grids of the same length. Longer grids may be used but must not overhang

the upright by more than 6" (152mm) on either side.

C. Grids can be mounted directly behind shelves, but shelf supports and grids cannot occupy the same slots on

the upright. Once the grid has been mounted to the upright, the shelf support can be mounted to its own slots

and can be adjusted on 3" (76mm) increments within the grid space.
D. Calculating the maximum usable wall track mounting space
Stop fasteners are installed at each end of a run of wall tracks and occupy approximately 1" (25mm) of track

space per end. Uprights and track-mounted grid brackets must be installed a minimum of 1" (25mm) inboard

on the wall track. The maximum usable length of track to install uprights or track-mounted grid brackets is

calculated as follows:
Subtract 2" (51mm) from the total length of tracks connected end to end.
Example: Three 72" (1829mm) wall tracks are installed end to end. The maximum usable length of wall track is:

(72" x 3) – 2" = 214" [(1829mm x 3) – 51mm = 5436mm]

Reference: Note “C”.

Job ________________________________________________Job ________________________________________________

10.42

SMARTWALL G3™ SYSTEM

Standard-duty configurations consist of wall tracks (optional), grid brackets, and grids.

Grid Mounting Brackets (for standard-duty applications without uprights)

• For standard-duty applications, grids may be mounted directly to the track
or directly to the wall without a track. One kit required per grid.

Approx.
Pkd. Wt.
Model No. Description (lbs.) (kg)

SWGB1 Bracket kit to connect grid to wall track; includes (2) top
and (4) bottom (stainless steel) 2.0 0.9
SWGB2 Direct wall mount bracket kit; consists of (6) bottom
brackets (stainless steel) 2.0 0.9
WGBRKT Direct wall mount bracket kit; consists of (6) black
plastic brackets 2.0 0.9

Grids

• Grids are a mounting surface for task management accessories.

• See spec sheet 10.43 for grid accessories.

Approx.
Model No. Model No. Width x Length Pkd. Wt.
Plated Metroseal 3 (in.) (mm) (lbs.) (kg)

— WG1830K3 18x30 457x760 7.5 3.3
WG1836BR WG1836K3 18x36 457x914 9.0 4.1
WG1848BR WG1848K3 18x48 457x1219 12.0 5.4
WG1860BR WG1860K3 18x60 457x1524 14.0 6.4

— WG2436K3 24x36 610x914 12.0 5.4
— WG2448K3 24x48 610x1219 15.5 7.0

— WG3036K3 30x36 760x914 12.8 5.8
— WG3048K3 30x48 760x1219 16.5 7.5

PBA-GPC — 33x54 838x1370 21.0 9.5

x2

Top bracket:
connects
to track

SWGB2

NOTE:

• Grids can mount directly to the

uprights without brackets.

• Mount a grid directly to the track with

bracket kit model SWGB1.

• Mount a grid directly to the wall without

a track with bracket kit model SWGB2.

SWGB1

x4

Bottom bracket:
connects to wall

WGBRKT

x6

x6

System

™

SmartWall G3

Weight capacities are based on a stand-alone unit with a wall track, two
uprights, and any combination of shelves and grids.

Structures into which wall tracks are mounted Per Unit

Wood Studs 400 lbs. (180kg)

Woods Studs with cross-stud reinforcement 400 lbs. (180kg)
Plywood: Minimum thickness — 1/2" (13mm) 400 lbs. (180kg)
Concrete 200 lbs. (90kg)
Metal Studs 100 lbs. (45kg)
Environmental room and walk-in cooler walls consult your Metro representative

(appropriately reinforced)
Weight capacity per shelf 250 lbs. (113kg) not to exceed the
(Super Erecta, MetroMax Q, MetroMax i) overall stated weight capacity of

the unit based on the wall structure

Weight capacities for adjacent units that share an upright.
General Rule Unit: 1/2 the stated weight capacity

of a stand-alone unit based on the
wall structure.
Shelf: 125 lbs. (56kg) not to exceed
the overall weight capacity of the
unit based on the wall structure.

Weight capacities for grids and grid shelves

Grid 250 lbs. (113kg)
Grid shelf with retaining edge 50 lbs. (22.5kg)

All Metro Catalog Sheets are available on our Web Site: www.metro.com

InterMetro Industries Corporation

North Washington Street, Wilkes-Barre, PA 18705
Phone: [phone]
Fax: [phone]

Stand-alone unit

Adjacent units with a shared upright

Grid and grid shelf

Printed in U.S.A. 11/09

Information and specifications are subject to change

without notice. Please confirm at time of order.

Copyright © 2009 InterMetro Industries Corp.

L02-181

For Product Information:
U.S. and Canada: 1.800.433.2232

Latin America: 1.561.333.3824
Europe: +31.76.587.7550

Asia/Pacific: +65.6567.8003
Middle East/Africa: +971.4.811.8286
