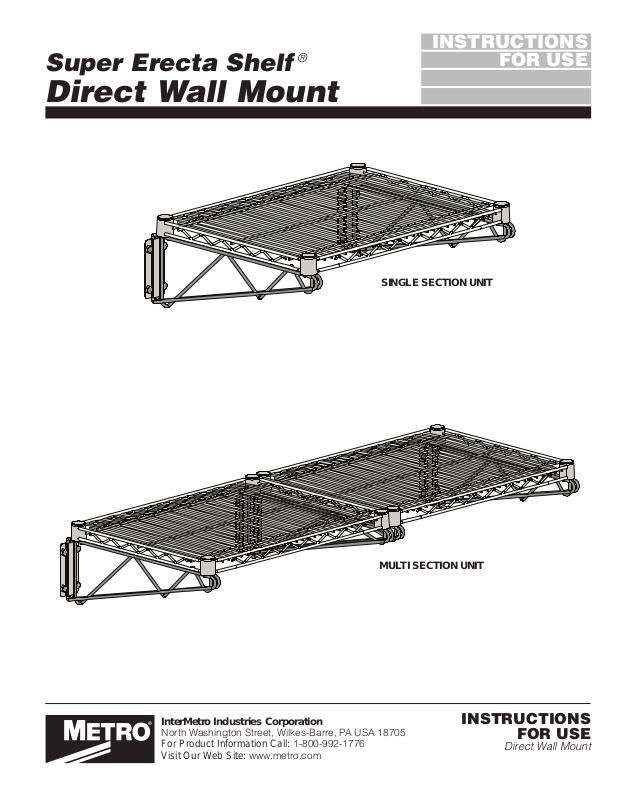

Page 1
Super Erecta Shelf
®
Direct Wall Mount
INSTRUCTIONS
FOR USE
SINGLE SECTION UNIT
MULTI SECTION UNIT
InterMetro Industries Corporation
North Washington Street, Wilkes-Barre, PA USA 18705
For Product Information Call: 1-800-992-1776
Visit Our Web Site: www.metro.com
INSTRUCTIONS
FOR USE
Direct Wall Mount
Page 2
x
1
11
16
3
7
16
1
11
16
Direct Wall Mount
INSTRUCTIONS FOR USE
SINGLE SECTION UNIT
Mounting Hole Location
1
Use Mounting
Hole Location
Diagram, Mark
the Center Points.
NOTE: Mounting Screws
or Bolts are not supplied
with the Wall Mount Unit
due to varied types of walls
or supports on which these
Shelf Size 24 30 36 42 48 60 72
7
x 22
2
/16 287/16 347/16 407/16 467/16 587/16 707/16
Shelf
3
Support
Mounting
Screw or Bolt
units may be mounted.
Mounting Plate
4 5
2
Level
Page 3
6
Wire Shelf
7
Hole Plug
THIS COMPLETES THE ASSEMBLY
OF DIRECT WALL MOUNT SES SHELF
(SINGLE SECTION UNIT)
3
Page 4
Direct Wall Mount
x
1
11
16
3
7
16
1
11
16
1
11
16
x
Double Shelf
Support
Single Shelf
Support
Double Shelf
Support
Double Shelf
Support
Y
FOR ADDITIONAL
SECTIONS
MULTI SECTION UNIT
Mounting Hole Location
Single Shelf
Support
FOLLOW STEPS 1-7
FOR ASSEMBLING
MULTI SECTION UNITS
Shelf
Size
x 23
Shelf
Size
Y 2315/16 2915/16 3515/16 4115/16 4715/16 5915/16 7115/16
24 30 36 42 48 60 72
3
/16 293/16 353/16 413/16 473/16 593/16 713/16
24 30 36 42 48 60 72
*Save this document for future application, load rating and/or safety reference.
InterMetro Industries Corporation
North Washington Street, Wilkes-Barre, PA USA 18705
For Product Information Call: 1-800-992-1776
Visit Our Web Site: www.metro.com
L01-102 Rev. B
Information and specifications are subject to change
without notice. Please confirm at time of order.
09/14
