Metabo Ps E 0525, PSE 1200, H 1600, HE 2000, HE 2300 Control Catalog
...
| 207| 207

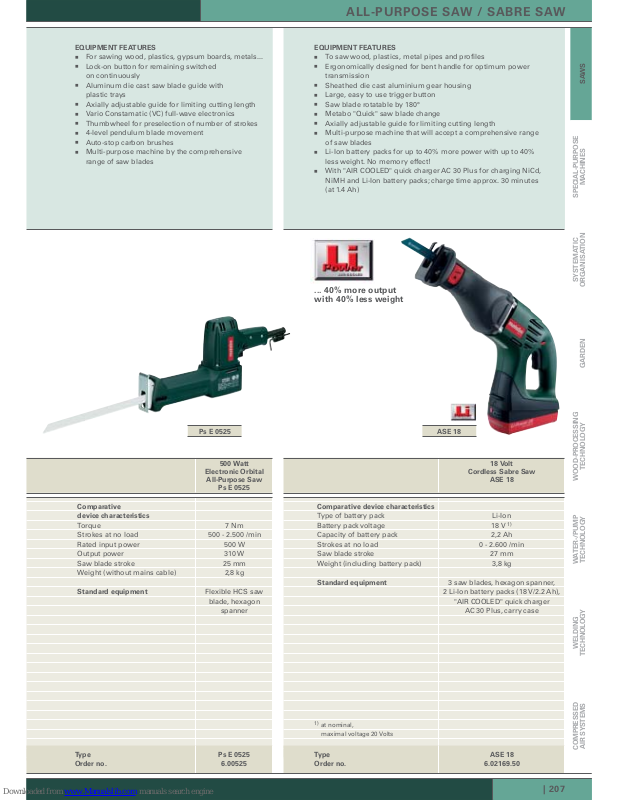

Ps E 0525 ASE 18
SAWS
SPECIAL-PURPOSE
MACHINES
SYSTEMATIC
ORGANISATIONGARDEN
WOOD-PROCESSING
TECHNOLOGY
WATER-/PUMP
TECHNOLOGY
WELDING
TECHNOLOGY
COMPRESSED
AIR SYSTEMS
Comparative
device characteristics
Torque 7 Nm
Strokes at no load 500 - 2.500 /min
Rated input power 500 W
Output power 310 W
Saw blade stroke 25 mm
Weight (without mains cable) 2,8 kg
Standard equipment Flexible HCS saw
blade, hexagon
spanner
Type Ps E 0525
Order no. 6.00525
For sawing wood, plastics, gypsum boards, metals...
Lock-on button for remaining switched
on continuously
Aluminum die cast saw blade guide with
plastic trays
Axially adjustable guide for limiting cutting length
Vario Constamatic (VC) full-wave electronics
Thumbwheel for preselection of number of strokes
4-level pendulum blade movement
Auto-stop carbon brushes
Multi-purpose machine by the comprehensive
range of saw blades
500 Watt
Electronic Orbital
All-Purpose Saw
Ps E 0525
ALL-PURPOSE SAW / SABRE SAW
Comparative device characteristics
Type of battery pack Li-Ion
Battery pack voltage 18 V
1)
Capacity of battery pack 2,2 Ah
Strokes at no load 0 - 2.600 /min
Saw blade stroke 27 mm
Weight (including battery pack) 3,8 kg
Standard equipment 3 saw blades, hexagon spanner,
2 Li-Ion battery packs (18 V/2.2 Ah),
"AIR COOLED" quick charger
AC 30 Plus, carry case
Type ASE 18
Order no. 6.02169.50
To saw wood, plastics, metal pipes and profiles
Ergonomically designed for bent handle for optimum power
transmission
Sheathed die cast aluminium gear housing
Large, easy to use trigger button
Saw blade rotatable by 180°
Metabo "Quick" saw blade change
Axially adjustable guide for limiting cutting length
Multi-purpose machine that will accept a comprehensive range
of saw blades
Li-Ion battery packs for up to 40% more power with up to 40%
less weight. No memory effect!
With "AIR COOLED" quick charger AC 30 Plus for charging NiCd,
NiMH and Li-Ion battery packs; charge time approx. 30 minutes
(at 1.4 Ah)
18 Volt
Cordless Sabre Saw
ASE 18
1)
at nominal,
maximal voltage 20 Volts
... 40% more output
with 40% less weight
EQUIPMENT FEATURES EQUIPMENT FEATURES
208 | 208 |
PSE 1200
SABRE SAWS
Comparative device characteristics
Torque 15 Nm
Strokes at no load 0 - 2.600 /min
Rated input power 1.200 W
Output power 650 W
Saw blade stroke 28 mm
Weight (without mains cable) 4 kg
Standard equipment 3 saw blades, carry case
Type PSE 1200
Order no. 6.01301
To saw wood, plastics, metal pipes and profiles
Powerful, sturdy motor
Sheathed die cast aluminium gear housing
Selectable pendulum stroke
Variospeed (V) electronics
Electronic soft start
Saw blade rotatable by 180°
Metabo "Quick" saw blade change
Depth guide adjustable without tools
Multi-purpose machine that will accept
a comprehensive range of saw blades
1200 Watt
Electronic
Orbital Sabre Saw
PSE 1200
Colour
The colour indicates for which material
the blade is suited best.
Yellow for wood
Yellow with blue lettering for wood with nails
Blue for metal
Black for special
applications
Quality class
>classic< series good results and very
good service life
>flexible< series break-proof,
flexible
>professional< series stable, precise
working, for tough
applications
>pionier< series quick through
all materials
>expert< series for special
applications
Basic blade material
HCS carbon steel, for cutting soft wood,
hardboards, plastics
HSS High yielding high-speed steel,
suitable for metal,
aluminium work
BiM Bimetal especially flexible mix
of HCS and HSS. Suitable for quick
cuts in pipes, profiles, sheet metals,
wood with nails, metalls
HM Hard metal for stainless steel,
glass reinforced plastic, abrasive
materials and pourous concrete
Shaft form
The sabre- sawblades from Metabo are
supplied with an universal shaft, suitable
for the sabre saws from all other brands.
Type
see jig-saw blades
on page 198
The features of the Metabo sabre saw blades
EQUIPMENT FEATURES
| 209| 209
SAWS
SPECIAL-PURPOSE
MACHINES
SYSTEMATIC
ORGANISATIONGARDEN
WOOD-PROCESSING
TECHNOLOGY
WATER-/PUMP
TECHNOLOGY
WELDING
TECHNOLOGY
COMPRESSED
AIR SYSTEMS
SABRE SAW BLADES
Sabre saw blades with 1/2" universal shank
Suitable for Metabo, AEG, Atlas Copco, Black & Decker, Bosch, DeWalt, Flex, Hitachi, Milwaukee, Porter Cable, Skil ...
Material suitability Version Material
finish
Overall
length
mm
ThicknessmmTooth
pitch
Corresponds
to
Bosch type
Packing
unit
Order
no.
FOR METAL, "CLASSIC" SERIES
Metal sheets 1-3 mm,
Profiles 5-100 mm
Crimped, Milled BiM 150 0,9 1,06mm/
24 TPI
S 918 AF 2 6.31129
Metal sheets 2-8 mm,
Profiles 10-100 mm
Crimped, Milled BiM 150 0,9 1,8mm/
14 TPI
S 918 BF 2 6.31130
FOR METAL, "FLEXIBLE" SERIES
Metal sheets 0.7-3 mm,
Pipes,
Profiles 0.5-100 mm
Crossed, Milled BiM 150 0,9 1,4mm/
18 TPI
S 922 EF 2 6.31080
5 6.31454
100 6.25490
Metal sheets 3-8 mm,
Pipes, Profiles,
Ø 10-100 mm
Crossed, Milled BiM 150 0,9 1,8mm/
14 TPI
S 922 BF 2 6.31093
5 6.31491
100 6.25491
Metal sheets 1.5-4 mm,
Profiles, Ø 5-175 mm,
Profiles 10 - 175 mm,
For flush cuts
Crossed, Milled BiM 225 0,9 1,4mm/
18 TPI
S 1122 EF 2 6.31095
5 6.31493
Metal sheets 3-8 mm,
Pipes, Profiles, Ø 10-175 mm,
Flush cuts
Crossed, Milled BiM 225 0,9 1,8mm/
14 TPI
S 1122 BF 2 6.31096
5 6.31494
100 6.25492
Metal sheets 1.5-6 mm,
Especially for curved cuts
Crossed, Milled BiM 100 0,9 1,8mm/
14 TPI
S 422 BF 5 6.31990
FOR METAL, "PROFESSIONAL" SERIES
Metal sheets 4-10 mm,
Pipes and profiles, Ø 20-175 mm,
For pipe cutting equipment,
For demolition and
reconstruction work,
For straight and clean cuts
Crossed, Milled BiM 225 1,1 2,54-3,
18 mm/
8-10 TPI
S 1126 CHF 5 6.31989
Metal sheets 2-8 mm, Pipes,
Profiles, Ø 10-150 mm
Crossed, Milled BiM 200 1,25 1,8mm/
14 TPI
S 1025 BF 5 6.31909
Metal sheets 2-12 mm,
Pipes, Profiles, Ø 10-150 mm
Crossed, Milled BiM 200 1,25 1,8-2,6mm/
10-14 TPI
S 1025 VF 5 6.31991
Metal sheets 4-10 mm,
Pipes and profiles, Ø 20-100 mm,
For pipe cutting equipment,
For demolition and
reconstruction work
Crossed, Milled BiM 150 1,6 2,9mm/
8 - 10 TPI
S 920 CF 5 6.31992
Metal sheets 4-10 mm,
Pipes and profiles, Ø 20-175 mm,
For pipe cutting equipment,
For demolition and
reconstruction work
Crossed, Milled BiM 225 1,6 2,9mm/
8 - 10 TPI
S 1120 CHF 5 6.31993
FOR METAL, "PIONEER" SERIES
Metal sheets 1-8 mm,
Profiles, Ø 5-100 mm
Crossed, Milled BiM 150 0,9 progressiv S 123 XF 2 6.31911
5 6.31914
NEW
