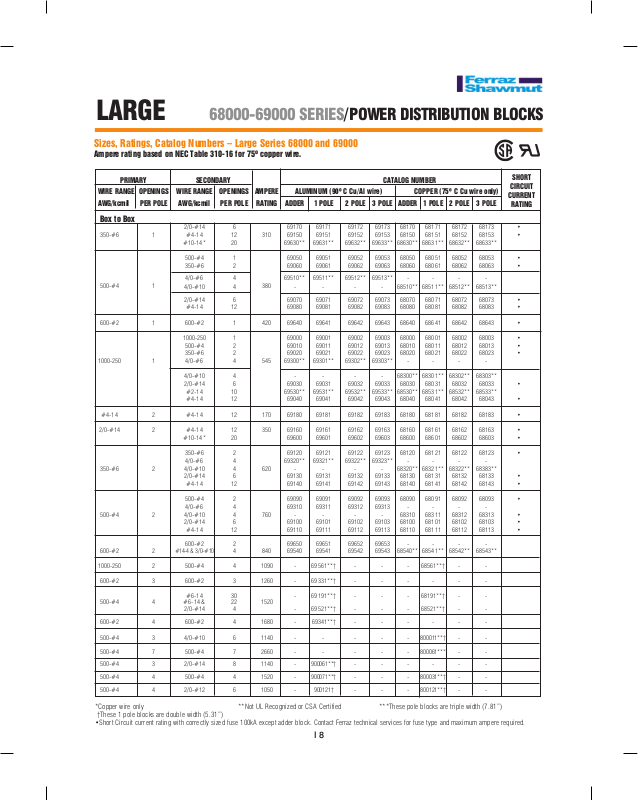

LARGE 68000-69000 SERIES/POWER DISTRIBUTION BLOCKS
Sizes, Ratings, Catalog Numbers – Large Series 68000 and 69000
Ampere rating based on NEC Table 310-16 for 75º copper wire.
PRIMARY SECONDARY CATALOG NUMBER
WIRE RANGE OPENINGS WIRE RANGE OPENINGS AMPERE ALUMINUM (90º C Cu/Al wire) COPPER (75º C Cu wire only)
AWG/kcmil PER POLE AWG/kcmil PER POLE RATING ADDER 1 POLE 2 POLE 3 POLE ADDER 1 POLE 2 POLE 3 POLE
SHORT
CIRCUIT
CURRENT
RATING
Box to Box
350-#6 1 #4-14 12 310 69150 69151 69152 69153 68150 68151 68152 68153 •
#10-14* 20 69630** 69631** 69632** 69633** 68630** 68631** 68632** 68633**
500-#4 1 69050 69051 69052 69053 68050 68051 68052 68053 •
350-#6 2 69060 69061 69062 69063 68060 68061 68062 68063 •
4/0-#6 4 69510** 69511** 69512** 69513** - - - 500-#4 1 380
4/0-#10 4 - - - - 68510** 68511** 68512** 68513**
2/0-#14 6 69070 69071 69072 69073 68070 68071 68072 68073 •
#4-14 12 69080 69081 69082 69083 68080 68081 68082 68083 •
600-#2 1 600-#2 1 420 69640 69641 69642 69643 68640 68641 68642 68643 •
1000-250 1 69000 69001 69002 69003 68000 68001 68002 68003 •
500-#4 2 69010 69011 69012 69013 68010 68011 68012 68013 •
350-#6 2 69020 69021 69022 69023 68020 68021 68022 68023 •
1000-250 1 4/0-#6 4 545 69300** 69301** 69302** 69303** - - - -
4/0-#10 4 - - - - 68300** 68301** 68302** 68303**
2/0-#14 6 69030 69031 69032 69033 68030 68031 68032 68033 •
#2-14 10 69530** 69531** 69532** 69533** 68530** 68531** 68532** 68533**
#4-14 12 69040 69041 69042 69043 68040 68041 68042 68043 •
#4-14 2 #4-14 12 170 69180 69181 69182 69183 68180 68181 68182 68183 •
2/0-#14 2 #4-14 12 350 69160 69161 69162 69163 68160 68161 68162 68163 •
#10-14* 20 69600 69601 69602 69603 68600 68601 68602 68603 •
350-#6 2 69120 69121 69122 69123 68120 68121 68122 68123 •
4/0-#6 4 69320** 69321** 69322** 69323** - - - 350-#6 2 4/0-#10 4 620 - - - - 68320** 68321** 68322** 68383**
2/0-#14 6 69130 69131 69132 69133 68130 68131 68132 68133 •
#4-14 12 69140 69141 69142 69143 68140 68141 68142 68143 •
500-#4 2 69090 69091 69092 69093 68090 68091 68092 68093 •
4/0-#6 4 69310 69311 69312 69313 - - - 500-#4 2 4/0-#10 4 760 - - - - 68310 68311 68312 68313 •
2/0-#14 6 69100 69101 69102 69103 68100 68101 68102 68103 •
#4-14 12 69110 69111 69112 69113 68110 68111 68112 68113 •
600-#2 2 69650 69651 69652 69653 - - - 600-#2 2
1000-250 2 500-#4 4 1090 - 69561**† - - - 68561**† - -
600-#2 3 600-#2 3 1260 - 69331**† - - - - - -
#6-14 30 - 69191**† - - - 68191**† - 500-#4 4 #6-14 & 22 1520
2/0-#14 4 - 69521**† - - - 68521**† - -
600-#2 4 600-#2 4 1680 - 69341**† - - - - - -
500-#4 3 4/0-#10 6 1140 - - - - - 800011**† - -
500-#4 7 500-#4 7 2660 - - - - - 800061*** - -
500-#4 3 2/0-#14 8 1140 - 900061**† - - - - - -
500-#4 4 500-#4 4 1520 - 900071**† - - - 800031**† - -
500-#4 4 2/0-#12 6 1050 - 900121† - - - 800121**† - -
2/0-#14 6 69170 69171 69172 69173 68170 68171 68172 68173 •
#14-4 & 3/0-#10
4 840 69540 69541 69542 69543 68540** 68541** 68542** 68543**
*Copper wire only **Not UL Recognized or CSA Certified ***These pole blocks are triple width (7.81”)
†These 1 pole blocks are double width (5.31”)
•Short Circuit current rating with correctly sized fuse 100kA except adder block. Contact Ferraz technical services for fuse type and maximum ampere required.
I 8I 8
62000-69000 SERIES POWER DISTRIBUTION BLOCKS
VERSATILE POWER DISTRIBUTION BLOCKS
FOR CABLE TERMINATIONS
Ferraz Shawmut Power Distribution Blocks afford a safe, convenient
way of splicing cables, splitting primary power into a variety of
secondary circuits or providing a fixed junction tap-off point. Power
block options include single or dual primary connections with up to
30 secondary connections.
Features/Benefits
Adder Poles
➤
All series have optional adder poles which snap onto the 1, 2 or 3- pole blocks
and lock together to form as many poles as required. Adder poles with a variety of
terminations can be combined to match special wire size combinations.
Wire Connectors
➤
Standard aluminum box connectors accommodate aluminum or copper wire, 1
conductor per opening. Standard copper box connections are for copper wire only,
1 conductor per opening. Connectors are all 1 piece and tin plated.
Insulators
➤
Insulators are virtually unbreakable, glass-filled polycarbonate on all series.
“See-Through” Safety Covers are available which give greater safety and provide
Service Entrance ratings for large and intermediate series blocks.
Ratings
Ampere ratings from 90
➤
to 2660
600V rated
➤
Short Circuit current rat-
➤
ing 100kA with proper fuse.
Contact technical services
for sizing table.
HIGHLIGHTS:
Mini -
➤
62000 and 63000 Series
Intermediate -
➤
Approvals
Most sizes are
➤
UL Recognized Component Guide XCFR2, File E73571
Most sizes are
➤
CSA Certified:
Series 62, 63, 66, 68 -
Class 6228,File 69363
Series 67, 69 -
Class 3211, File 15469
APPLICATIONS:
Box, stud and quick-
➤
connect terminations
for copper and/or
aluminum cables
66000 and 67000 Series
Large -
➤
68000 and 69000 Series
I 4I 4
LARGE 68000-69000 SERIES/POWER DISTRIBUTION BLOCKS
Sizes, Ratings, Catalog Numbers – Large Series 68000 and 69000 (continued)
Ampere rating based on NEC Table 310-16 for 75º copper wire.
PRIMARY SECONDARY CATALOG NUMBER
WIRE RANGE OPENINGS WIRE RANGE OPENINGS ALUMINUM (90º C Cu/Al wire) COPPER (75º C Cu wire only)
AWG/kcmiL or STUDS AWG/kcmil or STUDS AMPERE
or STUD SIZE* PER POLE or STUD SIZE PER POLE RATING ADDER 1 POLE 2 POLE 3 POLE ADDER 1 POLE 2 POLE 3 POLE
Box to Stud
1 Cu 380 69210 69211 69212 69213 68210 68211 68212 68213
500-#4 1 3/8-16 x 1 2 Al 310 69270 69271 69272 69273 68270 68271 68272 68273
500-#4 2 3/8-16 x 1 2 Cu 380 - 69221 69222 69223 - 68221 - Al 310
1000-250 1 1/2-13 x 1-3/16 1 Cu 545 69280 69281 69282 69283 68280 68281 68282 68283
3/8-16 x 1 2 Al 445 69240 69241 69242 69243 68240 68241 68242 68243
2/0-#14 4 545 69260 69261 69262 69263 - - - #4-14 12 545 69290 69291 69292 69293 - - - 1/2-13 x 1 1 2/0-#14 4 1000 - - - - 68260 68261 68262 68263
#4-14 12 1000 - - - - 68290 68291 68292 68293
500-#4 4 3/8-16 x 1 4 1520 - 900091† - - - - - -
Stud to Stud
1/2-13 x 1-3/8 1 1/2-13 x 1-3/8 1 400 - - - - 68200** 68201** 68202** 68203**
*Stud type connectors are furnished with nuts and washers. Recommended stud torque: (3/8-16) - 228 in.-lbs; (1/2-13) - 496 in.-lbs.
**Not UL Recognized or CSA Certified † These 1 pole blocks are double width (5.31”)
08590 cover and 69092 PDB with 2-08590 covers installed
Dimensions – 68000 and 69000
Series PDB
NUMBER DIMENSION A
OF POLES (Inches)
ADDER 2.50
1 2.81
2 5.31
3 7.81
N (2.50 x N) + .31
Example for 10 poles:
A= (2.50 x 10) + .31 = 25.31
SAFETY COVER - Catalog number 08590
Polycarbonate safety cover provides dead-front protection to 68000 and
69000 series power distribution blocks. One cover is needed for each pole
(1-pole block requires 1 cover, 3-pole requires 3 covers, etc.) Each cover
has a test prod hole in the center for circuit checking and each is marked
with the reminder “REPLACE AFTER SERVICING EQUIPMENT”. Mounting
screws are supplied with cover.
To order, simply determine the total number of poles to be protected and
specify the same number of 08590 safety covers.
Recommended mounting screws for all 68000-69000 series: 1/4” (.250 dia.).
For double wide blocks use 08592W safety cover.
END BARRIER - Catalog number U09911
Polycarbonate end barriers snap on to PDB Adder blocks to form 1-pole
blocks. Use one barrier per block.
I 9II 9
