Page 1
EURO/IEC Fuse Bases
CC, MSC, CMS MODULAR FUSE BASES
MODULAR FUSE-LINK BASES FOR CARTRIDGE FUSE-LINKS
Ferraz Shawmut CC, MSC and CMS modular fuse bases accommodate industrial cylindrical fuse-links 8 x 31 mm,
10 x 38 mm, 14 x 51 mm and 22 x 58 mm, North American Class CC and Midget (1-1/2” x 13/32”) fuses. They
have operating handles for non load-break disconnecting and electrical isolation for fuse-link replacement without
tools. All contacts are silver-plated. 2, 3 or 4-pole units can be made up with assembly pins and operating
handle ties.
CC Series
➤
4 Size Ranges:
CC.8 accepts 8 x 31mm fuse-links
CC.10 accepts Class CC, Midget
and 10 x 38mm fuse-links
CC.14 accepts 30A/250V
Class H/K/R & 14 x 51mm
fuse-links
CC.22 accepts 22 x 58mm
fuse-links
➤
Screw mount or symmetrical
DIN rail mount (with adaptor)
➤
Steel bail handle tie
➤
Thermoplastic base
MSC Series
➤
2 Size Ranges:
MSC.8 accepts 8 x 31mm
fuse-links
MSC.10
Midget and 10 x 38mm fuse-links
➤
Symmetrical DIN rail mount
➤
Optional neutral incorporated
➤
Optional indicator light in 1-pole
unit shows open fuse when lit
➤
Steel pin handle tie
➤
Thermoplastic base
accepts Class CC,
CMS Series
➤
2 Size Ranges:
CMS.14 accepts 30A/250V Class
H/K/R & 14 X 51mm fuse-links
CMS.22 accepts 22 x 58mm
fuse-links
➤
Optional neutral incorporated
➤
Optional indicator light shows
open fuse when lit
➤
Optional microswitch on 1-pole &
3-pole
➤
Thermoplastic base
H 50
H 50
Page 2
EURO/IEC Fuse Bases
CC.8, CC.10, CC.14, CC.22 MODULAR FUSE BASES
23002-G
CC.8 – 25A, 400VAC, Fits 8mm x 31mm Fuse-links
Width
(No. of17.5mm
POLES SCREW MOUNT RAIL MOUNT MODULES)
1 23002-G 23102-G 1
N* 23000-G 23100-G 1
1 + N* 23010-G 23110-G 2
2 23012-G 23112-G 2
3 23014-G 23114-G 3
3 + N* 23018-G 23118-G 4
* with neutral incorporated
CATALOG NUMBER
23210-G
CC.10 – 32A, 690V AC
Fits Class CC, 1-1/2” x 13/32” and 10 x 38mm Fuse-links
Width
(No. of17.5mm
POLES SCREW MOUNT RAIL MOUNT MODULES)
1 23202-G 23302-G 1
N* 23200-G 23300-G 1
1 + N* 23210-G 23310-G 2
2 23212-G 23312-G 2
3 23214-G 23314-G 3
3 + N* 23218-G 23318-G 4
CATALOG NUMBER
H
H
23414-G
CC.14 – 50A, 690VAC
Fits 30A, 250V Class H, K, R and 14 x 51mm Fuse-links
Width
(No. of17.5mm
POLES SCREW MOUNT RAIL MOUNT MODULES)
1 23402-G 23502-G 1.5
N* 23400-G 23500-G 1.5
1 + N* 23410-G 23510-G 3
2 23412-G 23512-G 3
3 23414-G 23514-G 4.5
3 + N* 23418-G 23518-G 6
* with neutral incorporated
CATALOG NUMBER
23618-G
CC.22 – 125A, 690VAC, Fits 22 x 58mm Fuse-links
Width
(No. of17.5mm
POLES SCREW MOUNT RAIL MOUNT MODULES)
1 23602-G 23702-G 2
N* 23600-G 23700-G 2
1 + N* 23610-G 23710-G 4
2 23612-G 23712-G 4
3 23614-G 23714-G 6
3 + N* 23618-G 23718-G 8
H 51
H 51
CATALOG NUMBER
Page 3

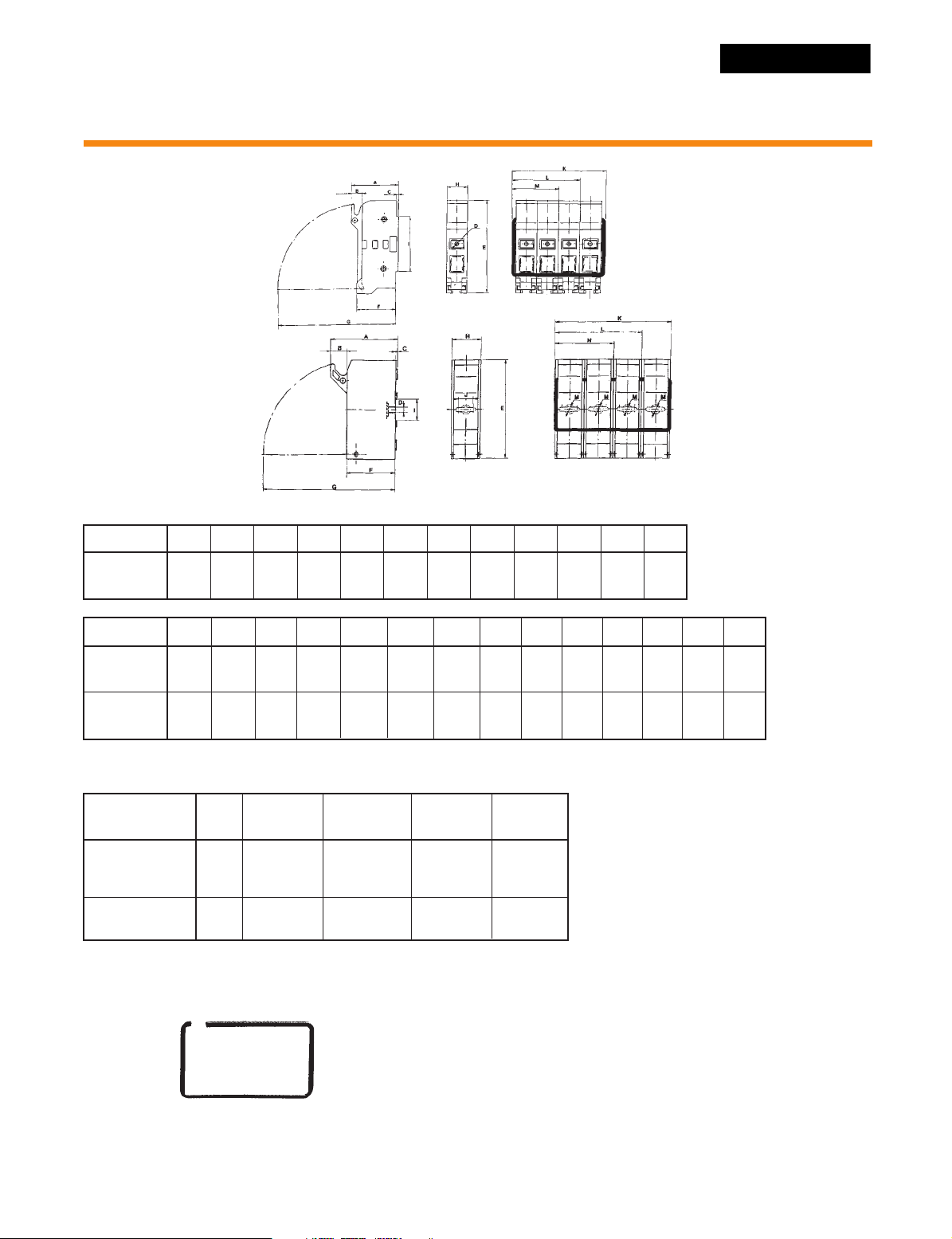

European Fuse Bases
CC.8, CC.10, CC.14, CC.22 MODULAR FUSE BASES
CC.8 & CC.10
CC.14 & CC.22
Dimensions
A B C D E F G H I K L M
CC.8 & CC.10 40 9 2 5.5 77.5 33 100 17.5 46 35 60 42.5
(1.58) (.35) (.079) (.22) (3.05) (1.30) (3.94) (.069) (1.81) (1.38) (2.36) (1.67)
A B C D E F G H I J K L M N
CC.14 62 15.5 1 7.25 94 45.5 127 27 20.3 15.2 112 85 6 58
(2.44) (.61) (.04) (.29) (3.70) (1.79) (5.00) (1.06) (.80) (.60) (4.41) (3.35) (.24) (2.29)
CC.22 71 16 1 7.25 106 55 148 34 20.3 18 139 105 6 71
(2.80) (0.63) (0.04) (0.29) (4.17) (2.17) (5.83) (1.34) (0.80) (0.71) (5.47) (4.14) (.24) (2.80)
Accessories
CC.8 CC.10 CC.14 CC.22
POLES CATALOG NO. CATALOG NO. CATALOG NO. CATALOG
HANDLE TIE 2 23934-G 23934-G 23941-G 23948-G
3 23935-G 23935-G 23942-G 23949-G
4 23936-G 23936-G 23943-G 23950-G
SYMMETRICAL 23937-G 23937-G 23951-G 23951-G
RAIL ADAPTOR
Handle Tie
23936-G
Symmetrical Rail Adaptor
23937-G
H 52
H 52
