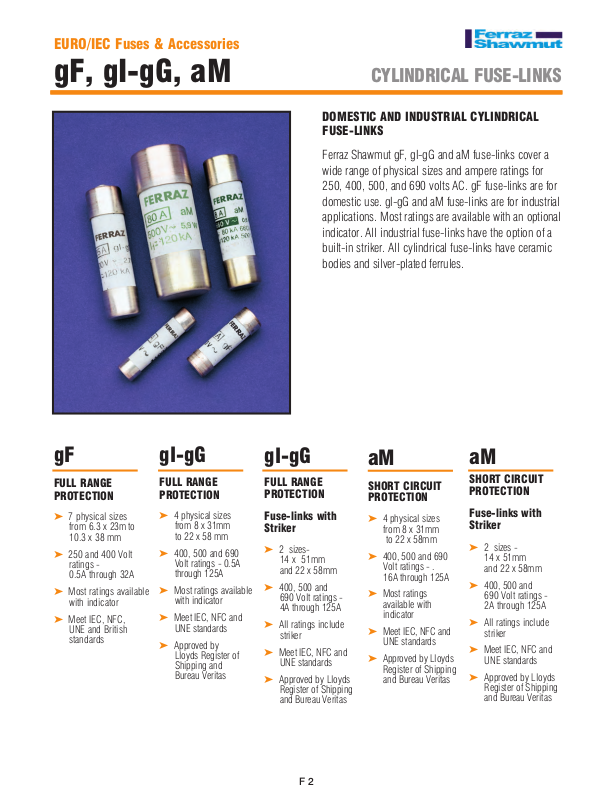

EURO/IEC Fuses & Accessories
gF, gI-gG, aM CYLINDRICAL FUSE-LINKS
DOMESTIC AND INDUSTRIAL CYLINDRICAL
FUSE-LINKS
Ferraz Shawmut gF, gI-gG and aM fuse-links cover a
wide range of physical sizes and ampere ratings for
250, 400, 500, and 690 volts AC. gF fuse-links are for
domestic use. gI-gG and aM fuse-links are for industrial
applications. Most ratings are available with an optional
indicator. All industrial fuse-links have the option of a
built-in striker. All cylindrical fuse-links have ceramic
bodies and silver-plated ferrules.
gF
FULL RANGE
PROTECTION
➤
7 physical sizes
from 6.3 x 23m to
10.3 x 38 mm
➤
250 and 400 Volt
ratings -
0.5A through 32A
Most ratings available
➤
with indicator
➤
Meet IEC, NFC,
UNE and British
standards
gI-gG
FULL RANGE
PROTECTION
4 physical sizes
➤
from 8 x 31mm
to 22 x 58 mm
400, 500 and 690
➤
Volt ratings - 0.5A
through 125A
Most ratings available
➤
with indicator
Meet IEC, NFC and
➤
UNE standards
Approved by
➤
Lloyds Register of
Shipping and
Bureau Veritas
gI-gG
FULL RANGE
PROTECTION
Fuse-links with
Striker
2 sizes-
➤
14 x 51mm
and 22 x 58mm
400, 500 and
➤
690 Volt ratings -
4A through 125A
All ratings include
➤
striker
Meet IEC, NFC and
➤
UNE standards
Approved by Lloyds
➤
Register of Shipping
and Bureau Veritas
aM
SHORT CIRCUIT
PROTECTION
4 physical sizes
➤
from 8 x 31mm
to 22 x 58mm
400, 500 and 690
➤
Volt ratings - .
16A through 125A
Most ratings
➤
available with
indicator
Meet IEC, NFC and
➤
UNE standards
Approved by Lloyds
➤
Register of Shipping
and Bureau Veritas
aM
SHORT CIRCUIT
PROTECTION
Fuse-links with
Striker
➤
2 sizes -
14 x 51mm
and 22 x 58mm
400, 500 and
➤
690 Volt ratings -
2A through 125A
All ratings include
➤
striker
Meet IEC, NFC and
➤
UNE standards
Approved by Lloyds
➤
Register of Shipping
and Bureau Veritas
F 2
EURO/IEC Fuses & Accessories
gI-gG CYLINDRICAL FUSE-LINKS
Catalog Numbers, Ratings – gI-gG (Optional Blown-Fuse Indicator)
SIZE RATED In RATED CATALOG NUMBER INTERRUPTING STANDARD
(mm x mm) CURRENT (A) VOLTAGE w/o Indicator w/Indicator RATING (A) PACK/CTN.
0.5 400V 15009-G - 20,000
1 15011-G -
2 15013-G 15213-G
4 15019-G 15219-G
6 15023-G 15223-G
15037-G
16037-G
17039-G
8 x 31 8 15027-G 15227-G 10/100
10 15031-G 15231-G
12 15033-G 15233-G
16 15035-G 15235-G
20 15037-G 15237-G
25 15039-G 15239-G
0.5 500V 16009-G - 120,000
1 16011-G 2 16013-G 16213-G
4 16019-G 16219-G
6 16023-G 16223-G
10 X 38 8 16027-G 16227-G 10/100
10 16031-G 16231-G
12 16033-G 16233-G
16 16035-G 16235-G
20 16037-G 16237-G
25 16039-G 16239-G
32 400V 16043-G 16243-G
1 690V 17011-G - 80,000
2 17013-G 17213-G
4 17019-G 17219-G
6 17023-G 17223-G
8 17027-G 17227-G
10 17031-G 17231-G
14 X 51 12 17033-G 17233-G 10/50
16 17035-G 17235-G
20 17037-G 17237-G
25 17039-G 17239-G
32 500V 17043-G 17243-G 120,000
40 17047-G 17247-G
50 400V 17051-G 17251-G
F
F
18059-G
Blown-Fuse Indicator
BEFORE
2 690V 18013-G - 80,000
4 18019-G 18219-G
6 18023-G 18223-G
8 18027-G 18227-G
10 18031-G 18231-G
12 18033-G 18233-G
16 18035-G 18235-G
20 18037-G 18237-G
22 x 58 25 18039-G 18239-G 10/50
32 18043-G 18243-G
40 18047-G 18247-G
50 18051-G 18251-G
63 18055-G 18255-G
80 18059-G 18259-G
100 500V 18063-G 18263-G 120,000
125 400V 18065-G 18265-G
Dimensions
FUSE SIZE A B C
8 x 31 8.5 31.5 6.3
10 x 38 10.3 38 10.5
14 x 51 14.3 51 13.8
22 x 58 22.2 58 16.2
AFTER
F 5
