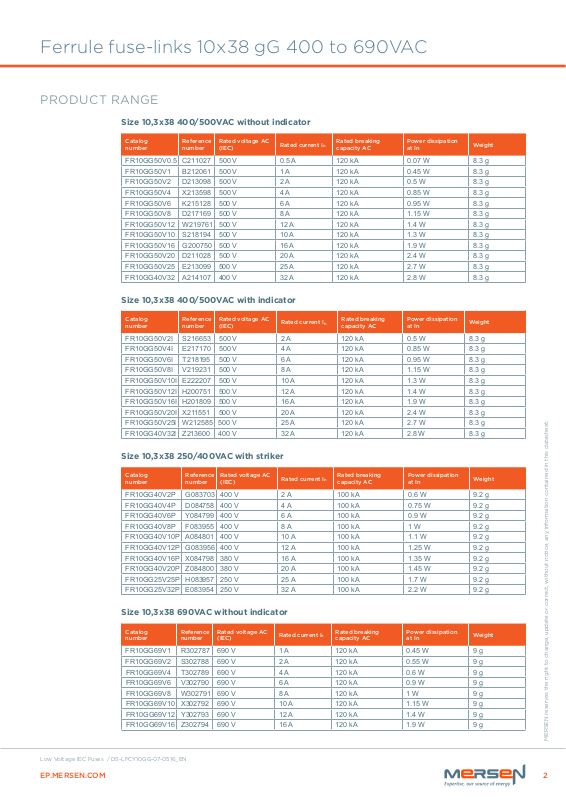

Ferrule fuse-links 10x38 gG 400 to 690VAC

PRODUCT RANGE

Size 10,3x38 400/500VAC without indicator

Catalog
number

Reference
number

Rated voltage AC
(IEC)

Rated current I

Rated breaking

n

capacity AC

Power dissipation
at In

Weight

FR10GG50V0.5 C211027 500 V 0.5 A 120 kA 0.07 W 8.3 g

FR10GG50V1 B212061 500 V 1 A 120 kA 0.45 W 8.3 g

FR10GG50V2 D213098 500 V 2 A 120 kA 0.5 W 8.3 g

FR10GG50V4 X213598 500 V 4 A 120 kA 0.85 W 8.3 g

FR10GG50V6 K215128 500 V 6 A 120 kA 0.95 W 8.3 g

FR10GG50V8 D217169 500 V 8 A 120 kA 1.15 W 8.3 g

FR10GG50V12 W219761 500 V 12 A 120 kA 1.4 W 8.3 g

FR10GG50V10 S218194 500 V 10 A 120 kA 1.3 W 8.3 g

FR10GG50V16 G200750 500 V 16 A 120 kA 1.9 W 8.3 g

FR10GG50V20 D211028 500 V 20 A 120 kA 2.4 W 8.3 g

FR10GG50V25 E213099 500 V 25 A 120 kA 2.7 W 8.3 g

FR10GG40V32 A214107 400 V 32 A 120 kA 2.8 W 8.3 g

Size 10,3x38 400/500VAC with indicator

Catalog
number

FR10GG50V2I S216653 500 V 2 A 120 kA 0.5 W 8.3 g

FR10GG50V4I E217170 500 V 4 A 120 kA 0.85 W 8.3 g

FR10GG50V6I T218195 500 V 6 A 120 kA 0.95 W 8.3 g

FR10GG50V8I V219231 500 V 8 A 120 kA 1.15 W 8.3 g

FR10GG50V10I E222207 500 V 10 A 120 kA 1.3 W 8.3 g

FR10GG50V12I H200751 500 V 12 A 120 kA 1.4 W 8.3 g

FR10GG50V16I H201809 500 V 16 A 120 kA 1.9 W 8.3 g

FR10GG50V20I X211551 500 V 20 A 120 kA 2.4 W 8.3 g

FR10GG50V25I W212585 500 V 25 A 120 kA 2.7 W 8.3 g

FR10GG40V32I Z213600 400 V 32 A 120 kA 2.8 W 8.3 g

Reference
number

Rated voltage AC
(IEC)

Rated current I

Rated breaking

n

capacity AC

Power dissipation
at In

Weight

Size 10,3x38 250/400VAC with striker

Catalog
number

FR10GG40V2P G083703 400 V 2 A 100 kA 0.6 W 9.2 g

FR10GG40V4P D084758 400 V 4 A 100 kA 0.75 W 9.2 g

FR10GG40V6P Y084799 400 V 6 A 100 kA 0.9 W 9.2 g

FR10GG40V8P F083955 400 V 8 A 100 kA 1 W 9.2 g

FR10GG40V10P A084801 400 V 10 A 100 kA 1.1 W 9.2 g

FR10GG40V12P G083956 400 V 12 A 100 kA 1.25 W 9.2 g

FR10GG40V16P X084798 380 V 16 A 100 kA 1.35 W 9.2 g

FR10GG40V20P Z084800 380 V 20 A 100 kA 1.45 W 9.2 g

FR10GG25V25P H083957 250 V 25 A 100 kA 1.7 W 9.2 g

FR10GG25V32P E083954 250 V 32 A 100 kA 2.2 W 9.2 g

Reference
number

Rated voltage AC
(IEC)

Rated current I

Rated breaking

n

capacity AC

Power dissipation
at In

Weight

Size 10,3x38 690VAC without indicator

Catalog
number

FR10GG69V1 R302787 690 V 1 A 120 kA 0.45 W 9 g

FR10GG69V2 S302788 690 V 2 A 120 kA 0.55 W 9 g

FR10GG69V4 T302789 690 V 4 A 120 kA 0.6 W 9 g

FR10GG69V6 V302790 690 V 6 A 120 kA 0.9 W 9 g

FR10GG69V8 W302791 690 V 8 A 120 kA 1 W 9 g

FR10GG69V10 X302792 690 V 10 A 120 kA 1.15 W 9 g

FR10GG69V12 Y302793 690 V 12 A 120 kA 1.4 W 9 g

FR10GG69V16 Z302794 690 V 16 A 120 kA 1.9 W 9 g

Reference
number

Rated voltage AC
(IEC)

Rated current I

Rated breaking

n

capacity AC

Power dissipation
at In

Weight
