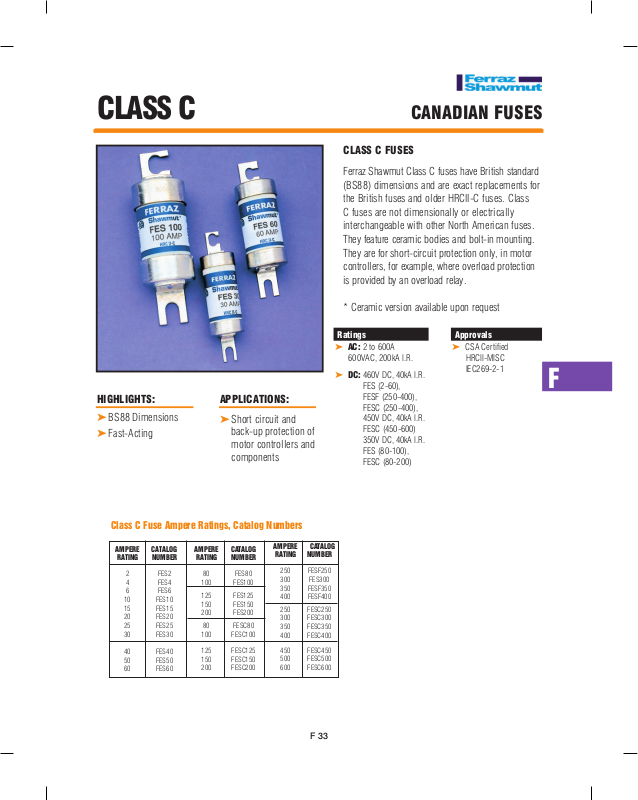

Mersen, formerly Ferraz Shawmut CLASS C Catalog Page
CLASS C CANADIAN FUSES
CLASS C FUSES
Ferraz Shawmut Class C fuses have British standard
(BS88) dimensions and are exact replacements for
the British fuses and older HRCII-C fuses. Class
C fuses are not dimensionally or electrically
interchangeable with other North American fuses.
They feature ceramic bodies and bolt-in mounting.
They are for short-circuit protection only, in motor
controllers, for example, where overload protection
is provided by an overload relay.
* Ceramic version available upon request
HIGHLIGHTS:
BS88 Dimensions
➤
Fast-Acting
➤
APPLICATIONS:
Short circuit and
➤
back-up protection of
motor controllers and
components
Class C Fuse Ampere Ratings, Catalog Numbers
AMPERE CATALOG
RATING NUMBER
2 FES2
4 FES4
6 FES6
10 FES10
15 FES15
20 FES20
25 FES25
30 FES30
40 FES40
50 FES50
60 FES60
AMPERE CATALOG
RATING NUMBER
80 FES80
100 FES100
125 FES125
150 FES150
200 FES200
80 FESC80
100 FESC100
125 FESC125
150 FESC150
200 FESC200
AMPERE CATALOG
RATING NUMBER
250 FESF250
300 FES300
350 FESF350
400 FESF400
250 FESC250
300 FESC300
350 FESC350
400 FESC400
450 FESC450
500 FESC500
600 FESC600
Ratings
AC: 2 to 600A
➤
600VAC, 200kA I.R.
DC: 460V DC, 40kA I.R.
➤
FES (2-60),
FESF (250-400),
FESC (250-400),
450V DC, 40kA I.R.
FESC (450-600)
350V DC, 40kA I.R.
FES (80-100),
FESC (80-200)
Approvals
CSA Certified
➤
HRCII-MISC
IEC269-2-1
FF
F 33
CLASS C CANADIAN FUSES
I2t Data at 200kA
FES2-30
FES40-60
FES80-100
FES125-200
Dimensions
Inches
(mm)
PART NUMBER A B D E F G H K
2.06
0.81
FES 2-30
FES 40-60
FES 80-100
FES 125-200
FESC 80-100
FESC 125-200
FESF 250-400
FESC 250-400
FESC 450-600
(52.3)
2.19
(55.6)
2.69
(68.3)
2.69
(68.3)
2.44
(61.9)
2.44
(61.9)
3.00
(76.2)
3.00
(76.2)
3.00
(76.2)
(20.6)
1.06
(26.9)
1.34
34.0
1.58
(40.1)
1.34
(33.9)
1.59
(40.3)
2.00
(50.8)
2.00
(50.8)
2.88
(73.0)
3.31
(84.1)
3.44
(87.4)
4.31
(109.5)
4.31
(109.5)
5.31
(134.9)
5.31
(134.9)
5.38
(136.7)
8.25
(209.6)
8.25
(209.6)
0.35
(8.9)
0.50
(12.7)
0.75
19.1
0.75
(19.1)
0.75
(19.1)
0.75
(19.1)
1.00
(25.4)
1.00
(25.4)
1.00
(25.4)
0.06
(1.6)
0.06
(1.6)
0.13
3.2
0.13
(3.2)
0.13
(3.2)
0.13
(3.2)
0.25
(6.4)
0.25
(6.4)
0.38
(9.5)
2.83
2.77
3.64
3.64
4.28
4.28
4.25
5.16
5.06
0.20
(5.2)
0.20
(5.2)
0.34
(8.7)
0.34
(8.7)
0.41
(10.4)——
(71.9)
(70.4)
(92.5)
(92.5)
(108.7)——
(108.7)——
(108.0)
(131.0)——
(128.6)——
0.84
(21.3)
1.07
(27.2)
1.43
(36.3)
1.69
(42.9)
—
—
—
—
—
—
—
—
FUSE 3-PHASE I
2
t Data
AMPERE PRE-ARC @ 600V
RATING (A2s) (A2s)
2 2.3 6.6
4 7.0 20
6 22 70
10 100 310
15 260 750
20 540 1300
25 820 2000
30 2800 6200
40 4000 10 x 10
50 6400 16 x 10
60 12 x 103 28 x 10
80 14 x 103 44 x 10
100 17 x 103 62 x 10
125 25 x 103 93 x 10
150 62 x 103 170 x 10
200 90 x 103 280 x 10
250 200 x 103 600 x 10
300 300 x 103 900 x 10
350 500 x 103 1600 x 10
400 630 x 103 2100 x 10
450 800 x 103 2500 x 10
500 1200 x 103 3200 x 10
600 2000 x 103 5200 x 10
FESC80-100
FESC125-200
FESF250-400
FESC250-400
FESC450-600
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
F 34
