Before driving

Introduction 2

Instrumentation 4

Controls and features 16

Seating and safety restraints 70

Starting and driving

Starting 96

Driving 101

Roadside emergencies 118

Servicing

Maintenance and care 135

Capacities and specifications 180

Customer assistance 189

Reporting safety defects 204

Index 205

All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company.

Copyrightr1998 Ford Motor Company

Introduction

ICONS

Indicates a safety alert. Read the following section on Warnings.

Indicates vehicle information related to recycling and other environmental concerns will follow.

Correct vehicle usage and the authorized disposal of waste cleaning and lubrication materials are significant steps towards protecting the environment.

Indicates a message regarding child safety restraints. Refer to

Seating and safety restraints for more information.

Indicates that this Owner Guide contains information on this subject. Please refer to the Index to locate the appropriate section which will provide you more information.

WARNINGS

Warnings provide information which may reduce the risk of personal injury and prevent possible damage to others, your vehicle and its equipment.

BREAKING-IN YOUR VEHICLE

There are no particular breaking-in rules for your vehicle. During the first 1 600 km (1 000 miles) of driving, vary speeds frequently. This is necessary to give the moving parts a chance to break in.

Introduction

INFORMATION ABOUT THIS GUIDE

The information found in this guide was in effect at the time of printing. Ford may change the contents without notice and without incurring obligation.

Instrumentation

Headlamp control (pg. 16)

Trunk release — sedan only (pg. 53)

Rear window wiper and washer — wagon only (pg. 46)

Parking brake release (pg. 103)

FUEL DOOR>

EFC

SERVICE ENGINE

SOON

LOW

COOLANT

Driver side air bag (pg. 83)

Turn signal and wiper/washer control (pg. 45)

THEFT

Instrument cluster (pg. 6)

50 60

122

100

120

00013

140

160

180

MPH km/h

110

P R N D D 1

Speed control (pg. 41)

+–

RPMx1000

100

UNLEADED FUEL ONLY

BRAKE

CRUISE

ABS

O/D OFF

Electronic sound system (pg. 29)

Instrumentation

Passenger side air bag (pg. 84)

FM 12 AMC

BL RF

VOL

PUSH-ON

SEEK

SCAN

TUNE

BASS

EJECT

OFF

VENT

A/C

MAX A/C

TREB

REW

BAL

FADE

TAPE SIDE

TAPE

R-DEF

Climate control systems (pg. 18)

Gearshift (pg. 105)

Instrumentation

WARNING LIGHTS AND CHIMES Standard instrument cluster

50 60

122

MPH km/h

P R N D D 1

00013

100

120

FUEL DOOR>

SERVICE ENGINE

SOON

LOW

THEFT

COOLANT

+–

140

160

100

180

110

O/D OFF

RPMx1000

UNLEADED FUEL ONLY

ABS

BRAKE

CRUISE

Optional instrument cluster

000

FUEL DOOR>

SERVICE ENGINE

SOON

LOW

THEFT

COOLANT

100

140

00000

MPH km/h

P R N D 2 1

+–

100

110

180

120

O/D OFF

345

RPMx1000

PREMIUM UNLEADED FUEL RECOMMENDED

BRAKE

CRUISE

ABS

Turn signal

Illuminates when the left or right turn signal or the hazard lights are turned on. If one or both of the indicators stay on continuously or flash faster, check for a burned-out turn signal bulb. Refer to Exterior bulbs in the Maintenance and care chapter.

High beams

Illuminates when the high beam headlamps are turned on.

Instrumentation

Safety belt

Momentarily illuminates when the ignition is turned to the ON position to remind you to fasten your safety belts. For more information, refer to the Seating and safety restraints chapter.

Door ajar

Illuminates when the ignition is in the ON or START position and any door is open.

Service engine soon

Your vehicle is equipped with a computer that monitors the engine’s emission control system. This system is commonly known as the On Board Diagnostics System (OBD II). The OBD II system protects the environment by ensuring that your vehicle continues to meet government emission standards. The OBD II system also assists the service technician in properly servicing your vehicle.

The Service Engine Soon indicator light illuminates when the ignition is first turned to the ON position to check the bulb. If it comes on after the engine is started, one of the engine’s emission control systems may be malfunctioning. The light may illuminate without a driveability concern being noted. The vehicle will usually be drivable and will not require towing.

What you should do if the Service Engine Soon light illuminates

Light turns on solid:

This means that the OBD II system has detected a malfunction.

SERVICE

ENGINE

SOON

Instrumentation

Temporary malfunctions may cause your Service Engine Soon light to illuminate. Examples are:

1. The vehicle has run out of fuel. (The engine may misfire or run poorly.)

2. Poor fuel quality or water in the fuel.

3. The fuel cap may not have been properly installed and securely tightened.

These temporary malfunctions can be corrected by filling the fuel tank with good quality fuel and/or properly installing and securely tightening the gas cap. After three driving cycles without these or any other temporary malfunctions present, the Service Engine Soon light should turn off. (A driving cycle consists of a cold engine startup followed by mixed city/highway driving.) No additional vehicle service is required.

If the Service Engine Soon light remains on, have your vehicle serviced at the first available opportunity.

Light is blinking:

Engine misfire is occurring which could damage your catalytic converter. You should drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced at the first available opportunity.

Under engine misfire conditions, excessive

exhaust temperatures could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire.

Low fuel

Illuminates as an early reminder of a low fuel condition indicated on the fuel gauge. The light comes on when there is approximately 1/16th

Instrumentation

of a tank indicated on the fuel gauge (refer to Fuel gauge in this chapter for more information). The

ignition must be in the ON position for this lamp to illuminate. The lamp will also illuminate for several seconds after the ignition is turned to the ON position regardless of the fuel level.

Low coolant (if equipped)

This lamp will illuminate when the engine coolant inside the reservoir is low. This lamp will come on when the ignition is first turned on, but then should turn off. If the lamp stays on, you should check the coolant level inside the reservoir. For instructions on adding coolant, see Engine coolant in the Maintenance and care chapter.

Anti-theft system (if equipped)

Refer to Perimeter alarm system (if equipped) and SecuriLocky passive anti-theft system in the Controls and features

chapter.

LOW

COOLANT

THEFT

Anti-lock brake system (ABS) (If equipped)

Momentarily illuminates when the ignition is turned on and the engine is off. If the light does not illuminate momentarily at start up, remains on or continues to flash, the ABS needs to be serviced. With the ABS light on, the anti-lock brake system is disabled and normal braking is still effective unless the brake warning light also remains illuminated with parking brake released.

ABS

Instrumentation

Speed control (if equipped)

This light comes on when either the SET/ ACCEL or RESUME controls are pressed. It turns off when the speed control OFF control is pressed, the brake is applied or the ignition is turned to the OFF position.

Brake system warning

Momentarily illuminates when the ignition is turned to the ON position, the engine is off and the parking brake is engaged. If the brake warning lamp does not illuminate at this time, seek service immediately. Illumination after releasing the parking brake indicates low brake fluid level and the brake system should be inspected immediately.

Engine oil pressure

Momentarily illuminates when the ignition is turned to the ON position and the engine is off. Illuminates when the oil pressure falls below the normal range. Stop the vehicle as soon as safely possible and switch off the engine immediately. Check the oil level and add oil if needed. Refer to Engine oil in the Maintenance and Care chapter.

CRUISE

BRAKE

Charging system

Illuminates when the ignition is turned to the ON position and the engine is off. The light also illuminates when the battery is not charging properly, requiring electrical system service.

Instrumentation

Air bag readiness

Momentarily illuminates when the ignition is turned ON. If the light fails to illuminate, continues to flash or remains on, have the system serviced immediately.

Safety belt warning chime

Chimes to remind you to fasten your safety belts. For information on the safety belt warning chime,

refer to the Seating and safety restraints chapter.

Supplemental restraint system (SRS) warning chime

For information on the SRS warning chime, refer to the Seating and safety restraints chapter.

Key-in-ignition warning chime

Sounds when the key is left in the ignition in the OFF/LOCK or ACC position and the driver’s door is opened.

Headlamps on warning chime

Sounds when the headlamps or parking lamps are on, the ignition is off (and the key is not in the ignition) and the driver’s door is opened.

Instrumentation

GAUGES Standard instrument cluster gauges

50 60

122

00013

MPH km/h

P R N D D 1

100

120

FUEL DOOR>

SERVICE ENGINE

SOON

LOW

THEFT

COOLANT

+–

140

160

100

180

O/D

110

OFF

Optional instrument cluster gauges

000

FUEL DOOR>

SERVICE ENGINE

SOON

LOW

THEFT

COOLANT

100

140

00000

MPH km/h

P R N D 2 1

+–

100

110

180

O/D

120

OFF

Speedometer

Indicates the current vehicle speed.

• Standard instrument cluster

MPH km/h

P R N D D 1

RPMx1000

UNLEADED FUEL ONLY

ABS

345

RPMx1000

PREMIUM UNLEADED FUEL RECOMMENDED

ABS

50 60

000

00000

BRAKE

CRUISE

BRAKE

CRUISE

100

120

140

160

100

180

110

Instrumentation

• Optional instrument cluster

000

100

00000

MPH km/h

P R N D 2 1

140

Tachometer

Indicates the engine speed in revolutions per minute.

• Standard instrument cluster

• Optional instrument cluster

UNLEADED FUEL ONLY

PREMIUM UNLEADED FUEL RECOMMENDED

RPMx1000

100

110

180

120

Driving with your tachometer pointer in the red zone may damage the engine.

Instrumentation

Engine coolant temperature gauge

Indicates the temperature of the engine coolant. At normal operating temperature, the needle remains within the normal area (the area between the “H” and “C”). If it enters the red section, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine immediately and let the engine cool. Refer to Engine coolant in the Maintenance and care chapter.

Never remove the coolant reservoir cap while the engine is running or hot.

This gauge indicates the temperature of the engine coolant, not the coolant level. If the coolant is not at its proper level the gauge indication will not be accurate.

Odometer

Registers the total kilometers (miles) of the vehicle.

000

100

00000

MPH km/h

P R N D 2 1

140

100

110

180

120

Trip odometer

Registers the kilometers (miles) of individual journeys. To reset, depress the control.

000

100

00000

MPH km/h

P R N D 2 1

140

100

110

180

120

Instrumentation

Fuel gauge

Displays approximately how much fuel is in the fuel tank (when the key is in the ON position). The fuel gauge may vary slightly when the vehicle is in motion. The ignition should be in the OFF position while the vehicle is being refueled. When the gauge first indicates empty, there is a small amount of reserve fuel in the tank. When refueling the vehicle from empty indication, the amount of fuel that can be added will be less than the advertised capacity due to the reserve fuel.

A minimum of six gallons must be added or removed from the fuel tank in order for the gauge to instantaneously update. If less than six gallons is the change, the gauge will take between five to ten minutes to update.

Controls and features

HEADLAMP CONTROL

Rotate the headlamp control to the first position to turn on the parking lamps. Rotate to the second position to also turn on the headlamps.

Daytime running lamps (DRL) (if equipped)

Turns the headlamps on with a reduced output. To activate:

• the engine must be running and

• the headlamp control is in the OFF or Parking

lamps position.

Always remember to turn on your

headlamps at dusk or during inclement weather. The Daytime Running Light (DRL) System does not activate your tail lamps and generally may not provide adequate lighting during these conditions. Failure to activate your headlamps under these conditions may result in a collision.

PANEL

DIM

AUTO LAMP

High beams

Push forward to activate.

Controls and features

Flash to pass

Pull toward you to activate and release to deactivate.

PANEL DIMMER CONTROL

Use to adjust the brightness of the instrument panel during headlamp and parklamp operation.

• Rotate up to brighten.

• Rotate down to dim.

• Rotate to full down position to turn off.

PANEL

DIM

AUTO LAMP

AUTOLAMP CONTROL

The autolamp system provides light sensitive

PANEL

DIM

AUTO LAMP

automatic on-off control of the exterior lights normally controlled by the headlamp control.

The autolamp system also keeps the lights on for a preselected period of time after the ignition switch is turned to OFF.

Controls and features

• To turn autolamps on, rotate the control up. The preselected time lapse is adjustable up to approximately three minutes by continuing to rotate the control upward.

• To turn autolamps off, rotate the control down until it clicks.

REAR WINDOW DEFROSTER

Clears the rear window of thin ice and fog. To operate:

1. Turn the ignition to the ON position.

2. Press and release

the control once to turn on. The light will be lit while the rear window defroster is on.

3. Press and release the control again to turn off.

The defroster will automatically turn off after fifteen minutes.

CLIMATE CONTROL SYSTEM Manual heating and air conditioning system

(if equipped)

R-DEF

OFF

VENT

A/C

MAX A/C

R-DEF

Controls and features

Fan speed control

Controls the volume of air circulated in the vehicle.

Temperature control knob

Controls the temperature of the airflow inside the vehicle.

Mode selector control

OFF

Controls the direction of the airflow to the inside of the vehicle.

The air conditioning compressor will operate in all modes except VENT and

. However, the air conditioning will only function if the outside temperature is about 10°C (50°F) or above.

Since the air conditioner removes considerable moisture from the air during operation, it is normal if clear water drips on the ground under the air conditioner drain while the system is working and even after you have stopped the vehicle.

Under normal conditions, your vehicle’s climate control system should be left in any position other than MAX A/C or OFF when the vehicle is parked. This allows the vehicle to “breathe” through the outside air inlet duct.

• MAX A/C-Uses recirculated air to cool the vehicle.

MAX A/C is noisier than A/C but more economical and will cool the inside of the vehicle faster. Airflow will be from the instrument panel registers. This mode can also be used to prevent undesirable odors from entering the vehicle.

VENT

A/C

MAX

A/C

Controls and features

• A/C-Uses outside air to cool the vehicle. It is

quieter than MAX A/C but not as economical. Airflow will be from the instrument panel registers.

• VENT-Distributes outside air through the

instrument panel registers. However, the air will not be cooled below the outside temperature because the air conditioning does not operate in this mode.

• OFF-Outside air is shut out and the fan will not

operate. For short periods of time only, use this mode to prevent undesirable odors from entering the vehicle.

•

(Panel and floor)-Distributes outside air through the instrument panel registers and the floor ducts. Heating and air conditioning capabilities are provided in this mode. For added customer comfort, when the temperature control knob is anywhere in between the full hot and full cold positions, the air distributed through the floor ducts will be slightly warmer than the air sent to the instrument panel registers.

(Floor)-Allows for maximum heating by distributing outside air through the floor ducts. However, the air will not be cooled below the outside temperature because the air conditioning does not operate in this mode.

(Floor and defrost)-Distributes outside air through the windshield defroster ducts and the floor ducts. Heating and air conditioning capabilities are provided in this mode. For added customer comfort, when the temperature control knob is anywhere in between the full hot and full cold positions, the air distributed through the floor ducts will be slightly warmer than the air sent to the instrument panel registers. If the temperature is about 10°C (50°F) or higher, the air conditioner will automatically dehumidify the air to prevent fogging.

Controls and features

• -

Distributes outside air through the windshield defroster ducts. It can be used to clear ice or fog from the windshield. If the temperature is about 10°C (50°F) or higher, the air conditioner will automatically dehumidify the air to prevent fogging.

Operating tips

• In humid weather, select before driving. This will prevent your windshield from fogging. After a few minutes, select any desired position.

• To prevent humidity buildup inside the vehicle, don’t drive with the climate control system in the OFF position.

• Don’t put objects under the front seat that will interfere with the airflow to the back seats.

• Remove any snow, ice or leaves from the air intake area (at the bottom of the windshield under the hood).

• If the air conditioner works well in MAX A/C, but not in A/C, this may indicate that the cabin air filter (if equipped) needs to be replaced.

• If your vehicle has been parked with the windows closed during hot weather, the air conditioner will do a much faster job of cooling if you drive for two or three minutes with the windows open. This will force most of the hot, stale air out of the vehicle. Then operate your air conditioner as you would normally.

When placing objects on top of your instrument

•

panel, be careful to not place them over the defroster outlets. These objects can block airflow and reduce your ability to see through your windshield. Also, avoid placing small objects on top of your instrument panel. These objects can fall down into the defroster outlets and block airflow and possibly damage your climate control system.

Controls and features

Electronic Automatic Temperature Control (EATC) system (if equipped)

VENT

OFF

MAX

AUTO

A/C

TEMP

OUT SIDE

—+

F-DEF

R-DEF

—+

TEMP

AUTO

The EATC system will maintain a selected temperature and automatically control airflow. You can override automatic operation with any of the override controls or the fan speed control.

Turning the EATC on

VENT

OFF

MAX

AUTO

A/C

TEMP

OUT

SIDE

—+

F-DEF

R-DEF

—+

TEMP

AUTO

Press AUTO, any of the override controls or the fan speed control. The EATC will only operate when the ignition is in the ON position.

Turning the EATC off

Press OFF. The Outside Temperature function will continue to operate until the ignition is turned off.

VENT

OFF

MAX

AUTO

A/C

TEMP

OUT

SIDE

Controls and features

Automatic operation

Press AUTO and select the desired temperature. The selected temperature and the word AUTO will appear in the display window. The EATC system will either heat or cool to achieve the selected temperature. The system will automatically determine fan speed, airflow location and if fresh outside air or recirculated air is required. Fan speed remains automatic unless the fan speed control is pressed.

When in AUTO and weather conditions require heat, air will be sent to the floor. However, if the engine is not warm enough to provide heat, the fan will be at a low speed and the air will be directed to the windshield. In 3 start to increase and the airflow location will change to the floor area.

If unusual conditions exist (i.e.-window fogging, etc.), the manual override controls allow you to select airflow locations and the fan control allows you to adjust fan speed as necessary.

Temperature selection

The display window indicates the selected temperature, function (AUTO or one of the override controls) and manual control of fan speed ( automatic fan speed is not desired.

To control the temperature, select any temperature between 18°C (65°F) and 29°C (85°F) by pressing the temperature control.

⁄2minutes or less, the fan speed will

AUTO

FAN

)if

—+

F-DEF

R-DEF

• • •

—+

TEMP

Controls and features

For continuous maximum cooling, push the temperature control until 16°C (60°F) is shown in the display window. The EATC will continue maximum cooling (disregarding the displayed temperature) until a warmer temperature is selected by pressing the temperature control.

For continuous maximum heating, push the temperature control until 32°C (90°F) is shown in the display window. The EATC will continue maximum heating (disregarding the displayed temperature) until a cooler temperature is selected by pressing the temperature control.

Temperature conversion

—+

F-DEF

R-DEF

—+

TEMP

AUTO

VENT

OFF

MAX

AUTO

A/C

TEMP

OUT

SIDE

Press MAX A/C and F-DEF at the same time (until the display changes) to switch between Fahrenheit and Celsius.

Fan speed ( )

When AUTO is pressed, fan speed is adjusted automatically for existing conditions. You can override fan

—+

F-DEF

R-DEF

—+

TEMP

speed at any time. To control fan speed manually, press the fan control to cancel automatic fan speed operation. Press the control up for higher fan speed or down for lower fan speed.

Controls and features

The display will show

and a bar graph to

AUTO

indicate manual fan operation and relative speed.

FAN

• • •

To return to automatic fan operation, press AUTO.

Manual override controls

VENT

OFF

MAX

AUTO

A/C

TEMP

OUT

SIDE

—+

F-DEF

R-DEF

—+

TEMP

AUTO

The override controls are located at the bottom of the EATC and allow you to determine where airflow is directed. To return to full automatic control, press AUTO.

The air conditioning compressor will operate in all modes except

and VENT. It will also operate only when required when AUTO has been selected. However, the air conditioning will only function if the outside temperature is about 10°C (50°F) or above.

Controls and features

• MAX A/C-Uses recirculated air to cool the vehicle.

The temperature will remain unchanged and air will be cooled based on the selected temperature. To exit, press AUTOMATIC or any other override controls. MAX A/C is noisier than normal A/C but more economical and will cool the inside of the vehicle faster. Airflow is from the instrument panel registers. This mode can also be used to prevent undesirable odors from entering the vehicle.

• VENT-Distributes outside air through the

instrument panel registers. However, the air cannot be cooled below the outside temperature because the air conditioning does not operate in this mode.

•

-Distributes outside air through the instrument panel registers and the floor ducts. Heating and air conditioning capabilities are provided in this mode. The air will be heated or cooled based on the temperature selection. For added customer comfort, the air distributed through the floor ducts will be slightly warmer than the air sent to the instrument panel registers.

-Allows for maximum heating by distributing outside air through the floor ducts. However, the air cannot be cooled below the outside temperature because the air conditioning does not operate in this mode.

-Distributes outside air through the windshield defroster ducts and the floor ducts. Heating and air conditioning capabilities are provided in this mode. The air will be heated or cooled based on the temperature selection. For added customer comfort, the air distributed through the floor ducts will be slightly warmer than the air sent to the windshield defroster ducts. If the temperature is about 10°C (50°F) or higher, the air conditioner will automatically dehumidify the air to prevent fogging.

Controls and features

• F- DEF -Distributes outside air through the windshield defroster ducts. It can be used to clear ice or fog from the windshield. If the outside air temperature is about 10°C (50°F) or higher, the air conditioner will automatically dehumidify the air to prevent fogging.

• OFF-Outside air is shut out and the fan will not operate. For short periods of time only, use this mode to prevent undesirable odors from entering the vehicle.

Displaying outside temperature

Press OUTSIDE TEMP to display the outside air temperature. It will be displayed until OUTSIDE TEMP is pressed again or until any other control is pressed. When the EATC system is off and OUTSIDE TEMP is pressed, the outside temperature will only be displayed for four seconds.

The outside temperature reading is most accurate when the vehicle is moving. Higher readings may be obtained when the vehicle is not moving. The readings that you get may not agree with temperatures given on the radio due to differences in vehicle and station locations.

Operating tips

• In humid weather, select F-DEF before driving. This will prevent your windshield from fogging. After a few minutes, select any desired position.

• To prevent humidity buildup inside the vehicle, don’t drive with the climate control system in the OFF position.

• Don’t put objects under the front seat that will interfere with the airflow to the back seats.

VENT

OFF

MAX

AUTO

A/C

TEMP

OUT

SIDE

Controls and features

• Remove any snow, ice or leaves from the air intake area (at the bottom of the windshield).

• If the air conditioner works well in MAX A/C but not in normal A/C, this may indicate that the cabin air filter (if equipped) needs to be replaced.

• When placing objects on top of your instrument panel, be careful to not place them over the defroster outlets. These objects can block airflow and reduce your ability to see through your windshield. Also, avoid placing small objects on top of your instrument panel. These objects can fall down into the defroster outlets and block airflow and possibly damage your climate control system.

Controls and features

USING YOUR AUDIO SYSTEM AM/FM Stereo/Cassette/Ford MACH Audio

System with CD DJ Compatibility

FM 12 AMC

BL RF

VOL

PUSH-ON

TUNE

DISC 1-6

SHUFFLE

SCAN

SEEK

COMP

Volume/power control

Press the control to turn the audio system on or off.

Turn control to raise or lower volume.

EJECT

SIDE 1-2

DOLBY B ®

REW

VOL

PUSH-ON

BASS

TREB

TAPE

BAL

FADE

VOL

PUSH-ON

If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on. If you wish to maintain

Controls and features

your preset volume level, turn the audio system off with the power control before switching off the ignition.

AM/FM select

The AM/FM select control works in radio, tape and CD modes (if equipped).

VOL

PUSH-ON

AM/FM select in radio mode

This control allows you to select AM or FM frequency bands. Press the control to switch between AM, FM1 or FM2 memory preset stations.

AM/FM select in tape mode

Press this control to stop tape play and begin radio play.

AM/FM select in CD mode

Press this control to stop CD play and begin radio play.

You can switch from CD play to tape play by simply inserting a tape into the cassette deck.

Tune adjust

The tune control works in radio or CD mode.

TUNE

DISC 1-6

Tune adjust in radio mode

• Press to move to the next frequency down the band (whether or not a listenable station is located there). Hold the control to move through the frequencies quickly.

• Press

to move to the next frequency up the band (whether or not a listenable station is located there). Hold for quick movement.

Controls and features

Tune adjust for CD mode

• Press the to select the previous disc in the CD changer. (Play will begin on the first track of the disc unless the CD changer is in shuffle mode. Refer to Shuffle feature for more information. Hold the control to continue reversing through the disc.

• Press changer. Hold the control to fast-forward through the remaining discs.

Seek function

The seek function control works in radio, tape or CD mode.

Seek function in radio mode

• Press to find the next listenable station down the frequency band.

• Press to find the next listenable station up the frequency band.

Seek function in tape mode

• Press to listen to the previous selection on the tape.

• Press tape.

Seek function in CD mode

• Press to seek to the previous track of the current disc. If a selection has been playing for three seconds or more and you press changer will replay that selection from the beginning.

• Press current disc. After the last track has been completed, the first track of the current disc will automatically replay.

to select the next disc in the CD

SEEK

to listen to the next selection on the

, the CD

to seek forward to the next track of the

Controls and features

Scan function

The scan function works in radio, tape or CD mode.

Scan function in radio mode

Press the SCAN control to hear a brief sampling of all listenable stations on the frequency band. Press the control again to stop the scan mode.

Scan function in tape mode

Press the SCAN control to hear a short sampling of all selections on the tape. (The tape scans in a forward direction. At the end of the tape’s first side, direction automatically reverses to the opposite side of the tape.) To stop on a particular selection, press the control again.

Scan function in CD mode

Press the SCAN control to hear a short sampling of all selections on the CD. (The CD scans in a forward direction, wrapping back to the first track at the end of the CD.) To stop on a particular selection, press the control again.

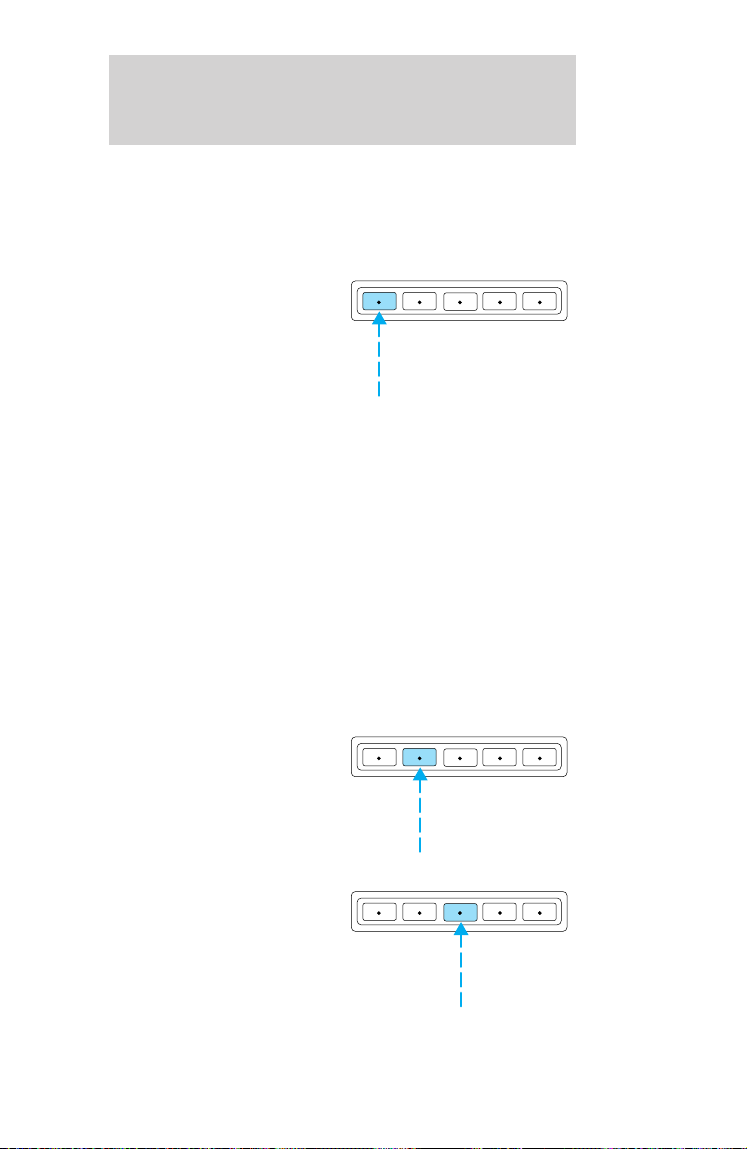

Radio station memory preset

The radio is equipped with six station memory preset controls. These controls can be used to select up to six preset AM stations and twelve FM stations (six in FM1 and six in FM2).

Setting memory preset stations

1. Select the frequency

band with the AM/FM select control.

2. Select a station.

Refer to Tune adjust

PUSH-ON

or Seek function for more information on selecting a station.

SCAN

VOL

Controls and features

SHUFFLE

COMP

SIDE 1-2

REW

3. Press and hold a memory preset control until the

sound returns, indicating the station is held in memory on the control you selected.

Bass/treble adjust

• The bass adjust control allows you to increase or decrease

BASS

TREB

the audio system’s bass output.

• The treble adjust control allows you to increase or decrease

BASS

BAL

FADE

TREB

the audio system’s treble output.

BAL

FADE

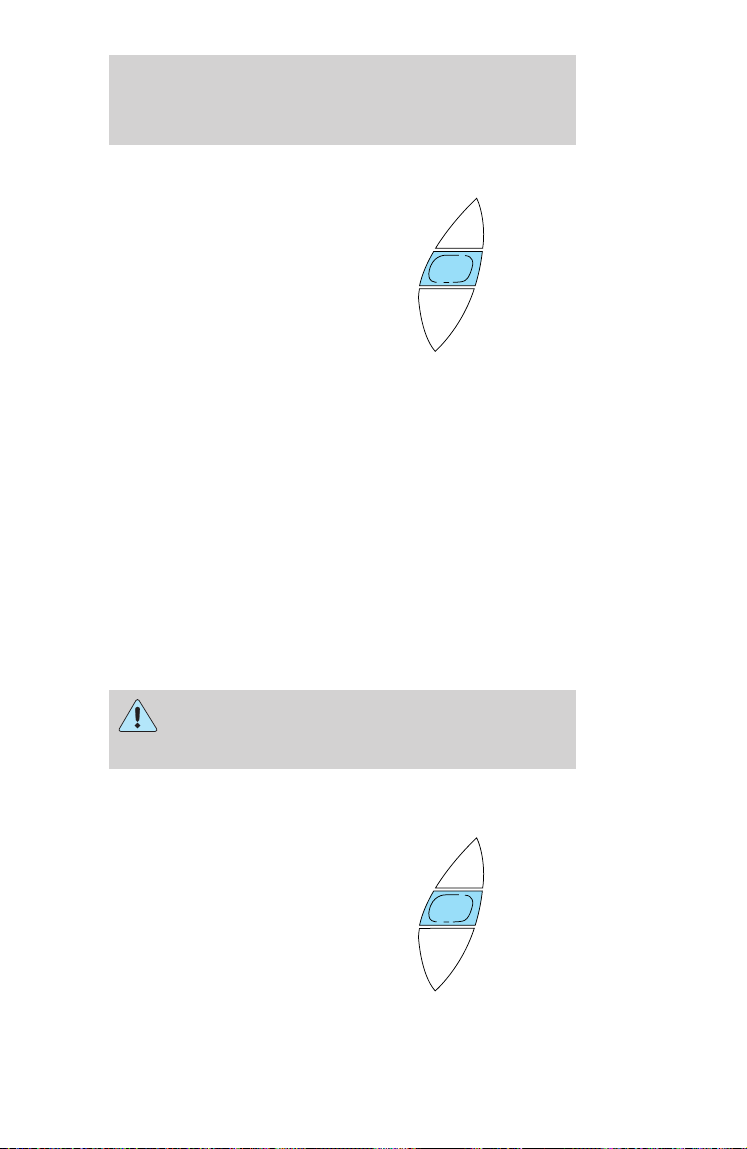

Speaker balance/fade adjust

• Speaker sound distribution can be adjusted between

BASS

TREB

the right and left speakers.

BAL

FADE

Controls and features

• Speaker sound can be adjusted between the front and rear speakers.

BASS

TREB

BAL

FADE

Inserting a tape

Push only slightly when inserting a cassette

EJECT

DOLBY B ®

TAPE

tape (with the open edge to the right). A cassette deck loading mechanism pulls the tape in the rest of the way.

You can switch from CD to tape play by inserting a tape into the cassette deck.

Tape/CD select

• To begin tape play (with a tape loaded

TAPE

into the audio system) while in the radio or CD mode, press the TAPE control. Press the button during rewind or fast forward to stop the rewind or fast forward function.

• To begin CD play (if CDs are loaded in the CD changer), press the CD button. The first track of the first disc will begin playing. After that CD play will begin where it stopped last.

Rewind

The rewind control works in tape and CD

REW

modes.

• In tape mode, radio play will continue until rewind is stopped (with the TAPE control) or the beginning of the tape is reached.

Controls and features

• In CD mode, pressing the REW control for less than three seconds results in slow rewind. Pressing the control for more than three seconds results in fast rewind.

Fast forward

The fast forward control works in tape and CD modes.

• In the tape mode, tape direction will automatically reverse when the end of the tape is reached.

• In CD mode, pressing the control for less than three seconds results in slow forward action. Pressing the control for more than three seconds results in fast forward action.

Tape direction select

Press SIDE 1–2 to play the alternate side of a tape.

DolbyTnoise reduction

Dolbyt noise reduction operates only in tape mode. Dolbyt reduces the amount of hiss and static during tape playback.

Press the

button to

activate (and deactivate) Dolbyt noise reduction. The noise reduction system is manufactured under

license from Dolby Laboratories Licensing Corporation.

SIDE 1-2

Controls and features

Compression adjust

Compression adjust brings soft and loud CD passages together for a

SHUFFLE

more consistent listening level.

Press the COMP control to activate and deactivate compression adjust.

Shuffle feature

The shuffle feature operates in CD mode and plays all tracks on

SHUFFLE

the current disc in random order.

If equipped with the CD changer, the shuffle feature continues to the next disc after all tracks are played.

Press the SHUFFLE control to start this feature. Random order play will continue until the SHUFFLE control is pressed again.

Setting the clock

To set the hour, press and hold the hour (h) control. When the desired hour appears, release the control.

COMP

To set the minute, press and hold the minute (m) control. When the desired minute appears, release the control.

Controls and features

CD changer (if equipped)

Your CD changer is either located in the trunk or in the right side cargo area storage compartment.

Slide the door to access the CD changer magazine.

Press

to eject the

magazine.

Make sure only one disc is inserted in each slot. Each disc must be inserted with the label surface upward. Depending on your

DIGITAL AUDIO

COMPACT

6 5 4

6 COMPACT DISC MAGAZINE

3 2 1

system, you may insert up to six or ten CDs.

The magazine does not need to be full for the changer to operate.

Radio power must be turned on to play the CDs in the changer. The magazine may be stored in the glove compartment when not being used.

Controls and features

The CD magazine may be inserted or ejected with the radio power off.

Troubleshooting the CD changer (if equipped)

The laser beam used in the compact disc player is harmful to the eyes. Do not

attempt to disassemble the case.

If sound skips:

• You may be traveling on a rough road, playing badly scratched discs or the disc may be dirty. Skipping will not scratch the discs or damage the player.

If your changer does not work, it may be that:

• A disc is already loaded where you want to insert a disc.

• The disc is inserted with the label surface downward.

• The disc is dusty or defective.

• The player’s internal temperature is above 60°C

(140°F). Allow the player to cool down before operating.

• A disc with format and dimensions not within industry standards is inserted.

Cleaning compact discs

Inspect all discs for contamination before playing. If necessary, clean discs only with an approved CD cleaner and wipe from the center out to the edge. Do not use circular motion.

CD and CD changer care

• Handle discs by their edges only. Never touch the playing surface.

• Do not expose discs to direct sunlight or heat sources for extended periods of time.

Controls and features

• Do not insert more than one disc into each slot of the CD changer magazine.

Cleaning cassette player (if equipped)

Clean the tape player head with a cassette cleaning cartridge after ten to twelve hours of play in order to maintain the best sound and operation.

Cassette and cassette player care

• Use only cassettes that are 90 minutes long or less.

• Do not expose tapes to direct sunlight, high humidity, extreme heat or extreme cold. Allow tapes that may have been exposed to extreme temperatures to reach a moderate temperature before playing.

• Tighten very loose tapes by inserting a finger or pencil into the hole and turning the hub.

• Remove loose labels before inserting tapes.

• Do not leave tapes in the cassette player for a

long time when not being played.

Radio frequency information

The Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission(CRTC) establish the frequencies AM and FM stations may use for their broadcasts. Allowable frequencies are:

AM 530, 540–1600, 1610 kHz FM 87.9, 88.1–107.1, 107.9 MHz Not all frequencies are used in a given area.

Radio reception factors

Three factors can affect radio reception:

• Distance/strength. The further an FM signal travels, the weaker it is. The listenable range of the average FM station is approximately 40 km (24 miles). This range can be affected by “signal

Controls and features

modulation.” Signal modulation is a process radio stations use to increase their strength/volume relative to other stations.

• Terrain. Hills, mountains and tall buildings between your vehicle’s antenna and the radio station signal can cause FM reception problems. Static can be caused on AM stations by power lines, electric fences, traffic lights and thunderstorms. Moving away from an interfering structure (out of its “shadow”) returns your reception to normal.

• Station overload. Weak signals are sometimes captured by stronger signals when you pass a broadcast tower. A stronger signal may temporarily overtake a weaker signal and play while the weak station frequency is displayed.

The audio system automatically switches to single channel reception if it will improve the reception of a station normally received in stereo.

Audio system warranties and service

Refer to the “Warranty Guide” for audio system warranty information.

If service is necessary, see your dealer or a qualified technician.

POSITIONS OF THE IGNITION

1. ACCESSORY, allows

the electrical

accessories such as the radio to operate while the engine is not running.

2. LOCK, locks the

steering wheel, automatic transmission gearshift lever and allows key removal.

3. OFF, shuts off the engine and all accessories

without locking the steering wheel.

Controls and features

4. ON, all electrical circuits operational. Warning

lights illuminated. Key position when driving.

5. START, cranks the engine. Release the key as

soon as the engine starts.

SPEED CONTROL (IF EQUIPPED) To turn speed control on

• Press ON.

Vehicle speed cannot be controlled until the vehicle is traveling at or above 48 km/h (30 mph).

Do not use the speed control in heavy traffic or on roads that are winding, slippery, or

unpaved.

Do not shift the gearshift lever into N (Neutral) with the speed control on.

OFF

To turn speed control off

• Press OFF or

• Turn off the vehicle

ignition.

OFF

Once speed control is switched off, the previously programmed set speed will be erased.

Controls and features

To set a speed

• Press SET/SET ACC/ SET ACCEL. For speed control to operate, the speed control must be ON and the vehicle speed must be greater than 48 km/h (30 mph).

If you drive up or down a steep hill, your vehicle speed may vary momentarily slower or faster than the set speed. This is normal.

Speed control cannot reduce the vehicle speed if it increases above the set speed on a downhill. If your vehicle speed is faster than the set speed while driving on a downhill, you may want to shift to the next lower gear or apply the brakes to reduce your vehicle speed.

If your vehicle slows down more than 16 km/h (10 mph) below your set speed on an uphill, your speed control will disengage. This is normal. Pressing RES/RSM/RESUME will re-engage it.

Do not use the speed control in heavy traffic or on roads that are winding, slippery, or

unpaved.

RESUME

SET

ACCEL

COAST

To set a higher set speed

• Press and hold SET/ SET ACC/SET ACCEL. Release the control when the desired vehicle speed is reached or

RESUME

SET

ACCEL

COAST

Controls and features

• Press and release SET/SET ACC/SET ACCEL. Each press will increase the set speed by

1.6 km/h (1 mph) or

• Accelerate with your accelerator pedal. When the desired vehicle speed is reached, press and release SET/SET ACC/SET ACCEL.

You can accelerate with the accelerator pedal at any time during speed control usage. Releasing the accelerator pedal will return your vehicle to the previously programmed set speed.

To set a lower set speed

• Press and hold CST/ COAST. Release the control when the desired speed is reached or

• Press and release CST/COAST. Each press will decrease the set speed by 1.6 km/h (1 mph) or

• Depress the brake pedal. When the desired vehicle speed is reached, press SET/SET ACC/ SET ACCEL.

RESUME

SET

ACCEL

COAST

RESUME

SET

ACCEL

COAST

To disengage speed control

• Depress the brake pedal.

Disengaging the speed control will not erase the previously programmed set speed.

Controls and features

Pressing OFF will erase the previously programmed set speed.

To return to a previously set speed

• Press RES/RSM/ RESUME. For RES/ RSM/RESUME to operate, the vehicle speed must be faster than 48 km/h (30 mph).

Indicator light

This light comes on when either the SET ACC/SET ACCEL or RES/RSM/RESUME controls are pressed. It turns off when the speed control OFF control is pressed, the brake is applied or the ignition is turned to the OFF position.

OFF

RESUME

SET

ACCEL

COAST

CRUISE

Controls and features

TURN SIGNAL CONTROL

• Push down to activate the left turn signal.

• Push up to activate the right turn signal.

WINDSHIELD WIPER/WASHER CONTROLS

Rotate the windshield wiper control to the desired interval, low or high speed position.

The bars of varying length are for intermittent wipers. When in this position rotate the control upward for fast intervals and downward for slow intervals.

Push the control on the end of the stalk to activate washer. Push and hold for a longer wash cycle. The washer will automatically shut off after ten seconds of continuous use.

OFF

HI LO

OFF

Mist Function

To operate the Mist function of the windshield wipers,

HI LO

OFF

push and release the windshield washer control quickly. The wipers will cycle one or two times.

Controls and features

Rear window wiper and washer (wagon only)

The rear wiper control is located under the headlamp controls Press the wiper control to activate the rear wiper. Press again to turn off the wiper.

Press the washer control to activate the rear washer. The wiper will come on when the washer control is pressed, if it is not already on.

HAZARD FLASHER

For information on the hazard flasher control, refer to Hazard flasher in the Roadside emergencies chapter.

TILT STEERING

Pull the tilt steering control toward you to move the steering wheel up or down. Hold the control while adjusting the wheel to the desired position, then release the control.

Never adjust the steering wheel when the vehicle is moving.

Controls and features

DOME LAMPS AND MAP LAMPS

The front dome lamp is located overhead between the driver and passenger seats. If the vehicle is equipped with a moon roof, the dome lamp is located behind the moon roof.

The dome lamp will stay on if the control is moved to the ON position. When the control is in the DOOR position, the lamp will only come on when a door is opened. If the control is moved to the OFF position, the lamp will not come on at all.

The dome lamp will illuminate whenever a front door is opened. If either front door has been opened from the outside, the lamp will remain on for 25 seconds after the door is shut. If any other door has been opened from the inside, the lamp will shut off immediately after the door is closed.

The map lamps and controls are located on the dome lamp. Press the controls on either side of each map lamp to activate the lamps.

DOOR OFF ON

If equipped with a moon roof, the map lamps are located on the moon roof control panel. Press LIGHT to illuminate the map lamp.

LIGHT

TILT

SLIDE

LIGHT

Controls and features

ILLUMINATED VISOR MIRROR (IF EQUIPPED)

To turn on the visor mirror lamps, lift the mirror cover. Adjust the amount of light by sliding the control.

MOON ROOF (IF EQUIPPED)

SLIDE

LIGHT

TILT

AUTO

LIGHT

Press SLIDE to open and close the moon roof. Press AUTO and release to open completely with one touch.

Press UP or DN on the TILT control to tilt the moon roof when closed.

POWER WINDOWS

Press and hold the rocker switches to open and close windows.

• Press the top portion of the rocker switch to close.

AUTO

Controls and features

• Press the bottom portion of the rocker switch to open.

AUTO

One touch down

• Press AUTO completely down and release quickly. The driver’s window will open fully. Depress again to stop window operation.

Window lock

The window lock feature allows only the driver to operate the power windows.

To lock out all the window controls except for the driver’s press the left side of the control. Press the right side to restore the window controls.

AUTO

WINDOW LOCK

Accessory delay (if equipped)

With accessory delay, the window switches may be used for up to ten minutes after the ignition switch is turned to the OFF position or until any door is opened.

Controls and features

POWER DOOR LOCKS (IF EQUIPPED)

Press U to unlock all doors and L to lock all doors.

U L

Central locking/Two step unlocking (if equipped)

When unlocking the driver or front passenger door with the key, turn it once toward the front of the vehicle to unlock that door only. Turn the key a second time to unlock all doors. When locking, turn the key toward the back of the vehicle to lock all doors.

POWER SIDE VIEW MIRRORS

To adjust your mirrors:

1. Select

the right mirror.

2. Move the control in

the direction you wish to tilt the mirror.

to adjust the left mirror or to adjust

3. Return to the center position to lock mirrors in

place.

Controls and features

Heated outside mirrors (if equipped)

Both mirrors are heated automatically to remove ice, mist and fog when the rear window defrost is activated.

Do not remove ice from the mirrors with a scraper or attempt to readjust the mirror glass if it is frozen in place. These actions could cause damage to the glass and mirrors.

CHILDPROOF DOOR LOCKS

When these locks are set, the rear doors cannot be opened from the inside. The rear doors can be opened from the outside when the doors are unlocked.

The childproof locks are located on rear edge of each rear door and must be set separately for each door. Setting the lock for one door will not automatically set the lock for both doors.

Move lock control up to engage the lock. Move control down to disengage childproof locks.

Controls and features

CENTER CONSOLE

Your vehicle may be equipped with a variety of console features. These include:

• utility compartment

• cupholders

• coin holder slots

• cellular phone (if equipped)

Use only soft cups in the cupholder. Hard objects can injure you in a collision.

If your vehicle is equipped with the column shift and a bench seat, it has a center console in the center front seating position.

The center console has the same features as the full console. To open the storage compartment, raise the armrest and pull the strap on the seat up and toward the front of the vehicle. The cupholders in the center console can be removed for cleaning.

Cellular phone

Refer to the “Cellular phone guide” for instructions on operation.

POSITIVE RETENTION FLOOR MAT

Position the floor mat so that the eyelet is over the pointed end of the retention post and rotate forward to lock in. Make sure that the mat does not interfere with the operation of the accelerator or the brake pedal. To remove the floor mat, reverse the installation procedure.

Controls and features

TRUNK REMOTE CONTROL

Press the remote trunk release control on the instrument panel to the left of the steering wheel.

LIFTGATE (WAGON ONLY)

You can open the entire liftgate or just the liftgate window. To open the entire liftgate, pull the release handle hidden under the exterior trim panel just above the license plate.

You must lock the liftgate with the key or power lock control; it does not lock automatically.

The window locks when the liftgate is locked. To open the window, make sure the liftgate and window are unlocked, then press the outside lock cylinder. The window can only be opened from the outside.

To prevent any damage to the liftgate and window, close them completely before driving.

Controls and features

CARGO AREA FEATURES Storage compartment

Your vehicle comes equipped with a storage compartment in the floor of the cargo area. An additional compartment is in the rear trim panel on the right. Always put the load you are carrying as far forward as possible.

Cargo net (if equipped)

The cargo net secures lightweight objects in the cargo area. Attach the net to the anchors provided. Do not put more than 22 kg (50 lbs.) in the net. This net is not designed to restrain objects during a collision.

Controls and features

Cargo cover (if equipped)

Your vehicle may be equipped with a cargo area shade that covers the luggage compartment of your vehicle.

To install the shade:

1. Fasten the cover

into the mounting brackets (make sure the cover is right side up).

2. Pull the end of the

shade toward you and hook the sides into the notches in the rear trim panels.

To prevent the possibility of injuries, the

fasteners for the cargo area cover must be properly attached to the mounting clips on the rear trim panels.

Do not place any objects on the cargo area

cover. They may obstruct your vision or strike occupants of the vehicle in the case of a sudden stop or collision.

Rewinding the shade

With extended use, the cargo shade may lose its spring tension. If this occurs, the shade must be manually rewound. This is a two-person operation.

1. Remove the shade from the vehicle and extend it with the smooth grain facing you.

Controls and features

2. Wrap the vinyl around the roller tube twice. Tuck the edges of the vinyl inside the end cap with each wrap.

3. Fold the edges of the vinyl towards the center, making sure that the edges clear the end cap slots. Use tape or a rubber band to hold the vinyl to the left side of the tube.

4. Push in the right end cap (marked RH)

about length to disengage the clutch and hold the end cap in while turning the roller tube toward you 14 times.

5. Let go of the right end cap. The clutch will now engage and stop the shade from losing its spring tension.

6. Unfold the vinyl and place it into the end cap slots.

7. Insert the shade into the side mounting brackets and check to make sure that it operates properly.

⁄4of the total

The cover may cause injury in a sudden stop

or accident if it is not securely installed.

REMOTE ENTRY SYSTEM (IF EQUIPPED)

The remote entry system allows you to lock or unlock all vehicle doors and liftgate without a key.

The remote entry features only operate with the ignition in the OFF position.

Controls and features

Unlocking the doors

Press this control to unlock the driver’s door. The interior lamps will illuminate.

Press the control a second time within five seconds to unlock all doors.

Locking the doors

Press this control to lock all doors.

To confirm all doors are closed and locked, press the control a second time within five seconds. The doors will lock again, the horn will chirp and the lamps will flash.

If any of the doors are ajar, the horn will make two quick chirps, reminding you to properly close all doors.

Unlocking the liftgate/trunk

Press the control to unlock the liftgate/ trunk.

Controls and features

Sounding a panic alarm

Press this control to activate the alarm.

To deactivate the alarm, press the control again or turn the ignition to ACC or ON.

This device complies with part 15 of the FCC rules and with RS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Illuminated entry

The interior lamps illuminate when the remote entry system is used to unlock the door(s) or sound the personal alarm.

The system automatically turns off after 25 seconds or when the ignition is turned to the RUN or ACC position. The dome lamp control (if equipped) must not be set to the OFF position for the illuminated entry system to operate.

The inside lights will not turn off if:

• they have been turned on with the dimmer control or

• any door is open.

The battery saver will shut off the interior lamps 40 minutes after the ignition has been turned to the OFF position.

Controls and features

Replacing lost transmitters

Take all your vehicle’s transmitters to your dealer if service is required.

If you purchase additional transmitters (up to four may be programmed), perform the following procedure:

To reprogram the transmitters yourself, place the key in the ignition and turn from OFF to ON eight times in rapid succession (within 10 seconds) ending in ON. After doors lock/unlock, press any control on all transmitters (up to four). When completed, turn the ignition to OFF. The doors will lock/unlock one last time to confirm completion of program mode.

All transmitters must be programmed at the same time.

Replacing the battery

The remote transmitter is powered by one coin type three-volt lithium battery CR2032 or equivalent. Typical operating range will allow you to be up to 10 meters (33 feet) away from your vehicle. A decrease in operating range can be caused by:

• weather conditions

• nearby radio towers

• structures around the vehicle

• other vehicles parked next to the vehicle

Controls and features

To replace the battery:

1. Twist a thin coin

between the two halves of the transmitter near the key ring. DO NOT TAKE THE FRONT PART OF THE TRANSMITTER APART.

2. Place the positive (+) side of new battery in the

same orientation. Refer to the diagram inside the transmitter unit.

3. Snap the two halves back together.

Replacement of the battery will not cause the remote transmitter to become deprogrammed from your vehicle. The remote transmitter should operate normally after battery replacement.

PERIMETER ALARM SYSTEM (IF EQUIPPED)

The perimeter anti-theft system will help prevent your vehicle from unauthorized entry.

Arming the system

When armed, this system will help protect your vehicle from unauthorized entry. When unauthorized entry occurs, the system will flash the headlamps and/or parking lamps, and the theft indicator lamp and will chirp the horn.

The system is ready to arm whenever the ignition is turned OFF. Any of the following actions will prearm the alarm system:

• Press the remote entry lock control (doors opened or closed).

Controls and features

• Press 7/8 and 9/0 controls on the keyless entry pad at the same time to lock the doors (doors opened or closed).

• Open a door and press the power door lock control to lock the doors.

• Use the door key to lock the doors (doors opened or closed).

If a door or the liftgate (wagon) is open, the system is prearmed and is waiting for the door to close or liftgate to close. The THEFT indicator in the instrument cluster will be lit continuously when the system is prearmed.

Once the doors and liftgate (wagon) are closed, the system will arm in 30 seconds.

When you press the lock control twice within 5 seconds on your remote entry transmitter, the horn will chirp once to let you know that the system is armed.

If the doors or liftgate (wagon) are not closed and you press the remote entry transmitter twice to confirm the doors are locked, the horn will chirp twice to warn you that the system is not arming.

1 234567890

THEFT

Controls and features

Disarming the system

You can disarm the system by any of the following actions:

• Unlock the doors by using your remote entry transmitter.

• Unlock the doors by using your keyless

1 234567890

entry pad.

• Unlock the doors or liftgate with a key. Turn the key full travel (toward the front of the vehicle) to make sure the alarm disarms.

• Turn ignition to ACC or ON.

• Press control on the

remote entry transmitter. This will disarm the system when the alarm is sounding.

KEYLESS ENTRY SYSTEM

With the keyless entry keypad, you can:

1 234567890

• lock or unlock the vehicle doors and liftgate (wagons) without using the key.

• arm and disarm the perimeter alarm system (if equipped)

See also Remote entry system and Perimeter alarm system in this chapter for more information.

Controls and features

Your vehicle has a factory-set 5–digit code that operates the keyless entry system. You can also program your own 5–digit personal entry code.

The factory-set code is located:

• on the owner’s wallet card in the glove compartment

• taped to the computer module

When pressing the controls on the keyless entry keypad, press the middle of the controls to ensure a good activation.

Programming your own personal entry code

1. Enter the factory-set code (keypad will illuminate

when pressed).

2. Press the 1/2 control

within five seconds of step 1.

3. Enter your personal

5 digit code. Enter each digit within five seconds of the previous one.

Do not set a code that includes five of the same number or presents them in sequential order. Thieves can easily figure out these types of codes.

Your personal code does not replace the permanent code that the dealership gave you. You can use either code to unlock your vehicle. If a second personal code is entered, the module will erase the first personal code in favor of the new code.

1 234567890

Controls and features

If you wish to erase your personal code, use the following instructions:

Erasing personal code

1. Enter the factory-set code.

2. Press 1/2 within five

seconds of step 1.

3. Press the 7/8 and 9/0

controls at the same time within five seconds of step two.

The system will now only respond to the factory-set code.

Unlocking the doors and releasing the trunk with the keyless entry system

The driver’s door must be unlocked before any other. If more than five seconds pass between pressing numbers, enter the code again. The system has shut down if the keypad light is out. If the keyless entry system does not work, use the key or remote entry transmitter(s).

1. To unlock the driver’s door, enter one of the two

codes. After pressing the fifth number, the driver’s door unlocks.

2. To unlock the

passenger’s door(s) and liftgate (wagon), press the 3/4 control within five seconds of unlocking the driver’s door.

3. To unlock the trunk

or liftgate (wagon), enter the five-digit factory-set code, then press the 5/6 control within five seconds.

1 234567890

Controls and features

Autolock

Autolock is a feature that will automatically lock all doors when:

• all vehicle doors, liftgate and liftgate window are fully closed

• the ignition key is in the ON position

• you shift into or through R (Reverse)

• the brake pedal is released

The autolock feature repeats when:

• any door is opened and then closed

• the brake pedal is released

Deactivating autolock

Before following the activation or deactivation procedures, make sure that the ignition is OFF and all vehicle doors and liftgate window are closed.

1. Enter the 5 digit entry code.

2. Press and release

the 3/4 control while holding the 7/8 control.

3. Release the 7/8

control. The horn will chirp

once if autolock was deactivated or twice (one short and one long chirp) if autolock was activated.

To reactivate autolock, repeat steps 1 through 3. Autolock can also be activated or deactivated using

the following procedure: You must complete steps 1 through 5 within

30 seconds or the procedure will have to be repeated. If the procedure needs to be repeated, you must wait 30 seconds.

1. Turn the ignition key from OFF to RUN/ACC.

2. Press the power door UNLOCK control three

times.

1 234567890

Controls and features

3. Turn the ignition key from RUN/ACC to OFF.

4. Press the power door UNLOCK control three

times.

5. Turn the ignition key from OFF to RUN/ACC. A

horn chirp indicates the enable/disable feature is entered.

6. Press the power door UNLOCK control one time.

7. Press the power door LOCK control to toggle the

Autolock/Relock state. You will receive a horn chirp followed by either a long honk, autolock/relock is enabled, or no honk, autolock/relock is disabled.

8. Turn ignition to OFF.

If autolock/relock has been changed, the horn will chirp to confirm procedure is complete.

SECURILOCKY PASSIVE ANTI-THEFT SYSTEM

The SecuriLocky passive anti-theft system provides an advanced level of vehicle theft protection. Your vehicle’s engine can only be started with the two special SecuriLocky electronically coded keys provided with your vehicle. Each time you start your vehicle, the SecuriLocky key is read by the SecuriLocky passive anti-theft system. If the SecuriLocky key identification code matches the code stored in the SecuriLocky anti-theft system, the vehicle’s engine is allowed to start. If the SecuriLocky key identification code does not match the code stored in the system or if a SecuriLocky key is not detected (vehicle theft situation), the vehicle’s engine will not operate.

The SecuriLocky passive anti-theft system is not compatible with aftermarket remote start systems. Use of these systems may result in vehicle starting problems and a loss of security protection. Large metallic objects or devices such as the Mobil Speedpassy on the same key ring as your SecuriLocky key may cause vehicle starting problems. These objects and devices cannot damage the SecuriLocky key, but can cause a momentary

Controls and features

problem if they are too close to the key when starting the engine. If a problem occurs, turn ignition off and restart the engine with all other objects on the key ring held away from the SecuriLocky ignition key.

Spare SecuriLocky keys can be purchased from your dealership and programmed to your SecuriLocky passive anti-theft system. Refer to Programming spare SecuriLocky keys for more information.

If one or both of your SecuriLocky keys are lost or stolen and you want to ensure the lost or stolen key will not operate your vehicle, bring your vehicle and all available SecuriLocky keys to your dealership for reinitialization.

Theft indicator

The theft indicator on the instrument cluster will operate as follows:

• When the ignition is OFF, the theft indicator will flash briefly every 2 seconds to indicate the SecuriLocky system is protecting your vehicle.

• When the ignition is turned to RUN or START, the theft indicator will light for 3 seconds and then go out. If the theft indicator stays on for an extended period of time or flashes rapidly, have the system serviced by your dealership or a qualified technician.

Programming spare SecuriLockY keys

Spare SecuriLocky keys can be purchased from your dealership and programmed to your SecuriLocky passive anti-theft system (up to a total of 8 keys). Your dealership can program your new SecuriLocky key(s) to your vehicle or you can do it yourself using the following simple procedure. To program a new SecuriLocky key yourself, you will need two previously programmed SecuriLocky keys (keys that already operate your vehicle’s engine). If two previously programmed SecuriLocky keys are

Controls and features

not available (one or both of your original keys were lost or stolen), you must bring your vehicle to your dealership to have the spare SecuriLocky key(s) programmed.

Procedure to program spare SecuriLockY keys to your vehicle

New SecuriLocky keys must have the correct mechanical key cut for your vehicle.

Conventional (non-SecuriLocky) keys cannot be programmed to your vehicle.

You will need to have two previously programmed SecuriLocky keys and the new unprogrammed SecuriLocky key readily accessible for the procedure. Please read and understand the entire procedure before you begin.

1. Insert the first previously programmed

SecuriLocky key into the ignition and turn the ignition from OFF to RUN (maintain ignition in RUN for at least one second).

2. Turn ignition to OFF and remove the first

SecuriLocky key from the ignition.

3. Within five seconds of turning the ignition to OFF,

insert the second previously programmed SecuriLocky key into the ignition and turn the ignition from OFF to RUN (maintain ignition in RUN for at least one second but no more than 5 seconds).

4. Turn the ignition to OFF and remove the second

SecuriLocky key from the ignition.

5. Within 10 seconds of turning the ignition to OFF,

insert the unprogrammed SecuriLocky key (new key/valet key) into the ignition and turn the ignition from OFF to RUN (maintain ignition in RUN for at least one second). This step will program your new SecuriLocky key.

6. To program additional SecuriLocky key(s), repeat

this procedure from step 1.

Controls and features

If the programming procedure was successful, the new SecuriLocky key(s) will start the vehicle’s engine. The theft indicator (located on the instrument cluster) will light for three seconds and then go out.

If the programming procedure was not successful, the new SecuriLocky key(s) will not operate the vehicle’s engine. The theft indicator will flash on and off. Wait at least one minute and then repeat the procedure from step 1. If failure repeats, bring your vehicle to your dealership to have the spare SecuriLocky key(s) programmed.

Seating and safety restraints

SEATING Head restraints

Your vehicle’s seats may be equipped with head restraints which are vertically adjustable. The purpose of these head restraints is to help limit head motion in the event of a rear collision. To properly adjust your head restraints, lift the head restraint so that it is located directly behind your head or as close to that position as possible. Refer to the following to raise and lower the head restraints.

Push or pull the head rests to the desired position.

Adjusting the front manual seat

Never adjust the driver’s seat or seatback when the vehicle is moving.

Do not pile cargo higher than the seatbacks to avoid injuring people in a collision or

sudden stop.

Always drive and ride with your seatback upright and the lap belt snug and low across

the hips.

Seating and safety restraints

Lift handle to move seat forward or backward.

Pull lever up to adjust seatback.

Adjusting the front power seat (if equipped)

Never adjust the driver’s seat or seatback when the vehicle is moving.

Do not pile cargo higher than the seatbacks to avoid injuring people in a collision or

sudden stop.

Always drive and ride with your seatback upright and the lap belt snug and low across

the hips.

Press to raise or lower the front portion of the seat cushion.

Seating and safety restraints

Press to raise or lower the rear portion of the seat cushion.

Press the control to move the seat forward, backward, up or down.

Using the power lumbar support (if equipped)

The power lumbar control is located on the outboard side of the seat.

Press one side of the control to adjust firmness. Press the other side of the control to adjust

softness.

REAR SEATS 2nd seat/Split-folding rear seat (if equipped)

One or both rear seatbacks can be folded down to provide additional cargo space.

To lower the seatback(s) from inside the vehicle, pull tab to release seat back and then fold seatback down.

When raising the seatback(s), make sure you hear the seat latch into place.

Seating and safety restraints

3rd seat (wagon only)

The third seat faces the rear of the vehicle. For height and weight limits, see the label on the seat cushion. When the seat is down, the back of your wagon has a flat surface for carrying cargo.

To open up the seat:

1. Unlock the floor

panel with the key, then use the handle to fold the floor panel toward the front of the car.

2. Remove the cargo

cover. The cargo cover must be removed or the seatback will not latch in the upright position.

3. Lift the remote latch

release on the left side of the compartment and fold the remaining floor panel until it latches. Make sure the seatback is locked in the upright position.

To close the seat, make sure the safety belts are properly stowed, then lift the remote latch release and push the seat down until it latches. Pull up on the handle and push the floor panel into place.

Seating and safety restraints

SAFETY RESTRAINTS Safety restraints precautions

Always drive and ride with your seatback upright and the lap belt snug and low across

the hips.

To prevent the risk of injury, make sure children sit where they can be properly

restrained.

Never let a passenger hold a child on his or

her lap while the vehicle is moving. The passenger cannot protect the child from injury in a collision.

All occupants of the vehicle, including the

driver, should always properly wear their safety belts, even when an air bag SRS is provided.

It is extremely dangerous to ride in a cargo

area, inside or outside of a vehicle. In a collision, people riding in these areas are more likely to be seriously injured or killed. Do not allow people to ride in any area of your vehicle that is not equipped with seats and safety belts. Be sure everyone in your vehicle is in a seat and using a safety belt properly.

Seating and safety restraints

Each seating position in your vehicle has a

specific safety belt assembly which is made up of one buckle and one tongue that are designed to be used as a pair. 1) Use the shoulder belt on the outside shoulder only. Never wear the shoulder belt under the arm. 2) Never swing the safety belt around your neck over the inside shoulder. 3) Never use a single belt for more than one person.

Combination lap and shoulder belts

1. Insert the belt tongue into the proper buckle (the buckle closest to the direction the tongue is coming from) until you hear a snap and feel it latch. Make sure the tongue is securely fastened in the buckle.

2. To unfasten, push the release button and remove the tongue from the buckle.

The front and rear outboard safety restraints in the vehicle are combination lap and shoulder belts. The front and rear seat passenger outboard safety belts have two types of locking modes described below:

Vehicle sensitive mode

The vehicle sensitive mode is the normal retractor mode, allowing free shoulder belt length adjustment to your movements and locking in response to vehicle movement. For example, if the driver brakes

Seating and safety restraints

suddenly or turns a corner sharply, or the vehicle receives an impact of 8 km/h (5 mph) or more, the combination safety belts will lock to help reduce forward movement of the driver and passengers.

Automatic locking mode

In this mode, the shoulder belt is automatically pre-locked. The belt will still retract to remove any slack in the shoulder belt.

The automatic locking mode is not available on the driver safety belt.

When to use the automatic locking mode

• When a tight lap/shoulder fit is desired.

• Anytime a child safety seat is installed in the

vehicle. Refer to Safety Restraints for Children or Safety Seats for Children later in this chapter.

How to use the automatic locking mode

• Buckle the combination lap and shoulder belt.

• Grasp the shoulder portion and pull downward until the entire belt is extracted.

Seating and safety restraints

• Allow the belt to retract. As the belt retracts, you will hear a clicking sound. This indicates the safety belt is now in the automatic locking mode.

How to disengage the automatic locking mode

Disconnect the combination lap/shoulder belt and allow it to retract completely to disengage the automatic locking mode and activate the vehicle sensitive (emergency) locking mode.

• This vehicle has a seat belt system with an energy management feature at the front seating positions to help further reduce the risk of injury in the event of a head-on collision.

• This seat belt system has a retractor assembly that is designed to pay out webbing in a controlled manner. This feature is designed to help reduce the belt force acting on the occupant’s chest.

After any vehicle collision, the seat belt

system at all outboard seating positions (except driver, which has no “automatic locking retractor” feature) must be checked by a qualified technician to verify that the “automatic locking retractor” feature for child seats is still functioning properly, in addition to other checks for proper seat belt system function.

BELT AND RETRACTOR ASSEMBLY MUST

BE REPLACED if the seat belt assembly “automatic locking retractor” feature or any other seat belt function is not operating properly when checked according to the procedures in Workshop Manual.

Seating and safety restraints

Failure to replace the Belt and Retractor

assembly could increase the risk of injury in collisions.

Front safety belt height adjustment

Your vehicle has safety belt height adjustments for the driver and front passenger. Adjust the height of the shoulder belt so the belt rests across the middle of your shoulder.

To lower the shoulder belt height, push the button and slide the height control down. To raise the height of the shoulder belt, slide the height adjuster up. Pull down on the height adjustment assembly to make sure it is locked in place.

Position the shoulder belt height adjuster so

that the belt rests across the middle of your shoulder. Failure to adjust the safety belt properly could reduce the effectiveness of the safety belt and increase the risk of injury in a collision.

Center rear lap belt (sedan)

The safety belt in the center rear seating position has a detachable shoulder belt and does not contain the automatic locking mode (ALR).

Seating and safety restraints

To attach the shoulder belt to the lap belt, pull the shoulder belt out from the retractor in the seatback and insert into the lap belt connecting pin into the wide end of the key slot on the shoulder belt. Pull the connecting pin into the narrow end of the key slot until you hear a snap and feel it latch. Make sure the shoulder belt is securely fastened to the lap belt by pulling up on the shoulder belt.

Lap belts

Adjusting the lap belt

The lap belt does not adjust automatically.

The lap belts should fit snugly and as low as

possible around the hips, not around the waist.

Insert the tongue into the correct buckle (the buckle closest to the direction the tongue is coming from). To lengthen the belt, turn the tongue at a right angle to the belt and pull across your lap until it reaches the buckle. To tighten the belt, pull the loose end of the belt through the tongue until it fits snugly across the hips.

Seating and safety restraints

Shorten and fasten the belt when not in use.

Safety belts for rear-facing occupants (wagon only)

Never use child safety seats in the third seat

of a wagon.

Your vehicle is equipped with safety belts containing an adjust tongue at the rear-facing seating positions.

When the adjust tongue of the lap/shoulder combination seat belt is latched into the buckle, the tongue will allow the lap portion to become shorter, but locks the webbing in place to restrict it from becoming longer.

Before you reach and latch a combination lap and shoulder belt having an adjust tongue into the buckle, you may have to lengthen the lap belt portion of it. To lengthen the lap belt, pull some webbing out of the shoulder belt retractor. While holding the webbing below the tongue, grasp the tongue so that it is parallel to the webbing and slide the tongue upward. Provide enough length so that the tongue can reach the buckle.

To fasten the belt, pull the combination lap and shoulder belt from the retractor so that the shoulder belt portion of the safety belt crosses your shoulder and chest. Be sure the belt is not twisted. If the belt is twisted, remove the twist. Insert the tongue into the proper buckle for your seating position until you hear a snap and feel it latch. Make sure the tongue is securely fastened to the buckle by pulling on the tongue.

Seating and safety restraints

The lap belts should fit snugly and as low as

possible around the hips, not around the waist.

Front and rear seat occupants, including

pregnant women, should wear safety belts for optimum protection in an accident.

Each seating position in your vehicle has a

Due to folding rear seats, sometimes the buckles and tongues toward the center of the vehicle may be hidden by the rear edge of the seat cushion. Pull them out so they will be accessible.

While you are fastened in the seat belt, the shoulder belt adjusts to your movement. However, if you brake hard, turn hard or your vehicle receives an impact of 8 km/h (5 mph) or more, the safety belt will become locked and help reduce your forward movement.

To unfasten the belt, push the red release button on the end of the buckle. This allows the tongue to unlatch from the buckle. While the belt retracts, guide the tongue to its original position to prevent it from striking you or the vehicle.

Seating and safety restraints

Safety belt extension assembly

If the safety belt assembly is too short, even when fully extended, 20 cm (8 inches) can be added to the safety belt assembly by adding a safety belt extension assembly (part number 611C22). Safety belt extension assemblies can be obtained from your dealer at no cost.

Use only extensions manufactured by the same supplier as the safety belt. Manufacturer identification is located at the end of the webbing on the label. Also, use the safety belt extension only if the safety belt is too short for you when fully extended. Do not use extensions to change the fit of the shoulder belt across the torso.

Safety belt warning light and indicator chime

The seat belt warning light illuminates in the instrument cluster and a chime sounds to remind the occupants to fasten their safety belts.

Conditions of operation

If... Then...

The driver’s safety belt is not buckled before the ignition switch is turned to the ON position...

The driver’s safety belt is buckled while the indicator light is illuminated and the warning chime is sounding... The driver’s safety belt is buckled before the ignition switch is turned to the ON position...

The safety belt warning light illuminates for one to two minutes and the warning chime sounds for four to eight seconds.

The safety belt warning light and warning chime turn off.

The safety belt warning light and indicator chime remain off.

Seating and safety restraints

Safety belt maintenance

Inspect the safety belt systems periodically to make sure they work properly and are not damaged. Inspect the safety belts to make sure there are no nicks, wears or cuts, replacing if necessary. All safety belt assemblies, including retractors, buckles, front seat belt buckle assemblies (slide bar)(if equipped), shoulder belt height adjusters (if equipped), child safety seat tether bracket assemblies (if equipped), and attaching hardware, should be inspected after a collision. Ford recommends that all safety belt assemblies used in vehicles involved in a collision be replaced. However, if the collision was minor and a qualified technician finds that the belts do not show damage and continue to operate properly, they do not need to be replaced. Safety belt assemblies not in use during a collision should also be inspected and replaced if either damage or improper operation is noted.

Failure to inspect and if necessary replace

the safety belt assembly under the above conditions could result in severe personal injuries in the event of a collision.

Refer to Cleaning and maintaining the safety belts in the Maintenance and care section.

AIR BAG SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

+–

000

345

100

FUEL DOOR>

140

RPMx1000

00000

100

EFC

SERVICE

ENGINE SOON

LOW

THEFT

COOLANT

PREMIUM UNLEADED

110

180

FUEL RECOMMENDED

BRAKE

MPH km/h

O/D

REAR

CRUISE

ABS

120

OFF

LAMP OUT

P R N D 2 1

FM 12 AMC

BL RF

BASS

VOL

PUSH-ON

TUNE

TREB

EJECT

REW

SEEK

SCAN

BAL

FADE

TAPE SIDE

TAPE

R-DEF

OFF

VENT

A/C

MAX A/C

Seating and safety restraints

Important supplemental restraint system (SRS) precautions

The supplemental restraint system is designed to work with the safety belt to help protect the driver and right front passenger from certain upper body injuries.

Air bags DO NOT inflate slowly or gently and the risk of injury from a deploying air bag is greatest close to the trim covering the air bag module.

All occupants of the vehicle including the

driver should always properly wear their safety belts even when air bag SRS is provided.

Always transport children 12 years old and

under in the back seat and always use appropriate child restraints.

NHTSA recommends a minimum distance of

at least 25 cm (ten [10] inches) between an occupant’s chest and the air bag module.

Steps you can take to properly position yourself away from the airbag:

• Move your seat to the rear as far as you can while still reaching the pedals comfortably.

• Recline the seat slightly (one or two degrees) from the upright position.

Seating and safety restraints

Do not put anything on or over the air bag

module. Placing objects on or over the air bag inflation area may cause those objects to be propelled by the air bag into your face and torso causing serious injury.

Do not attempt to service, repair, or modify

the Air Bag Supplemental Restraint System or its fuses. See your Ford or Lincoln-Mercury dealer.

Children and air bags

For additional important safety information, read all information on safety restraints in this guide.

Children must always be properly restrained. Accident statistics suggest that children are safer when properly restrained in the rear seating positions than in the front seating position. Failure to follow these instructions may increase the risk of injury in a collision.

Air bags can kill or injure a child in a child

seat. NEVER place a rear-facing child seat in front of an active air bag. If you must use a forward-facing child seat in the front seat, move the seat all the way back.

Seating and safety restraints

How does the air bag supplemental restraint system work?

The air bag SRS is designed to activate when the vehicle sustains sufficient longitudinal deceleration sufficient to cause the sensors to close an electrical circuit that initiates air bag inflation.

The fact that the air bags did not inflate in a collision does not mean that something is wrong with the system. Rather, it means the forces were not of the type sufficient to cause activation. Air bags are designed to inflate in frontal and near-frontal collisions, not rollover, side-impact, or rear-impacts.

The air bags inflate and deflate rapidly upon activation. After air bag deployment, it is normal to notice a smoke-like, powdery residue or smell the burnt propellant. This may consist of cornstarch, talcum powder (to lubricate the bag) or sodium compounds (e.g., baking soda) that result from the combustion process that inflates the air bag. Small amounts of sodium hydroxide may be present which may irritate the skin and eyes, but none of the residue is toxic.

While the system is designed to help reduce serious injuries, it may also cause minor burns, abrasions, swelling or temporary hearing loss. Because air bags must inflate rapidly and with considerable force,

Seating and safety restraints

there is the risk of death or serious injuries such as fractures, facial and eye injuries or internal injuries, particularly to occupants who are not properly restrained or are otherwise out of position at the time of air bag deployment. Thus, it is extremely important that occupants be properly restrained as far away from the air bag module as possible while maintaining vehicle control.

Several air bag system components get hot

after inflation. Do not touch them after inflation.

If the air bag is deployed, the air bag will

not function again and must be replaced immediately. If the air bag is not replaced, the

unrepaired area will increase the risk of injury in a collision.

The SRS consists of:

• driver and passenger air bag modules (which include the inflators and air bags),

• one or more impact and safing sensors,

• a readiness light and tone

• and the electrical wiring which connects the

components.

The diagnostic module monitors its own internal circuits and the supplemental air bag electrical system warning (including the impact sensors), the system wiring, the air bag system readiness light, the air bag back up power and the air bag ignitors.

Determining if the system is operational

The SRS uses a readiness light in the instrument cluster or a tone to indicate the condition of the system. Refer to the Air bag readiness section in the Instrumentation chapter. Routine maintenance of the air bag is not required.

Seating and safety restraints

A difficulty with the system is indicated by one or more of the following:

• The readiness light will either flash or stay lit.

• The readiness light will not illuminate immediately after ignition is turned on.

• A series of five beeps will be heard. The tone pattern will repeat periodically until the problem and light are repaired.

If any of these things happen, even intermittently, have the SRS serviced at your dealership or by a qualified technician immediately. Unless serviced, the system may not function properly in the event of a collision.

Disposal of air bags and air bag equipped vehicles

For disposal of air bags or air bag equipped vehicles, see your local dealership or qualified technician. Air bags MUST BE disposed of by qualified personnel.

SAFETY RESTRAINTS FOR CHILDREN

See the following sections for directions on how to properly use safety restraints for children. Also see Air Bag Supplemental Restraint System (SRS) in this chapter for special instructions about using air bags.

Important child restraint precautions

You are required by law to use safety restraints for children in the U.S. and Canada. If small children ride in your vehicle (generally children who are four years old or younger and who weigh 18 kg [40 lbs] or less), you must put them in safety seats made especially for children. Check your local and state or provincial laws for specific requirements regarding the safety of children in your vehicle.

Seating and safety restraints

Never let a passenger hold a child on his or

her lap while the vehicle is moving. The passenger cannot protect the child from injury in a collision.

Always follow the instructions and warnings that come with any infant or child restraint you might use.

When possible, place children in the rear seat of your vehicle. Accident statistics suggest that children are safer when properly restrained in the rear seating positions than in the front seating position.

Children and safety belts

If the child is the proper size, restrain the child in a safety seat.

Children who are too large for child safety seats (as specified by your child safety seat manufacturer) should always wear safety belts.

Follow all the important safety restraint and air bag precautions that apply to adult passengers in your vehicle.

If the shoulder belt portion of a combination lap and shoulder belt can be positioned so it does not cross or rest in front of the child’s face or neck, the child should wear the lap and shoulder belt. Moving the child closer to the center of the vehicle may help provide a good shoulder belt fit.

Do not leave children, unreliable adults, or

pets unattended in your vehicle.

To improve the fit of lap and shoulder belts on children who have outgrown child safety seats, Ford recommends use of a belt-positioning booster seat that is labelled as conforming to all Federal motor vehicle safety standards. Belt-positioning booster

Seating and safety restraints

seats raise the child and provide a shorter, firmer seating cushion that encourages safer seating posture and better fit of lap and shoulder belts on the child.

A belt-positioning booster should be used if the shoulder belt rests in front of the child’s face or neck, or if the lap belt does not fit snugly on both thighs, or if the thighs are too short to let the child sit all the way back on the seat cushion when the lower legs hang over the edge of the seat cushion. You may wish to discuss the special needs of your child with your pediatrician.

SAFETY SEATS FOR CHILDREN

Child and infant or child safety seats

Use a safety seat that is recommended for the size and weight of the child. Carefully follow all of the manufacturer’s instructions with the safety seat you put in your vehicle. If you do not install and use the safety seat properly, the child may be injured in a sudden stop or collision.

Seating and safety restraints

When installing a child safety seat:

• Review and follow the information presented in the Air

Bag Supplemental Restraint System

section in this chapter.

• Use the correct safety belt buckle for that seating position.

• Insert the belt tongue into the proper buckle until you hear a snap and feel it latch. Make sure the tongue is securely fastened in the buckle.

• Keep the buckle release button pointing up and away from the safety seat, with the tongue between the child seat and the release button, to prevent accidental unbuckling.

• Place seat back in upright position.

• Put the safety belt in the automatic locking mode.

Refer to Automatic locking mode .

Ford recommends the use of a child safety seat having a top tether strap. Install the child safety seat in a seating position which is capable of providing a tether anchorage. For more information on top tether straps, refer to Attaching safety seats with

tether straps.

Carefully follow all of the manufacturer’s

instructions included with the safety seat you put in your vehicle. If you do not install and use the safety seat properly, the child may be injured in a sudden stop or collision.

Seating and safety restraints

Installing child safety seats in combination lap and shoulder belt seating positions

1. Position the child safety seat in a seat with a combination lap and shoulder belt.

An air bag can kill or injure a child in a child

seat. If you must use a forward-facing child seat in the front seat, move seat all the way back.

Children 12 and under should be properly

restrained in the rear seat whenever possible.

2. Pull down on the shoulder belt and then grasp the shoulder belt and lap belt together.

3. While holding the shoulder and lap belt portions together, route the tongue through the child seat according to the child seat manufacturer’s instructions. Be sure the belt webbing is not twisted.

Seating and safety restraints

4. Insert the belt tongue into the proper buckle (the buckle closest to the direction the tongue is coming from) for that seating position until you hear a snap and feel the latch engage. Make sure the tongue is latched securely by pulling on it.

5. To put the retractor in the automatic locking mode, grasp the shoulder portion of the belt and pull downward until all of the belt is extracted and a click is heard.

6. Allow the belt to retract. The belt will click as it retracts to indicate it is in the automatic locking mode.

7. Pull the lap belt portion across the child seat toward the buckle and pull up on the shoulder belt while pushing down with your knee on the child seat.

8. Allow the safety belt to retract to remove any slack in the belt.

9. Before placing the child in the seat, forcibly tilt the seat forward and back to make sure the seat is securely held in place.

Seating and safety restraints

10. Try to pull the belt out of the retractor to make sure the retractor is in the automatic locking mode (you should not be able to pull more belt out). If the retractor is not locked, unbuckle the belt and repeat steps two through nine.

Check to make sure the child seat is properly secured before each use.

Installing child safety seats in the lap belt seating positions

1. Lengthen the lap belt. To lengthen the belt, hold the tongue so that its bottom is perpendicular to the direction of webbing while sliding the tongue up the webbing.

2. Place the child safety seat in the center seating position.

3. Route the tongue and webbing through the child seat according to the child seat manufacturer’s instructions.

4. Insert the belt tongue into the proper buckle for the center seating position until you hear a snap and feel it latch. Make sure the tongue is securely fastened to the buckle by pulling on tongue.

5. Push down on the child seat while pulling on the loose end of the lap belt webbing to tighten the belt.

6. Before placing the child into the child seat, forcibly tilt the child seat from side to side and in forward direction to make sure that the seat is held securely in place. If the child seat moves excessively, repeat steps 5 through 6, or properly install the child seat in a different position.

Attaching safety seats with tether straps

Some manufacturers make safety seats that include a tether strap that goes over the back of the vehicle seat and attaches to an anchoring point. Other manufacturers offer the tether strap as an accessory. Contact the manufacturer of your child safety seat for information about ordering a tether strap.

Seating and safety restraints

Tether anchorage hardware

Attachment holes (at each rear outboard seating position) have been provided in your vehicle to attach anchor hardware, if desired. Tether anchorage hardware kits (part number 613D74) including instructions, may be obtained at no charge from any Ford or Lincoln-Mercury dealer. All vehicles built for sale in Canada include a tether anchor hardware kit.

Be sure to follow the child safety seat manufacturer’s instructions.

Tighten the anchor according to

specifications. Otherwise, the safety seat may not be properly secured and the child may be injured in a sudden stop or collision.

If you have a station wagon, tether anchors are already installed for each of the second row seating positions.

1. Behind the second seat, find the plastic snap-on covers for the floor anchors.

2. Use a screwdriver or coin to snap the covers off the anchor in a rearward and upward direction. Remove the covers completely.

3. Snap the tether strap hook onto the U-shaped tether anchor.

Starting

PREPARING TO START YOUR VEHICLE

Engine starting is controlled by the ignition system. This system meets all Canadian Interference-Causing Equipment standard requirements regulating the impulse electrical field strength of radio noise.

When starting a fuel-injected engine, avoid pressing the accelerator before or during starting. Only use the accelerator when you have difficulty starting the engine. For more information on starting the vehicle, refer to Starting the engine in this chapter.

Extended idling at high engine speeds can

produce very high temperatures in the engine and exhaust system, creating the risk of fire or other damage.

Do not park, idle, or drive your vehicle in

dry grass or other dry ground cover. The emission system heats up the engine compartment and exhaust system, which can start a fire.

Do not start your vehicle in a closed garage

or in other enclosed areas. Exhaust fumes can be toxic. Always open the garage door before you start the engine. See Guarding against exhaust fumes in this chapter for more instructions.

If you smell exhaust fumes inside your

vehicle, have your dealer inspect your vehicle immediately. Do not drive if you smell exhaust fumes.

Starting

Important safety precautions

A computer system controls the engine’s idle revolutions per minute (RPM). When the engine starts, the idle RPM runs faster to warm the engine. If the engine idle speed does not slow down automatically, have the vehicle checked. Do not allow the vehicle to idle for more than ten minutes at the higher engine RPM.

Before starting the vehicle:

1. Make sure all vehicle occupants have buckled their safety belts. For more information on safety belts and their proper usage, refer to the Seating and safety restraints chapter.

2. Make sure the headlamps and vehicle accessories are off.

3. Make sure the parking brake is set.

4. Make sure the gearshift is in P (Park).

5. Turn the key to 4 (ON) without turning the key to 5 (START).

PRND D1

Starting

000

FUEL DOOR>

SERVICE ENGINE

SOON

COOLANT

LOW

THEFT

100

140

00000

MPH km/h

P R N D 2 1

180

+–

100

110

120

O/D

OFF

RPMx1000

UNLEADED FUEL ONLY

ABS

BRAKE

CRUISE

Make sure the corresponding lights illuminate briefly. If a light fails to illuminate, have the vehicle serviced.

• If the driver’s safety belt is fastened, the

light

may not illuminate.

STARTING THE ENGINE

1. Turn the key to 5 (START) without

pressing the accelerator pedal and release as soon as the engine starts. The key will return to 4 (ON).

2. If the temperature is above –12° C (10° F) and the engine does not start within five seconds on the first try, turn the key to OFF, wait ten seconds and try again.

3. If the temperature is below -12°C (10°F) and the engine does not start in fifteen seconds on the first try, turn the key OFF and wait ten seconds and try again. If the engine does not start in two attempts, depress the accelerator and start the engine while holding the accelerator down to the floor. Release the accelerator when the engine starts.

4. After idling for a few seconds, apply the brake and release the parking brake.

Starting

Using the engine block heater (if equipped)

An engine block heater warms the engine coolant, which improves starting, warms up the engine faster and allows the heater-defroster system to respond quickly. Use of an engine block heater is strongly recommended if you live in a region where temperatures reach -23°C (-10°F) or below.

For best results, plug the heater in at least three hours before starting the vehicle. Using the heater for longer than three hours will not harm the engine, so the heater can be plugged in the night before starting the vehicle.

To prevent electrical shock, do not use your

heater with ungrounded electrical systems or two-pronged (cheater) adapters.

Guarding against exhaust fumes

Although odorless and colorless, carbon monoxide is present in exhaust fumes. Take precautions to avoid its dangerous effects.

If you ever smell exhaust fumes of any kind

inside your vehicle, have your dealer inspect and fix your vehicle immediately. Do not drive if you smell exhaust fumes. These fumes are harmful and could kill you.

Have the exhaust and body ventilation systems checked whenever:

• the vehicle is raised for service.

• the sound of the exhaust system changes.

• the vehicle has been damaged in a collision.

Starting

Engine exhaust, some of its constituents,

and certain vehicle components contain or emit chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Important ventilating information

If the engine is idling while the vehicle is stopped in an open area for long periods of time, open the windows at least 2.5 cm (one inch).

Adjust the heating or air conditioning (if equipped) to bring in fresh air.

Improve vehicle ventilation by keeping all air inlet vents clear of snow, leaves and other debris.

100

Mercury Sable 1999 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Introduction

Instrumentation

Controls and features

Seating and safety restraints

Starting
