OPERATING MANUAL
Climatic test chamber CTC 256
Temperature test chamber TTC 256
Manufacturer and customer service
MEMMERT GmbH + Co. KG
Postfach 17 20
D-91107 Schwabach
Äußere Rittersbacherstr. 38
D-91126 Schwabach
Germany
Fon: +49 (0) 09122 / 925-0
Fax: +49 (0) 09122 / 14585
E-Mail: sales@memmert.com
Internet: www.memmert.com
Customer service:
Fon: +49 (0) 09122/925-128
and: +49 (0) 09122/925-126
E-Mail: service@memmert.com
For service enquiries, please always specify the appliance number on the nameplate (see page
16 ).
© 2013 Memmert GmbH + Co. KG
Edition 02/2013
Subject to modifications
About this manual
About this manual
Purpose and target group
This manual describes the setup, function, transport, operation and maintenance of temperature test chambers of the type TTC 256 and climatic test chambers of the type CTC 256. It is
intended for use by the trained staff of the operator who are in charge of operating and / or
maintaining the test chamber.
If you as the operator are asked to work on the test chamber, you should read this manual
carefully before starting work on the unit. Familiarise yourself with the safety regulations. Only
perform the work that is described in this manual.
If there is something you don‘t understand, or certain information is missing, ask your superior or get in touch with the manufacturer. Do not do anything without authorisation.
The descriptions in this manual concerning the humidity/climatic processes refer to the
CTC climatic test chambers. TTC temperature test chambers have no humidity controller,
so that the corresponding sections of this manual are not relevant for these device types.
Other documents to observe:
► for service and repair work (see page 64 ): the separate service manual
► for controlling the test chamber with the Memmert-PC software “Celsius“ (see page 43 )
the separate manual “Celsius”
► Calibration documents; which can be found in the document compartment in the water
tank drawer (see page 10 )
Storage and Forwarding
This instruction manual belongs with the test chamber and should always be stored so that
those persons who work on the test chamber have access to it. It is the responsibility of the
operator to ensure that persons who are working on or who will work on the test chamber
are informed as to the whereabouts of this instruction manual. We recommend that it is
always stored in a protected location close to the test chamber.
Make sure that the instruction manual is not damaged by heat or damp.
If the test chamber is sold on or transported and then set up again at a different location, this
instruction manual must also go with it.
3
Content
Content
1. Safety regulations 6
1.1 Terms and symbols used .....................................................................................................6
1.1.1 Terms used ..................................................................................................................... 6
1.1.2 Symbols used ................................................................................................................. 6
1.2 Product safety and dangers ................................................................................................ 7
1.3 Safety Labelling ................................................................................................................... 7
1.4 Requirements of the operating personnel .......................................................................... 8
1.5 Responsibility of the owner ................................................................................................. 8
1.6 Changes and conversions ....................................................................................................8
1.7 Behaviour in case of malfunctions and irregularities .......................................................... 8
1.8 What to do in case of accidents .......................................................................................... 9
1.9 Switching off test chamber in an emergency ..................................................................... 9
2. Design and description 10
2.1 Design ................................................................................................................................ 10
2.2 Description .........................................................................................................................11
2.2.1 Temperature operation ................................................................................................ 11
2.2.2 Humidity operation (only CTC climatic test chamber) ................................................ 11
2.3 Working range ................................................................................................................... 12
2.4 Basic equipment ................................................................................................................ 13
2.5 Material.............................................................................................................................. 14
2.6 Intended Use ..................................................................................................................... 14
2.7 EC Declaration of Conformity............................................................................................15
2.8 Designation (nameplate) ................................................................................................... 16
2.9 Technical data ....................................................................................................................17
2.10 Environmental conditions ................................................................................................. 18
2.11 Connections ....................................................................................................................... 18
2.12 Standard accessories ......................................................................................................... 18
3. Delivery, Transport and Setting Up 19
3.1 Safety Regulations ............................................................................................................. 19
3.2 Delivery .............................................................................................................................. 19
3.2.1 Unpacking ...................................................................................................................19
3.2.2 Checking for completeness and transport damage....................................................19
3.2.3 Disposing of packaging material.................................................................................19
3.3 Storage after delivery ........................................................................................................19
3.4 Transport ............................................................................................................................ 20
3.5 Installation .........................................................................................................................20
4. Putting into Operation 21
4.1 Checking the door and adjusting if necessary .................................................................. 21
4.2 Checking the temperature sensors ...................................................................................21
4.3 Install and connect laptop (optional) ................................................................................ 21
4.4 Filling the freshwater tanks ...............................................................................................22
4.5 Connecting ........................................................................................................................ 23
5. Operation and control 24
5.1 Operating staff .................................................................................................................. 24
5.2 General information on operation ....................................................................................24
5.3 Before starting ................................................................................................................... 24
5.4 Opening and closing the door ..........................................................................................25
5.4.1 Opening and closing the door with high and low temperatures ............................... 25
5.5 Loading the test chamber .................................................................................................26
4
Content
5.6 Basic operating information ..............................................................................................27
5.6.1 Switching appliance on and off .................................................................................. 27

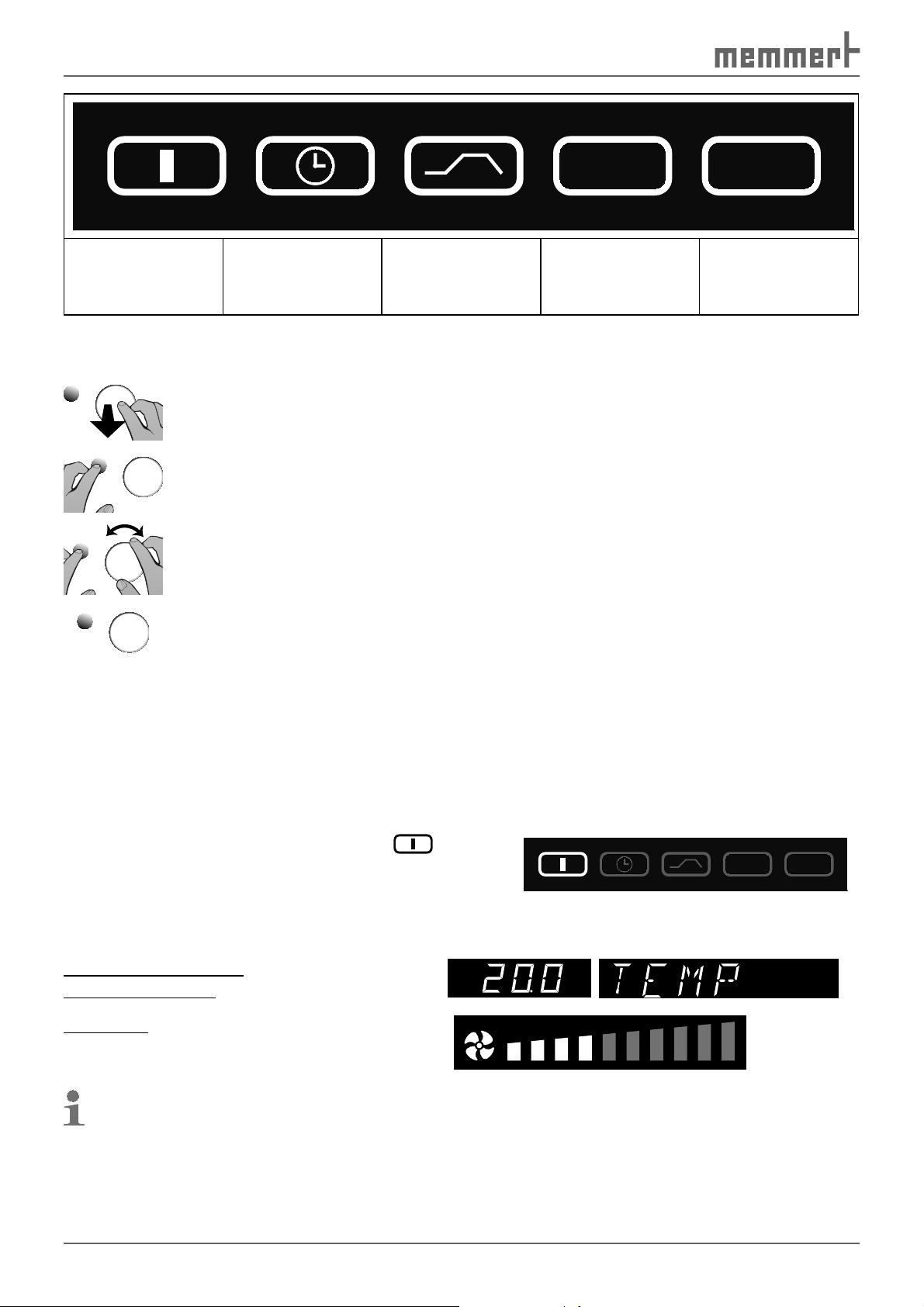

5.6.2 Operating panel/ controller ......................................................................................... 28
5.6.3 Basic operation ............................................................................................................ 29
5.6.4 Setting parameters ...................................................................................................... 29
5.7 Operating modes ............................................................................................................... 29
5.8 Operating mode - settings ................................................................................................30
5.8.1 Normal mode ..............................................................................................................30
5.8.2 Example setting Normal mode....................................................................................31
5.8.3 Week time switch ........................................................................................................ 33
5.8.4 Example of settings Week time switch ....................................................................... 34
5.8.5 Programming mode ................................................................................................... 35

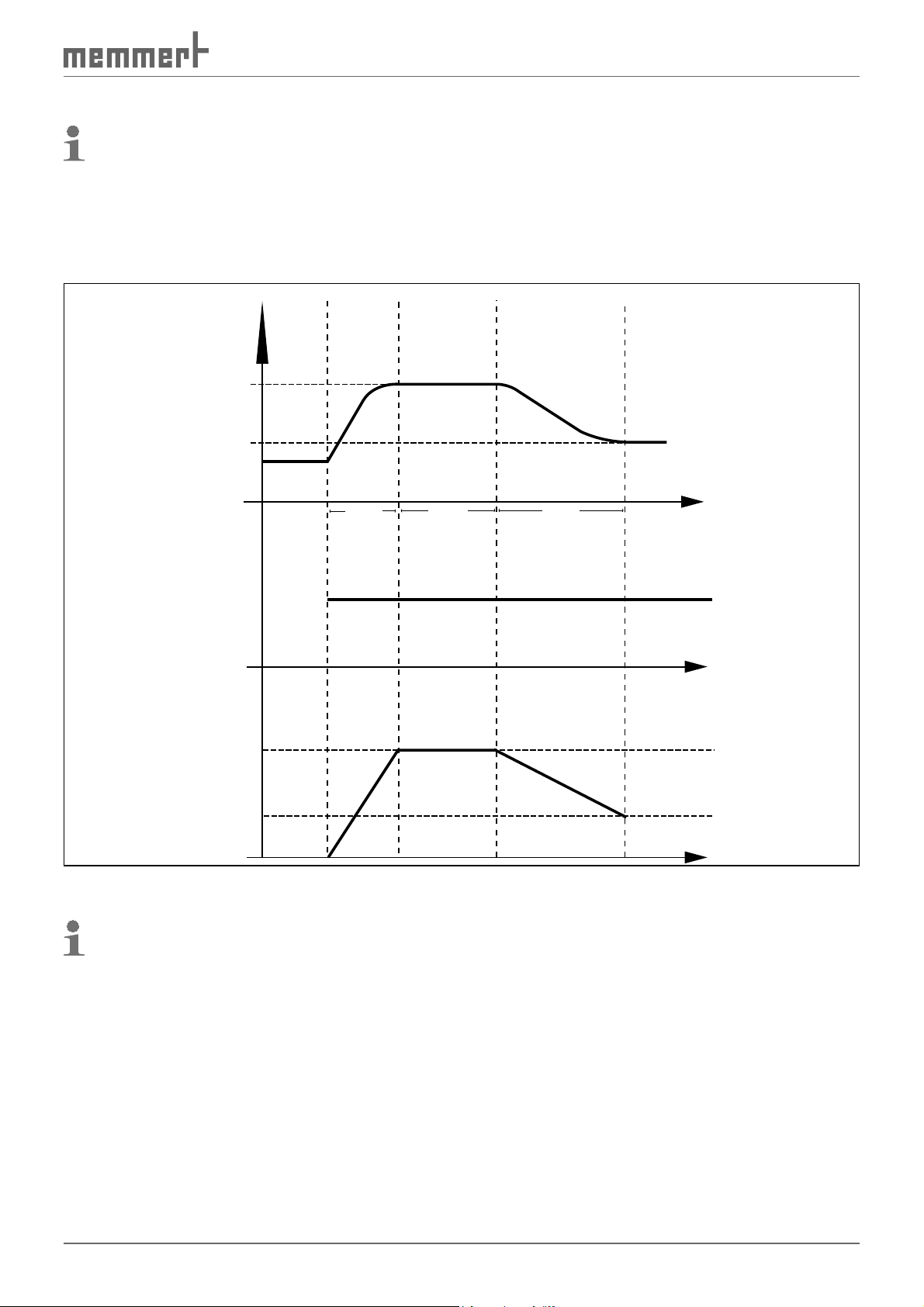

5.8.6 Close commands for ramp segments .........................................................................37

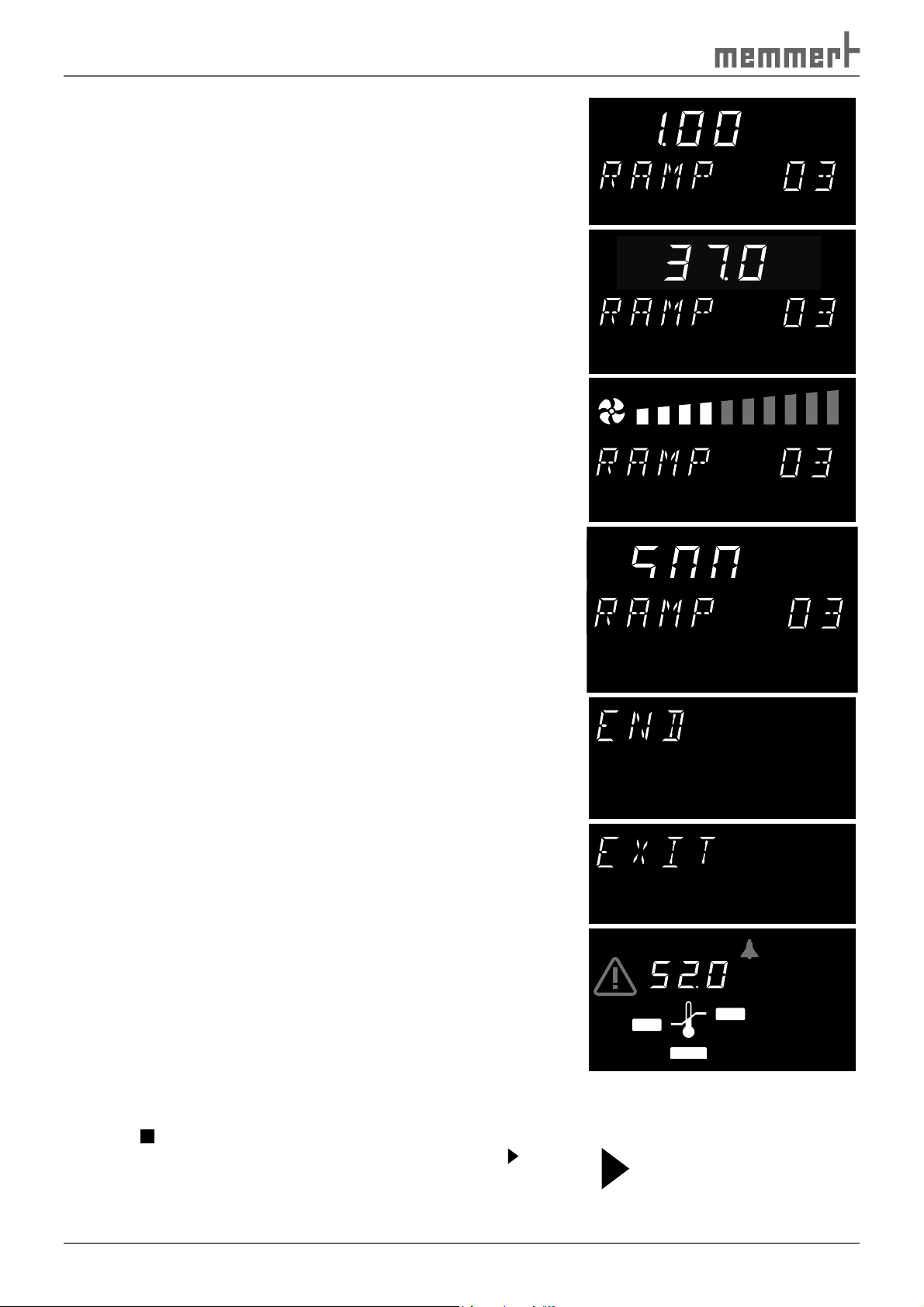

5.8.7 Example setting programming mode ......................................................................... 39
5.8.8 Operation with PC/laptop (optional) ...........................................................................43
5.9 Ending operation ...............................................................................................................43
6. Malfunctions and error messages 44
6.1 Error in the temperature monitoring / humidity system ..................................................44
6.2 System/ appliance errors ...................................................................................................44
6.3 Power failure ...................................................................................................................... 45
7. Advanced functions 46
7.1 Printer ................................................................................................................................ 46
7.2 Basic appliance settings (Setup) ........................................................................................46
7.3 Temperature monitoring and safety equipment ............................................................... 48
7.3.1 Electronic temperature monitoring (TWW) ................................................................48

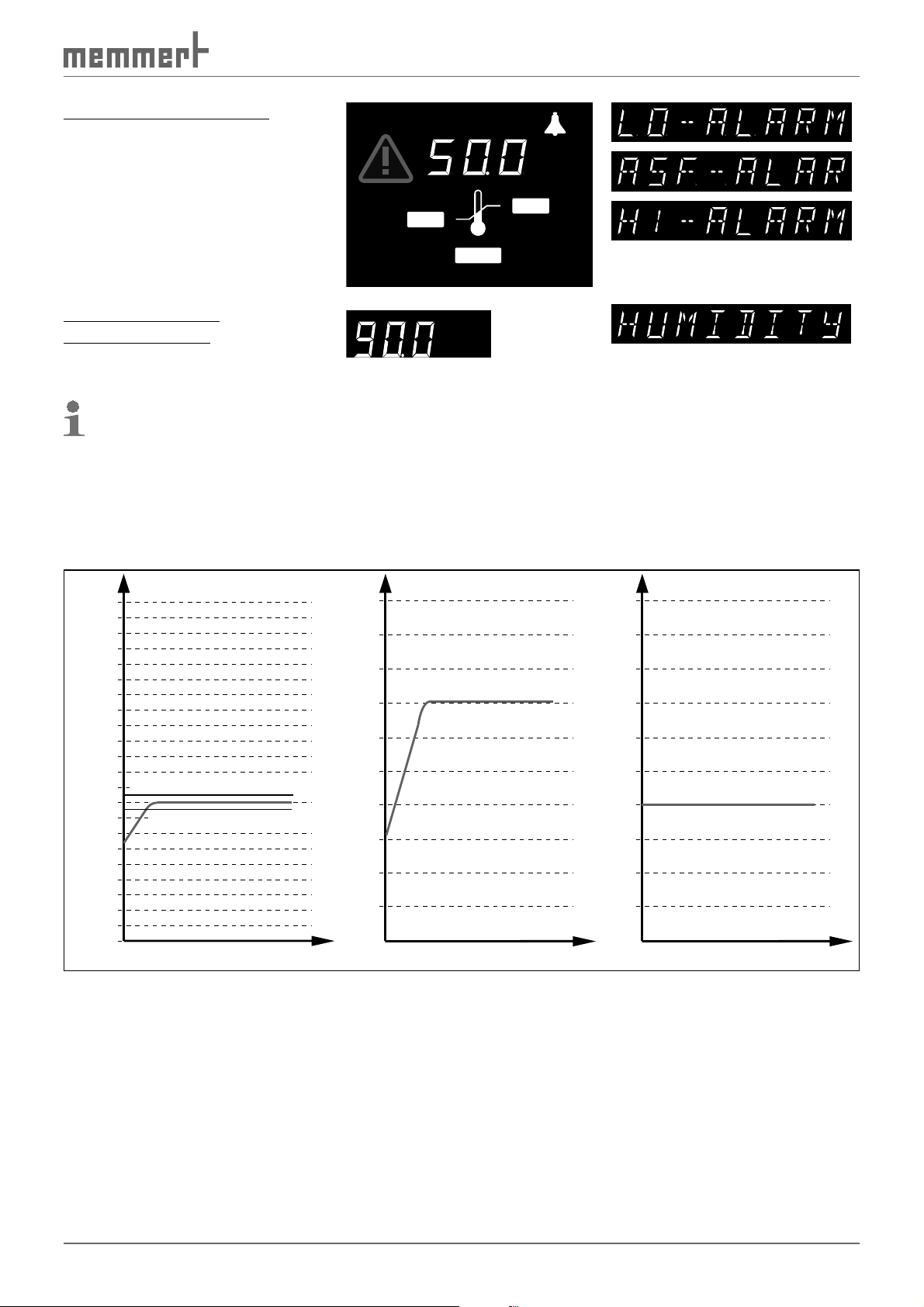

7.3.2 Automatic temperature monitor (ASF) ....................................................................... 49
7.3.3 Warning messages ......................................................................................................51
7.3.4 Safety and monitoring equipment for the cooling unit ............................................. 51
7.4 Calibration ......................................................................................................................... 51
7.4.1 Temperature calibration .............................................................................................. 51
7.4.2 Humidity calibration (only for CTC 256) ...................................................................... 53
7.5 Automatic defrosting system ............................................................................................ 54
7.6 Communication interfaces ................................................................................................ 55
7.6.1 USB interface .............................................................................................................55
7.6.2 Communication interfaces RS232/RS485 (optional) ................................................... 55

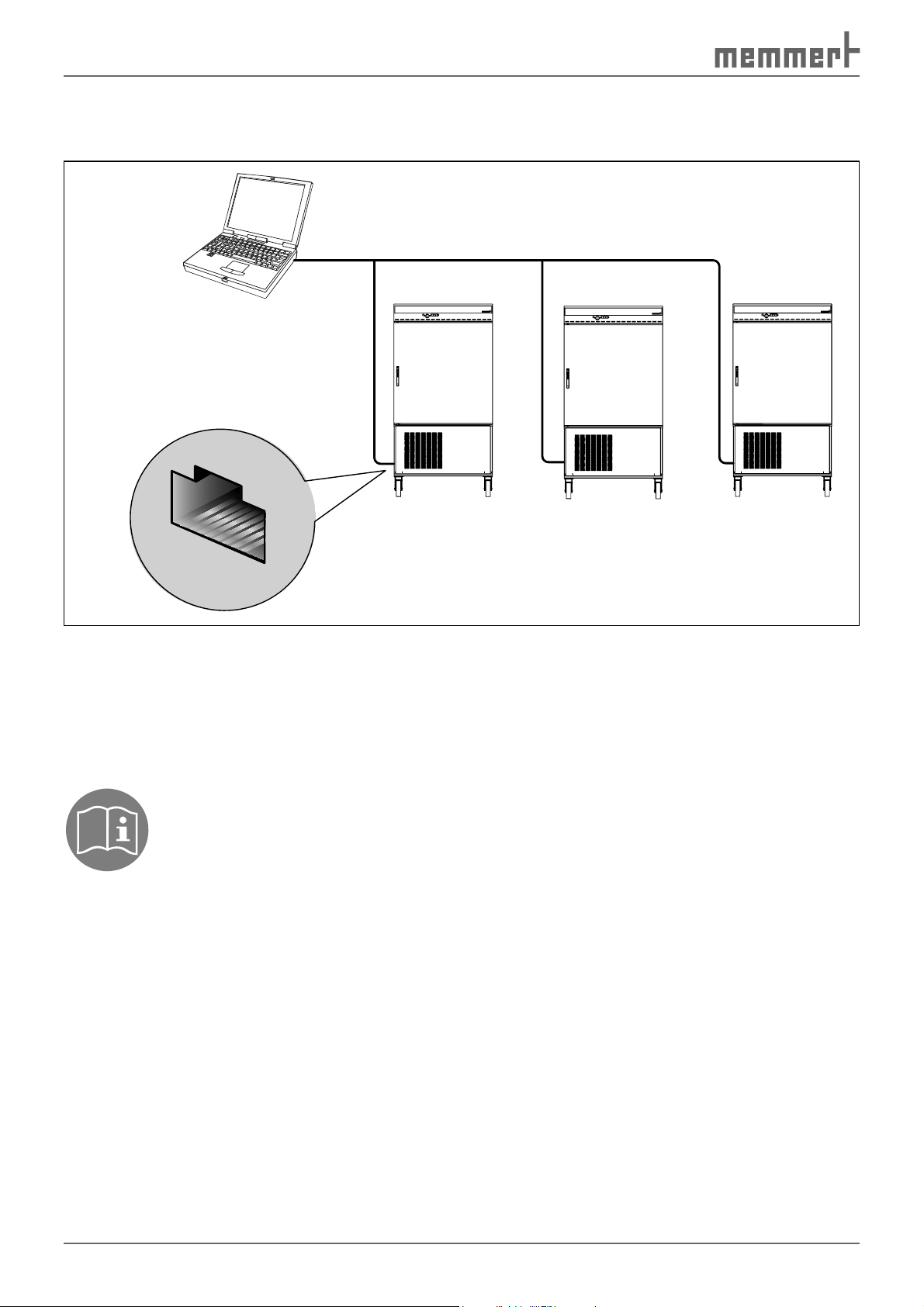

7.6.3 Connection of test chambers to a network with Ethernet interface ......................... 56
7.6.4 Log memory ...............................................................................................................57
7.6.5 MEMoryCard XL .......................................................................................................... 58
7.6.6 User ID card (optionally available as an accessory) .....................................................60
8. Maintenance and Servicing 61
8.1 Basic cleaning ...................................................................................................................61
8.2 Intensive cleaning .............................................................................................................. 61
8.3 Regular maintenance ........................................................................................................62
8.4 Adjust door ........................................................................................................................ 63
8.5 Removing / cleaning the air filter of the cooling unit ....................................................... 63
8.6 Replacing the interior lamps ............................................................................................64
8.7 Repairs and Service ............................................................................................................ 64
9. Storage and disposal 65
9.1 Storage ............................................................................................................................. 65
9.2 Disposal .............................................................................................................................65
Index 66
