Operating Instructions

on off

Sa Su

loop

SETUP

STERI DEFRO

°C

MAX

MIN

AUTO

IN 1

°C

OUT

IN 2

IN 1

OUT

IN 2

CO mb

set

off

page 1

BASIC

page 2BASIC

1. Contents .......................................................................................................................................3

2. General notes and safety notes ......................................................................................................4

2.1. Intended purpose when used as medical product ..................................................................4

2.2 Transport ..............................................................................................................................4

3. Installation facilities (accessories) ....................................................................................................5

3.1 Subframe (accessory) .............................................................................................................5

3.2 Wall bracket (accessory) ........................................................................................................5

3.3 Stackable version (accessory) .................................................................................................5

3.4 Initital start-up ......................................................................................................................6

3.5 Oven load .............................................................................................................................6

4. Technical data ................................................................................................................................7

4.1 Standard equipment of BASIC ovens ......................................................................................8

4.2 Material quality .....................................................................................................................8

4.3 Electrical equipment ..............................................................................................................9

4.4 Supply failurel .......................................................................................................................9

5. Oven construction and operation .................................................................................................10

5.1 Operating the door .............................................................................................................10

5.2 Controls and indications ......................................................................................................11

5.3 Switching on .......................................................................................................................11

5.4 Setting air changes ..............................................................................................................11

5.5 Setting the temperature ......................................................................................................11

6. Selecting the operating mode ......................................................................................................12

7. Normal operation

8. Timer operation

............................................................................................................12

................................................................................................................13

9. Temperature monitor and protection devices ................................................................................14

9.1 Temperature limiter (TB) ......................................................................................................14

9.2 Monitor relay ......................................................................................................................14

10. Sterilisers ..................................................................................................................................... 15

10.1 Purpose definition for MEMMERT hot air sterilisers ..............................................................15

10.2 Guidelines for sterilisation ...................................................................................................15

10.3 Steriliser cassettes ................................................................................................................17

11. Cleaning ......................................................................................................................................18

12. Maintenance ...............................................................................................................................18

13. Error messages ............................................................................................................................19

14. CE Conformity Declaration ...........................................................................................................20

15. Address and customer service ......................................................................................................23

16. Index ...........................................................................................................................................24

1. Contents

page 3

BASIC

2. General notes and safety notes

You have purchased a technically fully proven product which has been produced in Germany with the use of high-grade materials and the application of the latest manufacturing techniques; it has been factory tested for many hours. In addition we guarantee the supply of spare parts over 10 years.

This mark in the Operating Instructions means:

Watch out

Important Note!

This mark on the product means:

Note Operating Instructions

Warning – oven hot when operating!

Observation of the Operating Instructions is necessary for faultless

operaton and for any possible claims under warranty. If these

Instructions are disregarded, all claims under warranty, guarantee and

indemnification are excluded!

The right to technical modifications is reserved. Dimensional details are not binding.

2.1. Intended purpose when used as medical product For ovens covered by the scope of the Directive 93/42/EWG (Directive of the Commission on the harmonization of the legal regulations of the Member States on medical devices) the following intended purpose applies: For ovens series SNB / SFB: The product is intended for the sterilisation of medical products with dry heat using hot air at atmospheric pressure.

2.2 Transport Always use gloves! If the oven has to be carried, at least 2 persons are required to transport it.

BASIC

Do not place the oven on a readily inflammable support surface!

It is important that the oven is set up accurately horizontally!

page 4

3. Installation facilities (accessories)

min.

20 cm

The oven can be placed on the floor or on a bench (working surface). It is important that the oven is set up accurately horizontally; the door may have to be adjusted (see Section

„Maintenance“)

8 cm min.

15 cm min.

The spacing from the back of the oven to the wall should be at least 15 cm. The spacing to the ceiling must not be less than 20 cm and that at the side to the wall not less than 8 cm. Generally it is essential to have adequate air ventilation around the oven.

Information on accessories will be found in our leaflet or on our internet page www.memmert.com. Please note the installation instructions for our accessories.

3.1 Subframe (accessory) Oven model 500 can be mounted on a subframe

3.2 Wall bracket (accessory) Ovens models 200 to 500 can be wall-mounted using the wall bracket. The wall bracket is factory-fitted with a fire-resistant plate. The size and length of the screws used and of the corresponding dowel plugs depend on the total weight (oven plus load) and vary with the condition of the wall.

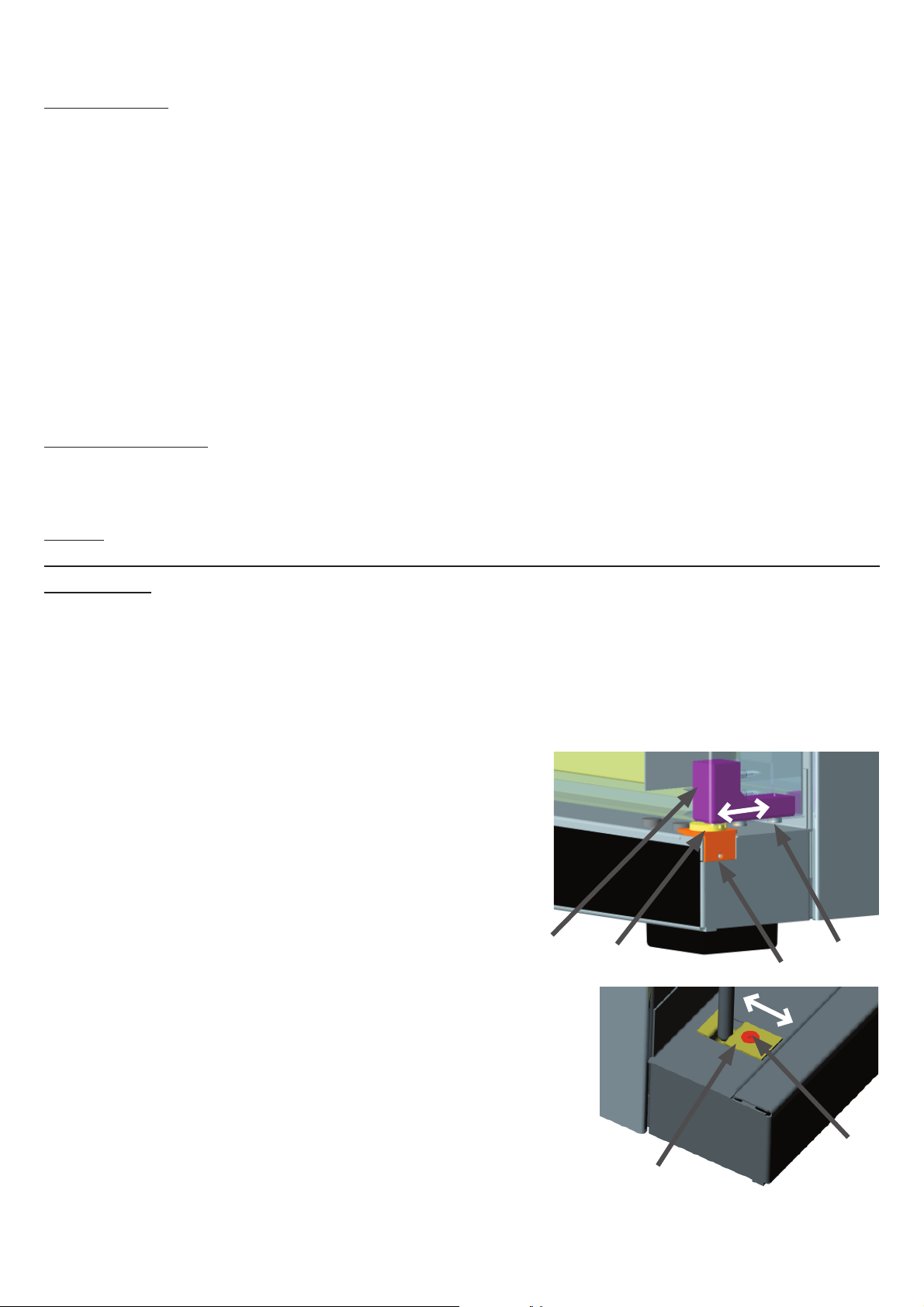

3.3 Stackable version (accessory) Two ovens of the same model size can be stacked on each other. Note that the oven with the lower working temperature must always be placed at the bottom. Foot locators have to be fitted on the bottom oven.

Take off cover of bottom oven

• Place drill jig (supplied with foot locators) into the inverted cover at the back

• Mark holes and drill 4.2 mm dia.

• Screw the foot locators to the top of the cover using the screws and

•

nuts supplied

Re-fit the cover

•

page 5

BASIC

3.4 Initital start-up

Ill: Chamber ceiling with Pt 100 metal temperature probe

When the oven is started up for the first time, it should be supervised continuously until steady conditions have been reached. Severe vibrations during transport may cause movement of the temperature probe in its holder inside the chamber. Note therefore that before the first start-up the temperature probe should be checked for its correct position and, if necessary, carefully aligned in its mounting (see ill).

Ill: Chamber ceiling with Pt 100 metal temperature probe

3.5 Oven load

Full consideration must be given to the physical and chemical properties of your load (e.g. combustion temperature etc.) in order to prevent serious damage to load, oven and surroundings.

Please note that the MEMMERT ovens described here are not explosionproof (they do not conform to the Industrial Association Specification VBG 24) and are therefore not suitable for drying, evaporating and burning-in of paints, enamels or similar materials whose solvents may produce an inflammable mixture with air. There must be no possibility of the formation of inflammable gas/air mixtures either within the oven chamber or in the immediate surroundings of the equipment. Large amounts of dust or corrosive fumes inside the oven chamber or in the surroundings of the equipment may produce deposits within the oven and lead to short-circuits or damage the electronics. It is therefore important that adequate precautions are taken against excessive dust or corrosive fumes.

In order to ensure proper air circulation inside the chamber, there must be sufficient spacing of the load inside the oven. Do not place any load on the floor, against the side walls or underneath the ceiling of the chamber (heating ribs). In order to ensure optimum air circulation the shelves must be so inserted that the air spacings between door, shelf and rear chamber wall are approximately equal. The maximum number and the loading of the shelves can be found in the table in the Section „Technical

Data“. With unfavourable loading (too closely spaced) and completely opened ventilation it is possible that

the set temperature may be reached only after a longer period of time.

See stick-on label “Correct Loading“ on the oven!

BASIC

page 6

4. Technical data

Supply plug

Model 100 200 300 400 500 Chamber width A [mm] 320 400 480 400 560 Chamber height B [mm] 240 320 320 400 480 Chamber depth C [mm] 175 250 250 330 400 Oven width D [mm] 470 550 630 550 710 Oven height E [mm] 520 600 600 680 760 Oven depth F [mm] 325 400 400 480 550 Chamber volume [litre] 14 32 39 53 108 Weight [kg] 20 28 30 35 50 Power, ovens UNB/UFB/SNB/SFB [W] 600 1100 1200 1400 2000 Power, ovens INB [W] 300 440 500 800 900 Max. number of trays 2 3 3 4 5 Max. load per tray [kg] 10 15 12 30 30 Total load per oven [kg] 20 30 30 90 60 Ambient conditions Ambient temperature 5°C to 40°C

rH 80% max., no condensation Overvoltage category: II

Contamination level: 2 Setpoint temperature range 20°C to nominal temperature (details see label) Setting accuracy 0,5°C Indication resolution 0,5°C Working temperature range From 5°C above ambient temperature up to nominal

temperature = maximum temperature (details see label)

On ovens with fan (UFB/SFB) from 10°C above ambient

temperature up to nominal temperature = maximum

temperature (details see label)

page 7

BASIC

4.1 Standard equipment of BASIC ovens

Electronic PID controller with permanent power matching, auto-diagnostic system for rapid fault

• finding (see Section “Error messages“)

Manually adjustable air valve for recirculation or fresh air operation

•

Programmable electronic switch-off timer up to 99 h 59 min

•

Recessing push/turn control for simple operation of oven

•

Visual alarm indication

•

Monitor relay to switch off heating in case of fault

•

Mechanical temperature limiter (TB Class 1)

•

High-grade PT100 temperature sensor Class A in 4-wire circuit

•

Special equipment (to be ordered separately as accessories): subframe, wall bracket, sterilisation

• cassette

4.2 Material quality For external casing and working chamber MEMMERT are using stainless steel (Mat.Ref. 1.4301) which features high strength, optimum hgygienic properties and corrosion resistance against many (not all) chemicals (warning against e.g. chlorine compounds). The oven load has to be checked carefully for its chemical compatibility with the above materials. A compatibility table covering all these materials can be requested from MEMMERT.

BASIC

page 8

WARNING! Always pull out the supply plug before opening the oven

cover!

4.3 Electrical equipment Operating voltage see label 50/60 Hz

• Current rating see label

• Protection Class 1, i.e. operating isolation with ground connection to EN 61 010

• Protection IP20 to EN 60 529

• Interference suppression to EN55011 Class B

• Oven protected by a fuse 250V/15A fast blow

• Controller protected by an 80 mA fuse (200 mA on 115 V)

• When connecting a MEMMERT oven to the electrical supply you have to observe any local

• regulations which apply (e.g. in Germany DIN VDE 0100 with FI protection circuit)

•

This product is intended to operate on a supply network with a system impedance Zmax at the transfer point (building connection) of 0.292 Ohm max. The user has to ensure that the product is only operated on an electrical supply network which meets these requirements. If necessary, details of the system impedance can be obtained from the local electricity supply authority.

Note: Any work involving opening up the oven must only be carried out by a suitably qualified electrician!

4.4 Supply failurel

After a failure of the supply, operation is continued with the same parameter settings.

page 9

BASIC

5. Oven construction and operation

Ovens Series UNB, INB and SNB have natural ventilation. In Series UFB amd SFB ovens, air circulation is provided by a fan on the back wall of the chamber.

air discharge

fan

air valve

ventilation slots

air supply

fresh air

preheat chamber

chamber

The incoming air (1) is warmed in a preheat chamber (2) in both convection and fan-circulation ovens. The preheated air enters the chamber (4) through ventilation slots (3) in the chamber side wall. The fan (5) on the chamber back wall produces a large air throughput and a more intensive horizontal forced circulation compared with natural convection. The air valve (6) on the back of the oven controls the rate of air intake and discharge (air change) (7).



5.1 Operating the door



The door is opened by pulling on the door handle. The door is closed by the door handle being pushed in.

BASIC

open

page 10

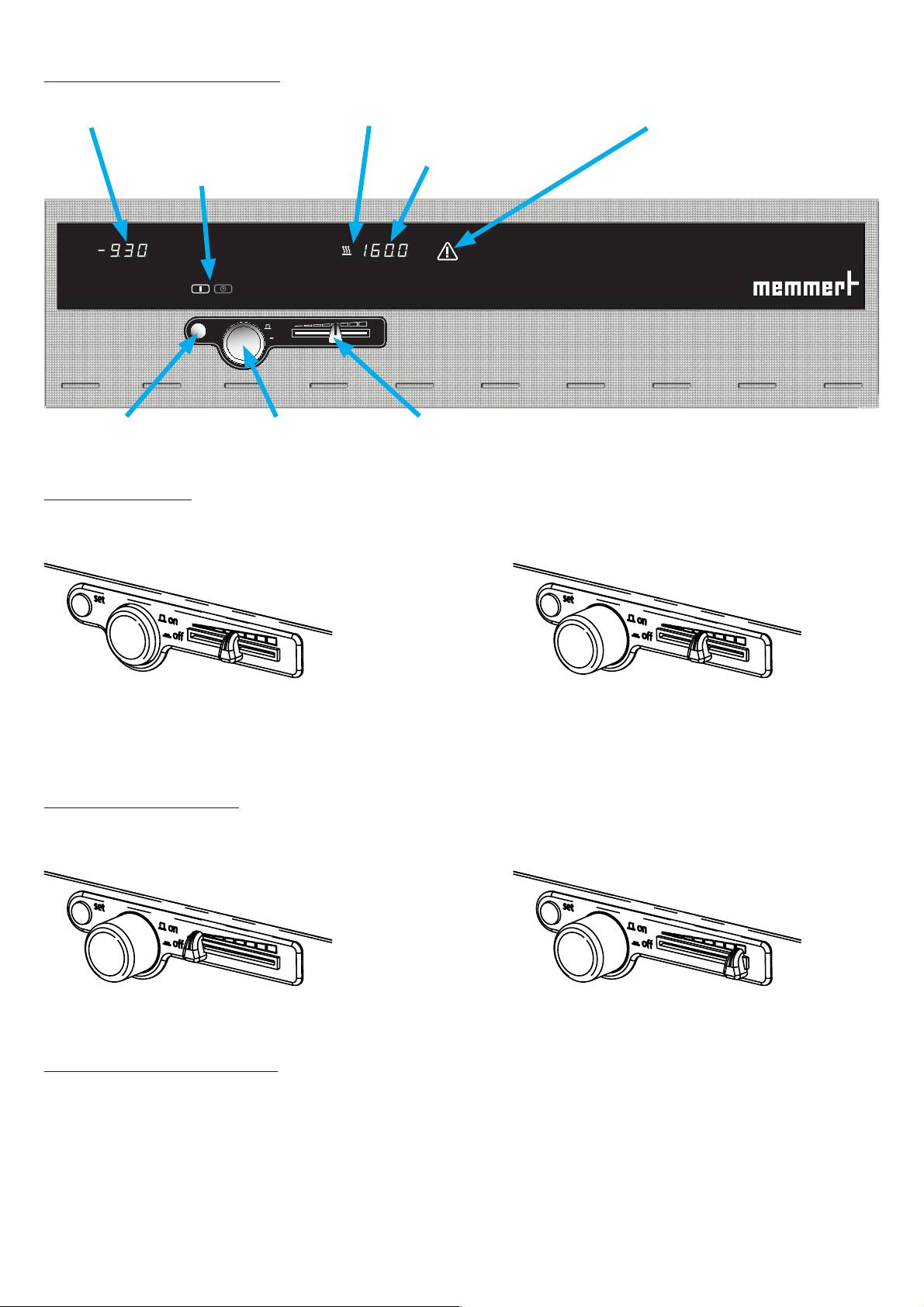

5.2 Controls and indications

Ill

UNB 500

timer display alarm indicationheating

indication

temperature displayoperating mode

on off

Sa Su

set-key air slider

set

loop

SETUP

off

push/turn control

STERI DEFRO

°C

MAX

MIN

AUTO

(main switch)

5.3 Switching on

The oven is switched on by pressing the push/turn control.

IN 1

°C

OUT

IN 2

IN 1

OUT

IN 2

CO mb

Ill

UNB 500

Oven switched off. The push/turn control is pushed in and protected against damage

Oven switched on and can be operated using the push/turn control and the SET key.

5.4 Setting air changes

Moving the air slider opens and closes the air valve to control the supply and discharge of air.

Air valve closed Air valve open

5.5 Setting the temperature

Hold down the SET key and set the temperature setpoint with the push/turn control. After the SET key has been released the display briefly flashes the temperature setpoint. The display then changes to the actual current temperature and the controller starts to control to the selected temperature setpoint.

page 11

BASIC

6. Selecting the operating mode

Normal

operation

After holding down the SET key (approx. 3 sec), the current operating mode flashes on the display. A different operating mode can be selected with the push/turn control while the SET key is being held down. After the SET key has been released the controller operates in the new operating mode.

Timer

operation

7. Normal operation

In this operating mode the oven operates continuously and heats and controls to the set temperature. On the ovens UFB/SFB the fan is running continuously.

Setting the temperature: Hold down the SET key and set the required temperature setpoint with the push/turn control. After the SET key has been released the display flashes briefly the temperature setpoint. The display then changes to the actual current temperature and the controller starts to control to the selected temperature setpoint.

˚C

BASIC

page 12

8. Timer operation

In this operating mode the oven operates on the timer; it heats/controls to the set temperature and maintains this temperature until the set time has elapsed. The clock symbol is flashing during timer operation, then the heating is switched off; on UFB/SFB ovens the fan runs on for 30 minutes. The timer display shows END.

- The time can always be set to OFF, the heating is then switched off and the timer display shows END.

- Time is counted down, it is always possible to see how long the oven will remain switched on.

Setting the temperature: Turn the push/turn control clockwise until the temperature display is flashing. Hold down the SET key and set the required temperature setpoint with the push/turn control. After the SET key has been released the oven flashes briefly the temperature setpoint. The display then changes to the actual temperature and the controller starts to control to the selected temperature setpoint.

Setting the timer: Turn the push/turn control anticlockwise until the timer display is flashing. Hold down the SET key and set the required operating time with the push/turn control.

˚C

Example: the oven heats and controls at 180°C for 45 minute duration. (time is counted backwards)

page 13

BASIC

9. Temperature monitor and protection devices

9.1 Temperature limiter (TB)

All ovens of the BASIC series are equipped with a mechanical temperature limiter (TB) Protection Class 1 to DIN 12 880. If the electronic monitor system should fail during operation and the fixed factory-set maximum temperature is exceeded by approx. 20°C the temperature limiter switches off the heating permanently as a final protective measure. The alarm symbol lights up as warning.

Fault rectification after the TB cut-out has been activated:

Switch off the oven and allow it to cool down

1. Rectify the fault (e.g. replace temperature probe) and where appropriate contact customer service

2. The oven is again ready for operation only after it has cooled down and after the fault has been

rectified.

9.2 Monitor relay

In addition to mechanical temperature protection the oven is provided with an electronic monitor relay.

If a fault occurs during operation or if the selected setpoint temperature is exceeded (by 3°C on ovens Series INB, by 10°C on ovens UNB/UFB/SNB/SFB) the monitor relay switches over the heating to this temperature in emergency mode. The alarm symbol is flashing as warning.

Fault rectification after the monitor relay may been activated: Check the controller for error messages (see Section „Error messages“) and where appropriate contact customer service.

°C

TB approx. 20°C above

220°C

emergency mod

150°C

monitor relay approx. 10°C above setpoint

setpoint

Example: UFB500: With a setpoint temperature of 150°C, if a

control fault

fault occurs in the power unit (faulty triac) the oven continues to operate in emergency operation at approx. 160°C.

20°C

BASIC

page 14

10. Sterilisers

10.1 Purpose definition for MEMMERT hot air sterilisers

The oven SNB/SFB is intended for the sterilisation of medical materials by dry heat using hot air at atmospheric pressure.

10.2 Guidelines for sterilisation

For hot air sterilisation there are different regulations covering the temperature settings and the sterilisation times, as well as the packaging of the products to be sterilised. The values depend on the type and condition of the load to be sterilised and on the type of bacteria which have to be de-activated. Please make yourself familiar with the sterilisation method laid down for your application before carrying out sterilisation using your MEMMERT cabinet. The operation of the MEMMERT hot air steriliser is also subject to the Standard DIN 58 947 Part 6.

A few examples of the correct preparation for different medical products are summarised in the following table:

Load Preparation

Instruments (no soft solder) load cleaned instruments, wrapped twice in aluminium foil or in

steriliser foil suitable for hot air (recommended)

Cutting instruments load cleaned instruments, wrapped twice in aluminium foil or in

steriliser foil suitable for hot air (recommended)

Syringes (no plastics) load plunger and cylinder separately, wrapped twice in aluminium

foil or in steriliser foil suitable for hot air (recommended)

Glass and glass instruments dismantle cleaned glass vessels and all-glass syringes and place into

dishes, cool down slowly

Bottles, vessels and similar items must be sterilised without closure and with the opening downwards, in order to avoid the formation of cold air pockets. The recommended sterilisation temperature is usually 180°C (German Pharmacopoeia DAB 10)

page 15

BASIC

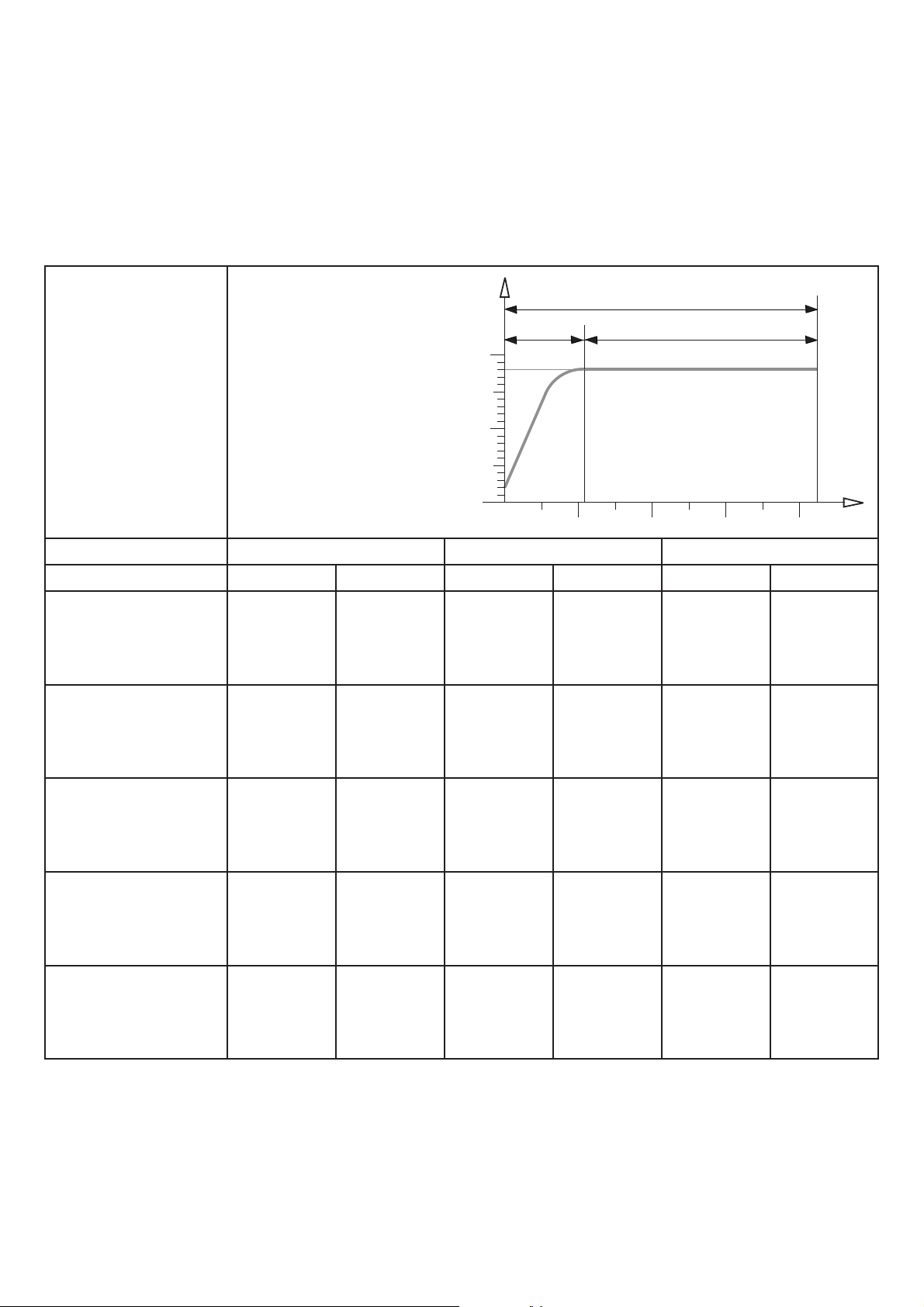

The total sterilisation time to be selected consists of the heating-up time (i.e. the time until the desired temperature has been established within the entire steriliser chamber), the actual sterilisation time, and a safety margin.

The following table gives typical values for the total sterilisation time to be set, with different amounts of load, for sterilisers with and without fan. Please note that these values can be employed only with correct and loose distribution of the load. Notes on the correct loading of the steriliser can be found in these Operating Instructions and also on the label affixed to the steriliser.

Sterilisation temperature:180°C

Steriliser size

100

200

heating-up time + sterilisation time =

°C

heating-up time

total sterilisation time

sterilisation time

total sterilisation time

180°C

Type of loading: light medium heavy

without fan with fan without fan with fan without fan with fan

0:45h+ 0:45h=

1:30h 0:45h+

0:45h=

---- 0:45h+ 1:15h=

2:00h

---- 0:45h+ 1:15h=

---- 0:45h+ 1:45h=

2:30h

---- 0:45h+ 1:45h=

----

1:30h 0:45h+

300

0:45h=

1:30h 0:45h+

400

1:15h=

2:00h

500 0:45h+

1:15h=

2:00h

---- 0:45h+

0:30 h+ 1:00h=

1:30h 0:30 h+

1:00h=

1:30h

2:00h

1:15h=

2:00h 0:45h+

1:45h=

2:30h 0:45h+

1:45h=

2:30h

---- 0:45h+ 1:45h=

2:30h

0:45 h+ 1:15h=

2:00h 0:45 h+

1:15h=

2:00h

1:00 h+ 2:00h=

3:00h 1:00 h+

2:00h=

3:00h

----

0:45 h+ 1:45h=

2:30h 0:45 h+

1:45h=

2:30h

The sterilisation time is increased by a factor of 4 when sterilising at a temperature of 160°C. On large sterilisers and with heavy loading it is recommended to use wire shelves (special accessory) instead of perforated shelves.

BASIC

page 16

Especially with heavy loading of the steriliser it is not sufficient to use these typical values without further tests. Reliable sterilisation requires validation of the individual sterilisation process, e.g. with the aid of additional temperature probes or by using biological or chemical indicators.

Note: In sterilisation processes the vent valve on the oven must be closed after the moist sterilisation load has been dried!

10.3 Steriliser cassettes

The cassettes should preferably be so arranged in the steriliser that the hot air flow can pass readily through the air slots.

The load to be sterilised is placed into the steriliser cassettes wrapped in aluminium foil or in steriliser foil suitable for hot air (as in the Table in the Section „Guidelines for sterilising“). The air slots in the cassette must be open during sterilisation. A temperature probe to confirm the temperature of the load can be introduced through the opening (2). After sterilisation has been completed the air slots must be closed by moving the slide knob (1).

page 17

BASIC

The sterilised and packed load can then be stored briefly in the closed cassette.

11. Cleaning

Regular cleaning of the easy-to-clean inside of the chamber prevents deposits which over time can detract from the appearance and the functionality of the stainless steel chamber .

The metal surfaces of the oven can be cleaned with commercially available cleaning agents for stainless steel. It is important to ensure that no rust-forming object comes into contact with the chamber or the stainless steel casing. Rust deposits cause infection of the stainless steel.

If any contamination causes rust stains on the surfaces of the chamber, such spots must be cleaned off immediately and the area polished.

The control panel, the plastic input modules and other plastic components of the oven must not be cleaned using scouring cleaning agents or those contained solvents.

12. Maintenance

Important for a long life of your MEMMERT product and in case of warranty claims.

Note: Any work involving opening up the oven must only be carried out by a suitably qualified electrician!

MEMMERT products require little maintenance. It is however recommended to lubricate all moving parts of the doors (hinges and closure) once a year (or 4 times a year with continuous operation) using a thin Silicone grease, and to check that the hinge screws are tight.

A well-closing door is essential on an oven. On Memmert ovens, tight closure of the door is ensured by a seal on the oven and another one on the door. In continuous operation the flexible sealing material may take a permanent set. Readjustment may then be necessary in order to ensure proper closing of the door.

The top part (1) of the door hinge can, after releasing

• the 2 screws (2) at the top or bottom of the door, be moved slightly in the direction of the arrow.

The door can be adjusted after releasing the socket

• screw (3) and rotating the excentric (4) by means of a screwdriver. NOTE ! Screw (3) is locked with locking varnish. It can be released by a sharp tug using a hexagon socket key. Apply more locking varnish to screw (3) and tighten it.

The closing panel (6) can also be adjusted in the direction of the arrow after releasing the screw (5). It is important that the panel is then screwed down firmly.

BASIC

page 18

13. Error messages

E-0 Error on self test E-1 Power module triac faulty E-2 Power module faulty E-3 PT100 temperature probe faulty

In case there is a fault on the oven, please get in touch with an authorised service organisation or contact the MEMMERT customer service department. When dealing with the service department always quote the product serial number on the oven label.

page 19

BASIC

14. CE Conformity Declaration

EC Declaration of Conformity

Manufacturer´s name and address: MEMMERT GmbH + Co. KG

Äußere Rittersbacher Straße 38

D-91126 Schwabach Product: Universal oven Type: UNB … / UFB … / UNE ... / UFE … / UNP … / UFP … Sizes: 100 / 200 / 300 / 400 / 500 / 600 / 700 / 800 Nominal voltage: AC 230 V or 3 ~ AC 400 V 50 / 60 Hz

alternative AC 115 V 50/60 Hz

The designated product is in conformity with the European EMC-Directive

89/336/EEC

including amendments

Council Directive of 03 May 1989 on the approximation of the laws of the Member States relating to

electromagnetic compatibility.

Full compliance with the standards listed below proves the conformity of the designated product with the essential protection requirements of the above-mentioned EC Directive:

DIN EN 61 326 (VDE 0843 part 20): 1998-01 EN 61 326: 1997 DIN EN 61 326/A1 (VDE 0843 part 20/A1): 1999-05 EN 61 326: 1997/A1 : 1998 RFI suppression: Class B DIN EN 61 000-3-11 (VDE 0838 part 11): 2001-04 EN 61 000-3-11: 2000

The designated product is in conformity with the European Low Voltage Directive

73/23/EEC

including amendments

Council Directive on the approximation of the laws of the Member States relating to Electrical

equipment for use within certain voltage limits.

Full compliance with the standards listed below proves the conformity of the designated product with the essential protection requirements of the above-mentioned EC Directive:

DIN EN 61 010-1 (VDE 0411 part 1): 1994-03 EN 61 010-1: 1993 DIN EN 61 010-2-010 (VDE 0411 part 2-010): 1995-03 EN 61 010-2-010: 1994

Schwabach, 25.07.05

(Legally binding signature of the issuer)

This declaration certifies compliance with the above mentioned directives but does not include a property assurance. The safety note given in the product documentation which are part of the supply, must be observed.

D09932 / 25.07.05

BASIC

page 20

EC Declaration of Conformity

Manufacturer´s name and address: MEMMERT GmbH + Co. KG

Äußere Rittersbacher Straße 38

D-91126 Schwabach Product: Incubators Type: INB … /INE … / INP … Sizes: 200 / 300 / 400 / 500 / 600 / 700 / 800 Nominal voltage: AC 230 V 50/60 Hz

alternative AC 115 V 50/60 Hz

The designated product is in conformity with the European EMC-Directive

89/336/EEC

including amendments

Council Directive of 03 May 1989 on the approximation of the laws of the Member States relating to

electromagnetic compatibility.

Full compliance with the standards listed below proves the conformity of the designated product with the essential protection requirements of the above-mentioned EC Directive:

The designated product is in conformity with the European Low Voltage Directive

73/23/EEC

including amendments

Council Directive on the approximation of the laws of the Member States relating to Electrical

equipment for use within certain voltage limits.

Full compliance with the standards listed below proves the conformity of the designated product with the essential protection requirements of the above-mentioned EC Directive:

DIN EN 61 010-1 (VDE 0411 part 1): 1994-03 EN 61 010-1: 1993 DIN EN 61 010-2-010 (VDE 0411 part 2-010): 1995-03 EN 61 010-2-010: 1994

Schwabach, 25.07.05

(Legally binding signature of the issuer)

page 21

D09937 / 25.07.05

BASIC

EC Declaration of Conformity

Manufacturer´s name and address:

MEMMERT GmbH + Co. KG Äußere Rittersbacher Straße 38 D-91126 Schwabach

Product: Steriliser Type:

Sizes: Nominal voltage:

SNB … / SFB … / SNE … / SFE … / SFP … 100 / 200 / 300 / 400 / 500 / 600 / 700 / 800 AC 230 V or 3 ~ AC 400 V 50 / 60 Hz alternative AC 115 V 50/60 Hz

The product meets the regulations of the directive

93/42/EWG

Directive of the council to adapt legal regulations of the member states on the subject

of medical products dd. 14.06.1993 (Abl. EG Nr. L 169, S. 1, 12.07.1993) including

annex and modifications.

Schwabach, 25.07.05

(Legally binding signature of the issuer)

D09970

BASIC

page 22

Standard ovens (UNB / UFB / INB) are safety-approved and bear the test marks:

Sterilisers (SNB / SFB) are safety-approved and bear the test marks:

1275

This product is subject to the Directive 2002/96/EC by the European Parliament and the EU Council of Ministers which concerns Waste Electrical and Electronic Equipment (WEEE). This product has been put on the market after 13 August 2005 in countries which have already incorporated this Directive into National Law. It should not be disposed off as part of domestic refuse. For disposal please contact your dealer or the manufacturer. Products which are infected, infectious or contaminated with health-endangering substances are excluded from return. Please note also all further regulations in this context.

15. Address and customer service

MEMMERT GmbH+Co.KG PO Box 17 20 91107 Schwabach Germany Phone: 00 49 9122 / 925-0 Fax:: 00 49 9122 /14585 E-mail: sales@memmert.com Internet: www.memmert.com

Customer service: Phone: 00 49 9122 / 925-143 or 00 49 9122 / 925-126 E-mail: service@memmert.com

When contacting customer service, always quote the product serial number on the oven label.

page 23

BASIC

16. Index

accessories 9 address 23 air changes 11 air slider 11 air supply 10 air valve 10 alarm indication 11 alarm symbol 14

CE conformity declaration 20 cleaning 18 construction, oven 10 customer service 23

DIN 12 880 14 display, temperature 11 display, timer 11 door 10 door handle 10

error messages 19

failure, supply 8. 19 fan 10 fan indication 11

initial start-up 5 installation facilities 9

limiter, temperature 14 load 5

main switch 11 maintenance 18 material quality 4, 7 medical product 4 monitor relay 14

normal operation 12

operating mode indication 11 operating mode selection 12 operating time 13 operation 10

Protection Class 1 14 protection devices 14 purpose, intended 4, 15 push/turn control 11

relay, monitor 14

safety notes 4 SET key 11, 12, 13 stacking 9 start-up, initial 5 steriliser cassettes 17 sterilisers 15 subframe 9 supply failure 8, 19

TB 14 temperature 11 temperature display 11 temperature limiter 14 temperature monitor 14 temperature probe 5 temperature setpoint 11 timer display 11 timer operation 13 transport 4, 5

wall bracket 9

BASIC

page 24
