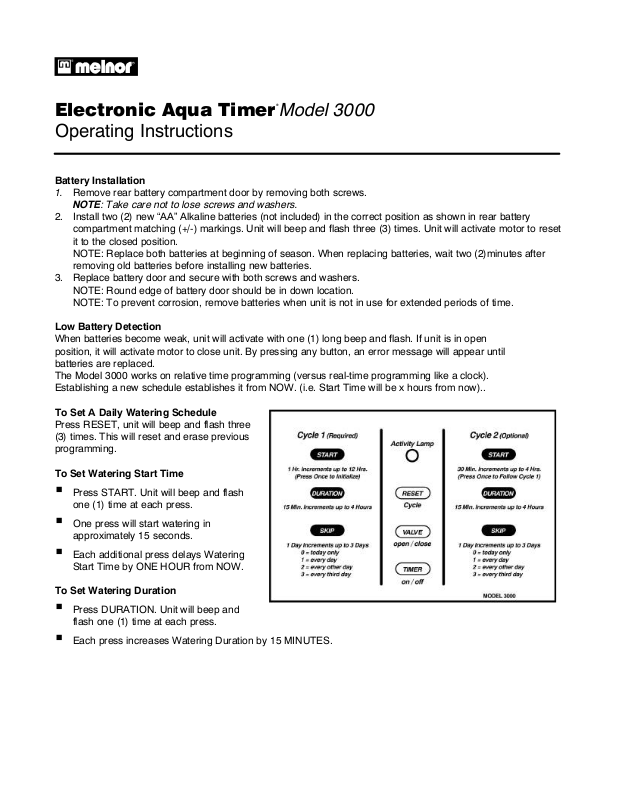

Melnor 3000 User Manual [en, es, fr]

Electronic Aqua Timer
®
Model 3000
Operating Instructions
Battery Installation
1. Remove rear battery compartment door by removing both screws.
NOTE: Take care not to lose screws and washers.
2. Install two (2) new “AA” Alkaline batteries (not included) in the correct position as shown in rear battery
3. Replace battery door and secure with both screws and washers.
NOTE: Round edge of battery door should be in down location. NOTE: To prevent corrosion, remove batteries when unit is not in use for extended periods of time.
Low Battery Detection
When batteries become weak, unit will activate with one (1) long beep and flash. If unit is in open position, it will activate motor to close unit. By pressing any button, an error message will appear until batteries are replaced. The Model 3000 works on relative time programming (versus real-time programming like a clock). Establishing a new schedule establishes it from NOW. (i.e. Start Time will be x hours from now)..
To Set A Daily Watering Schedule
Press RESET, unit will beep and flash three (3) times. This will reset and erase previous programming.
To Set Watering Start Time
§ Press START. Unit will beep and flash
one (1) time at each press.
§ One press will start watering in
approximately 15 seconds.
§ Each additional press delays Watering
Start Time by ONE HOUR from NOW.
To Set Watering Duration
§ Press DURATION. Unit will beep and
flash one (1) time at each press.
§ Each press increases Watering Duration by 15 MINUTES.
To Set Daily Watering Frequency
§ Press SKIP. Unit will beep and flash one (1) time at each press.
§ Not pressing SKIP will result in 1 watering, today only.
§ Pressing SKIP 1 time will repeat watering DAILY.
§ Pressing SKIP 2 times repeats watering EVERY OTHER DAY.
§ Pressing SKIP 3 times repeats watering EVERY THIRD DAY.
§ If pressed 4 times, error message will activate with one (1) long beep and flash.
NOTE: An error message is one (1) long beep and flash.
For two watering cycles per day, immediately program Cycle 2 in the right column using the instructions above.
NOTE: Cycle 2 Start Time increment is 30 minutes instead of 1 hour for up to 4 hours.
To Manually Open Or Close Valve
Press TIMER-ON/OFF to disable Daily Watering Schedule. Unit will beep and flash two (2) times. Press VALVE­OPEN/CLOSE to operate valve. Unit will beep and flash two (2) times. When finished, press TIMER-ON/OFF to return to Daily Watering Schedule. Unit will beep and flash two (2) times.
Two Year Limited Warranty
The Melnor Electronic Aqua Timer (Model 3000) carries TWO YEAR (2) LIMITED WARRANTY. Melnor Inc. warrants the Product against defective material, workmanship, or design for the period of two years from the date of purchase. Its liability under this warranty shall be LIMITED TO the REPLACEMENT or REPAIR of the product as provided herein. NO OTHER REMEDY ( including, but not limited to, incidental or consequential damages and injuries to persons or property ) shall be available to the purchaser. This warranty does not cover damages or malfunctions which result from abuse, neglect, normal wear and tea, accidents, or improper installation or use. THE WARRANTY DESCRIBED IN THIS PARAGRAPH SHALL BE IN LIEU OF ANY OTHER WARRANTY, EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Please complete the warranty card. Using scissors cut out the completed warranty card and mail it, along with a photocopy of the sales receipt to:
Melnor Inc. E.T. Warranty Department 3085 Shawnee Drive P.O. Box 2840 Winchester, VA 22601
If a defect arises during the TWO YEAR LIMITED WARRANTY PERIOD, in order to make your warranty claim, please send the Timer to the address above and include a note of explanation about the problem(s) with the Product. Please allow 6-7 weeks for return of the Product. If it is replaced, the warranty will only continue for the period remaining on the original two year limited warranty.
