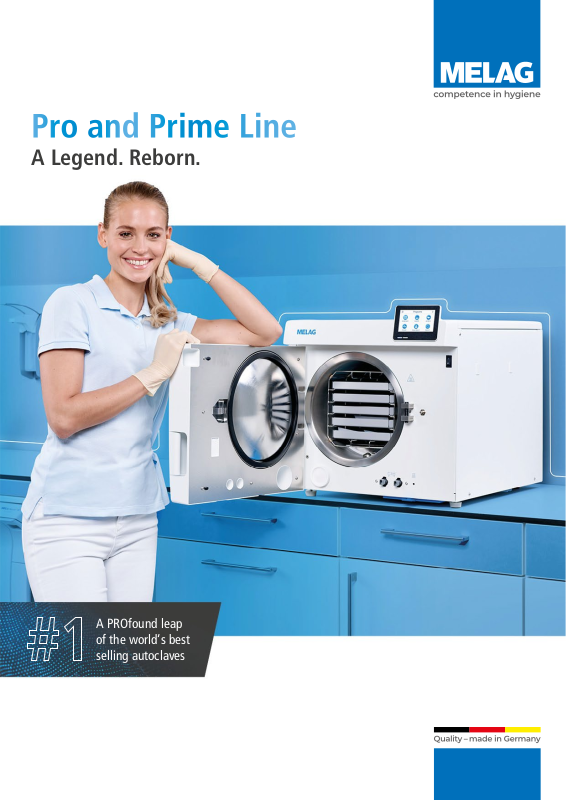

Page 1
Pro and Prime Line
A Legend. Reborn.
A PROfound leap
of the world‘s best
selling autoclaves
Page 2
AFFORDABLEAFFORDABLEAFFORDABLE
Pro-Class
Pro Line and Prime Line
HAS SHAPED AN ERA TIME FOR A NEW ERA
Sold Worldwide. Loved Worldwide. Worldwide, we are the only family-run manufacturer of
autoclaves that develops and produces exclusively in Germany. With over 300,000 units sold, the
Pro-Class has inspired customers for decades with outstanding MELAG quality - made in Germany.
The time has come to reinvent the best selling classic.
Do you already know the Pro-Class autoclaves? Then you will love the new generation of
MELAG devices - from their functions to their price! The all-new Pro and Prime autoclaves
impress across the line: Astonishing performance, smart functions as well as a modern and
extremely sturdy design open up new possibilities. We make no compromises when it comes
to reliability and develop under the highest quality requirements at our headquarters in
Berlin – since we know, an autoclave should never fail.
Quality – made in Germany
for maximum reliability in everyday practice
Made in Germany. Made for You.
Future needs heritage: We have been developing, producing
and optimizing our system solutions for instrument
reprocessing at our headquarters in Berlin for over 70 years.
MELAG stands for the art of engineering and production
“made in Germany” with the highest levels of quality.
Impressive speed
in accordance to EN 13060 for time-saving workfl ows
Optimal drying results
for protection against re-contamination and corrosion
Uncompromising comfort
for easy and safe handling
Smart documentation concept
for complete and legally compliant proof
Eco-friendly innovations
for massive savings of electricity and water
AFFORDABLE
Page 3
A great deal to love
Offer more. Need less.
Whether loading, sterilization or documentation - the compact MELAG class B autoclaves offer
a price-performance ratio that stands up to any comparison. So you not only sterilize more
instruments in less time, but also save money. And all this in the MELAG quality you know and
appreciate from the proven predecessor models of the Pro-Class.
more favorable price
for an economical use from the first day.*
More
PERFORMANCE.
less maintenance work
due to extended service intervals of 2 years or
2,000 cycles.*
shorter cycle times
enable an efficient hygiene workflow and thus more
time for what really matters: Your patients.*
more loading
on up to 5 trays gives you the flexibility you need in
your daily practice: Now and in the future.*
more intuitive operation
with Smart-Touch Display, LED status and
documentation via USB stick, the user experience is
taken to the next level.
lower water consumption
thanks to the trend-setting stand-alone concept
with highly effective air cooling.**
Less
COST.
We love infection control.
And the environment.
The Pro and Prime Line combine environmental protection with economic
efficiency. Thanks to the groundbreaking stand-alone concept, Power
Save energy-saving function and DRYtelligence drying (included in the
Prime Line), our autoclaves are the best solution - for your budget and the
environment.
Quick Fact: Do you need an autoclave for sterilizing even
larger loads in record time?
Then take advantage of our Premium-Class Evolution with
worldwide unique product highlights.
* Compared to the predecessor models of the Pro-Class.
**Compared to the predecessor models of the Pro-Class with fixed water connection.
Page 4
2 sizes. 4 models. Endless possibilities.
As versatile as you are.
In order to meet individual needs, the all-new MELAG autoclaves are available in 17 or 23 litre sizes
and with different scopes of features.
Vacuclave 118 & Vacuclave 123
Our entry-level models: The Pro Line offers everything you need for a safe, convenient and resource-saving sterilization.
Powerful class B
vacuum procedure
Reliable sterilization of up
to 6 kg on 5 trays in only 15
to 28 minutes (plus drying) made in Germany.
Stand-alone
device concept
Integrated water tanks and
highly effective air cooling for
site-independent operation
without cooling water.
Smart-Touch Display
with LED status
Touchscreen with intuitive user
interface for simple operation
like your smartphone - even
with medical gloves.
Power Save energy
saving mode
Heater and display go into
standby mode between
sterilizations for top energy
effi ciency.*
Vacuclave 318 & Vacuclave 323
Our price-performance champions: In addition to the presented product highlights, the Prime Line
impresses with high loading capacities, excellent drying results and extended batch approval functions.
Connectivity and
data logging
Compliance with legal
requirements by saving the
sterilization parameters via
USB or network.*
EasyCare
routine concept
User-friendly optimizations for
effi cient fi lter replacement,
tank cleaning and water
supply.
Love the
quality.
Love the
Line ProLine
Prime
Heavy Duty-B program
Stay all around fl exible: The Prime Line offers
an outstanding capacity for up to 8 kg load.
DRYtelligence drying
The algorithm-controlled drying ensures
optimum results and a reduction in drying time
of up to 80%.
ProControl batch approval
ProControl enables batch approval and user
authentication directly on the display without
extra software solutions.
Barcode label printing
MELAprint 80 can be deployed to print barcode
labels for marking and complete traceability of
instruments.
* Network capability and Power Save as of 01.07.2023 (update can be performed independently by practice team)
price.
Page 5
For your safety: Everything from one source.
The MELAG System Solution.
Every practice and clinic is unique. With individual system solutions, we are by your side.
Our washer-disinfectors, sealing devices, autoclaves and software solutions turn your dreams of
optimized workflows into reality. The perfect interplay of MELAG System Solutions allows you to
achieve greater time, space and cost-savings in instrument reprocessing.
Personal:
One central contact to
answer all your instrument
reprocessing questions
Efficiency:
Cost optimization by synchronizing
the service of all devices in your
decontamination room
Process-optimized:
Coordinated operating concept
to avoid malfunctions in
everyday practice
Unique as a product, unbeatable in a system:
Packaging with MELAseal or MELAstore Steam sterilization with Vacuclave Marking with MELAprint 80Documentation & approval with MELAtraceCleaning & disinfection with MELAtherm
Page 6
Find the right accessories for you. And your Vacuclave.
Expand what‘s possible.
A variety of accessories enables you to assemble the configuration which best suits your needs.
Vacuclave thus ensures maximum safety and efficiency - ideally matched to your individual
instrument reprocessing workflow.
1. Select your loading configuration:
For optimal use of the sterilization chamber, we offer coordinated loading systems.
Mount A Plus
for accommodating five trays for
individual instruments or three
MELAstore Boxes 100 for
instrument sets.
Mounts:
Order no. ME82630 for 45 cm deep chamber
Order no. ME82620 for 35 cm deep chamber
Trays:
Order no. ME00230 for 45 cm deep chamber
Order no. ME00280 for 35 cm deep chamber
Foil holder
enables the vertical sterilization of
wrapped instruments for optimal
drying results.
Order no. ME22420 for 45 cm deep chamber
Order no. ME22410 for 35 cm deep chamber
Impressing across the line:
Discover the promising advantages
of our new Pro and Prime Line
www.melag.com/en/multimedia
Chamber Protect
for careful cleaning of the stainless steel
surfaces. The chamber cleaning set
contains a powerful cleaner, 50 lint-free
cloths and 1 microfiber cloth.
Order no. ME01081
2. Select your water treatment:
MELAdem supplies high-quality demineralized water for optimum value retention of the autoclave and instruments.
MELAdem 40
is a compact ion exchanger system for
practices and clinics with up to three
sterilization cycles per day.
Order no. ME01049 Order no. ME01047
MELA dem 47
is a high performance reverse osmosis
system for practices and clinics with an
increased sterilization demand.
3. Select further accessories for documentation:
The Pro and Prime Line offers legally compliant documentation and approval with integrated USB and network interfaces.
MELAtrace
MELA print 80
MELAdem 53 / 53 C
is a water treatment unit with very high
capacity for MELAtherm and up to three
other devices.
Order no. for MELAdem 53: ME01038
Order no. for MELAdem 53 C: ME01036
MELAG USB Stick
MELA jet
enables the instruments to be sprayed
with demineralized water.*
Order no. ME27300
*Compatible with MELAdem 40 and MELAdem 53
MELAcontrol Helix
ensures professional documentation,
approval and traceability of the entire
decontamination process.**
Order no. ME21128 without loading management
Order no. ME21138 with loading management
**Compatible from 01.07.2023
prints in connection with MELAtrace
or the Prime Line barcode labels for
optimal marking and traceability of the
instruments.**
Order no. ME01108
saves the sterilization log files of the
Pro and Prime Line on a digital data
carrier.
Order no. ME19901 Order no. ME01080
provides reliable control of the
sterilization result as a helix test system
with 250 indicator strips.
Page 7
Facts and figures at a glance
Technical specifications
The Pro and Prime Line guarantee fast sterilization tailored to your needs with a wide range of programs:
Programs of Pro Line
Universal-B 134 °C, holding time: 5,5 min 22 – 27 min 24 – 31 min 20 min
Quick-S 134 °C, holding time: 3,5 min 15 – 18 min 16 – 20 min 5 min
Quick-B 134 °C,holding time: 5,5 min 22 – 25 min 24 – 27 min 10 min
Gentle-B 121 °C, holding time: 20,5 min 37 – 42 min 39 – 47 min 20 min
Prion-B 134 °C, holding time: 20,5 min 37 – 42 min 37 – 48 min 20 min
Programs of Prime Line
Universal-B 134 °C, holding time: 5,5 min 22 – 27 min 24 – 31 min > 5 min 20 min
Quick-S 134 °C, holding time: 3,5 min 15 – 18 min 16 – 20 min > 5 min 5 min
Quick-B 134 °C, holding time: 5,5 min 22 – 25 min 24 – 27 min > 5 min 10 min
Gentle-B 121 °C,holding time: 20,5 min 37 – 42 min 39 – 47 min > 5 min 20 min
Prion-B 134 °C, holding time: 20,5 min 37 – 42 min 37 – 48 min > 5 min 20 min
Heavy
Duty-B
* Times for Type-B programs for single wrapped load and Quick-S for unpacked load. Times may vary depending on the type and quantity of load.
** DRYtelligence automatically adjusts the drying process to your load. The intelligent drying process thus achieves optimum drying results at all times
134 °C, holding time: 5,5 min 22 – 32 min 24 – 35 min > 5 min 30 min
Vacuclave 118 operating times
(at minimum to maximum load) *
Vacuclave 318 operating times
(at minimum to maximum load) *
Vacuclave 123 operating times
(at minimum to maximum load) *
Vacuclave 323 operating times
(at minimum to maximum load) *
DRYtelligence** time controlled
Drying
(time controlled)
Drying
The Pro and Prime Line can be installed quickly and easily as table top autoclaves in any reprocessing room.
Get an overview of the technical data:
Pro Line Prime Line (Available starting 01.07.2023)
Vacuc lave 118 Vacuclave 123 Vacuclave 318 Vacuclave 323
Order no. ME10118 ME10123 ME10318 ME10323
Device type Stand-alone class B autoclave (Compatible with additional water treatment unit)
Chamber size ø 25 cm x 35 cm long ø 25 cm x 45 cm long ø 25 cm x 35 cm long ø 25 cm x 45 cm long
Chamber volume 17 lit r es 23 litres 17 litr e s 23 litres
Load quantity
Device dimensions (W x H x D) 47 x 50 x 64 cm (device fits on a 60 cm table top)
Weight 48 kg 49 kg 48 kg 49 kg
Power supply 220 – 230 V / 50 – 60 Hz
Power consumption 2.10 0 Watt s
Documentation interfaces USB, network (Network capability from 01.07.2023)
max. 5 kg instruments /
1,8 kg textiles
max. 6 kg instruments /
2 kg textiles
max. 7 kg instruments /
1,8 kg textiles
max. 8 kg instruments /
2 kg textiles
Rev.0-23/0229-01.23-EN-ME
Save paper, protect the environment:
In order to reduce paper, we provide you with electronic user documentation via our
Download Center. Further information at: www.melag.com
Loading...
