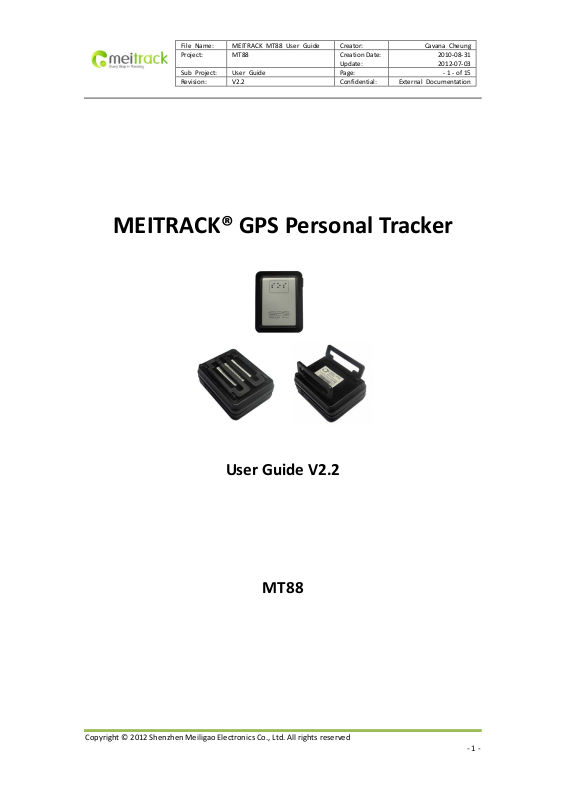

MEITRACK® GPS Personal Tracker
2010-08-31
2012-07-03
User Guide V2.2
MT88
Copyright © 2012 Shenzhen Meiligao Electronics Co., Ltd. All rights reserved
- 1 -
File Name: MEITRACK MT88 User Guide Creator: Cavana Cheung
Project: MT88 Creation Date:
Sub Project: User Guide Page: - 2 - of 15
Revision: V2.2 Confidential: External Documentation
Update:
2010-08-31
2012-07-03
Contents
1. Copyright and Disclaimer .............................................................................................................................. - 3 -
2. Applications .................................................................................................................................................. - 3 -
3. Product Function and Specifications ............................................................................................................. - 3 -
3.1 Product Function ...................................................................................................................................... - 3 -
3.2 Specifications ........................................................................................................................................... - 4 -
4. MT88 and Accessories .................................................................................................................................. - 4 -
5. View .............................................................................................................................................................. - 5 -
6. First Use ........................................................................................................................................................ - 5 -
6.1 Install SIM Card ........................................................................................................................................ - 5 -
6.2 Charging ................................................................................................................................................... - 5 -
6.3 LED Indications ......................................................................................................................................... - 5 -
6.4 Track by Calling ......................................................................................................................................... - 6 -
6.4.1 Multiple Phone numbers– A71 ..................................................................................................... - 7 -
6.4.2 Listening-in (Voice Monitoring)– A72 ............................................................................................ - 7 -
6.4.3 Sleep Mode– A73 .......................................................................................................................... - 8 -
6.4.4 Time Zone– B35 ............................................................................................................................ - 8 -
6.5 Configure by Computer ............................................................................................................................ - 9 -
6.5.1 SMS Tracking ............................................................................................................................... - 10 -
6.5.2 GPRS Tracking .............................................................................................................................. - 13 -
Copyright © 2012 Shenzhen Meiligao Electronics Co., Ltd. All rights reserved
- 2 -
File Name: MEITRACK MT88 User Guide Creator: Cavana Cheung
Project: MT88 Creation Date:
Sub Project: User Guide Page: - 3 - of 15
Revision: V2.2 Confidential: External Documentation
Update:
2010-08-31
2012-07-03
1. Copyright and Disclaimer
Copyright © 2012 MEITRACK. All rights reserve
MEITRACK and
.
The user manual may be changed without prior notification.
This user manual, or any part thereof, may not be reproduced for any purpose whatsoever without the written
authorization of Meiligao (MEITRACK), or transmitted in any form, either electronically or mechanically, including
photocopying and recording.
In no event shall Meiligao (MEITRACK) be liable for direct, indirect, special, incidental, or consequential damages
(including but not limited to economic loss, personal injury, and loss of asset and property) arising out of the use
or inability or illegality to use the product or documentation.
are trademarks that belong to Shenzhen Meiligao Electronics Co., Ltd.
2. Applications
Personal Tracking and Protection
Pet Tracking
Assets Tracking and Security
Vehicle Tracking
3. Product Function and Specifications
3.1 Product Function
SiRF III GPS and Quad Band GSM 850/900/1800/1900Mhz
AGPS ( with GSM Base Station ID)
Mini Size (49.30mm x 37.80mm x 18.00mm) and Lightweight 40g
Low Power Consumption and Long Standby Time
Recessed Braille SOS Button
Track by SMS/GPRS (MEITRACK Protocol)
Track on Demand
Track by Time Interval
Track by Distance Interval
Track on Mobile Phone
Listen-in (Voice Monitoring)
Internal 4Mb Memory for Logging
Inbuilt Motion Sensor
Inbuilt Battery
SOS Alarm
Geo-fence Alarm
Copyright © 2012 Shenzhen Meiligao Electronics Co., Ltd. All rights reserved
- 3 -
File Name: MEITRACK MT88 User Guide Creator: Cavana Cheung
Project: MT88 Creation Date:
Sub Project: User Guide Page: - 4 - of 15
Revision: V2.2 Confidential: External Documentation
Update:
GPS Blind Area Alarm
Low Battery Alarm
Speeding Alarm
Mileage Report
3.2 Specifications
Items Specifications
Dimension 48x36x15mm
Weight 40g
Charging Voltage Mini USB charging interface, DC4.2V~5.5V/400mA
Back-up Battery 500mAh/3.7V
Power
Consumption
Operating
Temperature
Humidity 5%~95%
Work Time 48 hours in power-saving mode and 7 hours in normal mode
LED 2 LED lights to show power, GPS, GSM and other status
Button 1 SOS and 1 power on/off
Microphone Internal microphone for wiretapping
Memory 4MB Byte
Sensor Accelerometer
GSM Frequency GSM 850/900/1800/1900MHz
GPS Chip Latest GPS SIRF-Star III chipset
GPS Sensitivity -159dB
Positioning
Accuracy
65mA standby current
-20℃~55℃
10 meters, 2D RMS
2010-08-31
2012-07-03
4. MT88 and Accessories
MT88 with Battery
Desktop Charger USB Data Cable CD
Copyright © 2012 Shenzhen Meiligao Electronics Co., Ltd. All rights reserved
- 4 -
(with Rubber Cover)
On/Off
USB
5. View
Front & Back View
File Name: MEITRACK MT88 User Guide Creator: Cavana Cheung
Project: MT88 Creation Date:
Sub Project: User Guide Page: - 5 - of 15
Revision: V2.2 Confidential: External Documentation
Update:
2010-08-31
2012-07-03
Recessed SOS Button
Side View
Clip for Collar or Belt GPS LED GSM LED
6. First Use
SIM Card Holder
Clip for Collar or Belt
Microphone
For Voice Monitoring
6.1 Install SIM Card
Check that the SIM has not run out of credit (test the SIM in a phone to make sure it can send and receive SMS);
Check that the SIM Lock code is turned off;
If you require the function of sending an SMS location report to the authorized phone number when it makes a
call to the MT88, please make sure the SIM installed supports displaying caller ID;
Before installing the SIM card, turn off the power for MT88;
Take off the rubber cover for SIM Card holder and then insert the SIM Card.
6.2 Charging
Please make sure to charge the battery for at least 3 hours. 8 hours is highly appreciated.
6.3 LED Indications
Press and hold the Power On/Off button for 3~5 seconds to turn on/off MT88.
GPS LED (Blue)
On One button is pressed or charging.
Flashing ( every 0.1 second) Initializing or Power is not enough
