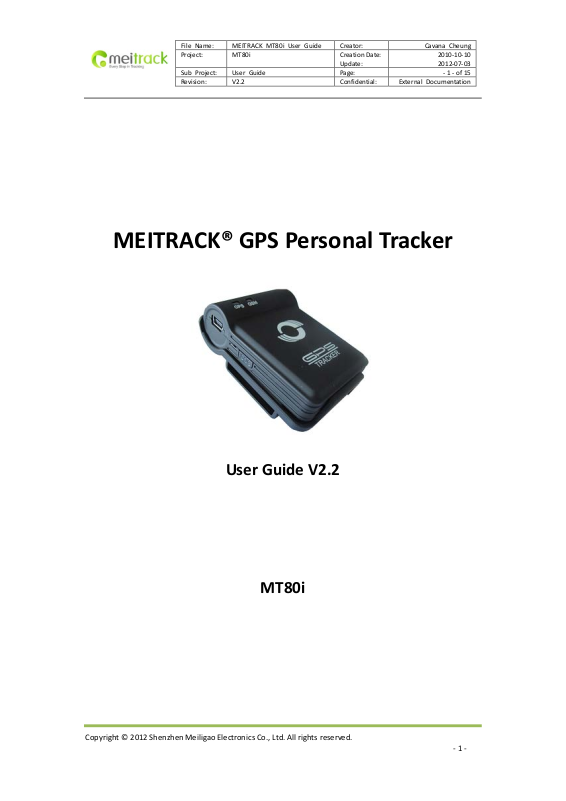

MeiTrack MT80i User Manual

File Name: MEITRACK MT80i User Guide Creator: Cavana Cheung Project: MT80i Creation Date:

Sub Project: User Guide Page: - 1 - of 15 Revision: V2.2 Confidential: External Documentation

Update:

MEITRACK® GPS Personal Tracker

2010-10-10 2012-07-03

User Guide V2.2

MT80i

- 1 -

File Name: MEITRACK MT80i User Guide Creator: Cavana Cheung Project: MT80i Creation Date:

Sub Project: User Guide Page: - 2 - of 15 Revision: V2.2 Confidential: External Documentation

Update:

2010-10-10 2012-07-03

Contents

1. Copyright and Disclaimer .............................................................................................................................. - 3 -

2. Applications .................................................................................................................................................. - 3 -

3. Product Function and Specifications ............................................................................................................. - 3 -

3.1 Product Function ...................................................................................................................................... - 3 -

3.2 Specifications ........................................................................................................................................... - 4 -

4. MT80i and Accessories ................................................................................................................................. - 4 -

5. View .............................................................................................................................................................. - 5 -

6. First Use ........................................................................................................................................................ - 5 -

6.1 Install SIM Card ........................................................................................................................................ - 5 -

6.2 Charging ................................................................................................................................................... - 5 -

6.3 LED Indications ......................................................................................................................................... - 5 -

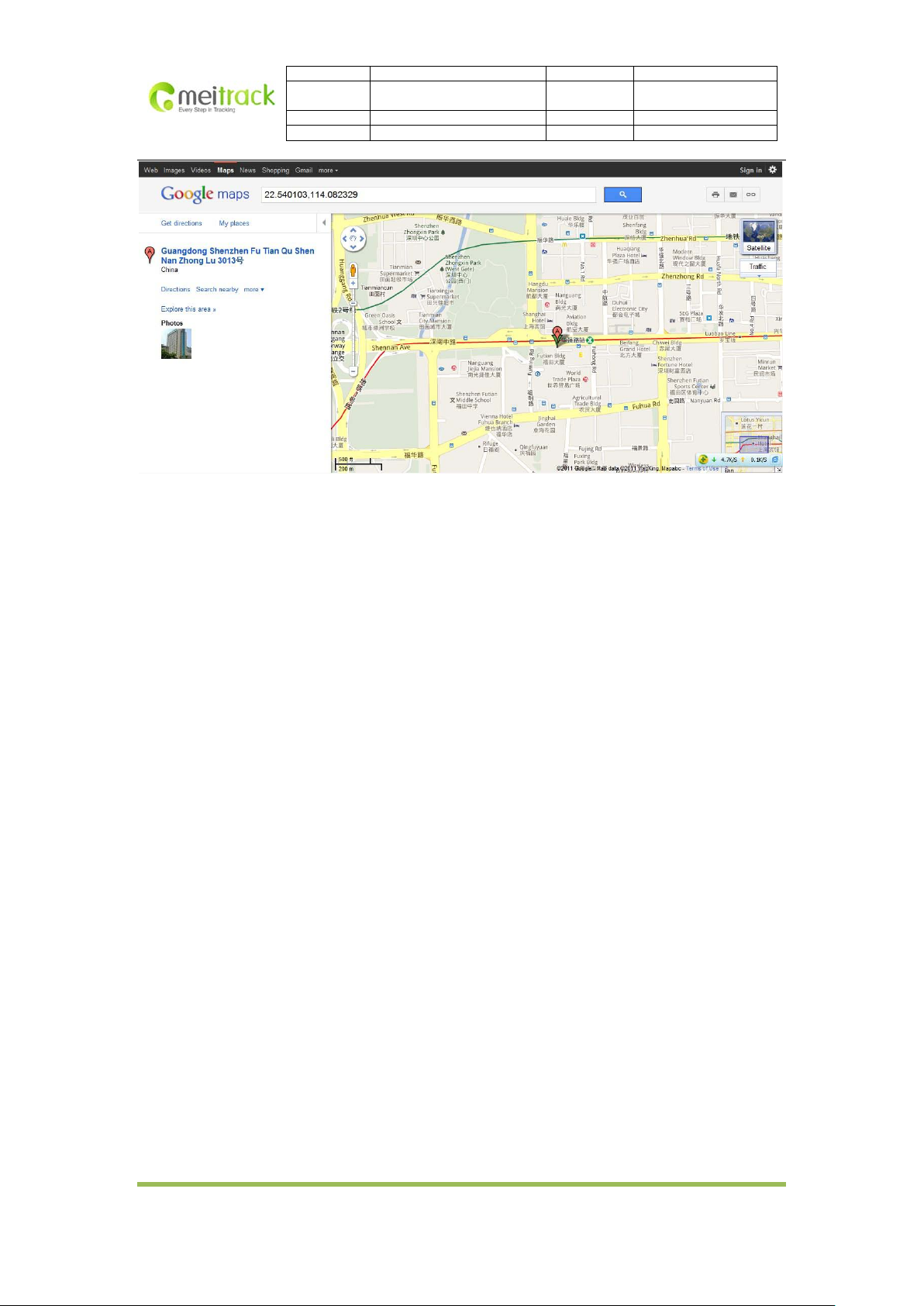

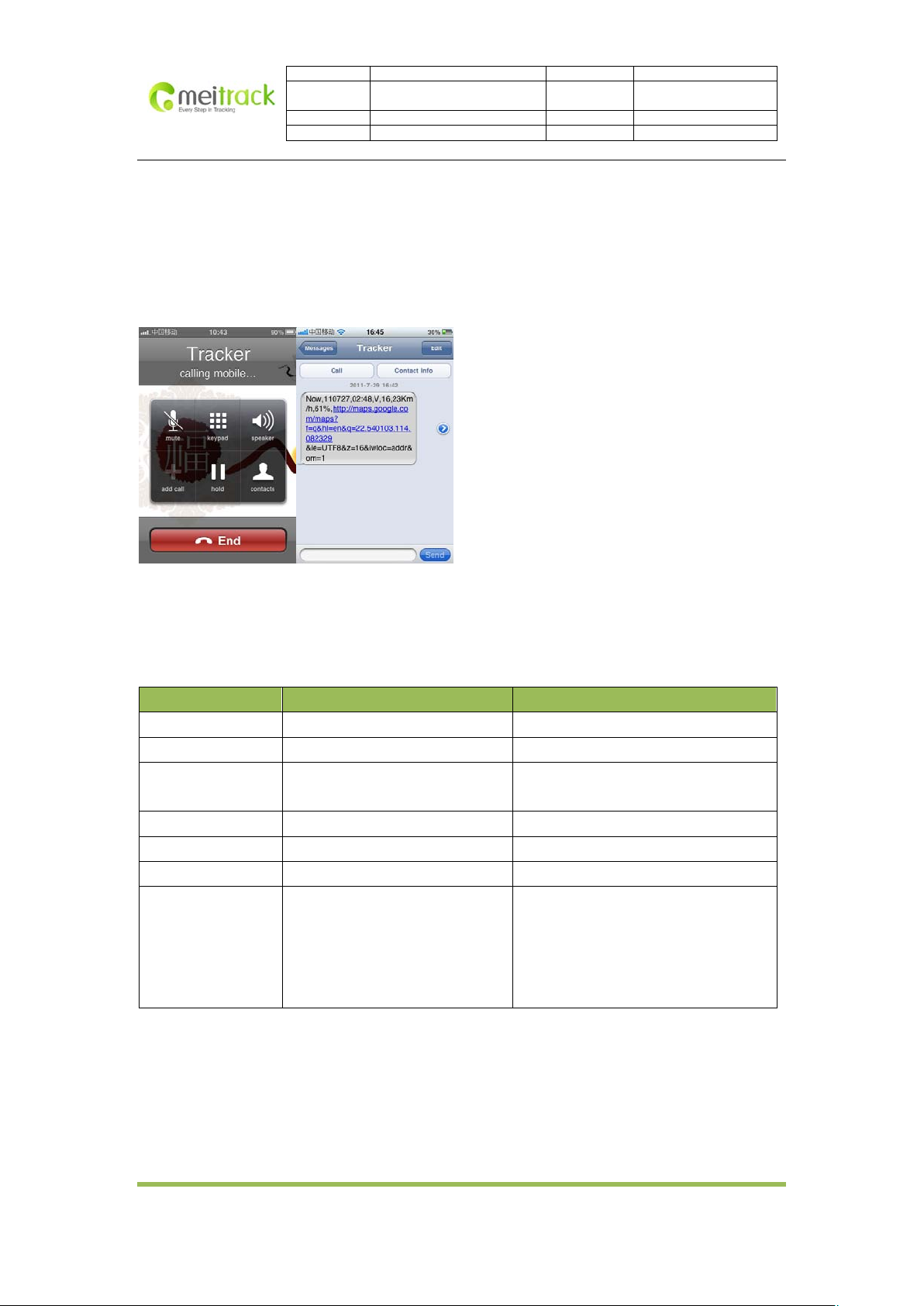

6.4 Track by Calling ......................................................................................................................................... - 6 -

6.4.1 Multiple Phone numbers– A71 ..................................................................................................... - 7 -

6.4.2 Listening-in (Voice Monitoring)– A72 ............................................................................................ - 7 -

6.4.3 Sleep Mode– A73 .......................................................................................................................... - 8 -

6.4.4 Time Zone– B35 ............................................................................................................................ - 8 -

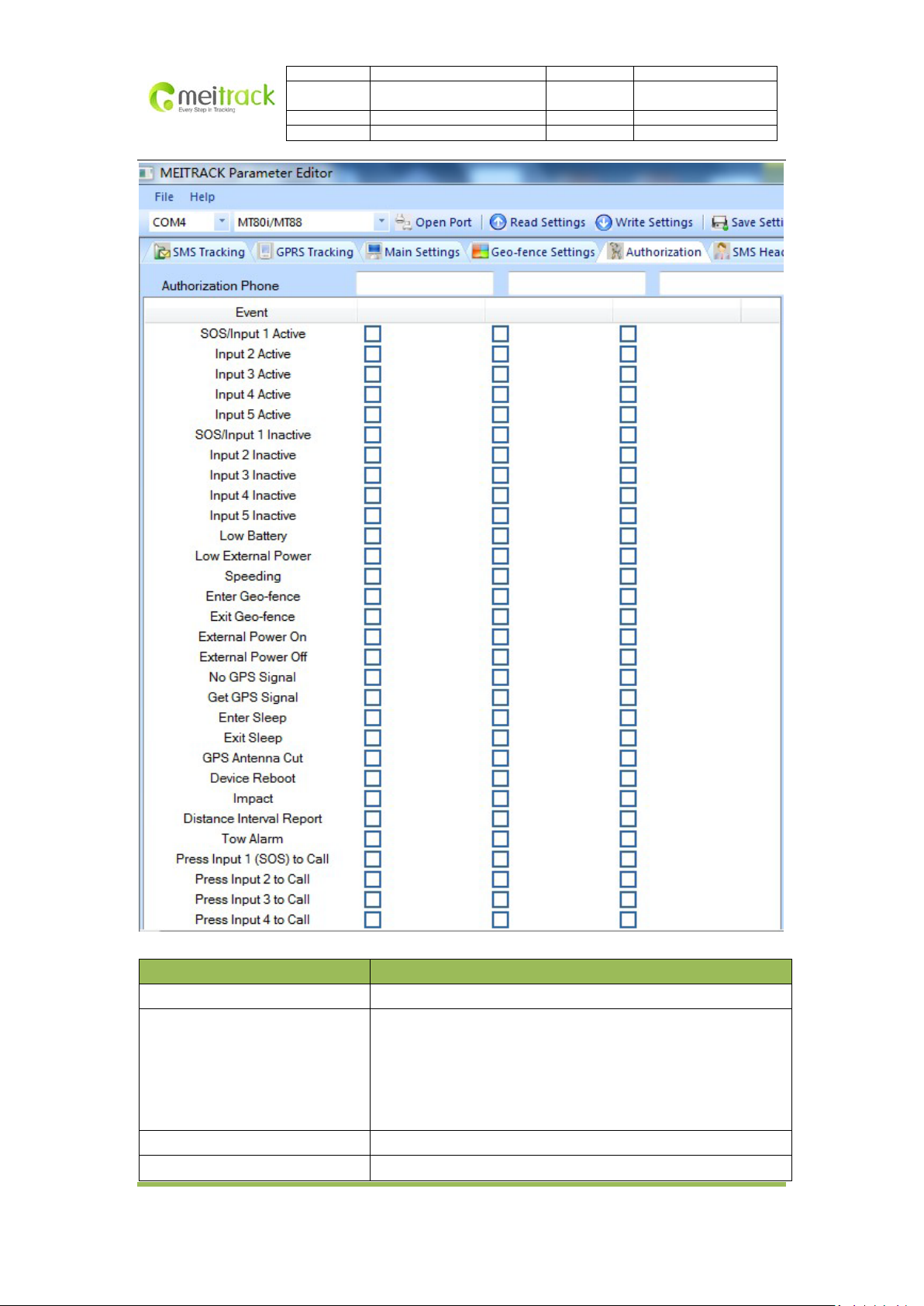

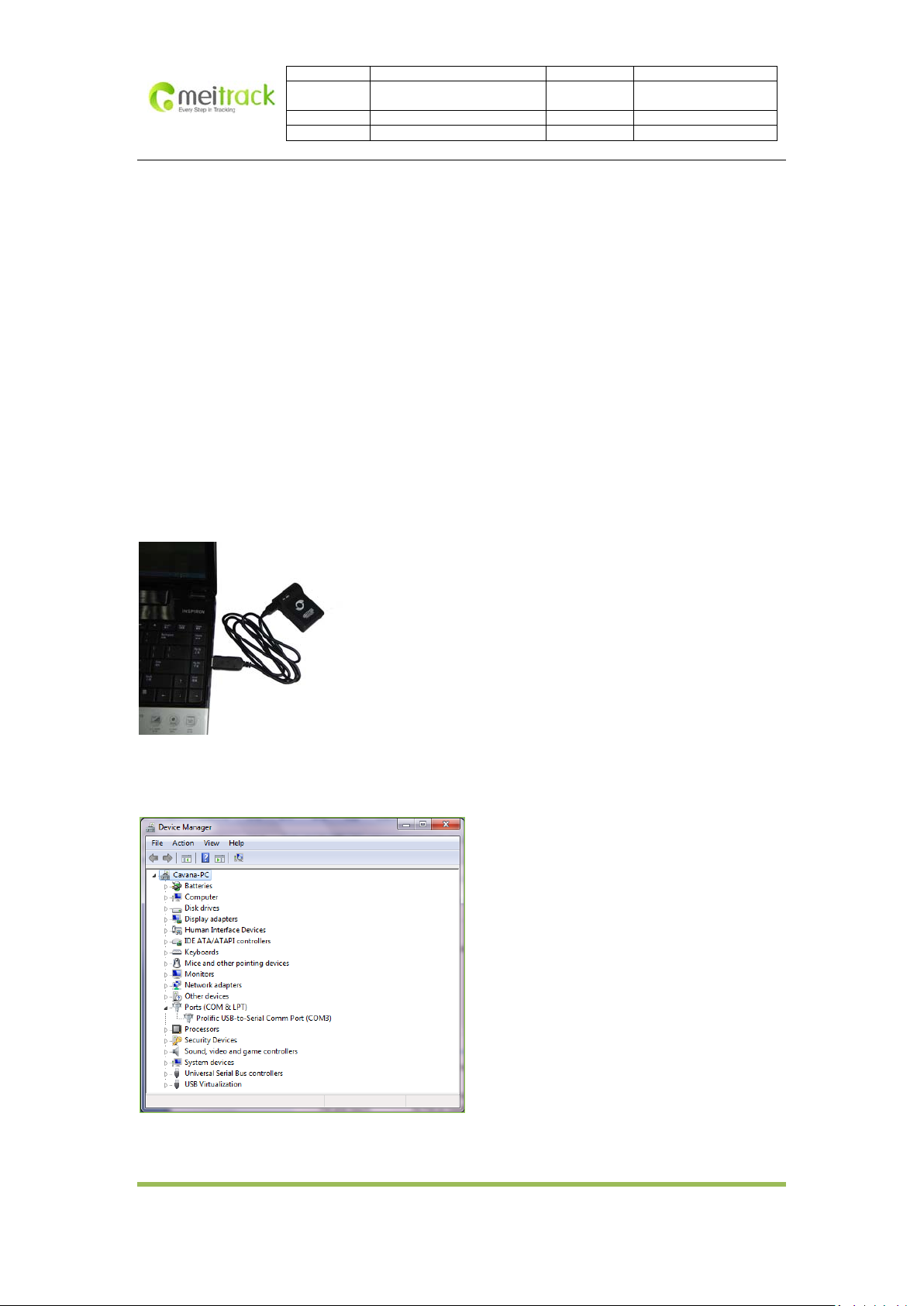

6.5 Configure by Computer ............................................................................................................................ - 9 -

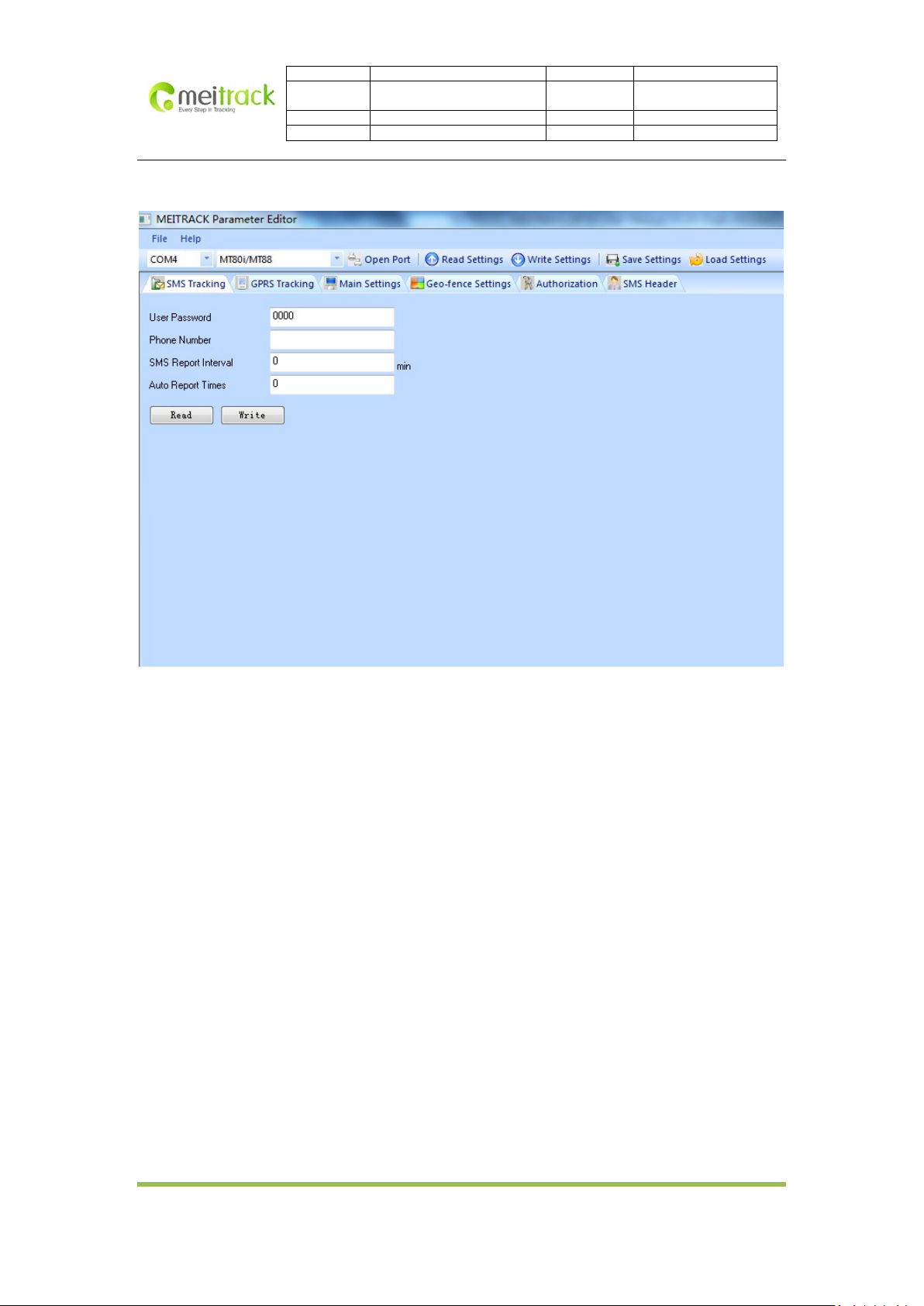

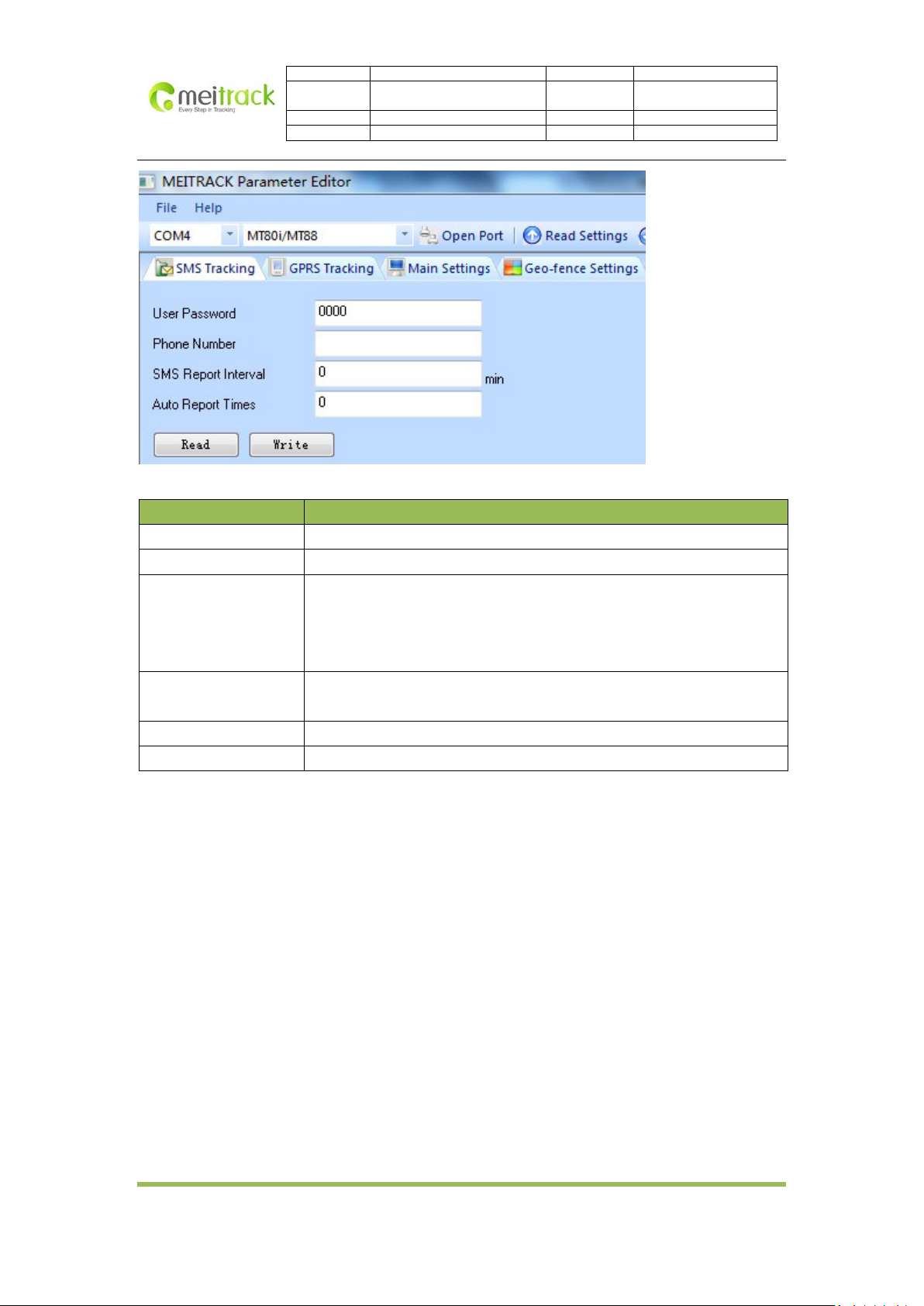

6.5.1 SMS Tracking ............................................................................................................................... - 10 -

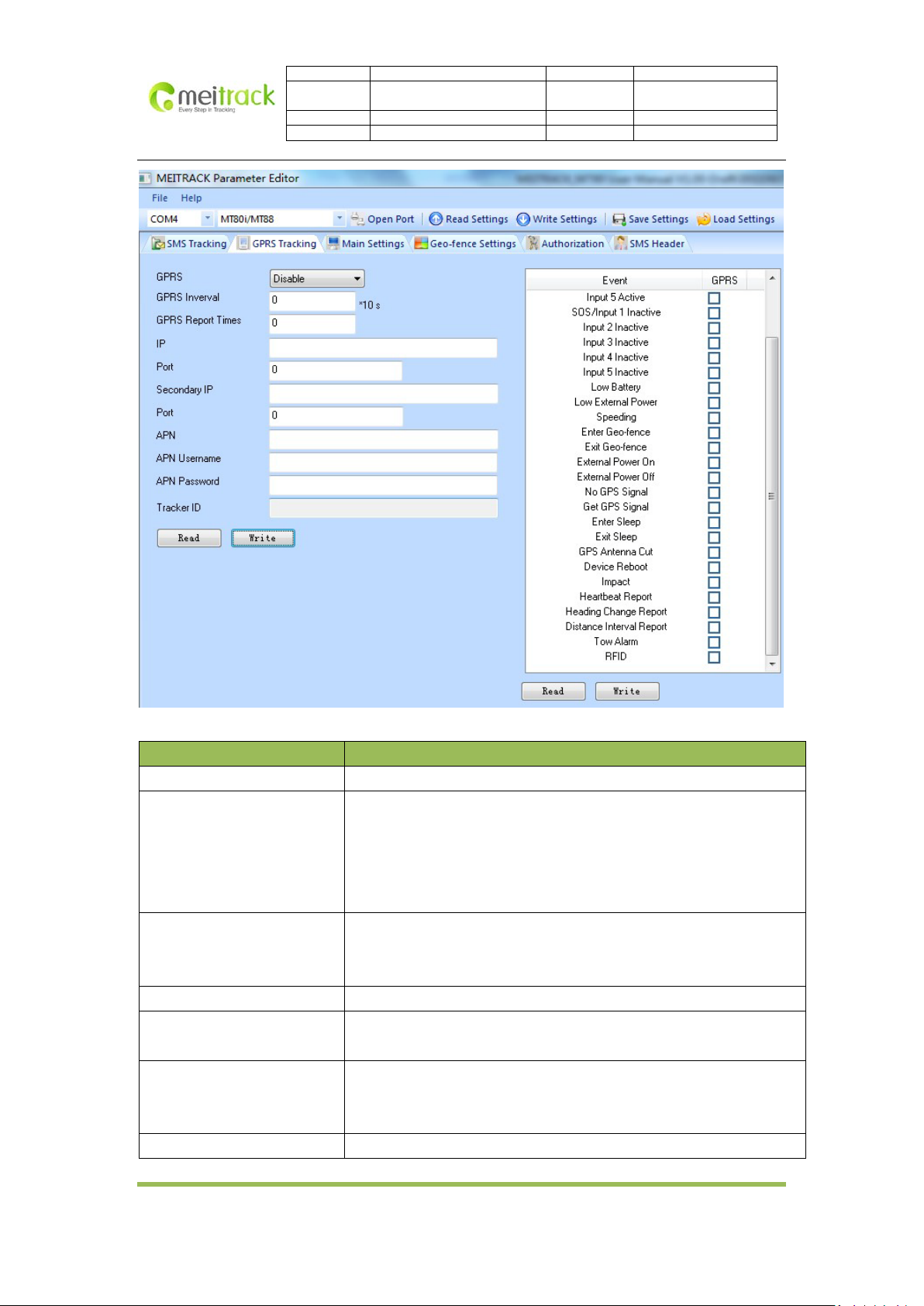

6.5.2 GPRS Tracking .............................................................................................................................. - 13 -

- 2 -

File Name: MEITRACK MT80i User Guide Creator: Cavana Cheung Project: MT80i Creation Date:

Sub Project: User Guide Page: - 3 - of 15 Revision: V2.2 Confidential: External Documentation

Update:

2010-10-10 2012-07-03

1. Copyright and Disclaimer

MEITRACK and

The user manual may be changed without prior notification.

This user manual, or any part thereof, may not be reproduced for any purpose whatsoever without the written

authorization of Meiligao (MEITRACK), or transmitted in any form, either electronically or mechanically, including

photocopying and recording.

In no event shall Meiligao (MEITRACK) be liable for direct, indirect, special, incidental, or consequential damages

(including but not limited to economic loss, personal injury, and loss of asset and property) arising out of the use

or inability or illegality to use the product or documentation.

are trademarks that belong to Shenzhen Meiligao Electronics Co., Ltd.

2. Applications

 Personal Tracking and Protection  Pet Tracking  Assets Tracking and Security  Vehicle Tracking

3. Product Function and Specifications

3.1 Product Function

 SiRF III GPS and Quad Band GSM 850/900/1800/1900Mhz  Small Size (61x42x15mm) and Lightweight 50g  Low Power Consumption and Long Standby Time  Belt Clip for watch belt or pet collar  AGPS ( with GSM Base Station ID)  Track by SMS/GPRS (MEITRACK Protocol)  Track on Demand  Track by Time Interval  Track by Distance Interval  Track on Mobile Phone  Listen-in (Voice Monitoring)  Internal 4Mb Memory for Logging  Inbuilt Motion Sensor  Inbuilt Battery  SOS Alarm  Geo-fence Alarm

- 3 -

File Name: MEITRACK MT80i User Guide Creator: Cavana Cheung Project: MT80i Creation Date:

Sub Project: User Guide Page: - 4 - of 15 Revision: V2.2 Confidential: External Documentation

Update:

2010-10-10 2012-07-03

 GPS Blind Area Alarm  Low Battery Alarm  Speeding Alarm  Mileage Report

3.2 Specifications

Items Descriptions

Dimension 61x42x15mm

Weight 50g

Charging Voltage Mini USB charging interface, DC4.2V~5.5V/400mA

Back-up Battery 800mAh/3.7V rechargeable and replaceable lithium-ion battery(NokiaBL-5C compatible)

Power

Consumption

Operating

Temperature

Humidity 5%~95%

Work Time 72 hours in power-saving mode and 10 hours in normal mode

LED 2 LED lights to show power, GPS, GSM and other status

Button 1 SOS and 1 power on/off

Microphone Internal microphone for wiretapping

Memory 4MB Byte

Sensor Accelerometer

GSM Frequency GSM 850/900/1800/1900MHz

GPS Chip Latest GPS SIRF-Star III chipset

GPS Sensitivity -159dB

Positioning

Accuracy

65mA standby current

-20℃~55℃

10 meters, 2D RMS

4. MT80i and Accessories

MT80i with Clip

TwoBatteries Car Charger

Desktop Charger

USB Data Cable

- 4 -

Travel Charger

5. View

File Name: MEITRACK MT80i User Guide Creator: Cavana Cheung Project: MT80i Creation Date:

Sub Project: User Guide Page: - 5 - of 15 Revision: V2.2 Confidential: External Documentation

Update:

2010-10-10 2012-07-03

1. GPS LED (Blue)

2. GSM LED (Green)

3. Mini USB

4. Microphone

5. SOS Button

6. Power On/Off Button

7. Lanyard Loop

6. First Use

6.1 Install SIM Card

Check that the SIM has not run out of credit (test the SIM in a phone to make sure it can send and receive SMS);

Check that the SIM Lock code is turned off;

If you require the function of sending an SMS location report to the authorized phone number when it makes a

call to the MT80i, please make sure the SIM installed supports displaying caller ID.

Before installing the SIM card, turn off the power for MT80i.

Take out the battery and insert a workable SIM card and put back the battery and back cov er.

6.2 Charging

Please make sure to charge the battery for at least 3 hours. 8 hours is highly appreciated.

6.3 LED Indications

Press and hold the Power On/Off button for 3~5 seconds to turn on/off MT80i.

GPS LED (Blue)

On One button is pressed or charging.

Flashing ( every 0.1 second) Initializing

Flashing (0.1 second on and 2.9 seconds off) MT80i has a GPS fix

Flashing (1 second on and 2 seconds off) MT80i has no GPS fix

GSM LED (Green)

On One call is coming in / one call is being made

Flashing ( every 0.1 second) Initializing

Flashing (0.1 second on and 2.9 seconds off) MT80i is connected to the GSM network

Flashing (1 second on and 2 seconds off) MT80i is not connected to the GSM network

- 5 -
