MEITRACK MD522S User Guide

MEITRACK MD522S MDVR

User Guide

MEITRACK MD522S User Guide

Change History

File Name MEITRACK MD522S User Guide

Project MD522S Creation Date

Update Date

2018-09-29

2019-02-23

Subproject User Guide Total Pages 49

Version V1.1 Confidential External Documentation

MEITRACK MD522S User Guide

Contents

1 Copyright and Disclaimer ...............................................................................................................................................................- 5 -

2 Product Introduction .....................................................................................................................................................................- 5 -

2.1 Product Overview .............................................................................................................................................................- 5 -

2.2 Product Functions .............................................................................................................................................................- 5 -

2.2.1 DVR Functions ..........................................................................................................................................................- 5 -

2.2.2 Position Tracking ......................................................................................................................................................- 5 -

2.2.3 Alerts........................................................................................................................................................................- 6 -

2.2.4 Other Functions .......................................................................................................................................................- 6 -

2.2.5 Function Accessories ...............................................................................................................................................- 6 -

2.3 Product Specifications ......................................................................................................................................................- 6 -

2.4 Main Device and Accessories ............................................................................................................................................- 8 -

2.5 About the MDVR ...............................................................................................................................................................- 9 -

2.5.1 Appearance ..............................................................................................................................................................- 9 -

2.5.2 Interface Definition ................................................................................................................................................- 10 -

2.5.3 LED indicator ..........................................................................................................................................................- 11 -

2.5.4 I/O Port ..................................................................................................................................................................- 12 -

3 How it Works ...............................................................................................................................................................................- 13 -

3.1 Working Diagram ............................................................................................................................................................- 13 -

3.2 Working Mode ................................................................................................................................................................- 14 -

3.3 Peripheral Wiring Diagram..............................................................................................................................................- 15 -

4 Fast Installing and Using the MDVR .............................................................................................................................................- 16 -

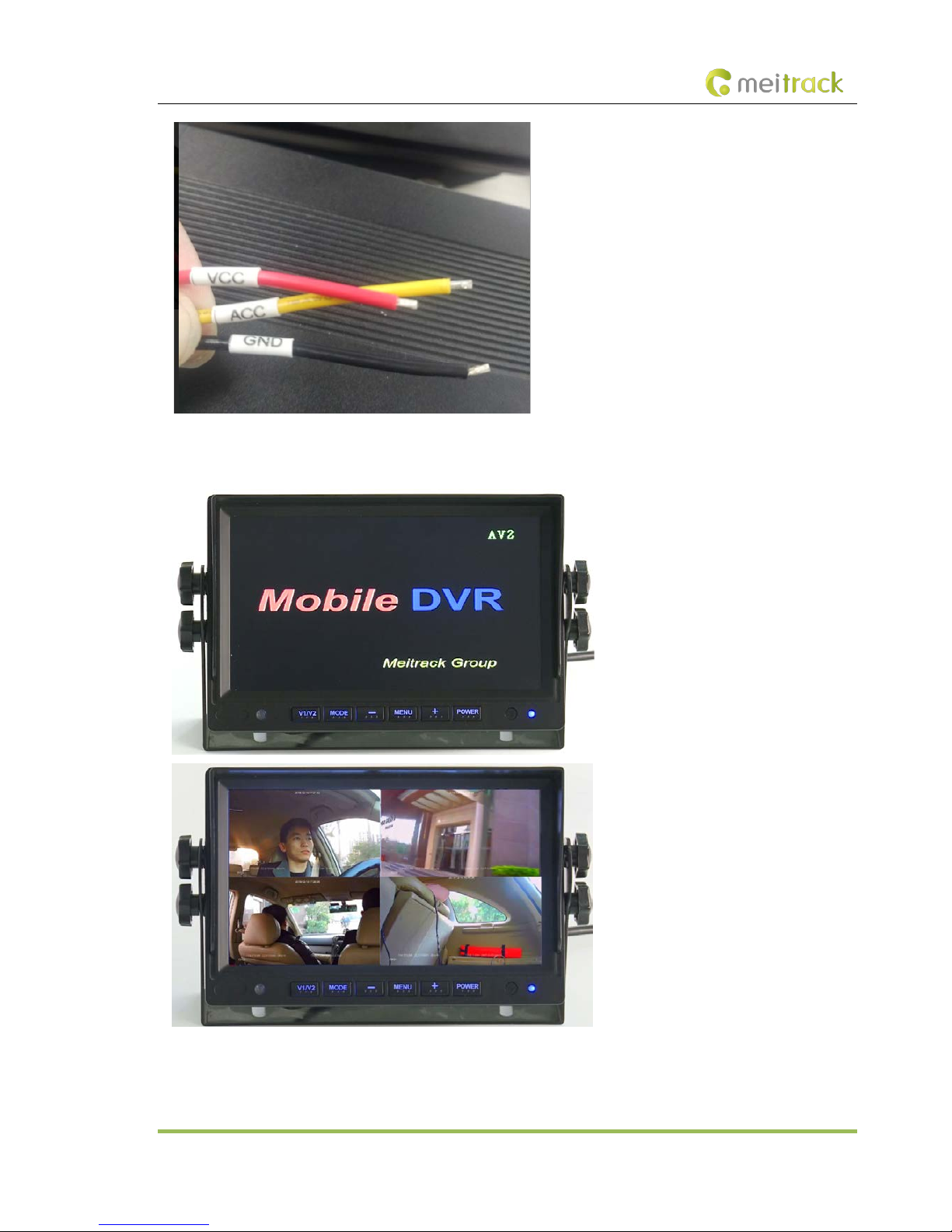

4.1 Installing the MDVR ........................................................................................................................................................- 16 -

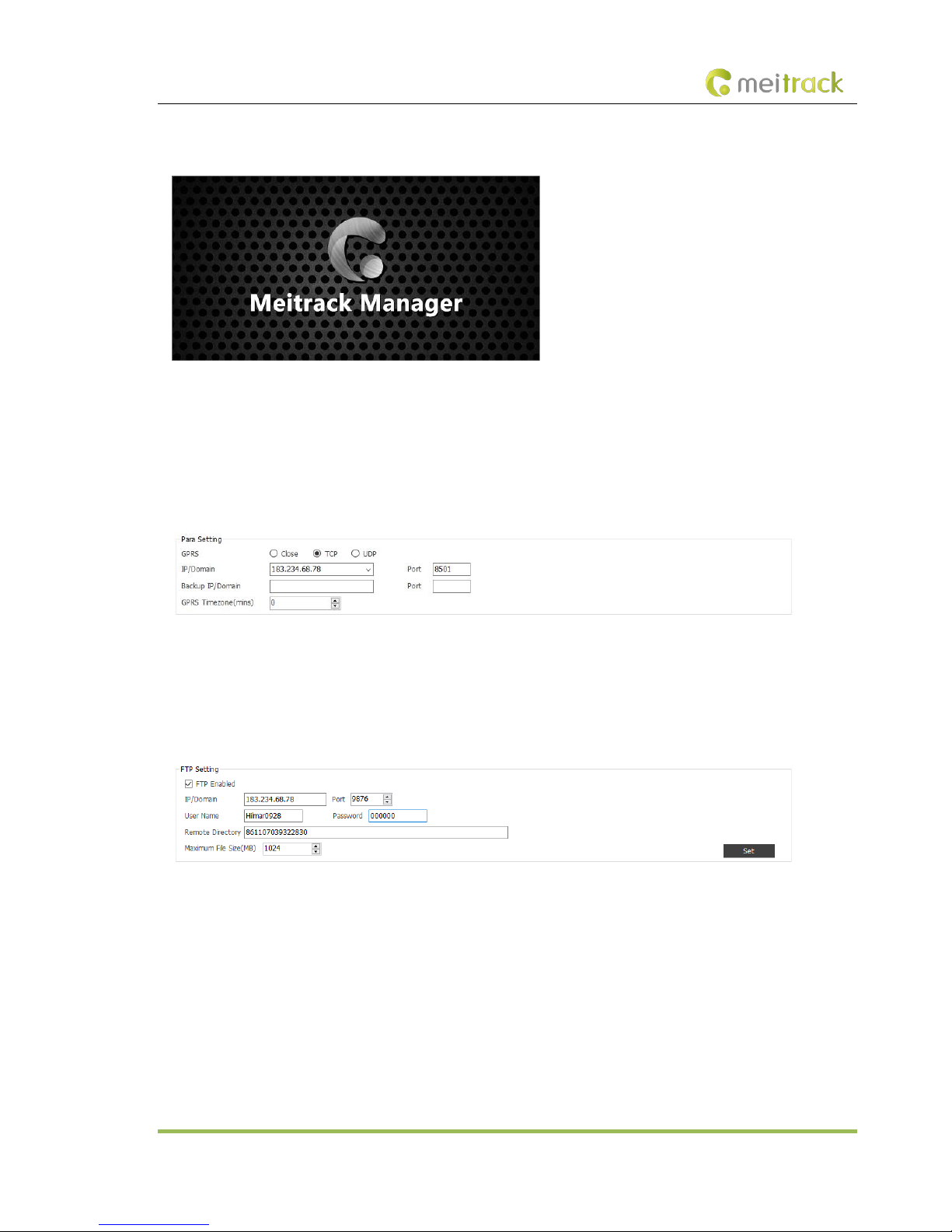

4.2 Configuring the MDVR by Using Meitrack Manager .......................................................................................................- 18 -

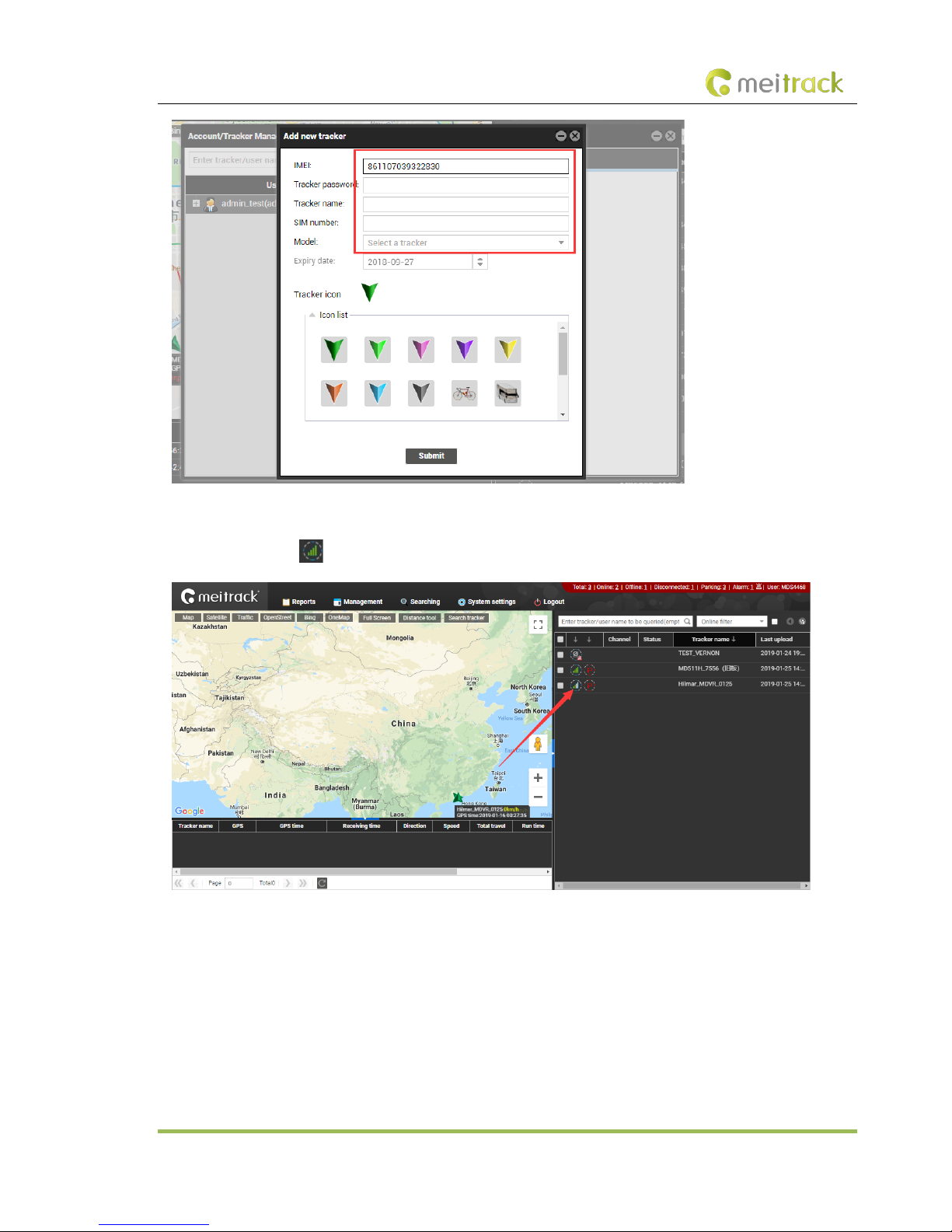

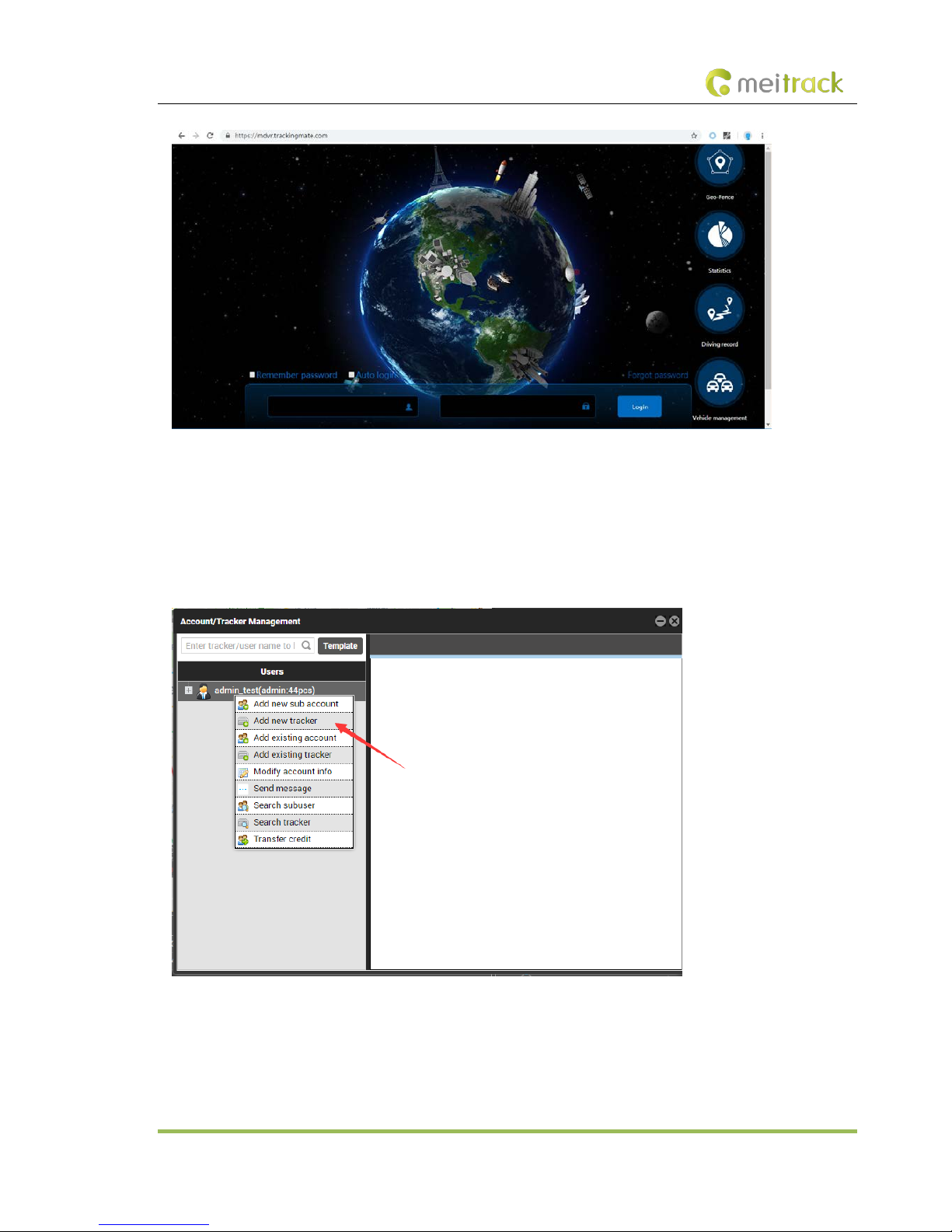

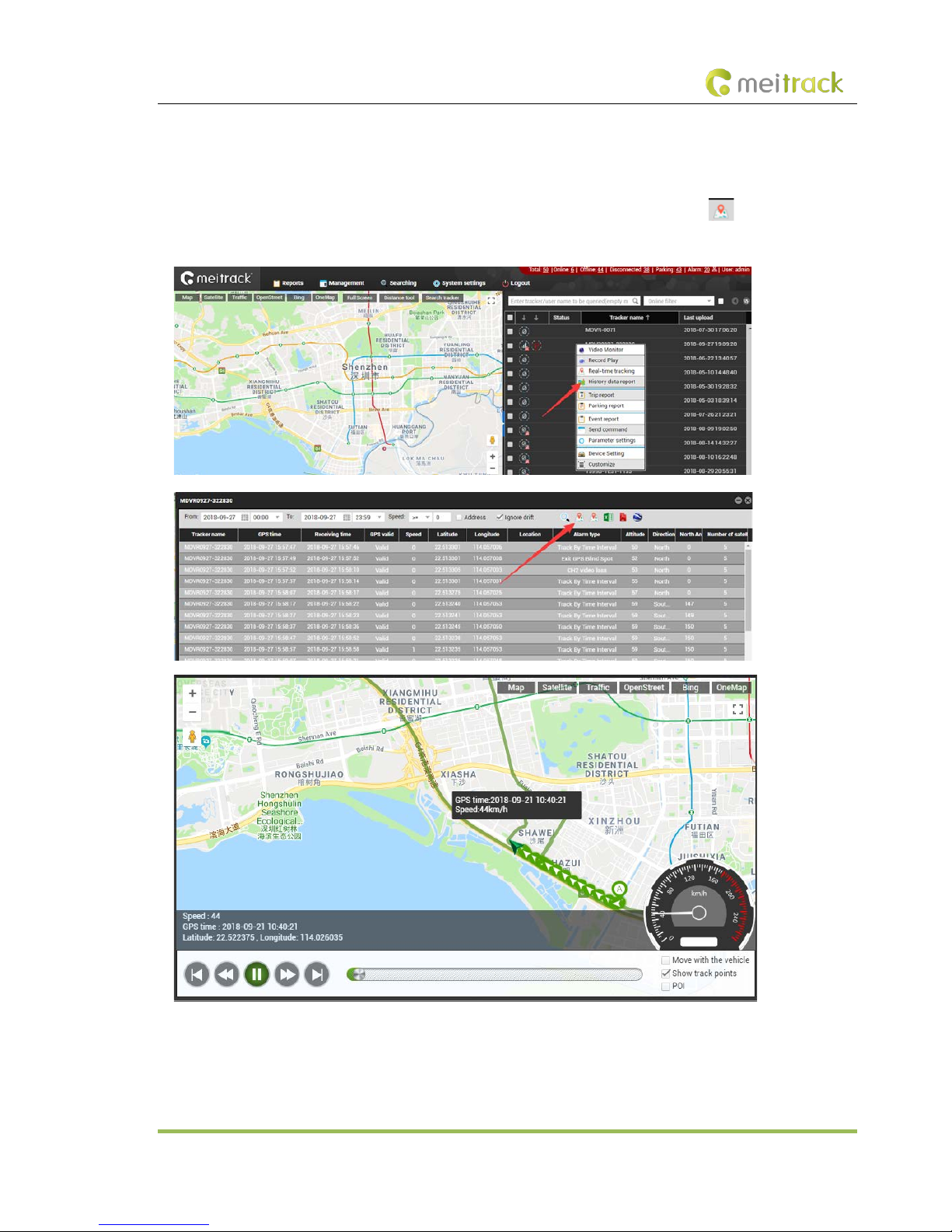

4.3 Logging In to the Platform ..............................................................................................................................................- 20 -

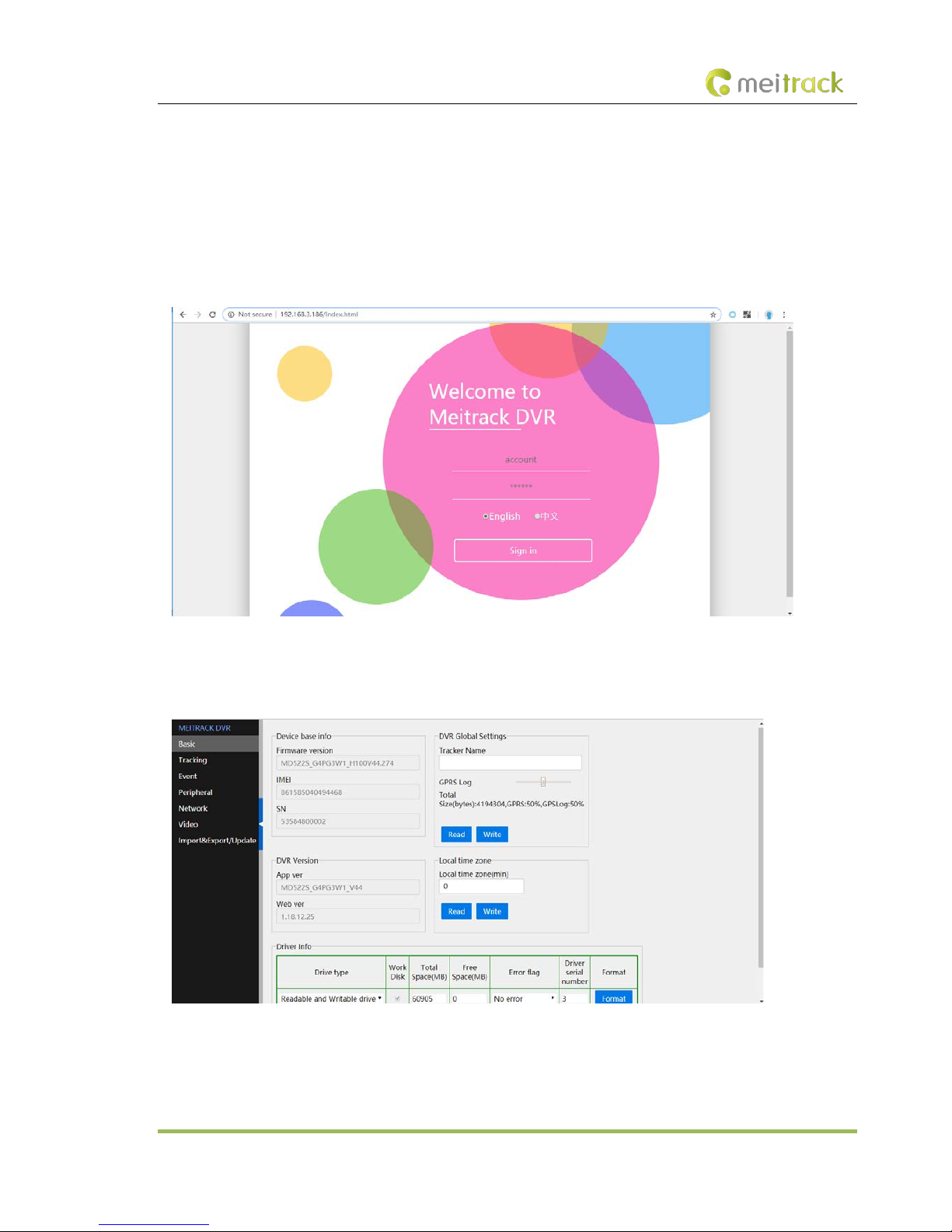

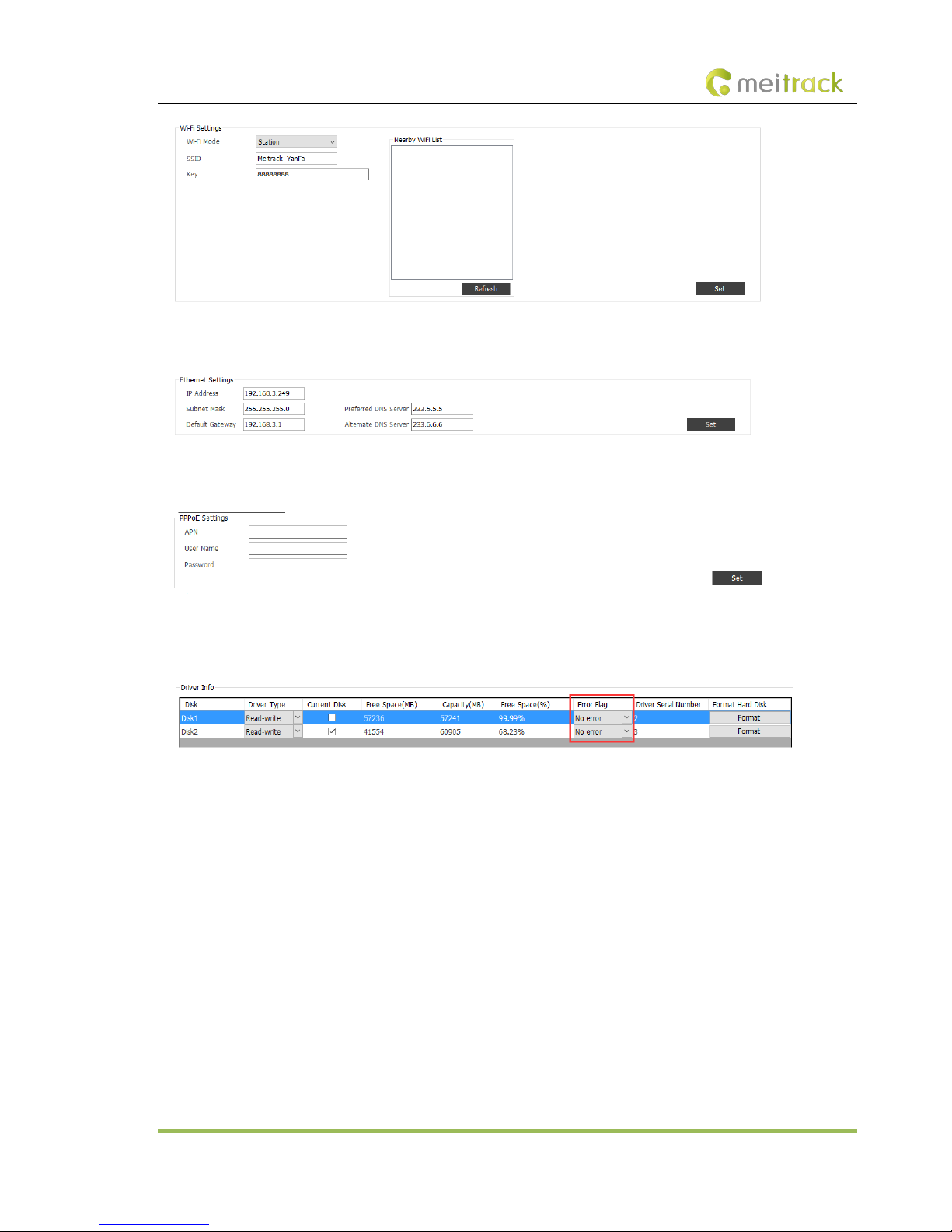

5 Configuring the MDVR by Using the LAN Web Page ....................................................................................................................- 27 -

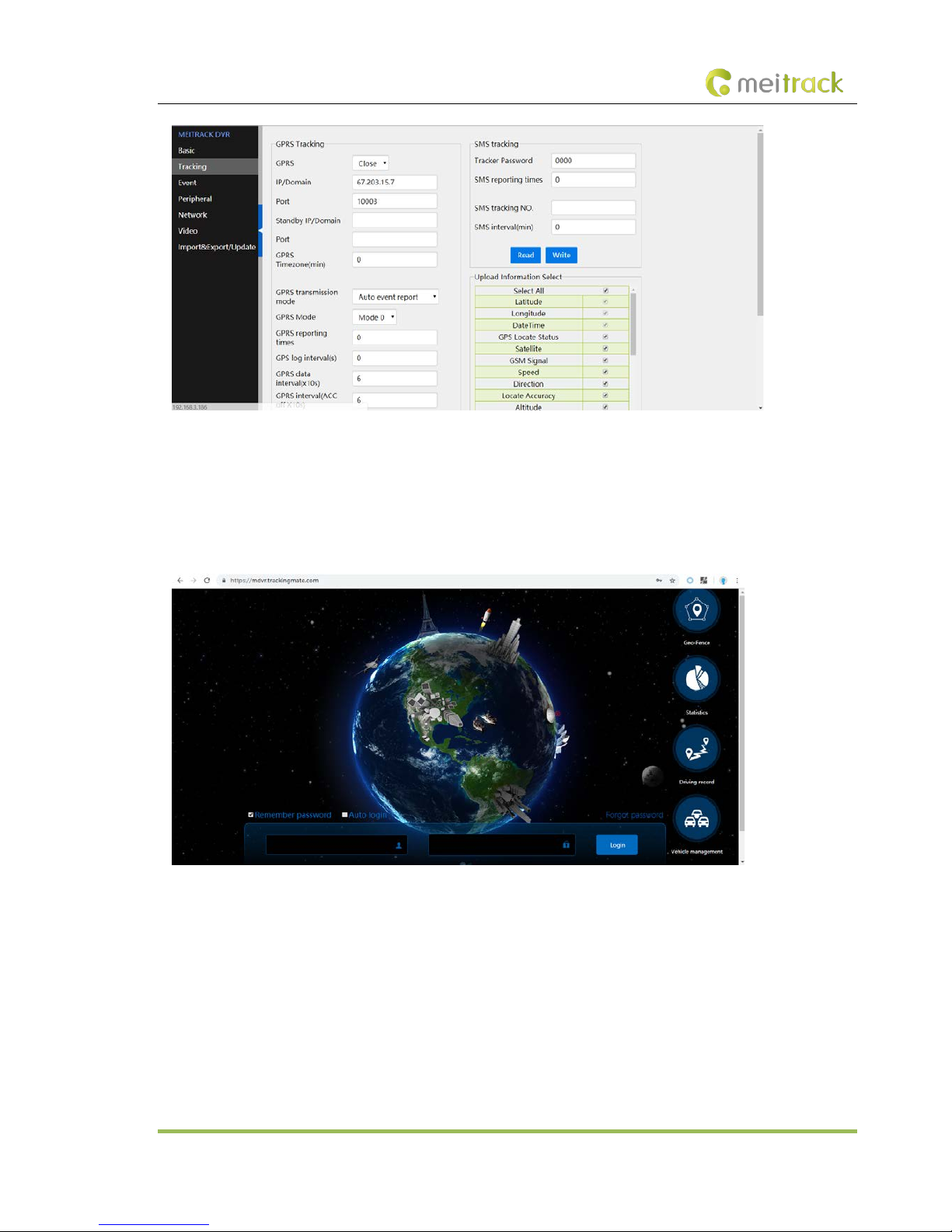

6 MS03 Web Platform ....................................................................................................................................................................- 29 -

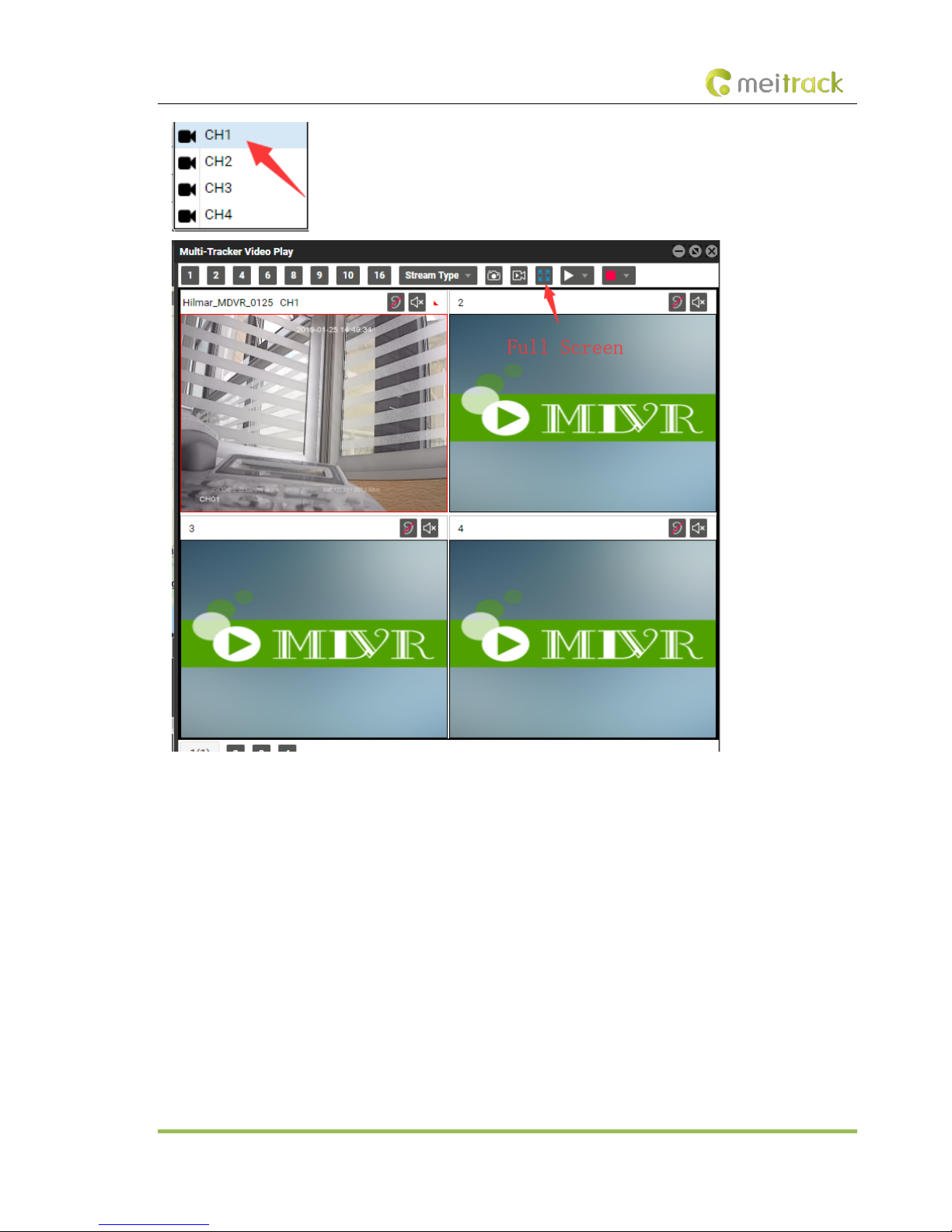

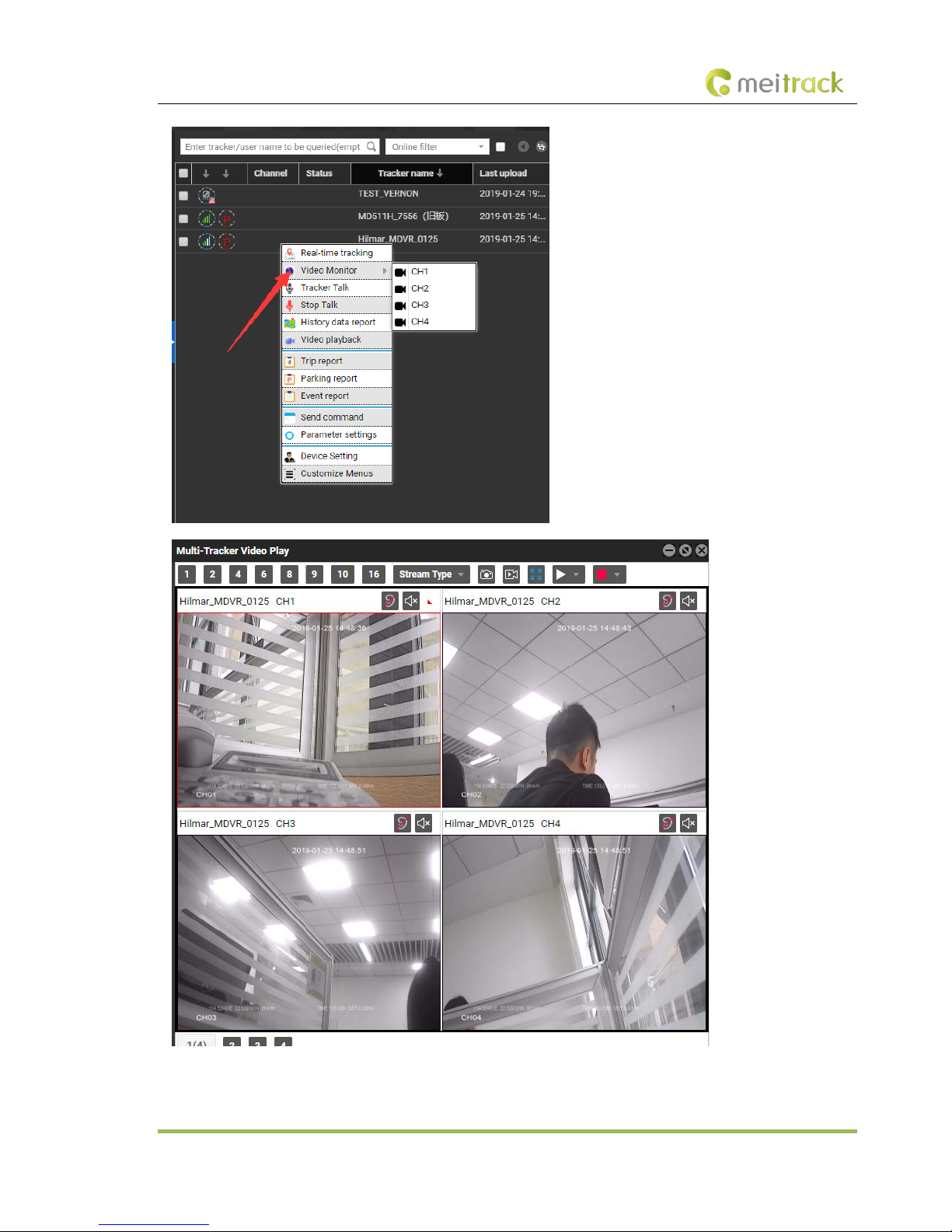

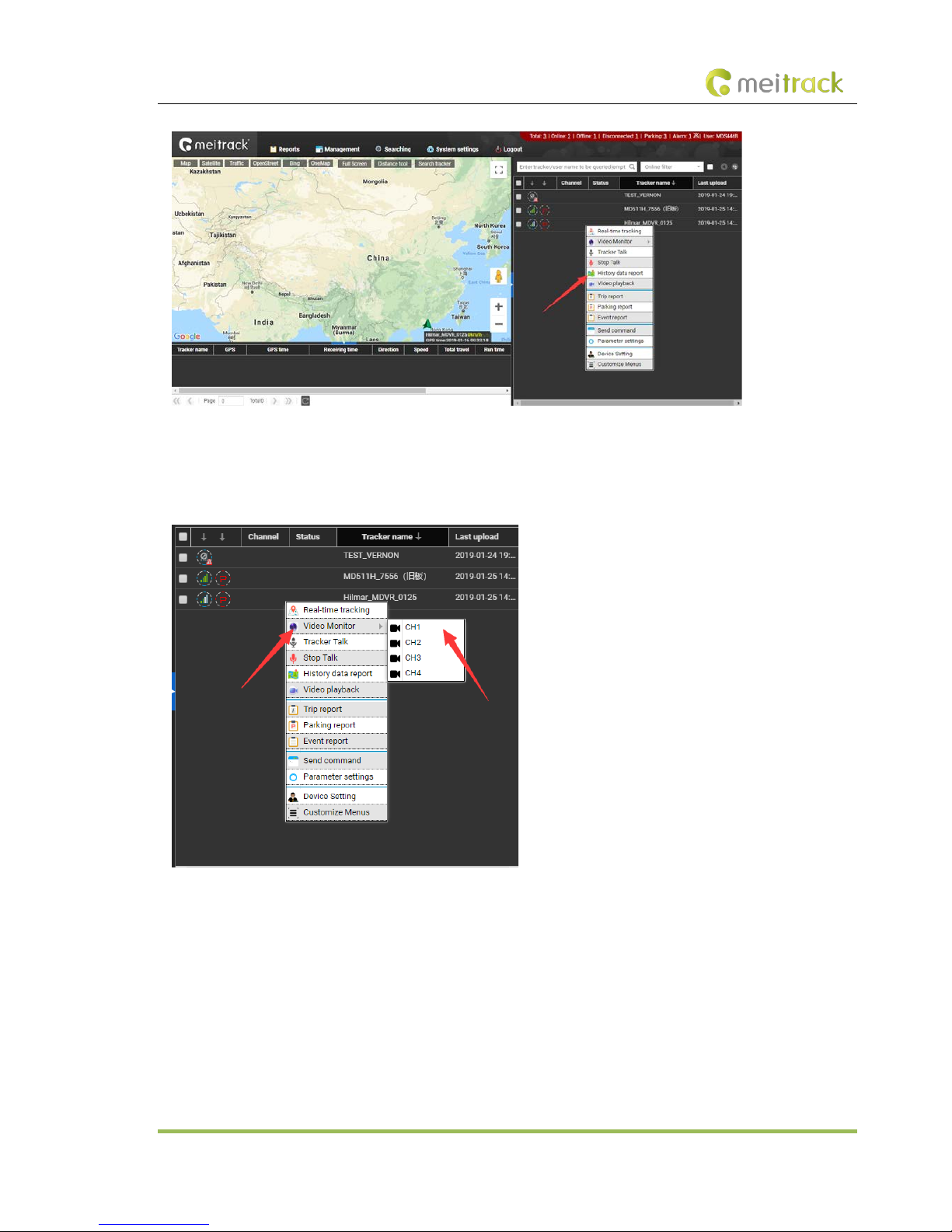

6.1 Real-time Monitoring .....................................................................................................................................................- 30 -

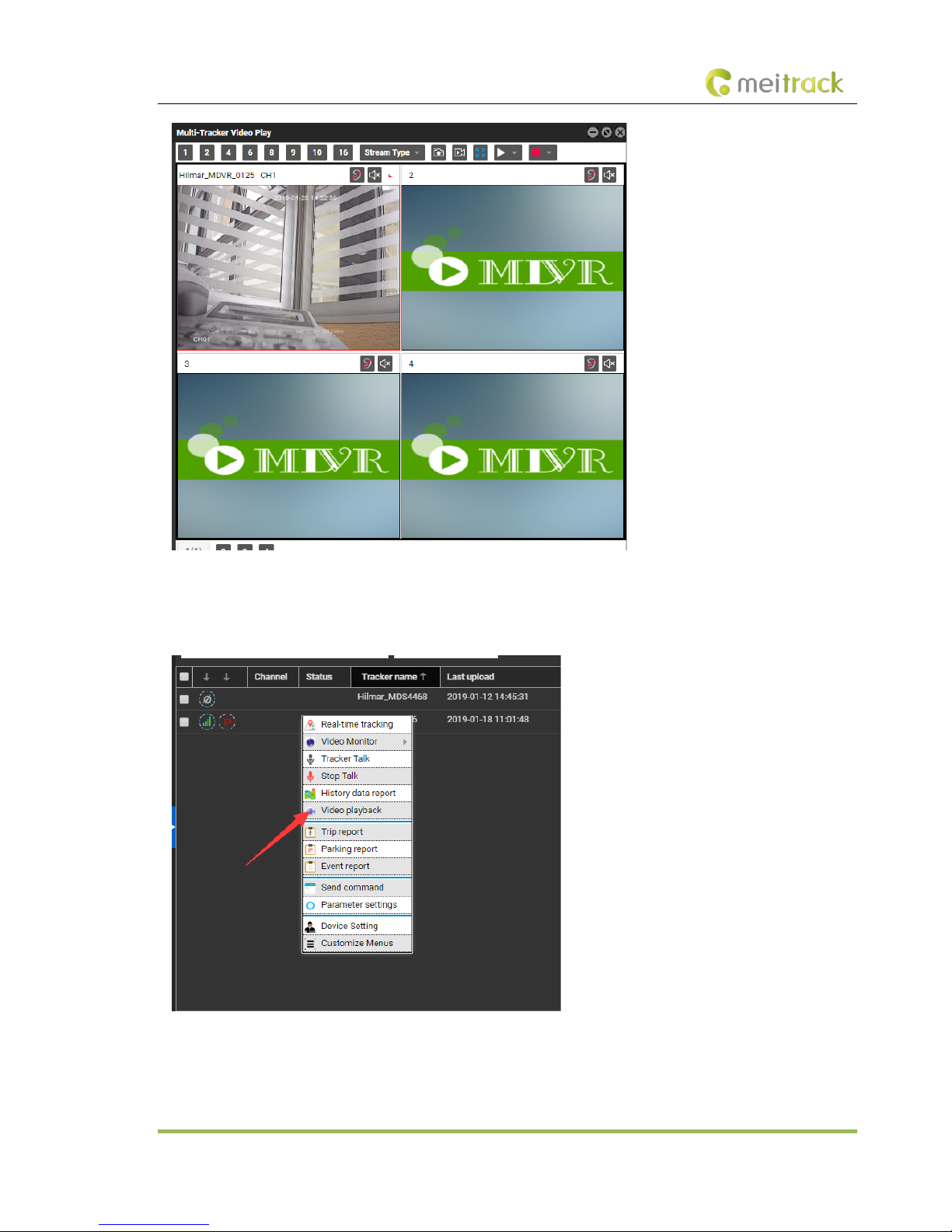

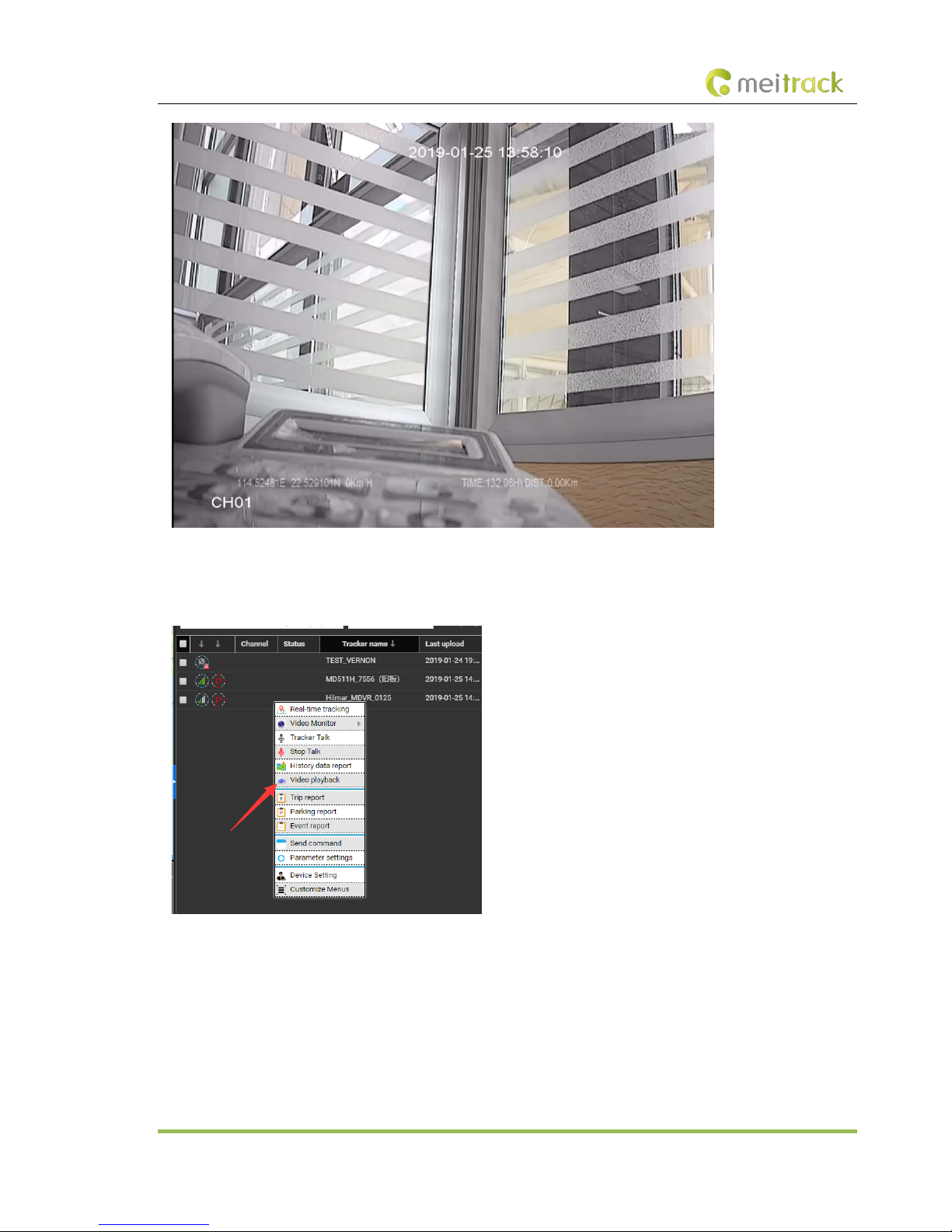

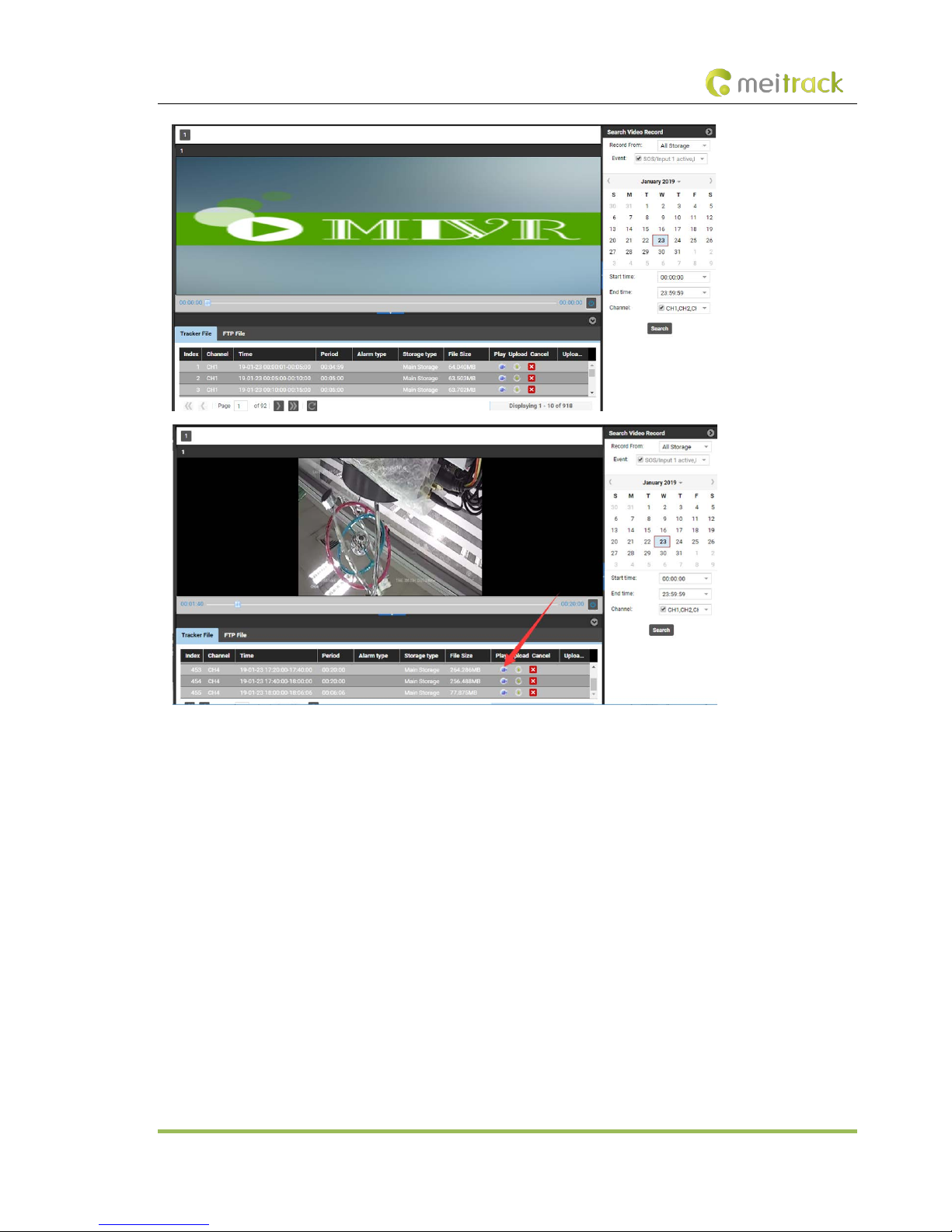

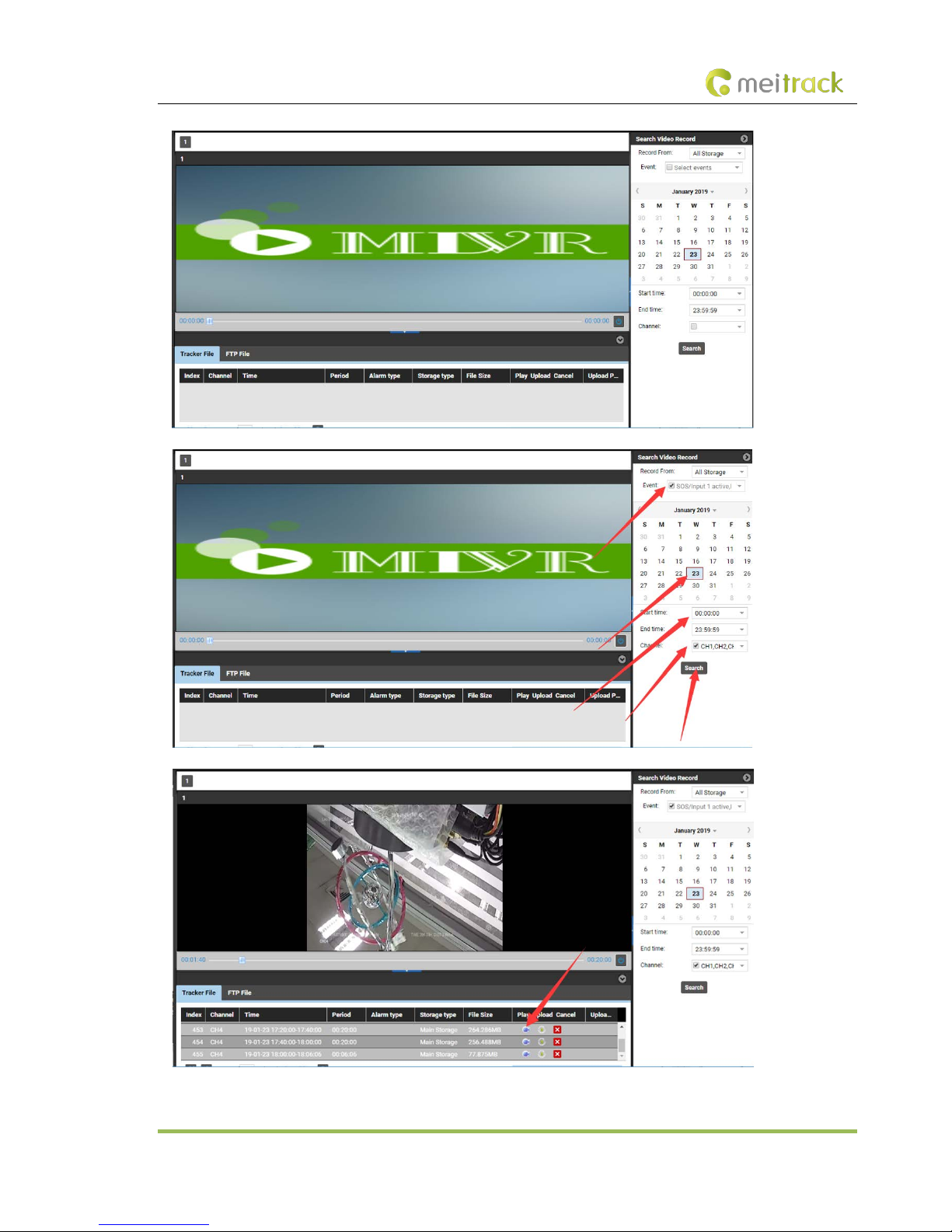

6.2 Video Playback ................................................................................................................................................................- 31 -

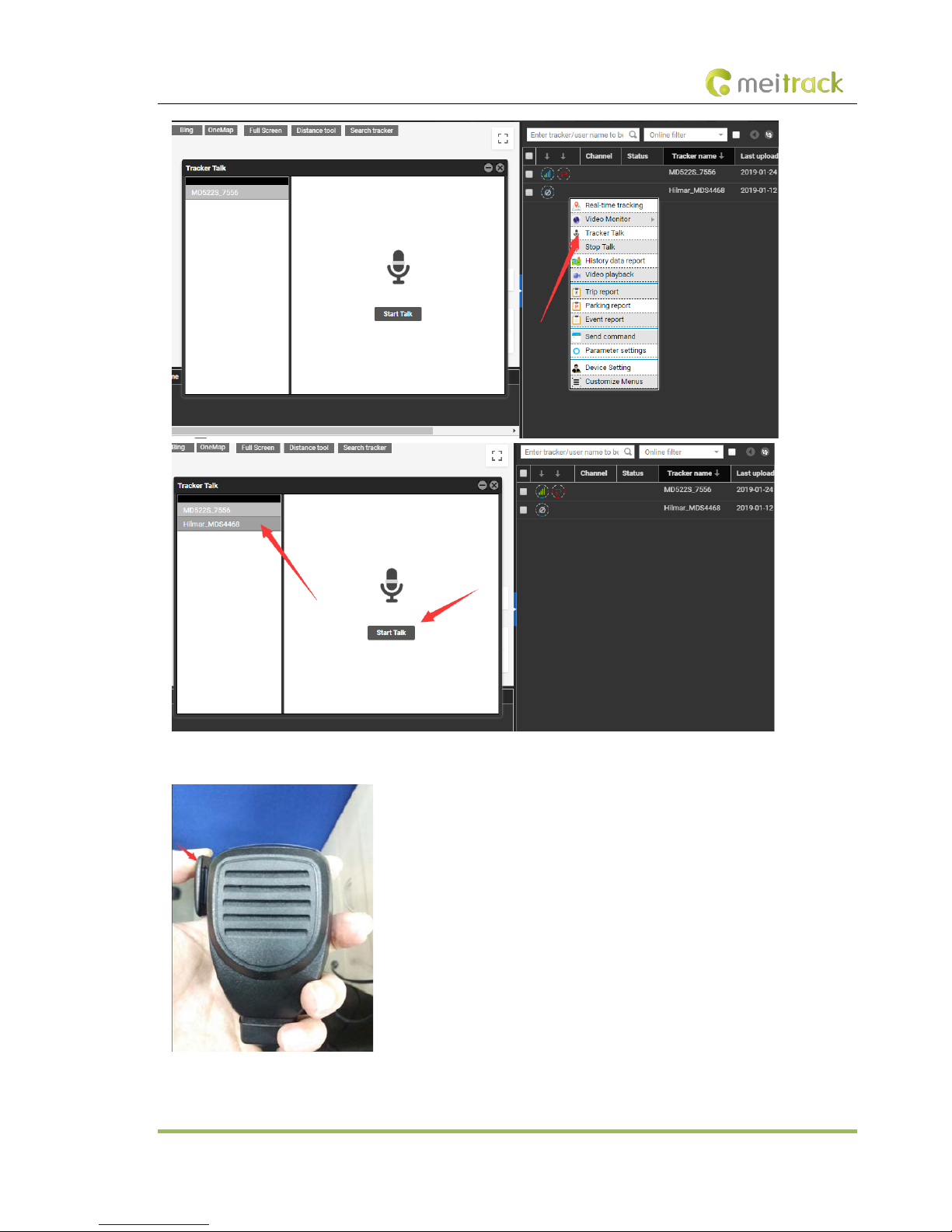

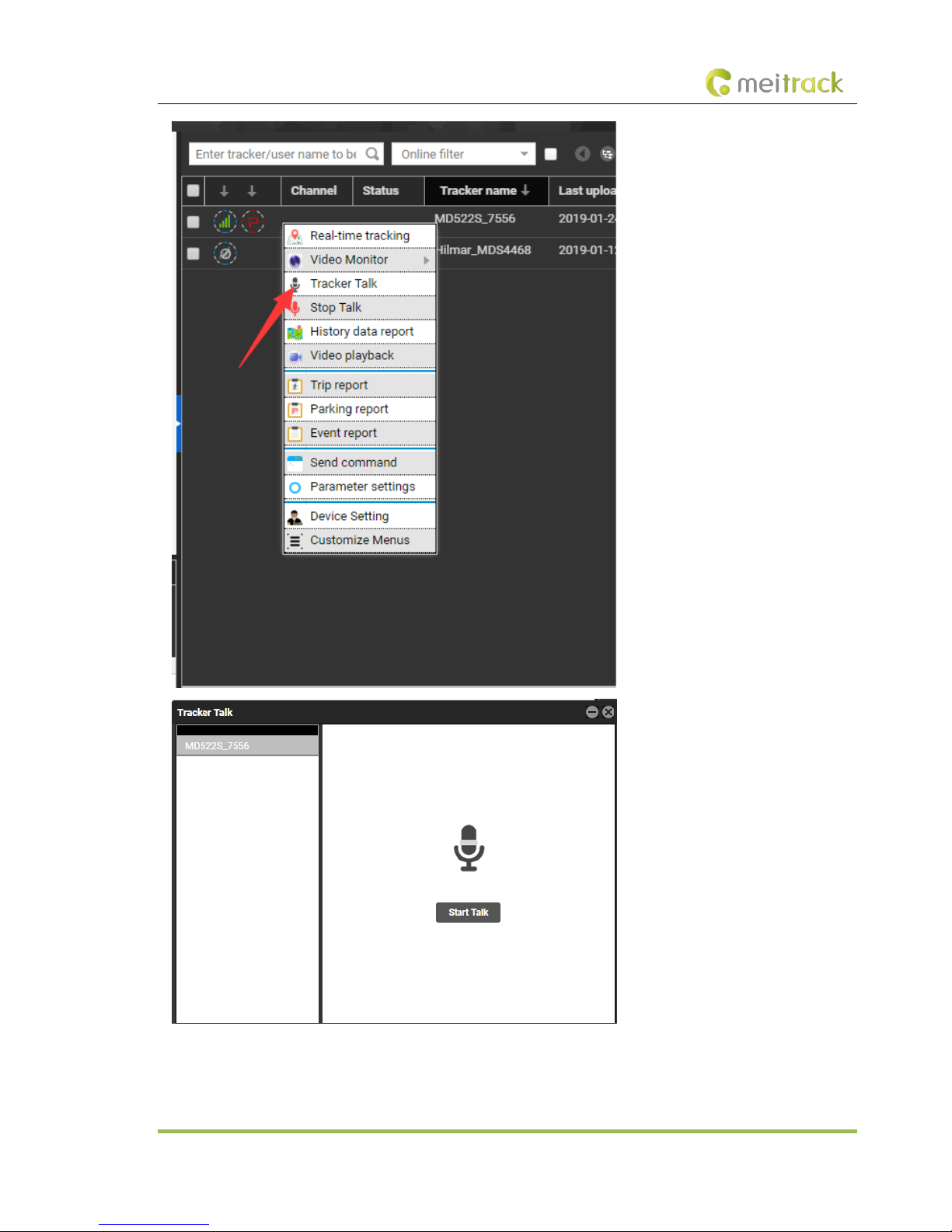

6.3 Two-Way Calling .............................................................................................................................................................- 32 -

7 MS03 App ....................................................................................................................................................................................- 35 -

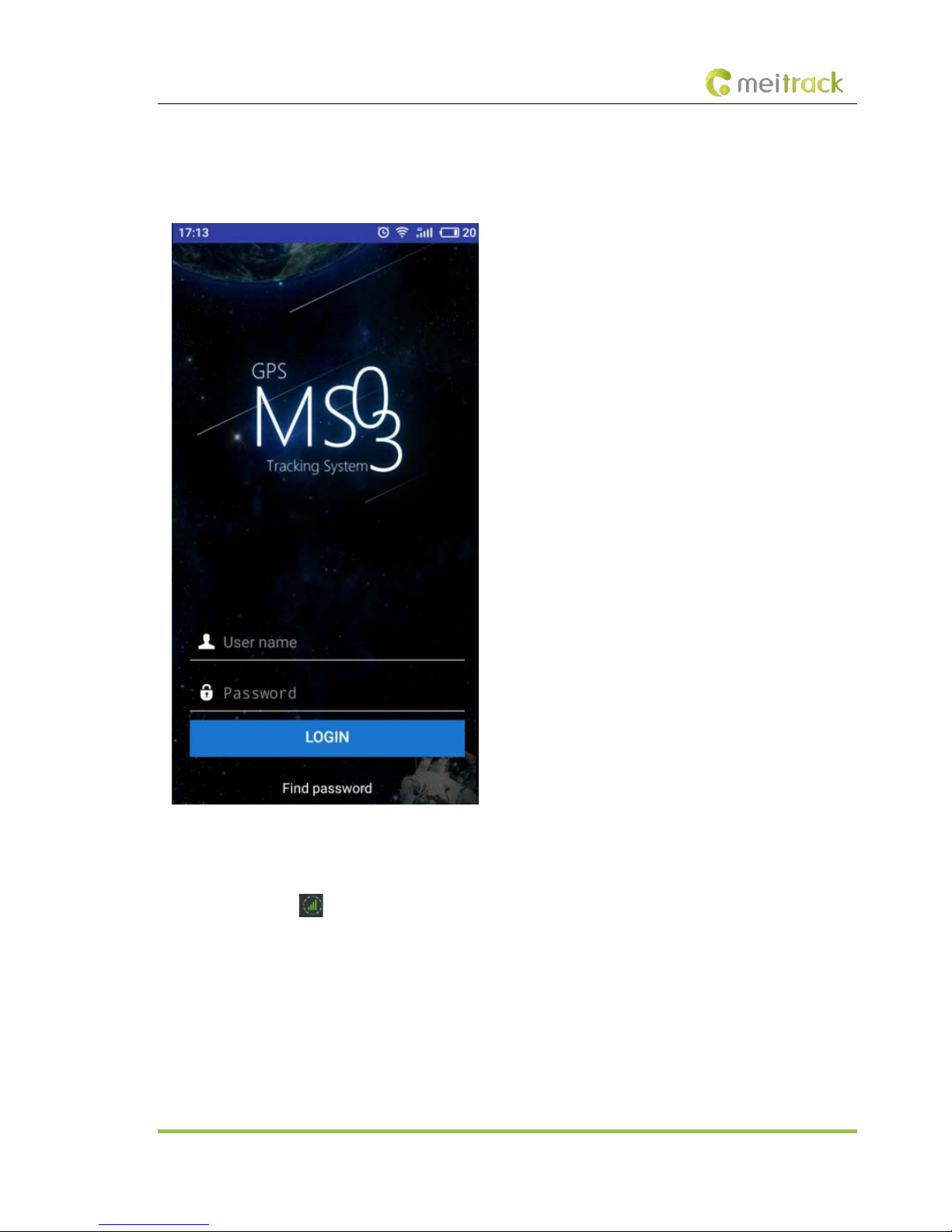

7.1 Logging In to the App ......................................................................................................................................................- 35 -

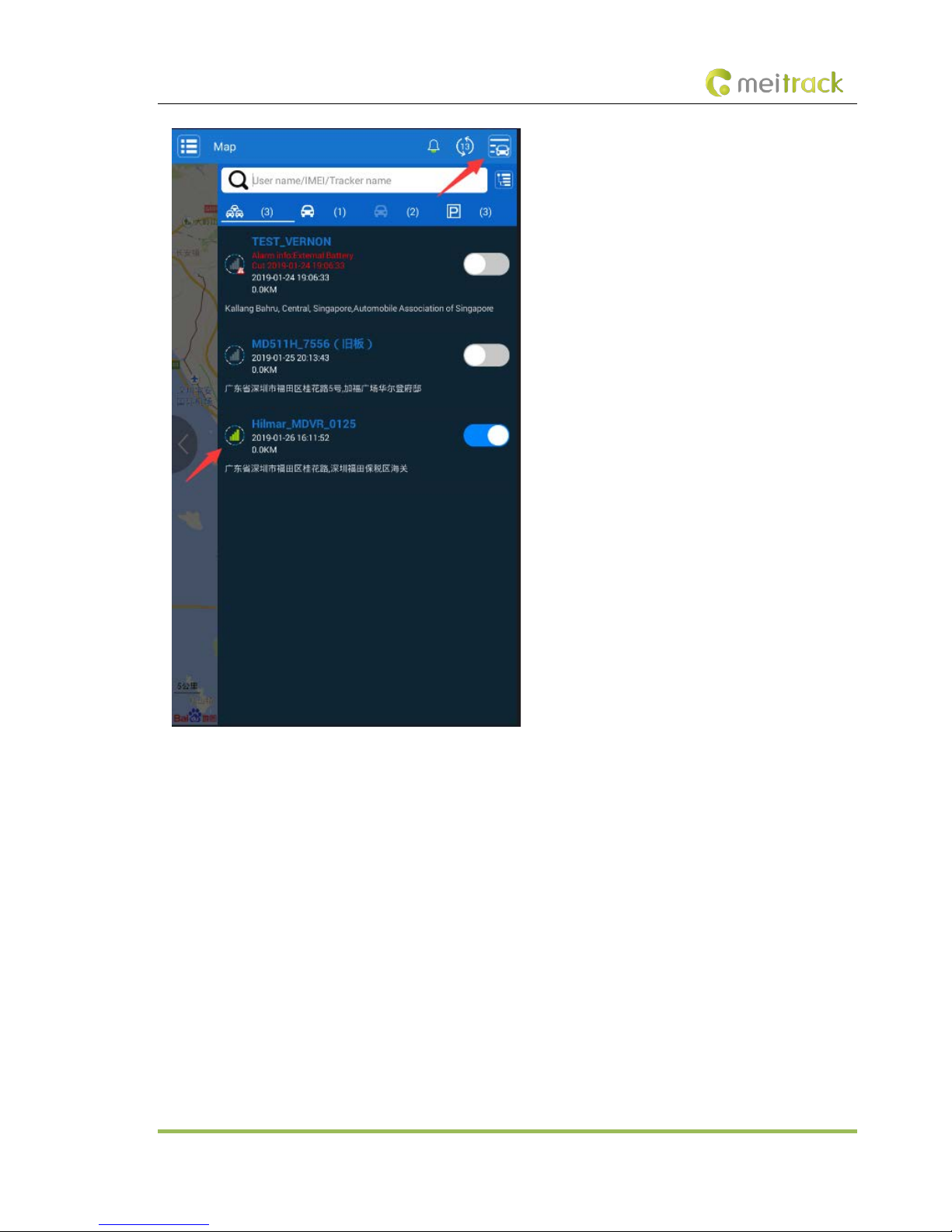

7.2 Checking MDVR Online Status ........................................................................................................................................- 35 -

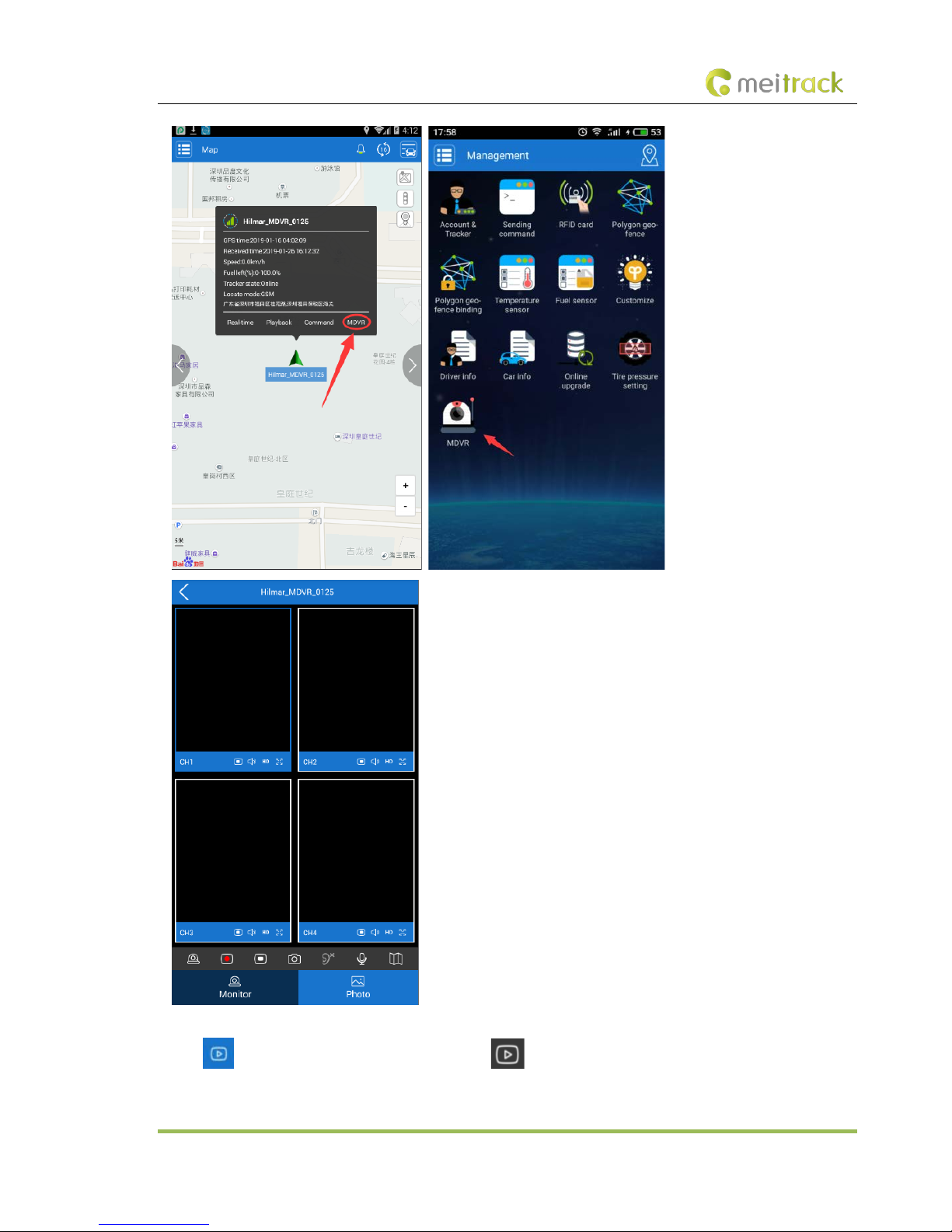

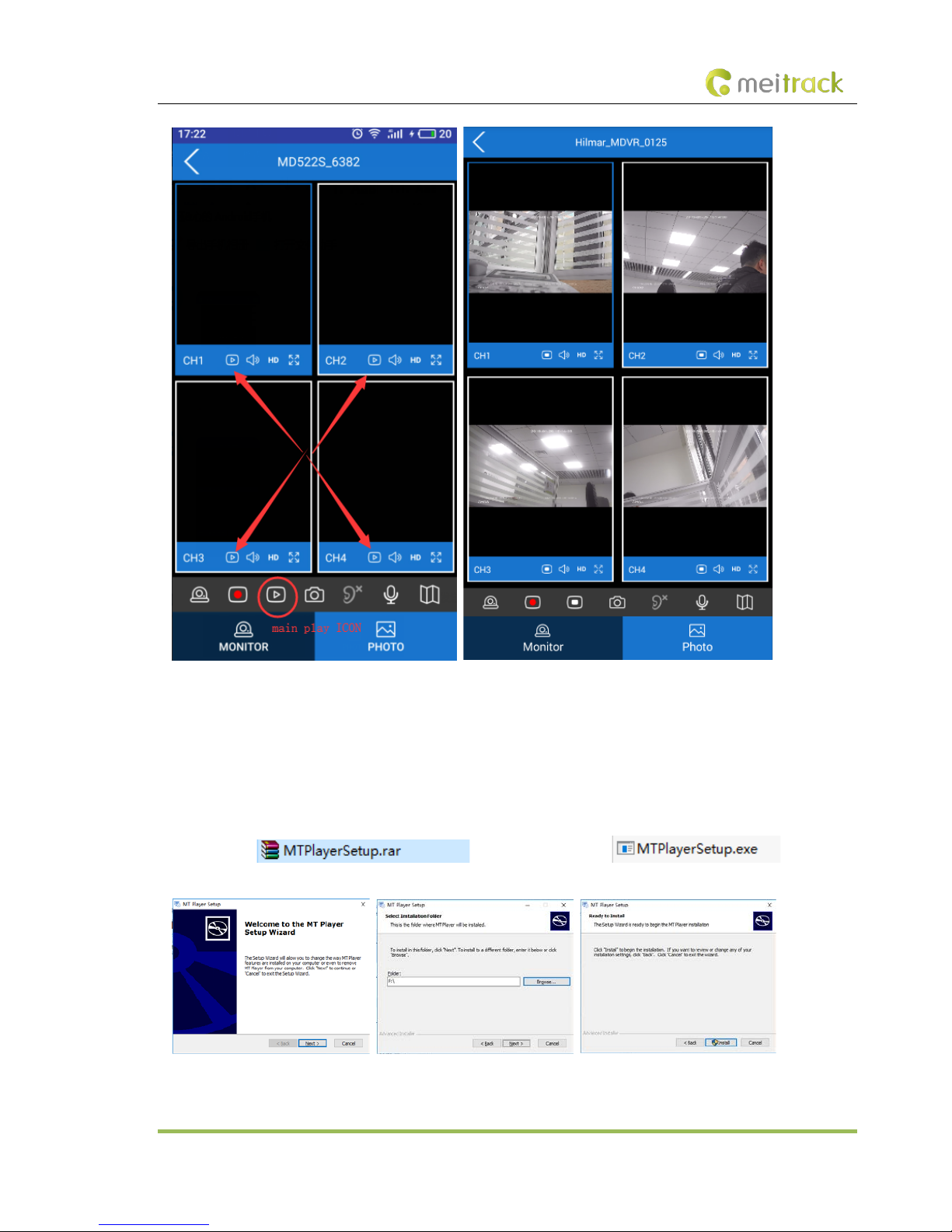

7.3 Video Surveillance ..........................................................................................................................................................- 36 -

8 Playing MDVR Videos by Using MT Player Software ....................................................................................................................- 38 -

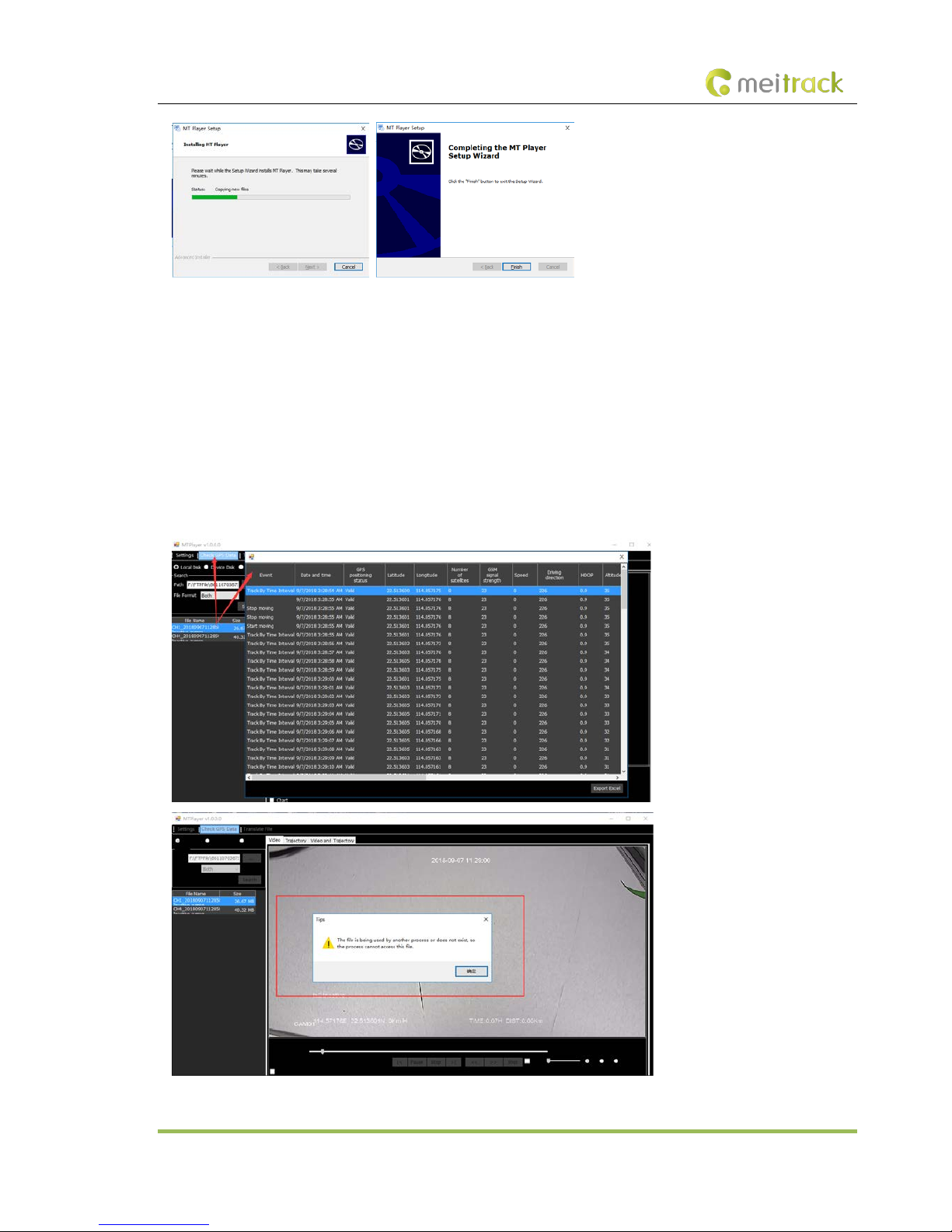

8.1 Installing MT Player ........................................................................................................................................................- 38 -

8.2 MT Player Functions .......................................................................................................................................................- 39 -

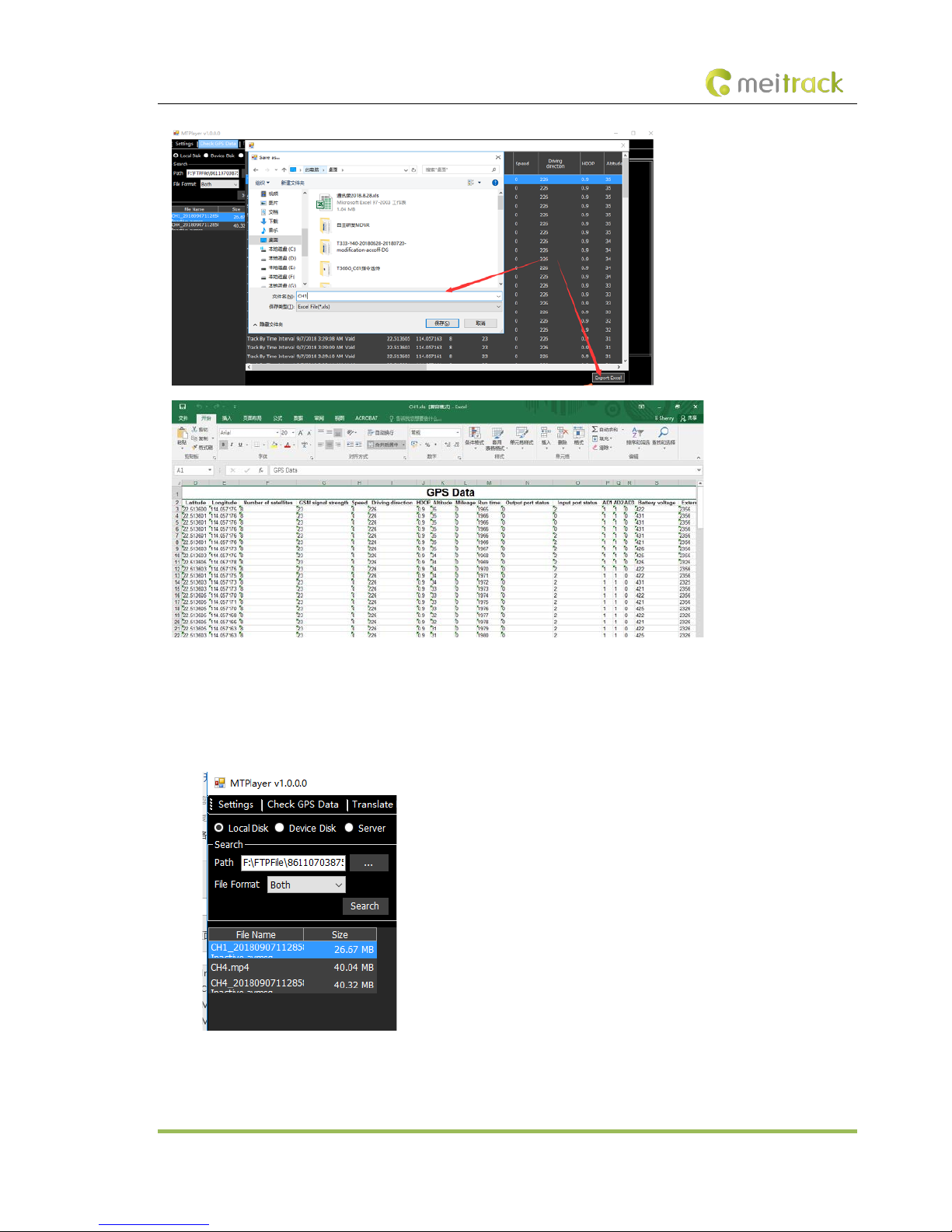

8.2.1 Querying GPS Positioning Data ..............................................................................................................................- 39 -

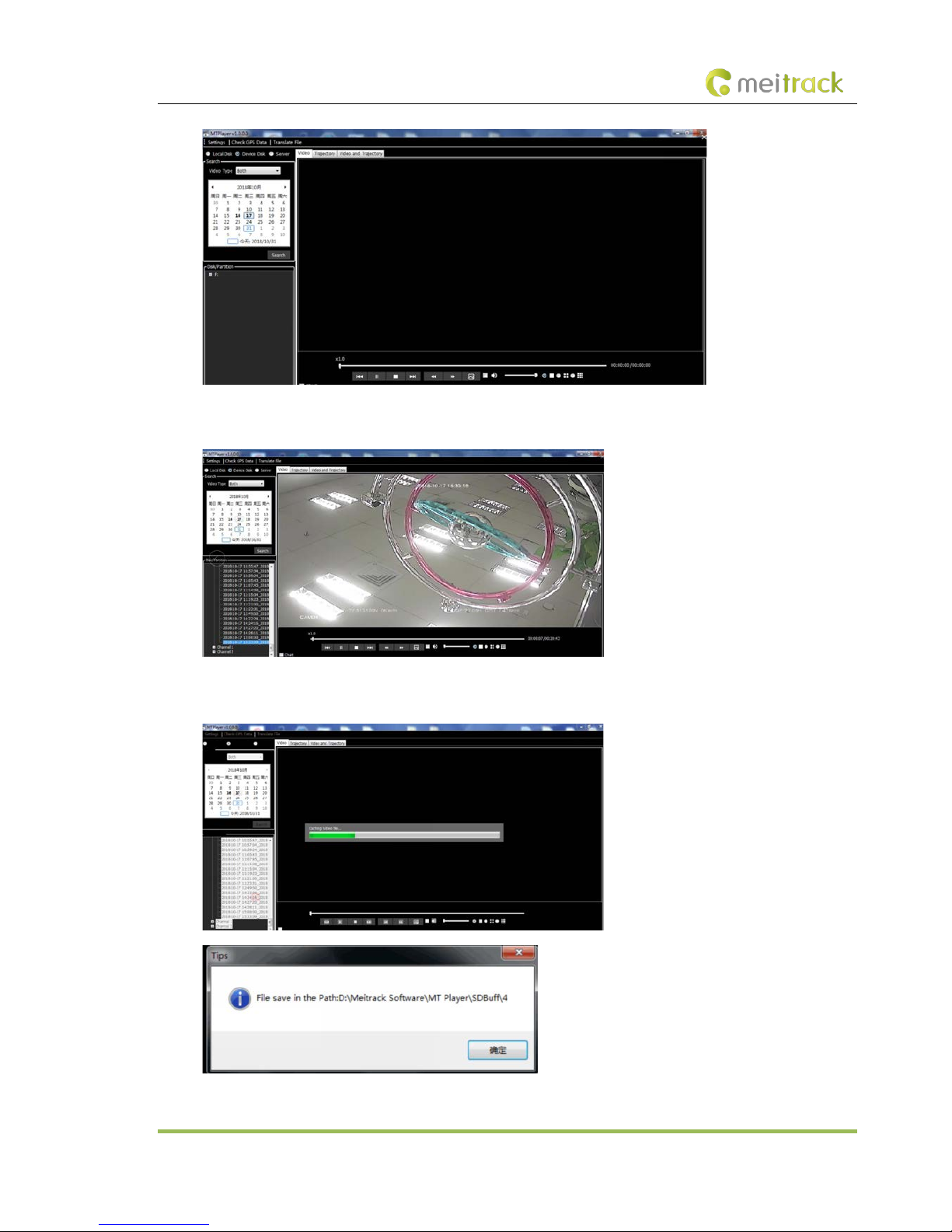

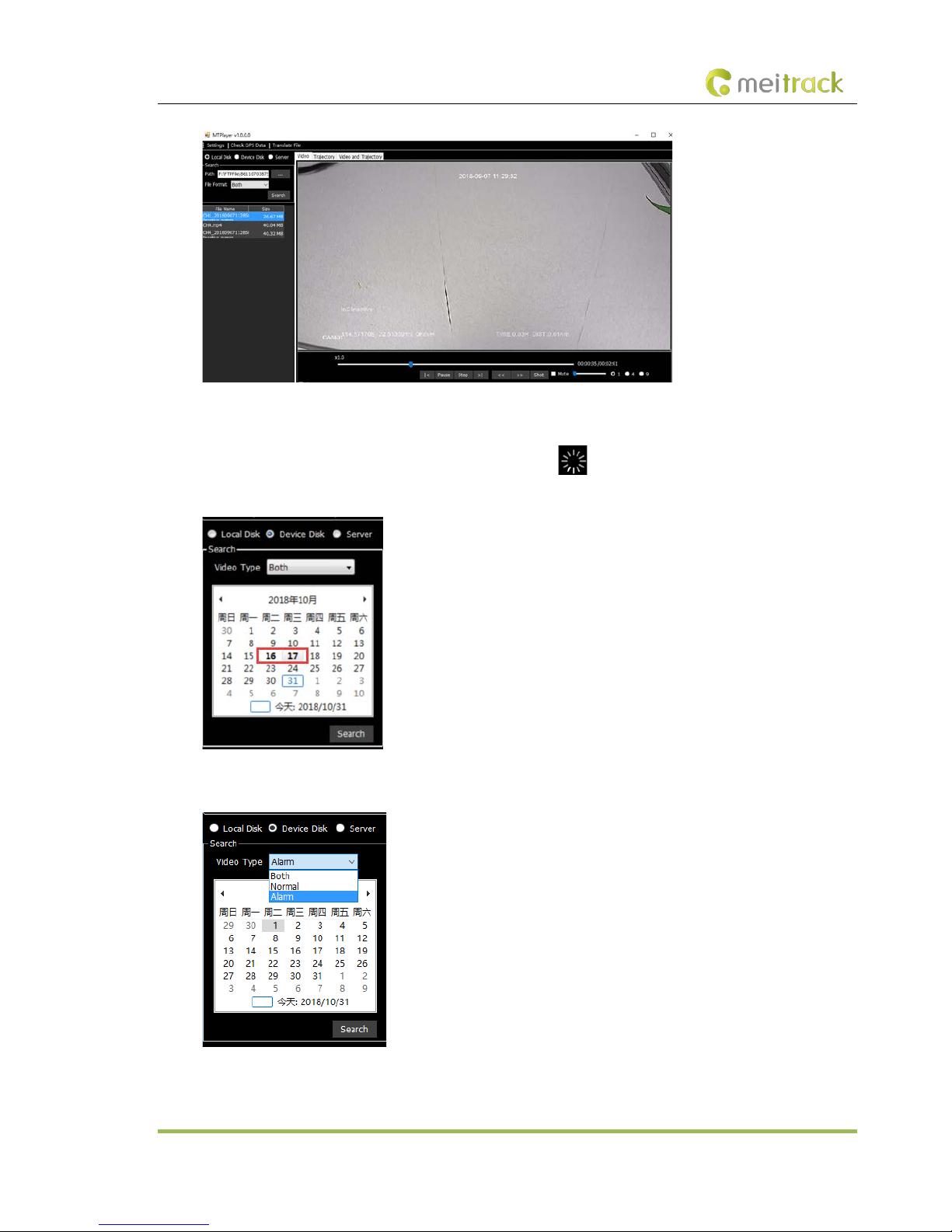

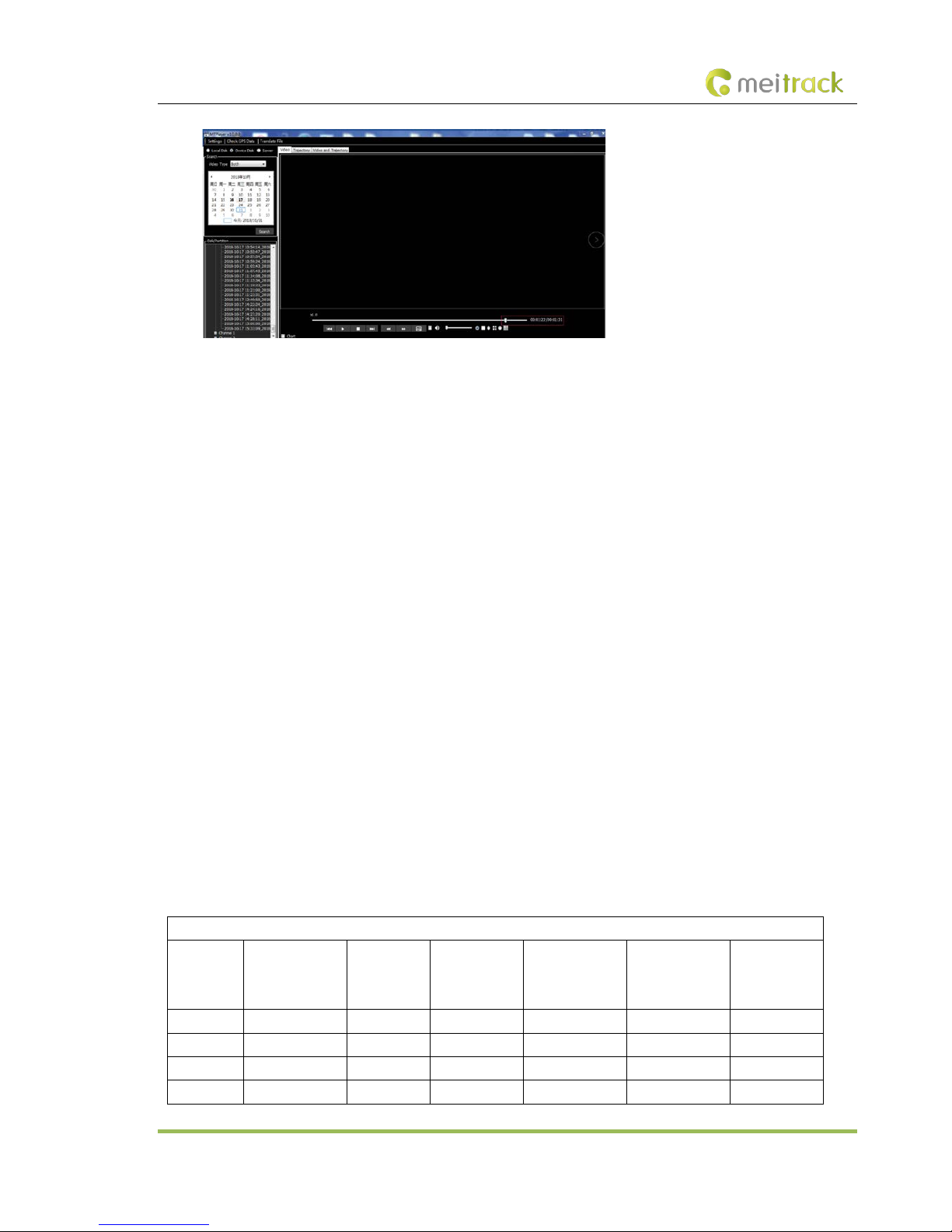

8.2.2 Playing Videos ........................................................................................................................................................- 40 -

9 FAQs .............................................................................................................................................................................................- 43 -

9.1 MDVR Abnormal .............................................................................................................................................................- 43 -

9.2 Data Usage Consumption ...............................................................................................................................................- 43 -

9.3 Power Consumption .......................................................................................................................................................- 44 -

9.4 Video Storage .................................................................................................................................................................- 44 -

MEITRACK MD522S User Guide

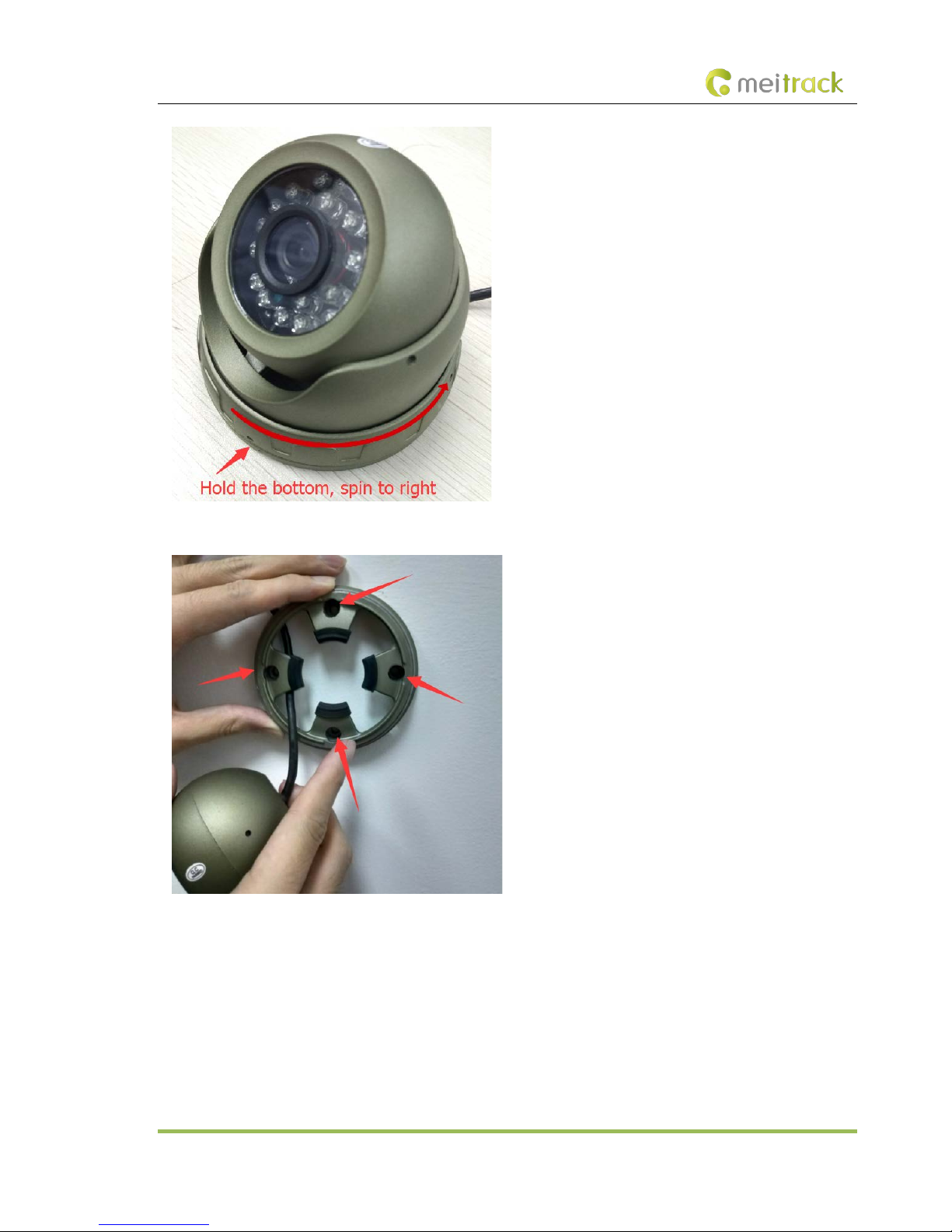

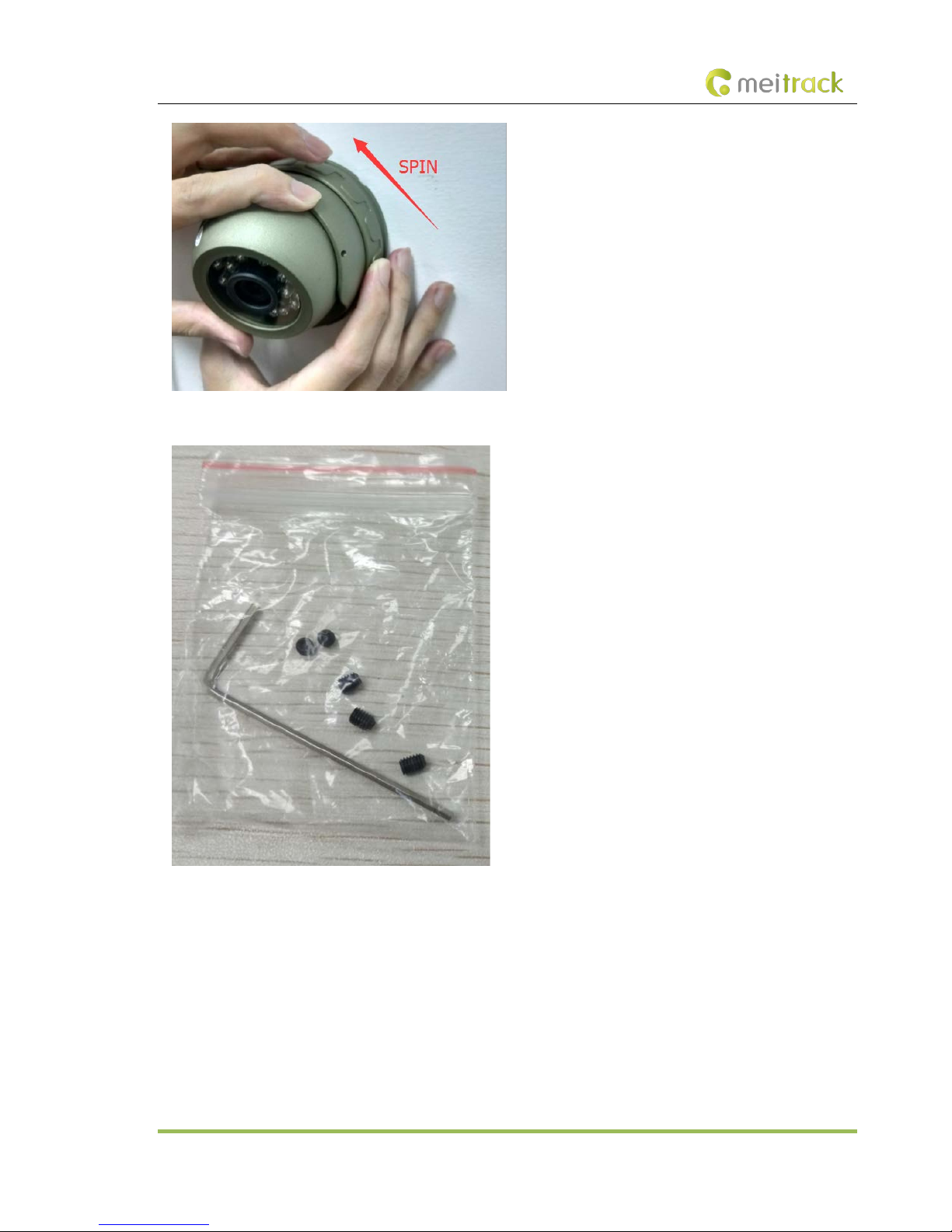

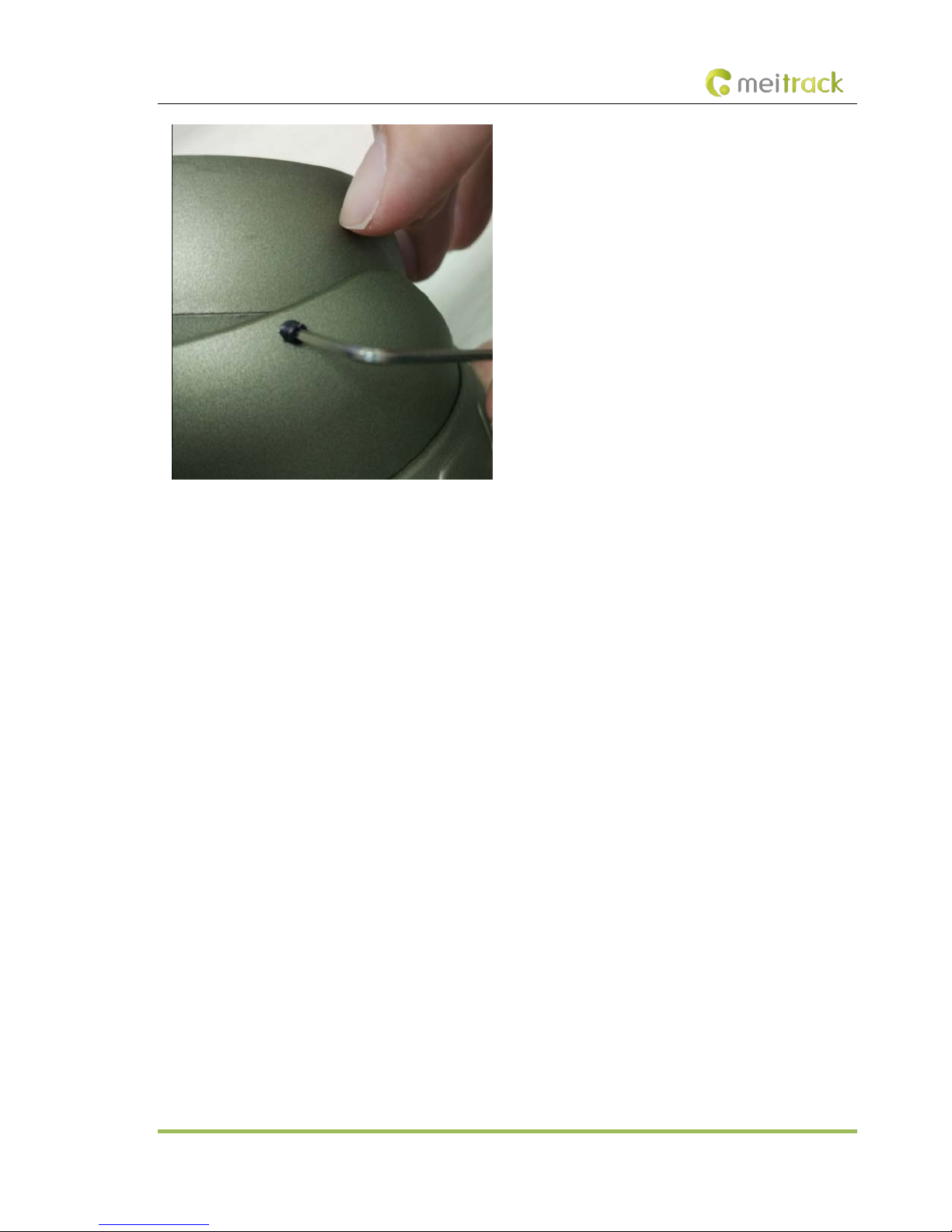

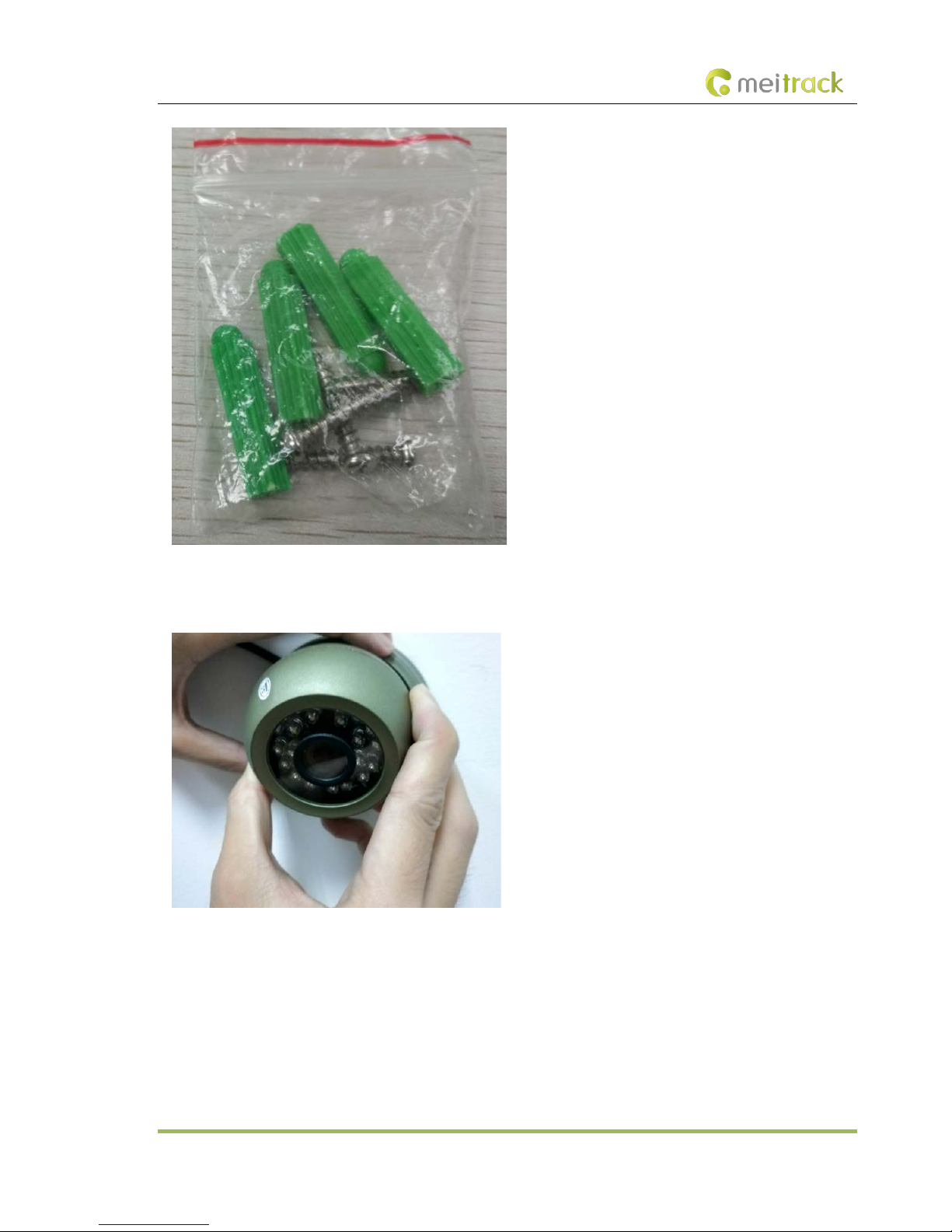

9.5 Camera Installation .........................................................................................................................................................- 45 -

MEITRACK MD522S User Guide

1 Copyright and Disclaimer

, and are trademarks that belong to Meitrack Group and its subsidiary.

The user manual may be changed without notice.

Without prior written consent of Meitrack Group, this user manual, or any part thereof, may not be reproduced for any purpose

whatsoever, or transmitted in any form, either electronically or mechanically, including photocopying and recording.

Meitrack Group shall not be liable for direct, indirect, special, incidental, or consequential damages (including but not limited to

economic losses, personal injuries, and loss of assets and property) caused by the use, inability, or illegality to use the product or

documentation.

2 Product Introduction

2.1 Product Overview

The MD522S is a 4-channel HD mobile digital video recorder (MDVR). Adopting the high-performance processor and Linux

operating system, it is a core product of new-generation wireless vehicle video surveillance solutions that uses H.264 video

compression/decompression, GPS positioning and wireless data transmission technologies. The device is specially designed for

mobile video surveillance for different types of vehicles, such as buses, long-distance coaches, taxis, logistics vehicles, armored

cars, private cars, etc.

2.2 Product Functions

2.2.1 DVR Functions

 4-channel 720P live video recording  Automatic video overlaying  Video search and playback via the platform or software  Video downloading via the platform  OSD overlay for video recording  SOS alert recording  Alert photo capturing  Image quality settings

2.2.2 Position Tracking

 GPS + LBS positioning  Real-time location query  Tracking by time interval  Tracking by distance  Tracking by mobile phone  Speeding alert  Cornering report  Braking alert and turning left/right alert

MEITRACK MD522S User Guide

2.2.3 Alerts

 SOS alert  GPS antenna cut-off alert  External power supply cut-off alert  GPS blind spot alert  Engine or vehicle door status alert  Geo-fence

 Video signal lost alert

2.2.4 Other Functions

 Support a CAN bus interface  Support the speedometer RPM  Support a RFID reader  Support multiple types of fuel level sensors  Support a LED display  Support two-way calling  Upload data via WiFi or Ethernet  Configure the MDVR by using the local area network (LAN) web page  Play videos by using MT Player software

2.2.5 Function Accessories

Accessory Function

4 cameras Audio and video sensing equipment

SD card Store audio and video data.

Display Display and play back local videos in real time and read parameter settings.

Two-way radio Real-time communication

SD card lock key Open or close the SD card lock.

USB cable Configure parameters.

2.3 Product Specifications

Item Parameter Specifications

Audio and video Video input 4-channel 720P live video recording and playing

Video output 1-channel CVBS

Compression standard H.264

Image display Support one-image and four-image display

Audio compression G.726

Audio input 5-channel audio input; 4-channel AV-IN interface; 1-channel voice

intercom interface; 1-channel handle interface

Audio output 1-channel independent audio DC blocking output (CVBS aviation

connector); 1-channel handle interface

MEITRACK MD522S User Guide

Video search and playback Search and play back videos based on the channel, recording type, or

time.

Recording method Simultaneously record the ACC, alert, sound, and video.

Storage medium 2 SD cards

Communication

and positioning

3G/4G MD522S-E

2G GSM: B3(1800)/B8(900)

3G WCDMA: B1(2100)/B5(850)/B8(900)

4G FDD: B1(2100)/B3(1800)/B5(850)/B7(2600)/B8(900)/B20(800)

4G TDD: B38(2600)/B40(2300)/B41(2500)

MD522S-A

3G WCDMA: B2(1900)/B4(1700/2100)/B5(850)

4G FDD: B2(1900)/B4(2300)/B12(700)

MD522S-AU

2G GSM: B2(1900)/B3(1800)/B5(850)/B8(900)

3G WCDMA: B1(2100)/B2(1900)/B5(850)/B8(900)

4G FDD: B1(2100)/B2(1900)/B3(1800)/B4(2300)/B5(850)/B7(2600)/

B8(900)/B28(700)

4G TDD: B40(2300)

WiFi 802.11 b/g/n; frequency: 2.4 GHz

GPS/GLONASS Detect the insertion, pull-out, and short circuit of the antenna.

Interface AV input 4-channel aviation connector

AV output AV-OUT of 1-channel aviation connector

Voice intercom 1-channel aviation connector

Sensor interface 1 sensor interface. Used to connect a fuel level sensor, a temperature

sensor, or an A61 sensor box.

SD card slot 2 SD card slots; 1 TB

USB port 1 USB 2.0 port (support USB flash drive/keyboard and mouse)

Internet interface RJ45; 10 MB / 100 MB adaptive network interface

Ignition input 1 ACC signal interface

RS232 2 RS232 interfaces

RS485 1 RS485 interface

CAN 1 CAN bus interface

Infrared interface Reserved; 1 built-in infrared receiver

LED indicator 8 LED indicators (SYS/GPS/3G&4G/VLOSS/SD1/SD2/PWR/WiFi)

SD card lock 1 SD card lock

G-sensor Start to Move / Stop Moving detection

Alert input 8 digital inputs

SOS, door side 1, door side 2, turning left, turning right, reversing,

braking, and vehicle speed line

Alert output 3 outputs

AD Reserved; 2 AD interfaces; detect 0–6.6V inputs.

Debug and upgrade interface System debugging and firmware upgrade through a serial port

Protocol Protocol supported Meitrack protocol

MEITRACK MD522S User Guide

Software

upgrade

Upgrade mode Manual upgrade

Upgrade method (1) Plug the USB flash drive with the firmware into the USB port, connect

the MDVR through the debug interface, and start Meitrack Manager

software to upgrade the MDVR.

(2) Use the LAN web page to upgrade the firmware (WiFi or Ethernet).

Others Power input DC: 8V–36V/A

Power consumption Start the host audio and video: about 6.6 W

Single MCU: 45 mA

Connect a single camera: 120–200 mA (day); 400–600 mA (night)

Operating temperature -20°C to 70°C

Weight 850g

Dimension 145 mm x 145 mm x 57 mm

2.4 Main Device and Accessories

Standard accessories:

MD522S MDVR Power & ACC cable I/O cable

GPS antenna GSM antenna WiFi antenna

SD card lock key

MEITRACK MD522S User Guide

Optional accessories:

4 cameras SD card Display

Microphone & speaker USB cable LED display

Ultrasonic fuel level sensor RFID reader

2.5 About the MDVR

2.5.1 Appearance

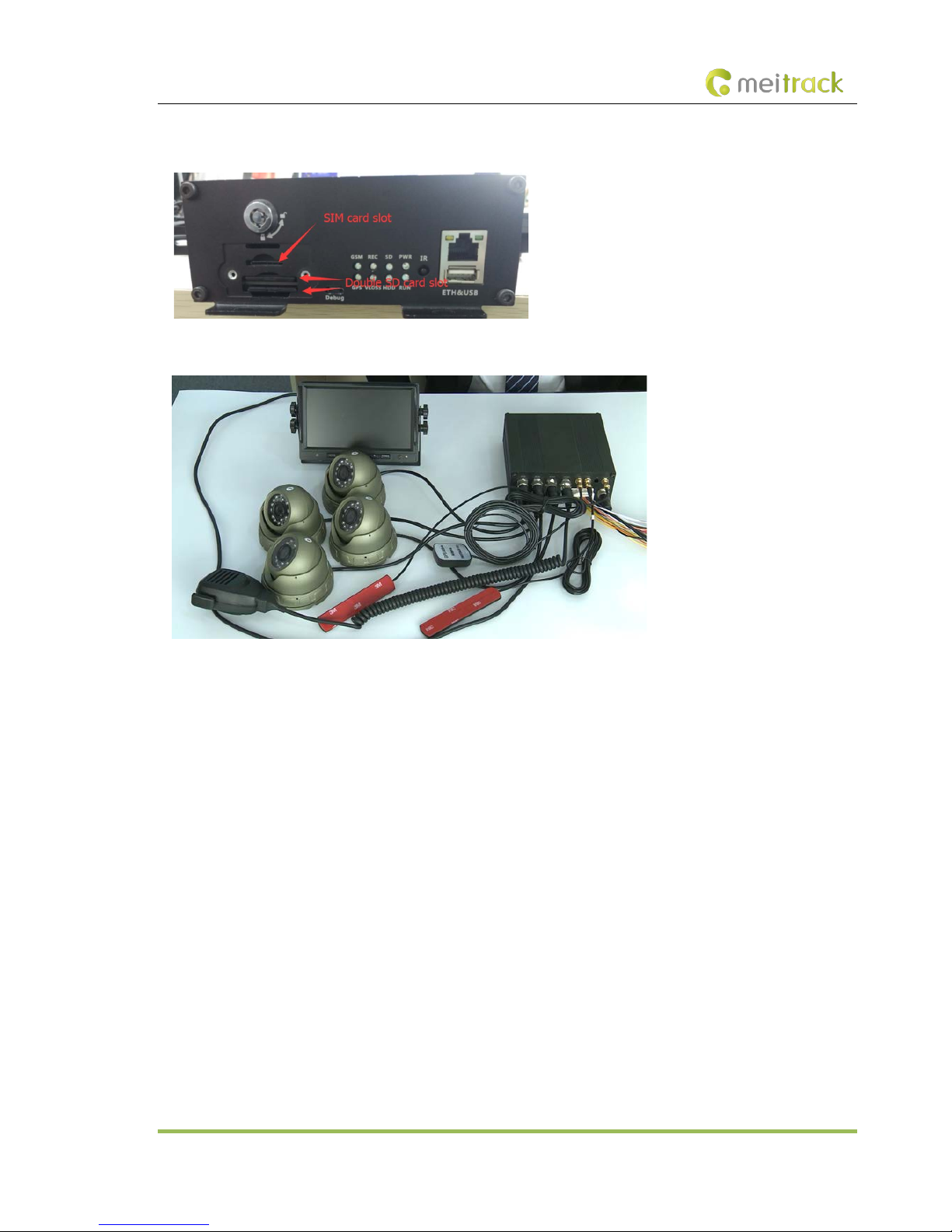

Figure 2.5.1 Front Panel

MEITRACK MD522S User Guide

1. Screws for fastening the SD card lock

2. SD card lock (To enable the recording function, ensure that SD cards are locked after SD cards are installed properly.)

3. ETH&USB port

4. Debug interface

5. LED indicator

Figure 2.5.2 Rear Panel

2.5.2 Interface Definition

Interface Label Description

Infrared interface IR Infrared receiver (reserved function)

USB port USB Standard USB port

4G auxiliary antenna

connector

4G SMA connector; 4G auxiliary antenna

3G/4G main antenna

connector

3G/4G SMA connector; 3G/4G main antenna

GPS antenna connector GPS GPS antenna connector

WiFi antenna connector WiFi WiFi antenna connector

Voice intercom I/O port MIC&SPK Connect the voice intercom.

AV output AV-OUT Connect the display to show the UI and play audio and video files.

AV input AV-IN1–AV-IN4 AV input port, used to connect a 4-channel AHD 720P camera.

Ethernet interface ETH 10Mbps/100Mbps self-adaptive Ethernet interface

Main line interface IO&AD&RS485&CAN 8 GPIO inputs, 3GPIO outputs, 1 RS485J interface, 1 AD interface,

and 1 CAN bus interface

Sensor interface SENSOR Used to connect a fuel level sensor, temperature sensor, iButton

reader or A61 sensor box.

RS232 interface RS232 EXT Used to connect a RFID reader.

Serial communication

interface

RS232/RS485 RS232 interface by default, used to connect related devices.

Power & ACC interface PWR Input voltage: 11–36 V. The yellow cable is the ACC detection cable.

MEITRACK MD522S User Guide

2.5.3 LED indicator

Label LED Indicator Status Description

PWR Power LED indicator Steady on The MDVR is connected to an external

power supply.

Steady off The MDVR is not connected to an external

power supply.

WIFI WiFi LED indicator Blink suddenly (once every 5 seconds;

indicator on: 100 ms)

There is a WiFi module, but no data is sent.

Blink fast WiFi data is sent and received normally.

Steady off There is no WiFi module.

SD1 SD card 1 LED

indicator

Blink fast (frequency for writing data) A storage disk is detected, and audio and

video data is written into the disk.

Blink suddenly (once every 5 seconds;

indicator on: 100 ms)

A storage disk is detected, but no data is

written into the disk.

Steady off No storage disk is detected.

SD2 SD card 2 LED

indicator

Blink fast (frequency for writing data) An SD card is detected and there is written

audio and video data in the SD card.

Blink suddenly (once every 5 seconds;

indicator on: 100 ms)

An SD card is detected and no data is written

into the SD card.

Steady off No SD card is detected.

3G/4G 3G/4G LED indicator Blink suddenly (once every 5 seconds;

indicator on: 100 ms)

There is a 3G/4G module, but no data is

sent.

Blink fast 3G/4G data is sent and received normally.

Steady off There is no 3G/4G module.

SYS Network status LED

indicator

Steady on There is an incoming call, or the subscriber

you dialed is busy now.

Blink fast (once every 0.1 seconds) The MDVR is being initialized.

Blink fast (0.1 seconds on and 2.9

seconds off)

A signal is received from a base station

(connected to a mobile network).

Blink slowly (1 second on and 2 seconds

off)

No signal is received from a base station

(not connected to a mobile network).

GPS GPS LED indicator Steady on A button or an input is triggered.

Blink fast (once every 0.1 seconds) The MDVR is being initialized, or the battery

power is low.

Blink fast (0.1 seconds on and 2.9

seconds off)

A GPS signal is received.

Blink slowly (1 second on and 2 seconds

off)

No GPS signal is received.

VLOSS

Video lost LED

indicator

Steady on All AV inputs are not connected to cameras.

Blink suddenly (once every 5 seconds;

indicator on: 100 ms)

One AV input is not connected to a camera.

Blink suddenly (twice every 5 seconds;

Two AV inputs are not connected to

MEITRACK MD522S User Guide

indicator on: 100 ms; interval: 300 ms) cameras.

Blink suddenly (3 times every 5 seconds;

indicator on: 100 ms; interval: 300 ms)

Three AV inputs are not connected to

cameras.

Steady off All AV inputs are connected to cameras.

2.5.4 I/O Port

Pin Number Label Function Description

1 OUT3 Output 3; low level triggering by default (0 V); invalid: open collector

Maximum voltage for output open collector (invalid): 40 V. Maximum current:

400 mA.

Allow to set the high level triggering mode and PWM triggering mode.

Connect an external relay to remotely cut off the vehicle fuel or engine power

supply.

2 OUT2 Output 2; low level triggering by default (0 V); invalid: open collector

Maximum voltage for output open collector (invalid): 40 V. Maximum current:

400 mA.

Allow to set the high level triggering mode and PWM triggering mode.

Connect an external relay to remotely cut off the vehicle fuel or engine power

supply.

3 TLEFT_DET Connect the turning left signal cable.

4 TRIGHT_DET Connect the turning right signal cable.

5 BRAKING_DET Connect the braking signal cable.

6 DOOR2_DET Connect the vehicle door side signal cable.

7 TBACK_DET Connect the reversing signal cable.

8 SPEED_IN Connect the vehicle speed signal cable.

9 DOOR1_DET Connect the vehicle door side signal cable.

10 AD1 Analog input 1 with 12-bit resolution; valid voltage: 0–6.6 V

Connect an external sensor, such as the fuel level sensor.

11 None (reserved) None (reserved)

12 None (reserved) None (reserved)

MEITRACK MD522S User Guide

13 OUT1 Output 1; low level triggering by default (0 V); invalid: open collector

Maximum voltage for output open collector (invalid): 40 V. Maximum current:

400 mA.

Allow to set the high level triggering mode and PWM triggering mode.

Connect an external relay to remotely cut off the vehicle fuel or engine power

supply.

14 None (reserved) None (reserved)

15 RS485_B- RS485 B- signal cable (RS485 interface)

Connect the negative terminal of the camera cradle head.

16 RS485_A+ RS485 A+ signal cable (RS485 interface)

Connect the positive terminal of the camera cradle head.

17 GND Ground wire

18 CAN_L Connect a CAN bus peripheral.

19 CAN_H Connect a CAN bus peripheral.

20 GND Ground wire

21 GND Ground wire

22 GND Ground wire

23 SOS SOS alert input cable

24 None (reserved) None (reserved)

3 How it Works

3.1 Working Diagram

MD522S Working Diagram

MEITRACK MD522S User Guide

3.2 Working Mode

MEITRACK MD522S User Guide

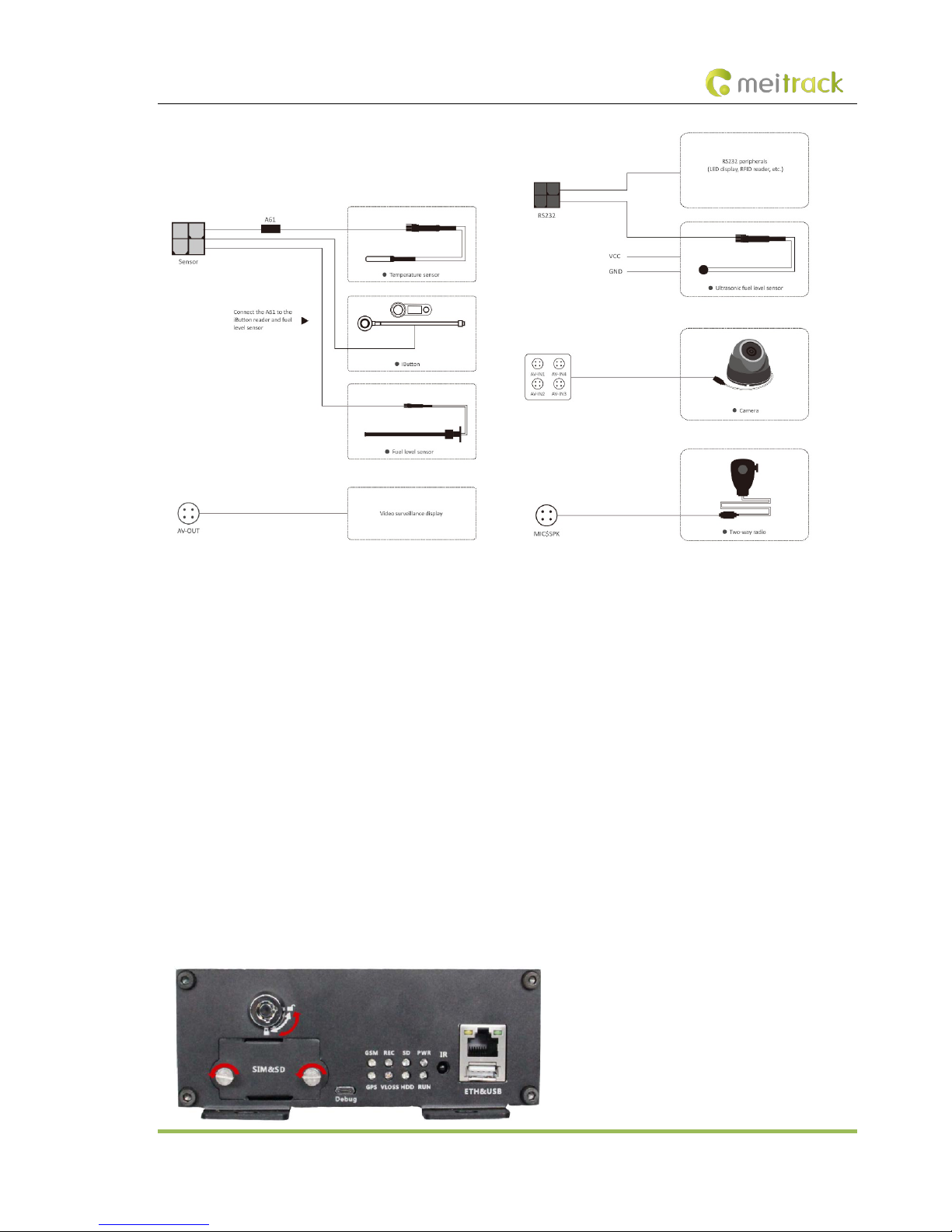

3.3 Peripheral Wiring Diagram

MeiTrack MD522S User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
