MeiTrack DV-MD078 User Manual

Product overview

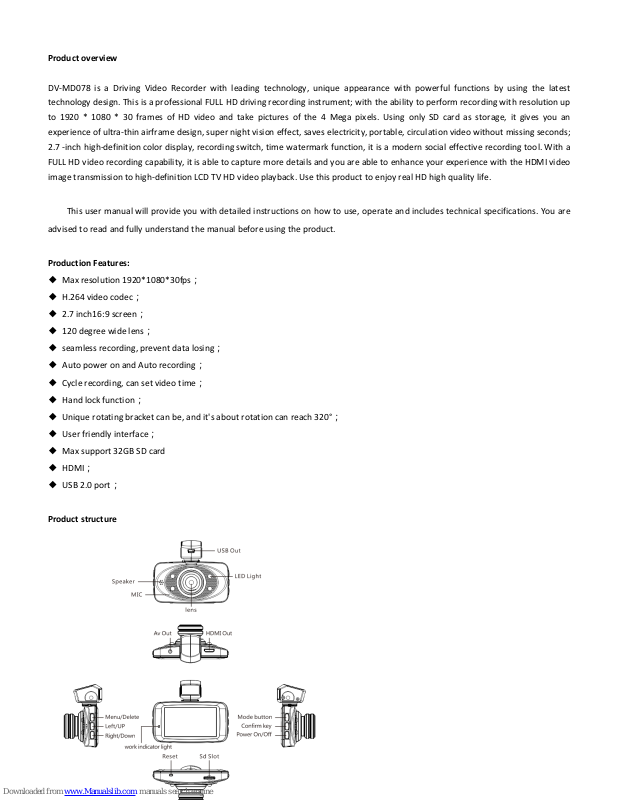

DV-MD078 is a Driving Video Recorder with leading technology, unique appearance with powerful functions by using the latest

technology design. This is a professional FULL HD driving recording instrument; with the ability to perform recording with resolution up

to 1920 * 1080 * 30 frames of HD video and take pictures of the 4 Mega pixels. Using only SD card as storage, it gives you an

experience of ultra-thin airframe design, super night vision effect, saves electricity, portable, circulation video without missing seconds;

2.7 -inch high-definition color display, recording switch, time watermark function, it is a modern social effective recording tool. With a

FULL HD video recording capability, it is able to capture more details and you are able to enhance your experience with the HDMI video

image transmission to high-definition LCD TV HD video playback. Use this product to enjoy real HD high quality life.

This user manual will provide you with detailed instructions on how to use, operate and includes technical specifications. You are

advised to read and fully understand the manual before using the product.

Production Features:

◆ Max resolution 1920*1080*30fps；

◆ H.264 video codec；

◆ 2.7 inch16:9 screen；

◆ 120 degree wide lens；

◆ seamless recording, prevent data losing；

◆ Auto power on and Auto recording；

◆ Cycle recording, can set video time；

◆ Hand lock function；

◆ Unique rotating bracket can be, and it's about rotation can reach 320°；

◆ User friendly interface；

◆ Max support 32GB SD card

◆ HDMI；

◆ USB 2.0 port；

Product structure

Installation Instructions

1. Holder installation：

2. Device installation and cable installation suggestion：

Note: The orange dotted line suggests cable layout.

The button keys function

Power button - on/off button

Short press on, long press for 3 seconds to turn it off

REC key

Video/photo button: Press to start recording and press again to stop

MODE key - MODE switch button

(photo, playback MODE and video MODE), as well as video shortcuts as EMG, select

this mode and this file will permanently preserved, loop video will not erase the

selected file.

MENU button, the MENU entry/exit button

Press MENU button to enter the MENU and then press MENU select the icon set

(photo/video and photo/video parameters Settings MENU, machine Settings) and

press REC to confirm settings. This button functions as the recording on/off keyboard

shortcuts

UP button – a directional key

This button will be used as a pause/video button.

As the fast forward button in the playback video use.

As a directional key in the menu mode.

In the boot short press, the machine will switch on the fill light

DOWN button - a directional key

This button in front of the video/photos will be used as a delay key. As a directional

key in the menu mode.

Operational guide

To connect the 12 v / 24 v car

charger

When using the DVR, connect it to the cigarette lighter and the product launch will

automatically to start recording. In auto shut down after 15 seconds (set according to your

preference) to stop video and it will automatically turn off

(note : remove the connector from cigarette lighter for manual shutdown).

warm prompt

Output of 5 v car charger can be used to the machine power supply (preferably the product

configuration of the car charger), otherwise, it will cause damage to the machine.

to install and remove the memory

card

Please insert the direction of the SD card according or might risk damaging the machine and

the SD card.

If memory card format and the machine are not compatible, format it manually via the

machine or computer.

startup/shutdown and automatic

shutdown

Long press the power button for 3 seconds to turn on/off.

In order to save battery power, do set it on automatically shut down and it will automatically

be turned off.

the video mode

Press the "REC" button start video recording, and then press: "REC" button to stop recording,

during the process of recording, display the upper left corner of the video in line with the

display will be flashing red.

the menu function

1. Resolution: the size of the video resolution options 30 p 16:9, 1980 * 1080 * 1280 * 720 * 30

p 16:9

2. Video quality: the quality of the video option (very nice/good/average)

3. Loop video: video time options (off, 1 minutes, 2 minutes, 3 minutes, 4 minutes, 5 minutes)

4. Video delay: video delay timing (disabled, 15 seconds, 30 seconds and 1 minute, 5 minutes,

10 minutes)

5. Function: recording video switch selection (on/off) increase during the process of video

recording switch shortcut keys, press the MENU button to switch on the recording function,

then close the MENU for recording function.

6. The mobile detection, motion detecting option (on/off)

the video parameters setting

Light frequency - choose machine lighting option (to be automatic, 50 hz or 60 hz)

Exposure, exposure option (to be automatic, night mode 1, motion, panoramic view, portraits,

sunset, desert, snow, Skin/spotlight, water)

White balance - white balance option (to be automatic, D4000, thed5000, sunshine, cloudy,

incandescent, Flash, Water, Preset)

Color - color options (closed, art, tan, negative film, black and white, bright)

Contrast, contrast option (the standard, sharp, soft)

Sharpness, sharpness of options (standard, sharp, soft)

Metering, metering mode selection, on average, fixed point (center)

Iso - iso option (to be automatic, 100, 200, 100)
Offset - exposure offset option（-2.0EV、-1.7EV、-1.3EV、-1.0EV、-0.7EV、-0.3EV、0.0EV、
+0.3EV、+0.7EV、+1.0EV、+1.3EV、+2.0EV）

the night exposure at night offset option（-2.0EV、-1.7EV、-1.3EV、-1.0EV、-0.7EV、-0.3EV、
