Logistic Tray L2U User Manual Rev. 3.0 Updated on 7NOV 2016

Logistic Tray L2-U User Manual Rev. 3.0

Model: Logistic Tray L2-U

Technical Contacts and Enquiry: [e-mail] Website: www.myndar.com

(This user manual / product specification is subjected to be changed without prior notice) P.1

Logistic Tray L2U User Manual Rev. 3.0 Updated on 7NOV 2016

Table of Content

FCC statement..................................................................................................... 3

CE statement ....................................................................................................... 3

Chapter 1 Introduction of Logistic Tray L2-U ................................................. 4

1.1 Overview of Logistic Tray L2-U ....................................................... 4

1.2 Ports Description ................................................................................ 5

1.3 Indicators LEDs in Logistic Tray L2-U ............................................ 5

1.4 Antenna for Logistic Tray L2-U ....................................................... 7

1.5 Specification: ....................................................................................... 8

Chapter 2 Installation of Logistic Tray L2-U ................................................... 9

2.1 Start-up Procedures of Logistic Tray L2-U ..................................... 9

2.2 Environmental Requirements ........................................................ 100

2.3 Caution .............................................................................................. 11

Chapter 3 Demonstration of RFID Applications ........................................... 112

3.1 Creating RFID Application with Logistic Tray L2-U ................... 122

3.1.1 Delivering Application to Logistic Tray L2-U ........................ 122

3.1.2 Programming Language compatibility ...................................... 12

Chapter 4 Regulatory Information ................................................................... 13

4.1 Federal Communications Commission (FCC) Compliance .......... 13

4.1.1 Radio Frequency Radiation Exposure ....................................... 14

4.2 CE Com`pliance ............................................................................... 14

Chapter 5 Disclaimer Notice ........................................................................ 1615

Chapter 6 Warranty ........................................................................................... 16

Chapter 7 Support ............................................................................................. 17

Technical Contacts and Enquiry: [e-mail] Website: www.myndar.com

(This user manual / product specification is subjected to be changed without prior notice) P.2

Logistic Tray L2U User Manual Rev. 3.0 Updated on 7NOV 2016

FCC statement

FCC NOTICE:

To comply with FCC part 15 rules in the United States, the system must be
professionally installed to ensure compliance with the Part 15 certification. It is
the responsibility of the operator and professional installer to ensure that only
certified systems are deployed in the United States.

The use of the system in any other combination (such as co-located antennas
transmitting the same information) is expressly forbidden.

CE statement

CE NOTICE:

The CE Mark applies to products regulated by certain European health, safety
and environmental protection legislation. The CE Mark is obligatory for
products it applies to: the manufacturer affixes the marking in order to be
allowed to sell his product in the European market.

Technical Contacts and Enquiry: [e-mail] Website: www.myndar.com

(This user manual / product specification is subjected to be changed without prior notice) P.3

Logistic Tray L2U User Manual Rev. 3.0 Updated on 7NOV 2016

Chapter 1 Introduction of Logistic Tray L2-U

1.1 Overview of Logistic Tray L2-U:

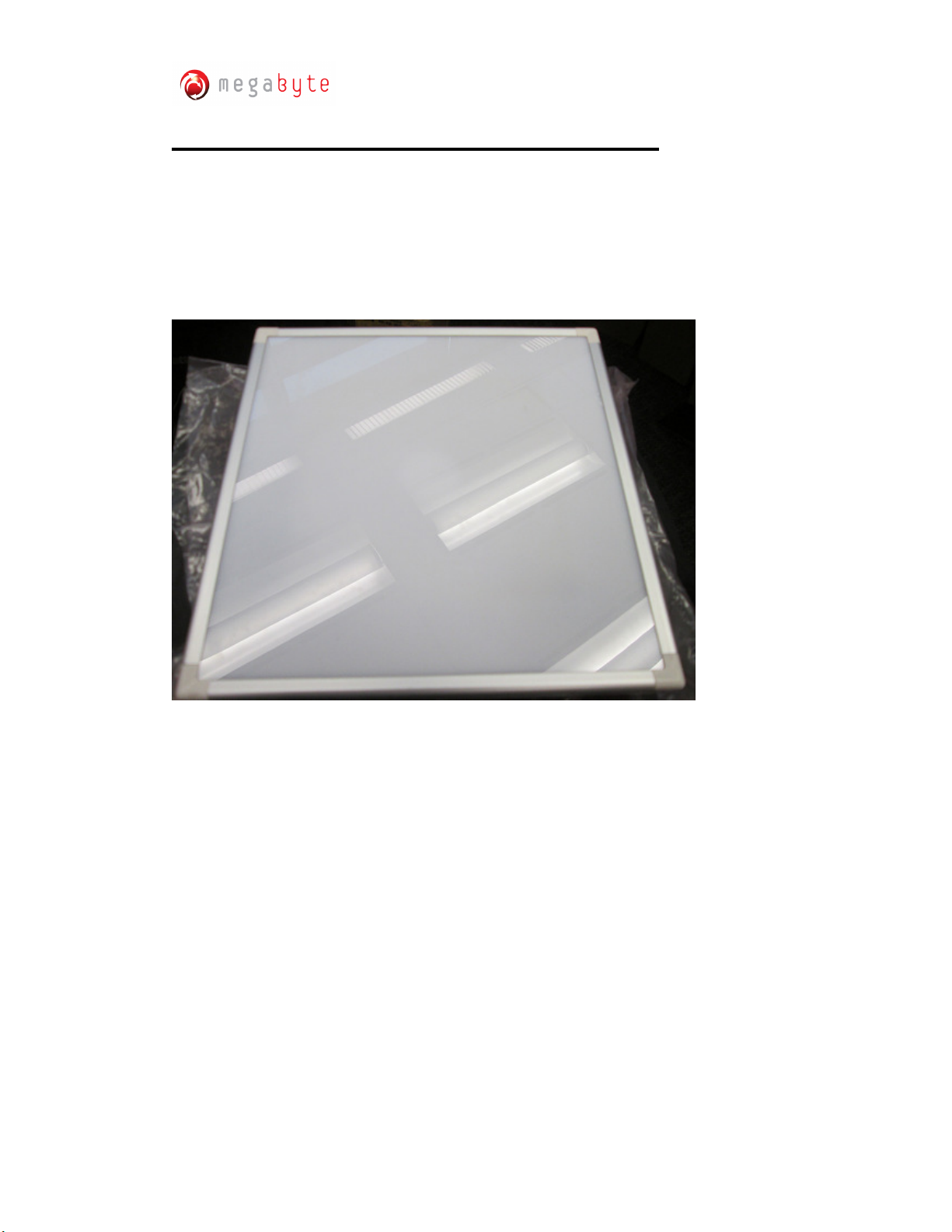

Logistic Tray is an UHF EPC C1G2 RFID fixed reader, it is embedded with
strong near field antenna and only read tag on the tray, minimize the false
reading issue.

• The Logistic Tray L2-U Intelligent RFID Reader supports protocols, UHF
CLASS 1 GEN2 EPC C1G2/ISO 18000-6C, 902-928 MHz RFID
frequency band in United States.

Technical Contacts and Enquiry: [e-mail] Website: www.myndar.com

(This user manual / product specification is subjected to be changed without prior notice) P.4

Logistic Tray L2U User Manual Rev. 3.0 Updated on 7NOV 2016

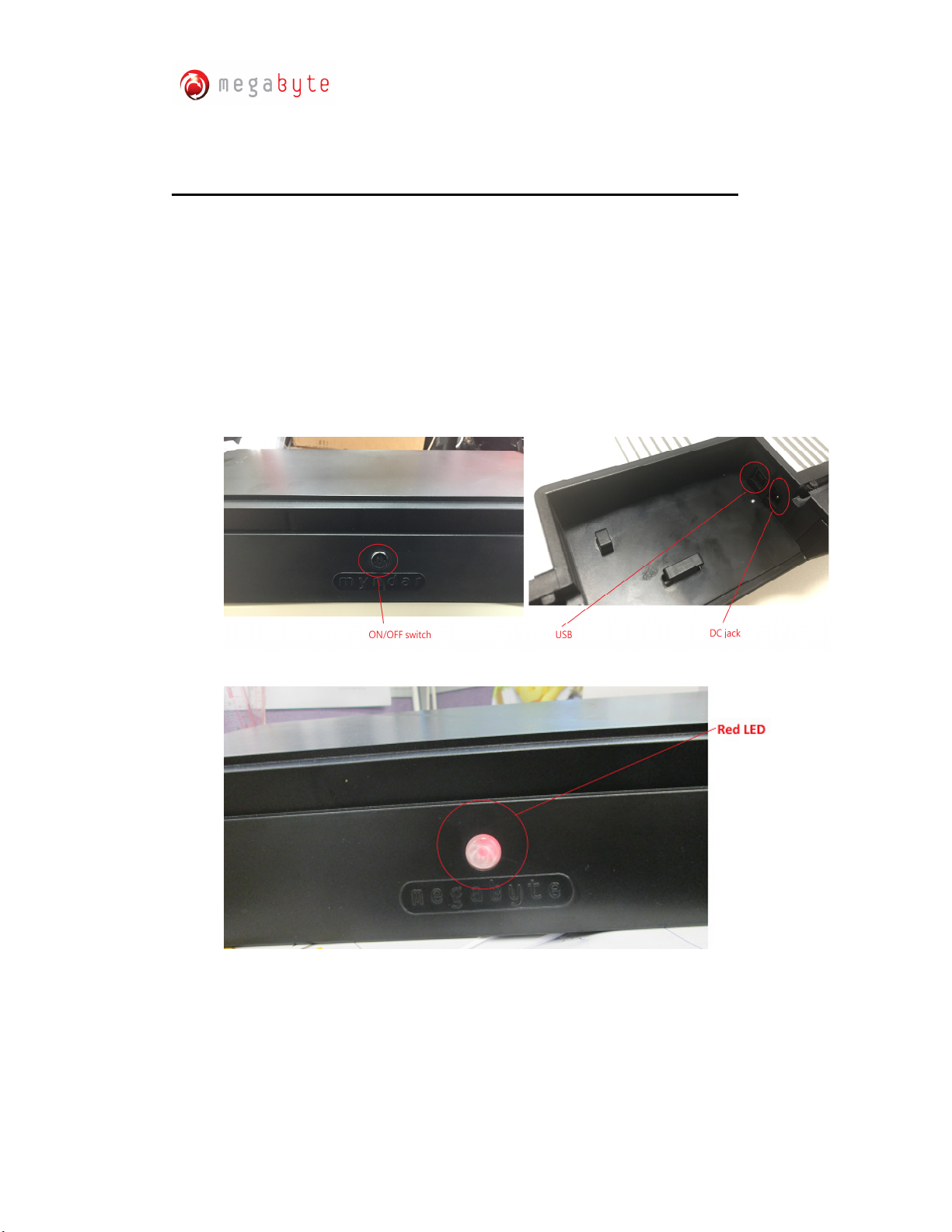

1.2 Ports Description

The Logistic Tray L2-U has several types of input/output port:

Items no. Name Description

1 DC jack 6.5V/3A dc power supply input

2 USB port One standard USB port

3 On_OFF switch One switch on and off button

Technical Contacts and Enquiry: [e-mail] Website: www.myndar.com

(This user manual / product specification is subjected to be changed without prior notice) P.5

Logistic Tray L2U User Manual Rev. 3.0 Updated on 7NOV 2016

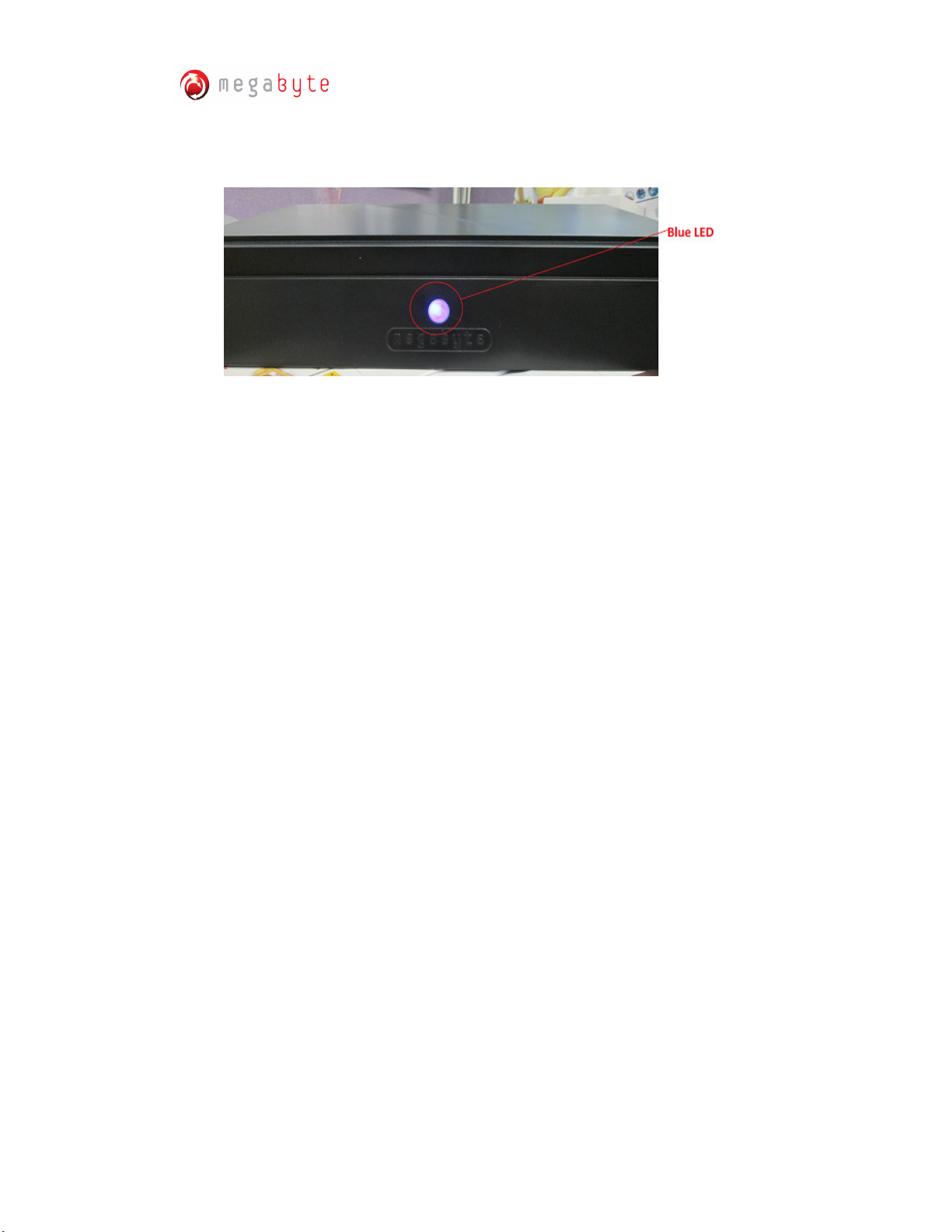

1.3 Indicators LEDs in Logistic Tray L2-U

The Logistic Tray L2-U has different LEDs to indicate the reader status.

Items no. Name Description

4 Red LED Powered On but USB not connect

5 Blue LED Powered On and USB Connected

Technical Contacts and Enquiry: [e-mail] Website: www.myndar.com
