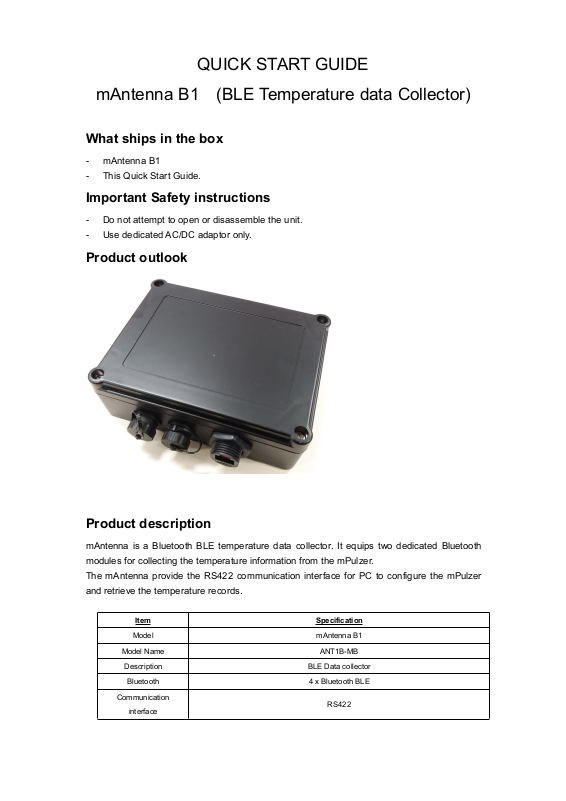

QUICK START GUIDE
- mAntenna B1
- This Quick Start Guide.
- Do not attempt to open or disassemble the unit.
- Use dedicated AC/DC adaptor only.
Item
Specification
Model
mAntenna B1
Model Name
ANT1B-MB
Description
BLE Data collector
Bluetooth
4 x Bluetooth BLE
Communication
interface
RS422
mAntenna B1 (BLE Temperature data Collector)
What ships in the box
Important Safety instructions
Product description
mAntenna is a Bluetooth BLE temperature data collector. It equips two dedicated Bluetooth
modules for collecting the temperature information from the mPulzer.
The mAntenna provide the RS422 communication interface for PC to configure the mPulzer
and retrieve the temperature records.
Operation temp.
-40 to +85 deg C
Frequency Range
2400-2483.5Mhz
Max. Output Power
0dBm
mAntenna B1 body
Typical system configuration
