Thank you for choosing the 7667 v2.2 Series (MS-7667)
Micro-ATX mainboard. The series mainboards are based
on Intel® P67 chipsets for optimal system e󰘲ciency.
Designed to 󰘰t the advanced Intel® LGA1155 processor,
the series deliver a high performance and professional
desktop platform solution.

Getting Started

Mainboard Speci󰘰cations

Processor Support

Intel® Sandy Bridge processor in the LGA1155 package

■

Chipset

Intel® P67 chipset

■

Memory Support

4 DDR3 DIMMs support DDR3 2133(Over Clocking)/ 1600(Over Clocking)/ 1333/

■
1066 DRAM (32GB Max)
Supports Dual-Channel mode

■

LAN

Supports LAN 10/100/1000 by Realtek® RTL8111E

■

IEEE 1394

1 IEEE 1394 rear port by VIA® VT6315N

■

Audio

Chip integrated by Realtek® ALC892

■
Flexible 8-channel audio with jack sensing

■
Compliant with Azalia 1.0 Spec

■

SATA

4 SATA 3Gb/s ports (SATA3~6 by Intel® P67 PCH)

■
2 SATA 6Gb/s ports (SATA1~2 by Intel® P67 PCH)

■
2 eSATA ports (rear x 1, front x 1) by JMicron® JMB362

■

RAID

SATA1~6 support Intel® Matrix Storage Technology (AHCI/ RAID 0/ 1/ 5/ 10) by Intel

■
P67 PCH
2 eSATA ports support RAID 0/ 1 & JBOD mode by JMicron® JMB362

■

USB 3.0

2 USB 3.0 ports by RENESAS uPD720200AF1-DAP-A

■

®

1-2

Connectors/ Ports

Back panel

■

1 Coaxial S/PDIF-Out

­1 Optical S/PDIF-Out

­1 IEEE 1394 port

­6 USB 2.0 ports

­1 eSATA port

­1 LAN port

­6 󰘱exible audio ports

-

On-Board

■
2 USB 2.0 connector

­2 USB 3.0 ports

­1 Front Panel Audio connector

­1 OC switch /LED connector

-

Slots

2 PCIE 2.0 x16 slots

■
2 PCIE 2.0 x1 slots

■

Form Factor

Micro-ATX (24.4 cm X 24.4 cm)

■

Mounting

8 mounting holes

■

MS-7667

Chapter 1

1-3

Getting Started

PASSW ORD

USB 2

SYS FAN1 SYS FAN2

CPU _FAN

USB 1

JFP 3

FRON T_PA NEL

CLE AR_C MOS

SLO T1

DIM M1

DIM M

3

DIM M2

DIM M4

SLO T2

SLO T3

SLO T4

ESA

TA

FRON T_A UDI O

BATT

+

LOC K

Top: L AN Jac k
Bot tom: US B2.0 port s

T:
M:
B:

Lin e-Ou t

Lin e-In
Mic

T:CS- Out
M:R S-Ou t
B:S S-Ou t

Top: U SB 2.0 por ts
Bot tom: eS ATA po rt

Top:
Bot tom:

139 4 po rt

USB 2.0 po rts

Top:
Coa xial S/ PDI F
But tom:
Opti cal S/ PDI F

U

SB3 _2

U

SB3 _1

PWR 1

PWR 2

SA

TA

1_2

SA

TA

3_4

SA

TA

5_6

Mainboard Layout

1-4

(MS-7667) Micro-ATX Mainboard

Chapter 2

Hardware Setup

This chapter provides you with the information about
hardware setup procedures. While performing the instal­lation, be careful in holding the components and follow­ing the installation procedures. For some components, if
you install in the wrong orientation, the components will
not work properly.

Use a grounded wrist strap before handling computer
components. Static electricity may damage the compo­nents.

Hardware Setup

MS-7667

Chapter 2

Quick Components Guide

SYSFAN1/2, p.2-14

CPU, p.2-4

DDR3, p.2-8PWR2, p.2-10

CPUFAN, p.2-14

Back Panel,
p.2-11

ESATA, p.2-13

PCIE, p.2-18

FRONT_AUDIO, p.2-16

USB1/ 2, p.2-15

PASSWORD, p.2-17

PWR1, p.2-10

USB3_1/2, p.2-15

CLEAR _C MO S,
p.2-17

SATA1~6, p.2-13

JFP3, p.2-16

FRONT_PANEL, p.2-14

2-2

MS-7667

Chapter 2

MS-7667

Screw Holes

When you install the mainboard, you have to place the mainboard into the chassis in the
correct direction. The locations of screws holes on the mainboard are shown as below.

The side has to
toward the rear,
the position for
the I/O shield of
the chassis.

Chapter 2

Screw holes

Refer above picture to install stando󰘯s in the appropriate locations on chassis and then
screw through the mainboard screw holes into the stando󰘯s.

Important

To prevent damage to the mainboard, any contact between the mainboard circuit and

•

chassis or unnecessary stando󰘯s mounted on the chassis is prohibited.

Please make sure there are no metal components placed on the mainboard or within

•

the chassis that may cause short circuit of the mainboard.

2-3

Hardware Setup

MS-7667

Chapter 2

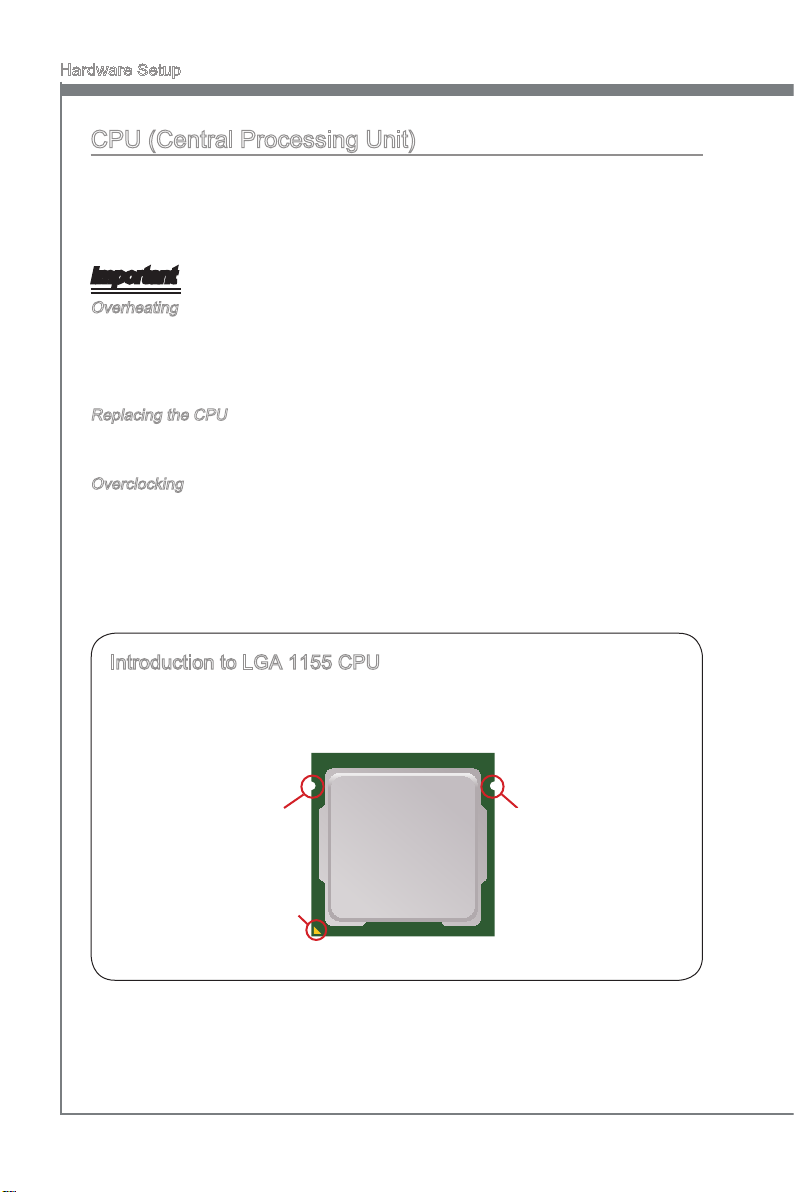

CPU (Central Processing Unit)

When you are installing the CPU, make sure to install the cooler to prevent overheating.
If you do not have the CPU cooler, consult your dealer before turning on the computer.

For the latest information about CPU, please visit http://www.msi.com/index.
php?func=cpuform2

Important

Overheating
Overheating will seriously damage the CPU and system. Always make sure the cooling

fan can work properly to protect the CPU from overheating. Make sure that you apply
an even layer of thermal paste (or thermal tape) between the CPU and the heatsink to
enhance heat dissipation.

Replacing the CPU
While replacing the CPU, always turn o󰘯 the ATX power supply or unplug the power

supply’s power cord from the grounded outlet 󰘰rst to ensure the safety of CPU.

Overclocking
This mainboard is designed to support overclocking. However, please make sure your

components are able to tolerate such abnormal setting, while doing overclocking. Any
attempt to operate beyond product speci󰘰cations is not recommended. We do not guar­antee the damages or risks caused by inadequate operation or beyond product speci­󰘰cations.

Introduction to LGA 1155 CPU

The surface of LGA 1155 CPU. Remember to apply some thermal paste on it for
better heat dispersion.

Alignment Key

Yellow triangle is the
Pin 1 indicator

2-4

Alignment Key

MS-7667

Chapter 2

MS-7667

CPU & Cooler Installation

When you are installing the CPU, make sure the CPU has a cooler attached on the top
to prevent overheating. Meanwhile, do not forget to apply some thermal paste on CPU
before installing the heat sink/cooler fan for better heat dispersion.

Follow the steps below to install the CPU & cooler correctly. Wrong installation will
cause the damage of your CPU & mainboard.

The CPU socket has a plastic cap on it to protect the contact from damage. Before

1.

you install CPU, always cover it to protect the socket pin. Romove the cap.

Open the load level.

2.

Lift the load lever up to fully open position.

3.

After con󰘰rming the CPU direction for correct mating, put down the CPU in the

4.

socket housing frame. Be sure to grasp on the edge of the CPU base. Note that the
alignment keys are matched.

Alignment Key

with pure vertical motion and rein­stall.

Chapter 2

Visually inspect if the CPU is seated well into the socket. If not, take out the CPU 5.

Alignment Key

2-5

Hardware Setup

MS-7667

Chapter 2

Engage the load lever while pressing

6.

down lightly onto the load plate.

Make sure the four hooks are in por-

8. Align the holes on the mainboard with

per position before you install the
cooler.

Secure the lever near the hook end

7.
under the retention tab.

9.
the heatsink. Push down the cooler
until its four clips get wedged into the
holes of the mainboard.

Important

Con󰘰rm if your CPU cooler is 󰘰rmly installed before turning on your system.

•

Do not touch the CPU socket pins to avoid damaging.

•

2-6

MS-7667

Chapter 2

MS-7667

Press the four hooks down to fasten

10. Turn over the mainboard to con󰘰rm
the cooler.

Finally, attach the CPU Fan cable to

12.
the CPU fan connector on the main­board.

11.
that the clip-ends are correctly in­serted.

Mainboard

Hook

Chapter 2

Important

Read the CPU status in BIOS.

•

Whenever CPU is not installed, always protect your CPU socket pin with the plastic

•

cap covered to avoid damaging.

Mainboard photos shown in this section are for demonstration of the CPU/ cooler in-

•

stallation only. The appearance of your mainboard may vary depending on the model
you purchase.

Please refer to the documentation in the CPU fan package for more details about the

•

CPU fan installation.

2-7

Hardware Setup

MS-7667

Chapter 2

Memory

These DIMM slots are used for installing memory modules. For more information on
compatible components, please visit

DDR3

240-pin, 1.5V

Memory Population Rule

Please refer to the following illustrations for memory population rules.
Dual-Channel mode Population Rule
In Dual-Channel mode, the memory modules can transmit and receive data with two

data bus lines simultaneously. Enabling Dual-Channel mode can enhance the system
performance. The following illustrations explain the population rules for Dual-Channel
mode.

http://www.msi.com/index.php?func=testreport

48x2=96 pin 72x2=144 pin

DIMM3

DIMM2

DIMM4

DIMM3

DIMM2

DIMM4

1

DIMM1

2

DIMM1

Installed

Empty

Important

DDR3 memory modules are not interchangeable with DDR2, and the DDR3 standard

•

is not backwards compatible. You should always install DDR3 memory modules in
the DDR3 DIMM slots.

In Dual-Channel mode, make sure that you install memory modules of the same type

•

and density in di󰘯erent channel DIMM slots.

To ensure a successful system boot-up, always insert the memory modules into the

•

DIMM1 󰘰rst.

Due to the chipset resource deployment, the system density will only be detected up

•

to 31+GB (not full 32GB) when each DIMM is installed with a 8GB memory module.

2-8

MS-7667

Chapter 2

Installing Memory Modules

The memory module has only one notch on the center and will only 󰘰t in the right

1.
orientation.

Insert the memory module vertically into the DIMM slot. Then push it in until the

2.
golden 󰘰nger on the memory module is deeply inserted in the DIMM slot. The plastic
clip at each side of the DIMM slot will automatically close when the memory module
is properly seated.

Manually check if the memory module has been locked in place by the DIMM slot

3.
clips at the sides.

Notch

MS-7667

Chapter 2

Volt

Important

You can barely see the golden 󰘰nger if the memory module is properly inserted in the
DIMM slot.

2-9

Hardware Setup

MS-7667

Chapter 2

13 .+ 3. 3

V

1. +3 .3

V

14 .- 12 V

2. +3 .3

V

15 .G ro u nd

3

.G ro un d

16 .P S- O N

#

4. +5
V

17 .G ro u nd

5

.G ro un d

18 .G ro u nd

6. +5
V

19 .G ro u nd

7

.G ro un d

22 .+ 5

V

10 .+ 12 V

20 .R es

8. PW
R O

K

23 .+ 5

V

11

.+ 12 V

21 .+ 5

V

9. 5V SB

24 .G ro u nd

12 .+ 3. 3

V

7. +1 2V

3.

Gr ou nd

5. +1 2V

1.

Gr ou nd

8. +1 2V

4

.G ro un d

6. +1 2V

2

.G ro un d

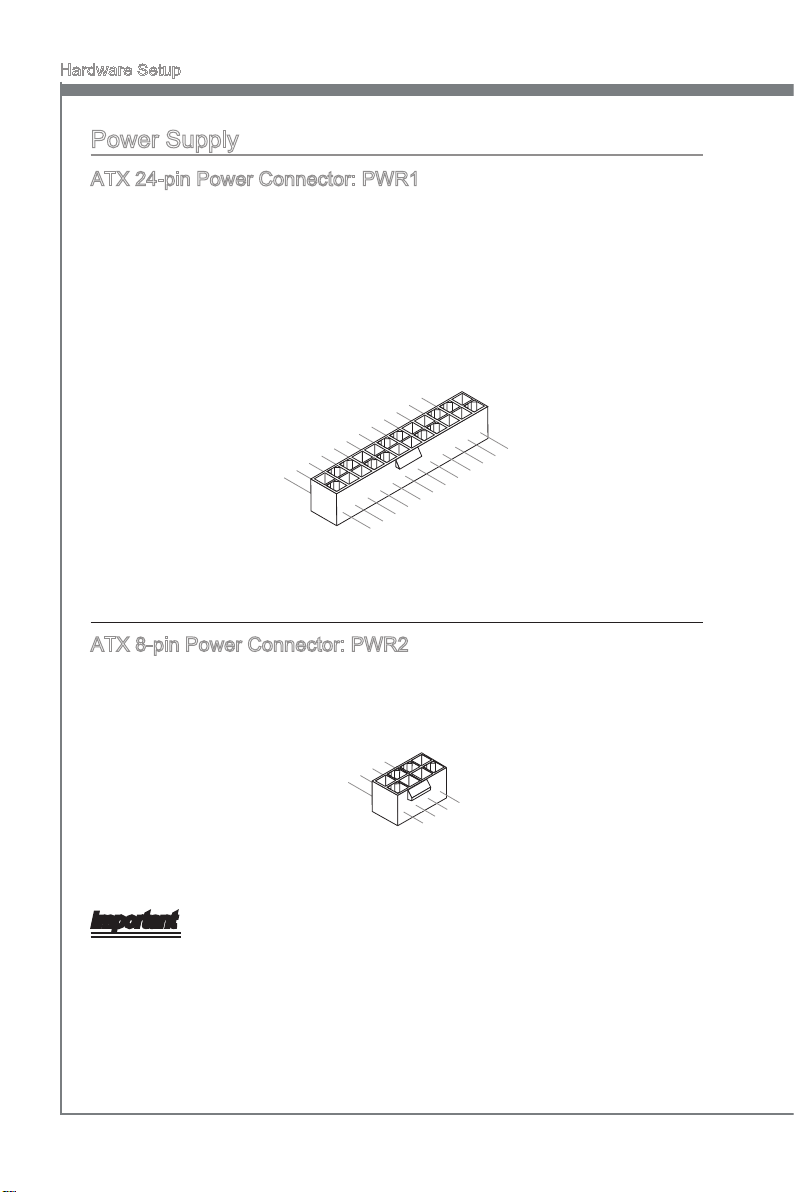

Power Supply

ATX 24-pin Power Connector: PWR1

This connector allows you to connect an ATX 24-pin power supply. To connect the ATX
24-pin power supply, make sure the plug of the power supply is inserted in the proper
orientation and the pins are aligned. Then push down the power supply 󰘰rmly into the
connector.

You may use the 20-pin ATX power supply as you like. If you’d like to use the 20-pin
ATX power supply, please plug your power supply along with pin 1 & pin 13.

ATX 8-pin Power Connector: PWR2

This connector is used to provide the power output to the CPU.

Important

Make sure that all the connectors are connected to proper ATX power supplies to en­sure stable operation of the mainboard.

2-10

MS-7667

Chapter 2

Back Panel

IEEE 1394 Port

Coaxial
S/PDIF-Out

USB 2.0 Port

LAN

CS-Out

RS-Out

Line-In

Line-Out

MS-7667

Chapter 2

Optical
S/PDIF-Out

Coaxial S/PDIF-Out

▶

USB 2.0 Port

eSATA Port USB 2.0 Port

SS-Out

Mic

This S/PDIF (Sony & Philips Digital Interconnect Format) connector is provided for digi­tal audio transmission to external speakers through a coaxial cable.

Optical S/PDIF-Out

▶
This S/PDIF (Sony & Philips Digital Interconnect Format) connector is provided for digi-

tal audio transmission to external speakers through an optical 󰘰ber cable.

IEEE 1394 Port

▶
The IEEE 1394 port on the back panel provides connection to IEEE 1394 devices.

eSATA Port

▶
The eSATA (External SATA) port is for attaching the eSATA hard drive.

USB 2.0 Port

▶
The USB 2.0 port is for attaching USB devices such as keyboard, mouse, or other USB-

compatible devices. Supports data transfer rate up to 480Mbit/s
(Hi-Speed).

2-11

Hardware Setup

MS-7667

Chapter 2

LAN

▶
The standard RJ-45 LAN jack is for connection to

the Local Area Network (LAN). You can connect a
network cable to it.

Yellow Green/ Orange

LED Color LED State Condition

Left Yellow O󰘯 LAN link is not established.

On(Steady state) LAN link is established.

On(brighter & pulsing) The computer is communicating with another computer on the LAN.

Right Green O󰘯 10 Mbit/sec data rate is selected.

On 100 Mbit/sec data rate is selected.

Orange On 1000 Mbit/sec data rate is selected.

Audio Ports

▶
These audio connectors are used for audio devices. It is easy to di󰘯erentiate between

audio e󰘯ects according to the color of audio jacks.

Line-In: Blue - Line In, is used for external CD player, tape-player or other audio

■
devices.

Line-Out: Green - Line Out, is a connector for speakers or headphones.

■
Mic: Pink - Mic, is a connector for microphones.

■
RS-Out: Black - Rear-Surround Out in 4/ 5.1/ 7.1 channel mode.

■
CS-Out: Orange - Center/ Subwoofer Out in 5.1/ 7.1 channel mode.

■
SS-Out: Gray - Side-Surround Out 7.1 channel mode.

■

2-12

MS-7667

Chapter 2

MS-7667

Connectors

Serial ATA Connector: SATA1~6 / ESATA

This connector is a high-speed Serial ATA interface port. Each connector can connect
to one Serial ATA device.

* The MB layout in this 󰘰gure is for reference only.

Chapter 2

SATA1_2

SATA3_4

SATA5_6

ESATA supported by JMB362

SATA1~2 (6Gb/s)
SATA3~6 (3Gb/s)

supported by P67

Important

Please do not fold the Serial ATA cable into a 90-degree angle. Otherwise, data loss
may occur during transmission.

2-13

Hardware Setup

MS-7667

Chapter 2

1

.

G

r

o

u

n

d

2

.

+

1

2

V

3

.

S

e

n

s

o

r

4

.

C

o

n

t

r

o

l

1

.

G

r

o

u

n

d

2

.

+

1

2

V

3

.

S

e

n

s

o

r

1. +

3.

-

10 .N o

Pi

n

5.

­Re se t

S

wi tc h

HD D

LE

D

P

ow er

S

wi tc h

P

ow er

LE

D

7.
+

9. Re se r ve

d

8.

-

6.
+

4.

-

2.
+

Fan Power Connectors: CPU_FAN,SYSFAN1~2

The fan power connectors support system cooling fan with +12V. When connecting the
wire to the connectors, always note that the red wire is the positive and should be con­nected to the +12V; the black wire is Ground and should be connected to GND. If the
mainboard has a System Hardware Monitor chipset on-board, you must use a specially
designed fan with speed sensor to take advantage of the CPU fan control.

CPU_FAN SYSFAN1~2

Important

Please refer to the recommended CPU fans at processor’s o󰘲cial website or consult

•

the vendors for proper CPU cooling fan.

Fan cooler set with 3 or 4 pins power connector are both available for CPUFAN.

•

Front Panel Connector: FRONT_PANEL

These connectors are for electrical connection to the front panel switches and LEDs.
The JFP1 is compliant with Intel® Front Panel I/O Connectivity Design Guide.

2-14

MS-7667

Chapter 2

11
5V

1.V C
C

3.U SB 0

-

10. NC

5.U SB 0

+

7

.Gr ou nd

9.N o
Pin

8

.Gr ou nd

6.U SB 1

+

4.U SB 1

-

2.V C
C

MS-7667

Front USB 2.0 Connector: USB1/ USB2

This connector, compliant with Intel® I/O Connectivity Design Guide, is ideal for con­necting high-speed USB interface peripherals such as USB HDD, digital cameras, MP3
players, printers, modems and the like.

* The MB layout in this 󰘰gure is for reference only.

USB Bracket (optional)

Important

Note that the pins of VCC and GND must be connected correctly to avoid possible

•

damage.

Chapter 2

Front USB 3.0 Port: USB3_1/ USB3_2

USB 3.0 port is backward-compatible with USB 2.0 devices. Supports data transfer rate
up to 5 Gbit/s (SuperSpeed). It is for medion front connect module.

USB 3.0 connector

Important

If you want to use a USB 3.0 device, you must use the USB 3.0 cable to connect to

•

the USB 3.0 port.

2-15

Hardware Setup

MS-7667

Chapter 2

1.MI
C L

3.MI
C R

10.H ea d

P

hone

Dete ct ion

5.He ad P

hone

R

7.SE NS E_SEN

D

9.He ad P

hone

L

8.No
Pi

n

6.MI
C D

etec ti on

4.NC

2

.Gro un d

1

.O C

LE

D -

3

.O C

LE

D +

10 .N o

Pi

n

5. RS
T-

7. RS
T +

9. No
c

on tr o

l

8. PW SW

+

6. PW SW

-

4

.O C

+

2

.O C

-

Front Panel Audio Connector: FRONT_AUDIO

This connector allows you to connect the front panel audio and is compliant with Intel
Front Panel I/O Connectivity Design Guide.

OC switch /LED Connector: JFP3

This connector is for electrical connection to the overclocking switch and LED.

®

2-16

MS-7667

Chapter 2

MS-7667

Jumpers

Clear CMOS Jumper: CLEAR_CMOS

There is a CMOS RAM on board with an external battery power supply to preserve the
system con󰘰guration data. With the CMOS RAM, the system can automatically boot OS
every time it is turned on. If you want to clear the system con󰘰guration, set the jumper
to clear data.

Chapter 2

1

CLEAR_CMOS Keep Data Clear Data

1 1

Important

You can clear CMOS by shorting 2-3 pin while the system is o󰘯. Then return to 1­2 pin position. Avoid clearing the CMOS while the system is on; it will damage the
mainboard.

Clear BIOS Password Jumper: PASSSWORD

The jumper is used to clear the BIOS password. If you want to clear the BIOS password,
set the jumper to clear password.

1 11

PASSWORD Keep Password

Clear Password

Important

Please refer to the below steps to clear the password:

Power o󰘯 the system.

1.

Shorting the 1-2 pin.

2.

Turn on the system to POST screen.

3.

Shut down the system.

4.

Place the cap return to 2-3 pin position.

5.

Boot up the system.

6.

2-17

Hardware Setup

Slots

PCIE (Peripheral Component Interconnect Express) Slot

The PCIE slot supports the PCIE interface expansion card.

PCIE x16 Slot

PCIE x1 Slot

2-18
