Medeli SP4000 User Manual [ru]

aw_SP4000_Manual_G06_150723.ai 1 2015/7/23 11:21:17aw_SP4000_Manual_G06_150723.ai 1 2015/7/23 11:21:17

STAGE PIANO

Owner’s Manual

ACCOMP

TAP

012345678

METRONOME

TEMPO

123456780 9

CMY

BEEP TOUCH TUNE OCTAVE SCALEPEDAL

RESONANCE

REVERB CHORUS

ON/OFFTYPE ROOT

VOLUME

MIN MAX

METRONOME

MELODY OFFEQ DUET HARMONY

LOFF R

VOCALON/OFF

STYLE

01 GrandPno 03 E.Piano 05 E.Piano 3 07 Clavi 09 PercOrgn

02 GrandPn 2

04 E.Piano 2 06 Harpsi 08 Vibra 10 DrawOrgn

11 ChurOrgn 13 RockOrgn 15 Harmnic 17 CleanGtr 19 Strings

12 ReedOrgn 14 Acordion 16 NylonGtr 18 FngrBass 20 SynStrs

123456780 9

SONG

MIDI

0123456

aw_SP4000_Manual_G06_150723.ai 2 2015/7/23 11:21:34aw_SP4000_Manual_G06_150723.ai 2 2015/7/23 11:21:34

INFORMATION FOR YOUR SAFETY!

THE FCC REGULATION WARNING (for USA)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency

PLEASE READ CAREFULLY BEFORE PROCEEDING

Please keep this manual in a safe place for future reference.

Power Supply

Please connect the designated AC adaptor to an AC outlet of the correct voltage.

PRECAUTIONS

energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio

Do not connect it to an AC outlet of voltage other than that for which your instrument is intended.

communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

Unplug the AC power adaptor when not using the

instrument, or during electrical storms. television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

CMY

Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

Unauthorized changes or modification to this system can void the user's authority to operate this equipment.

Connections

Before connecting the instrument to other devices, turn off

the power to all units. This will help prevent malfunction and

/ or damage to other devices.

Location

Do not expose the instrument to the following conditions to

avoid deformation, discoloration, or more serious damage:

Direct sunlight

Extreme temperature or humidity

Excessive dusty or dirty location

Strong vibrations or shocks

Close to magnetic fields

Interference with other electrical devices

Radios and televisions placed nearby may experience

reception interference. Operate this unit at a suitable

distance from radios and televisions.

CAUTION

The normal function of the product may be disturbed by Strong Electro Magnetic Interference. If so, simply reset the product to resume normal operation by following the owner's manual. In case the function could not resume, please use the product in other location.

Cleaning

Clean only with a soft, dry cloth.

Do not use paint thinners, solvents, cleaning fluids, or

chemical-impregnated wiping cloths.

Handling

Do not apply excessive force to the switches or controls.

Do not let paper, metallic, or other objects into the

instrument. If this happens, remove the electric plug from

the outlet. Then have the instrument inspected by qualified

service personnel.

Disconnect all cables before moving the instrument.

aw_SP4000_Manual_G06_150723.ai 3 2015/7/23 11:21:34aw_SP4000_Manual_G06_150723.ai 3 2015/7/23 11:21:34

Contents

Panel Description

Front Panel..................................................................4

Rear Panel...................................................................5

Listening to the songs

Playing Songs............................................................17

Stop Playing Songs...................................................17

Learning Songs.........................................................17

Setup

Setting a Music Stand..................................................6

Power Supply...............................................................6

Connections

Connecting a pair of Headphones...............................7

Connecting an Audio Equipment.................................7

Connecting a MP3/CD Player......................................7

Connecting a Computer and an MIDI Device..............7

Connecting a Footswitch.............................................8

Connecting a Unit Pedal..............................................8

Record

Prepare Recording....................................................18

Start Recording..........................................................18

Stop Recording..........................................................18

Play Back the User Song...........................................18

Delete the User Song................................................19

Duet..........................................................................19

Harmony.................................................................20

Quick Start

Power Switch and Master Volume...............................9

CMY

Playing Demo Songs...................................................9

Playing Voices.............................................................9

Playing Styles..............................................................9

Playing Songs............................................................10

Record.......................................................................10

Advanced Use

Playing Voices...........................................................11

Select and play Upper Voice......................................11

Playing two Voices Simultaneously............................11

Playing Different Voices with Both Hands..................11

Playing Voice Demo..................................................12

Touch Sensitivity........................................................12

Transpose..................................................................12

Tune...........................................................................13

Pedal Resonance......................................................13

Metronome................................................................13

Scale........................................................................21

TWINOVA................................................................21

Beep Tone...............................................................22

MIDI Function

What’s MIDI?.............................................................22

MIDI Terminals...........................................................22

MIDI Controller...........................................................22

Controller Settings.....................................................22

Controller Output.......................................................24

Restore Factory Setting......................................24

Troubleshooting....................................................25

Playing Accompaniment

Selecting a Style........................................................14

Start/Stop Style Playing.............................................14

Fill In A/B...................................................................14

Accompaniment Volume............................................14

Tempo........................................................................15

DSP Effect

Reverb.......................................................................16

Chorus.......................................................................16

EQ.............................................................................16

Specification..........................................................25

Appendix

Voice List...................................................................26

Style List....................................................................27

Song List....................................................................28

Demo List..................................................................29

MIDI Implementation Chart........................................30

Scale T uning System............................................31

aw_SP4000_Manual_G06_150723.ai 4 2015/7/23 11:21:35aw_SP4000_Manual_G06_150723.ai 4 2015/7/23 11:21:35

Panel Description

Front Panel

BEEP TOUCH TUNE OCTAVE SCALEPEDAL

ACCOMP

TAP

012345678

METRONOME

TEMPO

123456780 9

VOLUME

MIN MAX

METRONOME

RESONANCE

REVERB CHORUS

ON/OFFTYPE ROOT

MELODY OFFEQ DUET HARMONY

LOFF R

VOCALON/OFF

STYLE

01 GrandPno 03 E.Piano 05 E.Piano 3 07 Clavi 09 PercOrgn

02 GrandPn 2

04 E.Piano 2 06 Harpsi 08 Vibra 10 DrawOrgn

11 ChurOrgn 13 RockOrgn 15 Harmnic 17 CleanGtr 19 Strings

12 ReedOrgn 14 Acordion 16 NylonGtr 18 FngrBass 20 SynStrs

123456780 9

SONG

MIDI

0123456

VOLUME

MIN MAX

7 8 9

47 48

CMY

1. [POWER] Switch

Turn the power on or off.

2. [VOLUME] Knob

Adjust the master volume.

3. [DEMO]/[MIDI MODE] Button

Start/Stop demo playback. Press and hold [shift], then press [MIDI MODE] to turn MIDI MODE on or off.

METRONOME

12 13 14 15

When enter the MIDI controller mode：

4. [TEMPO -] Button

Decrease the tempo value.

5. [TEMPO +] Button

Increase the tempo value.

6. [METRONOME] Button

Turn the metronome on or off.

7. [START/STOP] Button

Start or Stop playing the song or style.

8. [FILL A/B] Button

Fill in variation A/ B section.

9. [RECORD] button

Enter the record mode.

When exit the MIDI controller mode：

4. [COMMAND] Button

Switch to command edit mode.

5. [DATA] Button

Switch to value edit mode.

6. [CHANNEL] Button

Switch to channel edit mode.

7. [MIDI EDIT] Button

Enter or Exit MIDI controller edit mode.

8. [CTRL 1] Button

Transmit controller 1 data, or switch to controller 1 edit mode.

9. [CTRL 2] Button

01 GrandPno 03 E.Piano 05 E.Piano 3 07 Clavi 09 PercOrgn

02 GrandPn 2

04 E.Piano 2 06 Harpsi 08 Vibra 10 DrawOrgn

11 ChurOrgn 13 RockOrgn 15 Harmnic 17 CleanGtr 19 Strings

12 ReedOrgn 14 Acordion 16 NylonGtr 18 FngrBass 20 SynStrs

Transmit controller 2 data, or switch to

11. The NIXIE TUBE Display

Display all the parameters and values related to the currently selected operation and mode of the piano.

10. [PLAY/STOP] Button

Start or Stop playing back recorded song.

controller 2 edit mode.

10. [CTRL 3] Button

Transmit controller 3 data, or switch to controller 3 edit mode.

15. [DUET] Button

Turn the duet function on or off.

19. [SHIFT] Button

Press and hold [SHIFT], then press other button enables you to execute various commands.

20. VOICE DIRECT SELECT Buttons

Quickly select a preset voice.

21. [PITCH BEND] Wheel

Roll the wheel upward or downward to raise or lower the pitch variations.

47~48. PHONE 1 and PHONE 2

Connect stereo headphones with a ¼” stereo phone plug.

When the [SHIFT] button is released：

12. [VOICE] Button

Switch to voice mode.

13. [STYLE] Button

Switch to style mode.

14. [SONG] Button

Enter the song mode.

16. [-/NO] Button

Decrease the parameter value or execute “NO” operation.

17. [+/YES] Button

Increase the parameter value or execute “YES” operation.

18. [TRANSPOSE] Button

Enter the transpose setting.

When the [SHIFT] button is pressed：

12. [VOICE DEMO] Button

Start or Stop playing voice demo.

13. [DUAL] Button

Turn the dual function on or off.

14. [LOWER] Button

Turn the lower function on or off.

16. [TWINOVA] Button

Turn the TWINOVA function on or off.

17. [SCALE] Button

Turn the scale function on or off.

18. [HARMONY] Button

Turn the harmony function on or off.

ON/OFFTYPE ROOT

REVERB

BEEP TOUCH TUNE OCTAVE SCALEPEDAL

RESONANCE

TEMPO

STYLE

METRONOME

ACCOMP

LOFF R

MELODY OFFEQ DUET HARMONYCHORUS

VOCALON/OFF

SONG

MIDI

aw_SP4000_Manual_G06_150723.ai 5 2015/7/23 11:21:35aw_SP4000_Manual_G06_150723.ai 5 2015/7/23 11:21:35

30 31 32 33 34 35 36

BEEP TOUCH TUNE OCTAVE SCALEPEDAL

RESONANCE

REVERB CHORUS

ON/OFFTYPE ROOT

Panel Description

ACCOMP

TAP

012345678

METRONOME

TEMPO

123456780 9

VOLUME

MIN MAX

METRONOME

MELODY OFFEQ DUET HARMONY

LOFF R

VOCALON/OFF

37 38

STYLE

01 GrandPno 03 E.Piano 05 E.Piano 3 07 Clavi 09 DeDraOrg

02 GrandPn 2

04 E.Piano 2 06 Harpsi 08 Vibra 10 DrawOrgn

11 ChurOrgn 13 RockOrgn 15 Harmnic 17 CleanGtr 19 Strings

12 ReedOrgn 14 Acordion 16 NylonGtr 18 AcoBass 20 SynStrs

123456780 9

SONG

MIDI

0123456

39 40

When the [SHIFT] button is pressed：

22. [BEEP] Key

Turn the prompt tone on or off.

23. [PEDAL RESONANCE] Key

Turn the pedal resonance on or off.

24. [TOUCH] Keys

Set an appropriate touch sensitivity level.

CMY

25. [TUNE] Keys

Adjust the tune value.

26. [OCTAVE] Keys In TWINOVA mode, adjust the octave value.

27. [SCALE TYPE] Keys

In SCALE mode, select different scale types.

28. [SCALE ROOT] Keys

In SCALE mode, set the root note of scale.

29. [REVERB] Keys

Turn the reverb effect on/off, or select the

When the [SHIFT] button is pressed：

35. [METRONOME] Keys

Set the metronome type.

36. [ACCOMP VOLUME] Keys

Set the accompaniment volume value.

37. [TEMPO] Keys

Set the tempo value.

38. [STYLE] Keys

Select the desired style.

39. [SONG] Keys

Select the desired song.

In the MIDI controller edit mode:

40. [MIDI] Keys

In the MIDI edit mode, set parameter value which related to MIDI controllers.

Rear Panel

desired reverb effect type.

30. [CHORUS] Keys

USB MIDI OUT SUSTAIN AUX IN AUX OUT

Turn the chorus effect on/off, or select the desired chorus effect type.

31. [EQ] Keys

Select the desired EQ effect type.

32. [DUET] Keys

Select the desired duet effect type.

33. [HARMONY] Keys

Select the desired harmony effect type.

34. [MELODY OFF] Keys

In the SONG mode, press “L”/”R” to mute/ activate left or right-hand part, allowing each part to be practiced separately.

41 42 43 44 45

41. USB Terminal

Connect to a computer.

44. AUX IN Jack

Connect any external audio

source, such as an MP3 or CD

42. MIDI OUT Jack

player. Connect an external MIDI IN device.

45. AUX OUT Jack

Connect an audio equipment.

43. SUSTAIN Jack

Connect a sustain pedal.

46. DC 12V

Connect DC 12V power adaptor.

aw_SP4000_Manual_G06_150723.ai 6 2015/7/23 11:21:36aw_SP4000_Manual_G06_150723.ai 6 2015/7/23 11:21:36

Setup

This section contains information about setting up your instrument and preparing to play. Please go through this section carefully before turning the power on.

Setting a Music Stand

Follow the images on the right, and install the music stand correctly. A music stand is supplied with the keyboard. You can easily attach it to the instrument by inserting it into the slots at the rear of the panel.

Power Supply

1. Make sure that the piano is turned off. Before you switch your

piano on or off, turn down the volume of piano and any connected audio equipments first.

2. Connect the AC adaptor to the power supply jack of this piano.

3. Plug the AC adaptor into an AC outlet.

CMY

4. Press the POWER switch, the nixie tube displays“0.01”, which

indicates the piano is power on.

5. If you are ready to turn off the piano, please long press the

POWER switch.

Note：

1. In order to save energy, we have designed the “Automatic Shutdown” function to the piano. With this function, the keyboard will automatically shutdown in 30 minutes later if you do not take any action on the piano. If you don’t need this feature, just press and hold the [A0] key (the 1st key) and turn it on.

2. When the piano is not in use or during thunderstorm, please disconnect the power for safety purpose.

BEEP TOUCH TUNE OCTAVE SCALEPEDAL

USB MIDI OUT SUSTAIN AUX IN AUX OUT

METRONOME

VOLUME

MIN MAX

METRONOME

TEMPO

MELODY OFFEQ DUET HARMONY

RESONANCE

REVERB CHORUS

ON/OFFTYPE ROOT

ACCOMP

LOFF R

VOCALON/OFF

TAP

012345678

123456780 9

STYLE

01 GrandPno 03 E.Piano 05 E.Piano 3 07 Clavi 09 DeDraOrg

04 E.Piano 2 06 Harpsi 08 Vibra 10 DrawOrgn

02 GrandPn 2

11 ChurOrgn 13 RockOrgn 15 Harmnic 17 CleanGtr 19 Strings

12 ReedOrgn 14 Acordion 16 NylonGtr 18 AcoBass 20 SynStrs

123456780 9

SONG

MIDI

0123456

aw_SP4000_Manual_G06_150723.ai 7 2015/7/23 11:21:37aw_SP4000_Manual_G06_150723.ai 7 2015/7/23 11:21:37

Connecting a pair of Headphones

A standard pair of stereo headphones can be plugged in here for private practice or late-night playing. Jack1: When a pair of headphones is plugged into the jack 1, the sound can be heard from both headphones and speakers of the instrument.

Jack2: When a pair of headphones is plugged into the jack 2, the internal stereo speaker system is automatically shut off. The sound can only be heard from headphones.

Note:

To avoid the risk of hearing loss when using headphones,please do not play the piano with a high volume level for a long time.

Connections

Connecting an Audio Equipment

USB MIDI OUT SUSTAIN AUX IN AUX OUT

The rear-panel AUX OUT jack delivers the output of the instrument for connection to a keyboard amplifier, stereo sound system, a mixing console, or tape recorder.

Use an audio cable to plug into the AUX OUT jack located on the rear board, then plug the other end of the cord into AUX IN of the amplifier.

CMY

Note:

To avoid damaging the speakers, please ensure that the volume has been set to the minimum level before connecting the power and other devices.

Connecting a MP3/CD Player

Connect the audio output of an MP3/CD player or other audio Source to the stereo AUX IN jack on the rear panel. The input signal is mixed with the piano signal, allowing you to play

USB MIDI OUT SUSTAIN AUX IN AUX OUT

along.

Connecting a Computer and an MIDI Device

MIDI OUT Connector

Connect the instrument MIDI OUT terminal to the external device MIDI IN terminal via the MIDI cables. MIDI messages generated by the instrument will be transmitted to another MIDI device. Now this instrument will be used as MIDI Controller.

MIDI OUTMIDI IN

USB Connector

By connecting a PC to the [USB] terminal, you can transfer data between the instrument and the computer via USB cables. For example, you can save your instrument performance data on the computer and playback your MIDI file from computer through piano.

Note:

Do not set the USB audio to be input and output simultaneously when you are setting the software on the computer. Otherwise the sound will be overlapped when play the keyboard.

USB MIDI OUT SUSTAIN AUX IN AUX OUT

aw_SP4000_Manual_G06_150723.ai 8 2015/7/23 11:21:37aw_SP4000_Manual_G06_150723.ai 8 2015/7/23 11:21:37

Connections

Connecting a Footswitch

USB MIDI OUT SUSTAIN AUX IN AUX OUT

An optional footswitch can be plugged into the sustain jack and be used to switch sustain on or off. Simply by pressing a sustain footswitch, you will have a natural sustain as you play.

Note:

1. This instrument supports not only the foot switch we supply, but also those with other brands.

2. Make sure the power is off when connecting the pedal with other brand, otherwise the sequence of switch on/off will be reversed when turning the piano on.

Connecting a Unit Pedal

To simulate the real piano, you can also connect a unit pedal to the unit pedal jack on the bottom cover, then it contains three functional pedals: Sustain, Sostenuto, Soft.

Sustain Pedal

When the sustain pedal is pressed, notes sustain longer. Releasing the pedal immediately stops any sustained notes. It also supports the half-pedal operation, which makes your sustain effect more smooth and real when you are performing.

CMY

Sostenuto Pedal

When the sostenuto pedal is pressed, the notes played before you step on the pedal would have a sustain effect.

Soft Pedal

When the soft pedal is pressed, all notes played on the keyboard will have a softer effect.

Note:

The unit pedal needs to be purchased separately.

aw_SP4000_Manual_G06_150723.ai 9 2015/7/23 11:21:38aw_SP4000_Manual_G06_150723.ai 9 2015/7/23 11:21:38

Power Switch and Master Volume

Turn the Power On/Off

1. First, please ensure the correct connection has been made based

on the previous instruction.

2. Press POWER switch, the nixie tube screen lights up, and displays

“0.01”, it indicates the instrument is power on.

Note:

Press the POWER switch, if the nixie tube screen dose not appear, please check the power supply jack connection are made correctly or not.

Adjust the Master Volume

Rotate the [VOLUME] knob clockwise, the volume increasesand vice versa.

Note：

If the keyboard is in silent, that means the volume may has been adjusted to its minimum level or the headphone jack has been connected.

Quick Start

Playing Demo Songs

This instrument features 2 wonderful demo songs, please refer to the

CMY

Demo list for details

1. Press the [DEMO] button, the nixie tube displays “d-1”, meanwhile,

all demo songs start to play in a continuous loop.

2. Press the [+/YES]/[-/NO] button to select the desired demo song.

3. Press the [DEMO] or [START/STOP] button to stop playing, and exit

demo mode.

Playing Voices

This instrument features exceptionally realistic 20 voices, please refer to the Voice list for details.

1. Press the [VOICE] button.

Enter the voice mode. The nixie tube displays the current voice number, such as “0.01”.

2. Select a voice.

Press the [+/YES]/ [-/NO] button to select a voice you want to play. You can also use the voice direct button to select one.

3. Play the voice.

You can play the keyboard and listen to the wonderful voice.

Playing Styles

This instrument features 50 piano styles in a variety of different musical genres. Try selecting some of the different styles (Refer to the Style List) and play with the auto accompaniment.

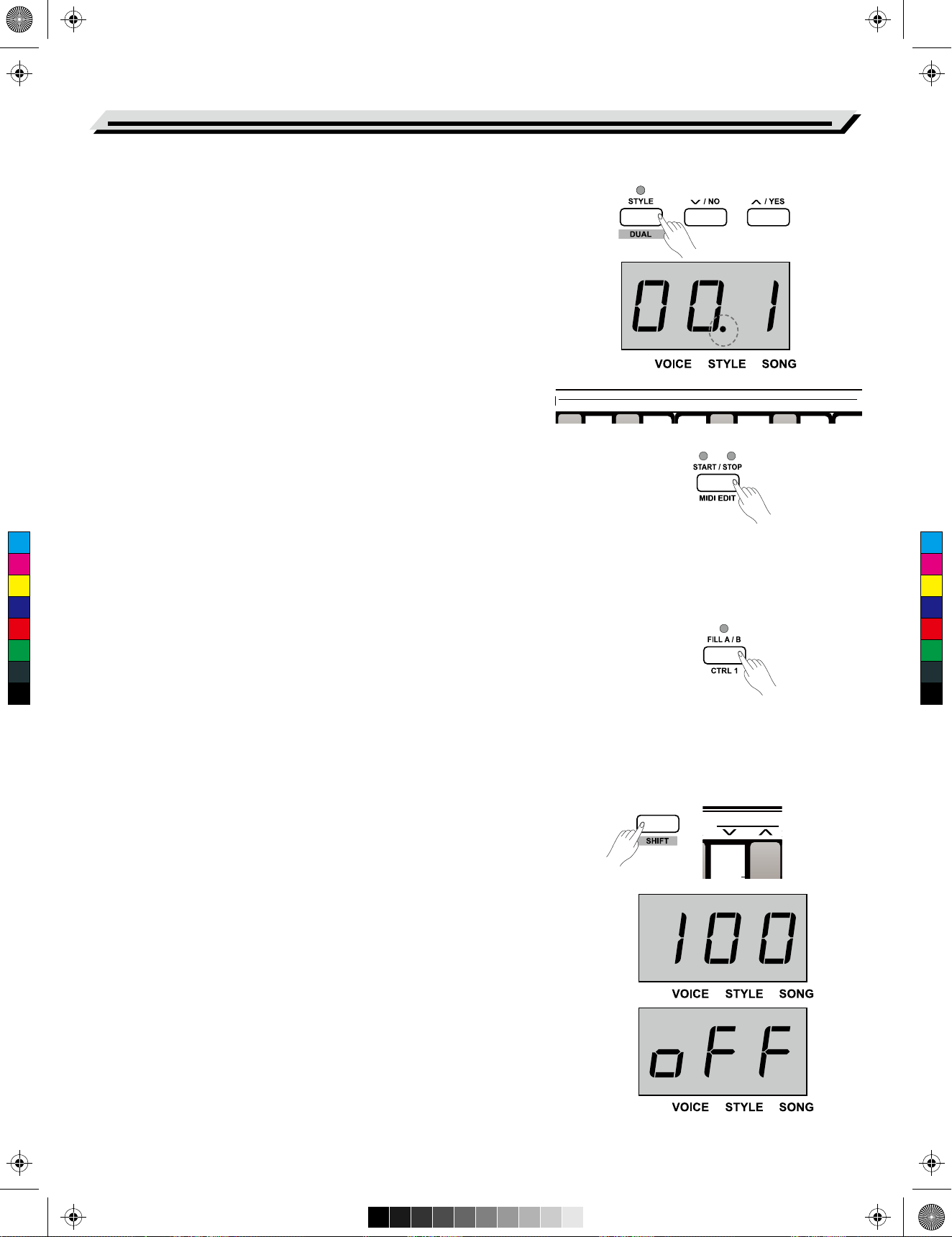

1. Press the [STYLE] button.

Enter the style mode. The nixie tube displays the current style number, such as “0.01”.

2. Select a style.

Press the [+/YES]/[-/NO] button to select a style you want to play. You can also press and hold the [SHIFT] button, then press the style keys marked STYLE 0-9 to select the desired style.

123456780 9

SONG

123

56780 9

STYLE

aw_SP4000_Manual_G06_150723.ai 10 2015/7/23 11:21:38aw_SP4000_Manual_G06_150723.ai 10 2015/7/23 11:21:38

Quick Start

3. Play the style.

Press the [START/STOP] button and it’s relevant LED indicators are flashing in red and green. As soon as you play the keyboard with your left-hand, the auto accompaniment (piano style) starts.

Note:

If you press key(s) marked STYLE 0-9 to select the desired style, please press and hold the [shift] button, then tapping 2 consecutive digits. For example, tapping 0,8 in sequence to select the 08 style.

Playing Songs

This instrument features 60 preset songs, please refer to the Song list.

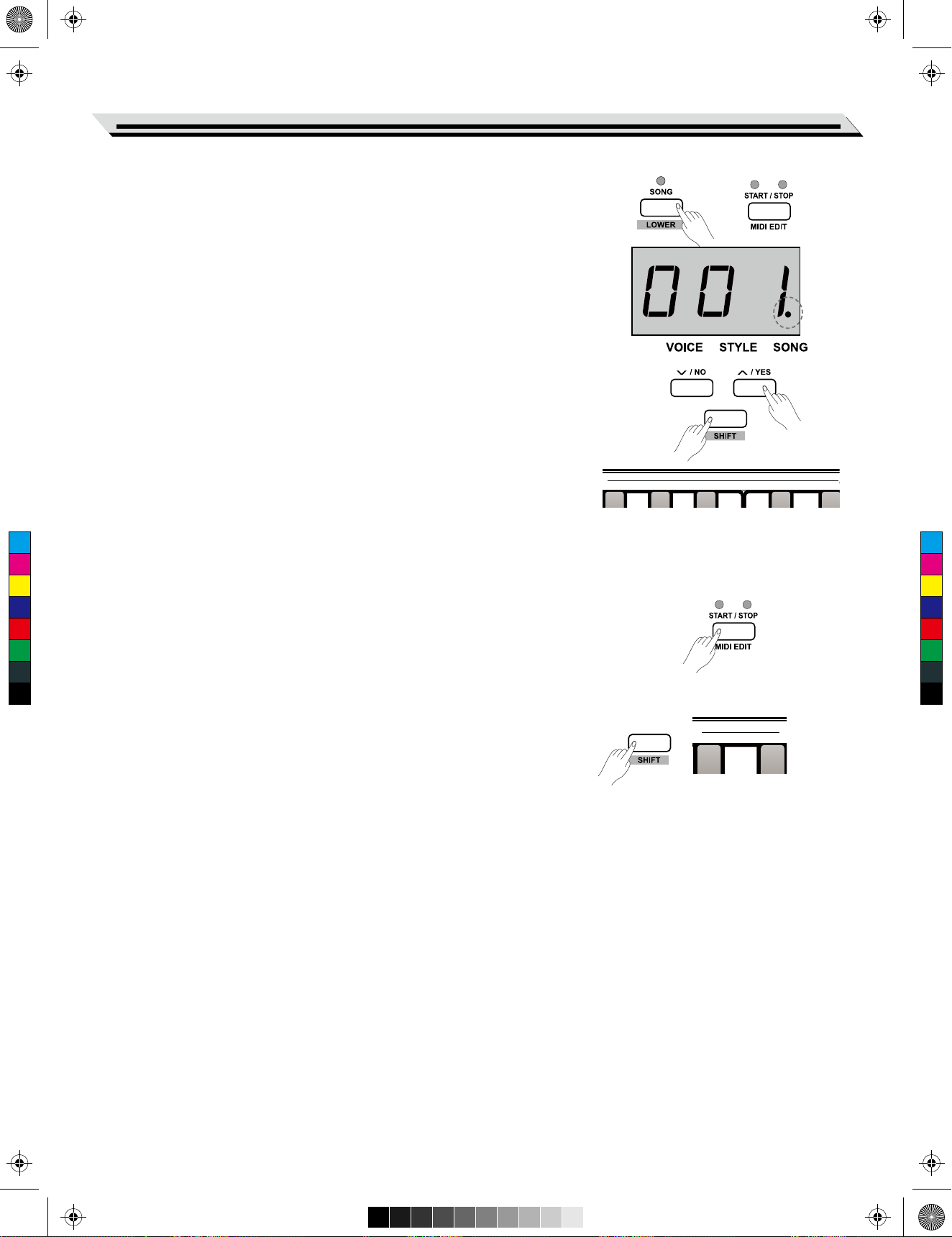

1. Press the [SONG] button.

Enter the song selection mode. The nixie tube displays the current song number, and it will play all songs circularly.

2. Select a song.

Press the [+/ YES]/[-/ NO] button to select a song you want to play. You can also press and hold the [SHIFT] button, then press the song keys marked SONG 0-9 to select the desired song.

3. Play the song.

Press the [START/ STOP] button to play the selected song in a continuous loop.

4. When the selected song has finished, press [VOICE] / [STYLE]

button can exit the song mode.

CMY

Note:

If you press key(s) marked SONG 0-9 to select the desired song, please press and hold the [shift] button, then tapping 2 consecutive digits. For example, tapping 0,8 in sequence to select the 08 song.

Record

This stage piano allows up to 5 user songs to be recorded.

1. Press the [RECORD] button to enter user song memory selection,

the nixie tube displays current user song number. Press the [+/ YES]/[-/ NO] button to select desired user song memory to be saved.

2. Press the [RECORD] button again, enter recording standby mode,

the LED indicator of [START/ STOP] button will be flashing. Then you can select desired voice, style or other parameters to prepare recording.

3. Press the [START/STOP] button or play a key on the keyboard to

start recording. Meanwhile, the LED indicator of [RECORD] button lights up.

4. Press the [RECORD] button again to exit the record mode. The LED

indicator of [RECORD] button will turn off.

5. If you want to play back the user song, you can press the

[PLAY/STOP] button to enter the selection interface. And press the [+/ YES]/[-/ NO] button to select the user song. Then press the [PLAY/STOP] button again to play back user song.

6. While playing back recorded songs, you can press the

[PLAY/STOP] button to exit.

7. In the user song selection interface, press the [RECORD] button,

the nixie tube displays “dEL”, which means enter the delete interface. Then press [+/ YES] to confirm delete the user song, or press [-/ NO] to cancel this operation and go back to the selection interface.

+ 22 hidden pages

Medeli SP4000 User Manual [ru]

Specifications and Main Features

Frequently Asked Questions

User Manual
