INSTALLATION AND USE MANUAL
DEGAS
INTRODUCTION
Dear Customer,
thank you for choosing a MCZ product and in particular the Degas
cladding Forma Puro65.
We are sure that, by using it, you will appreciate the quality of an
accurately designed and tested product. Our goal is to combine
technology with easy of use and, above all, safety.
For optimal functioning of the Degas cladding and to fully
enjoy the heat and sense of well being that will spread
throughout your home, we suggest that you carefully read this
use and maintenance manual before using the product for the
first time; please contact your dealer should you require
assistance in resolving any doubts or problems.
Congratulations on your choice and remember, the fireplace stove
MUST NEVER be used by children who should always be kept at a
safe distance!
Introduction
page
2
Revisions to the publication
In order to improve the product, the Manufacturer reserves the right to
modify and update this publication without prior notice.
Reproduction, even partial, of this manual without the Manufacturer's
authorisation is prohibited.
Manual preservation.
• Please take care of this manual and keep it in a place that can be
quickly and easily reached.
• If this manual should be lost or destroyed, or if it is in poor
condition, request a copy from your dealer or directly from the
manufacturer, providing product identification data.
Introduction Technical service – all rights reserved by mcz spa
Reproduction prohibited
INSTALLATION AND USE MANUAL Chapter 1
DEGAS
1. WARNINGS AND WARRANTY CONDITIONS
1.1. SAFETY WARNINGS
• Check the conditions of the surface that will support the
weight of the stove. If it is made of flammable material
(such as wood, carpet, or plastic) provide suitable
insulation.
• The user is fully liable for improper product use,
releasing MCZ from any civil or penal liabilities.
• Any tampering with the fireplace stove, or use of nonoriginal spare parts, may be hazardous to the user and
releases MCZ from any civil or penal liability.
• Incorrect installation or poor maintenance (not
compliant with the provisions of this manual) may cause
damages to persons, animals or property. MCZ is not
civilly or criminally liable in these cases.
page
3
1.2. GUARANTEE CONDITIONS
MCZ guarantees the product, with the exception for the elements
subject to normal wear listed below, for two years from the date of
purchase that is proven by a document that indicates the dealer's name
and date of sale, if the completed warranty certificate was returned
within 8 days and if the product was installed and inspected by a
specialised installation technician and according to the detailed
instructions indicated in the instruction manual supplied with the
product.
The warranty includes the free replacement or repair of parts
recognised as factory defective.
1.2.1. Exclusions
The guarantee does not cover any part that may be defective
due to negligence or careless use, incorrect maintenance,
installation non compliant with that specified by MCZ.
MCZ refuses to accept any responsibility for any damage which may be
caused, directly or indirectly, by persons, animals or things as a result
of the failure to observe all the provisions set forth in the instruction
booklet, especially those concerning warnings on the subject of
installation, use and maintenance of the appliance.
In the event of product inefficiency, please contact your dealer and/or
area importer.
Damages caused by transport and handling are not covered by the
guarantee.
Exclusively refer to the supplied manual for product installation and
use.
The guarantee will be invalidated in the event of damage caused by
tampering with the appliance, atmospheric agents, natural disasters,
Chapter 1 Technical service – all rights reserved by mcz spa
Reproduction prohibited
INSTALLATION AND USE MANUAL Chapter 1
DEGAS
electrical discharges, fire and lack of, or incorrect, maintenance in
terms of the manufacturer's instructions.
REQUEST FOR SERVICE
Requests for service must be addressed to the dealer
who shall forward the request to the MCZ technical
assistance service.
MCZ is not liable in the event the product and any
other accessory is improperly used or modified
without authorisation.
Only original MCZ spare parts must be used for all
replacements.
page
4
Chapter 1 Technical service – all rights reserved by mcz spa
Reproduction prohibited
INSTALLATION AND USE MANUAL Chapter 2
page
DEGAS
5
2. DEGAS CLADDING WITH FIREPLACE STOVE FORMA PURO65
The Degas model is a recessed cladding, i.e. the fireplace stove is recessed into the wall. Therefore it is
necessary to build a counter-wall that protrudes from the perimeter wall. The depth of the wall to be constructed
is at your discretion provided you comply with all safety distances for the fireplace stove. For this purpose please
refer to the
Manual for Installation and Use
of Forma Puro65.
913
886
SICUREZZA
DISTANZA DI
MURO PERIMETRALE MURO PERIMETRALE
913
30
PARETE
D'INCASSO
Chapter 2 Technical service – all rights reserved by mcz spa
Reproduction prohibited
INSTALLATION AND USE MANUAL Chapter 3
DEGAS
3. ASSEMBLY OF DEGAS CLADDING
3.1. DEGAS CLADDING COMPONENTS
page
6
COMPONENTE
PROFILO INFERIORE
SPALLA SX
SPALLA DX
PROFILO SUPERIORE
CORNICE IN MARMO
N.
1
1
1
1
1
2
VITERIA IN DOTAZIONE
VITE PH-AB 3,9X9,5
VITE AUTOPERF.4.2X16
DADO M6
4
N.
4
2
8
3
5
Chapter 3
1
Technical service – all rights reserved by mcz spa
Reproduction prohibited
INSTALLATION AND USE MANUAL Chapter 3
page
DEGAS
7
3.2. PHASE 1 - POSITIONING OF FIREPLACE STOVE FORMA PURO65
Place the Forma Puro in the desired position and at a safe distance from the rear wall. Raise the
Fireplace stove of desired height, provided it is greater than150 mm (= width of Degas frame). A second
adjustment of the unit (minor variations), if necessary, is made during assembly of the cladding.
N.B. It is necessary to create a support base upon which to fasten the Forma Puro65. The unit must
be firm and stable on the floor.
PROFILO
COPRIBORDO
>150 MM
DISTANZA
DI SICUREZZA
PAVIMENTO
BASE APPOGGIO
FORMA PURO
Install the unit Forma Puro65 in accordance with the instructions in the respective
and run a quick test for proper operation. If the test is successful, you can install the Degas cladding.
Use
Manual for Installation and
Chapter 3
Technical service – all rights reserved by mcz spa
Reproduction prohibited
INSTALLATION AND USE MANUAL Chapter 3
DEGAS
3.3. PHASE 2 – CHANGING EDGE-COVER PROFILE FORMA PURO65
PROFILO
COPRIBORDO
FORMA PURO65
page
8
Remove the edge-cover profile of the fireplace stove Forma Puro 65 to install the Degas lower element.
3.4. PHASE 3 – INSTALLATION OF LOWER ELEMENT AND SIDES (elements 1, 2
and 3)
Fasten the elements using 2 screws PH-AB 3.9X95. Make sure the sides are installed facing the right way, i.e.
with the outlet at the top and facing inwards (towards the fireplace stove).
Chapter 3
Technical service – all rights reserved by mcz spa
Reproduction prohibited
INSTALLATION AND USE MANUAL Chapter 3
page
DEGAS
9

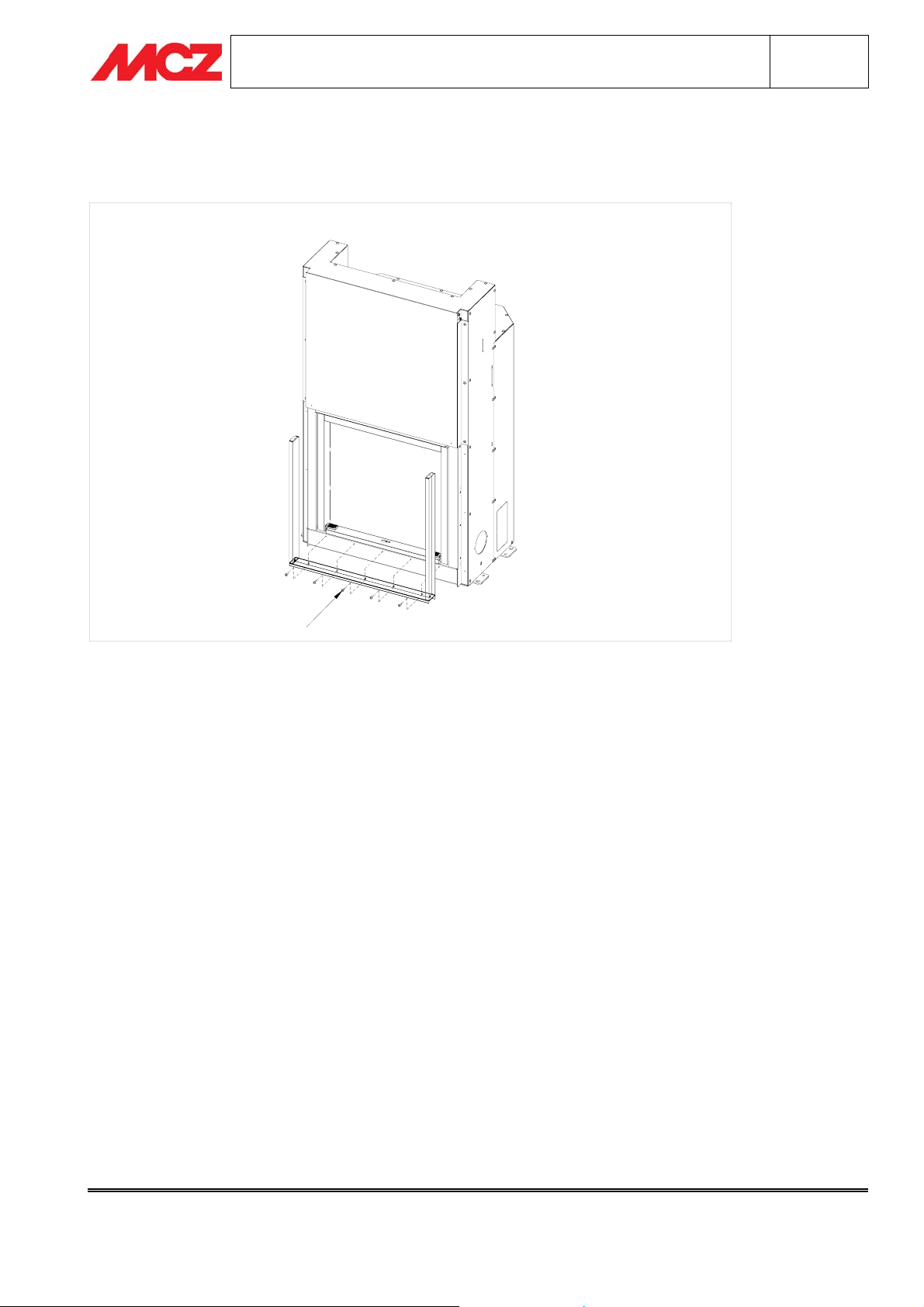

Move the three assembled elements near the unit so that the lower element is flush with the base of the door of
the Forma Puro65.
The slots of the lower element must be aligned with the holes in the structure of the Forma Puro65.
Fasten the assembly to the unit using the same screws that supported the removed edge-cover profile.
Chapter 3
Technical service – all rights reserved by mcz spa
Reproduction prohibited
INSTALLATION AND USE MANUAL Chapter 3
page
DEGAS
10
3.5. PHASE 4 - ASSEMBLY OF UPPER PROFILE (element 4)
Fasten the upper profile (element 4) to the sides and to the Forma Puro65 using, respectively, 2 screws PH-AB
3.9X95 and 2 self-tapping screws. 4.2X16.
Chapter 3
Technical service – all rights reserved by mcz spa
Reproduction prohibited
INSTALLATION AND USE MANUAL Chapter 3
page
DEGAS
11
3.6. PHASE5 – PEPARATION OF WALL FOR RECESSED INSTALLATION
Prepare the recessed installation wall using fireproof material (such as fireproof plasterboard) and at least 2 steel
uprights, required for fastening of the marble frame (by means of threaded pass-through bars, secured on the
back with nut and locking nut.
Provide an opening of 710X630 mm at the height desired from the floor (based on the height of Forma Puro65)
and 4 holes in the positions shown in the drawing. Complete the wall with the uprights placed flush with the
opening, vertically or in any case at the 4 holes. For greater safety it is advisable to use double uprights for each
position.
PARETE D'INCASSO
MONTANTE
PAVIMENTO
SCHEMA POSIZIONE FORI
MONTANTE
710
= =
763
MONTANTE
630
VARIABILE
MONTANTE
= =
FORO PER
BARRA
FILETTATA
PAVIMENTO
200186
386
FORO PER
BARRA
FILETTATA
Position the wall with the opening aligned with the fireplace stove and flush with sides, lower edge and upper
edge.
Chapter 3
Technical service – all rights reserved by mcz spa
Reproduction prohibited
INSTALLATION AND USE MANUAL Chapter 3
DEGAS
3.7. PHASE 6 - ASSEMBLY OF MARBLE FRAME (element 5)
Install the marble frame by inserting the threaded bars in the holes in the wall for recessed installation.
BARRA
FILETTATA
BARRA
FILETTATA
page
12
Fasten the marble frame from the inside (not visible) of the wall using the nut-locking nut.
Chapter 3
Technical service – all rights reserved by mcz spa
Reproduction prohibited
INSTALLATION AND USE MANUAL Chapter 3
page
DEGAS
13
The frame must adhere to the wall for recessed installation and with the inner walls flush with the lower profile
and sides (see drawing).
A FILO
A FILO
Chapter 3
Technical service – all rights reserved by mcz spa
Reproduction prohibited
INSTALLATION AND USE MANUAL Glossary
DEGAS
3.8. TECHNICAL TERMS GLOSSARY OF THE PICTURES
PAGE 5 PAGE 5
MURO PERIMETRALE PERIMETER WALL
PARETE D’INCASSO WALL FOR RECESSED INSERTION
DISTANZA DI SICUREZZA SAFETY DISTANCE
PAGE 6 PAGE 6
COMPONENTE COMPONENT
PROFILO INFERIORE LOWER PROFILE
SPALLA SX LH SIDE
SPALLA DX RH SIDE
PROFILO SUPERIORE UPPER PROFILE
CORNICE IN MARMO MARBLE FRAME
VITERIA IN DOTAZIONE NUTS AND BOLTS PROVIDED
VITE PH-HB 3,5X9,5 SCREW PH-HB 3.5X9.5
VITE AUTOPERFORANTE PANEL 4,2X16 PANEL SELF-TAPPING SCREW 4.2X16
DADO M5-6S NUT M5-6S
PAGE 7 PAGE 7
PROFILO COPRIBORDO EDGE-COVER PROFILE
PAVIMENTO FLOOR
DISTANZA DI SICUREZZA SAFETY DISTANCE
BASE APPOGGIO FORMA PURO SUPPORT BASE FORMA PURO
PAGE 8 PAGE 8
PROFILO COPRIBORDO FORMA PURO65 EDGE-COVER PROFILE FORMA PURO65
PAGE 11 PAGE 11
MONTANTE UPRIGHT
PAVIMENTO FLOOR
VARIABILE VARIABLE
FORO PER BARRA FILETTATA HOLE FOR THREADED BAR
PAGE 12 PAGE 12
BARRA FILETTATA THREADED BAR
PAGE 13 PAGE 13
A FILO FLUSH
page
14
Glossary
Technical service – all rights reserved by mcz spa
Reproduction prohibited
Loading...
