McQuay CAC003 Parts List

Replacement Parts List No. 700004500

Revision I 07/12

Vision Air Handler

CAC, CAH

003-169

Vintage F, G

Skyline Air Handler

OAC, OAH

003- 090

Vintage F, G

To ﬁnd your Daikin McQuay Parts distributor, call 1-800-377-2787 or visit www.DaikinMcQuay.com

Table of Contents

Parts List Revision History .............................................................................................................................. 4

Model Number Nomenclature .......................................................................................................................... 5

Serial Number Nomenclature .......................................................................................................................... 6

Unit Cabinet Layout Diagrams ........................................................................................................................ 7

Cabinet Components

Component Layout Diagram, Panels, Door Assemblies, Roof Curbs, Piping Vestibules,

& Frame Components ............................................................................................................................... 8

Door Handles, Hardware, Windows, Gaskets, & Touch Up Paint ................................................................. 9

Splice Kits

Notes ........................................................................................................................................................... 10

Horizontal Kits (Vision/Skyline) ................................................................................................................... 10

Vertical/Tier Kits (Vision/Skyline) ................................................................................................................ 10

Horizontal Kits (Vision Plus High Pressure) ................................................................................................ 10

Coils

Notes ........................................................................................................................................................... 11

Contractor Coil Codes ................................................................................................................................. 11

Unit Label Kits

Notes ........................................................................................................................................................... 12

Caution/Warning Label Kit: 205967601 ...................................................................................................... 12

Coil Section Label Kit: 205967501 .............................................................................................................. 12

UV Lights & Cabinet Lights ........................................................................................................................... 13

Ultra Low Leak Dampers

Notes ........................................................................................................................................................... 14

Damper Blade Combinations ...................................................................................................................... 14

Diagrams ..................................................................................................................................................... 15

Common Components ................................................................................................................................ 16

Forward Curved, Airfoil, & Plenum Fans

Notes ........................................................................................................................................................... 17

FC & AF Fan Diagram: Before 4/10 ........................................................................................................... 17

FC & AF Fan Diagrams: 4/10 & Later ........................................................................................................ 18

Fan Arrays

Notes ........................................................................................................................................................... 19

Diagrams ..................................................................................................................................................... 19

Components .......................................................................................................................................... 20- 22

Fan Bearings

Notes ........................................................................................................................................................... 23

Typical Fan Drive Layout Diagram ............................................................................................................. 23

Ball Bearings ............................................................................................................................................... 24

Roller Bearings ............................................................................................................................................ 25

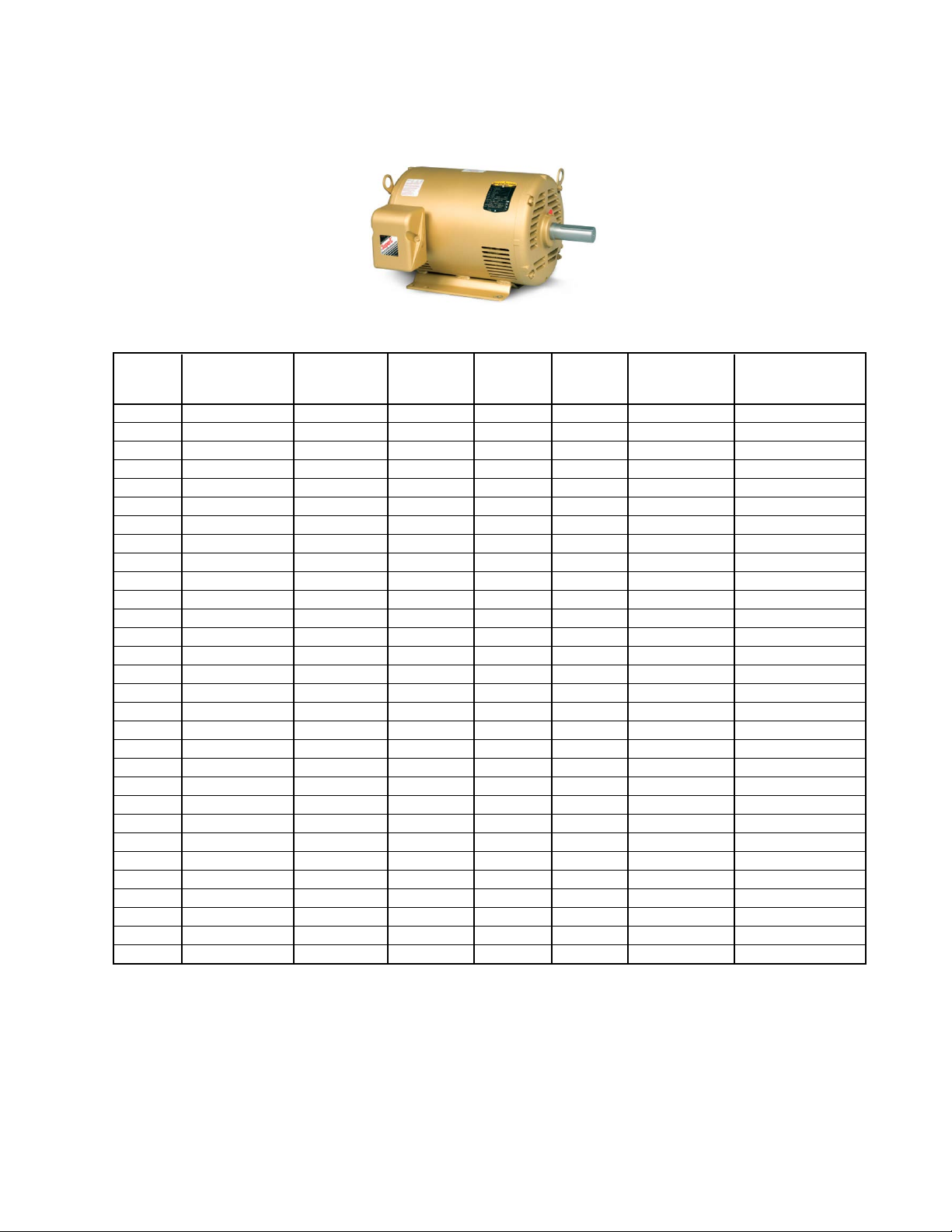

Motors

Notes ........................................................................................................................................................... 26

1/3, 1/2 & 3/4 Horsepower Motors .............................................................................................................. 26

1 Horsepower Motors ............................................................................................................................ 27, 28

1.5 Horsepower Motors ......................................................................................................................... 29, 30

2 Horsepower Motors ............................................................................................................................ 31, 32

3 Horsepower Motors ............................................................................................................................ 33, 34

5 Horsepower Motors ............................................................................................................................ 35, 36

7.5 Horsepower Motors ......................................................................................................................... 37, 38

10 Horsepower Motors .......................................................................................................................... 39, 40

15 Horsepower Motors .......................................................................................................................... 41, 42

20 Horsepower Motors .......................................................................................................................... 43, 44

25 Horsepower Motors ................................................................................................................................ 45

30 Horsepower Motors ................................................................................................................................ 46

40 Horsepower Motors ................................................................................................................................ 47

50 Horsepower Motors ................................................................................................................................ 48

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 2

Table of Contents, Continued

Motors, Continued

60 Horsepower Motors ................................................................................................................................ 49

75 & 100 Horsepower Motors ..................................................................................................................... 50

Motors Internally Equipped with Aegis™ Shaft Grounding Ring ................................................................. 51

Motor Mounts, Slide Base ........................................................................................................................... 52

Direct Drive Fan Motors

Notes ........................................................................................................................................................... 53

Direct Drive Fan Motors ........................................................................................................................ 53- 56

Starter Panel Components & Heat Wheels

Notes ........................................................................................................................................................... 57

Inverters/VFDs

Notes ........................................................................................................................................................... 58

Inverters ................................................................................................................................................ 58- 61

Filter Section

Notes ........................................................................................................................................................... 62

Minihelic ® Differential Pressure Gauges ..................................................................................................... 62

Filter Section Gaskets ................................................................................................................................. 62

Pre-Filters .................................................................................................................................................... 63

Final Filters ............................................................................................................................................ 64, 65

Bag Filters ............................................................................................................................................. 66- 68

HEPA Filters ................................................................................................................................................ 69

HEPA Filter Components ............................................................................................................................ 69

Appendix A: Fan Components

Notes ............................................................................................................................................................ 1

FC & AF Fans, and Plenum Fan Components Before 4/10

FC, AF Fan Housings ................................................................................................................................ 2

FC Fan Housing/Wheel Assemblies, & Fan Wheels ................................................................................. 3

Fan Wheels, Continued, & Fan Shafts w/o Inlet Vanes ............................................................................ 4

Fan Shafts w/o Inlet Vanes, Continued ..................................................................................................... 5

Fan Shafts w/ Inlet Vanes ......................................................................................................................... 6

Fan Shafts w/ Inlet Vanes, Continued, Cutoff Plates, & Drives ................................................................. 7

Bearings, AF, & FC Fan Set ................................................................................................................ 8- 12

Inlet Funnels, & Inlet Vanes .................................................................................................................... 13

Inlet Vanes, Continued, & Vane Linkage ................................................................................................ 14

Vane Linkage, Continued, & Wheel, Plenum Fan Set ............................................................................ 15

Wheel, Plenum Fan Set, Continued, & Shaft, Plenum Fan Set .............................................................. 16

Shaft, Plenum Set, Continued, & Bearings, Plenum Fan Set ................................................................. 17

Bearings, Plenum Fan Set, Continued .................................................................................................... 18

Inlet Funnels, Plenum Fan Set ............................................................................................................... 19

Rubber in Shear (RIS) Mounts, Spring Isolators, & Thrust Restraints .................................................... 20

Seismic Mounts ....................................................................................................................................... 21

Plenum Fan Components, 4/10 and After

Fan Wheels, 9 Blade ............................................................................................................................... 22

Fan Wheels, 12 Blade ............................................................................................................................. 23

Inlet Funnels, & Inlet Screen Guards ...................................................................................................... 24

Fan Shafts, & Drives ............................................................................................................................... 25

Bearings ............................................................................................................................................ 26, 27

Rubber in Shear (RIS), Spring, & Seismic Spring Mounts ...................................................................... 28

Seismic Spring Mounts, Continued, & Thrust Restraints ........................................................................ 29

Twin Fan & ESI/In Line Duct Fan Components

Twin Fan Assemblies .............................................................................................................................. 30

ESI/In Line Duct Fan Wheels, & Shafts .................................................................................................. 31

ESI/In Line Duct Fan Bearings ................................................................................................................ 32

ESI/In Line Duct Fan Inlet Funnels, & Drives .......................................................................................... 33

Rubber in Shear (RIS) Mounts, Spring Isolators, & Thrust Restraints .................................................... 34

Seismic Mounts ....................................................................................................................................... 35

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 3

Parts List Revision History

Revision Date Description NEW 11/2004 New A 12/2004 Added Skyline Air Handler - OAC/OAH 003-090 and Filters. B 12/09 Updated Cover and Revision page logos to current design. Updated Cover and Master page to include G vintage information and extended CAH sizes. a Page 5: Added Serial Number Nomenclature page. Page 6: (old pg. 5)- Added new p/ns 113164401 and 111059801. Added p/n 113163101 to Handle, Non-Locking, Black and p/n 205948601 to Pawl Latch, 6”. Added “Disconnects” to Control and Sensor description. C 3/10 Converted document to current software format. Corrected formatting errors. Reorganized and divided form into sections for TOC clariﬁcation. Page 5: Added pre 1999 serial number nomenclature. Page 6: Added Unit Cabinet Layout Diagrams page and related note. Page 8: Corrected various gasket p/ns and p/n descriptions. Added Coil section. Page 10 (old): Moved RIS/Seismic Mount page from Unit Components section to each fan section (pgs: 29-30, 44- 45). Page 10 (new): Added FC & AF Fan Layout Diagram page and related note. Pages 16 & 43: Added Drives Section. Pages 17- 21, 42: Converted setscrew bearing p/ns to BOA style p/ns and updated bearing p/ns to current engineering speciﬁcations when applicable. Pages 31- 39 : Added Plenum re-design Fan section. Page 32 (old): Moved “Motor Mount, Slide Base” page from 32 to 60. D 5/10 Page 8 Corrected: Frame Channel gasket from P091677801 to 073312800 and clariﬁed description. Filter door gasket from 111049501 to P091677801 and clariﬁed description Door bulb Gasket from 111049501 to 112055901 and clariﬁed description. Page 32: Corrected description of p/ns 206009744 & 206009844 from 54” to 44”. Changed description of AF13 - AF24 from Stl. to Alum. Page 33: Changed description of AF13 - AF24 from Stl. to Alum. E 9/10 Page 7: Added Skyline Rain Shield p/n 113159401. F 4/11 Pages 20, 26, 40, 42: Changed 1 3/16” PB p/n from 020648661 to 020648662. G 10/11 Page 66 (New) Added contractor coil section. Updated TOC. H 1/12 Page 10 (New) Added page with Label kits. Updated TOC. I 7/12 Cover/Revision Page: Updated to Daikin McQuay logo format. All: Rewrote and reorganized RPL. Moved Fan p/ns to Appendix. Added Fan Array Section, Bearing Section, Ultra Low Leak Damper Section, UV and Standard Light Section, Inverter Section. Updated and added information and drawings as needed. Updated TOC.

McQuay International, 13600 Industrial Park Blvd., P.O. Box 1551, Minneapolis, MN 55440 (763) 553-5330

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 4

Model Number Nomenclature

Vision and Skyline

Vision Air Handler Nomenclature

CAH 003 G D A C

Model

CAH = Commercial Air Handler CAC = Commercial Air Handler Component

Nominal Unit Size

(Nominal sq. ft. of coil) 003 025 107 004 030 124 006 035 141 008 040 160 010 050 169 012 065 014 080 017 085 021 090

Vintage

F = Fiberglass insulated panels G = Foam insulated panels

Skyline Air Handler Nomenclature

Unit Cross Section

C = Standard unit cross section M = Custom size cross section

Motor Location

A = Motor along side of fan housing D = Motor downstream of belt drive plenum fan F = Motor on inline fan G = Motor downstream of direct drive plenum fan T = Motor behind twin housed fans

Unit Type/Coil Position

B = Blow-thru cooling coil location D = Draw-thru cooling coil location H = Heating only V = Vent only M = Multizone

OAH 003 G D A C

Model

OAH = Outdoor Air Handler OAC = Outdoor Air Handler Component

Nominal Unit Size

(Nominal sq. ft. of coil) 003, 004, 006, 008, 010, 012, 014, 017, 021, 025, 030, 045, 055, 065, 080, 085, 090

Vintage

F = Fiberglass insulated panels

G = Foam insulated panels

Motor Location

A = Motor along side of fan housing D = Motor downstream of belt drive plenum fan F = Motor on inline fan G = Motor downstream of direct drive plenum fan T = Motor behind twin housed fans

Unit Type/Coil Position

B = Blow-thru cooling coil location D = Draw-thru cooling coil location H = Heating only V = Vent only

Unit Cross Section

C = Standard unit cross section M = Custom size cross section

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 5

Serial Number Nomenclature

Vision and Skyline

Serial Number 1999 and Before

3 Z F 12345 00

Plant Identiﬁcation

3 = Faribault, MN 9 = Scottsboro, AL

Year of Manufacture

Z = 1994 5 = 1995 6 = 1996 7 = 1997 8 = 1998 9 = 1999

Serial Number 1999 and After

FBO U 02 05 048

Engineering Revision

Sequence Number

Month of Manufacture

A = January B = February C = March D = April E = May F = June G = July H = August

J = September K = October L = November M = December

Plant Identiﬁcation

FBO = Faribault, MN SCO = Scottsboro, AL

U = Unit

Year of Manufacture

99 = 1999 00 = 2000 01 = 2001 02 = 2002 03 = 2003 04 = 2004

etc.

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 6

Month of Manufacture

01 = January 02 = February 03 = March 04 = April 05 = May 06 = June

07 = July

08 = August

Sequence Number

09 = September 10 = October 11 = November 12 = December

Unit Cabinet Layout Diagrams

Horizontal Unit

1

Vision and Skyline

Vertical/Tier Unit

1

The Unit Section Layout Diagrams shown above are to be used for reference only. Sections and component

locations will vary depending upon unit size, conﬁguration, and options selected.

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 7

Cabinet Components

Component Layout Diagram, Panels, Door Assemblies, Roof Curbs,

Piping Vestibules, & Frame Components

Component Layout Diagram

09

222

Channel Frame

Typical Panel

Optional Channel Splice

Optional Tread Plate

13

03

117

11

123

115

01

GSC

Skyline Corner Gasket

05

02

Typical Door

Assembly

Panels, Door Assemblies, Roof Curbs, Piping Vestibules,

& Frame Components

Due to the many options and sizes available, structural cabinet parts are special to each unit.

To order Panels, Door Assemblies, Roof Curbs, Piping Vestibules, or Frame components, it is necessary to contact Daikin McQuay Parts with model and serial number information. Daikin McQuay Parts will then create a “Vision Kit” which will contain all the required components. Vision Kits require at least one day to process. A Vision Kit will have an orderable part number similar to: V100009124.

A Vision Kit part number is valid for 90 days from issue and can only be used ONCE. If additional kits are needed after 90 days, or after the initial order has been received, a new kit (with a new part number) MUST be created.

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 8

Cabinet Components

Door Handles, Hardware, Windows, Gaskets, & Touch Up Paint

Ref Part Part No. Description Number

Door Handles: Standard Pressure 01 Handle, Padlockable (12/09 and earlier) 059477702 Handle, Tool Type (1/10 and later) 113164101 Handle, Non-Locking(12/09 and earlier) 073311802 Handle, Non-Locking (1/10 and later) 113163101 NS Handle, Inside (for operating a non-locking handle from inside unit) 111055001 NS Offset latch (until 12/09) 111059801 NS Pawl Latch, 6” (1 per handle) (12/09 and earlier) P058687201 Pawl Latch, 6” (1 per handle) (1/10 and later) 205948601 NS Rivet (2pc. used with each Pawl Latch) 020767000 NS Safety catch (used with new handle 12/09 and after) 113164401 NS Rain Shield (used on Outdoor units until 12/09) 113159401 Door Handles: High Pressure Vision Plus units (2/12 and later) 1 01 Handle, 360 degree, High Pressure 206100101 NS Roller Pawl 206100201 NS Plate, Striker Locking 206109701 NS Safety catch 206127402 Hardware 02 Hinge, 6”, Pin (removable) 073304001 Hinge, 6”, Pin (staked) 073304002 05 Screw, Hinge 038990703 09 Screw, Panel, 2.50”L 073320301 115 Screw, Hinge 001378300 117 Screw, Torx, .25 x 1.00” (used without an optional Splice Joint) 112031901 123 Screw, Torx, .25 x 4.50” (used with an optional Splice Joint) 059988101 222 Screw, Frame, .75”L 073320401 Windows NS Glass Window, Rectangular 11” x 11” with Frame 2 098879001 NS Glass Window, Rectangular, 5” x 11” with Frame 2 098878901 03 Glass Window, Circular 206098801 NS Gasket, Circular Window, Die Cut 206099001 NS Screws, Circular Window (qty. of 6) 206125301 NS Gasket, Extruded Sponge (order by the foot) 206099201 Gaskets 11 Door Bulb Gasket (Order by the foot, seals around access doors) 112055901 13 Frame Channel “D” Gasket 4.25” wide (Order by the foot) 073312800 GSC Door Frame Corner Gasket, Outdoor Units (Qty of 4 per door) 098338401 Touch-Up Paint NS McQuay Beige, Spray can 059997101

NS= Not shown on diagram.

1

For units built before 2/12, contact Daikin McQuay Parts to conﬁrm what Handle was installed.

2

Original design Rectangular Windows are obsolete with limited availability. If a replacement is required, conﬁrm

availability before ordering. If stock is exhausted, contact Daikin McQuay Parts to create a Vision Kit for a replacement Door or Panel.

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 9

Unit Components

Splice Kits

Notes

Splice Kits are used to join unit sections together. Each kit includes Mounting Brackets, Instructions, and associated Hardware.

This listing includes Splice Kits for the most common mounting arrangements. For unit conﬁgurations NOT shown in this section, or if unsure as to the unit’s conﬁguration, contact Daikin McQuay Parts with model and serial number information for identiﬁcation.

Horizontal Kits (Vision/Skyline)

Ref Part Part No. Description Number

1A Indoor, Galvanized Unit P059781801 Indoor, Painted Unit 059781851

1A

(Standard Base shown)

Outdoor, Galvanized Unit, Standard Base 205350601 Outdoor, Painted Unit, Standard Base P205350651 Outdoor, Galvanized Unit, Curb Mt. Base 205444701 Outdoor, Painted Unit, Curb Mt. Base 205444751 Indoor, Galvanized, Extended Section 205936501 Indoor, Painted, Extended Section 205936551

1B

Vertical/Tier Kits (Vision/Skyline)

Ref Part Part No. Description Number

1B Indoor, Galvanized Unit 059782001 Indoor, Painted Unit 059782051 Outdoor, Galvanized Unit 205350801 Outdoor, Painted Unit 205350851

Horizontal Kits (Vision Plus High Pressure)

Ref Part Part No. Description Number

1C Vision Plus, Galvanized Unit 206114901 Vision Plus, Painted Unit 206114951

1C

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 10

Coils

Notes & Contractor Coil Code Strings

Notes

All Vision and Skyline units use Contractor style Heating, Cooling, and/or DX Coils. Contractor Coils DO NOT have orderable hard part numbers. When a replacement Coil is required a Contractor Coil quote needs to be prepared.

To quote a replacement Contractor Coil it is necessary to ﬁrst obtain model and serial number information from the unit nameplate and then contact Daikin McQuay Parts. If the unit has more than one Coil it will be necessary to conﬁrm which Coil(s) are needed before quoting.

The sample code strings shown below are for reference only since they are incomplete and DO NOT furnish enough information for Daikin McQuay Parts to quote. A valid GO (General Order Number), SO (Sales Order), and/or unit serial number is required in order to properly quote a Contractor Coil.

Contractor Coil Codes

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 11

Unit Label Kits

Notes

The Unit Label Kits shown below include the most commonly used Vision/Skyline Labels. The Labels shown in these kits are sold as shown; individual labels are NOT available separately. For Labels not shown in the below kits, contact Daikin McQuay Parts with model and serial number information as well as a picture or description of the label to determine availability.

Caution/Warning Label Kit: 205967601

Coil Section Label Kit: 205967501

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 12

1B

1C

UV Light Kill Switch

(Refer to details below)

Push Button Switch

1A

1D

UV Lights & Cabinet Lights

UV Lights

Ref Part Part No. Description Number

1A- D UV Lamp Holder- 18" 205484001 UV Lamp Holder- 24" 205484101 UV Lamp Holder- 36" 205484201 UV Lamp- 18" 205484501 UV Lamp- 24" 205484601 UV Lamp- 36" 205484701 ES15 Interlock Switch 205485001 NS Interlock Switch Key 205485101

Interlock Switch

ES15

ES15 Push Button Switch 033696301

NS= Not shown on diagram.

ES15

155

145

Cabinet Lights

140

135

Ref Part Part

No. Description Number

135 Light Fixture w/ Globe 113120001 140 Bulb, 40W 035021000 145 Junction Box 042229700 155 Switch Assy. w/ Gasket 042229600

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 13

Ultra Low Leak Dampers

Notes & Damper Blade Combinations

Notes

It is not possible to list all Damper p/ns due to the large number of possibilities.

When ordering a replacement Ultra Low Leak Damper, it is important to know the position of the Damper in the unit (in other words, is it for Supply Air, Return Air, Economizer, etc.) AND the nominal outside dimensions of the damper assembly. Once this information is known, contact Daikin McQuay Parts so that the correct Damper can be identiﬁed. Note that Ultra Low Leak Dampers are only ONE of several possible Damper options.

Conﬁrm the presence of an Ultra Low Leak Damper before ordering.

The diagram below shows the Length (L Dimension) and the width (W Dimension) positions for a typical Damper Assembly. Every Ultra Low Leak Damper consists of a Frame, Damper Blades, and related Linkage. The table below shows how many of each of the two widths of Damper Blades (5” or 7”) are used in each Damper Assembly. For example, if “L” equals 98” and “W” equals 22”, this would be a 98 x 22” Damper with three 5” Damper Blades.

Note that Damper Actuators and Actuator Linkage are normally NOT provided by McQuay. Any such parts would have been ﬁeld supplied or would have been a special order option. Provide any vendor information off the existing Actuator to Daikin McQuay Parts to see if a suitable replacement can be supplied.

Damper Blade Combinations

W

“W” Dimension Blade Combination 10” 5” 12” 7” 14” Not Available 16” 5” + 5”

L

18” 5” + 7” 20” 7” + 7” 22” 5” + 5” + 5” 24” 5” + 5” + 7” 26” 5” + 7” + 7” 28” 7” + 7” + 7” 30” 5” + 5” + 5” + 7” 32” 5” + 5” + 7” + 7” 34” 5” + 7” + 7” + 7” 36” 7” + 7” + 7” + 7” 38” 5” + 5” + 5” + 7” + 7” 40” 5” + 5” + 7” + 7” + 7” 42” 5” + 7” + 7” + 7” + 7” 44” 7” + 7” + 7” + 7” + 7” 46” 5” + 5” + 5” + 7” + 7” + 7” 48” 5” + 5” + 7” + 7” + 7” + 7” 50” 5” + 7” + 7” + 7” + 7” + 7” 52” 7” + 7” + 7” + 7” + 7” + 7”

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 14

Ultra Low Leak Dampers

Diagrams

1

Detail A - A Detail B - B

1

The above diagrams show a typical six blade Damper. Components & Component quantity will vary

depending upon the number and length of blades used. To order a replacement Damper Assembly or an individual Damper Blade, contact Daikin McQuay Parts with model and serial number information as well as the location of the Damper in the unit. For common Damper replacement parts see the following page.

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 15

Ultra Low Leak Dampers

Common Components

Ref Part Part No. Description Number

DP35, 50 Damper Blade DP56, 62 Damper Blade DP68, 74 Damper Blade DP39 Damper End Plug Assy- RH, Driver 5” Damper Blade 206148501 7” Damper Blade 206148502 DP46 Damper End Plug Assy- LH, Driver 5” Damper Blade P057783402 7” Damper Blade P057783404 DP54, 60 DP60, 66 Damper End Plug- RH DP72, 78 5” Damper Blade 041003505 7” Damper Blade 041003508 DP46, 55 DP61, 67 Damper End Plug- LH DP73, 79 5” Damper Blade 041003506 7” Damper Blade 041003509 DP94 Gasket- Damper Blade Bottom, Vinyl 029870900 DP95 Gasket- Damper Blade Top, Vinyl 029870900 DP96 Bushing- Damper Blade, Nylon 043730400 DP97 Bushing- Drive Shaft, Nylon 043734000 DP98 Bushing- Linkage Bar, Nylon 046098300

1

2

4

3

1

The above table lists parts that are common to ALL Ultra Low Leak Dampers. Component quantity will vary depending

upon the number and length of blades used. To order parts shown on the diagram on the previous page and NOT listed above, contact Daikin McQuay Parts with model and serial number information, the location of the Damper in the unit, and the required part’s Bubble number.

2

Due to the large number of Damper Blade part numbers, it is not possible to list them all. Quantity and width of the

Blades will differ depending upon the width (“W dimension) of the Damper Assembly. Refer to the front of this section for a listing of Damper Blade combinations. Contact Daikin McQuay Parts with model and serial number information, the location of the Damper in the unit, and the required part’s Bubble number to ensure that the correct Blade is identiﬁed.

3

Ordered by the foot.

4

Available in 10’ lengths ONLY.

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 16

Forward Curved, Airfoil, & Plenum Fans

Notes & FC & AF Fan Diagram: Before 4/10

Notes

The below diagram is representative of a typical Forward Curved (FC), Airfoil (AF) & Plenum Fan layout for units built before 4/10 and is to be used for reference purposes only.

When a replacement Fan part is needed (Fan Wheel, Bearing, Inlet Funnel, etc.), contact Daikin McQuay Parts with model and serial number information so that the needed part(s) can be identiﬁed. Drive components (Fan Sheave, Motor Sheave, V-belt(s), and Sheave Bushing(s) [if required]) are NOT listed as they are unique to the unit. If a drive component is required you may use the number from the part and cross reference it with the Drive Components Cross Reference, form number 571006, or contact Daikin McQuay Parts with model and serial number information for identiﬁcation.

Refer to Appendix A for a listing of Plenum Fan components.

FC & AF Fan Diagram: Before 4/10

Fan Wheel/Fan Wheel Housing Assy.

Bearing

(See Bearing Section)

Shaft

Motor (See Motor Section)

Motor Mount Slide Base (See Motor Section)

Flex Connector P/N

017873602

(Order by the Foot)

RIS/Spring Isolator

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 17

Forward Curved, Airfoil, & Plenum Fans

Plenum Fan Diagrams: 4/10 and After

Opposite Drive Side Bearing

(See Bearing Section)

Inlet Screen (Optional)

1

Motor (See Motor Section)

Motor Mount Slide Base (See Motor Section)

Thrust Restraint

Inlet Funnel

Shaft

Fan Wheel

Drive Side Bearing

(See Bearing Section)

RIS/Spring Isolator

1

Starting 4/10 a redesigned Plenum fan was offered. The above diagrams are representative of a typical fan

component layout and are to be used for reference purposes only.

When a replacement Fan part is needed (Fan Wheel, Bearing, Inlet Funnel, etc.), contact Daikin McQuay Parts with model and serial number information so that the needed part(s) can be identiﬁed. Drive components (Fan Sheave, Motor Sheave, V-belt(s), and Sheave Bushings [if required]) are NOT listed as they are unique to the unit. If a drive component is required you may use the number from the part and cross reference it with the Drive Components Cross Reference, form number 571006, or contact Daikin McQuay Parts with model and serial number information for identiﬁcation.

Refer to Appendix A for a listing of Plenum Fan components.

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 18

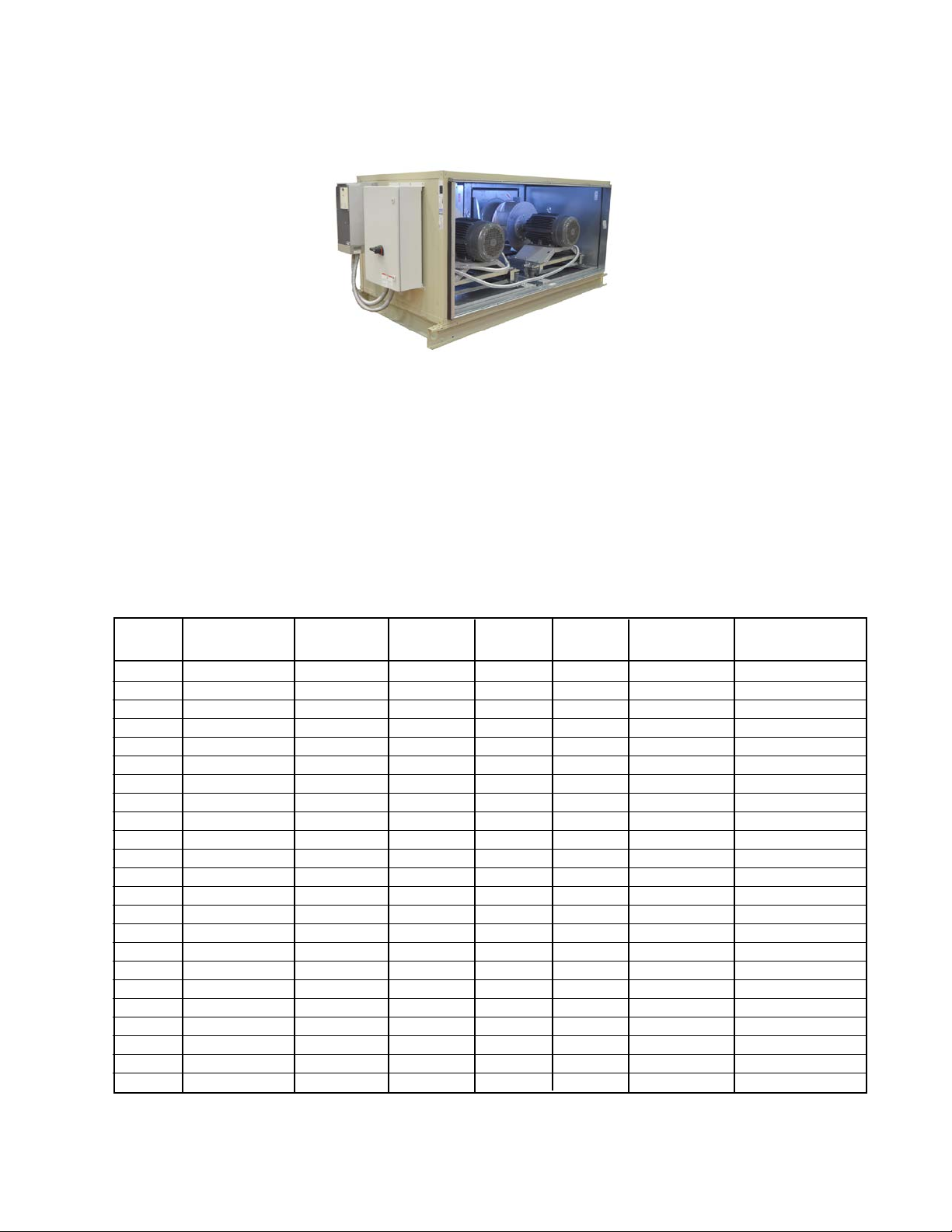

Fan Arrays

Notes & Diagrams

Notes

A Fan Array section decreases the Fan Section length by using multiple smaller direct drive Fans. With the stacked Array, the Fans also provide a more even airﬂow pattern throughout the unit and allows the Fans to be placed closer to the Coil. The different types of Fans are available in numerous wheel diameters per unit size.

In addition, multiple Fans provide redundancy. If one Fan needs to be serviced, there can be up to ﬁve other Fans to back it up. All Fans in the Fan Array are direct drive and offer more efﬁcient performance with no belt drive losses and no required Shaft Bearing maintenance.

Motor options include open drip proof (ODP), totally enclosed Fan cooled (TEFC), 1 speed/1 winding, 2 speed/1 winding, and 2 speed/2 winding. Motor efﬁciencies available include standard efﬁciency, high efﬁciency, and premium efﬁciency, depending on the Motor type.

Diagrams

1

For Single Source Power Panel Components, contact Daikin McQuay Parts with model and serial

number information, and vendor part number information (if available) to ensure that the correct part(s) are identiﬁed.

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 19

Fan Arrays

Components

4

1

2

3

Wheels, Inlet Cones, VIB Isolators

Ref Part Part No. Description Number

1 Wheel Fan - 12” DiameterClass II 300049314 Wheel Fan - 13” DiameterClass II 300049315 Wheel Fan - 15” DiameterClass II 300049316 Wheel Fan - 16” DiameterClass II 300049317 Wheel Fan - 16” DiameterClass III 300049325 Wheel Fan - 18” DiameterClass II 300049318 Wheel Fan - 18” DiameterClass III 300049326 Wheel Fan - 20” DiameterClass II 300049319 Wheel Fan - 20” DiameterClass III 300049327 Wheel Fan - 22” DiameterClass II 300049320 Wheel Fan - 22” DiameterClass III 300049328 Wheel Fan - 24” DiameterClass II 300049321 Wheel Fan - 24” DiameterClass III 300049329 Wheel Fan - 27” DiameterClass II 300049322 Wheel Fan - 27” DiameterClass III 300049330 Wheel Fan - 30” DiameterClass II 300049323 Wheel Fan - 30” DiameterClass III 300049331 Wheel Fan - 33” DiameterClass II 300049324 Wheel Fan - 33” DiameterClass III 300049332 2 Inlet Cone- 12” DiameterFan 300049333 Inlet Cone- 13” DiameterFan 300049334 Inlet Cone- 15” DiameterFan 300049335 Inlet Cone- 16” DiameterFan 300049336 Inlet Cone- 18” DiameterFan 300049337 Inlet Cone- 20” DiameterFan 300049338 Inlet Cone- 22” DiameterFan 300049339 Inlet Cone- 24” DiameterFan 300049340 Inlet Cone- 27” DiameterFan 300049341 Inlet Cone- 30” DiameterFan 300049342 Inlet Cone- 33” DiameterFan 300049343 3 VIB Mount Spring Isolator- Red 300049344 VIB Mount Spring Isolator- Green 300049345 VIB Mount Spring Isolator- Orange 300049346 VIB Mount Spring Isolator- Black 300049347 VIB Mount Spring Isolator- Brown 300049348 VIB Mount Spring Isolator- Silver 300049349 VIB Mount Spring Isolator- Blue 300049350 VIB Mount Spring Isolator- Yellow 300049351 VIB Mount Spring Isolator- Purple 300049352 VIB Mount Spring Isolator- White 300049353

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 20

Fan Arrays

Components

Motors

Ref Part Voltage Motor Motor Part No. Description RPM Type Number

4 Motor 5HP 200/60/3 3600RPM ODP 300049354 Motor 5HP 200/60/3 3600RPM TEFC 300049358 Motor 5HP 200/60/3 1800RPM ODP 300049355 Motor 5HP 200/60/3 1800RPM TEFC 300049359 Motor 7.5HP 200/60/3 1200RPM ODP 300049362 Motor 7.5HP 200/60/3 1200RPM TEFC 300049368 Motor 7.5HP 200/60/3 3600RPM ODP 300049363 Motor 7.5HP 200/60/3 3600RPM TEFC 300049369 Motor 7.5HP 200/60/3 1800RPM ODP 300049364 Motor 7.5HP 200/60/3 1800RPM TEFC 300049370 Motor 10HP 200/60/3 1200RPM ODP 300049374 Motor 10HP 200/60/3 1200RPM TEFC 300049380 Motor 10HP 200/60/3 3600RPM ODP 300049375 Motor 10HP 200/60/3 3600RPM TEFC 300049381 Motor 10HP 200/60/3 1800RPM ODP 300049376 Motor 10HP 200/60/3 1800RPM TEFC 300049382 Motor 15HP 200/60/3 1200RPM ODP 300049386 Motor 15HP 200/60/3 1200RPM TEFC 300049392 Motor 15HP 200/60/3 3600RPM ODP 300049387 Motor 15HP 200/60/3 3600RPM TEFC 300049393 Motor 15HP 200/60/3 1800RPM ODP 300049388 Motor 15HP 200/60/3 1800RPM TEFC 300049394 Motor 20HP 200/60/3 1200RPM ODP 300049398 Motor 20HP 200/60/3 1200RPM TEFC 300049404 Motor 20HP 200/60/3 3600RPM ODP 300049399 Motor 20HP 200/60/3 3600RPM TEFC 300049405 Motor 20HP 200/60/3 1800RPM ODP 300049400 Motor 20HP 200/60/3 1800RPM TEFC 300049406 Motor 25HP 200/60/3 1200RPM ODP 300049410 Motor 25HP 200/60/3 1200RPM TEFC 300049416 Motor 25HP 200/60/3 3600RPM ODP 300049411 Motor 25HP 200/60/3 3600RPM TEFC 300049417 Motor 25HP 200/60/3 1800RPM ODP 300049412 Motor 25HP 200/60/3 1800RPM TEFC 300049418 Motor 30HP 200/60/3 1200RPM ODP 300049422 Motor 30HP 200/60/3 1200RPM TEFC 300049428 Motor 30HP 200/60/3 3600RPM ODP 300049423 Motor 30HP 200/60/3 3600RPM TEFC 300049429 Motor 30HP 200/60/3 1800RPM ODP 300049424 Motor 30HP 200/60/3 1800RPM TEFC 300049430 Motor 40HP 200/60/3 1200RPM ODP 300049434 Motor 40HP 200/60/3 1200RPM TEFC 300049440 Motor 40HP 200/60/3 3600RPM ODP 300049435 Motor 40HP 200/60/3 3600RPM TEFC 300049441 Motor 40HP 200/60/3 1800RPM ODP 300049436 Motor 40HP 200/60/3 1800RPM TEFC 300049442

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 21

Fan Arrays

Components

Motors, Continued

Ref Part Voltage Motor Motor Part No. Description RPM Type Number

4 Motor 5HP 230/460/60/3 3600RPM ODP 300049356 Motor 5HP 230/460/60/3 3600RPM TEFC 300049360 Motor 5HP 230/460/60/3 1800RPM ODP 300049357 Motor 5HP 230/460/60/3 1800RPM TEFC 300049361 Motor 7.5HP 230/460/60/3 1200RPM ODP 300049365 Motor 7.5HP 230/460/60/3 1200RPM TEFC 300049371 Motor 7.5HP 230/460/60/3 3600RPM ODP 300049366 Motor 7.5HP 230/460/60/3 3600RPM TEFC 300049372 Motor 7.5HP 230/460/60/3 1800RPM ODP 300049367 Motor 7.5HP 230/460/60/3 1800RPM TEFC 300049373 Motor 10HP 230/460/60/3 1200RPM ODP 300049377 Motor 10HP 230/460/60/3 1200RPM TEFC 300049383 Motor 10HP 230/460/60/3 3600RPM ODP 300049378 Motor 10HP 230/460/60/3 3600RPM TEFC 300049384 Motor 10HP 230/460/60/3 1800RPM ODP 300049379 Motor 10HP 230/460/60/3 1800RPM TEFC 300049385 Motor 15HP 230/460/60/3 1200RPM ODP 300049389 Motor 15HP 230/460/60/3 1200RPM TEFC 300049395 Motor 15HP 230/460/60/3 3600RPM ODP 300049390 Motor 15HP 230/460/60/3 3600RPM TEFC 300049396 Motor 15HP 230/460/60/3 1800RPM ODP 300049391 Motor 15HP 230/460/60/3 1800RPM TEFC 300049397 Motor 20HP 230/460/60/3 1200RPM ODP 300049401 Motor 20HP 230/460/60/3 1200RPM TEFC 300049407 Motor 20HP 230/460/60/3 3600RPM ODP 300049402 Motor 20HP 230/460/60/3 3600RPM TEFC 300049408 Motor 20HP 230/460/60/3 1800RPM ODP 300049403 Motor 20HP 230/460/60/3 1800RPM TEFC 300049409 Motor 25HP 230/460/60/3 1200RPM ODP 300049413 Motor 25HP 230/460/60/3 1200RPM TEFC 300049419 Motor 25HP 230/460/60/3 3600RPM ODP 300049414 Motor 25HP 230/460/60/3 3600RPM TEFC 300049420 Motor 25HP 230/460/60/3 1800RPM ODP 300049415 Motor 25HP 230/460/60/3 1800RPM TEFC 300049421 Motor 30HP 230/460/60/3 1200RPM ODP 300049425 Motor 30HP 230/460/60/3 1200RPM TEFC 300049431 Motor 30HP 230/460/60/3 3600RPM ODP 300049426 Motor 30HP 230/460/60/3 3600RPM TEFC 300049432 Motor 30HP 230/460/60/3 1800RPM ODP 300049427 Motor 30HP 230/460/60/3 1800RPM TEFC 300049433 Motor 40HP 230/460/60/3 1200RPM ODP 300049437 Motor 40HP 230/460/60/3 1200RPM TEFC 300049443 Motor 40HP 230/460/60/3 3600RPM ODP 300049438 Motor 40HP 230/460/60/3 3600RPM TEFC 300049444 Motor 40HP 230/460/60/3 1800RPM ODP 300049439 Motor 40HP 230/460/60/3 1800RPM TEFC 300049445

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 22

Fan Bearings

Notes & Typical Fan Drive Layout Diagram

Notes

Bearings used in Vision/Skyline units can be either Ball, Roller, or a mixture of the two types. Ball Bearings are generally lighter duty and can run at higher operating speeds than a comparable Roller

Bearing. Roller Bearings can handle much higher loads than Ball Bearings, but due to their design they cannot run at as high a speed.

All NON direct drive Fan assemblies use two bearings on the Fan Shaft. Most assemblies use two Ball Bearings,

however some larger Fans use one Ball and one Roller Bearing. Some early units used two Roller Bearings, but in 2007 this design was changed to a Ball and Roller Bearing. When replacing Bearings in a dual Roller Bearing assembly, it is recommended that the opposite drive side Roller Bearing be replaced with a Ball Bearing. Contact Daikin McQuay Parts with model and serial number information for assistance in choosing a suitable replacement Ball Bearing. Original design drives may also have used Setscrew locking on their Ball Bearings. Currently, Concentric Locking Collar Bearings as shown in the picture on the following page are used. Either type can be used, however the Concentric Locking style is preferred.

In addition to the Shaft Locking style, Ball Bearings come in two classes; Standard and Medium Duty. Medium

Duty Ball Bearings have an oversized housing and larger Bearing Insert that enables a Medium Duty Bearing to handle a higher load than a Standard Bearing with the same shaft/bore diameter.

There are two types of Roller Bearings; Expansion and Non-Expansion. Expansion Bearings are designed to

allow the Bearing itself move in the housing to accommodate shaft movement or heat generated expansion during normal operation. In a Ball and Roller Bearing assembly, the Expansion Roller Bearing is placed closest to the drive Motor, or the Drive Side of the Fan Assembly, and the Ball Bearing is placed on the opposite side of the shaft (Opposite Drive Side).

Typical Fan Drive Layout Diagram

Opposite Drive Side Bearing

Motor (See Motor Section)

Shaft

Drive Side Bearing

Fan Wheel

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 23

Fan Bearings

Ball Bearings

Bore Part Bolt Center Shaft Duty Dia. Number Distance (A) Height (B)

1.000 020648661 4.12 1.44 Standard

1.188 020648662 4.62 1.69 Standard

1.438 020648651 5.00 1.88 Standard

1.688 020648652 5.71 2.12 Standard

1.688 020648649 6.12 2.31 Medium

1.938 020648653 6.18 2.25 Standard

1.938 020648650 6.93 2.50 Medium

2.188 020648654 6.50 2.50 Standard

2.188 020648656 7.41 2.75 Medium

2.438 020648648 8.25 3.00 Medium

2.438 020648655 9.50 2.75 Standard

2.688 020648658 9.12 3.50 Medium

2.938 020648659 9.25 3.50 Medium

1

Original design drives may have used Setscrew locking on their Ball Bearings. Currently,

Concentric Locking Collar Bearings as shown in the picture above are used. Either type can be used, however the Concentric Locking style is preferred.

1

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 24

Fan Bearings

Roller Bearings

Bore Part Bolt Center Shaft Type

1

Dia. Number Distance (A) Height (B)

1.688 300043919 5.56 2.12 Expansion

1.688 300043754 5.56 2.12 Non-Expansion

1.937 049541106 6.26 2.25 Expansion

1.937 049541105 6.26 2.25 Non-Expansion

2.188 300043930 6.81 2.50 Expansion

2.188 300042661 6.81 2.50 Non-Expansion

2.437 300045290 7.13 2.75 Expansion

2.437 300045279 7.13 2.75 Non-Expansion

2.687 300045288 8.13 3.25 Expansion

2.687 300045277 8.13 3.25 Non-Expansion

2.937 300045862 8.13 3.25 Expansion

2.937 300045861 8.13 3.25 Non-Expansion

3.437 300045285 10.00 3.75 Expansion

3.437 300045274 10.00 3.75 Non-Expansion

1

Normally only Expansion Roller Bearings are used in conjunction with a Ball Bearing. Non-

Expansion Roller Bearing part numbers are included for reference purposes, or in case a Non-Expansion Bearing is required.

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 25

Motors

Notes & 1/3, 1/2, 3/4 Horsepower Motors

Notes

This section lists motors that are used in NON Direct Drive Vision/Skyline units. Motors internally equipped with Aegis™ brand SGR (Shaft Grounding Ring) Bearing Protection are listed at the end of this section. Direct Drive Fan Motors are listed in the section following this one.

When determining what motor is in a unit, conﬁrm the Motor’s Horsepower (.33- 100); Voltage (115-230/60/1, 200, 230/460 575); Enclosure Type (ODP [Open Drip Proof], OPSB [Slotted Band], TEFC [Totally Enclosed Fan Cooled], TEAO [Totally Enclosed Air Over], XP [Explosion Proof]); RPM (870- 3500 single or double speed); Frame Size (48- 444); Frame Type (T, TS, U); and Efﬁciency Rating (Standard [STD], High [HE], Premium [PREM]). If this information is not known, contact Daikin McQuay Parts with model and serial number information to ensure that the correct Motor is identiﬁed.

Note that this listing is NOT complete as it is possible that a special motor was installed in the unit. Also, due to changing motor efﬁciency standards, some of these motors may be obsolete and been replaced with newer designs. If this is the case, contact Daikin McQuay Parts for more information.

1/3, 1/2, 3/4 Horsepower Motors

Motor Voltage Enclosure Frame RPM RPM Efﬁciency Part HP Type High Low No.

0.33 230/460 XP 56T 1750 0 STD 205071300

0.5 575 XP 56T 1750 0 STD 205072400

0.5 230/460 XP 56T 1750 0 STD 205089800

0.75 575 XP 56T 1750 0 STD 205072300

0.75 230/460 XP 56T 1750 0 STD 205089700

0.33 115-230/60/1 TEFC 48T 1750 0 STD 018580400

0.33 200 TEFC 56T 1750 0 STD 025429700

0.5 115-230/60/1 TEFC 56T 1750 0 STD 019166000

0.5 230/460 TEFC 56T 1750 0 STD 024337600

0.5 200 TEFC 56T 1750 0 STD 025430400

0.75 115-230/60/1 TEFC 56T 1750 0 STD 019074000

0.75 200 TEFC 56T 1750 0 STD 025431000

0.33 115-230/60/1 ODP 56T 1750 0 STD 019288400

0.33 200 ODP 48T 1750 0 STD 025429400

0.5 115-230/60/1 ODP 56T 1750 0 STD 000473500

0.5 230/460 ODP 56T 1750 0 STD 010266000

0.5 575 ODP 56T 1750 0 STD 049180500

0.75 115-230/60/1 ODP 56T 1750 0 STD 001063900

0.75 200 ODP 56T 1750 0 STD 018032200

0.75 230/460 ODP 56T 1750 0 STD 021994400

0.75 575 ODP 56T 1750 0 STD 047449800

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 26

Motors

1 Horsepower Motors

Motor Voltage Enclosure Frame RPM RPM Efﬁciency Part HP Type High Low No.

1 230/460 XP 143T 1750 0 PREM 205050400 1 230/460 XP 56T 1750 0 STD 205059200 1 575 XP 56T 1750 0 STD 205059300 1 575 XP 143T 1750 0 STD 205063100 1 230/460 XP 182U 1750 0 STD 205063700 1 230/460 XP 143T 1750 0 STD 205067400 1 200 TEFC 143T 1750 0 PREM 004735000 1 115-230/60/1 TEFC 143T 1750 0 STD 018385000 1 230/460 TEFC 143T 1750 0 HE 040161000 1 230/460 TEFC 182T 870 0 STD 040161070 1 230/460 TEFC 145T 1160 0 HE 040161080 1 230/460 TEFC 56T 3500 0 STD 040161090 1 230/460 TEFC 143T 1750 0 PREM 046513000 1 230/460 TEFC 145T 1160 0 PREM 046513080 1 460 TEFC 143T 1750 870 STD 046513500 1 460 TEFC 143T 1750 870 STD 046515600 1 200 TEFC 143T 1750 0 HE 049100100 1 575 TEFC 143T 1750 0 HE 049188000 1 575 TEFC 145T 1160 0 HE 049188080 1 460 TEFC 182U 1750 0 PREM 205063600 1 230/460 TEFC 182U 1750 0 HE 205073800 1 200 TEFC 145T 1750 1160 STD 205079600 1 460 TEFC 145T 1750 1160 STD 205080300 1 575 TEFC 143T 1750 0 PREM 206500900 1 575 TEFC 145T 1750 0 PREM 206505600 1 575 TEFC 145T 1160 0 PREM 046514280 1 200 TEFC 182T 870 0 STD 049100170 1 200 TEFC 145T 1160 0 HE 049100180 1 575 TEFC 182T 870 0 STD 049188070 1 230/460 TEAO 56T 1140 0 STD 111052903

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 27

Motors

1 Horsepower Motors, Continued

Motor Voltage Enclosure Frame RPM RPM Efﬁciency Part

HP Type High Low No.

1 460 ODP 143T 1750 870 STD 023469200 1 115-230/60/1 ODP 143T 1750 0 STD 024689900 1 200 ODP 143T 1750 870 STD 025432200 1 230 ODP 143T 1750 870 STD 025432300 1 230/460 ODP 143T 1750 0 HE 039446200 1 230/460 ODP 182T 870 0 STD 039446270 1 230/460 ODP 145T 1160 0 HE 039446280 1 230/460 ODP 56T 3500 0 STD 039446290 1 200 ODP 143T 1750 0 HE 039447400 1 200 ODP 145T 1160 0 HE 039447480 1 200 ODP 56T 3500 0 STD 039447490 1 575 ODP 143T 1750 0 HE 046514200 1 575 ODP 143T 1750 0 PREM 049180800 1 230/460 ODP 182U 1750 0 STD 205062700 1 230 ODP 145T 1750 1160 STD 205081500 1 460 ODP 145T 1750 1160 STD 205082300 1 230/460 ODP 143T 1750 0 PREM 205162800 1 230/460 ODP 145T 1160 0 PREM 205162880 1 230/460 ODP 56T 3500 0 PREM 205162890 1 200 ODP 143T 1750 0 PREM 205167600 1 200 ODP 182T 870 0 STD 039447470 1 575 ODP 182T 870 0 STD 049180870 1 575 ODP 145T 1160 0 HE 049180880

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 28

Motors

1.5 Horsepower Motors

Motor Voltage Enclosure Frame RPM RPM Efﬁciency Part HP Type High Low No.

1.5 230/460 XP 145T 1750 0 STD 022778400

1.5 230/460 XP 145T 1750 0 PREM 048446600

1.5 575 XP 145T 1750 0 STD 205059500

1.5 230/460 XP 184U 1750 0 STD 205059600

1.5 230/460 XP 56T 1750 0 STD 205059700

1.5 230/460 XP 145T 1750 0 STD 205070800

1.5 115-230/60/1 TEFC 145T 1750 0 STD 018384900

1.5 230/460 TEFC 145T 1750 0 HE 040161100

1.5 230/460 TEFC 184T 870 0 STD 040161170

1.5 230/460 TEFC 182T 1160 0 HE 040161180

1.5 230/460 TEFC 143T 3500 0 HE 040161190

1.5 230/460 TEFC 145T 1750 0 PREM 046513100

1.5 230/460 TEFC 182T 1160 0 PREM 046513180

1.5 230/460 TEFC 143T 3500 0 PREM 046513190

1.5 460 TEFC 145T 1750 870 STD 046513700

1.5 200 TEFC 145T 1750 0 HE 049100200

1.5 575 TEFC 145T 1750 0 HE 049188100

1.5 575 TEFC 182T 1160 0 HE 049188180

1.5 575 TEFC 143T 3500 0 HE 049188190

1.5 460 TEFC 184U 1750 0 PREM 205063500

1.5 230/460 TEFC 184U 1750 0 STD 205074000

1.5 200 TEFC 182T 1750 1160 STD 205079700

1.5 460 TEFC 182T 1750 1160 STD 205080400

1.5 575 TEFC 145T 1750 0 PREM 205167800

1.5 575 TEFC 182T 1160 0 PREM 046514380

1.5 575 TEFC 143T 3500 0 PREM 046514390

1.5 200 TEFC 184T 870 0 STD 049100270

1.5 200 TEFC 182T 1160 0 HE 049100280

1.5 200 TEFC 143T 3500 0 HE 049100290

1.5 575 TEFC 184T 870 0 STD 049188170

1.5 575 TEFC 182T 1160 0 PREM 205167880

1.5 575 TEFC 143T 3500 0 PREM 205167890

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 29

Motors

1.5 Horsepower Motors, Continued

Motor Voltage Enclosure Frame RPM RPM Efﬁciency Part

HP Type High Low No.

1.5 460 ODP 145T 1750 870 STD 023805200

1.5 115-230/60/1 ODP 145T 1750 0 STD 024690000

1.5 200 ODP 145T 1750 870 STD 025433300

1.5 230 ODP 145T 1750 870 STD 025433400

1.5 200 ODP 145T 1750 0 HE 039442200

1.5 200 ODP 182T 1160 0 HE 039442280

1.5 200 ODP 143T 3500 0 HE 039442290

1.5 230/460 ODP 145T 1750 0 HE 039442300

1.5 230/460 ODP 184T 870 0 STD 039442370

1.5 230/460 ODP 182T 1160 0 HE 039442380

1.5 230/460 ODP 143T 3500 0 HE 039442390

1.5 230/460 ODP 145T 1750 0 PREM 046511100

1.5 230/460 ODP 182T 1160 0 PREM 046511180

1.5 230/460 ODP 143T 3500 0 PREM 046511190

1.5 575 ODP 145T 1750 0 HE 049180900

1.5 230/460 ODP 184U 1750 0 STD 205062800

1.5 230 ODP 145T 1750 1160 STD 205081600

1.5 460 ODP 182T 1750 1160 STD 205082400

1.5 200 ODP 145T 1750 0 PREM 205167500

1.5 575 ODP 145T 1750 0 PREM 206501600

1.5 200 ODP 184T 870 0 STD 039442270

1.5 575 ODP 184T 870 0 STD 049180970

1.5 575 ODP 182T 1160 0 HE 049180980

1.5 575 ODP 143T 3500 0 HE 049180990

1.5 575 ODP 182T 1160 0 PREM 206501680

1.5 575 ODP 143T 3500 0 PREM 206501690

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 30

Motors

2 Horsepower Motors

Motor Voltage Enclosure Frame RPM RPM Efﬁciency Part HP Type High Low No.

2 230/460 XP 145T 1750 0 STD 024580500 2 575 XP 145T 1750 0 STD 046515400 2 230/460 XP 145T 1750 0 PREM 205050800 2 230/460 XP 184U 1750 0 STD 205060000 2 230/460 XP 56T 1750 0 STD 205060100 2 230/460 XP 145T 1750 0 STD 205070900 2 200 TEFC 145T 1750 870 STD 028805300 2 460 TEFC 145T 1750 870 STD 032240600 2 575 TEFC 145T 1750 0 PREM 046514400 2 230/460 TEFC 145T 1750 0 HE 047446000 2 230/460 TEFC 213T 870 0 STD 047446070 2 230/460 TEFC 184T 1160 0 HE 047446080 2 230/460 TEFC 145T 3500 0 HE 047446090 2 200 TEFC 145T 1750 0 HE 049100300 2 575 TEFC 145T 1750 0 HE 049188200 2 575 TEFC 184T 1160 0 HE 049188280 2 575 TEFC 145T 3500 0 HE 049188290 2 230/460 TEFC 145T 1750 0 PREM 073321000 2 230/460 TEFC 184T 1160 0 PREM 073321080 2 230/460 TEFC 145T 3500 0 PREM 073321090 2 460 TEFC 184U 1750 0 PREM 205063400 2 230/460 TEFC 184U 1750 0 STD 205074100 2 200 TEFC 182T 1750 1160 STD 205079800 2 460 TEFC 182T 1750 1160 STD 205080500 2 575 TEFC 184T 1160 0 PREM 046514480 2 200 TEFC 213T 870 0 STD 049100370 2 200 TEFC 184T 1160 0 HE 049100380 2 200 TEFC 145T 3500 0 HE 049100390 2 575 TEFC 213T 870 0 STD 049188270

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 31

Motors

2 Horsepower Motors, Continued

Motor Voltage Enclosure Frame RPM RPM Efﬁciency Part

HP Type High Low No.

2 230 ODP 145T 1750 870 STD 025434300 2 460 ODP 145T 1750 870 STD 025434400 2 230/460 ODP 145T 1750 0 HE 039446300 2 230/460 ODP 213T 870 0 STD 039446370 2 230/460 ODP 184T 1160 0 HE 039446380 2 230/460 ODP 145T 3500 0 HE 039446390 2 200 ODP 145T 1750 0 HE 039895700 2 200 ODP 145T 1750 0 PREM 046515500 2 575 ODP 145T 1750 0 HE 049181000 2 230/460 ODP 184U 1750 0 STD 205062900 2 230 ODP 182T 1750 1160 STD 205081700 2 460 ODP 182T 1750 1160 STD 205082500 2 230/460 ODP 145T 1750 0 PREM 205163500 2 230/460 ODP 184T 1160 0 PREM 205163580 2 230/460 ODP 145T 3500 0 PREM 205163590 2 575 ODP 145T 1750 0 PREM 205168300 2 200 ODP 213T 870 0 STD 039895770 2 200 ODP 184T 1160 0 HE 039895780 2 200 ODP 145T 3500 0 HE 039895790 2 575 ODP 213T 870 0 STD 049181070 2 575 ODP 184T 1160 0 HE 049181080 2 575 ODP 145T 3500 0 HE 049181090 2 575 ODP 184T 1160 0 PREM 205168380 2 575 ODP 145T 3500 0 PREM 205168390

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 32

Motors

3 Horsepower Motors

Motor Voltage Enclosure Frame RPM RPM Efﬁciency Part HP Type High Low No.

3 230/460 XP 182T 1750 0 STD 022426900 3 230/460 XP 182T 1750 0 PREM 047136700 3 575 XP 182T 1750 0 STD 205060600 3 230/460 XP 213U 1750 0 STD 205060700 3 230/460 XP 182T 1750 0 STD 205071000 3 460 TEFC 182T 1750 870 STD 046513800 3 200 TEFC 182T 1750 0 HE 047358100 3 575 TEFC 182T 1750 0 HE 049188300 3 575 TEFC 213T 1160 0 HE 049188380 3 575 TEFC 182T 3500 0 HE 049188390 3 230/460 TEFC 182T 1750 0 HE 049262300 3 230/460 TEFC 215T 870 0 STD 049262370 3 230/460 TEFC 213T 1160 0 HE 049262380 3 230/460 TEFC 182T 3500 0 HE 049262390 3 200 TEFC 182T 1750 0 PREM 065819400 3 200 TEFC 182T 3500 0 PREM 065819490 3 230/460 TEFC 182T 1750 0 PREM 065820100 3 230/460 TEFC 213T 1160 0 PREM 065820180 3 230/460 TEFC 182T 3500 0 PREM 065820190 3 460 TEFC 213U 1750 0 PREM 205064200 3 230/460 TEFC 184U 1750 0 STD 205073500 3 200 TEFC 184T 1750 1160 STD 205079900 3 460 TEFC 184T 1750 1160 STD 205080600 3 575 TEFC 182T 1750 0 PREM 205168400 3 575 TEFC 213T 1160 0 PREM 046514580 3 575 TEFC 182T 3500 0 PREM 046514590 3 200 TEFC 215T 870 0 STD 047358170 3 200 TEFC 213T 1160 0 HE 047358180 3 200 TEFC 182T 3500 0 HE 047358190 3 575 TEFC 215T 870 0 STD 049188370 3 575 TEFC 213T 1160 0 PREM 205168480 3 575 TEFC 182T 3500 0 PREM 205168490

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 33

Motors

3 Horsepower Motors, Continued

Motor Voltage Enclosure Frame RPM RPM Efﬁciency Part

HP Type High Low No.

3 200 ODP 182T 1750 870 STD 025435300 3 230 ODP 182T 1750 870 STD 025435400 3 460 ODP 182T 1750 870 STD 025435500 3 230/460 ODP 182T 1750 0 HE 039442400 3 230/460 ODP 215T 870 0 STD 039442470 3 230/460 ODP 213T 1160 0 HE 039442480 3 230/460 ODP 145T 3500 0 HE 039442490 3 200 ODP 182T 1750 0 HE 039447500 3 200 ODP 213T 1160 0 HE 039447580 3 200 ODP 145T 3500 0 HE 039447590 3 575 ODP 182T 1750 0 PREM 046511700 3 575 ODP 182T 1750 0 HE 046741600 3 200 ODP 182T 1750 0 PREM 065817100 3 230/460 ODP 182T 1750 0 PREM 065818100 3 230/460 ODP 213T 1160 0 PREM 065818180 3 230/460 ODP 145T 3500 0 PREM 065818190 3 230/460 ODP 184U 1750 0 STD 205063000 3 230 ODP 184T 1750 1160 STD 205081800 3 460 ODP 184T 1750 1160 STD 205082600 3 200 ODP 215T 870 0 STD 039447570 3 575 ODP 213T 1160 0 PREM 046511780 3 575 ODP 145T 3500 0 PREM 046511790 3 575 ODP 215T 870 0 STD 046741670 3 575 ODP 213T 1160 0 HE 046741680 3 575 ODP 145T 3500 0 HE 046741690

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 34

Motors

5 Horsepower Motors

Motor Voltage Enclosure Frame RPM RPM Efﬁciency Part HP Type High Low No.

5 230/460 XP 184T 1750 0 HE 023250600 5 230/460 XP 184T 1750 0 PREM 047136800 5 575 XP 184T 1750 0 STD 205061100 5 230/460 XP 215U 1750 0 STD 205061200 5 230/460 XP 215T 1750 0 STD 205061300 5 230/460 XP 184T 1750 0 STD 205071100 5 230/460 TEFC 184T 1750 0 HE 040161200 5 230/460 TEFC 254T 870 0 STD 040161270 5 230/460 TEFC 215T 1160 0 HE 040161280 5 230/460 TEFC 184T 3500 0 HE 040161290 5 575 TEFC 184T 1750 0 PREM 046514600 5 460 TEFC 184T 1750 870 STD 047660900 5 200 TEFC 184T 1750 0 HE 049186800 5 230/460 TEFC 254T 870 0 STD 049186870 5 230/460 TEFC 215T 1160 0 HE 049186880 5 230/460 TEFC 184T 3500 0 HE 049186890 5 575 TEFC 184T 1750 0 HE 049188400 5 575 TEFC 213T 1160 0 HE 049188480 5 575 TEFC 184T 3500 0 HE 049188490 5 200 TEFC 184T 1750 0 PREM 065819500 5 200 TEFC 184T 3500 0 PREM 065819590 5 230/460 TEFC 184T 1750 0 PREM 065820200 5 230/460 TEFC 215T 1160 0 PREM 065820280 5 230/460 TEFC 184T 3500 0 PREM 065820290 5 230/460 TEFC 215U 1750 0 STD 205064000 5 460 TEFC 215U 1750 0 PREM 205064300 5 460 TEFC 215T 1750 1160 STD 205080700 5 575 TEFC 215T 1160 0 PREM 046514680 5 575 TEFC 184T 3500 0 PREM 046514690 5 575 TEFC 254T 870 0 STD 049188470

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 35

Motors

5 Horsepower Motors, Continued

Motor Voltage Enclosure Frame RPM RPM Efﬁciency Part

HP Type High Low No.

5 230 ODP 184T 1750 870 STD 025436200 5 230/460 ODP 184T 1750 0 HE 039442500 5 230/460 ODP 254T 870 0 STD 039442570 5 230/460 ODP 215T 1160 0 HE 039442580 5 230/460 ODP 182T 3500 0 HE 039442590 5 200 ODP 184T 1750 0 HE 039447600 5 200 ODP 215T 1160 0 HE 039447680 5 200 ODP 182T 3500 0 HE 039447690 5 575 ODP 184T 1750 0 HE 046741900 5 460 ODP 184T 1750 870 STD 059449800 5 200 ODP 184T 1750 0 PREM 065817200 5 230/460 ODP 184T 1750 0 PREM 065818200 5 230/460 ODP 215T 1160 0 PREM 065818280 5 230/460 ODP 182T 3500 0 PREM 065818290 5 230/460 ODP 215U 1750 0 STD 205063900 5 230 ODP 215T 1750 1160 STD 205081900 5 460 ODP 215T 1750 1160 STD 205082700 5 575 ODP 184T 1750 0 PREM 205168900 5 200 ODP 254T 870 0 STD 039447670 5 575 ODP 215T 1160 0 HE 046741980 5 575 ODP 182T 3500 0 HE 046741990

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 36

Motors

7.5 Horsepower Motors

Motor Voltage Enclosure Frame RPM RPM Efﬁciency Part HP Type High Low No.

7.5 230/460 XP 213T 1750 0 STD 021988200

7.5 230/460 XP 213T 1750 0 STD 205048000

7.5 230/460 XP 213T 1750 0 PREM 205054200

7.5 575 XP 213T 1750 0 STD 205061600

7.5 460 TEFC 215T 1750 870 STD 032248300

7.5 200 TEFC 213T 1750 870 STD 036618200

7.5 575 TEFC 213T 1750 0 PREM 046514700

7.5 200 TEFC 213T 1750 0 HE 047665900

7.5 230/460 TEFC 213T 1750 0 HE 049100500

7.5 230/460 TEFC 256T 870 0 STD 049100570

7.5 230/460 TEFC 256T 1160 0 HE 049100580

7.5 230/460 TEFC 213T 3500 0 HE 049100590

7.5 575 TEFC 213T 1750 0 HE 049188500

7.5 575 TEFC 254T 1160 0 HE 049188580

7.5 575 TEFC 213T 3500 0 HE 049188590

7.5 200 TEFC 213T 1750 0 PREM 065819600

7.5 200 TEFC 213T 3500 0 PREM 065819690

7.5 230/460 TEFC 213T 1750 0 PREM 065820300

7.5 230/460 TEFC 254T 1160 0 PREM 065820380

7.5 230/460 TEFC 213T 3500 0 PREM 065820390

7.5 460 TEFC 254U 1750 0 PREM 205064800

7.5 230/460 TEFC 254U 1750 0 STD 205064900

7.5 460 TEFC 254T 1750 1160 STD 205080800

7.5 575 TEFC 254T 1160 0 PREM 046514780

7.5 575 TEFC 213T 3500 0 PREM 046514790

7.5 200 TEFC 256T 870 0 STD 047665970

7.5 200 TEFC 254T 1160 0 HE 047665980

7.5 200 TEFC 213T 3500 0 HE 047665990

7.5 575 TEFC 256T 870 0 STD 049188570

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 37

Motors

7.5 Horsepower Motors, Continued

Motor Voltage Enclosure Frame RPM RPM Efﬁciency Part

HP Type High Low No.

7.5 200 ODP 213T 1750 870 STD 025436600

7.5 230 ODP 213T 1750 870 STD 025436700

7.5 460 ODP 213T 1750 870 STD 025436800

7.5 200 ODP 213T 1750 0 HE 037530300

7.5 230/460 ODP 213T 1750 0 HE 039448700

7.5 230/460 ODP 256T 870 0 STD 039448770

7.5 230/460 ODP 254T 1160 0 HE 039448780

7.5 230/460 ODP 184T 3500 0 HE 039448790

7.5 575 ODP 213T 1750 0 HE 047443300

7.5 200 ODP 213T 1750 0 PREM 065817300

7.5 230/460 ODP 213T 1750 0 PREM 065818300

7.5 230/460 ODP 256T 1160 0 PREM 065818380

7.5 230/460 ODP 184T 3500 0 PREM 065818390

7.5 230/460 ODP 254U 1750 0 STD 205064400

7.5 230 ODP 256T 1750 1160 STD 205082000

7.5 460 ODP 256T 1750 1160 STD 205082800

7.5 575 ODP 213T 1750 0 PREM 205168800

7.5 200 ODP 256T 870 0 STD 037530370

7.5 200 ODP 254T 1160 0 HE 037530380

7.5 200 ODP 184T 3500 0 HE 037530390

7.5 575 ODP 256T 870 0 STD 047443370

7.5 575 ODP 254T 1160 0 HE 047443380

7.5 575 ODP 184T 3500 0 HE 047443390

7.5 575 ODP 184T 3500 0 PREM 205168890

7.5 575 ODP 254T 1160 0 PREM 205168880

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 38

Motors

10 Horsepower Motors

Motor Voltage Enclosure Frame RPM RPM Efﬁciency Part HP Type High Low No.

10 230/460 XP 215T 1750 0 STD 024951400 10 230/460 XP 215T 1750 0 STD 205049700 10 230/460 XP 215T 1750 0 PREM 205050600 10 575 XP 215T 1750 0 STD 205061900 10 230/460 TEFC 215T 1750 0 HE 044691100 10 230/460 TEFC 284T 870 0 STD 044691170 10 230/460 TEFC 256T 1160 0 HE 044691180 10 230/460 TEFC 215T 3500 0 HE 044691190 10 460 TEFC 215T 1750 870 STD 046513900 10 200 TEFC 215T 1750 0 HE 047666100 10 575 TEFC 215T 1750 0 HE 049188600 10 575 TEFC 256T 1160 0 HE 049188680 10 575 TEFC 215T 3500 0 HE 049188690 10 200 TEFC 215T 1750 0 PREM 065819700 10 200 TEFC 213T 3500 0 PREM 065819790 10 230/460 TEFC 215T 1750 0 PREM 065820400 10 230/460 TEFC 256T 1160 0 PREM 065820480 10 230/460 TEFC 215T 3500 0 PREM 065820490 10 575 TEFC 215T 1750 0 PREM 065821400 10 460 TEFC 256U 1750 0 PREM 205064600 10 230/460 TEFC 256U 1750 0 STD 205064700 10 460 TEFC 254T 1750 1160 STD 205080900 10 200 TEFC 284T 870 0 STD 047666170 10 200 TEFC 256T 1160 0 HE 047666180 10 200 TEFC 215T 3500 0 HE 047666190 10 575 TEFC 284T 870 0 STD 049188670 10 575 TEFC 256T 1160 0 PREM 065821480 10 575 TEFC 215T 3500 0 PREM 065821490

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 39

Motors

10 Horsepower Motors, Continued

Motor Voltage Enclosure Frame RPM RPM Efﬁciency Part

HP Type High Low No.

10 200 ODP 215T 1750 870 STD 025437100 10 230 ODP 215T 1750 870 STD 025437200 10 460 ODP 215T 1750 870 STD 025437300 10 200 ODP 215T 1750 0 HE 038999000 10 230/460 ODP 215T 1750 0 HE 039446500 10 230/460 ODP 256T 1160 0 HE 039446580 10 230/460 ODP 213T 3500 0 HE 039446590 10 575 ODP 215T 1750 0 HE 047443400 10 200 ODP 215T 1750 0 PREM 065817400 10 230/460 ODP 215T 1750 0 PREM 065818400 10 230/460 ODP 256T 1160 0 PREM 065818480 10 230/460 ODP 213T 3500 0 PREM 065818490 10 230/460 ODP 256U 1750 0 STD 205064500 10 460 ODP 256T 1750 1160 STD 205082900 10 575 ODP 215T 1750 0 PREM 205168600 10 200 ODP 284T 870 0 STD 038999070 10 200 ODP 256T 1160 0 HE 038999080 10 200 ODP 213T 3500 0 HE 038999090 10 230/460 ODP 284T 870 0 STD 039446570 10 575 ODP 284T 870 0 STD 047443470 10 575 ODP 256T 1160 0 HE 047443480 10 575 ODP 213T 3500 0 HE 047443490 10 575 ODP 256T 1160 0 PREM 205168680 10 575 ODP 213T 3500 0 PREM 205168690

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 40

Motors

15 Horsepower Motors

Motor Voltage Enclosure Frame RPM RPM Efﬁciency Part HP Type High Low No.

15 230/460 XP 254T 1750 0 STD 031772400 15 230/460 XP 254T 1750 0 STD 205048100 15 230/460 XP 254T 1750 0 PREM 205050700 15 575 XP 254T 1750 0 STD 205062100 15 230/460 TEFC 254T 1750 0 HE 038689700 15 230/460 TEFC 286T 870 0 STD 038689770 15 230/460 TEFC 284T 1160 0 HE 038689780 15 230/460 TEFC 254T 3500 0 HE 038689790 15 460 TEFC 284T 1750 1160 STD 046514000 15 575 TEFC 254T 1750 0 HE 049185200 15 575 TEFC 284T 1160 0 HE 049185280 15 575 TEFC 254T 3500 0 HE 049185290 15 200 TEFC 254T 1750 0 HE 049186900 15 200 TEFC 254T 1750 0 PREM 065819800 15 200 TEFC 254T 3500 0 PREM 065819890 15 230/460 TEFC 254T 1750 0 PREM 065820500 15 230/460 TEFC 284T 1160 0 PREM 065820580 15 230/460 TEFC 254T 3500 0 PREM 065820590 15 575 TEFC 254T 1750 0 PREM 065821500 15 460 TEFC 284U 1750 0 PREM 205065300 15 230/460 TEFC 284U 1750 0 STD 205065400 15 460 TEFC 256T 1750 870 STD 205091000 15 575 TEFC 286T 870 0 STD 049185270 15 200 TEFC 286T 870 0 STD 049186970 15 200 TEFC 284T 1160 0 HE 049186980 15 200 TEFC 254T 3500 0 HE 049186990 15 575 TEFC 284T 1160 0 PREM 065821580 15 575 TEFC 254T 3500 0 PREM 065821590

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 41

Motors

15 Horsepower Motors, Continued

Motor Voltage Enclosure Frame RPM RPM Efﬁciency Part

HP Type High Low No.

15 200 ODP 256T 1750 870 STD 031784100 15 460 ODP 256T 1750 870 STD 032240400 15 230 ODP 256T 1750 870 STD 032241700 15 230/460 ODP 254T 1750 0 HE 039446600 15 230/460 ODP 284T 1160 0 HE 039446680 15 230/460 ODP 215T 3500 0 HE 039446690 15 200 ODP 254T 1750 0 HE 039896200 15 575 ODP 254T 1750 0 HE 047443500 15 200 ODP 254T 1750 0 PREM 065817500 15 230/460 ODP 254T 1750 0 PREM 065818500 15 230/460 ODP 284T 1160 0 PREM 065818580 15 230/460 ODP 215T 3500 0 PREM 065818590 15 230/460 ODP 284U 1750 0 STD 205065100 15 460 ODP 284T 1750 1160 STD 205083000 15 575 ODP 254T 1750 0 PREM 205166600 15 230/460 ODP 286T 870 0 STD 039446670 15 200 ODP 286T 870 0 STD 039896270 15 200 ODP 284T 1160 0 HE 039896280 15 200 ODP 215T 3500 0 HE 039896290 15 575 ODP 286T 870 0 STD 047443570 15 575 ODP 284T 1160 0 HE 047443580 15 575 ODP 215T 3500 0 HE 047443590 15 575 ODP 215T 3500 0 PREM 205166690

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 42

Motors

20 Horsepower Motors

Motor Voltage Enclosure Frame RPM RPM Efﬁciency Part HP Type High Low No.

20 230/460 XP 256T 1750 0 STD 032242100 20 230/460 XP 256T 1750 0 STD 205049800 20 230/460 XP 256T 1750 0 PREM 205050900 20 575 XP 256T 1750 0 STD 205062300 20 230/460 TEFC 256T 1750 0 HE 040161300 20 230/460 TEFC 324T 870 0 STD 040161370 20 230/460 TEFC 286T 1160 0 HE 040161380 20 230/460 TEFC 256T 3500 0 HE 040161390 20 460 TEFC 284T 1750 870 STD 046514100 20 200 TEFC 256T 1750 0 HE 049187000 20 575 TEFC 256T 1750 0 HE 049188700 20 575 TEFC 286T 1160 0 HE 049188780 20 575 TEFC 256T 3500 0 HE 049188790 20 200 TEFC 256T 1750 0 PREM 065819900 20 200 TEFC 256T 3500 0 PREM 065819990 20 230/460 TEFC 256T 1750 0 PREM 065820600 20 230/460 TEFC 286T 1160 0 PREM 065820680 20 230/460 TEFC 256T 3500 0 PREM 065820690 20 575 TEFC 256T 1750 0 PREM 065821600 20 230/460 TEFC 286U 1750 0 STD 205065200 20 460 TEFC 286U 1750 0 PREM 205065500 20 460 TEFC 286T 1750 1160 STD 205081100 20 200 TEFC 324T 870 0 STD 049187070 20 200 TEFC 286T 1160 0 HE 049187080 20 200 TEFC 256T 3500 0 HE 049187090 20 575 TEFC 324T 870 0 STD 049188770 20 575 TEFC 286T 1160 0 PREM 065821680 20 575 TEFC 256T 3500 0 PREM 065821690

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 43

Motors

20 Horsepower Motors, Continued

Motor Voltage Enclosure Frame RPM RPM Efﬁciency Part

HP Type High Low No.

20 460 ODP 256T 1750 870 STD 032241300 20 200 ODP 284T 1750 870 STD 032242000 20 230 ODP 284T 1750 870 STD 032242200 20 230/460 ODP 256T 1750 0 HE 039448800 20 230/460 ODP 286T 1160 0 HE 039448880 20 230/460 ODP 254T 3500 0 HE 039448890 20 200 ODP 256T 1750 0 HE 039895800 20 575 ODP 256T 1750 0 HE 049181100 20 200 ODP 256T 1750 0 PREM 065817600 20 230/460 ODP 256T 1750 0 PREM 065818600 20 230/460 ODP 286T 1160 0 PREM 065818680 20 230/460 ODP 254T 3500 0 PREM 065818690 20 230/460 ODP 286U 1750 0 HE 205065000 20 460 ODP 286T 1750 1160 STD 205083100 20 575 ODP 256T 1750 0 PREM 205166800 20 230/460 ODP 324T 870 0 STD 039448870 20 200 ODP 324T 870 0 STD 039895870 20 200 ODP 286T 1160 0 HE 039895880 20 200 ODP 254T 3500 0 HE 039895890 20 575 ODP 324T 870 0 STD 049181170 20 575 ODP 286T 1160 0 HE 049181180 20 575 ODP 254T 3500 0 HE 049181190 20 575 ODP 254T 3500 0 PREM 205166890

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 44

Motors

25 Horsepower Motors

Motor Voltage Enclosure Frame RPM RPM Efﬁciency Part HP Type High Low No.

25 230/460 XP 284T 1750 0 HE 032242600 25 230/460 XP 284T 1750 0 PREM 048446800 25 575 XP 284T 1750 0 STD 205073000 25 230/460 TEFC 284T 1750 0 HE 040161400 25 230/460 TEFC 326T 870 0 STD 040161470 25 230/460 TEFC 324T 1160 0 HE 040161480 25 230/460 TEFC 284TS 3500 0 HE 040161490 25 460 TEFC 284T 1750 870 STD 047661200 25 200 TEFC 284T 1750 0 HE 049187100 25 575 TEFC 284T 1750 0 HE 049188800 25 575 TEFC 324T 1160 0 HE 049188880 25 575 TEFC 284TS 3500 0 HE 049188890 25 200 TEFC 284T 1750 0 PREM 065820000 25 200 TEFC 284TS 3500 0 PREM 065820090 25 230/460 TEFC 284T 1750 0 PREM 065820700 25 230/460 TEFC 324T 1160 0 PREM 065820780 25 230/460 TEFC 284T 3500 0 PREM 065820790 25 575 TEFC 284T 1750 0 PREM 065821700 25 230/460 TEFC 324U 1750 0 STD 205065800 25 460 TEFC 324U 1750 0 HE 205073900 25 460 TEFC 324T 1750 1160 STD 205081200 25 200 TEFC 326T 870 0 STD 049187170 25 200 TEFC 284TS 3500 0 HE 049187190 25 575 TEFC 326T 870 0 STD 049188870 25 575 TEFC 284TS 3500 0 PREM 065821790 25 200 ODP 284T 1750 0 HE 039448900 25 230/460 ODP 284T 1750 0 HE 039896100 25 230/460 ODP 324T 1160 0 HE 039896180 25 230/460 ODP 256T 3500 0 HE 039896190 25 575 ODP 284T 1750 0 HE 049181200 25 200 ODP 284T 1750 0 PREM 065817700 25 230/460 ODP 284T 1750 0 PREM 065818700 25 230/460 ODP 324T 1160 0 PREM 065818780 25 230/460 ODP 256T 3500 0 PREM 065818790 25 230/460 ODP 324U 1750 0 STD 205065600 25 460 ODP 286T 1750 1160 STD 205083200 25 460 ODP 286T 1750 870 STD 205091400 25 575 ODP 284T 1750 0 PREM 205166900 25 230/460 ODP 326T 870 0 STD 039896170 25 575 ODP 326T 870 0 STD 049181270 25 575 ODP 324T 1160 0 HE 049181280 25 575 ODP 256T 3500 0 HE 049181290 25 575 ODP 324T 1160 0 PREM 205166980 25 575 ODP 256T 3500 0 PREM 205166990

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 45

Motors

30 Horsepower Motors

Motor Voltage Enclosure Frame RPM RPM Efﬁciency Part HP Type High Low No.

30 230/460 XP 286T 1750 0 STD 032243200 30 230/460 XP 286T 1750 0 PREM 205053500 30 575 XP 286T 1750 0 STD 205072900 30 230/460 TEFC 286T 1750 0 HE 049025300 30 230/460 TEFC 364T 870 0 STD 049025370 30 230/460 TEFC 326T 1160 0 HE 049025380 30 230/460 TEFC 286TS 3500 0 HE 049025390 30 200 TEFC 286T 1750 0 HE 049187200 30 575 TEFC 286T 1750 0 HE 049188900 30 575 TEFC 286TS 3500 0 HE 049188990 30 460 TEFC 326U 1750 0 HE 205065900 30 230/460 TEFC 326U 1750 0 STD 205066000 30 200 TEFC 286T 1750 0 PREM 205066800 30 200 TEFC 286TS 3500 0 PREM 205066890 30 230/460 TEFC 286T 1750 0 PREM 205066900 30 230/460 TEFC 326T 1160 0 PREM 205066980 30 230/460 TEFC 286TS 3500 0 PREM 205066990 30 575 TEFC 286T 1750 0 PREM 205067000 30 200 TEFC 364T 870 0 STD 049187270 30 200 TEFC 286TS 3500 0 HE 049187290 30 575 TEFC 364T 870 0 STD 049188970 30 575 TEFC 326T 1160 0 HE 049188980 30 575 TEFC 286TS 3500 0 PREM 205067090 30 230/460 ODP 286T 1750 0 HE 040626800 30 230/460 ODP 326T 1160 0 HE 040626880 30 230/460 ODP 284TS 3500 0 HE 040626890 30 200 ODP 286T 1750 0 HE 041775200 30 575 ODP 286T 1750 0 HE 049181300 30 460 ODP 286T 1750 1160 STD 067304900 30 230/460 ODP 326U 1750 0 HE 205065700 30 200 ODP 286T 1750 0 PREM 205066500 30 230/460 ODP 286T 1750 0 PREM 205066600 30 230/460 ODP 326T 1160 0 PREM 205066680 30 230/460 ODP 284TS 3500 0 PREM 205066690 30 575 ODP 286T 1750 0 PREM 205066700 30 460 ODP 286T 1750 870 STD 205070500 30 230/460 ODP 364T 870 0 STD 040626870 30 200 ODP 326T 1160 0 HE 041775280 30 200 ODP 284TS 3500 0 HE 041775290 30 575 ODP 364T 870 0 STD 049181370 30 575 ODP 326T 1160 0 HE 049181380 30 575 ODP 284TS 3500 0 HE 049181390 30 575 ODP 326T 1160 0 PREM 205066780 30 575 ODP 284TS 3500 0 PREM 205066790

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 46

Motors

40 Horsepower Motors

Motor Voltage Enclosure Frame RPM RPM Efﬁciency Part HP Type High Low No.

40 230/460 XP 324T 1750 0 STD 032243800 40 230/460 XP 324T 1750 0 STD 205050100 40 230/460 XP 324T 1750 0 PREM 205053700 40 575 XP 324T 1750 0 STD 205073300 40 230/460 TEFC 324T 1750 0 HE 048448000 40 230/460 TEFC 365T 870 0 STD 048448070 40 230/460 TEFC 364T 1160 0 HE 048448080 40 230/460 TEFC 324TS 3500 0 HE 048448090 40 200 TEFC 324T 1750 0 HE 049187300 40 575 TEFC 324T 1750 0 HE 049189000 40 575 TEFC 324TS 3500 0 HE 049189090 40 230/460 TEFC 324T 1750 0 PREM 205069200 40 230/460 TEFC 364T 1160 0 PREM 205069280 40 230/460 TEFC 324TS 3500 0 PREM 205069290 40 575 TEFC 324T 1750 0 PREM 205069300 40 200 TEFC 324T 1750 0 PREM 205070700 40 200 TEFC 365T 870 0 STD 049187370 40 200 TEFC 364T 1160 0 HE 049187380 40 575 TEFC 365T 870 0 STD 049189070 40 575 TEFC 364T 1160 0 HE 049189080 40 575 TEFC 364T 1160 0 PREM 205069380 40 575 TEFC 324TS 3500 0 PREM 205069390 40 230/460 ODP 324T 1750 0 HE 041770000 40 230/460 ODP 364T 1160 0 HE 041770080 40 230/460 ODP 286TS 3500 0 HE 041770090 40 200 ODP 324T 1750 0 HE 041775300 40 200 ODP 364T 1160 0 HE 041775380 40 575 ODP 324T 1750 0 HE 049181400 40 200 ODP 324T 1750 0 PREM 205067100 40 200 ODP 364T 1160 0 PREM 205067180 40 230/460 ODP 324T 1750 0 PREM 205067200 40 230/460 ODP 364T 1160 0 PREM 205067280 40 230/460 ODP 286TS 3500 0 PREM 205067290 40 575 ODP 324T 1750 0 PREM 205067300 40 460 ODP 324T 1750 870 STD 205070600 40 200 ODP 286TS 3500 0 HE 041775390 40 575 ODP 365T 870 0 STD 049181470 40 575 ODP 364T 1160 0 HE 049181480 40 575 ODP 286TS 3500 0 HE 049181490

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 47

Motors

50 Horsepower Motors

Motor Voltage Enclosure Frame RPM RPM Efﬁciency Part HP Type High Low No.

50 230/460 XP 326T 1750 0 HE 032244400 50 230/460 XP 326T 1750 0 PREM 205053900 50 230/460 TEFC 326T 1750 0 HE 040161600 50 230/460 TEFC 404T 870 0 STD 040161670 50 230/460 TEFC 365T 1160 0 HE 040161680 50 230/460 TEFC 326TS 3500 0 HE 040161690 50 200 TEFC 326T 1750 0 HE 049187400 50 575 TEFC 326T 1750 0 HE 049189100 50 575 TEFC 326TS 3500 0 HE 049189190 50 230/460 TEFC 326T 1750 0 PREM 205069400 50 230/460 TEFC 365T 1160 0 PREM 205069480 50 230/460 TEFC 326TS 3500 0 PREM 205069490 50 575 TEFC 326T 1750 0 PREM 205069500 50 200 TEFC 326T 1750 0 PREM 205091600 50 200 TEFC 365T 870 0 STD 049187470 50 200 TEFC 364T 1160 0 HE 049187480 50 200 TEFC 326TS 3500 0 HE 049187490 50 575 TEFC 404T 870 0 STD 049189170 50 575 TEFC 365T 1160 0 HE 049189180 50 575 TEFC 365T 1160 0 PREM 205069580 50 575 TEFC 326TS 3500 0 PREM 205069590 50 230/460 ODP 326T 1750 0 HE 039899200 50 230/460 ODP 365T 1160 0 HE 039899280 50 230/460 ODP 324TS 3500 0 HE 039899290 50 200 ODP 326T 1750 0 HE 041775400 50 575 ODP 326T 1750 0 HE 049181500 50 200 ODP 326T 1750 0 PREM 205067500 50 230/460 ODP 326T 1750 0 PREM 205067600 50 230/460 ODP 365T 1160 0 PREM 205067680 50 230/460 ODP 324TS 3500 0 PREM 205067690 50 460 ODP 326T 1750 870 STD 205070100 50 575 ODP 326T 1750 0 PREM 205091800 50 200 ODP 324TS 3500 0 HE 041775490 50 575 ODP 404T 870 0 STD 049181570 50 575 ODP 365T 1160 0 HE 049181580 50 575 ODP 324TS 3500 0 HE 049181590 50 200 ODP 324TS 3500 0 PREM 205067590 50 575 ODP 324TS 3500 0 PREM 205091890

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 48

Motors

60 Horsepower Motors

Motor Voltage Enclosure Frame RPM RPM Efﬁciency Part HP Type High Low No.

60 230/460 XP 364T 1750 0 STD 032245100 60 230/460 XP 364T 1750 0 PREM 205054100 60 230/460 TEFC 364T 1750 0 HE 046748300 60 230/460 TEFC 405T 870 0 STD 046748370 60 230/460 TEFC 404T 1160 0 HE 046748380 60 230/460 TEFC 364TS 3500 0 HE 046748390 60 200 TEFC 364T 1750 0 HE 049187500 60 575 TEFC 364T 1750 0 HE 049189200 60 230/460 TEFC 364T 1750 0 PREM 205069600 60 575 TEFC 364T 1750 0 PREM 205069800 60 460 TEFC 404T 1160 0 HE 205291380 60 460 TEFC 364TS 3500 0 HE 205291390 60 460 TEFC 404T 1160 0 PREM 205291480 60 460 TEFC 364TS 3500 0 PREM 205291490 60 200 TEFC 405T 870 0 STD 049187570 60 200 TEFC 404T 1160 0 HE 049187580 60 200 TEFC 364TS 3500 0 HE 049187590 60 575 TEFC 405T 870 0 STD 049189270 60 575 TEFC 404T 1160 0 HE 049189280 60 575 TEFC 364TS 3500 0 HE 049189290 60 230/460 TEFC 404T 1160 0 PREM 205069680 60 230/460 TEFC 364TS 3500 0 PREM 205069690 60 575 TEFC 404T 1160 0 PREM 205069880 60 575 TEFC 364TS 3500 0 PREM 205069890 60 230/460 ODP 364T 1750 0 HE 041775500 60 230/460 ODP 404 1160 0 HE 041775580 60 230/460 ODP 326TS 3500 0 HE 041775590 60 200 ODP 364T 1750 0 HE 041775800 60 575 ODP 364T 1750 0 HE 049181600 60 230/460 ODP 364T 1750 0 PREM 065819100 60 230/460 ODP 404 1160 0 PREM 065819180 60 230/460 ODP 326TS 3500 0 PREM 065819190 60 200 ODP 364T 1750 0 PREM 205067700 60 460 ODP 364T 1750 0 PREM 205068800 60 460 ODP 404 1160 0 PREM 205068880 60 460 ODP 326TS 3500 0 PREM 205068890 60 575 ODP 364T 1750 0 PREM 205069000 60 575 ODP 405T 870 0 STD 049181670 60 575 ODP 404T 1160 0 HE 049181680 60 575 ODP 326TS 3500 0 HE 049181690 60 200 ODP 326TS 3500 0 PREM 205067790 60 575 ODP 326TS 3500 0 PREM 205069090

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 49

Motors

75 & 100 Horsepower Motors

Motor Voltage Enclosure Frame RPM RPM Efﬁciency Part HP Type High Low No.

75 230/460 XP 365T 1750 0 STD 032245700 75 200 TEFC 365T 1750 0 HE 049187600 75 230/460 TEFC 365T 1750 0 HE 049187800 75 230/460 TEFC 404T 1160 0 HE 049187880 75 230/460 TEFC 364TS 3500 0 HE 049187890 75 575 TEFC 365T 1750 0 HE 049189300 75 230/460 TEFC 365T 1750 0 PREM 205069900 75 230/460 TEFC 405T 1160 0 PREM 205069980 75 230/460 TEFC 365TS 3500 0 PREM 205069990 75 575 TEFC 365T 1750 0 PREM 205070000 75 460 TEFC 405T 1160 0 HE 205291180 75 460 TEFC 365TS 3500 0 HE 205291190 75 460 TEFC 405T 1160 0 PREM 205291280 75 460 TEFC 365TS 3500 0 PREM 205291290 75 200 TEFC 405T 1160 0 HE 049187680 75 200 TEFC 365TS 3500 0 HE 049187690 75 230/460 TEFC 444T 870 0 STD 049187870 75 575 TEFC 444T 870 0 STD 049189370 75 575 TEFC 405T 1160 0 HE 049189380 75 575 TEFC 365TS 3500 0 HE 049189390 75 575 TEFC 405T 1160 0 PREM 205070080 75 575 TEFC 365TS 3500 0 PREM 205070090 75 230/460 ODP 365T 1750 0 HE 041775600 75 230/460 ODP 364T 1160 0 HE 041775680 75 230/460 ODP 364TS 3500 0 HE 041775690 75 200 ODP 365T 1750 0 HE 041775700 75 575 ODP 365T 1750 0 HE 049181800 75 200 ODP 365T 1750 0 PREM 205069100 75 230/460 ODP 365T 1750 0 PREM 205070300 75 230/460 ODP 405T 1160 0 PREM 205070380 75 230/460 ODP 405TS 3500 0 PREM 205070390 75 575 ODP 365T 1750 0 PREM 205070400 75 230/460 ODP 364TS 3500 0 PREM 046511390 75 575 ODP 364TS 3500 0 HE 049181890 75 575 ODP 405T 1160 0 HE 049181880 75 575 ODP 444T 870 0 STD 049181870 75 575 ODP 364TS 3500 0 PREM 205070490 100 230/460 XP 405T 1750 0 STD 046515200

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 50

Motors

Motors Internally Equipped with Aegis™ Shaft Grounding Ring

Motor Voltage Enclosure Frame RPM RPM Efﬁciency Part HP Type High Low No.

1HP 230-460/60/3 OPSB 143T 1760 0 PREM 300049695

1.5HP 230-460/60/3 OPSB 145T 1755 0 PREM 300049696 2HP 230-460/60/3 OPSB 145T 1750 0 PREM 300049697 3HP 230-460/60/3 OPSB 182T 1760 0 PREM 300049698 5HP 230-460/60/3 OPSB 182T 1750 0 PREM 300049699

7.5HP 230-460/60/3 OPSB 213T 1770 0 PREM 300049700 10HP 230-460/60/3 OPSB 213T 1770 0 PREM 300049701 10HP 230-460/60/3 OPSB 215T 1750 0 PREM 065818499 15HP 230-460/60/3 OPSB 254T 1750 0 PREM 065818599 20HP 230-460/60/3 OPSB 256T 1750 0 PREM 065818699 25HP 230-460/60/3 OPSB 284T 1770 0 PREM 300049702 30HP 230-460/60/3 OPSB 268T 1770 0 PREM 300049703 40HP 230-460/60/3 OPSB 324T 1770 0 PREM 300049704 50HP 230-460/60/3 OPSB 326T 1775 0 PREM 300049705 1HP 230-460/60/3 TEFC 143T 1765 0 PREM 300049685

1.5HP 230-460/60/3 TEFC 145T 1760 0 PREM 300049686 2HP 230-460/60/3 TEFC 145T 1755 0 PREM 300049687 3HP 230-460/60/3 TEFC 182T 1760 0 PREM 300049688

7.5HP 230-460/60/3 TEFC 184T 1750 0 PREM 300049689

7.5HP 230-460/60/3 TEFC 213T 1770 0 PREM 300049690 10HP 230-460/60/3 TEFC 215T 1750 0 PREM 065820499 15HP 230-460/60/3 TEFC 254T 1765 0 PREM 300049198 20HP 230-460/60/3 TEFC 256T 1765 0 PREM 300049691 20HP 575/60/3 TEFC 256T 1750 0 PREM 065821699 25HP 230-460/60/3 TEFC 284T 1760 0 PREM 300049692 30HP 230-460/60/3 TEFC 286T 1060 0 PREM 205066999 40HP 230-460/60/3 TEFC 324T 1770 0 PREM 300049693 50HP 230-460/60/3 TEFC 326T 1775 0 PREM 300049694 60HP 230-460/60/3 TEFC 346T 1780 0 PREM 205069699 75HP 230-460/60/3 TEFC 365T 1780 0 PREM 205069999

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 51

Motors

Motor Mount Slide Base

492

Ref Part Frame Part

No. Description Size Number

492 Motor Mount Slide Base 48 073316601 Motor Mount Slide Base 56 073316602 Motor Mount Slide Base 143 073316603 Motor Mount Slide Base 145 073316604 Motor Mount Slide Base 182 073316605 Motor Mount Slide Base 184 073316606 Motor Mount Slide Base 213 073316607 Motor Mount Slide Base 215 073316608 Motor Mount Slide Base 254 073316609 Motor Mount Slide Base 256 073316610 Motor Mount Slide Base 284 073316611 Motor Mount Slide Base 286 073316612 Motor Mount Slide Base 324 073316613 Motor Mount Slide Base 326 073316614 Motor Mount Slide Base 364 073316615 Motor Mount Slide Base 365 073316616 Motor Mount Slide Base 404 073316617 Motor Mount Slide Base 405 073316618

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 52

Dual Direct Drive Fan Motors

Notes & Direct Drive Fan Motors

Notes

This section lists motors that are used in Dual Direct Drive Fan units.

When determining what motor is in a unit, conﬁrm the Motor’s Horsepower (1.0- 75); Voltage (200, 230/460

575); Enclosure Type (ODP [Open Drip Proof], TEFC [Totally Enclosed Fan Cooled]; RPM (1160- 3500 single or double speed); Frame Size (143T- 405T). If this information is not known, or to order other Dual Direct Drive Fan components, contact Daikin McQuay Parts with model and serial number information to ensure that the correct parts(s) are identiﬁed.

Direct Drive Fan Motors

Motor Voltage Enclosure Frame RPM RPM Efﬁciency Part

HP Type High Low No.

1.0 230/460 ODP 145T 1160 0 PREM 205162880

1.0 230/460 TEFC 145T 1160 0 PREM 046513080

1.0 575 TEFC 145T 1160 0 PREM 300049512

1.5 230/460 ODP 182T 1160 0 PREM 046511180

1.5 230/460 TEFC 182T 1160 0 PREM 046513180

1.5 575 TEFC 182T 1160 0 PREM 300049513

2.0 230/460 ODP 184T 1160 0 PREM 205163580

2.0 230/460 TEFC 184T 1160 0 PREM 073321080

2.0 575 TEFC 184T 1160 0 PREM 300049515

3.0 230/460 ODP 213T 1160 0 PREM 065818180

3.0 230/460 TEFC 213T 1160 0 PREM 065820180

3.0 575 TEFC 213T 1160 0 PREM 300049517

5.0 230/460 ODP 215T 1160 0 PREM 065818280

5.0 230/460 TEFC 215T 1160 0 PREM 065820280

5.0 575 TEFC 215T 1160 0 PREM 300049518

7.5 230/460 ODP 254T 1160 0 PREM 065818380

7.5 230/460 TEFC 254T 1160 0 PREM 065820380

10.0 230/460 ODP 256T 1160 0 PREM 065818480

10.0 230/460 TEFC 256T 1160 0 PREM 065820480

15.0 230/460 ODP 284T 1160 0 PREM 065818580

15.0 230/460 TEFC 284T 1160 0 PREM 065820580

20.0 230/460 ODP 286T 1160 0 PREM 065818680

20.0 230/460 TEFC 286T 1160 0 PREM 065820680

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 53

Dual Direct Drive Fan Motors

Direct Drive Fan Motors, Continued

Motor Voltage Enclosure Frame RPM RPM Efﬁciency Part

HP Type High Low No.

25.0 230/460 ODP 324T 1160 0 PREM 065818780

25.0 230/460 TEFC 324T 1160 0 PREM 065820780

30.0 230/460 ODP 326T 1160 0 PREM 205066680

30.0 230/460 TEFC 326T 1160 0 PREM 205066980

40.0 230/460 ODP 364T 1160 0 PREM 205067280

40.0 230/460 TEFC 364T 1160 0 PREM 205069280

50.0 230/460 ODP 365T 1160 0 PREM 205067680

50.0 230/460 TEFC 365T 1160 0 PREM 205069480

60.0 230/460 TEFC 404T 1160 0 PREM 300049525

60.0 230/460 ODP 404T 1160 0 PREM 065819180

75.0 230/460 TEFC 405T 1160 0 PREM 300049526

1.0 200 ODP 143T 1750 0 PREM 205167600

1.0 200 TEFC 143T 1750 0 PREM 098865400

1.0 230/460 ODP 143T 1750 0 PREM 205162800

1.0 230/460 TEFC 143T 1750 0 PREM 046513000

1.0 575 ODP 143T 1750 0 PREM 206500900

1.0 575 TEFC 143T 1750 0 PREM 206505600

1.5 200 ODP 145T 1750 0 PREM 205167500

1.5 200 TEFC 145T 1750 0 PREM 300047024

1.5 230/460 ODP 145T 1750 0 PREM 046511100

1.5 230/460 TEFC 145T 1750 0 PREM 046513100

1.5 575 ODP 145T 1750 0 PREM 206501600

1.5 575 TEFC 145T 1750 0 PREM 205167800

2.0 200 ODP 145T 1750 0 PREM 046515500

2.0 200 TEFC 145T 1750 0 PREM 300047025

2.0 230/460 ODP 145T 1750 0 PREM 205163500

2.0 230/460 TEFC 145T 1750 0 PREM 073321000

2.0 575 ODP 145T 1750 0 PREM 205168300

2.0 575 TEFC 145T 1750 0 PREM 046514400

3.0 200 ODP 182T 1750 0 PREM 065817100

3.0 200 TEFC 182T 1750 0 PREM 065819400

3.0 230/460 ODP 182T 1750 0 PREM 065818100

3.0 230/460 TEFC 182T 1750 0 PREM 065820100

3.0 575 ODP 182T 1750 0 PREM 046511700

3.0 575 TEFC 182T 1750 0 PREM 205168400

5.0 200 ODP 184T 1750 0 PREM 065817200

5.0 200 TEFC 184T 1750 0 PREM 065819500

5.0 230/460 ODP 184T 1750 0 PREM 065818200

5.0 230/460 TEFC 184T 1750 0 PREM 065820200

5.0 575 ODP 184T 1750 0 PREM 205168900

5.0 575 TEFC 184T 1750 0 PREM 046514600

7.5 200 ODP 213T 1750 0 PREM 065817300

7.5 200 TEFC 213T 1750 0 PREM 065819600

7.5 230/460 ODP 213T 1750 0 PREM 065818300

7.5 230/460 TEFC 213T 1750 0 PREM 065820300

7.5 575 ODP 213T 1750 0 PREM 205168800

7.5 575 TEFC 213T 1750 0 PREM 046514700

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 54

Dual Direct Drive Fan Motors

Direct Drive Fan Motors, Continued

Motor Voltage Enclosure Frame RPM RPM Efﬁciency Part HP Type High Low No.

10.0 200 ODP 215T 1750 0 PREM 065817400

10.0 200 TEFC 215T 1750 0 PREM 065819700

10.0 230/460 ODP 215T 1750 0 PREM 065818400

10.0 230/460 TEFC 215T 1750 0 PREM 065820400

10.0 575 ODP 215T 1750 0 PREM 205168600

10.0 575 TEFC 215T 1750 0 PREM 065821400

15.0 200 ODP 254T 1750 0 PREM 065817500

15.0 200 TEFC 254T 1750 0 PREM 065819800

15.0 230/460 ODP 254T 1750 0 PREM 065818500

15.0 230/460 TEFC 254T 1750 0 PREM 065820500

15.0 575 ODP 254T 1750 0 PREM 205166600

15.0 575 TEFC 254T 1750 0 PREM 065821500

20.0 200 ODP 256T 1750 0 PREM 065817600

20.0 200 TEFC 256T 1750 0 PREM 065819900

20.0 230/460 ODP 256T 1750 0 PREM 065818600

20.0 230/460 TEFC 256T 1750 0 PREM 065820600

20.0 575 ODP 256T 1750 0 PREM 205166800

20.0 575 TEFC 256T 1750 0 PREM 300048205

25.0 200 ODP 284T 1750 0 PREM 065817700

25.0 200 TEFC 284T 1750 0 PREM 065820000

25.0 230/460 ODP 284T 1750 0 PREM 065818700

25.0 230/460 TEFC 284T 1750 0 PREM 065820700

25.0 575 ODP 284T 1750 0 PREM 205166900

25.0 575 TEFC 284T 1750 0 PREM 300048206

30.0 200 ODP 286T 1750 0 PREM 205066500

30.0 200 TEFC 286T 1750 0 PREM 205066800

30.0 230/460 ODP 286T 1750 0 PREM 205066600

30.0 230/460 TEFC 286T 1750 0 PREM 205066900

30.0 575 ODP 286T 1750 0 PREM 098865300

30.0 575 TEFC 286T 1750 0 PREM 300048207

40.0 200 ODP 324T 1750 0 PREM 205067100

40.0 200 TEFC 324T 1750 0 PREM 205070700

40.0 230/460 ODP 324T 1750 0 PREM 205067200

40.0 230/460 TEFC 324T 1750 0 PREM 205069200

40.0 575 ODP 324T 1750 0 PREM 205067300

40.0 575 TEFC 324T 1750 0 PREM 300048208

50.0 200 ODP 326T 1750 0 PREM 205067500

50.0 200 TEFC 326T 1750 0 PREM 205091600

50.0 230/460 ODP 326T 1750 0 PREM 205067600

50.0 230/460 TEFC 326T 1750 0 PREM 205069400

50.0 575 ODP 326T 1750 0 PREM 205091800

50.0 575 TEFC 326T 1750 0 PREM 300048209

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 55

Dual Direct Drive Fan Motors

Direct Drive Fan Motors, Continued

Motor Voltage Enclosure Frame RPM RPM Efﬁciency Part HP Type High Low No.

1.5 230/460 ODP 143T 3500 0 PREM 046511190

1.5 230/460 TEFC 143T 3500 0 PREM 046513190

1.5 575 TEFC 143T 3500 0 PREM 300049514

2.0 230/460 ODP 143T 3500 0 PREM 205163590

2.0 230/460 TEFC 145T 3500 0 PREM 073321090

2.0 575 TEFC 145T 3500 0 PREM 300049516

3.0 200 TEFC 182T 3500 0 PREM 065819490

3.0 230/460 ODP 145T 3500 0 PREM 065818190

3.0 230/460 TEFC 182T 3500 0 PREM 065820190

5.0 200 TEFC 184T 3500 0 PREM 065819590

5.0 230/460 ODP 182T 3500 0 PREM 065818290

5.0 230/460 TEFC 184T 3500 0 PREM 300049520

5.0 575 TEFC 184T 3500 0 PREM 300049519

7.5 200 TEFC 213T 3500 0 PREM 065819690

7.5 230/460 ODP 184T 3500 0 PREM 065818390

7.5 230/460 TEFC 213T 3500 0 PREM 065820390

7.5 575 TEFC 213T 3500 0 PREM 300049521

10.0 200 TEFC 213T 3500 0 PREM 065819790

10.0 230/460 ODP 213T 3500 0 PREM 065818490

10.0 230/460 TEFC 215T 3500 0 PREM 065820490

10.0 575 TEFC 215T 3500 0 PREM 300049267

15.0 200 TEFC 254T 3500 0 PREM 065819890

15.0 230/460 ODP 215T 3500 0 PREM 065818590

15.0 230/460 TEFC 254T 3500 0 PREM 065820590

15.0 575 TEFC 254T 3500 0 PREM 300049530

20.0 200 ODP 254T 3500 0 PREM 300049522

20.0 200 TEFC 256T 3500 0 PREM 065819990

20.0 230/460 ODP 254T 3500 0 PREM 065818690

20.0 230/460 TEFC 256T 3500 0 PREM 065820690

20.0 575 TEFC 256T 3500 0 PREM 300049523

25.0 200 ODP 256T 3500 0 PREM 300049524

25.0 230/460 ODP 256T 3500 0 PREM 065818790

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 56

Starter Panel Components & Heat Wheels

Notes

Starter Panel Component Notes

Due to the wide range of options available for Vision/Skyline units, it is not possible to list Starter Panel Components such as Contactors, Disconnect Switches, Transformers, Fuses, Switches, Power Blocks etc.

To identify Starter Panel Components, contact Daikin McQuay Parts with model and serial number information, as well as any available vendor information (brand, part number, serial number, etc.).

Note that it is possible that a vendor OTHER than Daikin McQuay supplied a starter package. If this is the case, contact Daikin McQuay Parts to see if suitable replacements can be supplied.

The above diagram represents one possible Start Panel conﬁguration and is to be used for reference only. Actual Components and Component conﬁguration depend upon options selected.

Heat Wheel Notes

Due to the wide range of options available for Vision/Skyline units, it is not possible to list Heat Wheels and

Heat Wheel Components.

To identify Heat Wheels and Heat Wheel components, it is neccessary to obtain brand, model, and serial number information off the Heat Wheel ITSELF in addition to unit model and serial number. It is also necessary to obtain the Heat Wheel Motor’s voltage. Motor voltage is required since unit and motor voltage may NOT be the same. Once the required information has been obtained, contact Daikin McQuay Parts for identiﬁcation.

Note that it is possible that a vendor OTHER than Daikin McQuay supplied a Heat Wheel. If this is the case, contact Daikin McQuay Parts to see if suitable replacements can be supplied.

The above diagram represents one possible Heat Wheel conﬁguration and is to be used for reference only. Actual Components and Component conﬁguration depend upon options selected.

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 57

Inverters/VFDs

Notes and Inverters

Notes

There are three brands of Inverters/VFDs that are normally factory supplied. They are: ABB model ACH550,

Danfoss series FC102, and Daikin McQuay models MD2 & MD3.

When selecting an Inverter, obtain any available vendor information off the existing drive including brand, unit voltage and Motor horsepower. If this information is not available, contact Daikin McQuay Parts with model and serial number information so that the correct Inverter can be identiﬁed.

Inverters

ABB Model 550

Motor Horsepower 1

2

1

1.5 1 2

1

3 5 7.5 10 15 20 25

Part Number

460V

208/230V

575V

460V

208/230V

575V

460V

208/230V

575V

460V

208/230V

575V

460V

208/230V

575V

460V

208/230V

575V

460V

208/230V

575V

460V

208/230V

575V

460V

208/230V

575V

460V

208/230V

112046014 1 112046001 1 112046026 1 112046015 1 112046002 1 112046027 1 112046016 1 112046003 1 112046028 1 112046017 1 112046004 1 112046029 1 112046018 1 112046005 1 112046030 1 112046019 1 112046006 1 112046031 1 112046020 1 112046007 1 112046032 1

Motor Horsepower

30 40 50 60 75

575V

Part Number

460V

208/230V

575V

460V

208/230V

575V

460V

208/230V

575V

460V

208/230V

575V

460V

208/230V

575V

112046021 1 112046008 1 112046033 1 112046022 1 112046009 1 112046034 1 112046023 1 112046010 1

1

Contact Daikin McQuay Parts with model and

serial number information so that the correct Inverter can be identiﬁed.

2

The Keypad Display for Model 550 Inverters is

p/n 300040924.

112046035 1 112046024 1 112046011 1 112046036 1 112046025 1 112046012 1

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 58

Inverters/VFDs

Inverters

Danfoss FC102

Motor Horsepower 1 1.5 2 3 5 7.5 10 15 20 25

Part Number

460V

208/230V

575V

460V

208/230V

575V

460V

208/230V

575V

460V

208/230V

575V

460V

208/230V

575V

460V

208/230V

575V

460V

208/230V

575V

460V

208/230V

575V

460V

208/230V

575V

460V

208/230V

205858810 1 1 205858820 1 1 205858840 1 1 205858854 1 205858855 1 205858841 1 205858811 1 205858821 1 205858842 1 205858812 1 205858822 1 205858843 1 205858813 1 205858823 1 205858844 1 205858814 1 205858824 1 205858845 1 205858815 1 205858825 1 205858846 1 205858816 1 205858826 1 205858847 1 205858817 1 205858827 1 205858848 1

575V

Motor Horsepower 30 40 50 60 75

Part Number

460V

208/230V

575V

460V

208/230V

575V

460V

208/230V

575V

460V

208/230V

575V

460V

208/230V

575V

205858818 1 205858828 1 205858849 1 205858819 1 205858829 1 205858850 1 205858830 1 205858851 1 205858831 1 205858852 1

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 59

Inverters/VFDs

Inverters, Continued

McQuay MD2, MD3, MD6

Motor Horsepower 1 1.5 2 3 5 7.5 10 15 20 25

Part Number

460V

208/230V

575V

460V

208/230V

575V

460V

208/230V

575V

460V

208/230V

575V

460V

208/230V

575V

460V

208/230V

575V

460V

208/230V

575V

460V

208/230V

575V

460V

208/230V

575V

460V

208/230V

193475806 1 1 1 1 193475822 1 1 1 1 193456301 2 1 193456302 2 1 193475807 1 1 193475823 1 1 193456303 2 1

1

193475809

1 193475825 1 1 193456304 2 1 193475810 1 1 193475826 1 1 193456305 2 1 193475811 1 1 193475827 1 1 193456306 2 1 193475812 1 1 193475828 1 1 193456307 2 1 193475813 1 1 193475829 1 1 193456308 2 1 193475814 1 1 193475830 1 1 349956647 3 1

1

Early production units shipped with ATV21 VFDs. All ATV21 drives have been replaced with ATV212 drives as listed above. These

new drives are drop in replacements with the exception of the Remote Keypad and Communication Cards. The ATV21 Remote Keypad is p/n 349958801. The ATV21 Lonworks communication card is p/n 349927103. The ATV212 Remote Keypad is p/n 349958805 and the Remote Keypad Mounting kit is p/n 349958803. The ATV212 Lonworks communication card is p/n 193482601. All other ATV212 communication cards are integral to the VFD and are not available separately.

2

MD3 Remote Keypad p/n is 349958802.

3

MD6 Remote Keypad p/n is 349958805 plus Mount p/n 349958803.

575V

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 60

Inverters/VFDs

Inverters, Continued

Code 15= S McQuay MD2, MD3, MD6

Motor Horsepower 30 40 50 60 75

Part Number

460V

208/230V

575V

460V

208/230V

575V

460V

208/230V

575V

460V

208/230V

575V

460V

208/230V

193475815 1 1 193475831 1 1 349956648 3 1 193475816 1 1 193475832 1 1 349956649 3 1 349956617 3 1 193475883 1 1 349956650 3 1 349956618 3 1 349956684 2 1 349956651 3 1 349956618 4 1 349956685 2 1 349956652 3 1

1

Early production units shipped with ATV21 VFDs. All ATV21 drives have

been replaced with ATV212 drives as listed above. These new drives are drop in replacements with the exception of the Remote Keypad and Communication Cards. The ATV21 Remote Keypad is p/n 349958801. The ATV21 Lonworks communication card is p/n 349927103. The ATV212 Remote Keypad is p/n 349958805 and the Remote Keypad Mounting kit is p/n 349958803. The ATV212 Lonworks communication card is p/n 193482601. All other ATV212 communication cards are integral to the VFD and are not available separately.

2

MD3 Remote Keypad p/n is 349958802.

3

MD6 Remote Keypad p/n is 349958805 plus Mount p/n 349958803.

575V

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 61

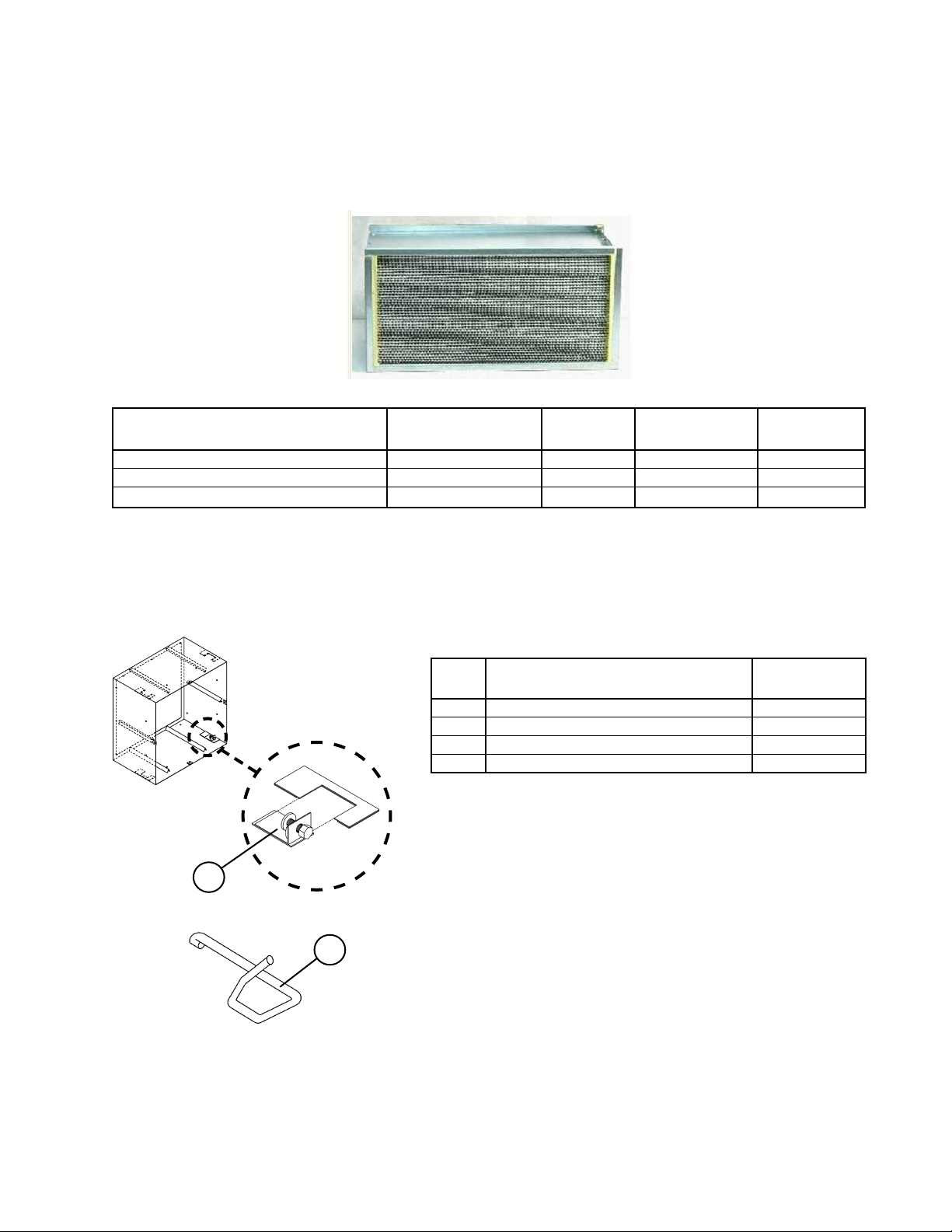

Filter Section

Notes, Minihelic ® Differential Pressure Gauges, & Filter Section Gaskets

Notes

This section lists the most commonly used factory supplied Filters and Filter Section Components used in

Vision/Skyline units.

Note that this listing is NOT complete as it is possible that special Filters may have been installed in the unit, or it is possible that NO Filters were factory supplied. If unsure as to what ﬁlters were installed, contact Daikin McQuay Parts for more information.

Minihelic

1

(Gasket Adheres to Filter Section Door)

®

Differential Pressure Gauges

Ref Part Part No. Description Number

1 Differential Press. Gauge, 0-1” WC 060017301 Differential Press. Gauge, 0-2” WC 060017302 Differential Press. Gauge, 0-3” WC 060017303 Differential Press. Gauge, 0-5” WC 060017305

Filter Section Gaskets

145

(Gasket Adheres to Filter Section Door)

Ref Part Part

No. Description Number

145 Gasket, Filter Section (20’ roll) P091677801

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 62

Filter Section

Pre-Filters

Description 1 Filter Type Efﬁciency Dimensions Part

Rating No.

Pre-Filter, 2” Depth:

Filter, Air, Disposable Fiberglass Merv 5 12x24x2 059445001

Filter, Air, Disposable Fiberglass Merv 6 12x24x2 031298005

Filter, Air, Disposable Perfect Pleat Merv 7 12x24x2 111046103

Filter, Air, Disposable Perfect Pleat Merv 8 12x24x2 111046503

Filter, Air, Disposable Perfect Pleat Merv 5 20x20x2 059445002

Filter, Air, Disposable Perfect Pleat Merv 7 20x20x2 111046104

Filter, Air, Disposable Fiberglass Merv 5 20x24x2 059445003

Filter, Air, Disposable Perfect Pleat Merv 6 20x24x2 300046388

Filter, Air, Disposable Fiberglass Merv 7 20x24x2 111046102

Filter, Air, Disposable Fiberglass Merv 5 24x24x2 059445005

Filter, Air, Disposable Fiberglass Merv 6 24x24x2 111046101

Pre-Filter, 2” Depth w/ Intersept:

Filter, Air, Disposable PerfectPleat Ultra Merv 8 12x24x2 111046503

Filter, Air, Disposable PerfectPleat Ultra Merv 8 20x20x2 111046504

Filter, Air, Disposable PerfectPleat Ultra Merv 8 20x24x2 111046502

Filter, Air, Disposable PerfectPleat Ultra Merv 6 24x24x2 111046501

Pre-Filter, 4” Depth:

Filter, Air, Disposable Perfect Pleat Merv 7 20x20x4 072402303

Filter, Air, Disposable Perfect Pleat 30% 20x24x4 059445302

Filter, Air, Disposable Perfect Pleat MERV 7 20x24x4 300048134

Filter, Air, Disposable Perfect Pleat 30% 20x24x4 059445303

Filter, Air, Disposable Perfect Pleat 30% 24x24x4 059445305

Filter, Air, Disposable Perfect Pleat Merv 7 24x24x4 300048134

Filter, Air, Disposable Perfect Pleat HC Merv 7 12x24x4 059445301

Filter, Air, Disposable Perfect Pleat HC Merv 7 20x20x4 059445302

Filter, Air, Disposable Perfect Pleat HC MERV 7 20x24x4 059445303

Filter, Air, Disposable Perfect Pleat HC MERV 7 24x24x4 059445305

Pre-Filter, 4” Depth w/ Intersept:

Filter, Air, Disposable PerfectPleat Ultra Merv 8 12x24x4 111046603

Filter, Air, Disposable PerfectPleat Ultra Merv 8 20x20x4 111046604

Filter, Air, Disposable PerfectPleat Ultra MERV 8 20x24x4 111046602

Filter, Air, Disposable PerfectPleat Ultra MERV 8 24x24x4 111046601

1

Filters are normally orderable by case quantity ONLY.

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 63

Filter Section

Final Filters

Description 1 Filter Type Efﬁciency Dimensions Part

Rating No.

Final Filter, 4.25” Depth:

Filter, Air, Disposable Varicel II 65%, 12X24X4.25 111042303

Filter, Air, Disposable Varicel II 85%, 12X24X4.25 111042203

Filter, Air, Disposable Varicel II 95%, 12X24X4.25 111042103

Filter, Air, Disposable Varicel II 65%, 20X20X4.25 111042304

Filter, Air, Disposable Varicel II 85%, 20X20X4.25 111042204

Filter, Air, Disposable Varicel II 95%, 20X20X4.25 111042104

Filter, Air, Disposable Varicel II 65%, 20X24X4.25 111042302

Filter, Air, Disposable Varicel II 85%, 20X24X4.25 111042202

Filter, Air, Disposable Varicel II 95%, 20X24X4.25 111042102

Filter, Air, Disposable Varicel II 65%, 24X24X4.25 111042301

Filter, Air, Disposable Varicel II 85%, 24X24X4.25 111042201

Filter, Air, Disposable Varicel II 95%, 24X24X4.25 111042101

Final Filter, 4.25” Depth w/ Intersept:

Filter, Air, Disposable Varicel II MH 65%, 12X24X4.25 111042003

Filter, Air, Disposable Varicel II MH 95%, 12X24X4.25 111041903

Filter, Air, Disposable Varicel II MH 65%, 20X20X4.25 111042004

Filter, Air, Disposable Varicel II MH 95%, 20X24X4.25 111041902

Filter, Air, Disposable Varicel II MH 65%, 20X24X4.25 111042002

Filter, Air, Disposable Varicel II MH 65%, 24X24X4.25 111042001

Filter, Air, Disposable Varicel II MH 95%, 24X24X4.25 111041901

Final Filter, 12” Depth:

Filter, Air, Disposable Varicel SH 65% 12X24X12 065810703

Filter, Air, Disposable Varicel SH 85% 12X24X12 066539001

Filter, Air, Disposable Varicel SH 95% 12X24X12 065810701

Filter, Air, Disposable Varicel SH 65% 20X20X12 059462101

Filter, Air, Disposable Varicel SH 85% 20X20X12 059460001

Filter, Air, Disposable Varicel SH 95% 20X20X12 065810705

Filter, Air, Disposable Varicel SH 65% 20X24X12 065811003

Filter, Air, Disposable Varicel SH 85% 20X24X12 066539102

Filter, Air, Disposable Varicel SH 95% 20X24X12 067003603

Filter, Air, Disposable Varicel SH 65% 24X24X12 065810704

Filter, Air, Disposable Varicel SH 85% 24X24X12 066539101

Filter, Air, Disposable Varicel SH 95% 24X24X12 065810702

1

Filters are normally orderable by case quantity ONLY.

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 64

Filter Section

Final Filters, Continued

Description 1 Filter Type Efﬁciency Dimensions Part

Rating No.

Final Filter, 12” Depth w/ Intersept:

Filter, Air, Disposable Varicel SH 95% 12X24X12 059446001

Filter, Air, Disposable Varicel SH 95% 20X20X12 059446002

Filter, Air, Disposable Varicel SH 95% 20X24X12 059446003

Filter, Air, Disposable Varicel SH 95% 24X24X12 059446005

Final Filter, 12” Depth (V-Type):

Filter, Air, Disposable Varicel-V 70% 12X24X12 059446101

Filter, Air, Disposable Varicel-V 80% 12X24X12 059446201

Filter, Air, Disposable Varicel-V 95% 12X24X12 059446301

Filter, Air, Disposable Varicel-V 70% 20X24X12 059446103

Filter, Air, Disposable Varicel-V 80% 20X24X12 059446203 Filter, Air, Disposable Varicel-V 95% 20X24X12 059446303 Filter, Air, Disposable Varicel-V 70% 24X24X12 059446105 Filter, Air, Disposable Varicel-V 80% 24X24X12 059446205 Filter, Air, Disposable Varicel-V 95% 24X24X12 059446305 Final Filter, 12” Depth (V-Type) w/ Intersept: Filter, Air, Disposable Varicel-V 95% 12X24X12 059462501 Filter, Air, Disposable Varicel-V 95% 20X24X12 059462503 Filter, Air, Disposable Varicel-V 95% 24X24X12 059462505

1

Filters are normally orderable by case quantity ONLY.

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 65

Filter Section

Bag Filters

Description 1 Filter Type No. of Efﬁciency Dimensions Part

Pockets Rating No.

Bag Filter, 12” Depth:

Filter, Air, Disposable Dri-Pak2000 3 Merv 8 12x24x12 059465301

Filter, Air, Disposable Dri-Pak2000 5 Merv 8 20x20x12 059465302

Filter, Air, Disposable Dri-Pak2000 5 Merv 8 20x24x12 059465303

Filter, Air, Disposable Dri-Pak2000 6 Merv 8 24x20x12 059465304

Filter, Air, Disposable Dri-Pak2000 6 Merv 8 24x24x12 059465305

Bag Filter, 12” Depth w/ Intersept:

Filter, Air, Disposable Dri-Pak2000 3 Merv 8 12x24x12 059465401

Filter, Air, Disposable Dri-Pak2000 5 Merv 8 20x20x12 059465402

Filter, Air, Disposable Dri-Pak2000 5 Merv 8 20x24x12 059465403

Filter, Air, Disposable Dri-Pak2000 6 Merv 8 24x20x12 059465404

Filter, Air, Disposable Dri-Pak2000 6 Merv 8 24x24x12 059465405

Bag Filter, 15” Depth:

Filter, Air, Disposable Dri-Pak2000 3 Merv 8 12x24x15 059465101

Filter, Air, Disposable Dri-Pak2000 5 Merv 8 20x20x15 059465102

Filter, Air, Disposable Dri-Pak2000 5 Merv 8 20x24x15 059465103

Filter, Air, Disposable Dri-Pak2000 3 Merv 8 24x12x15 059465101

Filter, Air, Disposable Dri-Pak2000 6 Merv 8 24x20x15 059465104

Filter, Air, Disposable Dri-Pak2000 6 Merv 8 24x24x15 059465105

Bag Filter, 15” Depth w/ Intersept:

Filter, Air, Disposable Dri-Pak2000 3 Merv 8 12x24x15 059465201

Filter, Air, Disposable Dri-Pak2000 5 Merv 8 20x20x15 059465202

Filter, Air, Disposable Dri-Pak2000 5 Merv 8 20x24x15 059465203

Filter, Air, Disposable Dri-Pak2000 6 Merv 8 24x20x15 059465204

Filter, Air, Disposable Dri-Pak2000 6 Merv 8 24x24x15 059465205

Bag Filter, 19” Depth:

Filter, Air, Disposable Dri-Pak2000 3 Merv 8 12x24x19 059464901

Filter, Air, Disposable Dri-Pak2000 5 Merv 8 20x20x19 059464902

Filter, Air, Disposable Dri-Pak2000 5 Merv 8 20x24x19 059464903

Filter, Air, Disposable Dri-Pak2000 6 Merv 8 24x20x19 059464904

Filter, Air, Disposable Dri-Pak2000 6 Merv 8 24x24x19 059464905

Bag Filter, 19” Depth w/ Intersept:

Filter, Air, Disposable Dri-Pak2000 3 Merv 8 12x24x19 059465001

Filter, Air, Disposable Dri-Pak2000 5 Merv 8 20x20x19 059465002

Filter, Air, Disposable Dri-Pak2000 5 Merv 8 20x24x19 059465003

Filter, Air, Disposable Dri-Pak2000 6 Merv 8 24x20x19 059465004

Filter, Air, Disposable Dri-Pak2000 6 Merv 8 24x24x19 059465005

1

Filters are normally orderable by case quantity ONLY.

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 66

Filter Section

Bag Filters, Continued

Description 1 Filter Type No. of Efﬁciency Dimensions Part

Pockets Rating No.

Bag Filter, 22” Depth:

Filter, Air, Disposable Dri-Pak2000 5 Merv 11 12x24x22 059446501

Filter, Air, Disposable Dri-Pak2000 5 Merv 14 12x24x22 059446601

Filter, Air, Disposable Dri-Pak2000 5 Merv 15 12x24x22 029870203

Filter, Air, Disposable Dri-Pak2000 6 Merv 11 20x20x22 059464801

Filter, Air, Disposable Dri-Pak2000 6 Merv 14 20x20x22 059464701

Filter, Air, Disposable Dri-Pak2000 6 Merv 15 20x20x22 059464601

Filter, Air, Disposable Dri-Pak2000 6 Merv 11 20x24x22 059446503

Filter, Air, Disposable Dri-Pak2000 6 Merv 14 20x24x22 059446603

Filter, Air, Disposable Dri-Pak2000 6 Merv 15 20x24x22 059446703

Filter, Air, Disposable Dri-Pak2000 6 Merv 11 24x20x22 059446504

Filter, Air, Disposable Dri-Pak2000 6 Merv 14 24x20x22 059446604

Filter, Air, Disposable Dri-Pak2000 6 Merv 15 24x20x22 059446704

Filter, Air, Disposable Dri-Pak2000 10 Merv 11 24x24x22 059446505

Filter, Air, Disposable Dri-Pak2000 10 Merv 14 24x24x22 059446605

Filter, Air, Disposable Dri-Pak2000 10 Merv 15 24x24x22 029870204

Bag Filter, 30” Depth:

Filter, Air, Disposable Dri-Pak2000 4 Merv 11 12x24x30 059446901

Filter, Air, Disposable Dri-Pak2000 4 Merv 14 12x24x30 059447001

Filter, Air, Disposable Dri-Pak2000 4 Merv 15 12x24x30 059447101

Filter, Air, Disposable Dri-Pak2000 6 Merv 11 20x20x30 059464401

Filter, Air, Disposable Dri-Pak2000 6 Merv 14 20x20x30 059464001

Filter, Air, Disposable Dri-Pak2000 6 Merv 15 20x20x30 059463601

Filter, Air, Disposable Dri-Pak2000 5 Merv 11 20x24x30 059464201

Filter, Air, Disposable Dri-Pak2000 5 Merv 14 20x24x30 059463801

Filter, Air, Disposable Dri-Pak2000 5 Merv 15 20x24x30 059463401

Filter, Air, Disposable Dri-Pak2000 6 Merv 11 24x20x30 059446904

Filter, Air, Disposable Dri-Pak2000 6 Merv 14 24x20x30 059447004

Filter, Air, Disposable Dri-Pak2000 6 Merv 15 24x20x30 059447104

Filter, Air, Disposable Dri-Pak2000 8 Merv 11 24x24x30 059446905

Filter, Air, Disposable Dri-Pak2000 8 Merv 14 24x24x30 059447005

Filter, Air, Disposable Dri-Pak2000 8 Merv 15 24x24x30 059463201

Bag Filter, 30” Depth w/ Intersept:

Filter, Air, Disposable Dri-Pak2000 4 Merv 11 12x24x30 059447301

Filter, Air, Disposable Dri-Pak2000 4 Merv 14 12x24x30 059447401

Filter, Air, Disposable Dri-Pak2000 4 Merv 15 12x24x30 059447401

Filter, Air, Disposable Dri-Pak2000 6 Merv 11 20x20x30 059464501

Filter, Air, Disposable Dri-Pak2000 6 Merv 14 20x20x30 059464101

Filter, Air, Disposable Dri-Pak2000 6 Merv 15 20x20x30 059463701

Filter, Air, Disposable Dri-Pak2000 5 Merv 11 20x24x30 059464301

Filter, Air, Disposable Dri-Pak2000 5 Merv 14 20x24x30 059463901

Filter, Air, Disposable Dri-Pak2000 5 Merv 15 20x24x30 059463501

Filter, Air, Disposable Dri-Pak2000 6 Merv 11 24x20x30 059447304

Filter, Air, Disposable Dri-Pak2000 6 Merv 14 24x20x30 059447404

Filter, Air, Disposable Dri-Pak2000 6 Merv 15 24x20x30 059447504

Filter, Air, Disposable Dri-Pak2000 8 Merv 11 24x24x30 059447305

Filter, Air, Disposable Dri-Pak2000 8 Merv 14 24x24x30 059447405

Filter, Air, Disposable Dri-Pak2000 8 Merv 15 24x24x30 059463301

1

Filters are normally orderable by case quantity ONLY.

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 67

Filter Section

Bag Filters, Continued

Description 1 Filter Type No. of Efﬁciency Dimensions Part

Pockets Rating No.

Bag Filter, 36” Depth:

Filter, Air, Disposable Dri-Pak2000 3 Merv 11 12x24x36 059447701

Filter, Air, Disposable Dri-Pak2000 3 Merv 14 12x24x36 059447801

Filter, Air, Disposable Dri-Pak2000 5 Merv 11 20x20x36 059463001

Filter, Air, Disposable Dri-Pak2000 5 Merv 14 20x20x36 059462801

Filter, Air, Disposable Dri-Pak2000 5 Merv 11 20x24x36 059447703

Filter, Air, Disposable Dri-Pak2000 5 Merv 14 20x24x36 059447803

Filter, Air, Disposable Dri-Pak2000 6 Merv 11 24x20x36 059447704

Filter, Air, Disposable Dri-Pak2000 6 Merv 14 24x20x36 059447804

Filter, Air, Disposable Dri-Pak2000 8 Merv 11 24x24x36 059447705

Filter, Air, Disposable Dri-Pak2000 8 Merv 14 24x24x36 059447805

Bag Filter, 36” Depth w/ Intersept:

Filter, Air, Disposable Dri-Pak2000 3 Merv 11 12x24x36 059448201

Filter, Air, Disposable Dri-Pak2000 3 Merv 14 12x24x36 059448301

Filter, Air, Disposable Dri-Pak2000 5 Merv 11 20x20x36 059463101

Filter, Air, Disposable Dri-Pak2000 5 Merv 14 20x20x36 059462901

Filter, Air, Disposable Dri-Pak2000 5 Merv 11 20x24x36 059448203

Filter, Air, Disposable Dri-Pak2000 5 Merv 14 20x24x36 059448303

Filter, Air, Disposable Dri-Pak2000 6 Merv 11 24x20x36 059448204

Filter, Air, Disposable Dri-Pak2000 6 Merv 14 24x20x36 059448304

Filter, Air, Disposable Dri-Pak2000 8 Merv 11 24x24x36 059448205

Filter, Air, Disposable Dri-Pak2000 8 Merv 14 24x24x36 059448305

1

Filters are normally orderable by case quantity ONLY.

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 68

Filter Section

HEPA Filters & HEPA Filter Components

HEPA Filters

Description 1 Filter Type Efﬁciency Dimensions Part Rating No.

Filter, HEPA Astrocel I 99.97% 12 x 24 x 12 2054014301 Filter, HEPA Astrocel I 99.97% 12 x 24 x 12 2054014301 Filter, HEPA Astrocel I 99.97% 12 x 24 x 12 2054014301

1

Filters are normally orderable by case quantity ONLY.

HEPA Filter Components

Ref Part Part No. Description Number

1 Latch, HEPA Filter Frame 300040967 2 Clip, HEPA Pre-Filter Frame 111048304 NS Screw, Pre-Filter Frame Clip 038990705 NS Washer, Pre-Filter Frame Clip 040500305

NS= Not shown on diagram.

1

2

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 / Page 69

Appendix A

Notes

The information on the following pages is for reference only. Due to the large number of Fan Drives used, it is not possible to code or list every combination of parts.

When a replacement Fan part is needed (Fan Wheel, Bearing, Inlet Funnel, etc.), contact Daikin McQuay Parts with model and serial number information so that the needed part(s) can be identiﬁed. Drive components (Fan Sheave, Motor Sheave, V-belt(s), and Sheave Bushing(s) [if required]) are NOT listed as they are unique to the unit. If a drive component is required you may use the number from the part and cross reference it with the Drive Components Cross Reference, form number 571006, or contact Daikin McQuay Parts with model and serial number information for identiﬁcation.

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 /

Appendix A Page 1

FC & AF Fans, and Plenum Fan Components Before 4/10

FC, AF Fan Housings

Fan Assemblies must be carefully inspected to determine which fan assembly is used on the unit. Some Fan Housing Assy’s are unpainted and include AF & FC Fan sizes 9 thru 24. Some Fan Housing Assy’s are painted and include AF & FC Fan sizes 20 thru 40, Plenum Fans, Twin Fans & Inline Duct Fans. The unpainted and painted fan components are NOT interchangeable. If unsure as to what fan was put into a particular unit, contact Daikin McQuay

Parts with model and serial number information to ensure that the needed part(s) are correctly identiﬁed.

Fan Housing (Inspect fan Housing to determine if painted or unpainted.): AF12 Fan Housing (unpainted):

Top Horiz. Disch., Class 1 & 2 .......................................................... 057831901

Bottom Horiz. Disch., Class 1 & 2 .................................................... 057868201

Up Blast, Class 1 & 2 ........................................................................ 057868101

Down Blast, Class 1 & 2 ................................................................... 057868301

AF15 Fan Housing (unpainted):

Top Horiz. Disch., Class 1 & 2 .......................................................... 057832001

Bottom Horiz. Disch., Class 1 & 2 .................................................... 057868501

Up Blast, Class 1 & 2 ........................................................................ 057868401

Down Blast, Class 1 & 2 ................................................................... 057868601

AF16 Fan Housing (unpainted):

Top Horiz. Disch., Class 1 & 2 .......................................................... 057832101

Bottom Horiz. Disch., Class 1 & 2 .................................................... 057868801

Up Blast, Class 1 & 2 ........................................................................ 057868701

Down Blast, Class 1 & 2 ................................................................... 057868901

AF18 Fan Housing (unpainted) :

Top Horiz. Disch., Class 1 & 2 .......................................................... 057832201

Bottom Horiz. Disch., Class 1 & 2 .................................................... 057869101

Up Blast, Class 1 & 2 ........................................................................ 057869001

Down Blast, Class 1 & 2 ................................................................... 057869201

AF20 Fan Housing (unpainted):

Top Horiz. Disch., Class 1 & 2 .......................................................... 057832301

Bottom Horiz. Disch., Class 1 & 2 .................................................... 057869401

Up Blast, Class 1 & 2 ........................................................................ 057869301

Down Blast, Class 1 & 2 ................................................................... 057869501

AF22 Fan Housing (unpainted):

Top Horiz. Disch., Class 1 & 2 .......................................................... 205005201

Bottom Horiz. Disch., Class 1 & 2 .................................................... 205005401

Up Blast, Class 1 & 2 ........................................................................ 205005301

Down Blast, Class 1 & 2 ................................................................... 205005501

FC20 Fan Housing (unpainted):

Top Horiz. Disch., Class 1 & 2 .......................................................... 057853101

Bottom Horiz. Disch., Class 1 & 2 .................................................... 057870001

Up Blast, Class 1 & 2 ........................................................................ 057869901

Down Blast, Class 1 & 2 ................................................................... 057870101

FC22 Fan Housing (unpainted):

Top Horiz. Disch., Class 1 & 2 .......................................................... 205005601

Bottom Horiz. Disch., Class 1 & 2 .................................................... 205005801

Up Blast, Class 1 & 2 ........................................................................ 205005701

Down Blast, Class 1 & 2 ................................................................... 205005901

FC24 Fan Housing (unpainted):

Top Horiz. Disch., Class 1 & 2 .......................................................... 205006001

Bottom Horiz. Disch., Class 1 & 2 .................................................... 205006201

Up Blast, Class 1 & 2 ........................................................................ 205006101

Down Blast, Class 1 & 2 ................................................................... 205006301

Description Part Number

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 /

Appendix A Page 2

FC & AF Fans, and Plenum Fan Components Before 4/10

FC Fan Housing/Wheel Assemblies, & Fan Wheels

Description Part Number

Fan Housing/Wheel Assy. (Inspect fan Housing to determine if painted or unpainted.):

FC9X4 , Class 1 & 2 (unpainted) ............................................. 059467101

FC9X7 , Class 1 & 2 (unpainted) ............................................. 059467201

FC9X9 , Class 1 (unpainted) ............................................. 059467301

FC9X9 , Class 2 (unpainted) ............................................. 059467401

FC10 , Class 1 (unpainted) ............................................. 059467501

FC10 , Class 2 (unpainted) ............................................. 059467601

FC12 , Class 1 (unpainted) ............................................. 059467701

FC12 , Class 2 (unpainted) ............................................. 059467801

FC15 , Class 1 (unpainted) ............................................. 059467901

FC15 , Class 2 (unpainted) ............................................. 059468001

FC18 , Class 1 (unpainted) ............................................. 059468101

FC18 , Class 2 (unpainted) ............................................. 059468201

Description Part Number

AF12 , Class 1 (for unpainted Fan Assy) / 13.22 Wheel Dia. ...... 023392412

AF12 , Class 2 (for unpainted Fan Assy) / 13.22 Wheel Dia. ...... 023392424

AF15 , Class 1 (for unpainted Fan Assy) / 14.56 Wheel Dia. ...... 023392413

AF15 , Class 2 (for unpainted Fan Assy) / 14.56 Wheel Dia. ..... 023392403

AF16 , Class 1 (for unpainted Fan Assy) / 16.19 Wheel Dia. ...... 023392414

AF18 , Class 1 (for unpainted Fan Assy) / 19.69 Wheel Dia. ..... 023392415

AF18 , Class 2 (for unpainted Fan Assy) / 19.69 Wheel Dia. ..... 023392426

AF20 , Class 1 (for unpainted Fan Assy) / 21.56 Wheel Dia. ..... 023392422

AF20 , Class 1 (for painted Fan Assy) / 20.00 Wheel Dia. ......... 093413513

AF20 , Class 2 (for unpainted Fan Assy) / 21.56 Wheel Dia. ..... 023392429

AF20 , Class 2 (for painted Fan Assy) / 20.00 Wheel Dia. ......... 093413253

AF22 , Class 1 (for unpainted Fan Assy) / 24.00 Wheel Dia. ...... 023392416

AF22 , Class 1 (for painted Fan Assy) / 22.25 Wheel Dia. .......... 093413359

AF22 , Class 2 (for unpainted Fan Assy) / 24.00 Wheel Dia. ...... 023392416

AF22 , Class 2 (for painted Fan Assy) / 22.25 Wheel Dia. .......... 093413730

AF24 , Class 1 (for painted Fan Assy) / 24.50 Wheel Dia. .......... 093413229

AF24 , Class 2 (for painted Fan Assy) / 24.50 Wheel Dia. .......... 093413356

Fan Wheels (Inspect fan Housing to determine if painted or unpainted.):

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 /

Appendix A Page 3

FC & AF Fans, and Plenum Fan Components Before 4/10

Fan Wheels, Continued, & Fan Shafts w/o Inlet Vanes

Description Part Number

Fan Wheels, continued (Inspect fan Housing to determine if painted or unpainted.):

AF27 , Class 1 (for painted Fan Assy) / 27.00 Wheel Dia. .......... 093413217

AF27 , Class 2 (for painted Fan Assy) / 27.00 Wheel Dia. .......... 093413445

AF30 , Class 1 (for painted Fan Assy) / 30.00 Wheel Dia. .......... 093413211

AF30 , Class 2 (for painted Fan Assy) / 30.00 Wheel Dia. .......... 093413342

AF33 , Class 1 (for painted Fan Assy) / 33.00 Wheel Dia. .......... 093413244

AF33 , Class 2 (for painted Fan Assy) / 33.00 Wheel Dia. .......... 093413296

AF36 , Class 1 (for painted Fan Assy) / 36.50 Wheel Dia. .......... 093416298

AF36 , Class 2 (for painted Fan Assy) / 36.50 Wheel Dia. .......... 093413235

AF40 , Class 1 (for painted Fan Assy) / 40.25 Wheel Dia. .......... 093413293

AF40 , Class 2 (for painted Fan Assy) / 40.25 Wheel Dia. .......... 093413451

FC20 , Class 1 (for unpainted Fan Assy) / 22.38 Wheel Dia. ...... 205402001

FC20 , Class 1 (for painted Fan Assy) / 20.00 Wheel Dia. .......... 300032601

FC20 , Class 2 (for unpainted Fan Assy) / 22.38 Wheel Dia. ..... 205402101

FC20 , Class 2 (for painted Fan Assy) / 20.00 Wheel Dia. .......... 300032602

FC22 , Class 1 (for unpainted Fan Assy) / 25.00 Wheel Dia. ..... 205402201

FC22 , Class 1 (for painted Fan Assy) 22.38 Wheel Dia. ............ 300032603

FC22 , Class 2 (for unpainted Fan Assy) / 25.00 Wheel Dia. ...... 205402201

FC22 , Class 2 (for painted Fan Assy) / 22.38 Wheel Dia. .......... 300032604

FC24 , Class 1 (for unpainted Fan Assy) / 27.63 Wheel Dia. ..... 205402301

FC24 , Class 2 (for unpainted Fan Assy) / 27.63 Wheel Dia. ..... 205402401

FC25 , Class 1 (for painted Fan Assy) / 25.00 Wheel Dia. .......... 300032604

FC25 , Class 2 (for painted Fan Assy) / 25.00 Wheel Dia. .......... 300032606

FC27 , Class 1 (for painted Fan Assy) / 27.63 Wheel Dia. ......... 300032607

FC27 , Class 2 (for painted Fan Assy) / 27.63 Wheel Dia. .......... 300032608

FC30 , Class 1 (for painted Fan Assy) / 30.25 Wheel Dia. .......... 300032609

FC30 , Class 2 (for painted Fan Assy) / 30.25 Wheel Dia. .......... 300032610

FC33 , Class 1 (for painted Fan Assy) / 33.00 Wheel Dia. .......... 300032611

FC33 , Class 2 (for painted Fan Assy) / 33.00 Wheel Dia. .......... 300032612

FC36 , Class 1 (for painted Fan Assy) 36.00Wheel Dia. ............. 300032613

FC36 , Class 2 (for painted Fan Assy) 36.00 Wheel Dia. ............ 300032614

FC40 , Class 1 (for painted Fan Assy) 40.25 Wheel Dia. ............ 093414709

FC40 , Class 2 (for painted Fan Assy) 40.25 Wheel Dia. ............ 093415055

Fan Shafts, w/o Inlet Vanes (Inspect fan Housing to determine if painted or unpainted.):

AF12, Class 1, 1.19 Dia. (unpainted Fan Assy) .......................... 059453101

AF12, Class 2, 1.44 Dia. (unpainted Fan Assy) .......................... 059451301

AF15, Class 1, 1.44 Dia. (unpainted Fan Assy) .......................... 059451401

AF15, Class 2, 1.69 Dia. (unpainted Fan Assy) .......................... 059451701

AF16, Class 1, 1.44 Dia. (unpainted Fan Assy) .......................... 059451601

AF16, Class 2, 1.69 Dia. (unpainted Fan Assy) .......................... 059451701

AF18, Class 1, 1.94 Dia. (unpainted Fan Assy) .......................... 059451801

AF18, Class 2, 2.19 Dia. (unpainted Fan Assy) .......................... 059451901

AF20, Class 1, 1.94 Dia. (unpainted Fan Assy) .......................... 059452001

AF20, Class 1, 1.69 Dia. (painted Fan Assy) .............................. 092726901

AF20, Class 2, 2.19 Dia. (unpainted Fan Assy) .......................... 059978801

AF20, Class 2, 2.19 Dia. (painted Fan Assy) .............................. 093288602

AF22, Class 1, 2.19 Dia. (unpainted Fan Assy) .......................... 059479601

AF22, Class 1, 1.94 Dia. (painted Fan Assy) .............................. 010446801

AF22, Class 2, 2.19 Dia. (unpainted Fan Assy) .......................... 059479601

AF22, Class 2, 2.19 Dia. (painted Fan Assy) .............................. 093288605

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 /

Description Part Number

Appendix A Page 4

FC & AF Fans, and Plenum Fan Components Before 4/10

Fan Shafts w/o Inlet Vanes, Continued

Description Part Number

Fan Shafts w/o Inlet Vanes, continued (Inspect fan Housing to determine if painted or unpainted.):

AF24, Class 1, 2.19 Dia. (painted Fan Assy) .............................. 093288603

AF24, Class 2, 2.44 Dia. (painted Fan Assy) .............................. 092369102

AF27, Class 1, 2.19 Dia. (painted Fan Assy) .............................. 093288604

AF27, Class 2, 2.44 Dia. (painted Fan Assy) .............................. 073939602

AF30, Class 1, 2.44 Dia. (painted Fan Assy) .............................. 092369103

AF30, Class 2, 2.69 Dia. (painted Fan Assy) .............................. 010237501

AF33, Class 1, 2.44 Dia. (painted Fan Assy) .............................. 092369105

AF33, Class 2, 2.94 Dia. (painted Fan Assy) .............................. 073919601

AF36, Class 1, 2.69 Dia. (painted Fan Assy) .............................. 092369101

AF36, Class 2, 2.94 Dia. (painted Fan Assy) .............................. 092806103

AF40, Class 1, 2.94 Dia. (painted Fan Assy) .............................. 059287801

AF40, Class 2, 3.44 Dia. (painted Fan Assy) .............................. 074052101

FC9X4, Class 1 & 2, 1.00 Dia. (unpainted Fan Assy) ......................... 059452201

FC9X7, Class 1, 1.00 Dia. (unpainted Fan Assy) .......................... 059452401

FC9X7, Class 2, 1.00 Dia. (unpainted Fan Assy) .......................... 059452401

FC9X9, Class 1, 1.00 Dia. (unpainted Fan Assy) .......................... 059452601

FC9X9, Class 2, 1.00 Dia. (unpainted Fan Assy) .......................... 059452601

FC10, Class 1, 1.00 Dia. (unpainted Fan Assy) .......................... 059452701

FC10, Class 2, 1.00 Dia. (unpainted Fan Assy) .......................... 059452701

FC12, Class 1, 1.00 Dia. (unpainted Fan Assy) .......................... 059452801

FC12, Class 2, 1.19 Dia. (unpainted Fan Assy) .......................... 059452901

FC15, Class 1, 1.19 Dia. (unpainted Fan Assy) .......................... 059453101

FC15, Class 2, 1.19 Dia. (unpainted Fan Assy) .......................... 059453101

FC18, Class 1, 1.19 Dia. (unpainted Fan Assy) .......................... 059453601

FC18, Class 2, 1.94 Dia. (unpainted Fan Assy) .......................... 059453701

FC20, Class 1, 1.44 Dia. (unpainted Fan Assy) .......................... 059454001

FC20, Class 1, 1.44 Dia. (painted Fan Assy) .............................. 300032701

FC20, Class 2, 2.19 Dia. (unpainted Fan Assy) .......................... 059451901

FC20, Class 2, 1.69 Dia. (painted Fan Assy) .............................. 300032702

FC22, Class 1, 2.19 Dia. (unpainted Fan Assy) .......................... 059978801

FC22, Class 1, 1.44 Dia. (painted Fan Assy) .............................. 300032705

FC22, Class 2, 2.19 Dia. (unpainted Fan Assy) .......................... 059479301

FC22, Class 2, 2.19 Dia. (painted Fan Assy) .............................. 300032706

FC24, Class 1, 2.19 Dia. (unpainted Fan Assy) .......................... 059479601

FC24, Class 2, 2.44 Dia. (unpainted Fan Assy) .......................... 059479701

FC25, Class 1, 1.69 Dia. (painted Fan Assy) .............................. 300032709

FC25, Class 2, 2.44 Dia. (painted Fan Assy) .............................. 300032710

FC27, Class 1, 1.69 Dia. (painted Fan Assy) .............................. 300032713

FC27, Class 2, 2.44 Dia. (painted Fan Assy) .............................. 300032714

FC30, Class 1, 1.69 Dia. (painted Fan Assy) .............................. 300032717

FC30, Class 2, 2.69 Dia. (painted Fan Assy) .............................. 300032718

FC33, Class 1, 2.19 Dia. (painted Fan Assy) .............................. 300032721

FC33, Class 2, 2.69 Dia. (painted Fan Assy) .............................. 300032722

FC36, Class 1, 2.19 Dia. (painted Fan Assy) .............................. 300032725

FC36, Class 2, 2.69 Dia. (painted Fan Assy) .............................. 300032726

FC40, Class 1, 2.94 Dia. (painted Fan Assy) .............................. 300032717

FC40, Class 2, 3.44 Dia. (painted Fan Assy) .............................. 300032718

Air Handler; Vision CAC/CAH 003-169 & Skyline OAC/OAH 003-090, Vintage F, G Rev. I 07/12 RPL 700004500 /

Appendix A Page 5

FC & AF Fans, and Plenum Fan Components Before 4/10

Fan Shafts w/ Inlet Vanes

Fan Shafts, w/ Inlet Vanes (Inspect fan Housing to determine if painted or unpainted.):
