McQuay AWS170 Parts List

Replacement Parts List No. 700023400

Revision C 09/2012

Daikin McQuay Pathﬁnder™

Air Cooled Chiller

Screw Compressor

2 Circuit

Unit Revision 00 (Code 62)

Model: AWS

Sizes: 170 - 410

Vintage: B

R134a

60 Hz

To ﬁnd your Daikin McQuay parts distributor, call 1-800-377-2787 or visit www.DaikinMcQuay.com

Contents

Parts List Revision History......................................................................................................................................................3

Nomenclature

Serial Number .................................................................................................................................................................4

Unit Model Number- Dataplate ........................................................................................................................................ 4

Unit Model Number- Complete ...................................................................................................................................5 - 6

Electrical Legend - Units with Wye Delta or SS Starter ...................................................................................................7 - 10

Electrical Legend - Units with VFD Starter .................................................................................................................... 11 - 14

Unit Layout ...........................................................................................................................................................................15

Refrigeration Section

Compressor Charts .......................................................................................................................................................16

Compressors .................................................................................................................................................................17

Compressor Components ......................................................................................................................................18 - 19

Suction Lines, Discharge Lines, Liquid Injection Lines ..........................................................................................20 - 21

Suction Shut Off Valves - Packaged Units ................................................................................................................... 22

Suction Shut Off Valves - Units with Remote Evaporator .............................................................................................. 23

 LiquidLines-StandardEfciency-PackagedUnits(Code4=SE) ............................................................................... 24

 LiquidLines-StandardEfciency-RemoteEvaporatorUnits(Code4=SM) ............................................................... 25

 LiquidLineswithEconomizer-High&PremiumEfciencyUnits ..........................................................................26 - 28

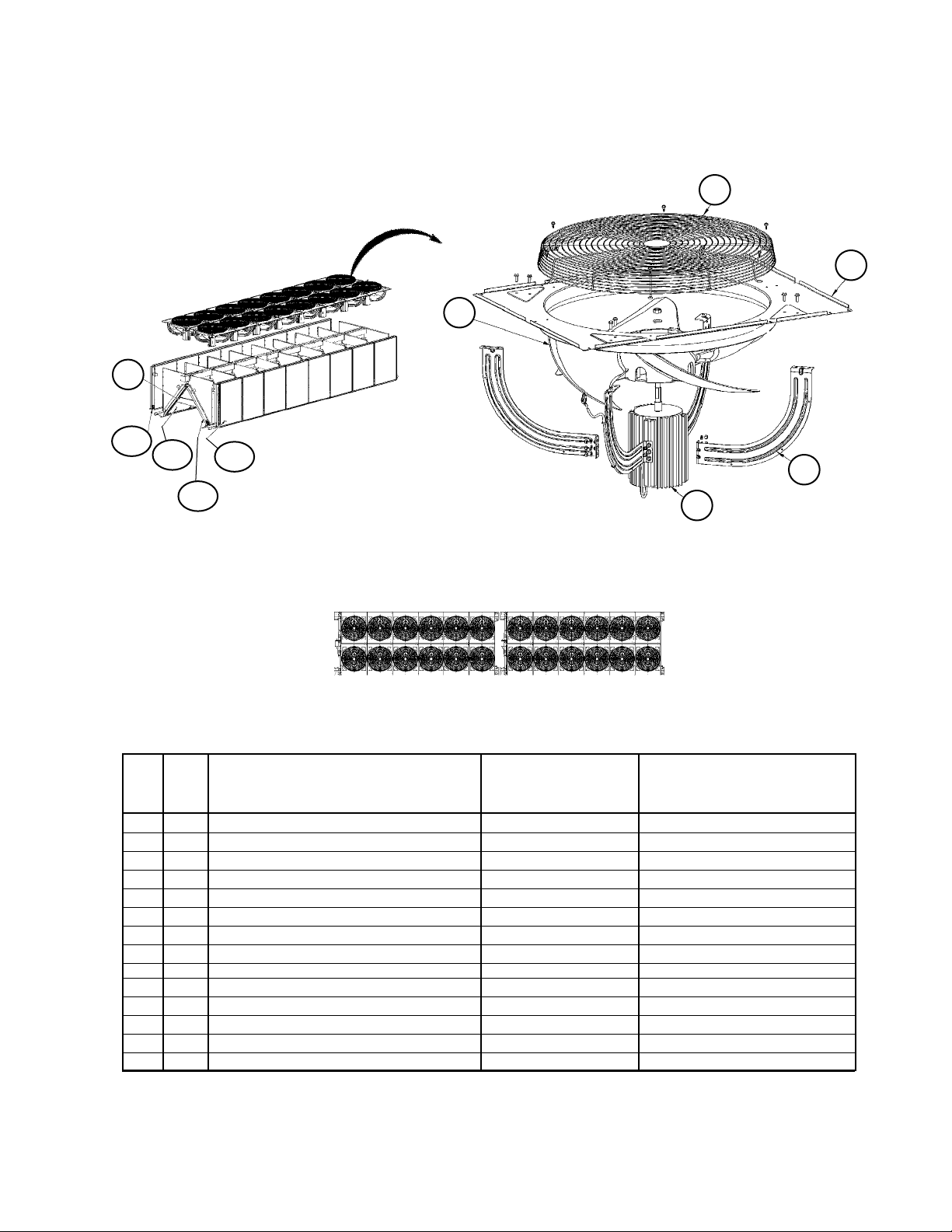

Condenser Coils and Fans ............................................................................................................................................ 29

Fan Totals per Unit ........................................................................................................................................................30

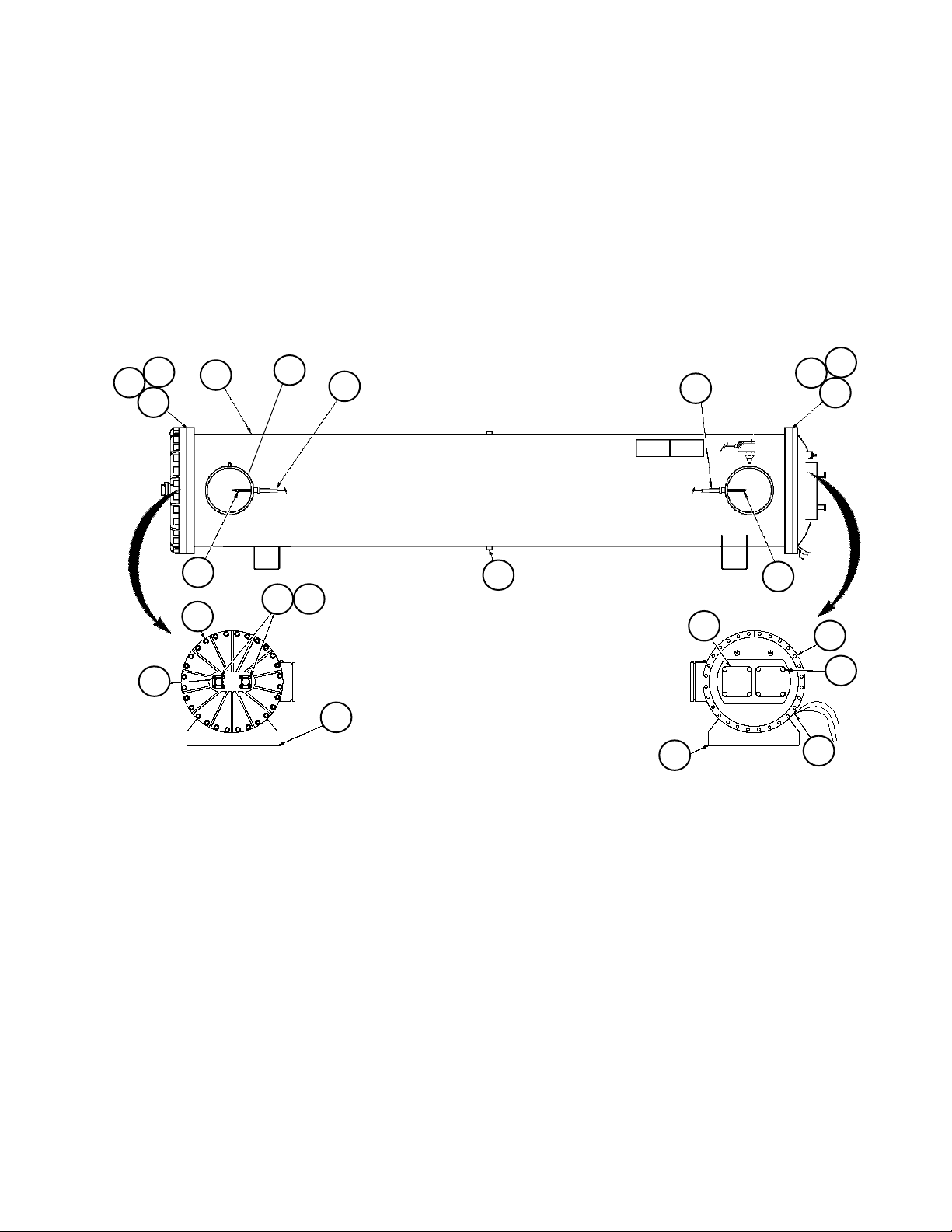

Evaporator Diagram ......................................................................................................................................................31

 EvaporatorAssemblies:PackagedUnits(Code4=SE,HE,PE) .................................................................................32

 EvaporatorKits:RemoteEvaporatorUnits(Code4=SM,HM,PM) ............................................................................ 33

Evaporator Components ...............................................................................................................................................34

Remote Evaporator Refrigeration Kits...........................................................................................................................35

Coil and Base Frame Grilles.................................................................................................................................................36

Coil Louvers..........................................................................................................................................................................37

Base Frame Louvers .....................................................................................................................................................38 - 40

Controls

 UnitswithWye-DeltaorSolidStateStarter(Code9=WD,SS)

Box Locations and Label Detail..............................................................................................................................41

Control Panel Detail ...............................................................................................................................................42

Power Panel Detail..........................................................................................................................................43 - 45

Solid State Starter Panel .................................................................................................................................46 - 47

Wye-Delta Starter Panel .................................................................................................................................48 - 49

  PowerFactorCorrectionCapacitors(PFCC) ..................................................................................................50 - 51

 UnitswithVFDStarters(Code9=VEorVF)

Box Locations and Label Detail..............................................................................................................................52

Control Side ....................................................................................................................................................53 - 55

Power Side ......................................................................................................................................................56 - 65

Control Box Exhaust and Intake Fans....................................................................................................................66

Terminal Box..................................................................................................................................................................67

Accessories

 UnitswithWye-DeltaorSolidStateStarter(Code9=WDorSS)

Isolator Kits - Rubber-In-Shear ..............................................................................................................................68

Isolator Kits - Spring ............................................................................................................................................... 69

 UnitswithVFDStarter(Code9=VForVE)

Isolator Kits - Rubber-In-Shear ..............................................................................................................................70

Isolator Kits - Spring ............................................................................................................................................... 71

 UnitswithRemoteEvaporator(Code4=SM,HMorPM)

Isolator Kits - Rubber-In-Shear ..............................................................................................................................72

Isolator Kits - Spring ............................................................................................................................................... 73

Flow Switch ...................................................................................................................................................................74

Sound Enclosure Kit ...................................................................................................................................................... 74

Alarm Bell ......................................................................................................................................................................74

Inlet Strainer ..................................................................................................................................................................74

Field-Installed Fan VFD Kits..........................................................................................................................................75

High Ambient Exhaust Fan Kit.......................................................................................................................................75

Rapid Restore ...............................................................................................................................................................75

Base and Coil - Grille and Louver Kits ..........................................................................................................................76

BACnet MS/TP Communications Module .....................................................................................................................77

BACnet with IP/Ethernet................................................................................................................................................77

MODBUS Communications Module .............................................................................................................................. 77

LonMark Communications Module ................................................................................................................................ 77

Remote Display Kit ........................................................................................................................................................ 77

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 2

Parts List Revision History

Revision Date Description

NEW 01/12 New

A 04/12 Page 18- Corrected 3 part numbers that had digits missing.

Page 24 & 27- Changed part # for Ref. 113 Filter Drier Core, was 070339101.

Page 21- Changed ST1 & 2 Sensor-Suct Temp. to two choices, Straight and Bent. Added length description “20 ft.” to WD1 & 2 Sensor- Discharge Temp. Page 29- Added length description “20 ft.” to WAA Sensor- Outdoor Air. Changed Motor part #s, were 10000108801, 02, 03, 04. Added info for Condenser Coil location and identiﬁcation. Page 32- Corrected part # for RH Evap (Std Eff, Size 210), was 332432112. Page 32- Corrected part # for LH Evap (Std Eff, Size 260), was 334034304. Page 34- Added length description “60 ft.” to WIE, WOE Sensor- Evap: Pkg’d Units. Added length description “100 ft.” to WIE & WOE Sensor- Evap: Remote Units. Page 58- Removed “A” from all Unit Size descriptions. Page 61- Corrected various Shaft part #s, were 2499xxxxx. B 07/12 Cover- Added “Unit Revision 00 (Code 62)” . All- Added “Rev. 00” to footer. Page 6- Corected Code 29; SL= SD + Liq Line Solenoid, was SL= DS + Liq Line Solenoid. Pages 18 & 19- Changed part # for Ref. SL1,2 Slide Ind. to 330591103, was 330591102. Page 21- Changed part # for Suction Pressure Switch to 073074010, was 073074006. Changed decription to CL20-OP5, was CL30-OP10. Page 21- Added Gasket- Discharge Shut-Off Valve 070199411 to Dischg Line groups. Added Gasket- Discharge Shut-Off Valve 070199117 to footnotes 1 and 2. Page 26- Added Check Valves to upper, left side compressor drawing. Pages 27 & 28- Added Check Valves. Page 28- Changed part #s for Ref. 6 Economizer A to 10000107021, was 332428901; Economizer B to 10000107023, was 332428902; Economizer C to 10000107024, was

332428903. Page 29- Changed part#s for Ref. 5 Motor 460V to 10000108873, was -74; Motor 575V to 10000108874, was -04. Pages 42 & 54- Added Advanced Web Module and footnote 2. Page 54- Changed description for EEXV1,2 to Code 29 = LD or SL and Code 29 = ND or SD, was With or Without UPS. Page 57- Corrected description for CT4,5,6 to Current Transformer, was Current Sensor. Page 67- Expanded info and changed drawing to reﬂect Terminal Plate for B vintage units. Pages 68 thru 71- Added “Packaged Units (Code 4= SE, HE, PE)” to title. Page 77- Removed LonMark Comm. Module Only from Ref. 920. C 09/12 Pages 18 & 19 - Corrected descriptions for Liq Injection Fittings. Added Liq Inj Fitting- Rotolock to Copper and Liq Inj O-Ring. Page 28 - Corrected p/ns and descriptions for Econo A: Ref. 200 was 332429201 & Ref 201 was 111054901. Added Econo A: Ref. 208 O-Ring. Corrected descriptions for Econo B & D: Ref. 200 and 201.

McQuay International, 13600 Industrial Park Blvd., P.O. Box 1551, Minneapolis, MN 55440 (763) 553-5330

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 3

Nomenclature

Serial Number

STN U 11 05 038

Plant Identiﬁcation

STN = Staunton, VA

U= Unit

Unit Model Number- Dataplate

AWS 290 B D S 27

Serial Number (build sequence)

Month of Manufacture

Year of Manufacture

11 = 2011 12 = 2012

etc.

Voltage

27= 460/60/3 12= 208/60/3 29= 230/60/3 46= 380/60/3 37= 575/60/3

Platform

S= Standard Efﬁciency H= High Efﬁciency P= Premium Efﬁciency

Number of Compressors (circuits)

D= 2

Vintage

Nominal Tonnage

ex. 290= 290 Tons

Unit Type: AWS= Air- Cooled Screw Compressor Chiller

01= January 02= February 03= March 04= April 05= May 06= June

07= July 08= August 09= September 10= October 11= November 12= December

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 4

Nomenclature

Unit Model Number- Complete

AWS 290B D SE NN ST S A WD Y 27 WN V N N N LM N G Y N N VL S J

Code 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25

L F G ND YNNNNNNN0000000N N NNYNNNNNNNN0000000000000000000

Code 26 27 28 29 30- 36 37 38- 45

ENDSUDPLYNNNNNNNNNNNRA1D00 NN M 6 NN Y S 00

Code 46-55 56 57 58 59 60 61 62

02 Size (in nominal tons), B Vintage

170B= 170 Tons 260B= 260 Tons 350B= 350 Tons 190B= 190 Tons 265B= 265 Tons 365B= 365 Tons 200B= 200 Tons 280B= 280 Tons 375B= 375 Ton 210B= 210 Tons 290B= 290 Tons 390B= 390 Tons 225B= 225 Tons 300B= 300 Tons 400B= 400 Tons 230B= 230 Tons 310B= 310 Tons 410B= 410 Tons 240B= 240 Tons 330B= 330 Tons

03 Number of Compressors D= 2

04 Platform SE= Package- Std Eff SM= Remote Evap- Std Eff

HE= Package- High Eff HM= Remote Evap- High Eff PE= Package- Prem Eff PM= Remote Evap- Prem Eff

05 Construction NN= Standard

06 Sound

ST= Standard Sound LN= Low Noise- Sound Enclosure

07 Unit Operation

S= Standard (40° - 60° F LWT) A= Lower Operation (34° - 39° F LWT) B= Brine Operation (20° - 33° F LWT)

08 Condenser Coil Fins

A= Aluminum Fin (Standard) C= Copper Fin B= Aluminum Fin w/Prefab Black Fin Coating E= Aluminum Fin w/Electro Fin Coating F= Copper Fin w/Electro Fin Coating

09 Compressor Starter

WD= Wye- Delta w/Compressor Overloads SS= Solid State VF= VFD without EMI Filter VE= VFD with EMI Filter

10 Always Y

11 Voltage 27= 460/60/3 12= 208/60/3

29= 230/60/3 46= 380/60/3 37= 575/60/3

12 Power Connection

PC= Single Point Power Block & Circuit Breakers DC= Single Point Disconnect & Circuit Breakers DH= High Short Circuit Current Rating + DC WN= Multiple Point Disconnect- No Circuit Breaker WH= High Short Circuit Current Rating + WN

13 Phase Voltage

V= Phase & Under/Over Voltage Protection w/LED N= None

14 Meters

N= None A= Meters: Unit Amp & Volt

15 Control Box Ambient N= None

H= With Exhaust Fans

16 Compressor Capacitor N= None

C= Power Correction Capacitors

17 Communication NN= None

LM= LonMark MB= Mod Bus BN= BACnet w/ MSTP BE= BACnet w/ Ethernet

18 Display Options

N= On Controller Only U= Unit Remote Display

19 Ground Fault

N= None G= Ground Fault Protection for the Unit

20 Always Y

21 Unit Options

N= None C= 115V Convenience Outlet L= Slide Transducer B= C + L

22 Water Flow

N= None A= Water Flow Indication on Evaporator Only

23 Evaporator Connection VL= Victaulic/ Left Hand

VR= Victaulic/ Right Hand

24 Evaporator Insulation

S= Standard Evaporator- Single Layer D= Standard Evaporator- Double Insulation

25 Motor Cooling

J= With additional Liquid Injection Cooling

26 Fans L= Standard Low Noise Fan Motors

27 Head Pressure

F= Fantrol Only (35° F Minimum) V= VFD (First Fans/ Circuit)

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 5

Nomenclature

Unit Model Number- Complete, Continued

28 Guards

G= Condenser Coil Grilles Only F= Condenser Coil & Base Frame Grilles L= Condenser Coil Louvers B= Condenser Coil Louvers & Base Guard Louvers C= Condenser Coil Louvers and Base Frame Grilles

29 Tubing Options ND= With Discharge Shut-Off Valve

SD= With Suction and Discharge Shut-Off Valve LD= ND + Liquid Line Solenoid SL= SD + Liquid Line Solenoid

30 Always Y

31 Water Pump NN= None

32 Pump Type

NNNN= No Pump Package PPSS= Pump Package Air- Cooled Screw Single Pump PPSD= Pump Package Air- Cooled Screw Dual Pump

33 Pump Connection

N= No Pump Package 6= 6" 8= 8" T= 10"

34 Pump Flow

Actual 4 digit number based on conditions

35 Total Head

Actual 3 digit number based on conditions

36 Pump Starter N= No Pump Package

S= Pump Package Starter

47 CRN- Evaporator 1= CRN- BC 2= CRN- Alberta

3= CRN- Saskatchewan 4= CRN- Manitoba 5= CRN- Ontario 6= CRN- Quebec 7= CRN- New Brunswick 8= CRN- Nova Scotia 9= CRN- P.E.I. U= CRN- Yukon 0= CRN- NewFoundland N= None

48 Unit Start DSU= Domestic Start Up

CPL= Canadian Start Up ISU= International- No Start Up Provided

49 Standard Warranty

DPL= Domestic 1st Year Standard CPL= Canadian 1st Year Standard Warranty TPN= International 1st Year Standard Warranty

50 Always Y

51 Extended Compressor Warranty

NNNN= No Extended Compressor Warranty CPE*= Compressor Only- Parts Only (*= no. of years) CBE*= Compressor Only- Parts & Labor (*= no. of years)

52 Always NNN

53 Extended Unit Warranty NNNN= None

EPE*= Ext. Unit- Parts Only (*= no. of years) EBE*= Ext. Unit- Parts & Labor (*= no. of years) DPE*= Ext. Unit w/Dual Pumps- Parts Only (*= no. of years) DBE*= Ext. Unit w/Dual Pumps- Parts & Labor (*= no. of years) SPE*= Ext. Unit w/Single Pump- Parts Only (*= no. of years) SBE*= Ext. Unit w/Single Pump- Parts & Labor (*= no. of years)

37 Pump Gauges N= None

G= Pressure Gauges

38 Pump Suction Valve

N= None

39 Pump Discharge Valve

N= None

40 Always Y

41 Impeller Trim NNNN= No Pumps

0000= Impeller Size

42 Expansion Tank NN= None

43 Buffer Tank NN= None

44 % of Glycol

000= None E**= Ethylene; **= % P**= Propylene; **= %

45 Pump Number

All 0's= None 16 digit number= With Pumps

46 Approvals E= ETL/CETL Approval & ARI

T= ETL/CETL Approval & No ARI

54 Refrigerant Warranty NNN= None

RA*= Refrigeant 134a Warranty (*= no. of years)

55 Delayed Warranty Start D00= 0 months

D**= Delayed Warranty Start (**= number of months)

56 Always NN

57 Brand Name D= DaikenMcQuay

M= McQuay

58 Hertz 6= 60 Hertz

59 Restart NN= Standard

RR= Rapid Restart

60 Always Y

61 Misc. S= Standard Unit

X= Special

62 Major Unit Change Revision 00= No Revision

0A= Major Unit Change Revision

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 6

Electrical Legend - Units with Wye Delta or SS Starter

Sch. Sym. Description Location

AC Alarm Control Control Panel AM1 Ammeter Switch Box Door C1 PFCC Capacitor PFCC Enclosure C2 PFCC Capacitor PFCC Enclosure C10 EXV-1 Connector Starter Panel- Compressor 1 C20 EXV-2 Connector Starter Panel- Compressor 2 C101 Fan Harness Connector Condenser Fan Section C102 Fan Harness Connector Condenser Fan Section C103 Fan Harness Connector Condenser Fan Section C104 Fan Harness Connector Condenser Fan Section C105 Fan Harness Connector Condenser Fan Section C106 Fan Harness Connector Condenser Fan Section C107 Fan Harness Connector Condenser Fan Section C108 Fan Harness Connector Condenser Fan Section C109 Fan Harness Connector Condenser Fan Section C110 Fan Harness Connector Condenser Fan Section C111 Fan Harness Connector Condenser Fan Section C112 Fan Harness Connector Condenser Fan Section C201 Fan Harness Connector Condenser Fan Section C202 Fan Harness Connector Condenser Fan Section C203 Fan Harness Connector Condenser Fan Section C204 Fan Harness Connector Condenser Fan Section C205 Fan Harness Connector Condenser Fan Section C206 Fan Harness Connector Condenser Fan Section C207 Fan Harness Connector Condenser Fan Section C208 Fan Harness Connector Condenser Fan Section C209 Fan Harness Connector Condenser Fan Section C210 Fan Harness Connector Condenser Fan Section C211 Fan Harness Connector Condenser Fan Section C212 Fan Harness Connector Condenser Fan Section CC1 Control Compressor Cir. 1 Starter Panel- Compressor 1 CC2 Control Compressor Cir. 2 Starter Panel- Compressor 2 DP-1 Condenser Pressure Cir. 1 Discharge Line- Circuit 1 DP-2 Condenser Pressure Cir. 2 Discharge Line- Circuit 2 EEXV1 Expansion Valve Controller Cir. 1 Starter Panel- Compressor 1 EEXV2 Expansion Valve Controller Cir. 2 Starter Panel- Compressor 2 ESV-1 Economizer Solenoid Valve Cir. 1 Liquid Line- Circuit 1 ESV-2 Economizer Solenoid Valve Cir. 2 Liquid Line- Circuit 2 EXV-1 Electronic Expansion Valve Cir. 1 Liquid Line- Circuit 1 EXV-2 Electronic Expansion Valve Cir. 2 Liquid Line- Circuit 2 F0-1 Crankcase Heater 1 Fuses/ MSP Starter Panel- Compressor 1 F0-2 Crankcase Heater 2 Fuses/ MSP Starter Panel- Compressor 2 F1 Compressor 1 Circuit Breaker Power Panel- Right F2 Compressor 2 Circuit Breaker Power Panel- Right F5-1 Thermal Relay Starter Panel- Compressor 1 F5-2 Thermal Relay Starter Panel- Compressor 2 F12 Outlet Fuse Power Panel- Left F13 High Pressure Switch Cir. 1 Compressor 1 F23 High Pressure Switch Cir. 2 Compressor 2 F59 Evaporator Heater Fuse Control Panel F90 Thermostat Control Panel F100 Fan Circuit Breaker Cir. 1 Power Panel- Left F112 Phase Volt Monitor Cir. 1 Power Panel- Left

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 7

Electrical Legend - Units with Wye Delta or SS Starter

Sch. Sym. Description Location

F116 Evaporator Flow Switch Evaporator Outlet F120 Transformer T1 Protection Power Panel- Left F130 Phase Volt Monitor Fuse Cir. 1 Power Panel- Left F200 Fan Circuit Breaker 2 Power Panel- Left F212 Phase Voltage Monitor Cir. 2 Power Panel- Left F230 Phase Volt Monitor Fuse Cir. 2 Power Panel- Left FC Fans Control Control Panel FTB107 Fan Terminal Block Cir. 1 Power Panel- Left FTB110 Fan Terminal Block Cir. 1 Power Panel- Left FTB207 Fan Terminal Block Cir. 2 Power Panel- Left FTB210 Fan Terminal Block Cir. 2 Power Panel- Left FU1 PFCC Fuse PFCC Enclosure FU2 PFCC Fuse PFCC Enclosure GFR1 Ground Fault Relay Cir. 1 Power Panel- Left GFR2 Ground Fault Relay Cir. 2 Power Panel- Left K11 Emergency Stop Contactor Control Panel K16 Fan Stage 1 Power Panel- Left K26 Fan Stage 2 Power Panel- Left K2B-1 Contactor Starter Panel- Compressor 1 K2B-2 Contactor Starter Panel- Compressor 2 KLJ-1 Liquid Injection Relay 1 Starter Panel- Compressor 1 KLJ-2 Liquid Injection Relay 2 Starter Panel- Compressor 2 KM1-1 Compressor Contactor Starter Panel- Compressor 1 KM1-2 Compressor Contactor Starter Panel- Compressor 1 KM1-3 Compressor Contactor Starter Panel- Compressor 1 KM2-1 Compressor Contactor Starter Panel- Compressor 2 KM2-2 Compressor Contactor Starter Panel- Compressor 2 KM2-3 Compressor Contactor Starter Panel- Compressor 2 KM10-1 Contactor Starter Panel- Compressor 1 KM10-2 Contactor Starter Panel- Compressor 2 KM101 Fan Motor Contactor Power Panel- Left KM102 Fan Motor Contactor Power Panel- Left KM103 Fan Motor Contactor Power Panel- Left KM105 Fan Motor Contactor Power Panel- Left KM107 Fan Motor Contactor Power Panel- Left KM110 Fan Motor Contactor Power Panel- Left KM201 Fan Motor Contactor Power Panel- Left KM202 Fan Motor Contactor Power Panel- Left KM203 Fan Motor Contactor Power Panel- Left KM205 Fan Motor Contactor Power Panel- Left KM207 Fan Motor Contactor Power Panel- Left KM210 Fan Motor Contactor Power Panel- Left KT13 Time Delay Relay 1 Starter Panel- Compressor 1 KT23 Time Delay Relay 2 Starter Panel- Compressor 2 KT-1 Auxilliary Relay Cir. 1 Starter Panel- Compressor 1 KT-2 Aux. Relay Cir. 2 Starter Panel- Compressor 2 KT1-1 Delay Relay Starter Panel- Compressor 1 KT1-2 Delay Relay Starter Panel- Compressor 2 LJV-1 Liquid Injection Solenoid Cir. 1 Liquid Line/Starter Panel 1 LJV-2 Liquid Injection Solenoid Cir. 2 Liquid Line/Starter Panel 2 LP1 Low Pressure Switch 1 Compressor 1 LP2 Low Pressure Switch 2 Compressor 2 LR1 Line Reactor Cir. 1 Power Panel- Left

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 8

Electrical Legend - Units with Wye Delta or SS Starter

Sch. Sym. Description Location

LR2 Line Reactor Cir. 2 Power Panel- Left LSV-1 Liquid Line Solenoid Cir. 1 Liquid Line- Circuit 1 LSV-2 Liquid Line Solenoid Cir. 2 Liquid Line- Circuit 2 LT1 PFCC Lamp PFCC Enclosure LT2 PFCC Lamp PFCC Enclosure M1 Compressor Cir. 1 Base M2 Compressor Cir. 2 Base M10 Forced Ventilation Switch Box End M101 Fan Motor Power Panel- Left M102 Fan Motor Power Panel- Left M103 Fan Motor Power Panel- Left M104 Fan Motor Power Panel- Left M105 Fan Motor Power Panel- Left M106 Fan Motor Power Panel- Left M107 Fan Motor Power Panel- Left M108 Fan Motor Power Panel- Left M109 Fan Motor Power Panel- Left M110 Fan Motor Power Panel- Left M111 Fan Motor Power Panel- Left M112 Fan Motor Power Panel- Left M201 Fan Motor Power Panel- Left M202 Fan Motor Power Panel- Left M203 Fan Motor Power Panel- Left M204 Fan Motor Power Panel- Left M205 Fan Motor Power Panel- Left M206 Fan Motor Power Panel- Left M207 Fan Motor Power Panel- Left M208 Fan Motor Power Panel- Left M209 Fan Motor Power Panel- Left M210 Fan Motor Power Panel- Left M211 Fan Motor Power Panel- Left M212 Fan Motor Power Panel- Left MP1 Motor Thermal Protection Starter Panel- Compressor 1 MP2 Motor Thermal Protection Starter Panel- Compressor 2 MPR1 Motor Protection Relay Cir. 1 Starter Panel- Compressor 1 MPR2 Motor Protection Relay Cir. 2 Starter Panel- Compressor 2 OP-1 Oil Pressure Cir. 1 Compressor 1 OP-2 Oil Pressure Cir. 2 Compressor 2 P1 PFCC Contactor 1 PFCC Enclosure P2 PFCC Contactor 2 PFCC Enclosure PA1 PFCC Aux Contact 1 PFCC Enclosure PA2 PFCC Aux Contact 2 PFCC Enclosure PC1 Power Factor Correction PFCC Enclosure PC2 Power Factor Correction PFCC Enclosure Q0 Unit ON - OFF Switch Control Panel Q1 Pump Down Switch Cir. 1 Control Panel Q2 Pump Down Switch Cir. 2 Control Panel Q10 Main Power Block or Disconnect Switch 1 Power Panel- Right Q11 Emergency Stop Switch Control Box Door Q12 Automatic Circuit Breaker Control Panel Q20 Main Power Block or Disconnect Switch 2 Power Panel- Right Q101 Fan MSP Power Panel- Left Q102 Fan MSP Power Panel- Left

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 9

Electrical Legend - Units with Wye Delta or SS Starter

Sch. Sym. Description Location

Q103 Fan MSP Power Panel- Left Q105 Fan MSP Power Panel- Left Q107 Fan MSP Power Panel- Left Q110 Fan MSP Power Panel- Left Q201 Fan MSP Power Panel- Left Q202 Fan MSP Power Panel- Left Q203 Fan MSP Power Panel- Left Q205 Fan MSP Power Panel- Left Q207 Fan MSP Power Panel- Left Q210 Fan MSP Power Panel- Left R1 Compressor Crankcase Heater Cir. 1 Compressor 1 R2 Compressor Crankcase Heater Cir. 2 Compressor 2 R5 Evaporator Heater Evaporator Shell REC 1 115V Outlet Control Panel SL-1 Slide Indicator Cir. 1 Compressor 1 SL-2 Slide Indicator Cir. 2 Compressor 2 SP-1 Evap. Pressure Circuit 1 Suction Line- Circuit 1 SP-2 Evap. Pressure Circuit 2 Suction Line- Circuit 2 SS1 Selection Switch 1 Voltmeter SS2 Selection Switch 2 Ammeter ST-1 Suction Temperature Cir. 1 Suction Line- Circuit 1 ST-2 Suction Temperature Cir. 2 Suction Line- Circuit 2 T1 115V Transformer Power Panel- Left T2 24V Transformer Power Panel- Left T20-1 Transformer Cir. 1 Starter Panel- Compressor 1 T20-2 Transformer Cir. 2 Starter Panel- Compressor 2 TC Thermostat- Evaporator Heater Evaporator TXV-1 Thermal Expansion Valve Cir. 1 Economizer Liquid Line TXV-2 Thermal Expansion Valve Cir. 2 Economizer Liquid Line UC Unit Control- MicroTech III Control Panel VFD1 Fan VFD / SpeedTrol Near front of evaporator VFD2 Fan VFD / SpeedTrol Near front of evaporator VM1 Volt Meter Switch Box Door W1 Compressor Thermistor Cir. 1 Compressor 1 W2 Compressor Thermistor Cir. 2 Compressor 2 WAA Air Ambient Sensor Condenser Coil Header WD-1 Oil Discharge Temp. Sensor Cir. 1 Discharge Line- Circuit 1 WD-2 Oil Discharge Temp. Sensor Cir. 2 Discharge Line- Circuit 2 WIE Evaporator Entering Water Temperature Evaporator Inlet WOE Evaporator Leaving Water Temperature Evaporator Outlet Y2A-1 Non-Modulating Slide Load Sol. Valve Cir. 1 Compressor 1 Y2A-2 Non-Modulating Slide Load Sol. Valve Cir. 2 Compressor 2 Y2B-1 Modulating Slide Load Solenoid Valve Cir. 1 Compressor 1 Y2B-2 Modulating Slide Load Solenoid Valve Cir. 2 Compressor 2 Y3A-1 Non-Mod. Slide Unload Sol. Valve Cir. 1 Compressor 1 Y3A-2 Non-Mod. Slide Unload Sol. Valve Cir. 2 Compressor 2 Y3B-1 Mod. Slide Unload Solenoid Valve Cir. 1 Compressor 1 Y3B-2 Mod. Slide Unload Solenoid Valve Cir. 2 Compressor 2 YT-1 Turbo Solenoid Valve Cir. 1 Compressor 1 YT-2 Turbo Solenoid Valve Cir. 2 Compressor 2

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 10

Electrical Legend - Units with VFD Starter

Sch. Sym. Description Location

AC Alarm Control Control Side AM1 Ammeter Control Box Door C10 EXV-1 Connector Outside Back of Control Side C20 EXV-2 Connector Outside Back of Control Side C101 Fan Harness Connector Condenser Fan Section C102 Fan Harness Connector Condenser Fan Section C103 Fan Harness Connector Condenser Fan Section C104 Fan Harness Connector Condenser Fan Section C105 Fan Harness Connector Condenser Fan Section C106 Fan Harness Connector Condenser Fan Section C107 Fan Harness Connector Condenser Fan Section C108 Fan Harness Connector Condenser Fan Section C109 Fan Harness Connector Condenser Fan Section C110 Fan Harness Connector Condenser Fan Section C111 Fan Harness Connector Condenser Fan Section C112 Fan Harness Connector Condenser Fan Section C201 Fan Harness Connector Condenser Fan Section C202 Fan Harness Connector Condenser Fan Section C203 Fan Harness Connector Condenser Fan Section C204 Fan Harness Connector Condenser Fan Section C205 Fan Harness Connector Condenser Fan Section C206 Fan Harness Connector Condenser Fan Section C207 Fan Harness Connector Condenser Fan Section C208 Fan Harness Connector Condenser Fan Section C209 Fan Harness Connector Condenser Fan Section C210 Fan Harness Connector Condenser Fan Section C211 Fan Harness Connector Condenser Fan Section C212 Fan Harness Connector Condenser Fan Section CC1 Control Compressor Cir. 1 Control Side CC2 Control Compressor Cir. 2 Control Side DP-1 Condenser Pressure Cir. 1 Discharge Line- Circuit 1 DP-2 Condenser Pressure Cir. 2 Discharge Line- Circuit 2 EEXV1 Expansion Valve Controller Cir. 1 Control Side EEXV2 Expansion Valve Controller Cir. 2 Control Side EMI-1 Electromagnetic Interference Filter 1 Power Side EMI-2 Electromagnetic Interference Filter 2 Power Side ESV-1 Economizer Solenoid Valve Cir. 1 Liquid Line- Circuit 1 ESV-2 Economizer Solenoid Valve Cir. 2 Liquid Line- Circuit 2 EXV-1 Electronic Expansion Valve Cir. 1 Liquid Line- Circuit 1 EXV-2 Electronic Expansion Valve Cir. 2 Liquid Line- Circuit 2 F0-1 Crankcase Heater 1 Fuses/ MSP Power Side F0-2 Crankcase Heater 2 Fuses/ MSP Power Side F1 Compressor 1 Circuit Breaker Power Side F2 Compressor 2 Circuit Breaker Power Side F10 Exhaust Fan Fuse Control Side F11 Unit Controller Fuse Control Side F12 Outlet Fuse Control Side F13 High Pressure Switch Cir. 1 Compressor 1 F23 High Pressure Switch Cir. 2 Compressor 2 F59 Evaporator Heater Fuse Control Side F90 Thermostat Control Side F100 Fan Circuit Breaker Cir. 1 Control Side F116 Evaporator Flow Switch Evaporator Outlet

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 11

Electrical Legend - Units with VFD Starter

Sch. Sym. Description Location

F120 Transformer T1 Protection Power Side F130 Phase Volt Monitor Fuse Control Side F200 Fan Circuit Breaker 2 Control Side FC Fans Control Control Side FTB107 Fan Terminal Block Cir. 1 Control Side FTB110 Fan Terminal Block Cir. 1 Control Side FTB207 Fan Terminal Block Cir. 2 Control Side FTB210 Fan Terminal Block Cir. 2 Control Side GFR1 Ground Fault Relay Cir. 1 Control Side GFR2 Ground Fault Relay Cir. 2 Control Side JFU1 HSCR Fuse 1 Control Side JFU2 HSCR Fuse 2 Control Side K1 Compressor VFD Run Relay 1 Power Side K2 Compressor VFD Run Relay 2 Power Side K11 Emergency Stop Contactor Control Side K13 Mechanical Hi Pressure Relay & Contactor Control Side K16 Fan Stage Cir. 1 Control Side K23 Mechanical Hi Pressure Relay & Contactor Control Side K26 Fan Stage Cir. 2 Control Side KLJ-1 Liquid Injection Relay 1 Control Side KLJ-2 Liquid Injection Relay 2 Control Side KM101 Fan Motor Contactor Control Side KM102 Fan Motor Contactor Control Side KM103 Fan Motor Contactor Control Side KM105 Fan Motor Contactor Control Side KM107 Fan Motor Contactor Control Side KM110 Fan Motor Contactor Control Side KM201 Fan Motor Contactor Control Side KM202 Fan Motor Contactor Control Side KM203 Fan Motor Contactor Control Side KM205 Fan Motor Contactor Control Side KM207 Fan Motor Contactor Control Side KM210 Fan Motor Contactor Control Side LJV-1 Liquid Injection Solenoid Cir. 1 Liquid Injection Line 1 LJV-2 Liquid Injection Solenoid Cir. 2 Liquid Injection Line 2 LP1 Low Pressure Switch 1 Compressor 1 LP2 Low Pressure Switch 2 Compressor 2 LR1 Line Reactor Cir. 1 Control Side LR2 Line Reactor Cir. 2 Control Side LSV-1 Liquid Line Solenoid Cir. 1 Liquid Line- Circuit 1 LSV-2 Liquid Line Solenoid Cir. 2 Liquid Line- Circuit 2 M1 Compressor Cir. 1 Base M2 Compressor Cir. 2 Base M10 Forced Ventilation Outside Wall of Power Side M11 Intake Fan Outside Wall of Control Side M12 Exhaust Fan Control Box Left Door M101 Fan Motor Condenser Fan Section M102 Fan Motor Condenser Fan Section M103 Fan Motor Condenser Fan Section M104 Fan Motor Condenser Fan Section M105 Fan Motor Condenser Fan Section M106 Fan Motor Condenser Fan Section M107 Fan Motor Condenser Fan Section

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 12

Electrical Legend - Units with VFD Starter

Sch. Sym. Description Location

M108 Fan Motor Condenser Fan Section M109 Fan Motor Condenser Fan Section M110 Fan Motor Condenser Fan Section M111 Fan Motor Condenser Fan Section M112 Fan Motor Condenser Fan Section M201 Fan Motor Condenser Fan Section M202 Fan Motor Condenser Fan Section M203 Fan Motor Condenser Fan Section M204 Fan Motor Condenser Fan Section M205 Fan Motor Condenser Fan Section M206 Fan Motor Condenser Fan Section M207 Fan Motor Condenser Fan Section M208 Fan Motor Condenser Fan Section M209 Fan Motor Condenser Fan Section M210 Fan Motor Condenser Fan Section M211 Fan Motor Condenser Fan Section M212 Fan Motor Condenser Fan Section MP1 Motor Thermal Protection Control Side MP2 Motor Thermal Protection Control Side MPR1 Motor Protection Relay Cir. 1 Control Side MPR2 Motor Protection Relay Cir. 2 Control Side OP-1 Oil Pressure Cir. 1 Compressor 1 OP-2 Oil Pressure Cir. 2 Compressor 2 Q0 Unit ON - OFF Switch Control Side Q1 Pump Down Switch Cir. 1 Control Side Q2 Pump Down Switch Cir. 2 Control Side Q10 Main Power Block or Disconnect Switch 1 Power Side Q11 Emergency Stop Switch Control Box Left Door Q12 Automatic Circuit Breaker T1 Transformer Q101 Fan MSP Control Side Q102 Fan MSP Control Side Q103 Fan MSP Control Side Q105 Fan MSP Control Side Q107 Fan MSP Control Side Q110 Fan MSP Control Side Q201 Fan MSP Control Side Q202 Fan MSP Control Side Q203 Fan MSP Control Side Q205 Fan MSP Control Side Q207 Fan MSP Control Side Q210 Fan MSP Control Side R1 Compressor Crankcase Heater Cir. 1 Compressor 1 R2 Compressor Crankcase Heater Cir. 2 Compressor 2 R5 Evaporator Heater Evaporator Shell REC 1 115V Outlet Control Side SP-1 Evap. Pressure Circuit 1 Suction Line- Circuit 1 SP-2 Evap. Pressure Circuit 2 Suction Line- Circuit 2 SS1 Selection Switch 1 Voltmeter SS2 Selection Switch 2 Ammeter ST-1 Suction Temperature Cir. 1 Suction Line- Circuit 1 ST-2 Suction Temperature Cir. 2 Suction Line- Circuit 2 T1 115V Transformer Power Side T2 24V Transformer Control Side

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 13

Electrical Legend - Units with VFD Starter

Sch. Sym. Description Location

T20-1 Transformer Cir. 1 Control Side T20-2 Transformer Cir. 2 Control Side TC Thermostat- Evaporator Heater Evaporator UC Unit Control- MicroTech III Control Side VFD1 Fan VFD / SpeedTrol Control Side Left Wall VFD2 Fan VFD / SpeedTrol Control Side Left Wall VFD-1 Compressor VFD 1 Power Side VFD-2 Compressor VFD 2 Power Side VFU1 Compressor VFD Fuse 1 Power Side VFU2 Compressor VFD Fuse 2 Power Side VM1 Volt Meter Switch Box Door W1 Compressor Thermistor Cir. 1 Compressor 1 W2 Compressor Thermistor Cir. 2 Compressor 2 WAA Air Ambient Sensor Condenser Coil Header WD-1 Oil Discharge Temp. Sensor Cir. 1 Discharge Line- Circuit 1 WD-2 Oil Discharge Temp. Sensor Cir. 2 Discharge Line- Circuit 2 WIE Evaporator Entering Water Temperature Evaporator Inlet WOE Evaporator Leaving Water Temperature Evaporator Outlet

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 14

Unit Layout

(Unit Size 310BDS Shown)

9

8

Ref. No. Description Location

1 Compressors Refrigeration Section 2 Tubing (suction, discharge, liquid injection) Refrigeration Section 3 Liquid Line and Economizer Refrigeration Section 7 Evaporator Refrigeration Section 8 Condenser Coil Refrigeration Section 9 Condenser Fans Refrigeration Section 10 Unit Switch Box/Control Panel * Controls Section 11 Compressor Starter Panel (not on units with VFD Starters) Controls Section 12 Compressor Terminal Box Controls Section

9

3

9 9 9

7

9

9 9

12

2

11

1

10

* Control Panel for units with Wye-Delta or Solid State Starters shown. Larger Panel used on units with VFD Starters.

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 15

Refrigeration Section

Compressor Charts

Standard Efﬁciency: Code 4 = S*; High Efﬁciency: Code 4 = H*; Premium Efﬁciency: Code 4 = P*

Compressor, Circuit 1

Unit Size Starter Std Eff. High Eff Premium Eff (Code 9)

170 any A -- - 190 WD or SS A -- - 190 VE or VF A -- - 200 any C -- - 210 any A A - 225 any C -- - 230 any -- A - 240 any -- -- A 250 any C C - 260 any B -- - 265 any -- -- A 280 any -- C - 290 any B -- C 300 any -- B - 310 any E -- C 330 any -- B B 350 any E E - 365 any -- -- B 375 any D -- - 390 any -- E - 400 any -- -- E 410 any -- D --

Compressor, Circuit 2

Unit Size Starter Std Eff. High Eff Premium Eff (Code 9)

170 any A -- - 190 WD or SS A -- - 190 VE or VF C -- - 200 any C -- - 210 any C A - 225 any C -- - 230 any -- C - 240 any -- -- A 250 any B C - 260 any B -- - 265 any -- -- C 280 any -- B - 290 any E -- C 300 any -- B - 310 any E -- B 330 any -- E B 350 any D E - 365 any -- -- E 375 any D -- - 390 any -- D - 400 any -- -- E 410 any -- D --

See next page for Compressor part numbers.

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 16

Refrigeration Section

Compressors

See previous page for Compressor Charts.

Units with VFD Starters: Code 9 = VE, VF. Units without VFD Starters: Code 9 = WD or SS

Standard or High Efciency Units

Code 4 = SE, SM, HE, HM

Compressor A 208V 332529270 230V 332529275 380V (units w/ VFD Starters) 332529380 380V (units w/o VFD Starters) 332529280 460V (units w/ VFD Starters) 332529360 460V (units w/o VFD Starters) 332529260 575V - new 332529265

Compressor B 208V 332529272 230V 332529277 380V (units w/ VFD Starters) 332529382 380V (units w/o VFD Starters) 332529282 460V (units w/ VFD Starters) 332529362 460V (units w/o VFD Starters) 332529262 575V 332529267

Compressor C 208V 332529271 230V 332529276 380V (units w/ VFD Starters) 332529381 380V (units w/o VFD Starters) 332529281 460V (units w/ VFD Starters) 332529361 460V (units w/o VFD Starters) 332529261 575V 332529266

Premium Efciency Units

Code 4 = PE, PM

Compressor A 208V 332529470 230V 332529475 380V 332529480 460V 332529460 575V - new 332529465

Compressor B 208V 332529472 230V 332529477 380V 332529482 460V 332529462 575V 332529467

Compressor C 208V 332529471 230V 332529476 380V 332529481 460V 332529461 575V 332529466

Compressor E 380V 332529483 460V 332529463 575V 332529468

Compressor D 380V (units w/ VFD Starters) 332529384 380V (units w/o VFD Starters) 332529284 460V (units w/ VFD Starters) 332529364 460V (units w/o VFD Starters) 332529264 575V 332529269

Compressor E 380V (units w/ VFD Starters) 332529383 380V (units w/o VFD Starters) 332529283 460V (units w/ VFD Starters) 332529363 460V (units w/o VFD Starters) 332529263 575V 332529268

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 17

Refrigeration Section

Compressor Components

Y3A1

60

Y2A1

60A

15

11

60A

60B

Y3B1

Circuit # 1 shown

YT1

Y2B1

SL1

13

R1

2

2A

13A

2B

10

F13

60

14

50

53

52

51

54

See Compressor Charts to identify compressor.

Ref. Sch. Description Compressor Compressor Compressor Qty No. Sym. A B C per compr

2 Compressor Heater, 208-230V 735041265 735041265 735041265 1 2 Compressor Heater, 380V 735041266 735041266 735041266 1 2 Compressor Heater, 460V 735041267 735041267 735041267 1 2 Compressor Heater, 575V 735041268 735041268 735041268 1 2A Well- Heater 131506010 131506010 131506010 1 2B Bushing- Heater 132010016 132010016 132010016 1 10 F13, 23 Switch- High Pressure Control, 290 psi 073074009 073074009 073074009 1 11 OP1, 2 Transducer- Oil Pressure, 0 to 30 bar 10000109562 10000109562 10000109562 1 13 Relief Valve, 325 psi 735045859 735045859 735045859 1 13A Elbow- Relief Valve 10000108772 10000108772 10000108772 1 14 SL1, 2 Transducer- Slide Indicator (C21= L, B) 330591103 330591103 330591103 1 15 Discharge Shut-Off Valve 10000107127 10000107037 10000107037 1 50 Isolator, Compr. Mounting 10000107142 10000107142 10000107142 4 51 Screw, M8 x 2.5 C101 330821929 330821929 330821929 8 52 Washer, Plain, .312 040500322 040500322 040500322 8 53 Washer, Lock, .500 048164814 048164814 048164814 4 54 Screw, M12 x 1.75 330821921 330821921 330821921 4 55 Washer, Lock, .312 048164810 048164810 048164810 8

60 Y2*1-1, 2 Valve, Solenoid- Load 60A Y3*1-1, 2 Valve, Solenoid- Unload 60B YT-1, 2 Valve, Solenoid- Turbo

NS Suction Gasket 350233902 332115901 332115901 1 NS Oil Filter 332126801 332115201 332115201 1 NS Liq Injection Fitting- Compr (non-Economizer) 132010068 132010053 132010053 1 NS Liq Injection Fitting- Compr (with Economizer) 10000105096 10000105095 10000105095 1 NS Liq Injection Fitting- Rotolock to Copper 10000107074 10000107074 10000107074 1 NS Liq Injection O-Ring 070194921 070194971 070194971 1 NS Kit, O-Rings and Gaskets 128810917 128810919 128810919 1

1

Solenoids are comprised of: Valve Body & Adapter p/n 132010102; Valve Coil p/n 131066074; Valve Support Gasket p/n 332130201.

NS = Not Shown

1 1 1

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 18

Refrigeration Section

Compressor Components

Y3A1

60

Y2A1

60A

15

11

60A

60B

Y3B1

Circuit # 1 shown

YT1

Y2B1

SL1

13

R1

2

2A

13A

2B

10

F13

60

14

50

53

52

51

54

See Compressor Charts to identify compressor.

Ref. Sch. Description Compressor Compressor Qty No. Sym. D E per compr

2 Compressor Heater, 208/230V 735041265 735041265 1 2 Compressor Heater, 380V 735041266 735041266 1 2 Compressor Heater, 460V 735041267 735041267 1 2 Compressor Heater, 575V 735041268 735041268 1 2A Well- Heater 131506010 131506010 1 2B Bushing- Heater 132010016 132010016 1 10 F13, 23 Switch- High Pressure Control, 290 psi 073074009 073074009 1 11 OP1, 2 Transducer- Oil Pressure, 0 to 30 bar 10000109562 10000109562 1 13 Relief Valve, 325 psi 735045859 735045859 1 13A Elbow- Relief Valve 10000108772 10000108772 1 14 SL1, 2 Transducer- Slide Indicator (C21= L, B) 330591103 330591103 1 15 Discharge Shut-Off Valve 10000107037 10000107037 1 50 Isolator, Compr. Mounting 10000107046 10000107046 4 51 Screw, M8 x 2.5 330821929 330821919 8 52 Washer, Plain, .312 040500322 040500322 8 53 Washer, Lock, .500 048164814 048164814 4 54 Screw, M12 x 1.75 330821921 330821921 4 55 Washer, Lock, .312 048164810 048164810 8

60 Y2*1-1, 2 Valve, Solenoid- Load 60A Y3*1-1, 2 Valve, Solenoid- Unload 60B YT-1, 2 Valve, Solenoid- Turbo

NS Suction Gasket 332115901 332115901 1 NS Oil Filter 332115201 332115201 1 NS Liq Injection Fitting- Compressor (non-Economizer) 132010053 132010053 1 NS Liq Injection Fitting- Compressor (with Economizer) 10000105095 10000105095 1 NS Liq Injection Fitting- Rotolock to Copper 10000107074 10000107074 1 NS Liq Injection O-Ring 070194971 070194971 1 NS Kit, O-Rings and Gaskets 128810921 128810921 1

1

Solenoids are comprised of: Valve Body & Adapter p/n 132010102; Valve Coil p/n 131066074; Valve Support Gasket p/n 332130201.

NS = Not Shown

1 1

1

1 1

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 19

Refrigeration Section

Suction Lines, Discharge Lines, Liquid Injection Lines

WD2

609

608

603

605

DP2

604

Suction Line Detail Circuit #1 (Remote Evap)

303

Discharge Line

Circuit #1

500

22-24 Fan Units

501

504

503

505

508

Liquid Injection Detail

WD1

509

Circuit #1

309

313

Detail

shown

DP1

Discharge

Liquid

Injection

LJV1

304

601

600

Discharge Line

Detail

Circuit #2

22-24 Fan Units

shown

302

102

Suction Line Detail

Suction

Circuit #1 (Pkg’d Unit) Shown with Suction Shut-off Valve

102

Suction Line Detail Circuit #2 (Pkg’d Unit) Shown with Suction Shut-off Valve

202

100

204

120

100

104

ST1

ST2

200

220

200

311

Liquid Injection Detail

Circuit #2

16-20 Fan Unit

Shown

LJV2

404

402

403

202

Suction Line Detail Circuit #2 (Remote Evap)

411

413

409

Piping conﬁguration may vary.

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 20

Refrigeration Section

Suction Lines, Discharge Lines, Liquid Injection

Ref Sch. Part Part No. Sym. Description Number Qty.

Suction Line- Circuit #1 100 Valve- Relief 200 PSI 735045852 1 102 Valve- Suction Shutoff see next 2 pages 1 104 ST1 Sensor- Suction Temperature, Straight, 30 ft. 332519703 1 Sensor- Suction Temperature, Bent, 30 ft. 193414603 1 120 Charge Valve, .37 x .37 4 038689900 1 NS Pressure Switch, CL20 - OP5 4 073074010 1 NS SP1 Transducer- Suction -1 to 7 bar 10000109563 1 Suction Line- Circuit #2 200 Valve- Relief 200 PSI 735045852 1 202 Valve- Suction Shutoff see next 2 pages 1 204 ST2 Sensor- Suction Temperature, Straight, 30 ft. 332519703 1 Sensor- Suction Temperature, Bent, 30 ft. 193414603 1 220 Charge Valve, .37 x .37 4 038689900 1 NS Pressure Switch, CL20 - OP5 4 073074010 1 NS SP2 Transducer- Suction Pressure -1 to 7 bar 10000109563 1 Liquid Injection- Circuit #1 302 Fitting- Rotolock 10000107074 1 303 Valve- Schrader 071100801 1 304 LJV1 Valve- Solenoid 120V 331451002 1 309 Strainer 735030506 1 311 Valve- Ball 330286003 1 313 Cap- Valve 032943500 1 Liquid Injection- Circuit #2 402 Fitting- Rotolock 10000107074 1 403 Valve- Schrader 071100801 1 404 LJV2 Valve- Solenoid 120V 331451002 1 409 Strainer 735030506 1 411 Valve- Ball 330286003 1 413 Cap- Valve 032943500 1 Discharge Line- Circuit #1 500 Coupling 1 3.13 10000108703 1 501 Kit- Flange 1 4.12 735016406 1 NS Gasket- Discharge Shut-Off Valve 1 070199144 1 503 Valve- Schrader 071100801 1 504 Core- Valve 026541100 1 505 DP1 Transducer- Discharge Pressure 0 to 30 bar 10000109562 1 508 Tube- Sensor 070228901 1 509 WD1 Sensor- Discharge Temperature, 20 ft. 193414602 1 Discharge Line- Circuit #2 600 Coupling 2 3.13 10000108703 1 601 Kit- Flange 2 4.12 735016406 1 NS Gasket- Discharge Shut-Off Valve 2 070199144 1 603 Valve- Schrader 071100801 1 604 Core- Valve 026541100 1 605 DP2 Transducer- Discharge Pressure 0 to 30 bar 10000109562 1 608 Tube- Sensor 070228901 1 609 WD2 Sensor- Discharge Temperature, 20 ft. 193414602 1

1

Circuit 1 - On the following units, use Coupling/Adapter 735049707, Flange Kit 735016404, and Discharge Shut-Off Valve

Gasket 070199117: 170, 190, 210BDS (Std. Eff.) / 210, 230BDH (Hi Eff.) / 240, 265BDP (Prem. Eff.)

2

Circuit 2 - On the following units, use Coupling/Adapter 735049707, Flange Kit 735016404, and Discharge Shut-Off Valve

Gasket 070199117: 170BDS, 190BDS-wo/VFD Starter (Std. Eff.) / 210BDH (Hi Eff.) / 240BDP (Prem. Eff.)

4

Only on units with Remote Evaporator (Code 4 = SM, HM or PM)

NS = Not Shown

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 21

Refrigeration Section

Suction Shut Off Valves - Packaged Units

Packaged Units Standard Efﬁciency: Code 4 = SE, High Efﬁciency: Code 4 = HE, Premium Efﬁciency: Code 4 = PE

Ref. 102: Suction Shut Off Valve, Circuit 1

Unit Size Standard Eff. High Eff. Premium Eff.

170 073062104 -- - 190 073062104 -- - 200 332430701 -- - 210 073062104 073062104 - 225 332430701 -- - 230 -- 073062104 - 240 -- -- 073062104 250 332430701 332430701 - 260 332430701 -- - 265 -- -- 073062104 280 -- 073062103 - 290 073062103 -- 073062103 300 -- 073062103 - 310 073062103 -- 073062103 330 -- 073062103 073062103 350 073062103 073062103 - 365 -- -- 073062103 375 073062103 -- - 390 -- 073062103 - 400 -- -- 073062103 410 -- 073062103 --

Ref. 202: Suction Shut Off Valve, Circuit 2

Unit Size Standard Eff. High Eff. Premium Eff.

170 073062104 -- - 190 (Code 9=WD or SS) 073062104 -- - 190 (Code 9=VE or VF) 332430701 -- - 200 332430701 -- - 210 332430701 073062104 - 225 332430701 -- - 230 -- 332430701 - 240 -- -- 073062104 250 332430701 332430701 - 260 332430701 -- - 265 -- -- 073062103 280 -- 073062103 - 290 073062103 -- 073062103 300 -- 073062103 - 310 073062103 -- 073062103 330 -- 073062103 073062103 350 073062103 073062103 - 365 -- -- 073062103 375 073062103 -- - 390 -- 073062103 - 400 -- -- 073062103 410 -- 073062103 --

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 22

Refrigeration Section

Suction Shut Off Valves - Units with Remote Evaporator

Units with Remote EvapStandard Efﬁciency: Code 4 = SM, High Efﬁciency: Code 4 = HM, Premium Efﬁciency: Code 4 = PM

Ref. 102: Suction Shut Off Valve, Circuit 1

Unit Size Standard Eff. High Eff. Premium Eff.

170 073062104 -- - 190 073062104 -- - 200 332430701 -- - 210 073062104 073062104 - 225 332430701 -- - 230 -- 073062104 - 240 -- -- 073062104 250 332430701 332430701 - 260 332430701 -- - 265 -- -- 073062104 280 -- 332430701 - 290 332430701 -- 332430701 300 -- 332430701 - 310 332430701 -- 332430701 330 -- 332430701 332430701 350 332430701 332430701 - 365 -- -- 332430701 375 332430701 -- - 390 -- 332430701 - 400 -- -- 332430701 410 -- 332430701 --

Ref. 202: Suction Shut Off Valve, Circuit 2

Unit Size Standard Eff. High Eff. Premium Eff.

170 073062104 -- - 190 073062104 -- - 200 332430701 -- - 210 073062104 073062104 - 225 332430701 -- - 230 -- 073062104 - 240 -- -- 073062104 250 332430701 332430701 - 260 332430701 -- - 265 -- -- 073062104 280 -- 332430701 - 290 332430701 -- 332430701 300 -- 332430701 - 310 332430701 -- 332430701 330 -- 332430701 332430701 350 332430701 332430701 - 365 -- -- 332430701 375 332430701 -- - 390 -- 332430701 - 400 -- -- 332430701 410 -- 332430701 --

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 23

Refrigeration Section

Liquid Lines- Standard Efﬁciency

Packaged Units (Code 4= SE)

102

Evaporator

Circuit #2

100

101

102

113

108

112

107

114

124

LSV2

109

Circuit #1

102

101

100

116

115

107

EXV2

119

116

107

101

115

100

119

EXV1

109

124

LSV1

114

113

112

108

107

100

101

102

Piping conﬁguration may vary.

Ref Sch. Part Part Qty. No. Sym. Description Number per circuit

100 Valve- Schrader 071100801 2 101 Core- Valve 026541100 2 102 Cap- Valve 032943500 2 107 Valve- Charge .37 x .37 038689900 2 108 Valve- Ball 1.625 330286087 1 109 Bracket- Drier 10000101769 1 112 Shell- Filter Drier 071993505 1 113 Core- Filter Drier 330694401 4 114 Kit- Drier Gasket 074783601 2 115 Saddle- Sight Glass 330508705 1 116 Cap- Sight Glass 330508701 1 119 EXV1, 2 Valve- Electronic Expansion 12V/6W 10000107041 1 124 LSV1, 2 Valve- Liquid Line Solenoid C29= SD, SL 331451007 1

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 24

Refrigeration Section

Liquid Lines- Standard Efﬁciency

Remote Evaporator Units (Code 4= SM)

103

107

100

101

102

Circuit #1 Shown

Ref Sch. Part Part Qty. No. Sym. Description Number per circuit

100 Valve- Schrader 071100801 2 101 Core- Valve 026541100 2 102 Cap- Valve 032943500 2 103 Valve, Shut Off, 1.62 ODS x 1.62 ODS 032193508 1 107 Valve- Charge .37 x .37 038689900 2 NS EXV1, 2 Valve- Electronic Expansion 12V/6W NS LSV1, 2 Valve- Liquid Line Solenoid

3

ToidentifythesecomponentsonaunitwithRemoteEvaporator(Code4=SM,HMorPM),see"RemoteEvaporator RefrigerationKits". NS=NotShown

3

1

3

1

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 25

Refrigeration Section

Liquid Lines with Economizer- High & Premium Efﬁciency Units

(Code 04= H* or P*)

208

Compressor Economizer

Connection

Detail

201

200

105

From Economizer S4

116

Evaporator

101

115

Circuit 2

102

100

Circuit 1

100

102

Liquid

Line

Line Between

Economizer and Compressor

100

101

102

Detail

Equalization

Tube

From

Economizer

S4

109

To Compressor

105

100

101

102

114

113

112101

Representation of

Circuit 1 Shown

Conﬁguration

may vary

(Circuit 2 has same components)

108

Condenser to Economizer

Tee

To

S1

107

100

101

Detail

From Condenser

6

102

S4

S1

To Compressor

From Condenser

From Liquid Line Tee

ESV_

2

1

TXV_

From ESV

Economizer

S3

S2

Connects To Evaporator

Economizer to

Evaporator

Detail

107

119

EXV_

101

100

102

124

To Evaporator

From Economizer S2

LSV_

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 26

Refrigeration Section

Liquid Lines with Economizer- High & Premium Efﬁciency Units

(Code 04= H* or P*)

Ref Sch. Part Part Qty. No. Sym. Description Number per circuit

1 ESV1, 2 Valve- Economizer Solenoid 331451003 1 2 TXV1, 2 Valve- Thermal Expansion see next page 1 6 Economizer- Brazed Plate see next page 1 100 Valve- Schrader 071100801 4 101 Core- Valve 026541100 4 102 Cap- Valve 032943500 4 105 Valve- Check see next page 2 107 Valve- Charge .37 x .37 038689900 2 108 Valve- Ball 1.625 330286087 1 109 Bracket- Drier 10000101769 1 112 Shell- Filter Drier 071993505 1 113 Core- Filter Drier 330694401 4 114 Kit- Drier Gasket 074783601 2 115 Saddle- Sight Glass 330508705 1 116 Cap- Sight Glass 330508701 1

119 EXV1, 2 Valve- Electronic Expansion 12V/6W 10000107041 124 LSV1, 2 Valve- Liquid Line Solenoid C29= SD, SL 331451007

200 Connector- Economizer see next page 2 201 Fitting- Economizer see next page 2 208 O-Ring see next page 2

3

ToidentifythesecomponentsonaunitwithRemoteEvaporator(Code4=SM,HMorPM),see"RemoteEvaporator

RefrigerationKits".

3

1

3

1

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 27

Refrigeration Section

Liquid Lines with Economizer- High & Premium Efﬁciency Units

(Code 04= H* or P*)

High Efﬁciency: Code 4 = H*, Premium Efﬁciency: Code 4 = P*

Economizer, Circuit 1 Economizer, Circuit 2

Unit Size High Eff Premium Eff

210 A - 230 A - 240 -- A 250 B - 265 -- A 280 B - 290 -- B 300 B - 310 -- B 330 B B 350 D - 365 -- B 390 D - 400 -- D 410 D --

Ref. # Part Number Qty. per circuit Economizer A (from chart above)

2 Thermal Expansion Valve 330692926 1 6 Economizer 10000107021 1 105 Check Valve 070300704 2 200 Fitting- Compressor 10000105097 2 201 Fitting- Rotolock to Copper 10000108774 2 208 O-Ring 070194971 2

Unit Size High Eff Premium Eff

210 A - 230 B - 240 -- A 250 B - 265 -- B 280 B - 290 -- B 300 B - 310 -- B 330 D B 350 D - 365 -- D 390 D - 400 -- D 410 D --

Economizer B 2 Thermal Expansion Valve 330692927 1 6 Economizer 10000107023 1 105 Check Valve 070300705 2 200 Fitting- Compressor 10000105027 2 201 Fitting- Rotolock to Copper 10000107073 2 208 O-Ring 070194970 2

Economizer D 2 Thermal Expansion Valve 330692928 1 6 Economizer 10000107024 1 105 Check Valve 070300705 2 200 Fitting- Compressor 10000105027 2 201 Fitting- Rotolock to Copper 10000107073 2 208 O-Ring 070194970 2

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 28

50

Refrigeration Section

Condenser Coils and Fans

2

Fan

Detail

1

4

100A

C1

100B

C2

200B

200A

Condenser

Section

C3

5

C4

Fan Location Example

AWS 405

M101 M103 M105 M107 M109

Discharge End

M102 M104 M106 M108 M110

Ref Sch. Part Part Quantity No. Sym. Description Number

1 Panel- Fan Deck 10000108765 1 per fan - see next page 2 Grille- Fan 10000107008 1 per fan 3 Bracket- Fan Motor 10000100048 1 per fan 4 Blade- Fan 10000107009 1 per fan 5 M*** Motor- Fan, 208/230V 1.4 HP 10000108871 1 per fan 5 M*** Motor- Fan, 380V 1.4 HP 10000108872 1 per fan 5 M*** Motor- Fan, 460V 1.4 HP 10000108873 1 per fan 5 M*** Motor- Fan, 575V 1.4 HP 10000108874 1 per fan

M111

M112

M201 M203

M202 M204

M205 M207 M209

M206 M208 M210

M211

M212

3

50 WAA Sensor- Outdoor Air, 20 ft.

1

193414602 1 per unit 100A Coils- Condenser, C1 Circuit 1, LH Contact McQuay Parts 1 per unit 100B Coils- Condenser, C2 Circuit 1, RH Contact McQuay Parts 1 per unit 200A Coils- Condenser, C4 Circuit 2, LH Contact McQuay Parts 1 per unit 200B Coils- Condenser, C3 Circuit 2, RH Contact McQuay Parts 1 per unit

1

Mounted to Condenser Coil tubesheet behind the switch box.

***= Fan number 101 - 212.

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 29

Refrigeration Section

Fan Totals per Unit

Standard Efﬁciency: Code 4 = S*, High Efﬁciency: Code 4 = H*, Premium Efﬁciency: Code 4 = P*

Unit Starter Std. Eff. High Eff. Premium Eff. Size (Code 9) Ckt 1 Ckt 2 Total Ckt1 Ckt 2 Total Ckt 1 Ckt 2 Total

170 any 5 5 10 -- -- -- -- -- - 190 WD, SS 5 5 10 -- -- -- -- -- - 190 VE, VF 6 6 12 -- -- -- -- -- - 200 any 6 6 12 -- -- -- -- -- - 210 any 6 6 12 6 6 12 -- -- - 225 any 6 6 12 -- -- -- -- -- - 230 any -- -- -- 7 7 14 -- -- - 240 any -- -- -- -- -- -- 8 8 16 250 any 7 7 14 7 7 14 -- -- - 260 any 7 7 14 -- -- -- -- -- - 265 any -- -- -- -- -- -- 9 9 18 280 any -- -- -- 8 8 16 -- -- - 290 any 8 8 16 -- -- -- 9 9 18 300 any -- -- -- 8 8 16 -- -- - 310 any 8 8 16 -- -- -- 10 10 20 330 any -- -- -- 10 10 20 10 10 20 350 any 10 10 20 10 10 20 -- -- - 365 any -- -- -- -- -- -- 10 12 22 375 any 10 10 20 -- -- -- -- -- - 390 any -- -- -- 10 12 22 -- -- - 400 any -- -- -- -- -- -- 12 12 24 410 any -- -- -- 12 12 24 -- -- --

Code9:VE,VF=VFDStarter  WD=WyeDeltaStarter  SS=SolidStateStarter

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 30

10

Refrigeration Section

Evaporator Diagram

Packaged and Remote Evaporator Units

F116

9

8

1

7

4A

WOE

WIE

4

10

9

8A

12

5

18

2A

2

Liquid Connection

End

20

19

Suction Connection

End

20

15

5

18

14

6

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 31

Refrigeration Section

Evaporator Assemblies

Packaged Units (Code 4 = SE, HE, PE)

Ref. No. 1: Packaged Unit Evaporator Assembly

Evap Unit Sizes Left-Hand Evap Right-Hand Evap Group Code 23 = VL Code 23 = VR

Standard Efﬁciency Units (Code 4 = SE) A 170 10000108710 332532111 A 190 10000108710 332532111 A 200 10000108712 332532113 A 210 332532102 332532112 A 225 10000108712 332532113 A 250 10000108714 332532114 A 260 10000108714 332532114 B 290 10000108717 332532212 B 310 10000108717 332532212 B 350 10000108719 332532213 B 375 10000108719 332532213 High Efﬁciency Units (Code 4 = HE) A 210 332532102 332532112 A 230 10000108712 332532113 A 250 10000108712 332532113 B 280 332532201 332532211 B 300 332532201 332532211 B 330 10000108719 332532213 B 350 10000108719 332532213 B 390 10000108719 332532213 B 410 10000108719 332532213 Premium Efﬁciency Units (Code 4 = PE) B 240 332532302 332532312 B 265 332532302 332532312 C 290 332532401 332532411 C 310 332532401 332532411 C 330 332532402 332532412 C 365 332532402 332532412 C 400 332532402 332532412

For Evaporator components, determine Evap Group from above chart and see the page after next.

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 32

Refrigeration Section

Evaporator Kits

Remote Evaporator Units (Code 4 = SM, HM, PM)

Ref. #1: Remote Evaporator Kit

Evap Description / Unit Sizes Left-Hand Evap Left-Hand Evap Group Single Insulation Double Insulation

Standard Efﬁciency Units (Code 4 = SM) A 170 A 190 334043401 334043501 A 200 A 210 334043402 334043502 A 225 334043403 334043503 A 250 334043404 334043504 A 260 334033404 334043504 B 290 334043406 334043506 B 310 334043406 334043506 B 350 334043407 334043507 B 375 334043407 334043507 High Efﬁciency Units (Code 4 = HM) A 210 334043402 334043502 A 230 334043403 334043503 A 250 334043403 334043503 B 280 334043405 334043505 B 300 334043405 334043505 B 330 334043407 334043507 B 350 334043407 334043507 B 390 334043407 334043507 B 410 334043407 334043507 Premium Efﬁciency Units (Code 4 = PM) B 240 334043409 334043509 B 265 334043409 334043509 C 290 334043410 334043510 C 310 334043410 334043510 C 330 334043411 334043511 C 365 334043411 334043511 C 400 334043411 334043511

For Evaporator components, determine Evap Group from above chart and see next page.

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 33

Refrigeration Section

Evaporator Components

Packaged and Remote Evaporator Units

Evap Ref Sch. Part Part No. Qty. Group No. Sym. Description

A, B 2 Ferrule- Liquid E44070016 2 C 2 Ferrule- Liquid E44070043 2

A, B 2A Flange- Liquid E44060007 2 C 2A Flange- Liquid E44060009 2

All 4 WIE Sensor- Evaporator Inlet, 60 ft. (Packaged Units) 193414606 1 All 4A WOE Sensor- Evaporator Outlet, 60 ft. (Packaged Units) 193414606 1

All 4 WIE Sensor- Evaporator Inlet, 100 ft. (Remote Evap Units) 193414610 1 All 4A WOE Sensor- Evap Outlet, 100 ft. (Remote Evap Units) 193414610 1

All 5 Well- Sensor 070716307 2

A 6 R5 Heater- Evaporator E44196011 1 B, C 6 R5 Heater- Evaporator E44191111 1

All 7 F116 Switch- Evaporator Flow 331796201 1 Cable for Evap Flow Switch 330571403 1

A 8 Gasket- Inlet Head E44134053 1 B 8 Gasket- Inlet Head E44135062 1 C 8 Gasket- Inlet Head E44136601 1

A 8A Gasket- Suction Head E44134053 1 B 8A Gasket- Suction Head E44135062 1 C 8A Gasket- Suction Head E44136601 1

A 9 Gasket- Distributor E44134072 2 B 9 Gasket- Distributor E44135072 2 C 9 Gasket- Distributor E44136602 2

A 10 O'Ring- Tube Sheet E0041600 2 B 10 O'Ring- Tube Sheet E0062000 2

A, B 12 Bolt- Liquid Ferrule E10125400 8 C 12 Bolt- Liquid Ferrule E10154000 8

A 14 Bolt- Suction Connection E14155000 8 B, C 14 Bolt- Suction Connection E14156000 8

A 15 O'Ring- Suction E44130201 2 B 15 O'Ring- Suction E44136600 2 C 15 O'Ring- Suction E44130201 2

A 18 Bolt- Head (M16 x 1.5 x 70) E16157000 48 B 18 Bolt- Head (M16 x 1.5 x 70) E16157000 56 B 18 Bolt- Head (M14- 16 x 1.5 x 100) E16151000 2 B 18 Bolt- Head (M14- 16 x 1.5 x 135) E16151350 2 C 18 Bolt- Head (M14- 16 x 1.5 x 130) E16151300 22 C 18 Bolt- Head (M16 x 1.5 x 145) E16151400 4 C 18 Bolt- Head (M16 x 1.5 x 70) E16157000 22

All 19 Valve- Mini Ball, 0.50 NPT 071596201 1

All 20 Pad- Vibration, 4" x 3.25" 735008725 4

All Insulation (square feet, as needed) 047662050

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 34

Remote Evaporator Refrigeration Kits

Code 4 = SM, HM, PM

Part Part Description Number Qty.

Standard Efﬁciency Units (Code 4 = SM) Complete Kit 334043601 1 Valve- Electronic Expansion 10000107041 2 Cable, M12, 32.8 ft. 331409904 2 Tube- Sensor 070228901 2 Valve- Solenoid, 120V, 1.625 331451007 2 Saddle Adapter- Sight Glass, 1.625 330508705 2 Cap- Sight Glass 330508701 2 Shell- Filter Drier 071993505 2 Core- Filter Drier 070339101 8 Kit- Filter Drier Gasket 074783601 4 Valve- Charge, .37 x .37 038689900 2 Valve- Schrader 071100801 2 Core- Valve 026541100 2 Cap- Valve 032943500 2

High and Premium Efﬁciency Units (Code 4 = HM, PM) Complete Kit 334043611 1 Valve- Electronic Expansion 10000107041 2 Cable, M12, 32.8 ft. 331409904 2 Tube- Sensor 070228901 2 Valve- Solenoid, 120V, 1.625 331451007 2 Saddle Adapter- Sight Glass, 1.625 330508705 2 Cap- Sight Glass 330508701 2 Shell- Filter Drier 071993505 2 Core- Filter Drier 070339101 16 Kit- Filter Drier Gasket 074783601 8 Valve- Charge, .37 x .37 038689900 2 Valve- Schrader 071100801 2 Core- Valve 026541100 2 Cap- Valve 032943500 2

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 35

Coil and Base Frame Grilles

Standard Efﬁciency: Code 4 = S* High Efﬁciency: Code 4 = H* Premium Efﬁciency: Code 4 = P*

Std. High Prem. Unit Starter Eff. Eff. Eff. Size (Code 9) Total Total Total Fans Fans Fans

170 any 10 -- - 190 WD or SS 10 -- - 190 VF or VE 12 -- - 200 any 12 -- - 210 any 12 12 - 225 any 12 -- - 230 any -- 14 - 240 any -- -- 16 250 any 14 14 - 260 any 14 -- - 265 any -- -- 18 280 any -- 16 - 290 any 16 -- 18 300 any -- 16 - 310 any 16 -- 20 330 any -- 20 20 350 any 20 20 - 365 any -- -- 22 375 any 20 -- - 390 any -- 22 - 400 any -- -- 24 410 any -- 24 --

Coil Grilles

Code 28=G, F

16 Fan Unit shown

1

Ref Part Part Quantity No. Description Number

1 Grille- Coil 1 10000107007 1 per fan

1

Each coil louver is attached using six (6) screws p/n 331578401.

3

2

Base Frame Grilles

Code 28=F, C

16 Fan Unit shown

4

Ref Part Part Quantity No. Description Number

1 Grille- Base 1 10000108704 1 per fan 2 Grille- Left Hand Rear 2 10000108705 1 per unit 3 Grille- Right Hand Rear 2 10000108706 1 per unit 4 Grille- Front 2 10000108707 1 per unit

1

Each base grille is attached using four (4) screws p/n 331578401.

2

Each front or rear grille is attached using six (6) screws p/n 331578401. Front Grille not used on units with VFD Starters.

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 36

1

Standard Efﬁciency: Code 4 = S* High Efﬁciency: Code 4 = H* Premium Efﬁciency: Code 4 = P*

Std. High Prem. Unit Starter Eff. Eff. Eff. Size (Code 9) Total Total Total Fans Fans Fans

170 any 10 -- - 190 WD or SS 10 -- - 190 VF or VE 12 -- - 200 any 12 -- - 210 any 12 12 - 225 any 12 -- - 230 any -- 14 - 240 any -- -- 16 250 any 14 14 - 260 any 14 -- - 265 any -- -- 18 280 any -- 16 - 290 any 16 -- 18 300 any -- 16 - 310 any 16 -- 20 330 any -- 20 20 350 any 20 20 - 365 any -- -- 22 375 any 20 -- - 390 any -- 22 - 400 any -- -- 24 410 any -- 24 --

Coil Louvers

Code 28=L, B, C

2

16 Fan Unit shown

Ref Part Part Quantity No. Description Number

2 Louvered Panel- Coil 1 10000101793 1 per fan

1

Each coil louver is attached using six (6) screws p/n 331578401.

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 37

Base Frame Louvers

Code 28= B

10-16 Fan Units

Standard Efﬁciency: Code 4 = S*

High Efﬁciency: Code 4 = H*

Premium Efﬁciency: Code 4 = P*

Std. High Prem. Unit Starter Eff. Eff. Eff. Size (Code 9) Total Total Total Fans Fans Fans

170 any 10 -- - 190 WD or SS 10 -- - 190 VF or VE 12 -- - 200 any 12 -- - 210 any 12 12 - 225 any 12 -- - 230 any -- 14 - 240 any -- -- 16 250 any 14 14 - 260 any 14 -- - 265 any -- -- 18 280 any -- 16 - 290 any 16 -- 18 300 any -- 16 - 310 any 16 -- 20 330 any -- 20 20 350 any 20 20 - 365 any -- -- 22 375 any 20 -- - 390 any -- 22 - 400 any -- -- 24 410 any -- 24 --

10

11

6

4

6

10

4

10

4

6

5

4

5

7

5

4

3

10 -12 Fan Unit

4

3

6

14 Fan Unit

3

5

2

6

2

7

2

10

4

11

10

# of Fans screws Ref Part Part per No. Description Number 10 12 14 16 panel

2 Louvered Panel- Rear Bottom 10000101795 1 1 1 1 16 3 Louvered Panel- Rear Top 10000101796 1 1 1 1 10 4 Louvered Panel- Side 10000101797 8 8 8 12 6 5 Louvered Panel- Side 10000101798 2 2 2 2 6 6 Louvered Panel- Side 10000101799 2 2 2 2 6 7 Louvered Panel- Side 10000101792 2 6 10 Louvered Panel- Front Side 1 332527901 2 2 2 2 9 11 Louvered Panel- Front Center 1 332527902 1 1 1 1 10

1

Front Side and Front Center Panels not used on units with VFD Starters. 2 Screw part number 331578401.

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 38

5

4

16 Fan Unit

6

2

Standard Efﬁciency: Code 4 = S*

High Efﬁciency: Code 4 = H*

Premium Efﬁciency: Code 4 = P*

Std. High Prem. Unit Starter Eff. Eff. Eff. Size (Code 9) Total Total Total Fans Fans Fans

170 any 10 -- - 190 WD/SS 10 -- - 190 VF/VE 12 -- - 200 any 12 -- - 210 any 12 12 - 225 any 12 -- - 230 any -- 14 - 240 any -- -- 16 250 any 14 14 - 260 any 14 -- - 265 any -- -- 18 280 any -- 16 - 290 any 16 -- 18 300 any -- 16 - 310 any 16 -- 20 330 any -- 20 20 350 any 20 20 - 365 any -- -- 22 375 any 20 -- - 390 any -- 22 - 400 any -- -- 24 410 any -- 24 --

Base Frame Louvers

Code 28= B

18-20 Fan Units

4

6

10

11

10

4

5

3

4

2

4

18 Fan Unit

3

5

2

6

10

11

10

4

5

4

20 Fan Unit

# of Fans screws Ref Part Part per No. Description Number 18 20 panel

2

2 Louvered Panel- Rear Bottom 10000101795 1 1 16 3 Louvered Panel- Rear Top 10000101796 1 1 10 4 Louvered Panel- Side 10000101797 14 16 6 5 Louvered Panel- Side 10000101798 2 2 6 6 Louvered Panel- Side 10000101799 2 2 6 10 Louvered Panel- Front Side 1 332527901 2 2 9 11 Louvered Panel- Front Center 1 332527902 1 1 10

1

Front Side and Front Center Panels not used on units with VFD Starters.

2

Screw part number 331578401.

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 39

Standard Efﬁciency: Code 4 = S*

High Efﬁciency: Code 4 = H*

Premium Efﬁciency: Code 4 = P*

Std. High Prem. Unit Starter Eff. Eff. Eff. Size (Code 9) Total Total Total Fans Fans Fans

170 any 10 -- - 190 WD/SS 10 -- - 190 VF/VE 12 -- - 200 any 12 -- - 210 any 12 12 - 225 any 12 -- - 230 any -- 14 - 240 any -- -- 16 250 any 14 14 - 260 any 14 -- - 265 any -- -- 18 280 any -- 16 - 290 any 16 -- 18 300 any -- 16 - 310 any 16 -- 20 330 any -- 20 20 350 any 20 20 - 365 any -- -- 22 375 any 20 -- - 390 any -- 22 - 400 any -- -- 24 410 any -- 24 --

4

Base Frame Louvers

Code 28= B

22-24 Fan Units

6

5

4

6

10

11

10

5

4

6

5

4

3

6

5

4

5

2

6

4

5

6

5

6

22 Fan Unit

3

5

2

6

4

24 Fan Unit

10

11

10

5

6

4

5

# of Fans screws Ref Part Part per No. Description Number 22 24 panel

2

2 Louvered Panel- Rear Bottom 10000101795 1 1 16 3 Louvered Panel- Rear Top 10000101796 1 1 10 4 Louvered Panel- Side 10000101797 10 16 6 5 Louvered Panel- Side 10000101798 6 4 6 6 Louvered Panel- Side 10000101799 6 4 6 10 Louvered Panel- Front Side 1 332527901 2 2 9 11 Louvered Panel- Front Center 1 332527902 1 1 10

1

Front Side and Front Center Panels not used on units with VFD Starters.

2

Screw part number 331578401.

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 40

Controls

Units with Wye-Delta or Solid State Starter (Code 9 = WD, SS)

Box Locations and Label Detail

Control Panel Power Panel- Left Side Power Panel- Right Side

5

3

4

Terminal Box

(one per compressor)

2

6

1

Label Detail

For all control components not detailed or for unit speciﬁc controls (i.e. main disconnect, solid state contactors), please contact McQuay Parts with the Control Box Serial Number and Control Box Part Number. These numbers are located on the Control box rating label (see example below). This label is found inside the panel.

Control Box Serial Number “S” + Year + ##### + detail#

Circuit 2

Starter Box

Fan VFD location

Solid State

Starter Panel

(one per compressor)

Circuit 2 shown

or

Wye- Delta

Starter Panel

(one per compressor)

Circuit 2 shown

Control Box Part Number

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 41

Controls

Units with Wye-Delta or Solid State Starter (Code 9 = WD, SS)

Control Panel Detail

REC1

FC

Q0

Q1

Q2

Q12

K11

F59 F12

Q11

AC

UC

Sch. Part Part Sym. Description Number Qty.

AC Expansion Controller- Alarms 193407501 1 AWM Advanced Web Module 2 193408502 1 FC Expansion Controller- Fans 193407601 1 F12 Fuse- Outlet 300046446 1 F59 Fuse- Evaporator Heater Protection 300046455 1 K11 Relay- Emergency Stop 300046445 1 Q0 Switch- Unit Shut Off 300046456 1 Q1 Switch- Pumpdown Circuit #1 300046456 1 Q2 Switch- Pumpdown Circuit #2 300046456 1 Q11 Switch- Emergency Stop 1 300046448 1 Q12 Circuit Breaker 300046447 1 REC1 Receptacle 330472601 1 UC Controller- MicroTech III 193407301 1

1

Mounted through the door.

2

This control board must be programmed in order to function correctly. When ordering a replacement, provide the unit model and se-

rial number so that unit speciﬁc software can be loaded before shipment.

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 42

Controls

Units with Wye-Delta or Solid State Starter (Code 9 = WD, SS)

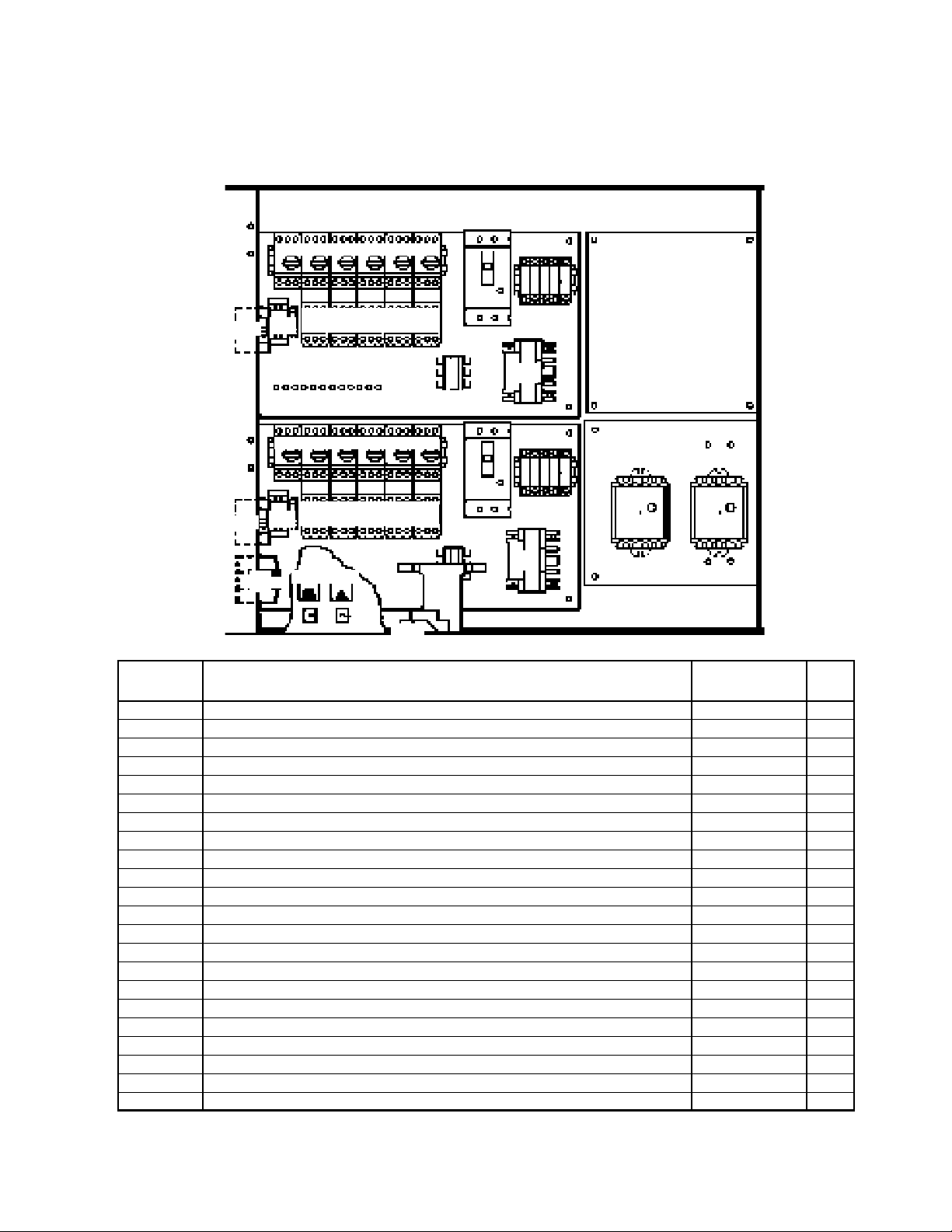

Power Panel Detail

F112

F212

Q101 Q102 Q103 Q104 Q105 Q107

KM

K16

Q201 Q202 Q203 Q204 Q205 Q207

K26

T2

KM

102

103KM104

KM

202KM203KM204

AM1

VM1

KM 105KM107

KM 205KM207

F120

F100

UC

F200

T1

LR1

LR2

F130

F230

GFR1

GFR2

Sch. Part Part Sym. Description Number Qty.

AM1 Ammeter Code 14= A See next page 1 F100, 200 Circuit Breaker- Circuit #1 Fans 600V/100A 300043195 2 F112, 212 Phase Voltage Monitor 300040118 2 F120 Fuse- Control Transformer 208/230V 300046446 1 F120 Fuse- Control Transformer 380V 300046449 1 F120 Fuse- Control Transformer 460V, 575V 300046450 1 F130, 230 Fuse- PVM 300046454 2 GFR1, 2 Relay- Ground Fault 330315101 2 K16, 26 Relay- Fan Motor 300046445 2 KM102- 107 Contactor- Fans Circuit #1 300046444 1/fan KM202- 207 Contactor- Fans Circuit #2 300046444 1/fan LR1, 2 Line Reactor 460V 300046411 2 Q101- 107 MSP- Fans Circuit #1 300046443 1/fan Q201- 207 MSP- Fans Circuit #2 300046443 1/fan T2 Transformer 24V 300046472 1 T1 Transformer- Control 208/230/460V:120V 300046451 1 T1 Transformer- Control 380V:120V 300046453 1 T1 Transformer- Control 575V:120V 300046452 1 VFD1, 2 Fan VFD 2 208/230V 300046457 2 VFD1, 2 Fan VFD 2 380V, 460V 300046412 2 VFD1, 2 Fan VFD 2 575V 300046259 2 VM1 Volt Meter: 0- 600V 1 Code 14= A 300046460 1

1

Mounted on the outside of the power panel door.

2

Not shown - The Fan VFDs are located on the cross rail near the front of the evaporator.

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 43

Controls

Units with Wye-Delta or Solid State Starter (Code 9 = WD, SS)

Power Panel Detail

AM1: Ammeter

Voltage Unit Size / Efﬁciency Descr. Part Number Std Hi Prem

208V, 230V all all all Ammeter 0-1500A 300046459

380V 190-260 210-250 210-250 Ammeter 0-600A 300046458 380V 290 -- -- Ammeter 0-1500A 300046459 380V -- 280 310 Ammeter 0-600A 300046458 380V 310-375 300-410 330-400 Ammeter 0-1500A 300046459

460, 575V 190-290 210-280 240-310 Ammeter 0-600A 300046458 460V, 575V 375 350-410 400 Ammeter 0-1500A 300046459

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 44

Controls

Units with Wye-Delta or Solid State Starter (Code 9 = WD, SS)

Power Panel Detail

M10

F1 or

Q20

GFR1 CT

Q10

or

P10

F2

Single Point Connection (Code 12= PC, DC, DH) Shown

Sch. Sym. Part Description Q10 Switch- Main Disconnect Units with Disc Switch: C12= DC, DH, WN, WH Q20 Switch- Main Disconnect Only on Multi-Point units: C12= WN, WH

P10 Power Block- Main Units with Power Block: C12= PC

F1, 2 Circuit Breaker- Compressor 1, 2, 3 Only on Single Point units: C12= PC, DC, DH

To insure proper replacement part number for any of the items above, contact McQuay Parts with the Control Box Serial Number and Control Box Part number. See earlier Controls page for Label example.

Sch. Sym. Part Description Part Number M10 Control Box Exhaust Fan 300047148

Sch. Sym. Code 12 Voltage Unit Size / Efﬁciency Part Number Std Hi Prem

GFR1 CT Multi Point Units all all all all 300043558

GFR1 CT Single Pt Units 208V, 230V all all all 349937410 GFR1 CT Single Pt Units 380V 190-260 210-250 210-290 300043558 GFR1 CT Single Pt Units 380V 290 -- -- 349937410 GFR1 CT Single Pt Units 380V -- 280 310 300043558 GFR1 CT Single Pt Units 380V 310 -- -- 349937410 GFR1 CT Single Pt Units 380V -- 300 330 300043558 GFR1 CT Single Pt Units 380V 350-375 330-410 365-400 349937410

GFR1 CT Single Pt Units 460V 190-310 210-300 240-330 300043558 GFR1 CT Single Pt Units 460V 350 -- 365 349937410 GFR1 CT Single Pt Units 460V -- 330 -- 300043558 GFR1 CT Single Pt Units 460V 375 350-410 400 349937410

Multi-Point Units: Code 12= WN, WH; Single Point Units: Code 12= PC, DC, DH

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 45

Controls

Solid State Starter Panel

Code 09= SS

KM1-1

K2B-1

LJV-1

MP1

KT-1

F0-1

MPR-1

EEXV1

CC1

T20-1

Sch. Part Part Qty per Sym. Description Number panel

CC1, 2 Controller- Circuit 193407501 1 EEXV1, 2 Controller- Expansion Valve 300046465 1 F0-1, 2 MSP- Heater 300044140 1 K2B-1, 2 Contactor- Turbo 349934724 1 KLJ-1, 2 Relay- Liquid Injection 300046470 1 KM1-1, 2 Contactor- Solid State see next page KT-1, 2 Relay- Turbo Solenoid 300046470 1 MP1, 2 Motor Protector 330343902 1 MPR-1, 2 Relay- Motor Protection 330278110 1 T20-1, 2 Transformer- 120V to 24V 300046466 1

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 46

Controls

Solid State Starter Panel

Code 09= SS

7

2

3

KM1-1,2 Contactor Assy AWS 170-290, Std Eff, circuit 1 AWS 170-260, Std Eff, circuit 2 300048732 used on: AWS 210-330, High Eff, circuit 1 AWS 210-300, High Eff, circuit 2 AWS 240-365, Prem Eff, circuit 1 AWS 240-330, Prem Eff, circuit 2

Sch. Part Part Qty per Sym. Description Number panel

KM1-1, 2 Contactor - Solid State, complete assembly 300048732 1 includes: ' 1 MX2 Low Voltage Motor Starter Card 300048820 1 2 Contactor Bypass, 75A, 50HP, 120V 300040148 3 3 Surge Suppressor 300043749 3 5 SCR, 660A, 1800V 300042134 6 6 Current Transformer 300042127 3 7 Snubber Assembly 300043777 1

MX2 Card

1

6

5

KM1-1,2 Contactor Assy AWS 310-375, Std. Eff, circuit 1 AWS 290-375, Std Eff, circuit 2 300047990 used on: AWS 350-410, High Eff, circuit 1 AWS 330-410, High Eff, circuit 2 AWS 400, Prem Eff, circuit 1 AWS 365-400, Prem Eff, circuit 2

Sch. Part Part Qty per Sym. Description Number panel

KM1-1, 2 Contactor - Solid State, complete assembly 300047990 1 includes: ' 1 MX2 Low Voltage Motor Starter Card 300048820 1 2 Contactor Bypass, 85A, 60HP, 120V 300043218 3 3 Surge Suppressor 300043749 3 5 SCR, 660A, 1800V 300042134 6 6 Current Transformer 300042127 3 7 Snubber Assembly 300043777 1

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 47

Controls

Wye-Delta Starter Panel

Code 09= WD

KT-1

K2B-1

LJV-1

KT1-1

FO-1

MPR-1

EEXV1

CC1

T20-1

KM3-1

KM2-1

F5-1

MP1

KM1-1

Sch. Part Part Qty per Sym. Description Number panel

CC1, 2 Controller- Circuit 193407501 1 EEXV1, 2 Controller- Expansion Valve 300046465 1 F0-1 , 2 Heater- MSP 300044140 1 F5-1, 2 Overload- Thermal See next page K2B-1, 2 Contactor- Turbo Relay 349934724 1 KLJ-1, 2 Relay- Liquid Injection 300046470 1 KM1-1, 2 Contactor- Wye Delta See next page KM2-1, 2 Contactor- Wye Delta See next page KM3-1, 2 Contactor- Wye Delta See next page KT-1, 2 Relay- Turbo Solenoid 300046470 1 KT1-1, 2 Time Delay- Starter 300046469 1 MP1, 2 Motor Protector 330343902 1 MPR-1, 2 Relay- Motor Protection 330278110 1 T20-1, 2 Transformer- 120V to 24V 300046466 1

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 48

Controls

Wye-Delta Starter Panel

Code 09= WD

Starter Label example.

Refer to the Starter Label to identify the Starter Max RLA.

Starter Compressor Circuit Breakers Thermal

Max Unit KM1-1, 2 Overload RLA Voltage KM2-1, 2 KM3-1,2 F5-1, 2

142A all 105A 300042917 105A 300042917 107A 300046492

200A all 150A 300042135 105A 300042917 130A 300046493 241A all 180A 300040787 180A 300040787 150A 300046494 275A all 250A 300042136 180A 300040787 150A 300046494 317A all 250A 300042136 180A 300040787 200A 300046495 413A 208V 300A 300042137 300A 300042137 250A 300046496 413A 230V 300A 300042137 180A 300040787 250A 300046496 413A 380V w/o Economizer 300A 300042137 300A 300042137 250A 300046496 413A 380V w/ Economizer 300A 300042137 180A 300040787 250A 300046496 551A all 400A 300042138 300A 300042137 350A 300046497

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 49

Controls

Power Factor Correction Capacitors (PFCC)

Code 16= C

12 Fan unit shown. Conﬁguration similar for 10-20 Fan and 24 Fan units. For 22 Fan units, the PFCC panels are mounted on both sides of the evaporator.

FU1

PC

FU2

FU3

LT 1,2,3

PA

C2

C1

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 50

Controls

Power Factor Correction Capacitors (PFCC)

Code 16= C

208V 230V 460V 575V

PFCC

Part Number

from label on panel »»

332690001

332690002

332690003

332690004

332690008

332690009

332690010

332690011

332690012

332690013

Sch Description Part Number Sym

C1 Capacitor 1 332690220 1 1 C1 Capacitor 1 332690221 1 1 C1 Capacitor 1 332690229 1 C1 Capacitor 1 332690223 1 C1 Capacitor 1 332690226 1 C1 Capacitor 1 332690227 1 1 C1 Capacitor 1 332690228 1

Quantity per PFCC panel

C2 Capacitor 2 332690220 1 C2 Capacitor 2 332690221 1 1 C2 Capacitor 2 332690219 1 C2 Capacitor 2 332690227 1

FU1,2,3 Fuse 332690230 3 3 FU1,2,3 Fuse 332690231 3 FU1,2,3 Fuse 332690232 3 FU1,2,3 Fuse 332690234 3 3 FU1,2,3 Fuse 332690235 3 FU1,2,3 Fuse 332690236 3 3 FU1,2,3 Fuse 332690237 3

PC1 or PC2 Contactor 300043015 1 PC1 or PC2 Contactor 300040148 1 PC1 or PC2 Contactor 300043015 1 PC1 or PC2 Contactor 300040147 1 PC1 or PC2 Contactor 300044115 1 1 PC1 or PC2 Contactor 300040950 1 1 PC1 or PC2 Contactor 300043986 1 1

PA1 or PA2 Aux Contacts 332690206 1 1 1 1

PA1 or PA2 Aux Contacts 332690207 1 1 1 1 1 1

LT1,2,3 Pilot Lights 332690210 3 3 3 3 3 3 3 3 3 3

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 51

Controls

Units with VFD Starters (Code 9 = VE or VF)

Box Locations and Label Detail

Control Panel Power Panel

Label Detail

For all control components not detailed or for unit speciﬁc controls (i.e. main disconnect, solid state contactors), please contact McQuay Parts with the Control Box Serial Number and Control Box Part Number. These numbers are located on the Control box rating label (see example below). This label is found inside the panel.

Control Box Serial Number “S” + Year + ##### + detail#

Fan VFD location

Control Box Part Number

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 52

Controls

Units with VFD Starters (Code 9 = VE or VF)

Control Side

Q110 Q107 Q105 Q103 Q102 Q101

Q210 Q207 Q205 Q203 Q202 Q201

K11 K13

K16 MPR1 KLJ-1

K23

K26 MPR2 KLJ-2

T20-1, T20-2

FUSES

REC1

AC

CC2

Q0 Q1 Q2

UC

FC, FC2

CC1

EEXV1

EEXV2

GFR1

T2

MP1, MP2

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 53

Controls

Units with VFD Starters (Code 9 = VE or VF)

Control Side

Sch. Part Part Sym. Description Number Qty.

AC Expansion Controller- Alarms 193407501 1 AWM Advance Web Module 2 193408502 1 CC1,2 Controller- Circuit 193407501 2 EEXV1,2 Extension I/O for Electr. Exp. Valve (Code 29= LD or SL) 193407801 2 EEXV1,2 Extension I/O for Electr. Exp. Valve (Code 29= ND or SD) 193407901 2 F11 Fuse- Unit Controller, 10A Rejection Type 349937131 1 F12 Fuse- Outlet 349937131 1 F59 Fuse- Evaporator Heater Protection 349937116 1 F120 Fuse- Control Transformer, 12A Rejection Type (380V) 349937132 2 F120 Fuse- Control Transformer, 9A Rejection Type (460V) 349937130 2 FC, FC2 Expansion Controller- Fans 193407601 2 GFR1 Relay- Ground Fault 193432101 * K11 Relay- Emergency Stop 349934765 1 K13 Relay- Mechanical High Pressure, Circuit 1 349934764 1 K16 Relay- Fan Motor, Circuit 1 349934764 1 K23 Relay- Mechanical High Pressure, Circuit 2 349934764 1 K26 Relay- Fan Motor, Circuit 2 349934764 1 KLJ-1,2 Relay- Liquid Injection 193439901 2 MP1,2 Motor Thermal Protection 193445901 2 MPR1,2 Relay- Motor Protector 349934762 2 Q0 Switch- Unit Shut Off 001355000 1 Q1,2 Switch- Pumpdown 001355000 1 Q11 Switch- Emergency Stop (Not shown - mounted through the door) 193441101 1 REC1 Receptacle- Ground Fault Interrupter 039003600 1 T2 Transformer- 100VA, 115V-24V 330386105 1 T20-1,2 Transformer- 50VA, 115V-24V 349937203 2 UC Controller- MicroTech III 193407301 1 VFD1, 2 Fan VFD 1 193445601 2

1

Not shown - Fan VFDs are located on the left wall of the Control Side on units with VFD Starters.

2

This control board must be programmed in order to function correctly. When ordering a replacement, provide the unit model and serial number so that unit speciﬁc software can be loaded before shipment. *Qty = 1 on Std Short Circuit units (Code 12 = PC,DC,WN); Qty = 3 High Short Circuit units (Code 12 = DH, WH)

Code 14=A Unit Size Efﬁciency Voltage Description Part Number Qty

(Code 4)

VM1 all all all Voltmeter- 0-600V

1

193446701 1

AM1 170 - 200 Standard all Ammeter- 0-600A 1 193446001 1 AM1 210 - 230 High all Ammeter- 0-600A 1 193446001 1 AM1 250 High 380V Ammeter- 0-600A 1 193446001 1 AM1 250 High 460V Ammeter- 0-600A 1 193446001 1 AM1 280 High 380V Ammeter- 0-1200A 1 193446002 1 AM1 280 High 460V Ammeter- 0-1200A 1 193446001 1 AM1 300 - 410 High all Ammeter- 0-600A 1 193446002 1 AM1 240 - 265 Premium all Ammeter- 0-600A 1 193446001 1 AM1 290 Premium 380V Ammeter- 0-1200A 1 193446002 1 AM1 290 Premium 460V Ammeter- 0-600A 1 193446001 1 AM1 310 Premium 380V Ammeter- 0-1200A 1 193446002 1 AM1 310 Premium 460V Ammeter- 0-1200A 1 193446001 1 AM1 330 - 400 Premium all Ammeter- 0-1200A 1 193446002 1

1

Mounted on the outside of the control box door.

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 54

Controls

Units with VFD Starters (Code 9 = VE or VF)

Control Side

Units with High Short Circuit Current Rating (Code 12=DH,WH) - Q101-210: Contact McQuay Parts

Units with Standard Short Circuit Current Rating (Code 12 = PC, DC, WN)

Sch. Part Part Sym. Description Number Qty.

Units without Fan VFDs (Code 27 = F) Q101-110 MSP- Fans Circuit #1 349934055 1/fan Q201- 210 MSP- Fans Circuit #2 349934055 1/fan

Units with Fan VFDs (Code 27 = V) Q101 Manual Mtr Starter- Fans Circuit #1 193439703 1/fan Q201 Manual Mtr Starter- Fans Circuit #2 193439703 1/fan Q102- 110 MSP- Fans, Low Short Circuit Circuit #1 349934055 1/fan Q202- 210 MSP- Fans, Low Short Circuit Circuit #2 349934055 1/fan

Units with Standard Short Circuit Current Rating (Code 12 = PC, DC, WN)

Sch. Part Part Sym. Description Number Qty.

NS F10 Exhaust Fan Fuse, 10A 049759816 1

NS F100 Circuit Breaker- Circuit #1 Fans Contact McQuay Parts NS F200 Circuit Breaker- Circuit #2 Fans Contact McQuay Parts

NS JFU1,2,3 High Short Circuit Fuse, 30A, 600V 193403108 ** 1 NS JFU1,2,3 High Short Circuit Fuse, 60A, 600V 193403113 ** 1 NS JFU1,2,3 High Short Circuit Fuse, 100A, 600V 193403117 ** 1

NS F130 Fuse- PVM 349937120 1

NS KM101- 110 Contactor- Fans Circuit #1 349932123 1/fan NS KM201- 210 Contactor- Fans Circuit #2 349932123 1/fan

NS LR1, 2 Line Reactor 349964902 2

NS SS1 Switch- Voltmeter 193446601 1 NS SS2 Switch- Ammeter 193446101 1

** Contact McQuay Parts to determine which High Short Ckt Fuse is used in a speciﬁc unit. NS = Not Shown

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 55

Controls

Units with VFD Starters (Code 9 = VE or VF)

Power Side

VFU1 VFU2

K1

K2 F01 F02

F1, F2

VFD1

CT6

CT5

VFD2

CT4

Q10 or PB1

GCT1

T1

Q12

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 56

Controls

Units with VFD Starters (Code 9 = VE or VF)

Power Side

Sch. Part Part Sym. Description Number Qty.

F0-1,2 Crankcase Heater MSP (Code 12= PC, DC or WN) 349934026 2 F0-1,2 Crankcase Heater MSP (Code 12= DH or WH) 349934006 2

K1,2 Relay- Crankcase Heater (Code 12= PC, DC or WN) 193454201 2 K1,2 Relay- Crankcase Heater (Code 12= DH or WH) 193454301 2

Q12 Fuse- Control Transformer, 20A Non-rejection Type 349937036 1

T1 Transformer- Control, 1500VA, 380V-115V (380V units) 349992907 1 T1 Transformer- Control, 1500VA, 460V-115V (460V units) 038253957 1 T1 Transformers include the following: Finger Safe Cover for T1 349955901 Fuse Puller Kit for T1 349955801

Sch. Part Unit Efﬁciency Voltage Current Part Qty Sym. Description Size (Code 4) Relay Number

CT 4,5,6 Current Transformer 170-200 Standard 380V, 460V 600:5A 193432206 3 CT 4,5,6 Current Transformer 210-230 High 380V, 460V 600:5A 193432206 3 CT 4,5,6 Current Transformer 250 High 380V 600:5A 193432206 3 CT 4,5,6 Current Transformer 250 High 460V 600:5A 193432206 3 CT 4,5,6 Current Transformer 280 High 380V 1200:5A 193432207 3 CT 4,5,6 Current Transformer 280 High 460V 600:5A 193432206 3 CT 4,5,6 Current Transformer 300-350 High 380V, 460V 1200:5A 193432207 3 CT 4,5,6 Current Transformer 390-410 High 460V 1200:5A 193432207 3 CT 4,5,6 Current Transformer 240-265 Premium 380V, 460V 600:5A 193432206 3 CT 4,5,6 Current Transformer 290 Premium 380V 1200:5A 193432207 3 CT 4,5,6 Current Transformer 290 Premium 460V 600:5A 193432206 3 CT 4,5,6 Current Transformer 310 Premium 380V 1200:5A 193432207 3 CT 4,5,6 Current Transformer 310 Premium 460V 600:5A 193432206 3 CT 4,5,6 Current Transformer 330-400 Premium 380V, 460V 1200:5A 193432207 3

Sch. Unit Efﬁciency Part Sym. Size (Code 4) Number Qty

Units with Single Point Pwr Blk or Disconnect (Code 12 = PC, DC or DH) GCT1 Ground Fault Current Sensor 170-200 Standard 193432203 1 GCT1 Ground Fault Current Sensor 210-300 High 193432203 1 GCT1 Ground Fault Current Sensor 330-410 High 193432205 1 GCT1 Ground Fault Current Sensor 240-330 Premium 193432203 1 GCT1 Ground Fault Current Sensor 365-400 Premium 193432205 1

Units with Multi Point Disconnect (Code 12 = WN or WH) GCT1,2,3 Ground Fault Current Sensor 170-410 all 193432203 3

Standard Efﬁciency: Code 4 = S*, High Efﬁciency: Code 4 = H*, Premium Efﬁciency: Code 4 = P*

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 57

Controls

Units with VFD Starters (Code 9 = VE or VF)

Power Side

VFD-1, VFD-2 Compressor VFD Starter

Unit Efﬁciency Voltage Circuit 1 Circuit 2 Size (Code 4) VFD-1 VFD-2

170 Standard 460V 193439001 193439001 170 Standard 380V 193439002 193439002

190 Standard 460V 193439001 193439002 190 Standard 380V 193439002 193439003

200 Standard 460V 193439002 193439002 200 Standard 380V 193439003 193439003

210 High 460V 193439001 193439001 210 High 380V 193439002 193439002

230 High 460V 193439001 193439002 230 High 380V 193439002 193439003

250 High 460V 193439002 193439002 250 High 380V 193439003 193439003

280 High 460V 193439002 193439003 280 High 380V 193439003 193439004

300 High 460V 193439003 193439003 300 High 380V 193439004 193439004

330 High 460V 193439003 193439004 330 High 380V 193439004 193439005

350 High 460V 193439004 193439004 350 High 380V 193439005 193439005

390 High 460V 193439004 193439005 390 High 380V 193439005 193439006

410 High 460V 193439005 193439005 410 High 380V 193439006 193439006

240 Premium 460V 193439001 193439001 240 Premium 380V 193439002 193439002

265 Premium 460V 193439001 193439002 265 Premium 380V 193439002 193439003

290 Premium 460V 193439002 193439002 290 Premium 380V 193439003 193439003

310 Premium 460V 193439002 193439003 310 Premium 380V 193439003 193439004

330 Premium 460V 193439003 193439003 330 Premium 380V 193439004 193439004

365 Premium 460V 193439003 193439004 365 Premium 380V 193439004 193439005

400 Premium 460V 193439004 193439004 400 Premium 380V 193439005 193439005

Standard Efﬁciency: Code 4 = S*, High Efﬁciency: Code 4 = H*, Premium Efﬁciency: Code 4 = P*

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 58

Controls

Units with VFD Starters (Code 9 = VE or VF)

Power Side

VFU1,2 Fuse EMI1,2 EMI Filter

Description Part Number Used with 193439001 Compressor VFD (250A) VFU1,2 Fuse- Semi-Conductor, 600A 193439601 Fuse Block- Semi-Conductor 193439501 EMI1,2 EMI Filter (Code 9 = VE) 193445701

Used with 193439002 Compressor VFD (296A) VFU1,2 Fuse- Semi-Conductor, 700A 193439602 Fuse Block- Semi-Conductor 193439501 EMI1,2 EMI Filter (Code 9 = VE) 193445702

Used with 193439003 Compressor VFD (362A) VFU1,2 Fuse- Semi-Conductor, 800A 193439603 Fuse Block- Semi-Conductor 193439501 EMI1,2 EMI Filter (Code 9 = VE) 193445702

Used with 193439004 Compressor VFD (414A) VFU1,2 Fuse- Semi-Conductor, 800A 193439603 Fuse Block- Semi-Conductor 193439501 EMI1,2 EMI Filter (Code 9 = VE) 193445702

Used with 193439005 Compressor VFD (515A) VFU1,2 Fuse- Semi-Conductor, 1000A 193439604 Fuse Block- Semi-Conductor 193439502 EMI1,2 EMI Filter (Code 9 = VE) 193445703

Used with 193439006 Compressor VFD (675A) VFU1,2 Fuse- Semi-Conductor,1200A 193439605 Fuse Block- Semi-Conductor 193439502 EMI1,2 EMI Filter (Code 9 = VE) 193445703

Note: EMI1,2 are not shown on diagram

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 59

Controls

Units with VFD Starters (Code 9 = VE or VF)

Power Side

PB1 - Single Point Power Block (Code 12 = PC)

Unit Efﬁciency Voltage Power Block Power Block Safety Cover Size (Code 4) Part Number Part Number

170 Standard 380V 620A 193446301 193446401 170 Standard 460V 380A 193446303 193446401 190 Standard 380V, 460V 620A 193446301 193446401 200 Standard 380V, 460V 620A 193446301 193446401 210 High 380V, 460V 620A 193446301 193446401 230 High 380V, 460V 620A 193446301 193446401 250 High 380V, 460V 620A 193446301 193446401 290, 310 High 380V 760A 193446302 193446401 290, 310 High 460V 620A 193446301 193446401 330, 350 High 380V 1400A 193445001 included with Pwr Blk 330, 350 High 460V 760A 193446302 193446401 390 High 380V, 460V 1400A 193445001 included with Pwr Blk 410 High 380V, 460V 1400A 193445001 included with Pwr Blk 240 Premium 380V, 460V 620A 193446301 193446401 265 Premium 380V, 460V 620A 193446301 193446401 250 Premium 380V 760A 193446302 193446401 250 Premium 460V 620A 193446301 193446401 310, 330 Premium 380V 760A 193446302 193446401

310, 330 Premium 460V 620A 193446301 193446401 365, 400 Premium 380V 1400A 193445001 included with Pwr Blk 365, 400 Premium 460V 760A 193446302 193446401

Standard Efﬁciency: Code 4 = S*, High Efﬁciency: Code 4 = H*, Premium Efﬁciency: Code 4 = P*

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 60

Controls

Units with VFD Starters (Code 9 = VE or VF)

Power Side

Q10 - Main Disconnect (Code 12 = DC, DH, WN or WH)

Unit Efﬁciency Voltage Disconnect Disconnect Handle Shaft Size (Code 4) Part Number Part Number Part Number

170 Standard 380V 600A 193438002 193437901 349962236 170 Standard 460V 400A 193438001 193437901 349962236 190 Standard 380V, 460V 600A 193438002 193437901 349962236 200 Standard 380V, 460V 600A 193438002 193437901 349962236 210 High 380V, 460V 600A 193438002 193437901 349962236 230 High 380V, 460V 600A 193438002 193437901 349962236 250 High 380V, 460V 600A 193438002 193437901 349962236 280 High 380V 800A 193438201 349961206 349962238 280 High 460V 600A 193438002 193437901 349962236 300 High 380V, 460V 800A 193438201 349961206 349962238 330 High 380V 1200A 193438202 349961206 349962238 330 High 460V 800A 193438201 349961206 349962238 350 High 380V 1200A 193438202 349961206 349962238 350 High 460V 800A 193438201 349961206 349962238 390 High 380V, 460V 1200A 193438202 349961206 349962238 410 High 380V, 460V 1200A 193438202 349961206 349962238 240 Premium 380V, 460V 600A 193438002 193437901 349962236 265 Premium 380V, 460V 600A 193438002 193437901 349962236 290 Premium 380V 800A 193438201 349961206 349962238 290 Premium 460V 600A 193438002 193437901 349962236 310 Premium 380V 800A 193438201 349961206 349962238 310 Premium 460V 600A 193438002 193437901 349962236 330 Premium 380V, 460V 800A 193438201 349961206 349962238 365 Premium 380,460V 800A 193438201 349961206 349962238 400 Premium 380V 1200A 193438202 349961206 349962238 400 Premium 460V 800A 193438201 349961206 349962238

Standard Efﬁciency: Code 4 = S*, High Efﬁciency: Code 4 = H*, Premium Efﬁciency: Code 4 = P*

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 61

Controls

Units with VFD Starters (Code 9 = VE or VF)

Power Side

Units with Multi Point Disconnect and Standard Short Circuit Current Rating (Code 12 = WN)

See next page for Multi Point Disconnect on units with High Short Circuit Current

Unit Efﬁciency Voltage Code 12 Molded Case Part

Size (Code 4) Circuit Breaker Number

F1 (Circuit 1)

170 Standard 380V, 460V WN 250A / 18KA 193428705

190 Standard 380V, 460V WN 250A / 18KA 193428705

200 Standard 380V WN 400A / 35KA 193454101

200 Standard 460V WN 250A / 18KA 193428705

210, 230 High 380V WN 400A / 35KA 193454101

210, 230 High 460V WN 250A / 18KA 193428705

250, 280 High 380V, 460V WN 400A / 35KA 193454101

300, 330 High 380V, 460V WN 400A / 35KA 193454101

350 High 380V WN 600A / 35KA 193454103

350 High 460V WN 400A / 35KA 193454101

390 High 460V WN 400A / 35KA 193454101

410 High 460V WN 600A / 35KA 193454103

240, 265 Premium 380V WN 400A / 35KA 193454101

240, 265 Premium 460V WN 250A / 18KA 193428705

290, 310 Premium 380V, 460V WN 400A / 35KA 193454101

330, 365 Premium 380V, 460V WN 400A / 35KA 193454101 400 Premium 380V WN 600A / 35KA 193454103 400 Premium 460V WN 400A / 35KA 193454101 F2 (Circuit 2) 170 Standard 380V, 460V WN 250A / 18KA 193428705 190 Standard 380V WN 400A / 35KA 193454101 190 Standard 460V WN 250A / 18KA 193428705 200 Standard 380V WN 400A / 35KA 193454101 200 Standard 460V WN 250A / 18KA 193428705 210 High 380V WN 400A / 35KA 193454101 210 High 460V WN 250A / 18KA 193428705 230, 250 High 380V, 460V WN 400A / 35KA 193454101 280, 300 High 380V, 460V WN 400A / 35KA 193454101 330, 350 High 380V WN 600A / 35KA 193454103 330, 350 High 460V WN 400A / 35KA 193454101 390, 410 High 460V WN 600A / 35KA 193454103 240 Premium 380V WN 400A / 35KA 193454101 240 Premium 460V WN 250A / 18KA 193428705 265, 290 Premium 380V, 460V WN 400A / 35KA 193454101 310, 330 Premium 380V, 460V WN 400A / 35KA 193454101 365, 400 Premium 380V WN 600A / 35KA 193454103 365, 400 Premium 460V WN 400A / 35KA 193454101

Standard Efﬁciency: Code 4 = S*, High Efﬁciency: Code 4 = H*, Premium Efﬁciency: Code 4 = P*

Handle for 250A Circuit Breaker 349935533

Handle for 400A and 600A Circuit Breaker 193437901

Shaft for 250A, 400A and 600A Circuit Breaker 349962236

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 62

Controls

Units with VFD Starters (Code 9 = VE or VF)

Power Side

Units with Multi Point Disconnect and High Short Circuit Current Rating (Code 12 = WH)

See previous page for Multi Point Disconnect on units with Standard Short Circuit Current

Unit Efﬁciency Voltage Code 12 Molded Case Part Size Circuit Breaker Number

F1 (Circuit 1)

170 Standard 380V, 460V WH 250A / 65KA 193428704 190 Standard 380V, 460V WH 250A / 65KA 193428704 200 Standard 380V WH 400A / 65KA 193454102 200 Standard 460V WH 250A / 65KA 193428704 210, 230 High 380V WH 400A / 65KA 193454102 210, 230 High 460V WH 250A / 65KA 193428704 250, 280 High 380V, 460V WH 400A / 65KA 193454102 300, 330 High 380V, 460V WH 400A / 65KA 193454102 350 High 380V WH 600A / 65KA 193454104 350 High 460V WH 400A / 65KA 193454102 390 High 380V WH 600A / 65KA 193454104 390 High 460V WH 400A / 65KA 193454102 410 High 460V WH 600A / 65KA 193454104 240, 265 Premium 380V WH 400A / 65KA 193454102 240, 265 Premium 460V WH 250A / 65KA 193428704

290, 310 Premium 380V, 460V WH 400A / 65KA 193454102 330, 365 Premium 380V, 460V WH 400A / 65KA 193454102 400 Premium 380V WH 600A / 65KA 193454104 400 Premium 460V WH 400A / 65KA 193454102 F2 (Circuit 2) 170 Standard 380V, 460V WH 250A / 65KA 193428704 190 Standard 380V WH 400A / 65KA 193454102 190 Standard 460V WH 250A / 65KA 193428704 200 Standard 380V WH 400A / 65KA 193454102 200 Standard 460V WH 250A / 65KA 193428704 210 High 380V WH 400A / 65KA 193454102 210 High 460V WH 250A / 65KA 193428704 230, 250 High 380V, 460V WH 400A / 65KA 193454102 280, 300 High 380V, 460V WH 400A / 65KA 193454102 330, 350 High 380V WH 600A / 65KA 193454104 330, 350 High 460V WH 400A / 65KA 193454102 390 High 460V WH 600A / 65KA 193454104 410 High 460V WH 600A / 65KA 193454104 240 Premium 380V WH 400A / 65KA 193454102 240 Premium 460V WH 250A / 65KA 193428704 265, 290 Premium 380V, 460V WH 400A / 65KA 193454102 310, 330 Premium 380V, 460V WH 400A / 65KA 193454102 365, 400 Premium 380V WH 600A / 65KA 193454104 365, 400 Premium 460V WH 400A / 65KA 193454102

Handle for 250A Circuit Breaker 349935533 Handle for 400A and 600A Circuit Breaker 193437901

Shaft for 250A, 400A and 600A Circuit Breaker 349962236

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 63

Controls

Units with VFD Starters (Code 9 = VE or VF)

Power Side

Units with Single Point Circuit Breaker and Standard Short Circuit Current Rating (Code 12= PC or DC)

See next page for Circuit Breaker on units with High Short Circuit Current

Unit Efﬁciency Voltage Code 12 Molded Case Part

Size Circuit Breaker Number

F1 (Circuit 1)

170 Standard 380V, 460V PC, DC 250A / 18KA 193428705

190 Standard 380V, 460V PC, DC 250A / 18KA 193428705

200 Standard 380V PC, DC 400A / 30KA 193454001

200 Standard 460V PC, DC 250A / 18KA 193428705

210, 230 High 380V PC, DC 400A / 30KA 193454001

210, 230 High 460V PC, DC 250A / 18KA 193428705

250, 280, 300, 330 High 380V, 460V PC, DC 400A / 30KA 193454001

350 High 380V PC, DC 600A / 35KA 193454103

350 High 460V PC, DC 400A / 30KA 193454001

390 High 460V PC, DC 400A / 30KA 193454001

410 High 380V, 460V PC, DC 600A / 35KA 193454103

240, 265 Premium 380V PC, DC 400A / 30KA 193454001

240, 265 Premium 460V PC, DC 250A / 18KA 193428705

290, 310, 330, 365 Premium 380V, 460V PC, DC 400A / 30KA 193454001

400 Premium 380V PC, DC 600A / 35KA 193454103

400 Premium 460V PC, DC 400A / 30KA 193454001

F2 (Circuit 2) 170 Standard 380V, 460V PC, DC 250A / 18KA 193428705 190, 200 Standard 380V PC, DC 400A / 30KA 193454001 190, 200 Standard 460V PC, DC 250A / 18KA 193428705 210 High 380V PC, DC 400A / 30KA 193454001 210 High 460V PC, DC 250A / 18KA 193428705 230, 250, 280, 300 High 380V, 460V PC, DC 400A / 30KA 193454001 330, 350 High 380V PC, DC 600A / 35KA 193454103 330, 350 High 460V PC, DC 400A / 30KA 193454001 390, 410 High 460V PC, DC 600A / 35KA 193454103 240 Premium 380V PC, DC 400A / 30KA 193454001 240 Premium 460V PC, DC 250A / 18KA 193428705 265, 290, 310, 330 Premium 380V, 460V PC, DC 400A / 30KA 193454001 365, 400 Premium 380V PC, DC 600A / 35KA 193454103 365, 400 Premium 460V PC, DC 400A / 30KA 193454001

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 64

Controls

Units with VFD Starters (Code 9 = VE or VF)

Power Side

Units with Single Point Circuit Breaker and High Short Circuit Current Rating (Code 12 = DH)

See previous page for Circuit Breaker on units with Standard Short Circuit Current

Unit Efﬁciency Voltage Code 12 Molded Case Part

Size Circuit Breaker Number

F1 (Circuit 1)

170 Standard 380V, 460V DH 250A / 65KA 193428704

190 Standard 380V, 460V DH 250A / 65KA 193428704

200 Standard 380V DH 400A / 65KA 193454102

200 Standard 460V DH 250A / 65KA 193428704

210, 230 High 380V DH 400A / 65KA 193454102

210, 230 High 460V DH 250A / 65KA 193428704

250, 280, 300, 330 High 380V, 460V DH 400A / 65KA 193454102

350 High 380V DH 600A / 65KA 193454104

350 High 460V DH 400A / 65KA 193454102

390 High 460V DH 400A / 65KA 193454102

410 High 460V DH 600A / 65KA 193454104

240, 265 Premium 380V DH 400A / 65KA 193454102

240, 265 Premium 460V DH 250A / 65KA 193428704

290, 310, 330, 365 Premium 380V, 460V DH 400A / 65KA 193454102

400 Premium 380V DH 600A / 65KA 193454104

400 Premium 460V DH 400A / 65KA 193454102

F2 (Circuit 2) 170 Standard 380V, 460V DH 250A / 65KA 193428704 190 Standard 380V DH 400A / 65KA 193454102 190 Standard 460V DH 250A / 65KA 193428704 200 Standard 380V DH 400A / 65KA 193454102 200 Standard 460V DH 250A / 65KA 193428704 210 High 380V DH 400A / 65KA 193454102 210 High 460V DH 250A / 65KA 193428704 230, 250, 280, 300 High 380V, 460V DH 400A / 65KA 193454102 330, 350 High 380V DH 600A / 65KA 193454104 330, 350 High 460V DH 400A / 65KA 193454102 390, 410 High 460V DH 600A / 65KA 193454104 240 Premium 380V DH 400A / 65KA 193454102 240 Premium 460V DH 250A / 65KA 193428704 265, 290, 310, 330 Premium 380V, 460V DH 400A / 65KA 193454102 365, 400 Premium 380V DH 600A / 65KA 193454104 365, 400 Premium 460V DH 400A / 65KA 193454102

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 65

Controls

Units with VFD Starters (Code 9 = VE or VF)

Control Box Exhaust and Intake Fans

M12

M10

M11

Sch. Sym. Unit Size Efﬁciency Description Part Number Qty (Code 4)

M10 170-250 Standard Control Box Exhaust Fan 193441002 1 M10 260-290 Standard Control Box Exhaust Fan 193441003 1 M10 310-375 Standard Control Box Exhaust Fan 193441002 1 M10 210-230 High Control Box Exhaust Fan 193441002 1 M10 250-280 High Control Box Exhaust Fan 193441003 1 M10 300-350 High Control Box Exhaust Fan 193441002 1 M10 390 High Control Box Exhaust Fan 193441003 1 M10 410 High Control Box Exhaust Fan 193441002 1 M10 240-265 Premium Control Box Exhaust Fan 193441002 1 M10 290-310 Premium Control Box Exhaust Fan 193441003 1 M10 330-400 Premium Control Box Exhaust Fan 193441002 1

M11 310-375 Standard Control Box Intake Fan 193440802 1 M11 300-350 High Control Box Intake Fan 193440802 1 M11 390-410 High Control Box Intake Fan 193440803 1 M11 330-400 Premium Control Box Intake Fan 193440802 1

M12 410 High Control Box Exhaust Fan 193441002 1

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 66

Controls

Terminal Box

Type B Terminal Plate

For more information, see Parts Bulletin PB-0512-01.

50

Ref. Part Part No. Description Number Qty.

50 Motor Terminal Plate 131073022 1 per compressor Motor Terminal Plate Gasket 300040078 1 per compressor P3 Terminal Plate Insulator 131083020 6 per compressor Motor Terminal Bolt, M10 (Starter side) 130306091 6 per compressor Lock Washer (Starter side) 130902028 6 per compressor P4 Mounting Bolt, M8 (Plate mounting) 300040079 14 per compressor P5 Terminal Box Screw, M6 330821902 4 per compressor

P5

P3

P4

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 67

Accessories

Packaged Units (Code 4= SE, HE, PE)

Units with Wye-Delta or Solid State Starter (Code 9 = WD or SS)

Isolator Kits - Rubber-In-Shear

Standard Efﬁciency: Code 4 = S*

High Efﬁciency: Code 4 = H*

Premium Efﬁciency: Code 4 = P*

Unit Std. High Prem. Unit Std. High Prem Size Eff. Eff. Eff. Size Eff. Eff. Eff. Total Total Total Total Total Total Fans Fans Fans Fans Fans Fans 190 10 -- -- 300 -- 16 - 210 12 12 -- 310 16 -- 20 225 12 -- -- 330 -- 20 20 230 -- 14 -- 350 20 20 - 240 -- -- 16 365 -- -- 22 250 14 14 -- 375 20 -- - 260 14 -- -- 390 -- 22 - 265 -- -- 18 400 -- -- 24 280 -- 16 -- 410 -- 24 - 290 16 -- 18

Use the chart above to determine the Total # of Fans. Use the chart below to identify the corresponding

Isolator Group #. Then, see the last chart for the Complete Kit and component part numbers.

Total # of Fans

10 12 14 16 18 20 22 24

Units with Aluminum Fin Condenser Group # 4 4 5 1 6 6 7 8

(Code 8 = A, B, E) Units with Copper Fin Condenser Group # 10 10 1 3 2 2 10 11 (Code 8 = C, F)

Complete RIS Isolator Part #s and Quantities

Group Kit 331481404 331481403 331481401 331481402 331481405

# Part # Charcoal Lime Brown Brick Red Purple

1 332325801 2 4 2

2 332325802 4 4

3 332325803 4 4

4 332325806 4 2

5 332325807 2 2 4

6 332325808 2 4 2

7 332325809 2 4 2

8 332325810 2 4 2 2

9 332325811 4 2 2 2

10 332325812 2 4

11 332325815 2 2 2 4

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 68

Accessories

Packaged Units (Code 4= SE, HE, PE)

Units with Wye-Delta or Solid State Starter (Code 9 = WD or SS)

Isolator Kits - Spring

Standard Efﬁciency: Code 4 = S*

High Efﬁciency: Code 4 = H*

Premium Efﬁciency: Code 4 = P*

Unit Std. High Prem. Unit Std. High Prem Size Eff. Eff. Eff. Size Eff. Eff. Eff. Total Total Total Total Total Total Fans Fans Fans Fans Fans Fans 190 10 -- -- 300 -- 16 - 210 12 12 -- 310 16 -- 20 225 12 -- -- 330 -- 20 20 230 -- 14 -- 350 20 20 - 240 -- -- 16 365 -- -- 22 250 14 14 -- 375 20 -- - 260 14 -- -- 390 -- 22 - 265 -- -- 18 400 -- -- 24 280 -- 16 -- 410 -- 24 - 290 16 -- 18

Use the chart above to determine the Total # of Fans. Use the chart below to identify the corresponding Isolator Group #. Then, see the last chart for the Complete Kit and component part numbers.

Total # of Fans

10 12 14 16 18 20 22 24

Units with Aluminum Fin Condenser Group # 18 19 20 30 16 17 21 22

(Code 8 = A, B, E)

Units with Copper Fin Condenser Group # 25 25 26 15 17 17 27 28

(Code 8 = C, F)

Complete Spring Isolator Part #s and Quantities Group Kit 332620800 332620600 332620400 332620900 332620500 332621000 026219800 # Part # Dark Green Dark Purple Red Gray Black White 15 332320802 8 16 8 8 16 332320803 8 8 16 8 17 332320805 16 16 8 18 332320807 16 8 6 19 332320808 24 6 20 332320809 8 8 8 8 8 21 332320810 8 24 8 22 332320811 16 8 8 8 10 23 332320812 16 16 8 10 24 332320813 8 8 16 8 10 25 332320814 16 8 6 26 332320815 8 8 8 8 8 27 332320816 16 16 8 28 332320817 8 8 8 16 10

29 332320818 16 8 16 10 30 332320819 16 8 8 8

Housing CP4

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 69

Accessories

Packaged Units (Code 4= SE, HE, PE)

Units with VFD Starter (Code 9 = VF or VE)

Isolator Kits - Rubber-In-Shear

Standard Efﬁciency: Code 4 = S*; High Efﬁciency: Code 4 = H*; Premium Efﬁciency: Code 4 = P*

Unit Std. High Prem. Size Eff. Eff. Eff. Total Total Total Fans Fans Fans

170 10 -- - 190 12 -- - 200 12 -- - 210 12 12 - 225 12 -- - 230 -- 14 - 240 -- -- 16 250 14 14 - 260 14 -- - 265 -- -- 18 280 -- 16 - 290 16 -- 18 300 -- 16 - 310 16 -- 20 330 -- 20 20 350 20 20 - 365 -- -- 22 375 20 -- - 390 -- 22 - 400 -- -- 24 410 -- 24 --

Use the chart above to determine the Total # of Fans. Use the chart below to identify the corresponding

Isolator Group #. Then, see the last chart for the Complete Kit and component part numbers.

Total # of Fans

10 12 14 16 18 20 22 24

Units with Aluminum Fin Condenser Group # 35 35 36 36 37 37 37 38

(Code 8 = A, B, E)

Units with Copper Fin Condenser Group # 40 40 37 37 37 37 37 38

(Code 8 = C, F)

Complete RIS Isolator Part #s and Quantities

Group Kit 331481403 331481402

# Part # Lime Brick Red

35 332325821 8

36 332325822 10

37 332325823 10

38 332325824 12

40 332325826 8

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 70

Accessories

Packaged Units (Code 4= SE, HE, PE)

Units with VFD Starter (Code 9 = VF or VE)

Isolator Kits - Spring

Standard Efﬁciency: Code 4 = S*; High Efﬁciency: Code 4 = H*; Premium Efﬁciency: Code 4 = P*

Unit Std. High Prem. Size Eff. Eff. Eff. Total Total Total Fans Fans Fans

170 10 -- - 190 12 -- - 200 12 -- - 210 12 12 - 225 12 -- - 230 -- 14 - 240 -- -- 16 250 14 14 - 260 14 -- - 265 -- -- 18 280 -- 16 - 290 16 -- 18 300 -- 16 - 310 16 -- 20 330 -- 20 20 350 20 20 - 365 -- -- 22 375 20 -- - 390 -- 22 - 400 -- -- 24 410 -- 24 --

Use the chart above to determine the Total # of Fans. Use the chart below to identify the corresponding Isolator Group #. Then, see the last chart for the Complete Kit and component part numbers.

Total # of Fans 10 12 14 16 18 20 22 24

Units with Aluminum Fin Condenser Group # 45 45 46 47 48 48 48 49 (Code 8 = A, B, E) Units with Copper Fin Condenser Group # 45 45 46 48 48 48 48 49 (Code 8 = C, F)

Complete Spring Isolator Part #s and Quantities Group Kit 332620800 332620600 332620500 026219800 # Part # Dark Green Dark Purple Black Housing CP4 45 332320821 32 8 46 332320822 24 16 10 47 332320823 32 8 10 48 332320824 40 10 49 332320825 40 8 12

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 71

Accessories

Units with Remote Evaporator (Code 4 = SM, HM or PM)

Isolator Kits - Rubber-In-Shear

Complete RIS Isolator Part #s and Quantities

Unit Kit 331481404 331481403 331481401 331481402

Part # Charcoal Lime Brown Brick Red

Units with Aluminum Fin Condenser Coil

190BDS 332325836 2 2 2

210BDS 332325837 2 2 2

210BDH 332325836 2 2 2

225BDS 332325837 2 2 2

230BDH 332325837 2 2 2

240BDP 332325838 4 2 2

250BDS 332325837 2 2 2

250BDH 332325837 2 2 2

260BDS 332325837 2 2 2

265BDP 332325838 4 2 2

280BDH 332325838 4 2 2

290BDS 332325847 2 2 4

290BDP 332325838 4 2 2

300BDH 332325838 4 2 2

310BDS 332325847 2 2 4

310BDP 332325829 2 2 2 2

330BDH 332325829 2 2 2 2

330BDP 332325829 2 2 2 2

350BDS 332325829 2 2 2 2

350BDH 332325829 2 2 2 2

365BDP 332325839 2 2 4

375BDS 332325829 2 2 2 2

390BDH 332325839 2 2 4

400BDP 332325840 2 2 4 2

410BDH 332325840 2 2 4 2

Units with Copper Fin Condenser Coil

190BDS 332325828 2 2 2

210BDS 332325828 2 2 2

210BDH 332325828 2 2 2

225BDS 332325828 2 2 2

230BDH 332325828 2 2 2

240BDP 332325829 2 2 2 2

250BDS 332325828 2 2 2

250BDH 332325841 4 2

260BDS 332325828 2 2 2

265BDP 332325829 2 2 2 2

280BDH 332325829 2 2 2 2

290BDS 332325829 2 2 2 2

290BDP 332325829 2 2 2 2

300BDH 332325829 2 2 2 2

310BDS 332325829 2 2 2 2

310BDP 332325830 4 2 2

330BDH 332325830 4 2 2

330BDP 332325830 4 2 2

350BDS 332325830 4 2 2

350BDH 332325830 4 2 2

365BDP 332325830 4 2 2

375BDS 332325830 4 2 2

390BDH 332325830 4 2 2

400BDP 332325842 4 2 2 2

410BDH 332325842 4 2 2 2

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 72

Accessories

Units with Remote Evaporator (Code 4 = SM, HM or PM)

Isolator Kits - Spring

Complete Spring Isolator Part #s and Quantities Unit Kit 332620800 332620600 332620400 332620900 332620500 332620200 026219800 Part # Dark Green Dark Purple Red Gray Black Dark Blue

Units with Aluminum Fin Condenser Coils

190**S 332320838 16 8 6 210**S 332320838 16 8 6 210**H 332320828 16 8 6 225**S 332320838 16 8 6 230**H 332320839 8 8 8 6 240**P 332320840 16 8 8 8 250**S 332320839 8 8 8 6 250**H 332320839 8 8 8 6 260**S 332320839 8 8 8 6 265**P 332320854 16 8 8 8 280**H 332320840 16 8 8 8 290**S 332320841 8 8 8 8 8 290**P 332320854 16 8 8 8 300**H 332320840 16 8 8 8 310**S 332320841 8 8 8 8 8 310**P 332320842 24 8 8 330**H 332320855 16 8 8 8 330**P 332320842 24 8 8 350**S 332320843 16 8 8 8 350**H 332320855 16 8 8 8 365**P 332320847 8 16 8 8 375**S 332320843 16 8 8 8 390**H 332320847 8 16 8 8 400**P 332320844 8 8 16 8 10 410**H 332320844 8 8 16 8 10

Units with Copper Fin Condenser Coils

190**S 332320839 8 8 8 6 210**S 332320839 8 8 8 6 210**H 332320839 8 8 8 6 225**S 332320839 8 8 8 6 230**H 332320845 8 8 8 6 240**P 332320857 8 8 8 8 8 250**S 332320839 8 8 8 6 250**H 332320845 8 8 8 6 260**S 332320839 8 8 8 6 265**P 332320855 16 8 8 8 280**H 332320846 8 8 8 8 8 290**S 332320846 8 8 8 8 8 290**P 332320855 16 8 8 8 300**H 332320846 8 8 8 8 8 310**S 332320846 8 8 8 8 8 310**P 332320847 8 16 8 8 330**H 332320847 8 16 8 8 330**P 332320847 8 16 8 8 350**S 332320847 8 16 8 8 350**H 332320847 8 16 8 8 365**P 332320848 16 16 8 375**S 332320847 8 16 8 8 390**H 332320848 16 16 8 400**P 332320833 8 8 16 8 10 410**H 332320833 8 8 16 8 10

Housing

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 73

Accessories

Flow Switch

Description Part No.

Flow Switch- Paddle 017503300 Flow Switch Kit- Electronic 332688401 Flow Switch Only 331796201 Cable- Flow Switch 330571404

Sound Enclosure Kit

Unit Size Efﬁciency Description Part Number (Code 4)

All All Packaged units without VFD Starters 332523852 (Code 4 = SE, HE or PE; Code 9 = WD or SS)

170-260 Standard Remote Evaporator units (Code 4 = SM) 332523892 290-375 Standard Remote Evaporator units (Code 4 = SM) 332523894

210-250 High Remote Evaporator units (Code 4 = HM) 332523892 280-410 High Remote Evaporator units (Code 4 = HM) 332523894

240-400 Premium Remote Evaporator units (Code 4 = PM) 332523894

Alarm Bell

Description Part No.

Alarm Bell Kit 332688502 Relay, SPDT, 30A, 120VAC 072937402 Alarm Bell 017809400 Transformer 330386102

Inlet Strainer

Description Part No.

Inlet Strainer, Stainless Steel, Field Kit Standard Eff. units (Code 4 = S*): Sizes 170 - 260 331758906 Sizes 290 - 375 331758908 High Eff. units (Code 4 = H*): Sizes 210 - 250 331758906 Sizes 280 - 410 331758908 Premium Eff. units (Code 4 = P*): Sizes 240 - 290 331758908 Sizes 310 - 400 331758910

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 74

Accessories

Field-Installed Fan VFD Kits

Description Part No. Field-Installed Fan VFD Kit for units without VFD Starters 208V / 60Hz 332688601 230V / 60HZ 332688602 460V / 60Hz 332688603 575V / 60Hz 332688605 Field-Installed Fan VFD Kit for units with VFD Starters 400V / 50Hz 193502807 460V / 60Hz 193502801

High Ambient Exhaust Fan Kit

Description Part No.

High Ambient Exhaust Fan Kit for units without VFD Starters 333930401

Rapid Restore

Description Part No.

Rapid Restore Kit for units without VFD Starters 333930501 Rapid Restore Kit for units with VFD Starters 193503101

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 75

Accessories

Base and Coil - Grille and Louver Kits

Standard Efﬁciency: Code 4 = S*, High Efﬁciency: Code 4 = H*, Premium Efﬁciency: Code 4 = P*

Unit Std. High Prem. Unit Std. High Prem. Sizes Eff. Eff. Eff. Sizes Eff. Eff. Eff. Total Total Total Total Total Total Fans Fans Fans Fans Fans Fans 170 10 -- -- 280 -- 16 - 190 w/o VFD 10 -- -- 290 16 -- 18 190 w/VFD 12 -- -- 300 -- 16 - 200 12 -- -- 310 16 -- 20 210 12 12 -- 330 -- 20 20 225 12 -- -- 350 20 20 - 230 -- 14 -- 365 -- -- 22 240 -- -- 16 375 20 -- - 250 14 14 -- 390 -- 22 - 260 14 -- -- 400 -- -- 24 265 -- -- 18 410 -- 24 --

Base Grille Kits* - Units with Wye-Delta or SS Starter (Code 8 = WD, SS)

Total # of Fans

10 12 14 16 18 20 22 24

332688110 332688112 332688114 332688116 332688118 332688120 332688122 332688124

Base Grille Kits* - Units with VFD Starter (Code 8 = VF, VE)

Total # of Fans 10 12 14 16 18 20 22 24 332688148 332688135 332688136 332688137 332688138 332688139 332688140 332688141

* Kit part numbers above include Grilles and hardware. For component details, see earlier pages concerning Coil and

Base Frame Grilles and Louvers.

Coil Louver Kits**

Total # of Fans 10 12 14 16 18 20 22 24 332688210 332688212 332688214 332688216 332688218 332688220 332688222 332688224

Base & Coil Louver Kits**- Units with Wye-Delta or SS Starter (Code 8 = WD, SS)

Total # of Fans 10 12 14 16 18 20 22 24 332688310 332688312 332688314 332688316 332688318 332688320 332688322 332688324

Base & Coil Louver Kits** - Units with VFD Starter (Code 8 = VF, VE)

Total # of Fans 10 12 14 16 18 20 22 24 332688348 332688335 332688336 332688337 332688338 332688339 332688340 332688341

** Kit part numbers above include Louvers and hardware. For component details, see earlier pages concerning Coil and Base Frame Grilles and Louvers.

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 76

650

700

Accessories

BACnet MS/TP Communications Module

Ref. Description Part Qty. No. Number

650 BACnet MS/TP Kit 350147414 1

BACnet with IP/Ethernet

Ref. Description Part Qty. No. Number

700 BACnet IP/Ethernet Kit 350147415 1

827

920

MODBUS Communications Module

Ref. Description Part Qty. No. Number

827 MODBUS Installation Kit 350147413 1

LonMark Communications Module

Ref. Description Part Qty. No. Number

LonMark Installation Kit 350147412 1

Remote Display Kit

Ref. Description Part Qty.

950

Air Cooled Screw Chiller, AWS 170-410, 2-Ckt, Vint. B, Unit Rev. 00 RPL Rev. C 9/12 RPL 700023400 / Page 77

No. Number

Remote Display Kit 350147416 1 950 Control- Remote Keypad 193408001 1

McQuay AWS170 Parts List

Specifications and Main Features

Frequently Asked Questions

User Manual
