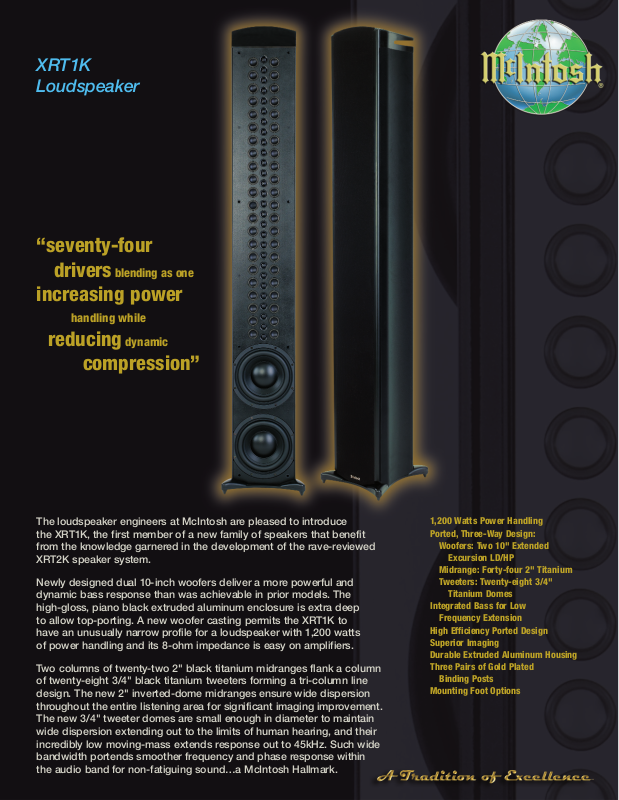

XRT1K
Loudspeaker
“seventy-four
drivers blending as one
increasing power
handling while
reducing dynamic
compression”
The loudspeaker engineers at McIntosh are pleased to introduce
the XRT1K, the first member of a new family of speakers that benefit
from the knowledge garnered in the development of the rave-reviewed
XRT2K speaker system.
Newly designed dual 10-inch woofers deliver a more powerful and
dynamic bass response than was achievable in prior models. The
high-gloss, piano black extruded aluminum enclosure is extra deep
to allow top-porting. A new woofer casting permits the XRT1K to
have an unusually narrow profile for a loudspeaker with 1,200 watts
of power handling and its 8-ohm impedance is easy on amplifiers.
Two columns of twenty-two 2" black titanium midranges flank a column
of twenty-eight 3/4" black titanium tweeters forming a tri-column line
design. The new 2" inverted-dome midranges ensure wide dispersion
throughout the entire listening area for significant imaging improvement.
The new 3/4" tweeter domes are small enough in diameter to maintain
wide dispersion extending out to the limits of human hearing, and their
incredibly low moving-mass extends response out to 45kHz. Such wide
bandwidth portends smoother frequency and phase response within
the audio band for non-fatiguing sound…a McIntosh Hallmark.
1,200 Watts Power Handling
Ported, Three-Way Design:
Woofers: Two 10" Extended
Excursion LD/HP
Midrange: Forty-four 2" Titanium
Tweeters: Twenty-eight 3/4"
Titanium Domes
Integrated Bass for Low
Frequency Extension
High Efficiency Ported Design
Superior Imaging
Durable Extruded Aluminum Housing
Three Pairs of Gold Plated
Binding Posts
Mounting Foot Options
For the Consumer’s Protection: In order to ensure the highest level of customer satisfaction, “new” McIntosh
products may only be purchased over-the-counter or delivered and installed by an Authorized McIntosh Dealer.
McIntosh products that are purchased over the Internet, by phone or mail order are presumed to be “used” and
do not qualify for any McIntosh Warranty. McIntosh does not warrant, in any way, products that are purchased
from anyone who is not an Authorized Dealer or products that have had their serial number altered or defaced.
8.07.XRT1K.20K 35010000
McIntosh Laboratory, Inc. 2 Chambers Street, Binghamton, New York 13903-2699
Tel (607) 723-3512 • US Toll-Free (800) 538-6576 • Fax: (607) 724-0549 • www.mcintoshlabs.com
XRT1K
Loudspeaker
TITANIUM DOME TWEETERS
These dome drivers have
titanium diaphragms with
frequency response to 45kHz.
Their small size is ideal for
producing a wide angle
stereo sound image.
INVERTED DOME MIDRANGES
Each midrange driver is 2" in
diameter with a titanium
inverted dome. Titanium has
great rigidity resulting
in smoother uncolored
reproduction throughout the
critical mid frequencies.
TWIN LD/HP WOOFERS
Each XRT1K features two Low
Distortion/High Performance
10" custom woofers, augmented
with a low velocity top cabinet
mounted port. This combination
yields effortless bass down to
20Hz and loads the listening
room from two points so as to
seamlessly blend with the mid
and high frequency array.
THREE SETS OF INPUTS
Three sets of massive
gold plated input connectors
make Bi and Tri-amping and
Bi and Tri-wiring a snap.
MID-TWEETER-MID DESIGN
By placing a column of
tweeters between two columns
of midranges, wide horizontal
dispersion with controlled
vertical dispersion is realized.
This design projects a wide
image and deep soundstage
evenly throughout the
listening room.
SYSTEM TYPE
Ported, 3-Way
NOMINAL IMPEDANCE
8 ohms
POWER HANDLING
1,200 Watts
WOOFERS
Two 10" Extended Excursion
MIDRANGE
Forty-four 2" Black Titanium
TWEETERS
Twenty-eight 3/4" Black Titanium Domes
ANECHOIC RESPONSE
20Hz – 45kHz
REFERENCE SPL
2.8V / 1m: 88dB
CROSSOVER FREQUENCIES
250Hz & 2kHz
DIMENSIONS (H X W X D)
79" x 11" x 25.5"
EXTERIOR SURFACES
High gloss black aluminum
GRILLE FINISHES
Black knit cloth with high gloss black trim
WEIGHT (EA)
170 lbs.
