McCulloch POWER MAC 6, POWER MAC 6 03, POWER MAC 6 71 Parts List

A10-600085 POWER MAC 6 03/71 to 04/71 IPL 84237-R1 Page 1 of 15

www.ktoutdoor.com

Accessories

K&T Saw Shop 606-678-9623 or 606-561-4983

A10-600085 POWER MAC 6 03/71 to 04/71 IPL 84237-R1 Page 2 of 15

www.ktoutdoor.com

Accessories

Ref # Part Number DescriptionQty

83577 Owner's Manual
68648 Scrench
66924 Bar - 12 inch
67746M Chain - 12 inch bar
68301 Bar - 14 inch
67747M Chain - 14 inch bar
68302 Bar - 16 inch
67748M Chain - 16 inch bar
68349 Kit - Chain repair
67750 Pkg - File guide
67680 Pkg - File depth gauge (.025 - .030)
67688 Pkg - File depth gauge (.015 - .020)
68916 Kit - Pressure test
68915 Kit - Piston tool
69162 Baffle - Spark arrester (alternate)
83124 Guard - Bar
84338 Rope - 100 ft.
83323 Shop Manual

K&T Saw Shop 606-678-9623 or 606-561-4983

A10-600085 POWER MAC 6 03/71 to 04/71 IPL 84237-R1 Page 3 of 15

www.ktoutdoor.com

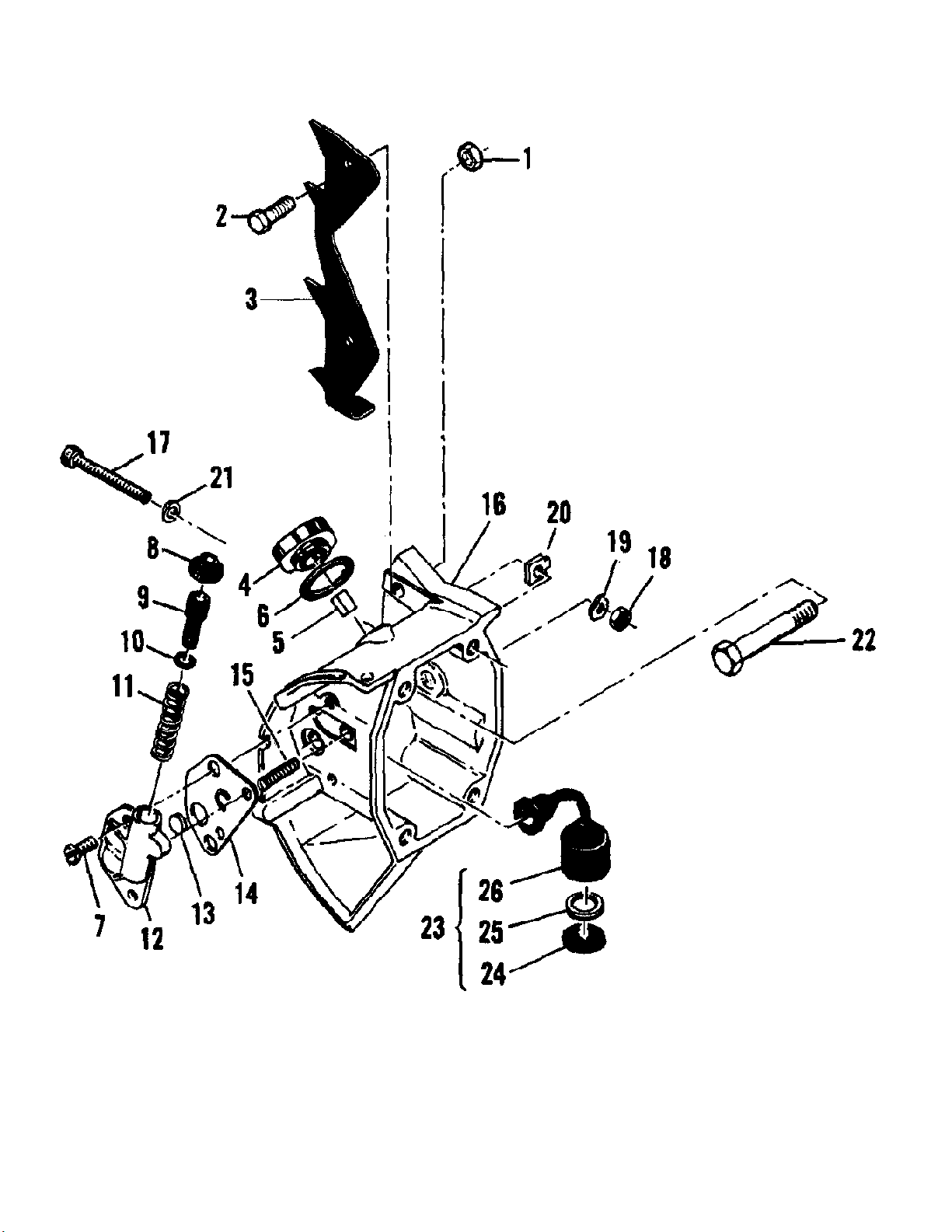

Automatic Oiler

K&T Saw Shop 606-678-9623 or 606-561-4983

A10-600085 POWER MAC 6 03/71 to 04/71 IPL 84237-R1 Page 4 of 15

www.ktoutdoor.com

Automatic Oiler

Ref # Part Number DescriptionQty
1 101191 Nut - Hex 10-242
2 104738 Screw - Hex hd 10-24 x 1/22
3 68412 Spike1
4 68809 Cap - Oil1
5 84953 Plug - Cap1
6 101148 "O" Ring1
7 83591 Cylinder Assy - Oil pump1
8 105603 "O" Ring1
9 105614 "O" Ring2
10 105248 Screw - Rd hd 8-32 x 5/8 (SEMS)2
11 62262 Cap - Oil pump1
12 68603 Plunger - Oil pump1
13 101056 "O" Ring1
14 66687 Spring - Plunger1
15 83189 Body - Oil pump1
16 83187 Gasket - Oil pump1
17 62909 Valve - Oiler1
18 83587 Tank Assy - Oil1
18 85467 Tank Assy - Oil1
19 110587 Screw - Fil hd 8-32 x 1-1/21
20 100955 Nut - Hex 8-321
21 110525 Washer - Wavey1
22 84929 Nut - Adjustment1
23 100080 Washer - #81
24 68687 Bolt - Bar1
25 68140 Pickup Assy - Oil1
26 67552 Screen1
27 67569 Weight1
28 67568 Hose1
29 105248 Screw - Rd hd 8-32 x 5/8 (SEMS)2
30 83186 Cover - Oil pump1
31 83185 Gasket - Cover1
32 105603 "O" Ring1
33 83184 Ring - Oiler piston1
34 83181 Piston Assy - Oiler1
35 83180 Spring - Oiler piston1

K&T Saw Shop 606-678-9623 or 606-561-4983

A10-600085 POWER MAC 6 03/71 to 04/71 IPL 84237-R1 Page 5 of 15

www.ktoutdoor.com

Carburetor

K&T Saw Shop 606-678-9623 or 606-561-4983
