REPAIR PARTS MANUAL
MODEL NO. MC17107 (96011008400)
Lawn Tractor
532 19 66-82 Rev. 2
![](/html/1c/1c91/1c9192e38ba8d737172f6d82ea44b8499178f4909ebe8643d6e6220b3c98e6e5/bg2.png)
HOW TO USE THIS MANUAL
This manual is designed to provide the customer with a means to identify the parts on his/her tractor
when ordering repair parts. The illustrations may or may not represent the actual assemblies; therefore,
it is not recommended to use this manual as a guide to assemble or disassemble the tractor. Some
hardware and parts are drawn larger in order to more readily identify them.
Each tractor has its own model number.
The model number for your tractor can be found on the fender under the seat.
When ordering parts, always give the following information:
• Product - “Tractor”
• Model Number - MC
• Part Number
• Part Description
17107 (96011008400)
TABLE OF CONTENTS
SCHEMATIC ................................................................................................................ 3
ELECTRICAL ............................................................................................................ 4-5
CHASSIS ..................................................................................................................6-7

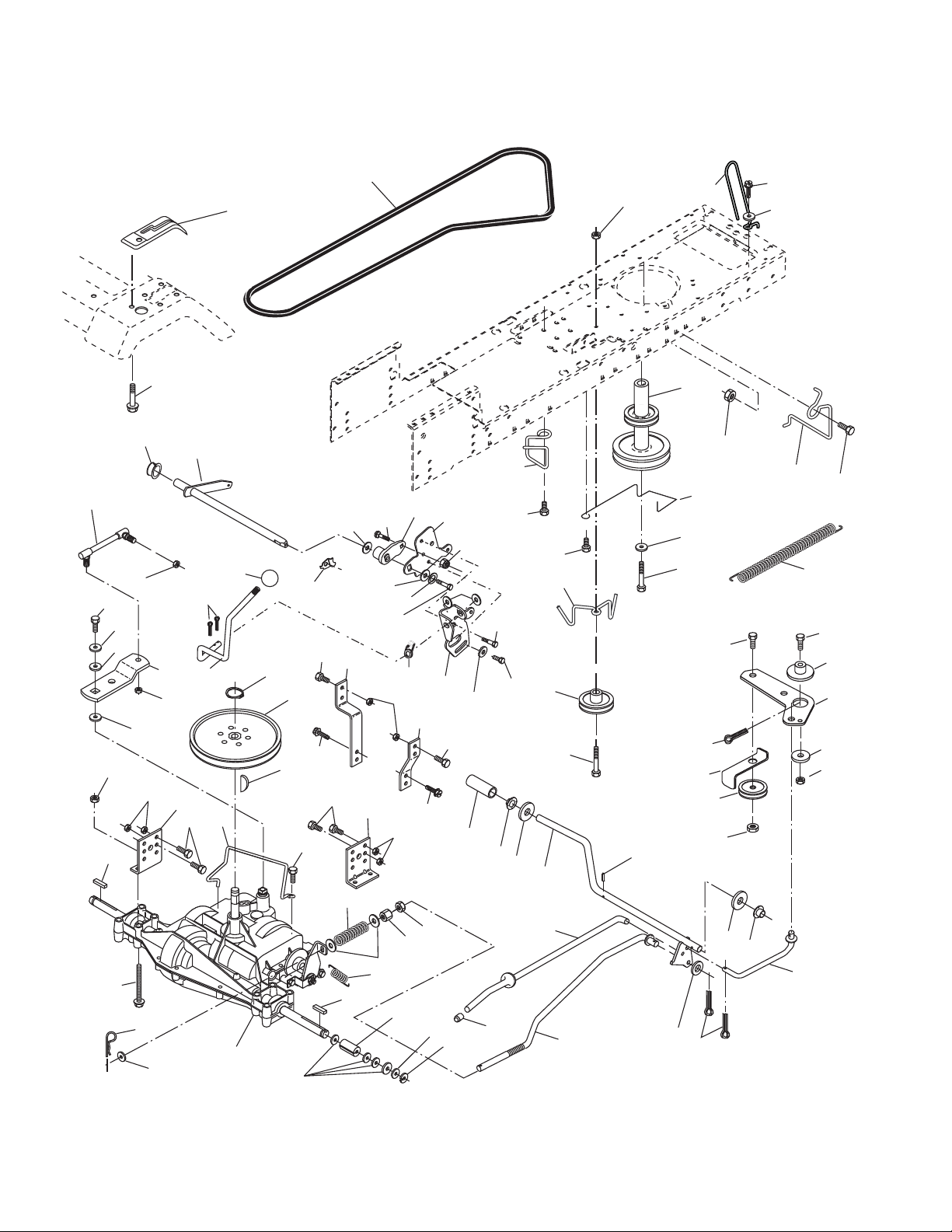

DRIVE........................................................................................................................8-9

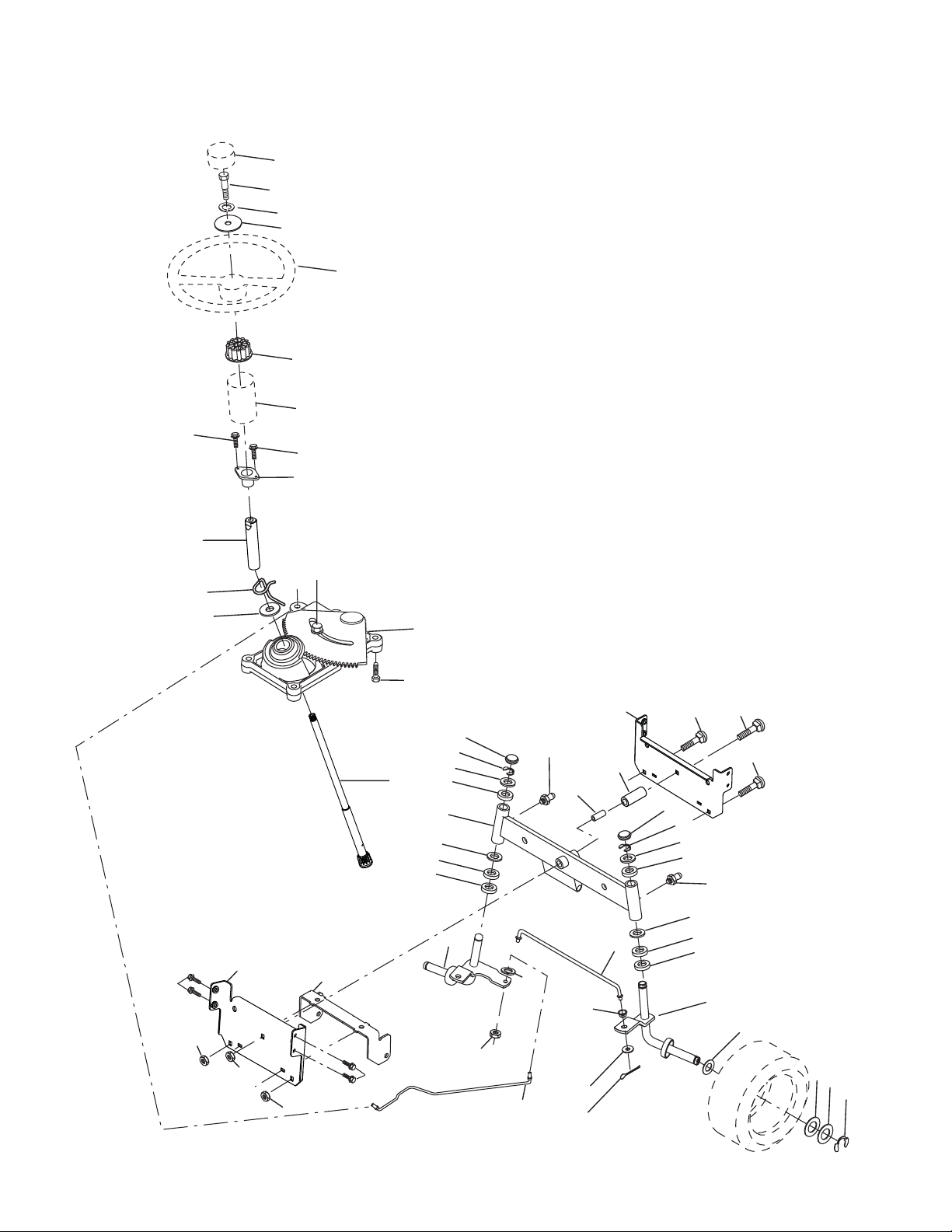

STEERING ............................................................................................................10-11

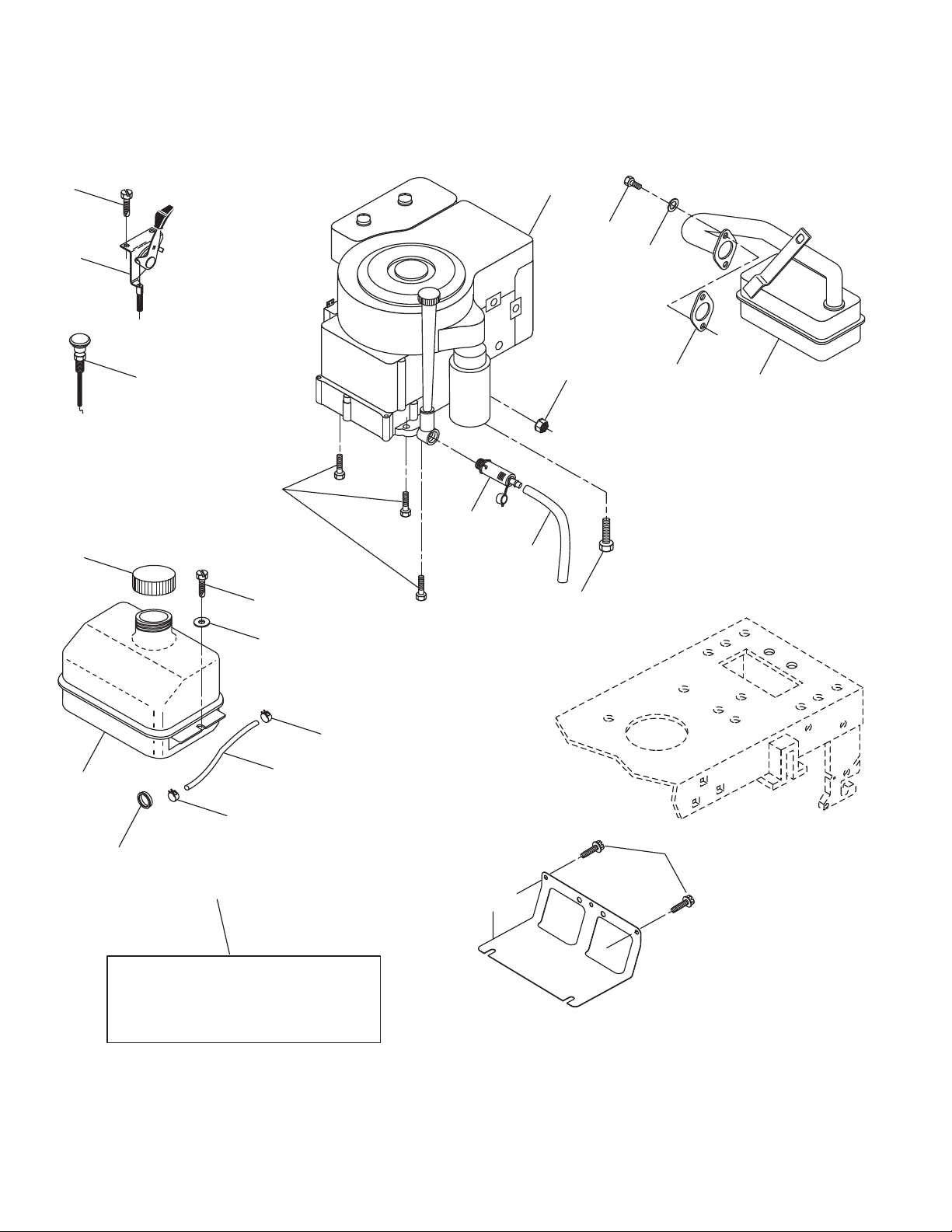

ENGINE ................................................................................................................. 12-13

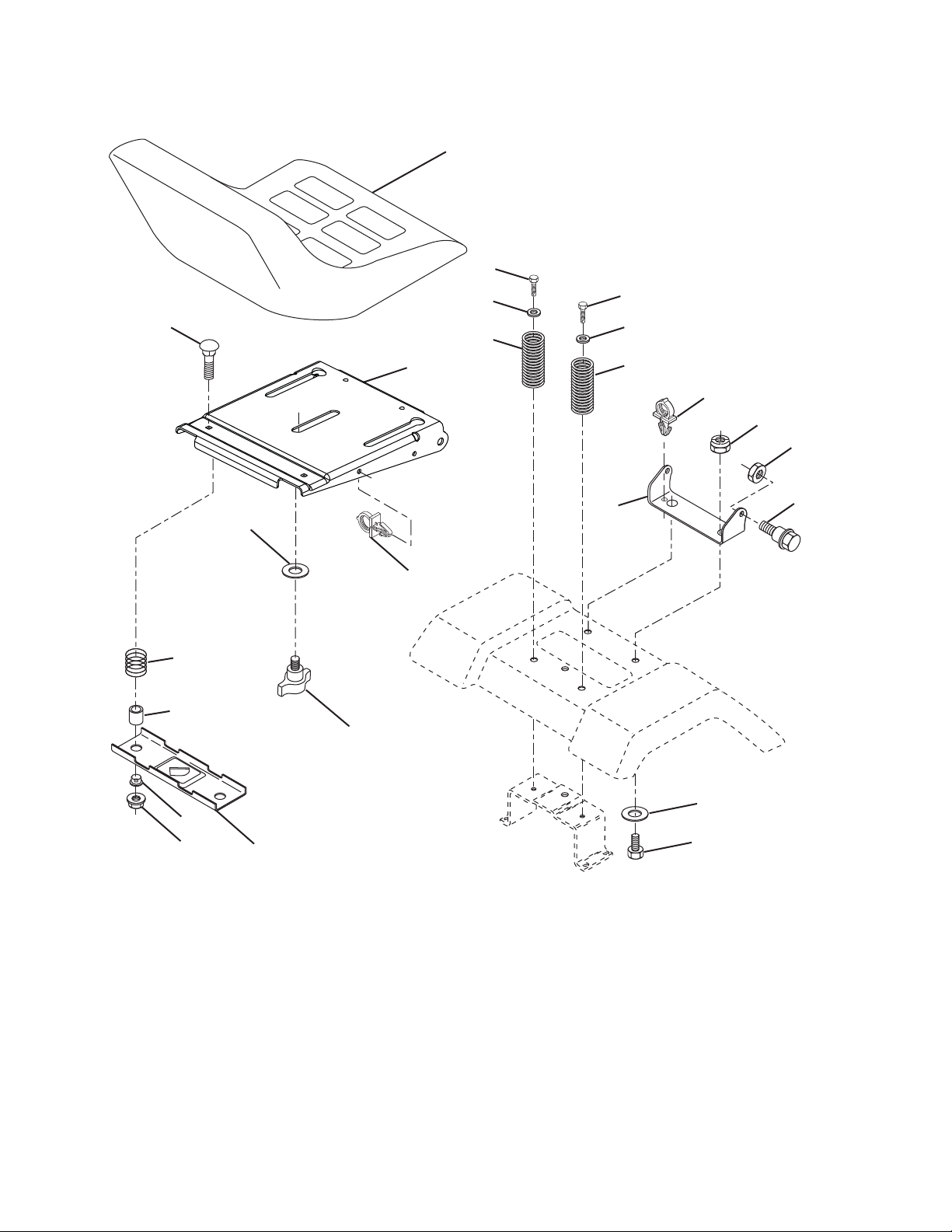

SEAT .......................................................................................................................... 14

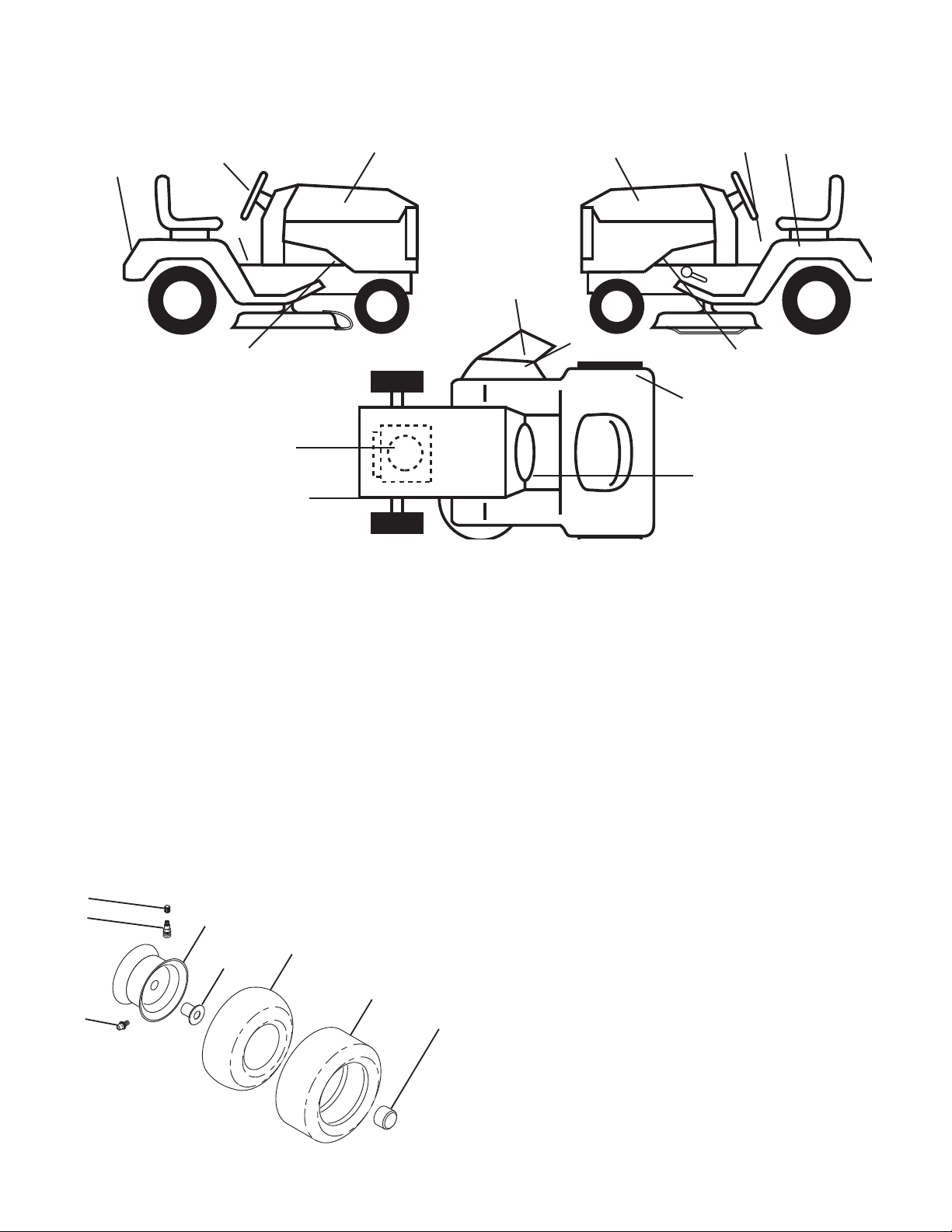

DECALS ..................................................................................................................... 15

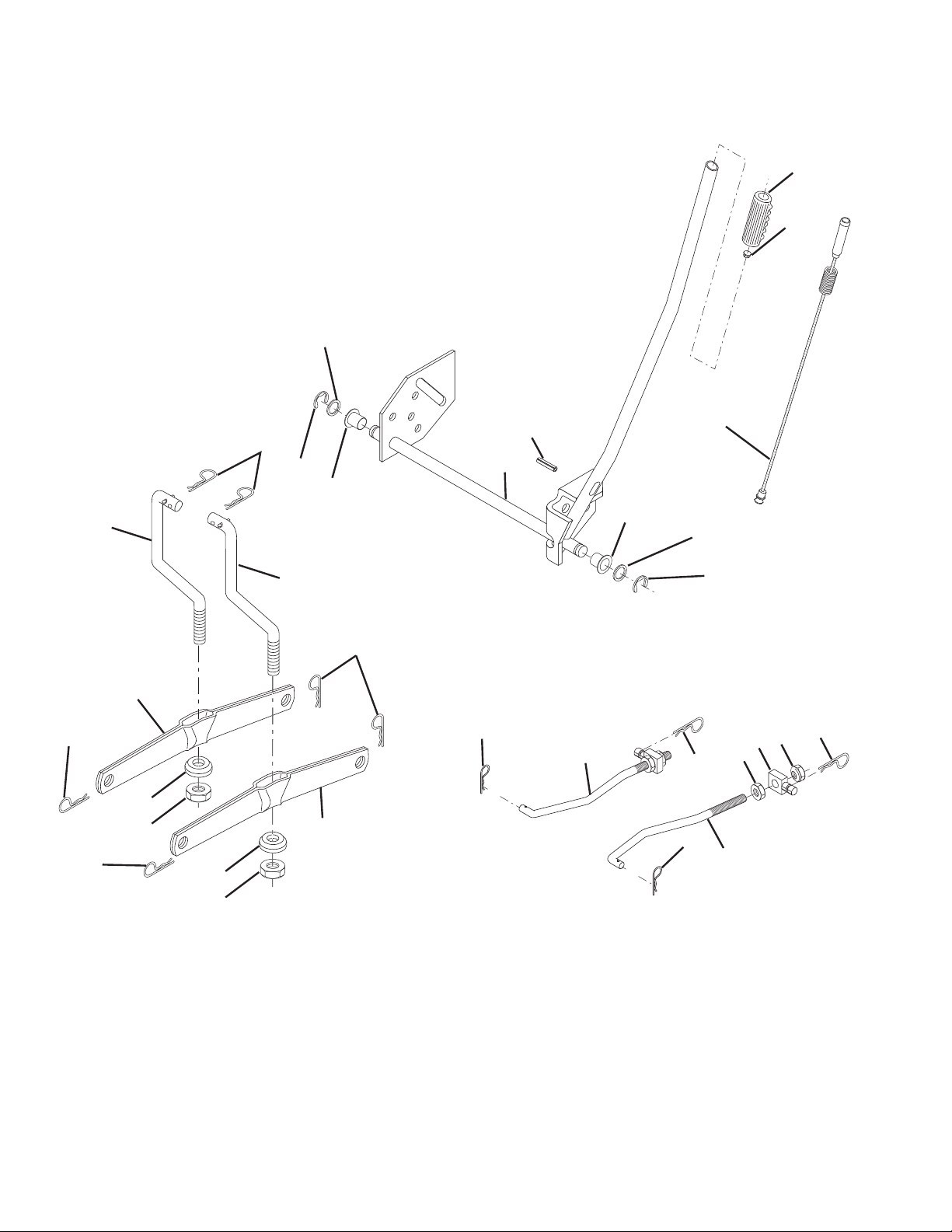

MOWER LIFT ........................................................................................................16-17

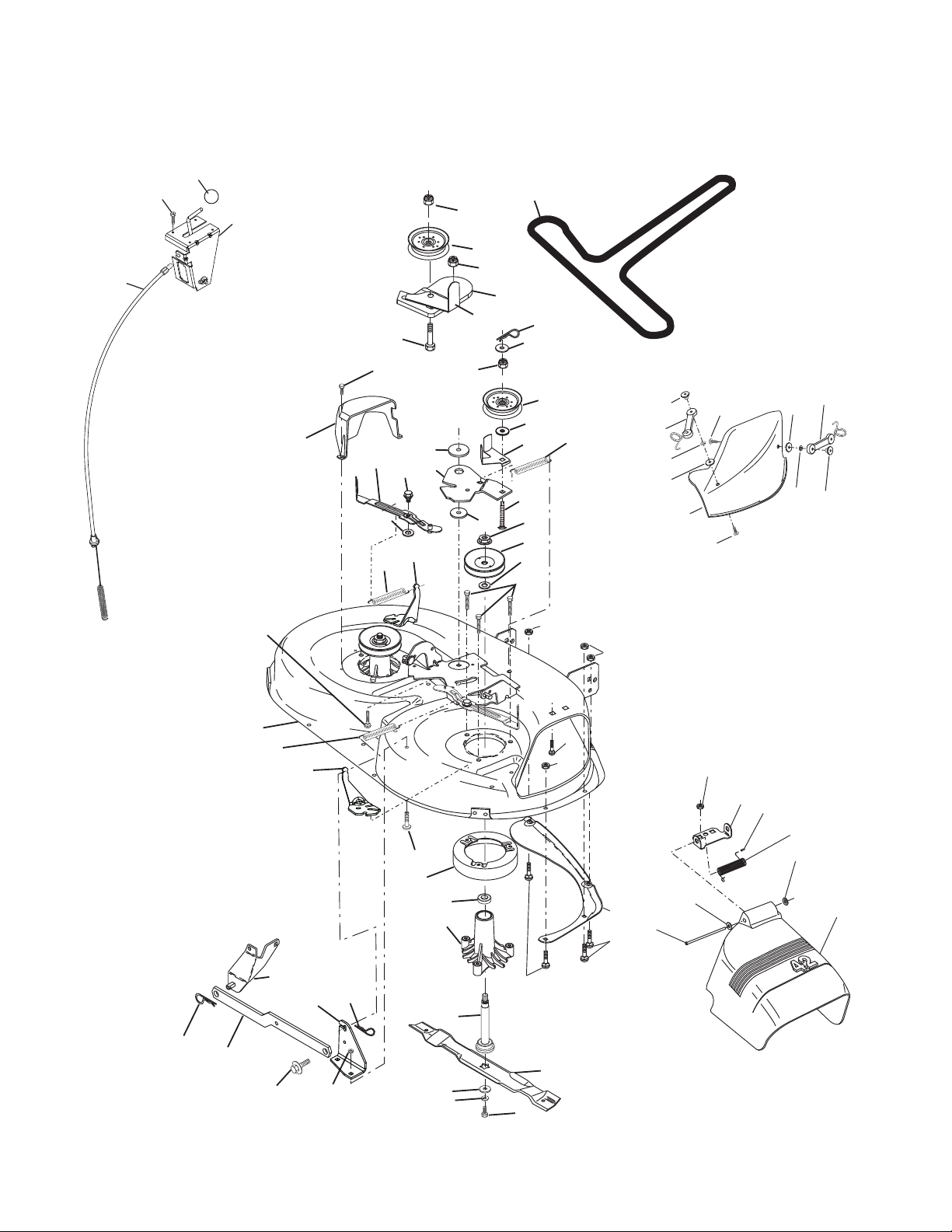

MOWER DECK .....................................................................................................18-19
2
![](/html/1c/1c91/1c9192e38ba8d737172f6d82ea44b8499178f4909ebe8643d6e6220b3c98e6e5/bg3.png)
TRACTOR - - MODEL NO. MC17107 (96011008400), PRODUCT NO. 960 11 00-84
BATTERY
FUSE
IGNITION
SWITCH
RED
RED
RED
BLACK
IGNITION
UNIT
HEADLIGHTS
REMOVABLE
CONNECTIONS
BLACK
BLACK
BLACK
WHITE
WHITE
WHITE
RED
BLACK
ORANGE
BLACK
BROWN
BLACK
BLACK
BLACK
STARTER
M
SEAT SWITCH
(NOT OCCUPIED)
GROUNDING
CONNECTOR
ATT'MENT CLUTCH
(CLUTCH OFF)
CLUTCH / BRAKE
(PEDAL UP)
SOLENOID
BLACK
LIGHTING SYSTEM OUTPUT
5 AMP AC @ 3600 RPM
ALTERNATOR
14 VOLTS AC MIN. @ 3600 RPM (LIGHTS OFF)
DIODE
28 VOLTS AC MIN. @ 3600 RPM
(CHARGING SYSTEM DISCONNECTED)
CHARGING SYSTEM OUTPUT
3 AMP DC @ 3600 RPM
NOTE
YOUR TRACTOR IS
EQUIPPED WITH A SPECIAL
ALTERNATOR SYSTEM.
THE LIGHTS ARE NOT
CONNECTED TO THE
BATTERY, BUT HAVE THEIR
OWN ELECTRICAL SOURCE.
BECAUSE OF THIS, THE
BRIGHTNESS OF THE LIGHTS
WILL CHANGE WITH ENGINE
SPEED. AT IDLE THE LIGHTS
WILL DIM. AS THE ENGINE IS
SPEEDED UP, THE LIGHTS
WILL BECOME THEIR BRIGHTEST.
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY SHOULD BE REPLACED TO
PROPERLY SECURE YOUR WIRING.
A
AMMETER
RED
G
B
S
M
A1
A2
L
HOUR
METER
(OPTIONAL)
(OPTIONAL)
SPARK
PLUG
GAP
(2 PLUGS ON
TWIN CYL. ENGINES)
IGNITION SWITCH
CIRCUITPOSITION
OFF
B+A1RUN/LIGHT
B + S + A1START
M+G+A1
B+A1RUN
“MAKE”
A2+L
NONE
NONE
NONE
(IF SO EQUIPPED)
NON-REMOVABLE
CONNECTIONS
02363
BLUE
FUEL SHUT-OFF SOLENOID
FUEL
LINE
SCHEMATIC
3
![](/html/1c/1c91/1c9192e38ba8d737172f6d82ea44b8499178f4909ebe8643d6e6220b3c98e6e5/bg4.png)
179720
28
29
26
24
42
43
27
27
25
41
27
27
40
33
30
TRACTOR - - MODEL NO. MC17107 (96011008400), PRODUCT NO. 960 11 00-84
ELECTRICAL
22
90
21
D.C. AMPERE
S
45
4
![](/html/1c/1c91/1c9192e38ba8d737172f6d82ea44b8499178f4909ebe8643d6e6220b3c98e6e5/bg5.png)
TRACTOR - - MODEL NO. MC17107 (96011008400), PRODUCT NO. 960 11 00-84
ELECTRICAL
KEY PART
NO. NO. DESCRIPTION
1 532 16 34-65 Battery 12 Volt 25 Amp
2 874 76 04-12 Bolt Hex Hd 1/4-20 unc x 3/4
8 532 17 66-89 Case Battery Mech Hinge
16 532 17 61-38 Switch Interlock Push-In
21 532 18 37-59 Harness Asm Light W/4152j
22 532 00 41-52 Bulb Light #1156
24 532 12 47-80 Cable Battery 6 Ga. 11"red
25 532 14 61-47 Cable Battery
26 532 17 51-58 Fuse
27 873 51 04-00 Nut Keps Hex 1/4-20 unc
28 532 12 47-73 Cable Ground 6 Ga. 12"black
29 532 12 13-05 Switch Plunger Nc Gray
30 532 17 55-66 Switch Ign
33 532 14 04-01 Key Ign
40 532 17 97-20 Harness Ign
41 871 11 04-08 Bolt Blk Fin Hex 1/4-20
42 532 13 15-63 Cover Terminal Red
43 532 17 88-61 Solenoid
45 532 12 14-33 Ammeter
52 532 14 19-40 Protection Wire Loop
90 532 18 04-49 Cover Terminal Battery
NOTE: All component dimensions given in U. S.
inches 1 inch = 25.4 mm.
5
![](/html/1c/1c91/1c9192e38ba8d737172f6d82ea44b8499178f4909ebe8643d6e6220b3c98e6e5/bg6.png)
TRACTOR - - MODEL NO. MC17107 (96011008400), PRODUCT NO. 960 11 00-84
CHASSIS
29
212
17
208
26
30
25
31
11
209
209
159
9
207
24
18
26
28
39
24
278
25
5
5
209
208
206
26
209
209
2
33
142
209
35
10
142
14
38
209
14
64
209
35
37
34
145
37
26
1
13
208
chassis_elite value_stlt_3
