McCulloch MB290 User Manual

Operator’s Manual

2-Cycle Gasoline

Blower

Model MB290

IMPORTANT: READ SAFETY RULES AND INSTRUCTIONS CAREFULLY

P/N 769-01504 (04/05)

INTRODUCTION

Copy the serial number

here:

THANK YOU

Thank you for buying this quality product. This modern outdoor power tool will provide many hours of useful service. You will find it to be a great labor-saving device. This operator’s manual provides you with easy-tounderstand operating instructions. Read the whole manual and follow all the instructions to keep your new outdoor power tool in top operating condition.

PRODUCT REFERENCES, ILLUSTRATIONS AND SPECIFICATIONS

All information, illustrations, and specifications in this manual are based on the latest product information available at the time of printing. We reserve the right to make changes at any time without notice.

SERVICE INFORMATION

Service on this unit both within and after the warranty period should be performed only by an authorized and approved service dealer.

For service call 1-800-345-8746 in the United States, or 1-800-668-1238 in Canada to obtain a list of authorized service dealers near you. For more details about your unit, visit our website at www.mccullochpower.com.

DO NOT RETURN THE UNIT TO THE RETAILER. PROOF OF PURCHASE WILL BE REQUIRED FOR WARRANTY SERVICE.

Before beginning, locate the unit’s model plate. It lists the model and serial numbers of your unit. Refer to the sample plate below and copy the information for future reference.

Make sure you carefully read and understand this manual before starting or operating this equipment.

THIS PRODUCT IS COVERED BY ONE OR MORE U.S. PATENTS. OTHER PATENTS PENDING.

TABLE OF CONTENTS

Service Information . . . . . . . . . . . . . . . . . . . . . . . . .2

Rules for Safe Operation . . . . . . . . . . . . . . . . . . . . .3

Know Your Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . .7

Oil and Fuel Information . . . . . . . . . . . . . . . . . . . . . .8

Starting/Stopping Instructions . . . . . . . . . . . . . . . . .9

Operating Instructions . . . . . . . . . . . . . . . . . . . . . .10

Maintenance and Repair Instructions . . . . . . . . . . .11

Cleaning and Storage . . . . . . . . . . . . . . . . . . . . . . .12

Troubleshooting Chart . . . . . . . . . . . . . . . . . . . . . .14

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Warranty Information . . . . . . . . . . . . . . . . . . . . . . .18

Parts List . . . . . . . . . . . . . . . . . . . .Inside Back Cover

Copy the model and parent

part number here:

SPARK ARRESTOR NOTE

NOTE: For users on U.S. Forest Land and in the states of California, Maine, Oregon and Washington.

All U.S. Forest Land and the state of California (Public Resources Codes 4442 and 4443), Oregon and Washington require, by law that certain internal combustion engines operated on forest brush and/or grass-covered areas be equipped with a spark arrestor, maintained in effective working order, or the engine be constructed, equipped and maintained for the prevention of fire. Check with your state or local authorities for regulations pertaining to these requirements. Failure to follow these requirements could subject you to liability or a fine. This unit is factory equipped with a spark arrestor. If it requires replacement, ask your LOCAL SERVICE DEALER to install the Spark Arrestor Kit.

CALIFORNIA PROPOSITION 65 WARNING

WARNING

THE ENGINE EXHAUST FROM THIS

PRODUCT CONTAINS CHEMICALS

KNOWN TO THE STATE OF CALIFORNIA

TO CAUSE CANCER, BIRTH DEFECTS

OR OTHER REPRODUCTIVE HARM.

MODEL :

S/N :

ITEM :

READ ALL INSTRUCTIONS

BEFORE OPERATING

• Read the instructions carefully. Be familiar with the controls and proper use of the unit.

• Do not operate this unit when tired, ill, or under the influence of alcohol, drugs, or medication.

• Children and teens under the age of 15 must not use the unit, except for teens guided by an adult.

• All guards and safety attachments must be installed properly before operating the unit.

• Inspect the unit before use. Replace damaged parts. Check for fuel leaks. Make sure all fasteners are in place and secure. Replace parts that are cracked, chipped, or damaged in any way. Do not operate the unit with loose or damaged parts.

• Carefully inspect the area before starting the unit. Remove all debris and hard or sharp objects such as glass, wire, etc.

• Clear the area of children, bystanders, and pets. At a minimum, keep all children, bystanders, and pets outside a 50 feet (15 m.) radius; there still may be a risk to bystanders from thrown objects. Bystanders should be encouraged to wear eye protection. If you are approached, stop the unit immediately.

SAFETY WARNINGS FOR GAS UNITS

• Store fuel only in containers specifically designed and approved for the storage of such materials.

• Avoid creating a source of ignition for spilled fuel. Do not start the engine until fuel vapors dissipate.

• Always stop the engine and allow it to cool before filling the fuel tank. Never remove the cap of the fuel tank, or add fuel, when the engine is hot. Never operate the unit without the fuel cap securely in place. Loosen the fuel tank cap slowly to relieve any pressure in the tank.

• Mix and add fuel in a clean, well-ventilated outdoor area where there are no sparks or flames. Slowly remove the fuel cap only after stopping engine. Do not smoke while fueling or mixing fuel. Wipe up any spilled fuel from the unit immediately. Always wipe unit dry before using.

• Move the unit at least 30 feet (9.1 m) from the fueling source and site before starting the engine. Do not smoke or allow sparks and open flames near the area while adding fuel or operating the unit.

RULES FOR SAFE OPERATION

SYMBOL MEANING

The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols, and their explanations, deserve your careful attention and understanding. The safety warnings do not by themselves eliminate any danger. The instructions or warnings they give are not substitutes for proper accident prevention measures.

NOTE: Advises you of information or instructions vital to

the operation or maintenance of the equipment.

SYMBOL MEANING

When using the unit,

you must follow the safety rules. Please read these instructions before operating the unit in order to ensure the safety of the operator and any bystanders. Please keep these instructions for later use.

WARNING:

• IMPORTANT SAFETY INSTRUCTIONS •

Failure to obey a

safety warning can result in injury to yourself and others. Always follow the safety precautions to reduce the risk of fire, electric shock and personal injury.

WARNING:

Failure to obey a

safety warning will result in serious injury to yourself or to others. Always follow the safety precautions to reduce the risk of fire, electric shock and personal injury.

DANGER:

Failure to obey a

safety warning may result in property damage or personal injury to yourself or to others. Always follow the safety precautions to reduce the risk of fire, electric shock and personal injury.

CAUTION:

Indicates

danger, warning or caution. Attention is required in order to avoid serious personal injury. May be used in conjunction with other symbols or pictographs.

SAFETY ALERT:

Gasoline is highly

flammable, and its vapors can explode if ignited. Take the following precautions:

WARNING:

Read the Operator’s Manual(s) and follow all

warnings and safety instructions.

Failure to do so can result in serious injury to the

operator and/or bystanders.

FOR QUESTIONS, CALL 1-800-345-8746 in the

United States, or 1-800-668-1238 in Canada

RULES FOR SAFE OPERATION

WHILE OPERATING

• Never start or run the unit inside a closed room or building. Breathing exhaust fumes can kill. Operate this unit only in a well-ventilated outdoor area.

• To reduce the risk of injury associated with thrown objects, wear safety glasses or goggles that are marked as meeting ANSI Z87. standards.

• Never run the unit without the the proper equipment attached. When using this unit, always install the blower tubes.

• To reduce the risk of hearing loss associated with sound level(s), always wear ear/hearing protection when operating this unit.

• Wear heavy, long pants, boots, and gloves. Do not wear short pants, sandals, or go barefoot.

• To avoid static electricity shock, do not wear rubber gloves or any other insulated gloves while operating this unit.

• To reduce the risk of injury associated with objects being drawn into rotating parts, do not wear loose clothing, jewelry, scarves, and the like. Secure hair above shoulder level.

• Wear a face or dust mask if the operation is dusty. Long sleeve shirts are recommended.

• Use the unit only in daylight or good artificial light.

• Keep outside surfaces free from oil and fuel.

• Avoid accidental starting. Be in the starting position whenever pulling the starter rope. The operator and unit must be in a stable position while starting. Refer to Starting/Stopping Instructions.

• Do not set unit on any surface except a clean, hard area while engine is running. Debris such as gravel, sand, dust, grass, etc. could be picked up by the air intake and thrown out by the discharge opening, damaging unit, property, or causing serious injury to bystanders or operator.

• Use the right tool. Only use this tool for the purpose intended.

• Do not force unit. It will do the job better and with less likelihood of injury at a rate for which it was designed.

• Do not overreach or use from unstable surfaces such as ladders, trees, steep slopes, rooftops, etc. Always keep proper footing and balance.

• Always hold the unit with a firm grip when operating.

• Keep hands, face, and feet at a distance from all moving parts. Do not touch or try to stop the impeller when it is rotating. Do not operate without guards in place.

• Do not put any object into openings. Do not use with any opening blocked; keep free of dirt, debris, and anything that may reduce the air flow.

• Do not touch the engine or muffler. These parts get extremely hot from operation. When turned off they remain hot for a short time.

• Do not operate the engine faster than the speed needed to do the job. Do not run the engine at high speed when not in use.

• Always stop the engine when operation is delayed or when walking from one location to another.

• Stop the engine for maintenance, repair, to install or remove the blower tubes. The unit must be stopped and the impeller no longer turning to avoid contact with the rotating blades.

• Use only original equipment manufacturer replacement parts when servicing this unit. These parts are available from your authorized service dealer. Do not use unauthorized parts, accessories, or attachments for this unit. Doing so could lead to serious injury to the user, or damage to the unit, and void your warranty.

• Never use this unit for spreading chemicals, fertilizers or other substances which may contain toxic materials.

• To reduce fire hazard, replace faulty muffler and spark arrestor, keep the engine and muffler free from grass, leaves, excessive grease or carbon build up.

• Never point the blower in the direction of people or pets, or in the direction of windows. Always direct the blowing debris away from people, animals, and windows. Use extra caution when blowing debris near solid objects such as trees, automobiles, walls, etc.

OTHER SAFETY WARNINGS

• Always disconnect the spark plug before performing maintenance or accessing movable parts.

• Never store the unit, with fuel in the tank, inside a building where fumes may reach an open flame (pilot lights, etc.) or sparks (switches, electrical motors, etc.).

• Allow the engine to cool before storing or transporting. Be sure to secure the unit while transporting.

• Store the unit in a dry place, either locked up or up high to prevent unauthorized use or damage. Keep out of the reach of children.

• Never douse or squirt the unit with water or any other liquid. Keep handles dry, clean, and free from debris. Clean after each use, see Cleaning and Storage instructions.

• Keep these instructions. Refer to them often and use them to instruct other users. If you loan this unit to others, also loan these instructions to them.

SPECIAL NOTE: Exposure to vibrations through prolonged use of gasoline powered hand tools could cause blood vessel or nerve damage in the fingers, hands, and joints of people prone to circulation disorders or abnormal swelling. Prolonged use in cold weather has been linked to blood vessel damage in otherwise healthy people. If symptoms occur such as numbness, pain, loss of strength, change in skin color or texture, or loss of feeling in the fingers, hands or joints, discontinue use of this tool and seek medical attention. An anti-vibration system does not guarantee avoidance of these problems. Users who operate power tools on a regular basis must closely monitor their physical condition and the condition of this tool.

SAVE THESE INSTRUCTIONS

RULES FOR SAFE OPERATION

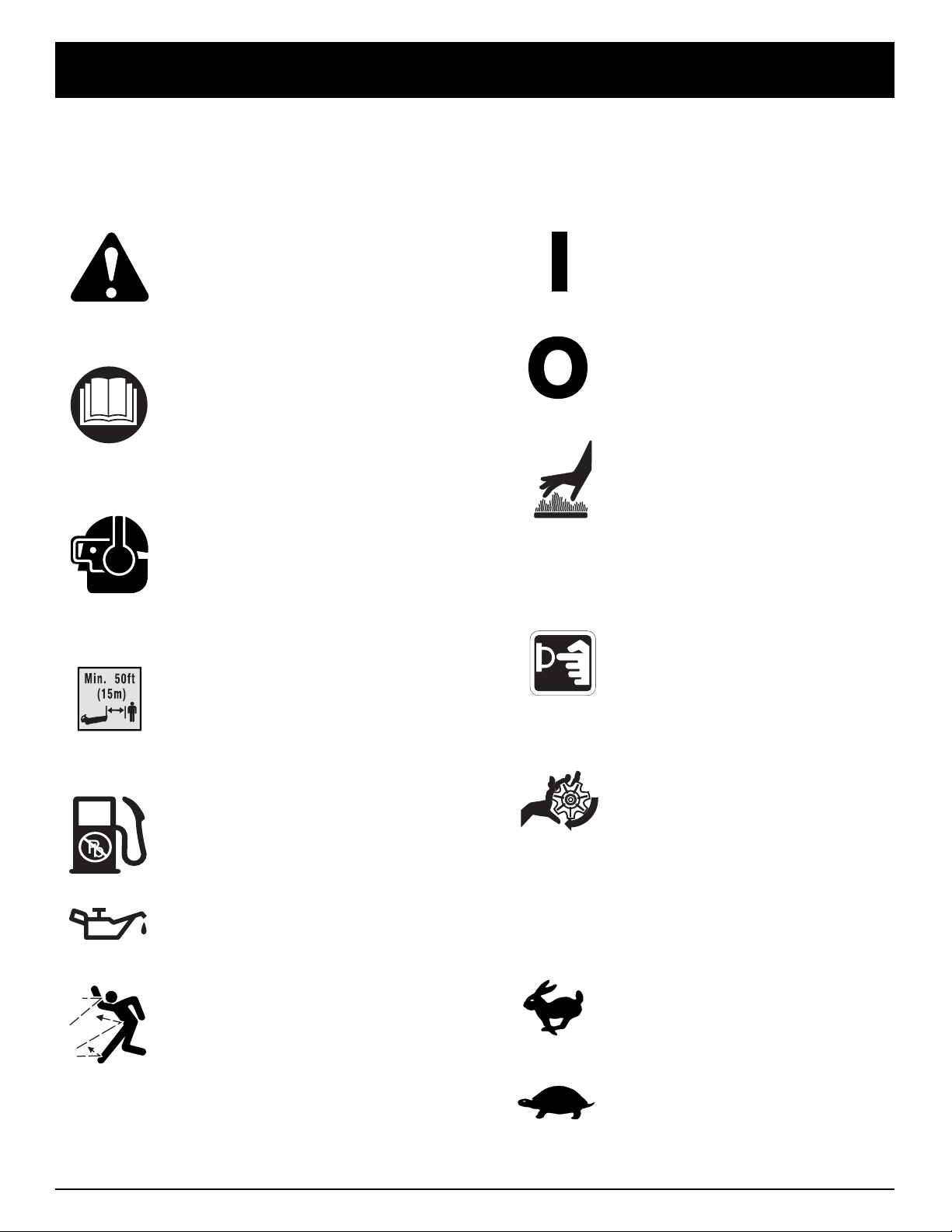

SYMBOL MEANING

• SAFETY ALERT SYMBOL

Indicates danger, warning, or caution. May be used in conjunction with other symbols or pictographs.

• WARNING - READ OPERATOR'S MANUAL

Read the Operator’s Manual(s) and follow all warnings and safety instructions. Failure to do so can result in serious injury to the operator and/or bystanders.

• WEAR EYE AND HEARING PROTECTION

WARNING: Thrown objects and

loud noise can cause severe eye injury and hearing loss. Wear eye protection meeting ANSI Z87.1-1989 standards and ear protection when operating this unit.

Use a full face

shield when needed.

• KEEP BYSTANDERS AWAY

WARNING: Keep all bystanders,

especially children and pets, at least 50 feet (15 m.) from the operating area.

• UNLEADED FUEL

Always use clean, fresh unleaded fuel.

• OIL

Refer to operator's manual for the proper type of oil.

• THROWN OBJECTS AND ROTATING CUTTER CAN CAUSE SEVERE INJURY

WARNING: Keep clear of blower

outlet. Never point the blower at yourself or others. Objects can be thrown from blower. Do not operate unit without proper attachments and guards in place.

SAFETY AND INTERNATIONAL SYMBOLS

This operator's manual describes safety and international symbols and pictographs that may appear on this product. Read the operator's manual for complete safety, assembly, operating and maintenance and repair information.

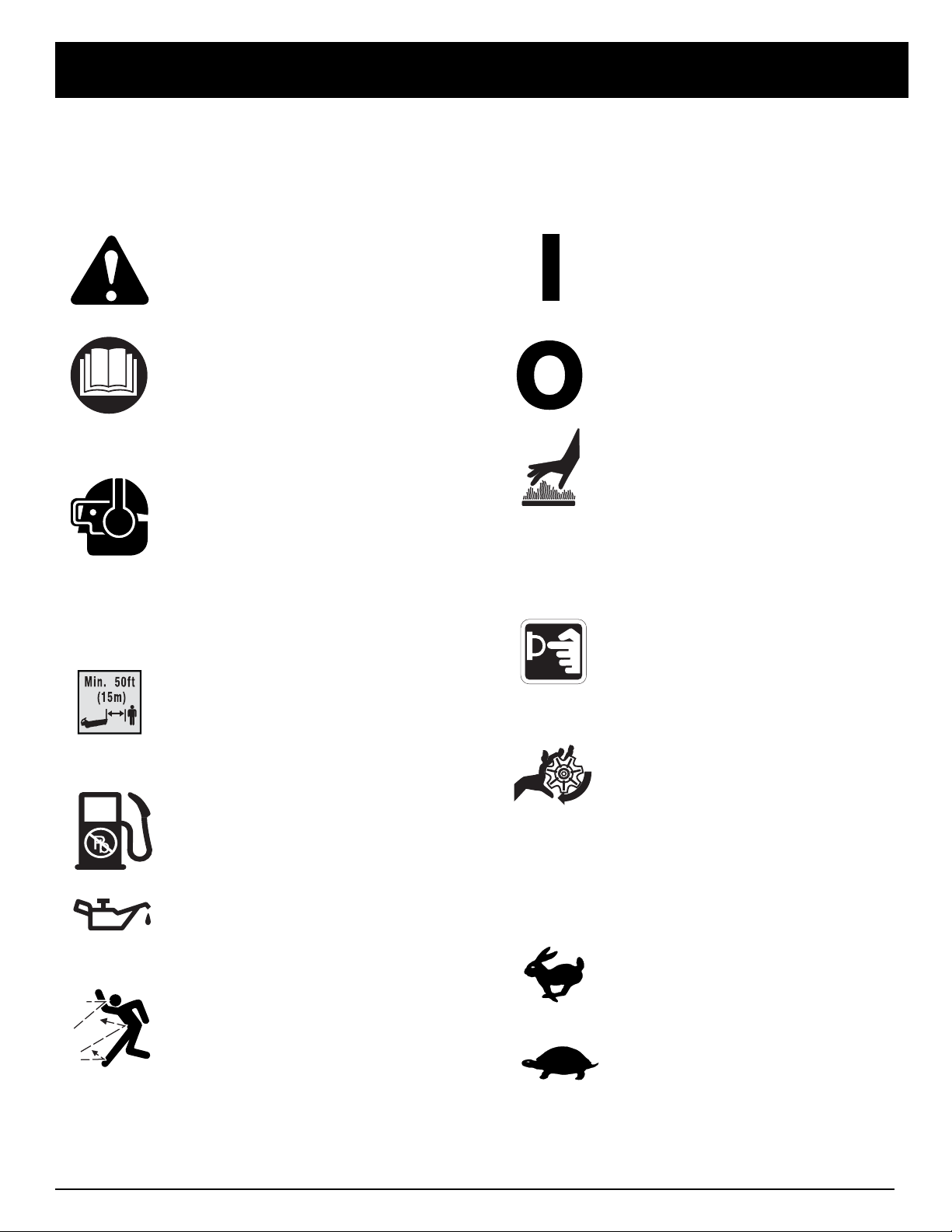

SYMBOL MEANING

• ON/OFF STOP CONTROL

ON / START / RUN

• ON/OFF STOP CONTROL

OFF or STOP

• HOT SURFACE WARNING

Do not touch a hot muffler or cylinder. You may get burned. These parts get extremely hot from operation. When turned off they remain hot for a short time.

• PRIMER BULB

Press the primer bulb, fully and slowly, 10 times.

• BLOWERS – ROTATING IMPELLER BLADES CAN CAUSE SEVERE INJURY

WARNING: Stop the engine and

allow the impeller to stop before opening the door, installing or changing tubes, or before cleaning or performing any maintenance.

• THROTTLE CONTROL

Indicates “HIGH” or “FASTEST” speed.

• THROTTLE CONTROL

Indicates “IDLE,” “LOW” or “SLOWEST” speed.

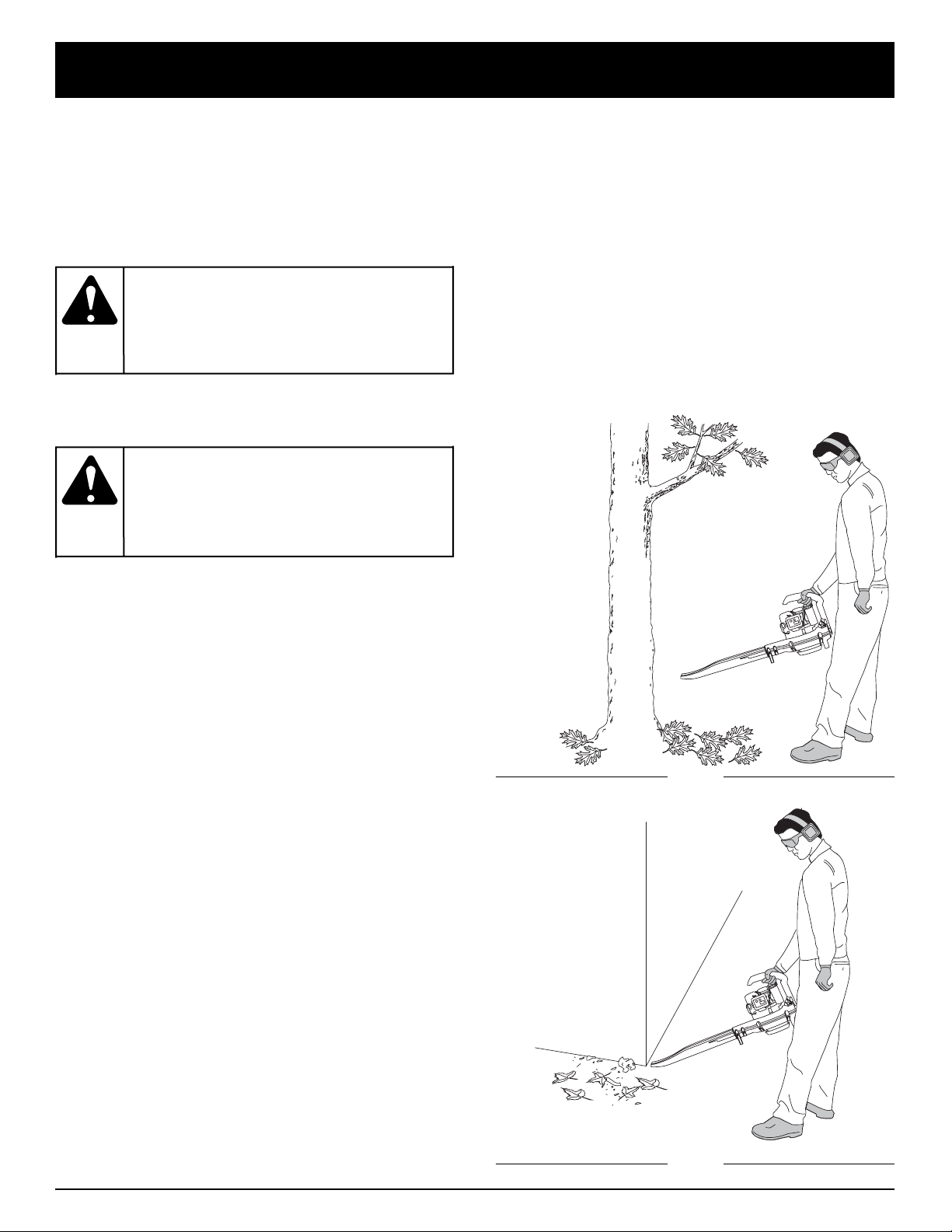

RULES FOR SAFE OPERATION

APPLICATION

• Cleaning yards, garages, driveways, porches, patios, around walls, fences and more

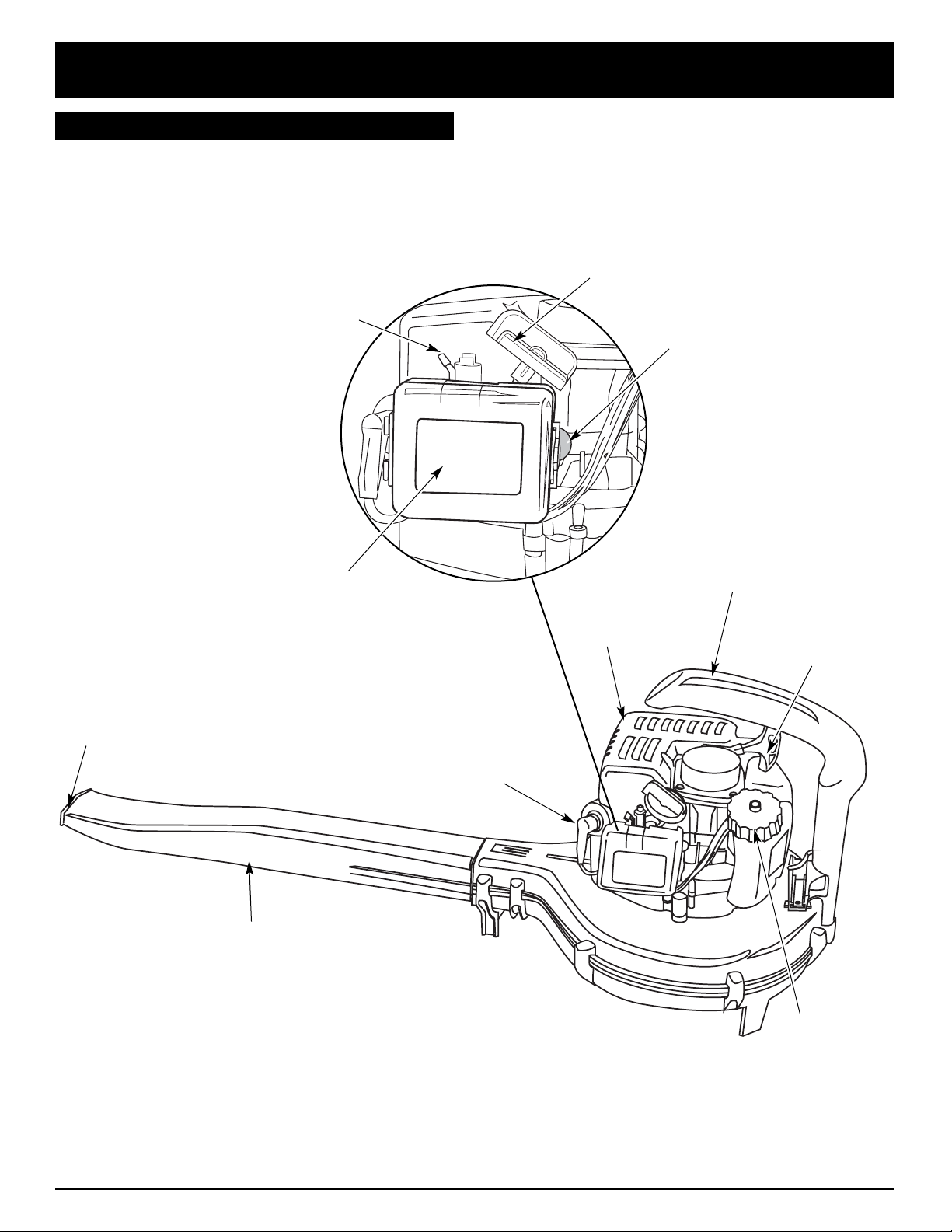

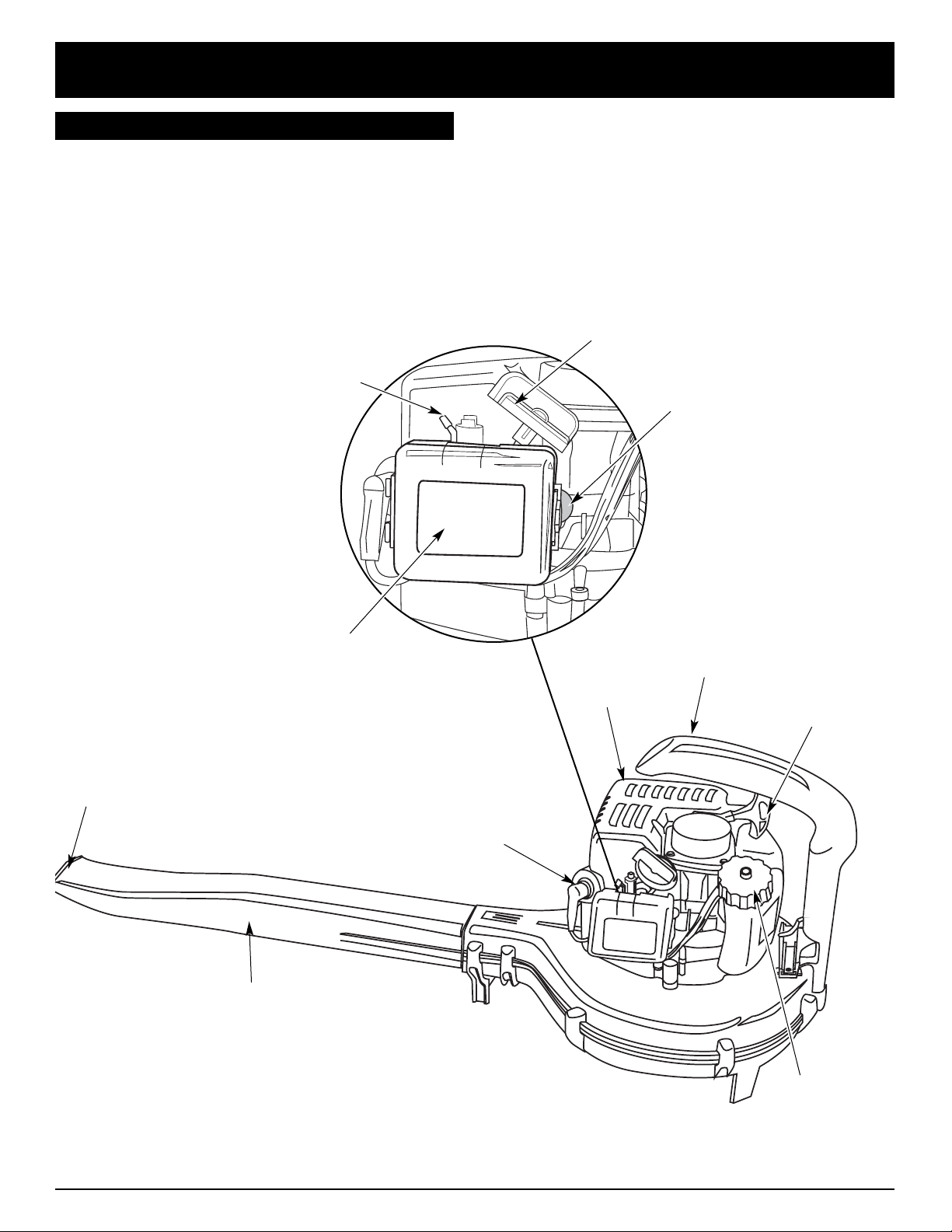

KNOW YOUR UNIT

Blower Tube

Blower

Outlet

Fuel Cap

Throttle Knob

Spark Plug

Starter Rope

Grip

Primer Bulb

Blue Choke Lever

Air Filter

Cover

Muffler

Cover

Handle

ASSEMBLY INSTRUCTIONS

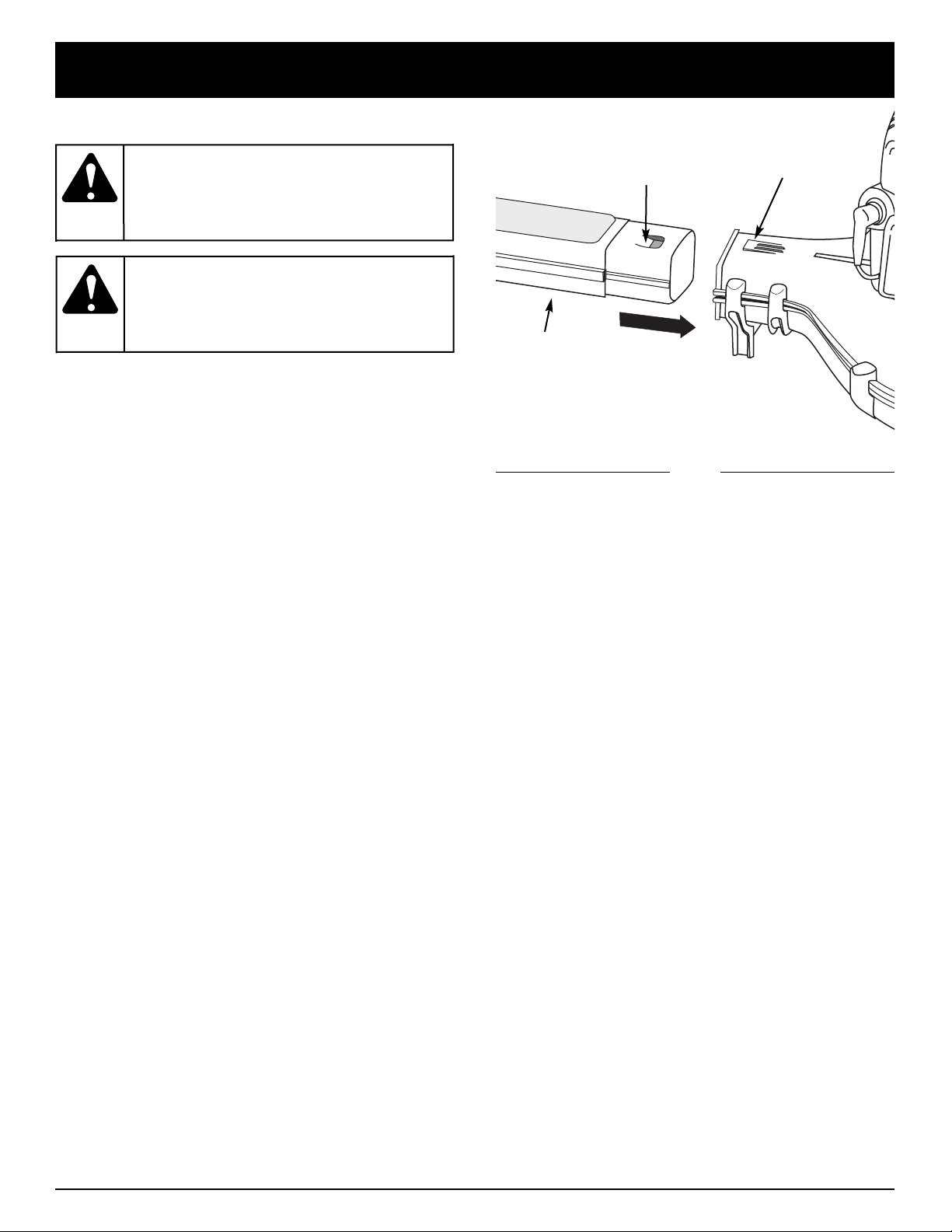

INSTALL AND REMOVE THE BLOWER TUBE

Install

To install the blower tube, simply push it into the blower housing. Push it in until the tabs on the top and bottom of the housing slide into the blower tube detents (Fig. 1).

Remove

To remove the blower tube, use a flat blade screwdriver to lift the tabs and pull the tube out of the blower housing (Fig. 1).

Tab

Blower

Tube

To prevent serious

personal injury, stop the engine and allow the impeller to stop before attaching or removing tubes.

WARNING:

To prevent serious

personal injury or damage to the unit, the blower tube must be installed while operating this unit.

WARNING:

Blower

Tube

Detent

Fig. 1

OIL AND FUEL INFORMATION

NOTE: Dispose of the old fuel/oil mix in accordance to

Federal, State and Local regulations.

OIL AND FUEL MIXING INSTRUCTIONS

Old and/or improperly mixed fuel are the main reasons for the unit not running properly. Be sure to use fresh, clean unleaded fuel. Follow the instructions carefully for the proper fuel/oil mixture.

Definition of Blended Fuels

Today's fuels are often a blend of gasoline and oxygenates such as ethanol, methanol, or MTBE (ether). Alcohol-blended fuel absorbs water. As little as 1% water in the fuel can make fuel and oil separate. It forms acids when stored. When using alcohol-blended fuel, use fresh fuel (less than 60 days old).

Using Blended Fuels

If you choose to use a blended fuel, or its use is unavoidable, follow recommended precautions:

• Always use the fresh fuel mix explained in your operator's manual

• Always agitate the fuel mix before fueling the unit

• Drain the tank and run the engine dry before storing the unit

Using Fuel Additives

The bottle of 2-cycle oil that came with your unit contains a fuel additive which will help inhibit corrosion and minimize the formation of gum deposits. It is recommended that you use our 2-cycle oil with this unit.

If unavailable, use a good 2-cycle oil designed for air-cooled engines along with a fuel additive, such as STA-BIL®Gas Stabilizer or an equivalent. Add 0.8 oz. (23 ml.) of fuel additive per gallon of fuel according to the instructions on the container. NEVER add fuel additives directly to the unit's fuel tank.

Thoroughly mix the proper ratio of 2-cycle engine oil with unleaded gasoline in a separate fuel can. Use a 40:1 fuel/oil ratio. Do not mix them directly in the engine fuel tank. See the table below for specific gas and oil mixing ratios.

NOTE: One gallon (3.8 liters) of unleaded gasoline mixed

with one 3.2 oz. (95 ml.) bottle of 2-cycle oil makes a 40:1 fuel/oil ratio.

UNLEADED GAS 2 CYCLE OIL

1 GALLON US

(3.8 LITERS)

3.2 FL. OZ. (95 ml)

1 LITER 25 ml

MIXING RATIO - 40:1

Add fuel in a clean,

well ventilated outdoor area. Wipe up any spilled fuel immediately. Avoid creating a source of ignition for spilt fuel. Do not start the engine until fuel vapors dissipate.

WARNING:

Gasoline is

extremely flammable. Ignited Vapors may explode. Always stop the engine and allow it to cool before filling the fuel tank. Do not smoke while filling the tank. Keep sparks and open flames at a distance from the area.

WARNING:

Remove fuel cap

slowly to avoid injury from fuel spray. Never operate the unit without the fuel cap securely in place

WARNING:

For proper engine

operation and maximum reliability, pay strict attention to the oil and fuel mixing instructions on the 2-cycle oil container. Using improperly mixed fuel can severely damage the engine.

CAUTION:

STARTING/STOPPING INSTRUCTIONS

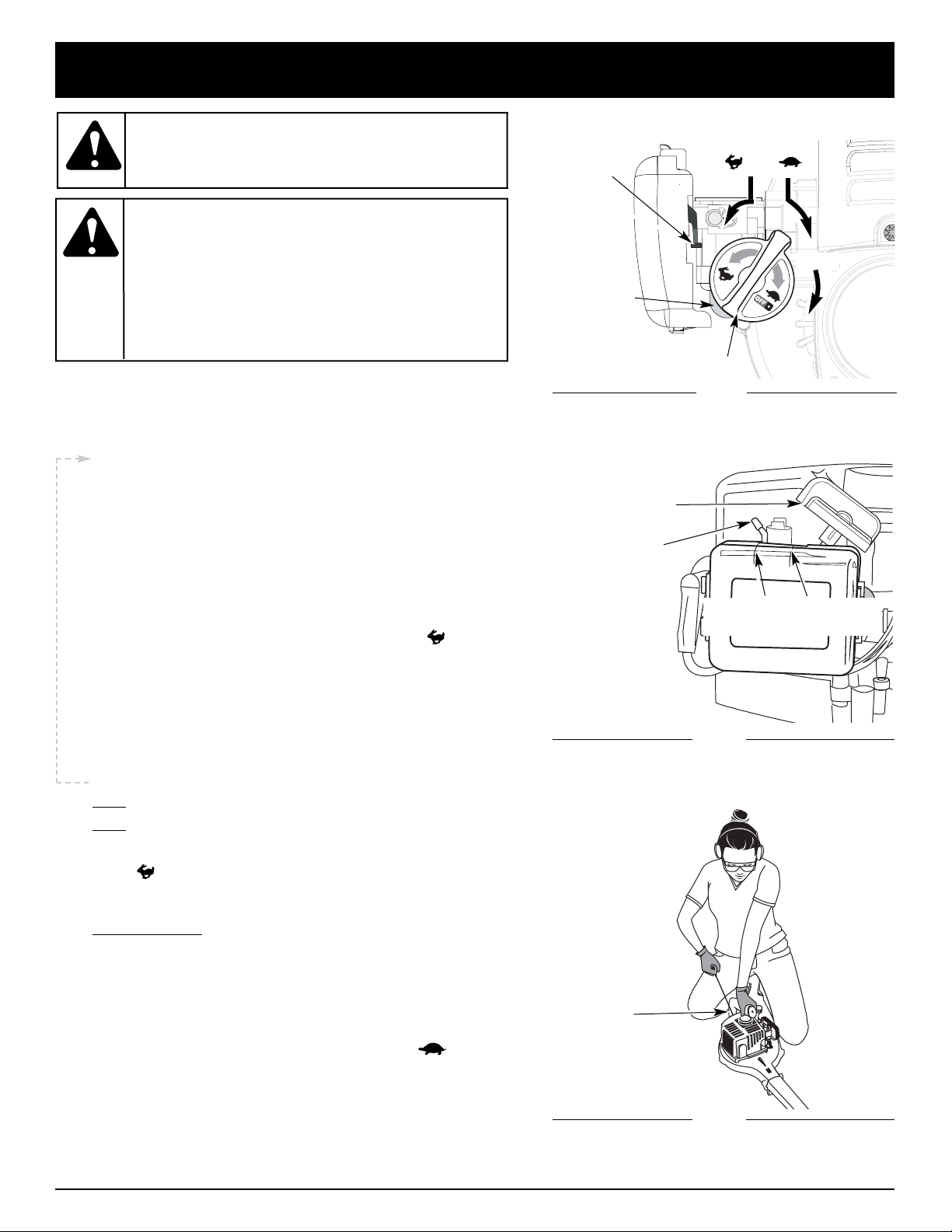

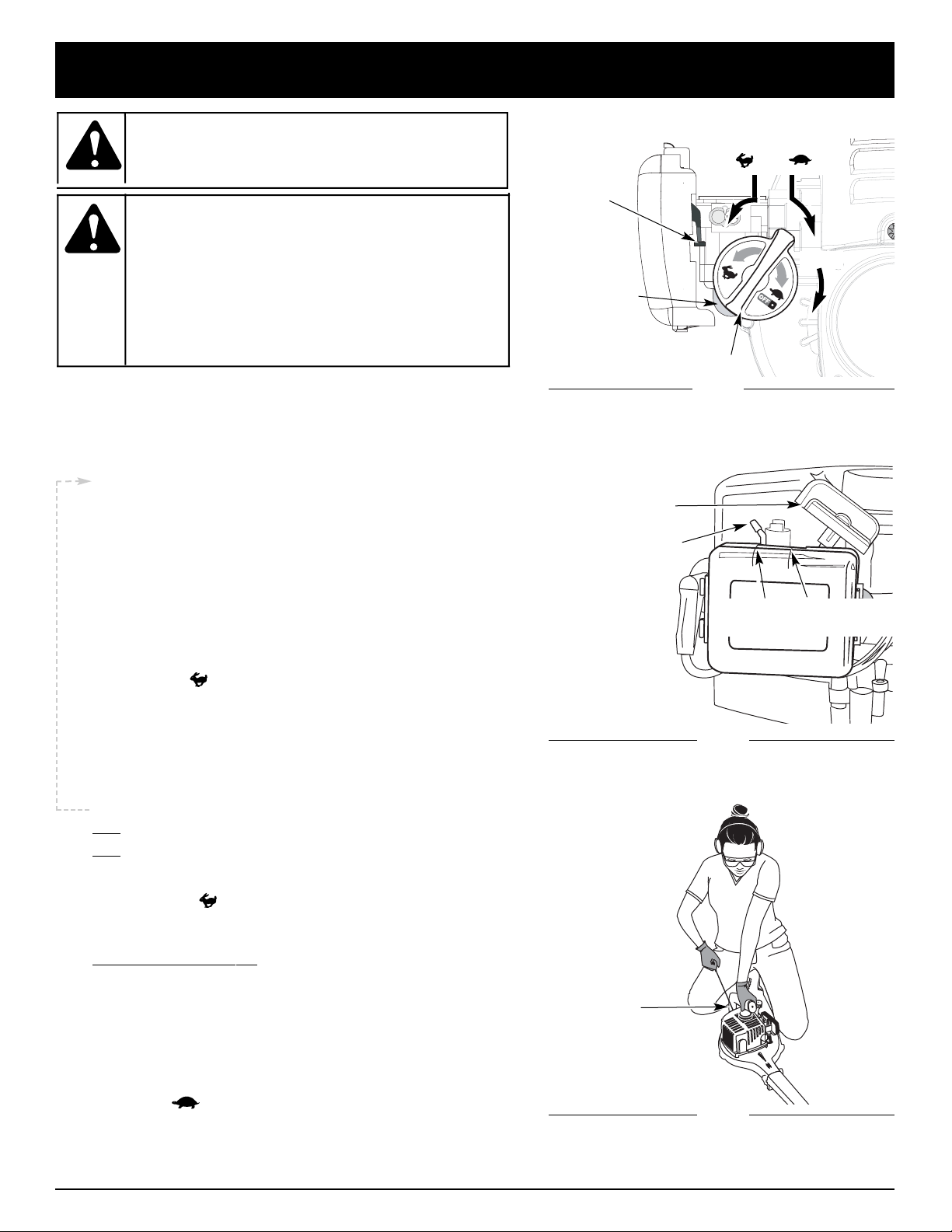

STARTING INSTRUCTIONS

Fig. 2

Fig. 3

STOPPING INSTRUCTIONS

1. To turn off the blower, move the throttle knob all the way to the right, past the idle position ( ) until it clicks. Make sure you move the knob into the furthest right detent in order to turn the unit off (Fig. 2).

1. Mix gas with oil. Fill fuel tank with fuel/oil mixture. See Oil and Fuel Mixing Instructions.

2. Fully press and release the primer bulb 10 times, slowly. Some amount of fuel should be visible in the primer bulb (Fig. 2) and fuel lines. If you can’t see fuel in the bulb, press and release the bulb as many times as it takes before you can see fuel in it.

3. Place the blue choke lever in Position 1 – Start (Fig. 3).

4. Place the unit in the starting position (Fig. 4). Move the throttle knob to the fast position ( ) (Fig. 2).

5. Pull the starter rope briskly 3 times.

6. Place the blue choke lever in Position 2 – Run.

7. Pull the starter rope briskly 1 to 6 times to start the engine.

8. Allow the engine to warm up for 15 to 30 seconds. The unit is ready for use.

IF... The engine does not start, go back to step 2. IF

...

The engine fails to start after a couple attempts, place the blue choke lever in Position 2 and move the throttle knob to the fast position ( ). Pull the starter rope briskly 3 to 8 times. The engine should start. If not, repeat.

IF WARM... If the engine is already warm, start the unit

with the blue choke lever in Position 2.

Starter

Rope

Fig. 4

Operate this unit only in a

well- ventilated outdoor area. Carbon monoxide exhaust fumes can be lethal in a confined area.

WARNING:

Avoid accidental starting.

Make sure you are in the

starting position when pulling the starter rope (Fig. 4).

To avoid serious injury, the operator and unit

must be in a stable position while starting. Do not set unit on any surface except a clean, hard

area while starting. Debris such as gravel, sand, dust and grass could be picked up by the air intake and thrown out by the discharge opening. This could damage the unit, property, or cause serious injury to bystanders or the operator.

WARNING:

Position 1

(Start)

Blue Choke Lever

Throttle Knob

Position 2

(Run)

Starting Position

Throttle Knob

Idle

()

Fast

()

Primer Bulb

Off

Top View

Blue

Choke

Lever

OPERATING INSTRUCTIONS

HOLDING THE BLOWER

Before operating the unit, stand in the operating position. Check for the following:

• Operator is wearing proper clothing, such as boots, safety glasses or goggles, ear/hearing protection, gloves, long pants and long sleeve shirt

• If the conditions are dusty, the operator is wearing a dust mask or face mask

• The unit is in good working condition

• The tubes and guards are in place and secure

OPERATING TIPS

• Assure the unit is not directed at anybody or any loose debris before starting the unit.

• Verify that the unit is in good working condition. Make sure the tubes and guards are in place and secure.

• Always hold the unit securely when operating. Keep a firm grip on the handle.

• To reduce the risk of hearing loss associated with sound level(s), hearing protection is required.

• Operate power equipment only at reasonable hours— not early in the morning or late at night when people might be disturbed. Comply with times listed in local ordinances. Usual recommendations are 9:00 am to 5:00 pm, Monday through Saturday.

• To reduce noise levels, limit the number of pieces of equipment used at any one time.

• To reduce noise levels, operate power blowers at the lowest possible speed to do the job.

• Check your equipment before operation, especially the muffler, air intakes and air filters.

• Use rakes and brooms to loosen debris before blowing.

• In dusty conditions, slightly dampen surfaces or use a mister attachment when water is available.

• Conserve water by using power blowers instead of hoses for many lawn and garden applications, including areas such as screens, patios, grills, porches, and gardens.

• Watch out for children, pets, open windows or freshly washed cars, and blow debris safely away.

• Use the full blower nozzle extension so the air stream can work close to the ground.

• Clean up after using blowers and other equipment. Dispose of debris appropriately.

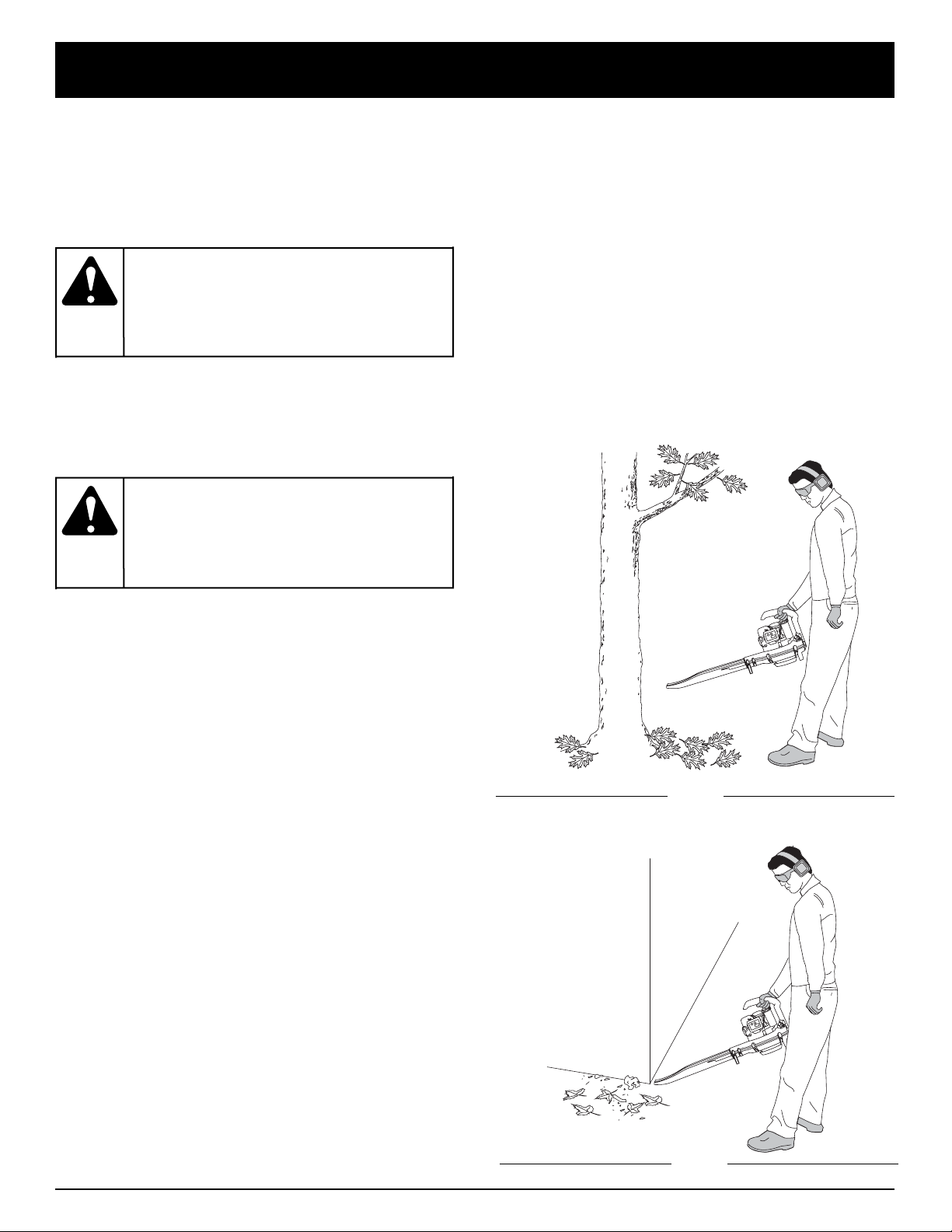

OPERATING AS A BLOWER

1 Use the blower for trees, shrubs, flower beds and

hard-to-clean areas (Fig. 5).

2. Use the unit around buildings and for other normal

cleaning procedures (Fig. 6).

3. Use the blower around walls, overhangs, fences and

screens.

Fig. 5

Fig. 6

To prevent serious

personal injury or damage to the unit, make sure blower tubes are in place before you operate the unit.

WARNING:

To avoid serious

personal injury, wear goggles or safety glasses at all times when operating this unit. Wear a face mask or dust mask in dusty locations.

WARNING:

MAINTENANCE AND REPAIR INSTRUCTIONS

MAINTENANCE SCHEDULE

Perform these required maintenance procedures at the frequency stated in the table. These procedures should also be a part of any seasonal tune-up.

NOTE: Some maintenance procedures may require

special tools or skills. If you are unsure about these procedures take your unit to any non-road engine repair establishment, individual or authorized service dealer.

NOTE: Maintenance, replacement, or repair of the

emission control devices and system may be performed by any non-road engine repair establishment, individual or authorized service dealer.

In order to assure peak performance of your engine, inspection of the engine exhaust port may be necessary after 50 hours of operation. If you notice lost RPM, poor performance or general lack of acceleration, this service may be required. If you feel your engine is in need of this inspection, refer service to any non-road engine repair establishment, individual or authorized service dealer for repair. DO NOT attempt to perform this process yourself as engine damage may result from contaminants involved in the cleaning process for the port.

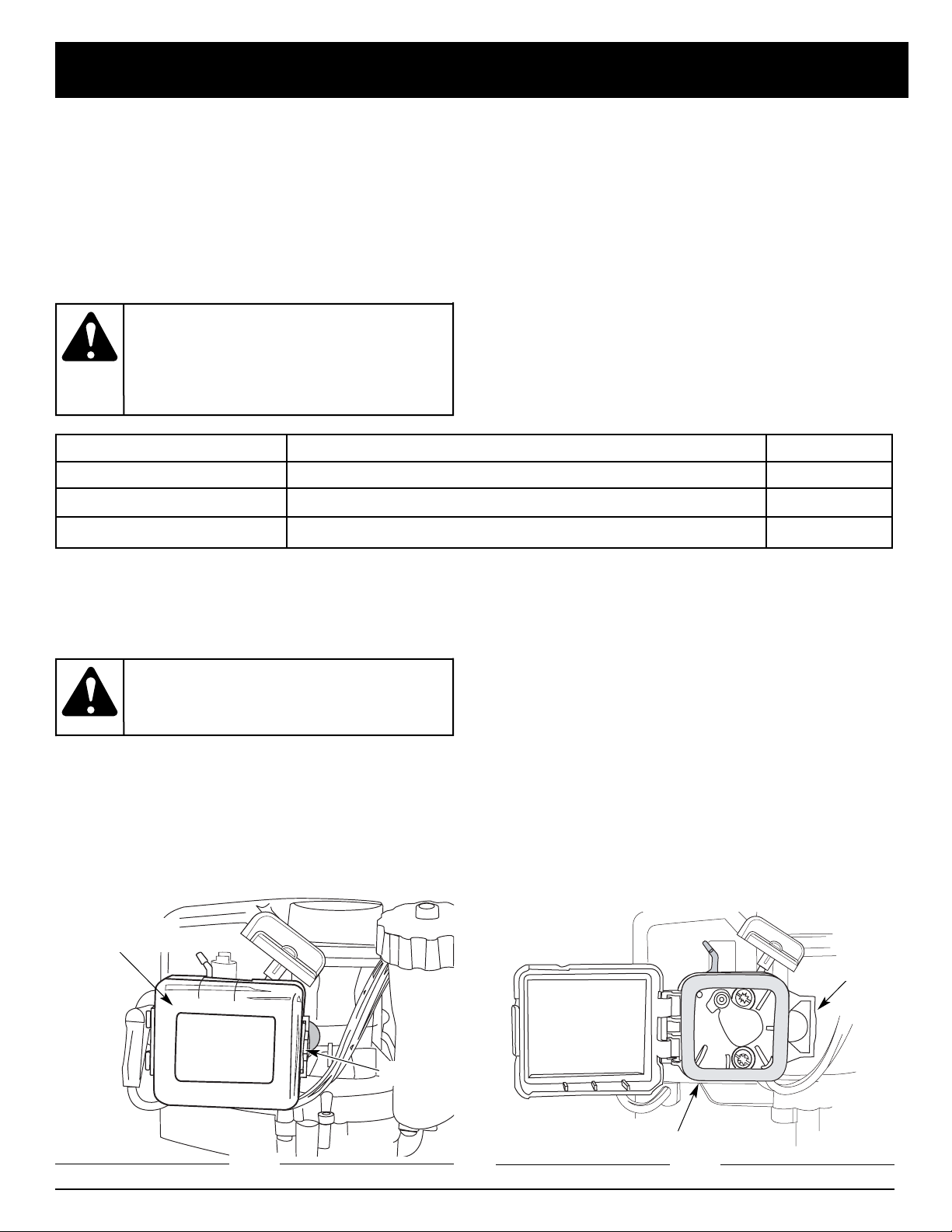

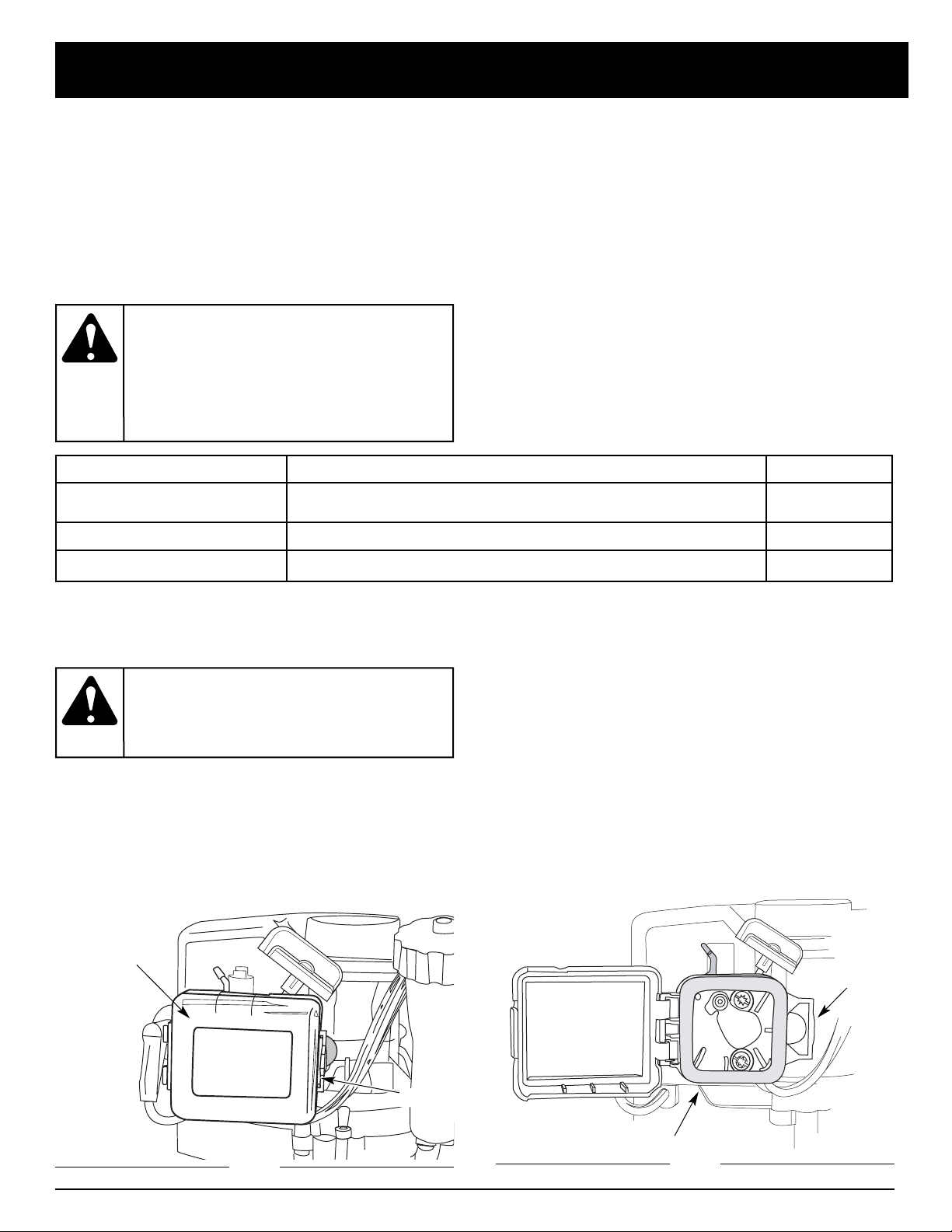

AIR FILTER MAINTENANCE

Clean and re-oil the air filter every 10 hours of operation. It is an important item to maintain. Failure to maintain your air filter properly can result in poor performance or can cause permanent damage to your engine.

1. Remove the carburetor/air filter cover by pushing on the tab, located to the right of the cover (Fig. 7).

2. Swing the air filter cover open. It will swing on the hinges to the left of the cover (Fig. 8).

3. Remove the air filter (Fig. 8).

4. Wash the filter in detergent and water. Rinse the filter thoroughly and allow it to dry (Fig. 9).

5. Apply enough clean SAE 30 motor oil to lightly coat the filter (Fig. 10).

6. Squeeze the filter to spread and remove excess oil (Fig. 11).

7. Reinstall the filter and close the air filter cover (Fig. 7).

NOTE: If the unit is operated without the air filter, you will

VOID the warranty.

Fig. 7

To avoid serious

personal injury, always turn your unit off and allow it to cool before you clean or service it.

WARNING:

To prevent serious

injury, never perform maintenance or repairs with unit running. Always service and repair a cool unit. Disconnect the spark plug wire to ensure that the unit cannot start.

WARNING:

Air Filter

Cover

Tab

Air Filter

Fig. 8

Tab

FREQUENCY MAINTENANCE REQUIRED REFER TO

Before starting engine Fill fuel tank with fresh fuel Page 8 Every 10 hours Clean and re-oil air filter Page 11

Every 25 hours Check spark plug condition and gap Page 12

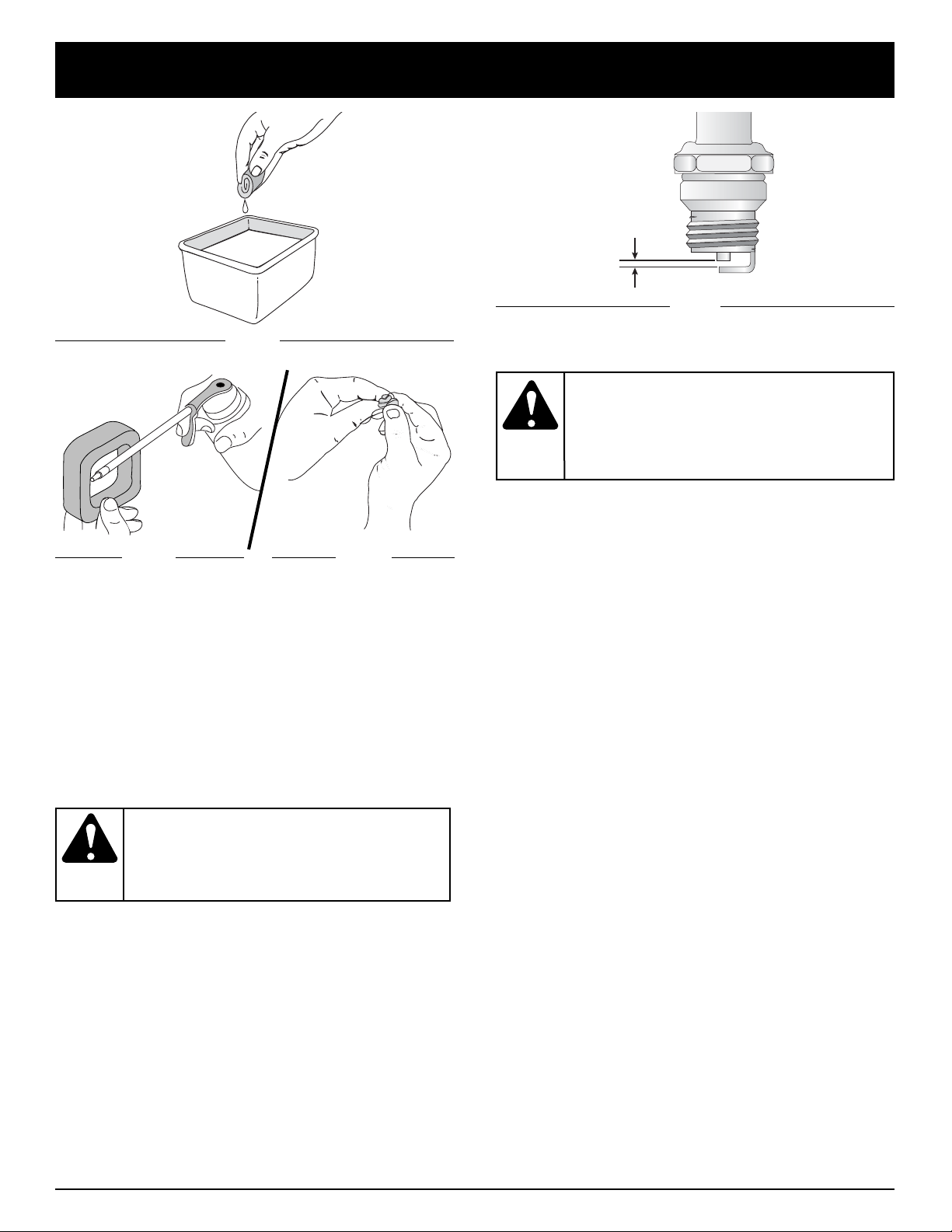

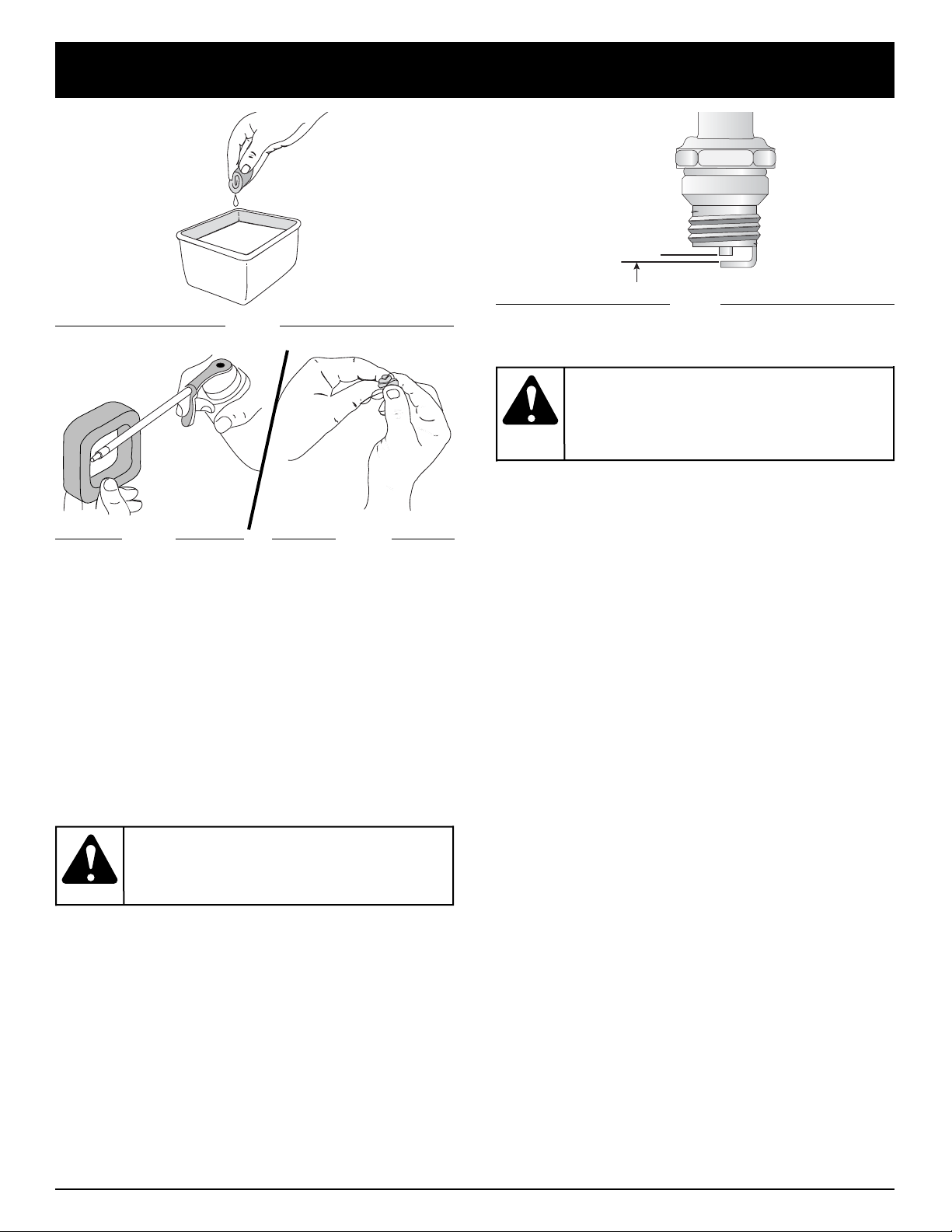

REPLACING THE SPARK PLUG

Use a Champion RDJ7Y spark plug, or equivalent. The correct air gap is 0.020 inch (0.5 mm). Remove the plug after every 25 hours of operation and check its condition.

1. Stop the engine and allow it to cool. Grasp the plug wire firmly and pull it from the spark plug.

2. Clean around the spark plug. Remove the spark plug from the cylinder head by turning a 5/8-inch socket counterclockwise.

3. Replace a cracked, fouled or dirty spark plug. Set the air gap at 0.020 in. (0.5 mm) using a feeler gauge (Fig. 12).

4. Install a correctly-gapped spark plug in the cylinder head. Tighten by turning the 5/8-inch socket clockwise until snug.

If using a torque wrench torque to:

110-120 in.•lb. (12.3-13.5 N•m) Do not over tighten.

0.020 in.

(0.5 mm)

Fig. 12

Do not sand blast,

scrape or clean electrodes. Grit in the engine could damage the cylinder.

WARNING:

MAINTENANCE AND REPAIR INSTRUCTIONS

Fig. 10

Fig. 11

CLEANING THE UNIT

Use a small brush to clean off the outside of the unit. Do not use strong detergents. Household cleaners that contain aromatic oils such as pine and lemon, and solvents such as kerosene, can damage plastic housing or handle. Wipe off any moisture with a soft cloth.

STORAGE

• Never store a fueled unit where fumes may reach an open flame or spark.

• Allow the engine to cool before storing.

• Store the unit locked up to prevent unauthorized use or damage.

• Store the unit in a dry, well-ventilated area.

• Store the unit out of the reach of children.

LONG TERM STORAGE

If you plan on storing the unit for an extended time, use the following storage procedure:

1. Drain all fuel from the fuel tank into a container with

the same 2-cycle fuel mixture. Do not use fuel that has been stored for more than 60 days. Dispose of the old fuel/oil mix in accordance to Federal, State and Local regulations.

2. Start the engine and allow it to run until it stalls. This

ensures that all fuel has been drained from the carburetor.

3. Allow the engine to cool. Remove the spark plug and

put 1 oz. (30 ml) of any high quality motor oil or 2-cycle oil into the cylinder. Pull the starter rope slowly to distribute the oil. Reinstall the spark plug.

NOTE: Remove the spark plug and drain all of the oil

from the cylinder before attempting to start the unit after storage.

4. Thoroughly clean the unit and inspect it for any loose

or damaged parts. Repair or replace damaged parts and tighten loose screws, nuts or bolts. The unit is ready for storage.

To avoid serious

personal injury, always turn your unit off and allow it to cool before you clean or service it.

WARNING:

Fig. 9

MAINTENANCE AND REPAIR INSTRUCTIONS

TRANSPORTING

• Allow the engine to cool before transporting.

• Drain fuel from unit.

• Tighten fuel cap before transporting.

• Secure the unit while transporting.

TROUBLESHOOTING

CAUSE ACTION

Old or improperly mixed fuel Drain fuel tank / Add fresh fuel mixture Air filter is plugged Replace or clean the air filter Fouled spark plug Replace or clean the spark plug

CAUSE ACTION

Blue choke lever is in the incorrect position Refer to the Starting/Stopping instructions Throttle knob is in the incorrect position Refer to the Starting/Stopping instructions Empty fuel tank Fill fuel tank with properly mixed fuel Primer bulb wasn't pressed enough Press primer bulb fully and slowly 10 times Engine flooded Use starting procedure with the blue lever in Position 2 Old or improperly mixed fuel Drain fuel tank / Add fresh fuel mixture Fouled spark plug Replace or clean the spark plug

ENGINE WILL NOT START

ENGINE WILL NOT IDLE

ENGINE WILL NOT ACCELERATE

ENGINE LACKS POWER OR STALLS

CAUSE ACTION

Air filter is plugged Replace or clean the air filter Old or improperly mixed fuel Drain fuel tank / Add fresh fuel mixture

CAUSE ACTION

Old or improperly mixed fuel Drain fuel tank / Add fresh fuel mixture Dirty air filter Clean or replace the air filter Plugged spark arrestor Clean or replace spark arrestor

If further assistance is required, contact your authorized service dealer.

SPECIFICATIONS

ENGINE*

Engine Type.......................................................................................................................................... Air-Cooled, 2-Cycle

Displacement............................................................................................................................................. 25 cc (1.4 cu. in)

Operating RPM.................................................................................................................................................. 7,800+ rpm

Idle Speed RPM ...................................................................................................................................... 2,800 - 5,500 rpm

Ignition Type.......................................................................................................................................................... Electronic

On/Off Stop Control ........................................................................................................................................ Throttle Knob

Spark Plug Gap .................................................................................................................................... 0.020 inch (0.5 mm)

Lubrication................................................................................................................................................... Fuel/Oil Mixture

Fuel/Oil Ratio................................................................................................................................................................. 40:1

Carburetor....................................................................................................................................... Diaphragm, All-Position

Starter............................................................................................................................................................... Auto Rewind

Muffler ..................................................................................................................................................... Baffled with Guard

Fuel Tank Capacity................................................................................................................................... 7 ounces (207 ml)

BLOWER*

Throttle Control ............................................................................................................................................................ Knob

Blower Velocity ...................................................................................................................................... 180 mph (290 kmh)

Blower Air Output..................................................................................................................................... 325 cfm (99 cmm)

Weight (no fuel, with blower tube) ........................................................................................................................9 lb. (4 kg)

*All specifications are based on the latest product information available at the time of printing. We reserve the right to make changes at any time without notice.

NOTES

California / EPA Emission Control Warranty Statement

Your Warranty Rights and Obligations

The California Air Resource Board, the Environmental Protection Agency and MTD LLC (MTD) are pleased to explain the emission control system warranty on your 2005 and later small off-road engine. New small off-road engines must be designed, built and equipped to meet stringent anti-smog standards. MTD must warrant the emission control system on your small off-road engine for the periods of time listed below provided there has been no abuse, neglect or improper maintenance of your small off-road engine.

Your emission control system may include parts such as the carburetor or fuel-injected system, the ignition system, and catalytic converter. Also included may be hoses, belts, connectors and other emission-related assemblies.

Where a warrantable condition exists, MTD will repair your small off-road engine at no cost to you including diagnosis, parts and labor.

The 2005 and later small off-road engines are warranted for two years. If any emission-related part on your engine is defective, the part will be repaired or replaced by MTD.

Owners Warranty Responsibilities

• As the small off-road engine owner, you are responsible for the performance of the required maintenance listed in your operator’s manual. MTD recommends that you retain all receipts covering maintenance on your small off-road engine, but MTD cannot deny warranty solely for the lack of receipts or for your failure to ensure the performance of all scheduled maintenance.

• As the small off-road engine owner, you however should be aware that MTD may deny you warranty coverage if your small off-road engine or a part has failed due to abuse, neglect, improper maintenance or unapproved modifications.

• You are responsible for presenting your small off-road engine to a MTD Authorized Service Center as soon as a problem exists. The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days.

If you have any questions regarding your warranty rights and responsibilities, you should call 1-800-345-8746.

Manufacturer’s Warranty Coverage

• The warranty period begins on the date the engine or equipment is delivered to the retail purchaser.

• The manufacturer warrants to the initial owner and each subsequent purchaser, that the engine is free from defects in material and workmanship which cause the failure of a warranted part for a period of two years.

• Repair or replacement of warranted part will be performed at no charge to the owner at an Authorized MTD Service Center. For the nearest location please contact MTD at: 1-800-345-8746.

• Any warranted part which is not scheduled for replacement, as required maintenance or which is scheduled for only for regular inspection to the effect of “Repair or Replace as Necessary” is warranted for the warranty period. Any warranted part which is scheduled for replacement as required maintenance will be warranted for the period of time up to the first scheduled replacement point for that part.

• The owner will not be charged for diagnostic labor which leads to the determination that a warranted part is defective, if the diagnostic work is performed at an Authorized MTD Service Center.

• The manufacturer is liable for damages to other engine components caused by the failure of a warranted part still under warranty.

• Failures caused by abuse, neglect or improper maintenance are not covered under warranty.

• The use of add-on or modified parts can be grounds for disallowing a warranty claim. The manufacturer is not liable to cover failures of warranted parts caused by the use of add-on or modified parts.

• In order to file a claim, go to your nearest Authorized MTD Service Center. Warranty services or repairs will be provided at all Authorized MTD Service Centers.

• Any manufacturer approved replacement part may be used in the performance of any warranty maintenance or repair of emission related parts and will be provided without charge to the owner. Any replacement part that is equivalent in performance or durability may be used in non-warranty maintenance or repair and will not reduce the warranty obligations of the manufacturer

• The following components are included in the emission related warranty of the engine, air filter, carburetor, primer, fuel lines, fuel pick up/ fuel filter, ignition module, spark plug and muffler.

+ 39 hidden pages
