ILLUSTRATED PARTS BREAKDOWN
McCULLOCH
12.5 HP, 36” MOWER DECK
LAWN TRACTOR
MODEL NUMBER 125CRD (M125CRDC)
954 12 00-37
175729 10.18.00 RD/MH
TRACTOR- -MODEL NO. 125CRD (M125CRDC) PRODUCT NO. 954 12 00-37
SCHEMATIC
12VDC
BLACK
RED
B
G
L
AMMETER
(OPTIONAL)
A
WHITE
S
M
A1
A2
ORANGE
GREEN
RED
FUSE
BLACK
CLUTCH / BRAKE
(PEDAL UP)
GREEN
SEAT SWITCH
(NOT OCCUPIED)
BATTERY
BLACK
RED
ATT'MENT CLUTCH
(CLUTCH OFF)
STARTER
SOLENOID
FBI BUZZER
OPERATOR PRESENCE
RELAY
85 86
87
30
87A
85 86
87
30
87A
BAGGER RELAY
85 86
BLACK
STARTER
M
BLACK
FBI
SWITCH
BAGGER
INTERLOCK
(NO BAG,
CHUTE OR
PLUG)
BLACK
IGNITION SWITCH
CIRCUITPOSITION
OFF
M+G+A1
B+A1RUN/LIGHT
B+A1RUN
B + S + A1START
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED
CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY
SHOULD BE REPLACED TO
PROPERLY SECURE YOUR
WIRING.
“MAKE”
NONE
A2+L
NONE
NONE
BLUE RED
CARBURETOR SOLENOID
NON-REMOVABLE
CONNECTIONS
REMOVABLE
CONNECTIONS
PTO SWITCH
OFF
ON
CIRCUITPOSITION
C + G, B + H
C + F, B + E, A + D
BLACK
BLACK
FUEL
LINE
(IF SO EQUIPPED)
BROWN
87
30
87A
MOWER ENGAGED
RELAY
IGNITION
UNIT
CHARGING SYSTEM OUTPUT
3 AMP DC @ 3600 RPM
RED
DIODE
LIGHTING SYSTEM
OUTPUT
5 AMP AC @ 3600 RPM
HEADLIGHTS
YOUR TRACTOR IS EQUIPPED
WITH A SPECIAL ALTERNATOR
SYSTEM. THE LIGHTS ARE NOT
CONNECTED TO THE BATTERY,
BUT HAVE THEIR OWN
ELECTRICAL SOURCE.
BECAUSE OF THIS, THE BRIGHTNESS OF THE LIGHTS WILL
CHANGE WITH ENGINE SPEED.
AT IDLE THE LIGHTS WILL DIM.
AS THE ENGINE IS SPEEDED UP,
THE LIGHTS WILL BECOME
THEIR BRIGHTEST.
NOTE
14 VOLTS AC MIN. @ 3600 RPM (LIGHTS OFF)
SPARK
PLUGS GAP
(2 PLUGS ON
TWIN CYL. ENGINES)
28 VOLTS AC MIN. @ 3600 RPM
(CHARGING SYSTEM DISCONNECTED)
ALTERNATOR
BLACK
RELAY
H
G
87
87A
8586
30
FC
E
A
D
B
2
REPAIR PARTS
52
TRACTOR- -MODEL NO. 125CRD (M125CRDC) PRODUCT NO. 954 12 00-37
ELECTRICAL
2221
24
33
30
27
43
27
25
41
27
27
40
26
42
81
16
16
48
29
27
2
1
28
66
58
65
59
16
3

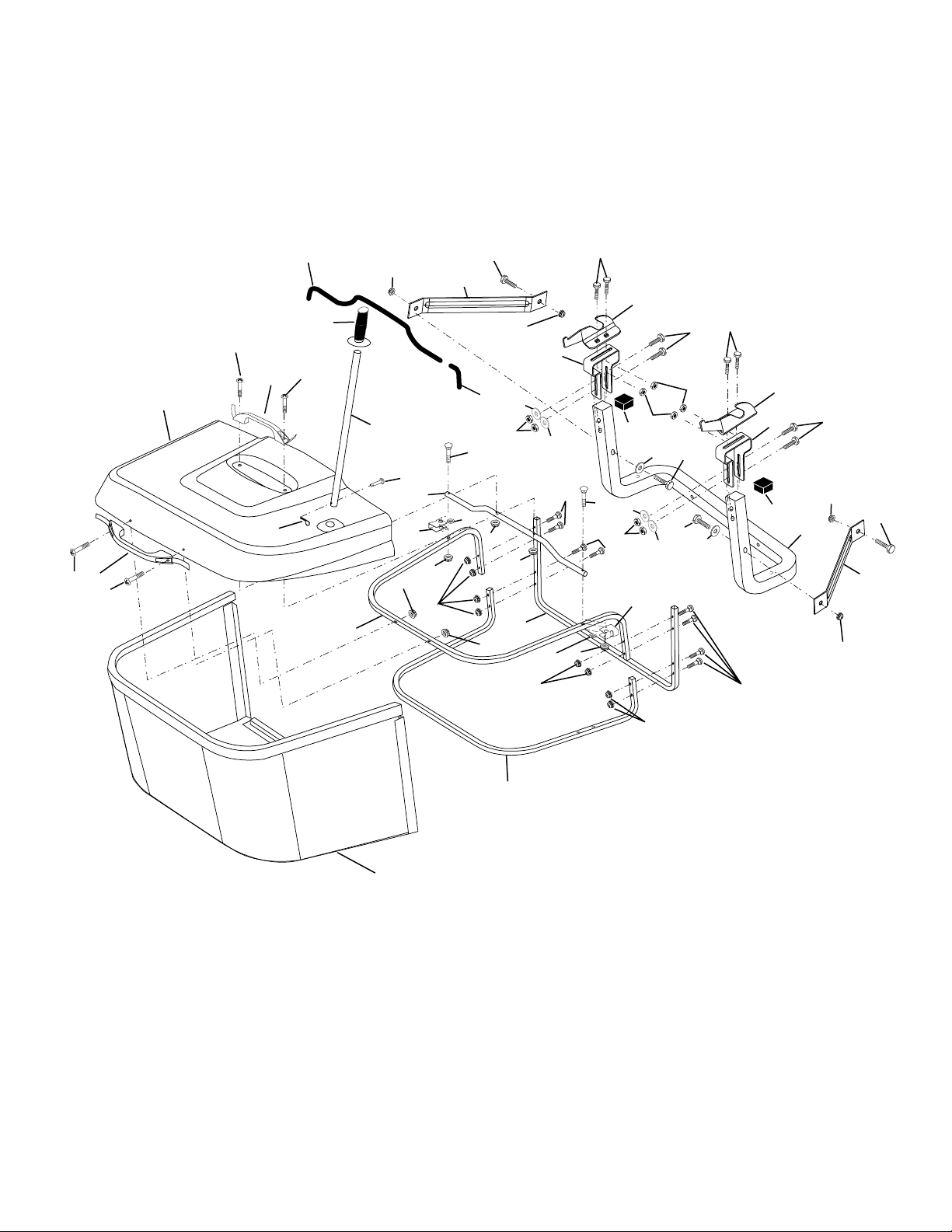

REPAIR PARTS
TRACTOR- -MODEL NO. 125CRD (M125CRDC) PRODUCT NO. 954 12 00-37
ELECTRICAL
KEY PART
NO. NO. DESCRIPTION
1 532144925 Battery 12 Volt 25 AMP Wet
2 874760412 Bolt Hex Hd 1/4-20 Unc X 3/4
16 532153664 Switch Interlock Push-In
21 532166181 Harness Asm Light W/4152J
22 532004152 Bulb Light #1156
24 532124780 Cable Starter 6Ga 11" Red
25 532165987 Cable Battery Crd 56" Red
26 532166180 Fuse 15 Amp
27 873510400 Nut Keps Hex 1/4-20 Unc
28 532127725 Cable Ground 6Ga 18" Black
29 532160784 Switch Plunger Normal Op Olive
30 532175566 Switch Ignition
33 532140401 Key Ign
40 532170164 Harness Ign
41 871110408 Bolt Flk Fin Hex 1/4-20 Unc X 1/2
42 532131563 Cover Terminal Red
43 532175141 Solenoid
48 532140844 Adapter Ammeter Rectangular
52 532141940 Protection Wire Loop
58 532169419 Buzzer Crd
59 532166299 Switch FBI CRD
65 817211008 Screw Slftp #10-16 x 1/2 Ty-Ab
66 817490608 Screw Thdrol 3/8-16 x 1/2 Ty-Tt
81 532109748 Relay Asm
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm.
4
REPAIR PARTS
TRACTOR- -MODEL NO. 125CRD (M125CRDC) PRODUCT NO. 954 12 00-37
CHASSIS
212
17
193
173
172
185
187
189
183
198
175
178
179
186
192
188
174
180
187
177
188
189
171
170
176
3
182
164
178
3
26
190
181
208
165
24
18
58
29
26
207
53
12
28
51
52
55
57
20
54
207
1
13
208
30
25
3
25
171
31
184
11
26
35
3
169
102
173
24
163
10
33
3
162
3
2
26
31
3
209
9
15
209
3
8
26
26
3
24
3
38
24
5
5
209
209
8
6
16
145
37
3
35
37
34
3
38
168
167
5
REPAIR PARTS
TRACTOR- -MODEL NO. 125CRD (M125CRDC) PRODUCT NO. 954 12 00-37
CHASSIS
KEY PART
NO. NO. DESCRIPTION
1 532169831 Chassis
2 532165606 Drawbar
3 817060612 Screw 3/8-16 x 3/4
5 532155272 Bumper Hood/Dash
6 532155923 Saddle
8 532126471 Clip Insulator 13/32 Mtg. Hole
9 532172243 Dash
10 872140608 Bolt, Carriage 3/8-16 x 3/4
11 532155927 Panel, Dash, L.H.
12 532145660 Clip Tinnerman Grille P/L
13 532173025 Panel, Asm. Dash R.H.
15 874180512 Screw, Machine, Truss Head
5/16-18 UNC x 3/4
16 873510500 Nut
17 532160382 Hood Assembly
18 532126938 Bumper Hood
20 532156437 Plate Mtg. Battery/Fuel Tank
24 874780616 Bolt
25 819131312 Washer 13/32 x 13/16 x 12 Gauge
26 873800600 Nut
28 532143499 Grille / Lens Asm
29 532168154 Lens, Grille
30 532168791 Fender
31 532165156 Bracket, Fender Support
33 532147203 Footrest, L.H.
34 532147202 Footrest, R.H.
35 872110606 Bolt
37 817490508 Screw Thdrol 5/16-18 x 1/2 TYT
38 532169834 Bracket Asm Pivot Mower Rear
51 873800400 Nut Lock w/Insert 1/4-20 UNC
52 819091416 Washer 9/32 x 7/8 x 16 Ga.
53 532144697 Bracket Grille L.H.
54 532161464 Screw Hex Wshd 8-18 x 7/8
55 532144696 Bracket Grille R.H.
57 874780412 Bolt Fin Hex 1/4-20 UNC x 3/4
58 532150127 Duct Air Engine Pl/Lt
102 532124996 Clip Fuel Line 13/32 Mtg
145 532156524 Rod Pivot Chassis/Hood
KEY PART
NO. NO. DESCRIPTION
162 532170256 Bracket Exten Chassis Lh CRD
163 532165673 Bracket Exten Chassis Rh CRD
164 532165605 Support Battery CRD
165 532168407 Cover Battery CRD Lt
167 532165779 Support Asm. Backplate WLDMNT
168 872050412 Bolt, RDHD SHT NK 1/4-20 x 1-1/2
169 532123976 Nut, Lock 1/4 LGE FLG Gr. 5 Zinc
170 532175264 Backplate Asm CRD
171 874520640 Bolt, Fin Hex 3/8-16 x 2-1/2 Gr. 5
172 819132016 Washer 13/32 x 1-1/4 x 16 Ga.
173 873510600 Nut, Keps Hex 3/8-16 UNC
174 532165939 Bracket Switch FBI CRD
175 532166212 Guard Door Rear CRD
176 532128600 Pin Hinge Pivot
177 532132796 Spring Bagger Top LH Black
178 876020312 Pin Cotter 3/32 x 3/4 Cad Zinc
179 532165942 Rod Pivot FBI CRD
180 874760516 Bolt Hex HD 5/16-18 UNC x 1
181 873680500 Nut Crownlock 5/16-18
182 532138200 Washer .385 x .625 x 11 Ga.
183 819131316 Washer 13/32 x 13/16 x 16 Ga.
184 532174662 Bracket Actuator Bagger CRD
185 532165940 Tube Lever Switch FBI CRD
186 532160793 Latch Asm Mulch/Bagger
187 532125004 Nut Weld
188 819061216 Washer #10
189 810071000 Washer Lock #10
190 871081010 Screw Pan Hd Phillip 10-24 x 5/8
192 817490624 Screw 3/8-16 x .75
193 817070412 Screw Truss 1/4-20 x 3/4
198 532168937 Nut Push
207 817670508 Screw Thdrol 5/16-18 x 1/2
208 817670608 Screw Thdrol 3/8-16 x 1/2
209 817000612 Screw Hexwsh Thdr 3/8-16 x 3/4
212 532156229 Insert Lens Reflect
- - 532005479 Plug, Button
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm.
6
REPAIR PARTS
TRACTOR- -MODEL NO. 125CRD (M125CRDC) PRODUCT NO. 954 12 00-37
DRIVE
51
51
57
172
96
2
145
153
77
32
32
16
14
112
13
84
179
197
160
161
159
158
179
162
26
184
178
180
42
56
66
9
65
32
24
165
51
19
83
156
6
168
166
177
42
203
40
38
42
39
5
18
62
35
36
34
37
28
22
29
26
55
164
14
171
163
167
10
80
96
11
21
18
82
5
8
4
3
52
77
30
96
6
74
153
26
78
25
76
30
52
79
16
16
1
75
16
16
144
144
33
23
33
181
61
182
183
26
187
202
50
150
48
27
49
151
51
47
26
51
36
35
53
27
7
REPAIR PARTS
TRACTOR- -MODEL NO. 125CRD (M125CRDC) PRODUCT NO. 954 12 00-37
DRIVE
KEY PART
NO. NO. DESCRIPTION
1 - - - - - - - Transaxle Peerless 206-546
Order parts from transaxle
manufacturer
2 532146682 Spring Brake Return
3 532165999 Pulley Transaxle
4 812000028 Ring Retainer #5100-62
5 532121520 Strap torque 30 degrees
8 532165619 Rod Shift Fender Adjust Lt
9 532170163 Clutch Asm Noram
10 876020416 Pin, Cotter 1/8 x 1
11 532105701 Washer Plate Shf .3888 sq hole
13 874550412 Bolt 1/4-28 Unf Gr 8 w/patch
14 810040400 Washer, Lock Hvy Helical
16 873800500 Nut, Lock Hex w/Ins 5/16-18 UNC
18 874780616 Bolt Hex 3/8-16 UNC x 1 Gr.5
19 873800600 Nut, Lock Hex w/Wsh 3/8-16 UNC
21 532106933 Knob Round 1/2-13 Unc Blk
22 532165811 Rod, Brake CRD 0650
23 532170017 Bracket Clutch Noram
24 873350600 Nut
25 532106888 Spring, Rod, Brake
26 819131316 Washer 13/32 x 13/16 x 16 Ga.
27 876020412 Pin, Cotter 1/8 x 3/4
28 532145204 Rod, Parking Brake
29 532071673 Cap, Parking Brake
30 532174973 Bracket, Mfg. Transaxle
32 874760512 Bolt Hex 5/16-18 UNC x 3/4
33 872140506 Bolt Rdhd Sqnk 5/16-18 Unc x 3/4
34 532165496 Shaft, Asm Pedal Foot CRD
35 532120183 Bearing, Nylon
36 819211616 Washer 21/32 x 1 x 16 Ga.
37 532124963 Pin, Roll 3/16 x 1"
38 532165936 Pulley, Flat
39 874760644 bolt Fin Hex 3/8-16 unc x 2-3/4
40 532124965 Spacer, Split 395 x 59 Bzp
42 819131312 Washer 13/32 x 13/16 x 12 Ga.
47 532127783 Pulley, Idler, V Groove Plasitc
48 532154407 Bellcrank Clutch Grnd Drv
49 532123205 Retainer, Belt Style Spring
50 874760624 Bolt Hex Hd 3/8-16 UNC x 1-1/2
51 873680600 Nut, Crownlock 3/8-16 UNC
52 873680500 Nut Crownlock 5/16-18
53 532105710 Link, Clutch 7.66
55 532105709 Spring, Return, Clutch
56 874760620 Bolt, Hex 3/8-16 UNC x 1-1/4
57 532165631 V-Belt Kev PMST CRD
61 817060612 Screw, 3/8-16 x 3/4
62 532124872 Cover, Pedal
KEY PART
NO. NO. DESCRIPTION
65 810040700 Washer
66 532154778 Keeper, Belt Engine F-Proof
74 532137057 Spacer Axle
75 532121749 Washer 25/32 x 1-1/4 x 16 Ga.
76 812000001 Ring, E
77 532123583 Key, Square
78 532121748 Washer 25/32 x 1-5/8 x 16 Ga.
79 532125096 Key Woodruff
80 532145090 Arm Shift PMST 20" Tires
82 532123782 Spr ing, Tors ion
83 819171216 Washer 17/32 x 3/4 x 16 Ga.
84 532165621 Link Shift CRD Pmst 18" Tires
96 532124788 Spring, Retainer 1”
112 819091210 Washer 9/32 x 3/4 x 10 Ga.
144 819111016 Washer 11/32 x 5/8 x 16 Ga.
145 874490540 Bolt Hex FGHD 5/16-18 x Gr 5
150 532165850 Bushing, Bellcrank Grnd Dr
151 819133210 Washer 13/32 x 2 x 10 Ga.
153 874760516 Bolt Hex Hd 5/16-18 Unc x 1
156 532166002 Washer Srred 5/16 ID x 1.125
158 532165589 Bracket Shift Mount
159 532165494 Hub Tapered Flange Shift Lt
160 819292016 Washer 29/32 x 1-1/4 x 16 Ga
161 872140406 Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr 5
162 873680400 Nut Crownlock 1/4-20 Unc
163 874780416 Bolt Hex Fin 1/4-20 Unc x 1 Gr 5
164 819091010 Washer 5/8 x .281 x 10 Ga.
165 532165623 Bracket Pivot Lever
166 532166880 Screw 5/16-18 x 5/8
167 532165588 Bracket Support Shift CRD
168 532165492 Bolt Shoulder 5/16-18 x .561
171 817490608 Screw Thdrol 3/8-16 x 1/2 Ty-Tt
172 532165635 Shaft Asm Shift Front CRD PMST
177 532165932 Keeper Flat Idler 3.06" CRD
178 532165933 Keeper Belt Idler 1.88" CRD
179 532120958 Washer Sintered
180 532165630 Pulley Flat Composite 3.06"
181 532165797 Bracket Idler Ground Drive CRD
182 532165634 Keeper Belt 2.5" Od V-Idler CRD
183 532165626 Pulley V-Idler 2.50" Od CRD
184 817490644 Screw Hexwsh Thdrol 3/8-16 x 2-3/4
187 817490620 Screw Thdrol 3/8-16 x 1-1/4
202 872110612 Bolt Carr Sh 3/8-16 x 1-1/2 Gr. 5
203 871170780 Bolt Hex 7/16-20 x 5
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
8
REPAIR PARTS
TRACTOR- -MODEL NO. 125CRD (M125CRDC) PRODUCT NO. 954 12 00-37
STEERING ASSEMBLY
38
63
11
39
1
41
42
37
37
36
62
23
11
44
51
8
27
22
66
40
84
86
29
68
29
29
15
15
15
54
17
18
19
25
79
80
82
29
29
46
8
6
65
2
87
5
3
11
40
10
68
13
32
33
34
35
67
46
8
6
67
67
87
5
4
43
43
6
8
9
REPAIR PARTS
TRACTOR- -MODEL NO. 125CRD (M125CRDC) PRODUCT NO. 954 12 00-37
STEERING ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
1 532139768 Steering Wheel
2 532172393 Front Axle Assembly
3 532169840 Spindle Assembly, L.H.
4 532169839 Spindle Assembly, R.H.
5 532124931 Bearing, Race, Thrust, Hardened
6 532121748 Washer 25/32 x 1-5/8 x 16 Gauge
8 812000029 Ring, Klip
10 532169832 Link, Drag
11 810040600 Washer, Lock
13 532136518 Spacer Brg. Axle Front
15 532145212 Nut, Hexflange Lock
17 532156546 Shaft Assembly, Steering
18 532057079 Washer, Thrust .515 x .750 x .033
19 532160395 Support, Shaft
22 532165857 Screw Hex Wshhd Torx
23 532165851 Pittman Shaft Assembly
25 532154406 Bracket, Steering
27 532136874 Gear, Sector
29 817060612 Screw 3/8-16 x 3/4
32 532170162 Rod, Tie
33 819111216 Washer 11/32 x 3/4 x 16 Ga.
34 810040500 Washer Lock Hvy Hlcl Spr 5/16
35 873540500 Crownlock Nut 5/16-24 Unf
36 532155099 Bushing, Steering
37 532152927 Screw TT #I0-32 x 5 x 3/8 Flange
38 532140175 Cap Wheel Steering
39 819133812 Washer 13/32 x 2-3/8 x 12 Gauge
40 532124701 Nut Lock Center 3/8-24 Unf
41 532100711 Adaptor, Steering Wheel
42 532169633 Boot, Steering Dash P/L Mtl
43 532121749 Washer 25/32 x 1-1/4 x 16 Gauge
44 532153720 Extension Steering Non-Adjust
46 532121232 Cap, Spindle
51 873800500 Nut Lock Hx W/Ins 5/16-18 UNC
54 874780520 Bolt Fin Hex 5/16-18 UNC x 1-1/4
62 532167914 Kit, Steering Assembly, Service
63 874780616 Bolt Fin Hex 3/8-16 unc. x 1 Gr. 5
65 532160367 Spacer Brace Axle
66 532154404 Bearing Arm Pittman
67 872140618 Bolt Rdhd Sq 3/8-16 UNC x 2-1/4
68 532169827 Brace Axle
79 819132012 Washer 13/32 x 1-1/4 x 12 Ga
80 874950612 Bolt Hex Nylon 3/8-16 x 3/4
82 532169835 Bracket Susp Chassis Front
84 532170016 Bracket Cable Clutch Chassis
86 532165898 Retainer Spring Yellow Zinc
87 532173966 Washer Flat .781 x 1-1/2 x .14
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm.
10
REPAIR PARTS
TRACTOR- -MODEL NO. 125CRD (M125CRDC) PRODUCT NO. 954 12 00-37
SEAT ASSEMBLY
1
8
9
14
7
10
8
9
8
7
8
5
22
24
26
16
15
13
17
KEY PART
NO. NO. DESCRIPTION
12
23
25
2
5
KEY PART
NO. NO. DESCRIPTION
21
1 532140117 Seat
2 532140551 Bracket Pnt Pivot Seat (blk )
5 532145006 Clip Push In Hinged
7 532124181 Spring Seat Cprsn 2 250 Blk Zi
8 817000616 Screw 3/8-16 X 1-1/2
9 819131614 Washer 13/32 X 1 X 14 Ga.
10 532174894 Par Assembly Seat Tool-Free
12 532121246 Bracket Pnt Mounting Switch
13 532121248 Bushing Snap Blk Nyl 50 Id
14 872050412 Bolt Rdhd Sht Nk 1/4-20x1-1/2
15 532134300 Spacer Split
16 532121250 Spring Cprsn Plate SW 1.310 Ga
17 532123976 Nut Lock 1/4 Lge Flg Gr 5 Zinc
21 532171852 Bolt Shoulder 5/16-18 Unc-2A
22 873800500 Nut Hex Lock w/Ins 5/16-18
23 871110814 Bolt Hex Black
24 819171912 Washer 17/32 X 1-3/16 X 12 Ga.
25 532127018 Bolt Shoulder 5/16-18 X 62
26 810040800 Washer Lock Hvy Hlcl Spr 1/2
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
11
REPAIR PARTS
TRACTOR- -MODEL NO. 125CRD (M125CRDC) PRODUCT NO. 954 12 00-37

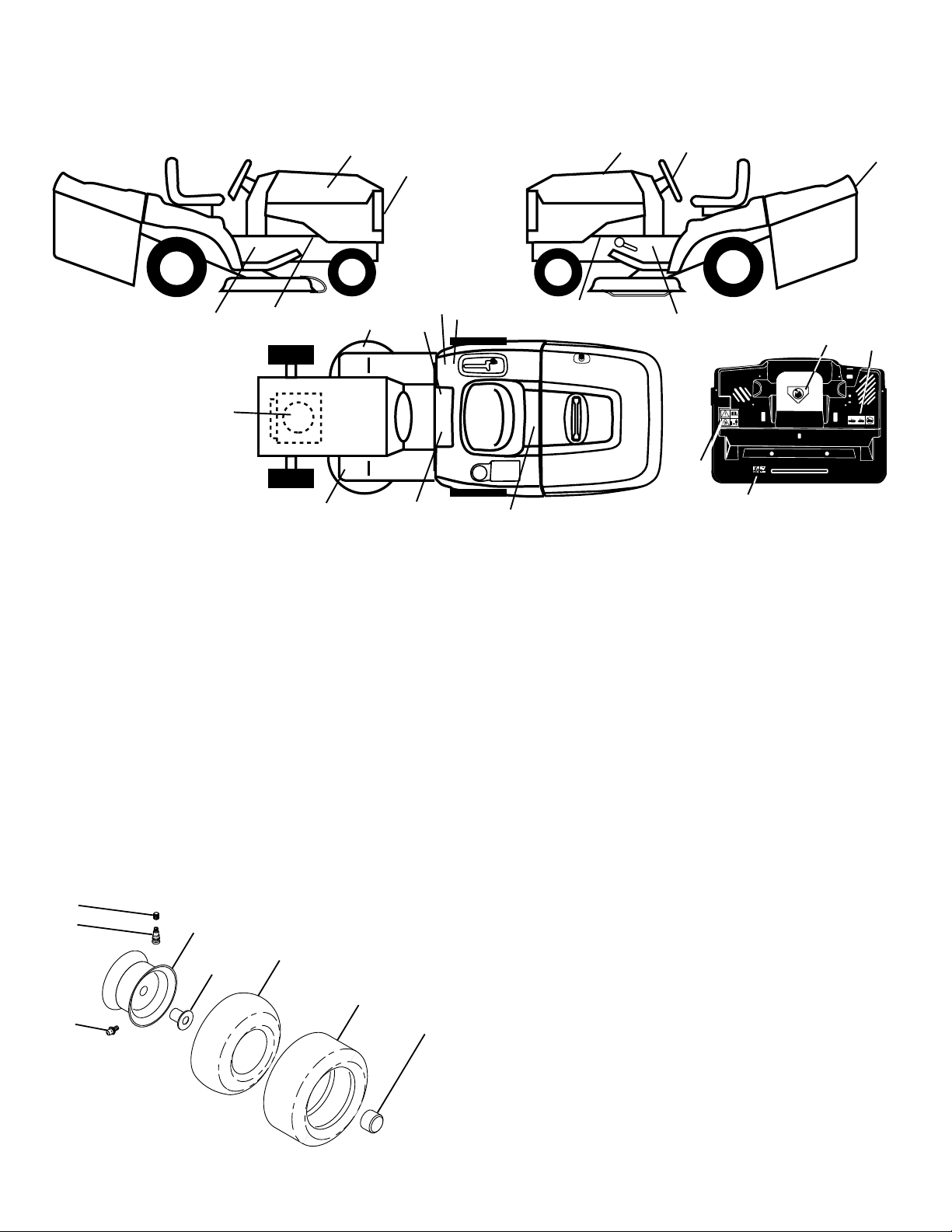

DECALS
3
14
21
2
12
KEY PART
NO. NO. DESCRIPTION
1 532145498 Decal Read Owner’s Manual Sym
2 532170839 Decal Hp Engine
3 532167151 Decal Hood Rh
4 532167152 Decal Hood Lh
5 532140986 Decal Grille
6 532126187 Decal 100 DBA
8 532145437 Decal Europe Stand Ce
9 532140987 Decal Fender Logo
10 532145005 Decal Bat Dan/Poi P/L Sym Wpn
11 532145494 Decal Mower Cut Finger Symbol
12 532159737 Decal Brake/Clutch Symbol Lt
13 532166959 Decal Warn Back Plate CRD
4
5
6
8
14
17
1
10
22
9
2020
11
15
+
+
_
_
90N
MAX
150N
13
MAX
16
KEY PART
NO. NO. DESCRIPTION
14 532159736 Decal Chassis Hot Muffler
15 532166961 Decal Oper Bag Presence CRD
16 532162598 Decal Drawbar Load Limit
17 532140837 Decal Saddle Brake Parking
20 532137588 Decal Chassis Turbo
21 532166286 Decal Deck Sch 92 CRD
22 532146998 Decal Insert Steering Wheel
— 532138311 Decal Lift Handle
— 532171237 Pad Footrest
— 532175727 Manual Operator's (Euro)
— 532175728 Manual Operator's (Scand)
WHEELS & TIRES
1
2
6
5,8
KEY PART
NO. NO. DESCRIPTION
1 532059192 Cap Value Tire
2 532065139 Stem Value
3 532106222 Tire F Ts 15 X 6 0 - 6 Service
4,10
7
3,9
11
4 532059904 Tube Inner Front #35060
5 532125121 Rim Asm 6"front Service
6 532124957 Fitting Grease
7 532124959 Bearing Flange
8 532125122 Rim Asm 8"rear Service
9 532124635 Tire R Ts 18 x 8.5-8 Service
10 532124926 Tube Rear 9 5 X 8 Service
11 532175039 Cap Axle Blk 1 50 X 1 00
- - 532144334 Sealant, Tire (10 oz. tube)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
12
REPAIR PARTS
TRACTOR- -MODEL NO. 125CRD (M125CRDC) PRODUCT NO. 954 12 00-37
ENIGNE
32
2
66
3
72
1
81
78
38
14
44
46
16
78
62
13
4
31
33
37
33
45
23
29
OPTIONAL EQUIPMENT
Spark Arrester
13
REPAIR PARTS
TRACTOR- -MODEL NO. 125CRD (M125CRDC) PRODUCT NO. 954 12 00-37
ENIGNE
KEY PART
NO. NO. DESCRIPTION
1 532170865 Control Throt /Ch
2 817720410 Screw Hex Thd Cut 1/4-20 x 5/8 T
3 - - - - - - - - Engine Briggs Model 289707
Order Parts from Engine Manufacturer
4 532137348 Muffler Exhaust
13 532165291 Gasket 1 313 Id Tin Plated
16 811050600 Washer Lock Ext Tooth 3/8
23 532169837 Shield Browning/Debris Guard
29 532137180 Arrestor Spark
31 532174642 Tank Fuel 2.00 Fr
32 532140527 Cap Asm Fule Top Vent N/Lany
33 532123487 Clamp Hose Blk
37 532137040 Line Fuel 20"
38 532148315 Plug Drain Oil Easy
44 817670412 Screw Hexwsh Thdrol 1/4-20 x 3/4
45 817000612 Screw Hexwsh Thdr 3/8-16 x 3/4
46 819091416 Washer 9/32 x 7/8 x 16ga
62 810040500 Washer Lock Hvy Hlcl Spr 5/16
66 532127951 Stop Throttle 3000 Rpm
72 871070512 Screw Hexhd Cap 5/16-18 x 3/4
78 817060620 Screw 3/8-16 x 1-1/4
81 873510400 Nut Keps 1/4-20 UNC
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
14
REPAIR PARTS
TRACTOR- -MODEL NO. 125CRD (M125CRDC) PRODUCT NO. 954 12 00-37
MOWER LIFT
7
8
5
13
13
11
19
31
32
31
32
13
12
20
5
20
1
4
20
18
17
16
15
3
4
6
13
19
2
6
20
15
15
REPAIR PARTS
TRACTOR- -MODEL NO. 125CRD (M125CRDC) PRODUCT NO. 954 12 00-37
MOWER LIFT
KEY PART
NO. NO. DESCRIPTION
1 532159460 Washer Asm Inner Spring W/Plunger
2 532159471 Shaft Asm. Lift
3 532105767 Pin Groove
4 812000002 E Ring #5133-62
5 819211621 Washer 21/32 x 1 x 21 Ga.
6 532120183 Bearing Nylon
7 532109413 Grip Handle
8 532124526 Button Plunger Black
11 532165829 Link Asm Lift L.H.
12 532165831 Link Asm Lift R.H.
13 532124670 Retainer Spring
15 532173288 Link Front
16 873350800 Nut Jam Hex 1/2-13 Unc
17 532130171 Trunnion Blk Zinc
18 873800800 Nut Lock w/Wsh 1/2-13 Unc
19 532139868 Arm Suspension Mower
20 532163552 Retainer Spring
31 532169865 Bearing, Pvt. Lift.
32 873540600 Nut Crownlock 3/8-24
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
16
REPAIR PARTS
2
21
21
35
118
117
116
119
34
21
117
119
116
118
TRACTOR- -MODEL NO. 125CRD (M125CRDC) PRODUCT NO. 954 12 00-37
MOWER
68
153
19
156
67
155
40
56
55
27
30
44
46
3
21
6
4
1
32
33
30
31
17
30
28
61
30
21
24
21
30
23
124
33
31
32
2
40
37
124
36
40
21
37
36
84
26
40
25
21
18
152
151
158
153
5
157
154
21
131
36
40
37
22
124
11
130
13
46
2
15
69
46
14
45
16
2
8
10
9
20
17
REPAIR PARTS
TRACTOR- -MODEL NO. 125CRD (M125CRDC) PRODUCT NO. 954 12 00-37
MOWER
KEY PART
NO. NO. DESCRIPTION
1 532165552 Housing Asm. Mower 92 CRD
2 872140506 Bolt Rdhd Sqnk 5/16-18 Unc x 3/4
3 532165569 Bracket Asm. S-Bar Chass 92 CRD
4 532165558 Bracket Bar Sway Deck 92 CRD
5 532124670 Retainer Spring
6 532165557 Bar Sway 92 CRD
8 532850857 Bolt 3/8-24 x 1.25 Gr8 Patched
9 810030600 Washer Lock Hvy 3/8 Unplated
10 532140296 Washer Hard Blade Mower vented
11 532170037 Blade 3-1 Lh 92 CRD
12 532129895 Bearing Ball #6204 (Mandrel)
13 532137645 Shaft Asm. W/Lower Bearing
14 532128774 Housing Mandrel Vented (Machd)
15 532110485 Bearing Ball Mandrel
16 532170038 Blade 3-1 Rh 92 CRD
17 872140610 Bolt Carriage 3/8-16 x 1-1/4
18 872110608 Bolt Rdhd Sqnk 3/8-16 x 1 Gr5
19 532132827 Bolt Shoulder 5/16-18 Thd Form
20 532165484 Bolt 3/8-24 x 1.25 Gr8 Ptch Lhthd
21 873680500 Nut Crown Lock 5/16-18
22 532165243 Bracket Idler Sprt RR 92 CRD
23 532165446 Bracket Idler Sprt RF 92 CRD
24 532165242 Bracket Suspension LF 92 CRD
25 532165244 Bracket Suspension RF 92 CRD
26 532165237 Brace Support Susp Frt CRD
27 532165568 Bracket Asm. Susp RR 92 CRD
28 532165567 Bracket Asm. Susp LR 92 CRD
30 532157722 Screw Thd Rolling Washer Head
31 532129963 Washer Spacer Mower Vented
32 532153531 Mandrel Pulleys 36 & 46
33 532137266 Nut Flg Top Lock Cntr B 9/16
34 532165239 Bracket Gauge Wheel Lf 92 CRD
35 532165238 Bracket Gauge Wheel Rf 92 CRD
36 532146763 Pulley Idler V-Groove Dim 4.25
KEY PART
NO. NO. DESCRIPTION
37 819131316 Washer 11/32 x 13/16 x 16 Ga
40 873680600 Nut Crownlock 3/8-16 Unc
44 532165724 Cover Mandrel Lh 92 CRD
45 532165556 Cover Mandrel Rh 92 CRD
46 532137729 Screw Thd Roll 1/4-20 x 5/8
55 532165445 Arm Idler 92 CRD
56 532165723 Spacer Retainer Mower
61 532165945 Spring Tension Belt
67 532106932 Knob Rd 3/8-16 Plstc Thds Blk
68 532165555 Hex-Belt 92 Mower 105AA
69 532165482 Shaft Asm W/Lwr Brg Rh Thd CRD
84 532156085 Keeper Belt Idler
116 532137644 Bolt Shoulder
117 532133957 Wheel Gage Donut Wide
118 873930600 Nut Centerlock 3/8-16 Unc
119 819121414 Washer 3/8 x 7/8 x 14 Ga.
124 872110612 Bolt Carr Sh 3/8-16 x 1-1/2 Gr5
128 532153390 Washer Felt
130 872110506 Bolt Rdhdsqnk 5/16-18 Unc x 3/4
131 532165661 Chute Bagger CRD 92cm
151 532169670 Bracket Clutch Cable
152 532170300 Cable Clutch CRD Service
153 532169674 Washer Flat 3/8" Type B
154 532169675 Spring Retainer
155 532169671 Spring Retainer Lvr Cltch Cab
156 532169672 Spacer Clutch Cable
157 532169669 Rod Clutch Cable 3/8"
158 817720410 Screw Hex Thdcut 1/4-20 x 5/8
-- 532130794 Mandrel Asm Service
-- 532165579 Mandrel Asm CRD Lh Threads SVC
-- 532173549 Deck Mower Complete
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
18
REPAIR PARTS
TRACTOR- -MODEL NO. 125CRD (M125CRDC) PRODUCT NO. 954 12 00-37
BAGGER
39
16
28
5
5
4
8
1
32
24
31
4
6
6
23
22
3
7
3
11
27
13
16
40
18
42
9
7
7
25
7
27
3
17
12
17
38
41
19
19
18
2
3
37
36
14
9
18
2
42
14
36
18
22
20
41
37
2
10
38
16
13
11
16
3
26
21
19
REPAIR PARTS
TRACTOR- -MODEL NO. 125CRD (M125CRDC) PRODUCT NO. 954 12 00-37
BAGGER
KEY PART
NO. NO. DESCRIPTION
1 532170690 Tube Handle Bagger CRD
2 872140416 Bolt Carriage 1/4-20 x 2.0 Gr.5
3 532123976 Nut Lock 1/4 Lge Flg Gr. 5 Zinc
4 532169916 Handle Bagger w/Lvrs Gr. 5 Zinc
5 874981024 Screw Pan Head #10-24 x 1.50 Blk
6 874981032 Screw Pan Hd
7 873401000 Nut Wiz Lock Hex Serr/Hd #10-24
8 532168792 Cover Bagger Plastic CRD MS421
9 872140418 Bolt Carriage 1/4-20 x 2.25d x Gr.5
10 532169688 Tube Support Bagger
11 532165719 Bracket Support Upper Bag CRD
12 532169685 Bracket Horiz. Adj Bagger
13 872110606 Bolt Rdhd Sht Sqnk 3/8-16 x 3/4
14 874520640 Bolt Hex 3/8-16 x 2-1/2 Gr.5
16 873900600 Nut Lock Flg 3/8-16 Unc
17 872140506 Bolt Rdhd Sht Sqnk 5/16 -18 Unc x 3/4
18 819111216 Washer 11/32 x 3/4 x 16 Ga.
19 873900500 Nut Lock Hex Flange 5/16-18
20 532169684 Bracket Horiz Adj Bagger
21 532165780 Bag Asm CRD
22 532165781 Bracket Side Bagger CRD
23 532165782 Tube Upper Bagger CRD
24 532165783 Tube Pivot Bagger CRD
25 532165784 Tube Front Bagger CRD
26 532165785 Tube Lower Bagger CRD
27 532169692 Bushing Snap Bagger CRD
28 532170696 Grip Handle Flange CRD Black
31 532124788 Retainer Spring 1" Zinc/Cad
32 532126875 Rivet Rd Hd Drilled 3/8 Dia
36 819132016 Washer 13/32 x 1-1/4 x 16 Ga.
37 532175401 Plug Support Bagger CRD
38 872010520 Bolt 5/16-18 x 2-1/2
39 532169999 Seal 26" (Long)
40 532170000 Seal 7" (Short)
41 532169683 Bracket Vert Adj Bagger CRD
42 873800500 Nut Lock Hx w/Ins 5/16-18 unc
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
20
Loading...
