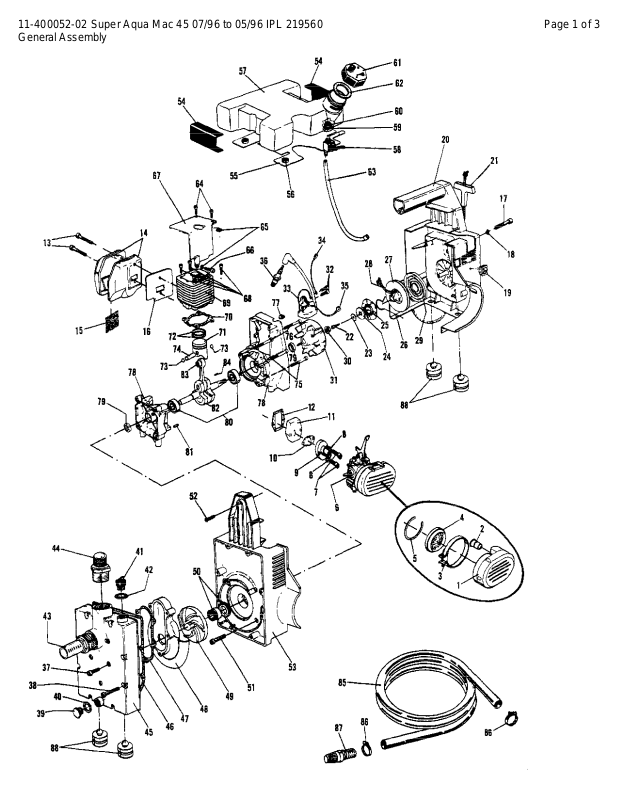

11-400052-02 Super Aqua Mac 45 07/96 to 05/96 IPL 219560 Page 1 of 3

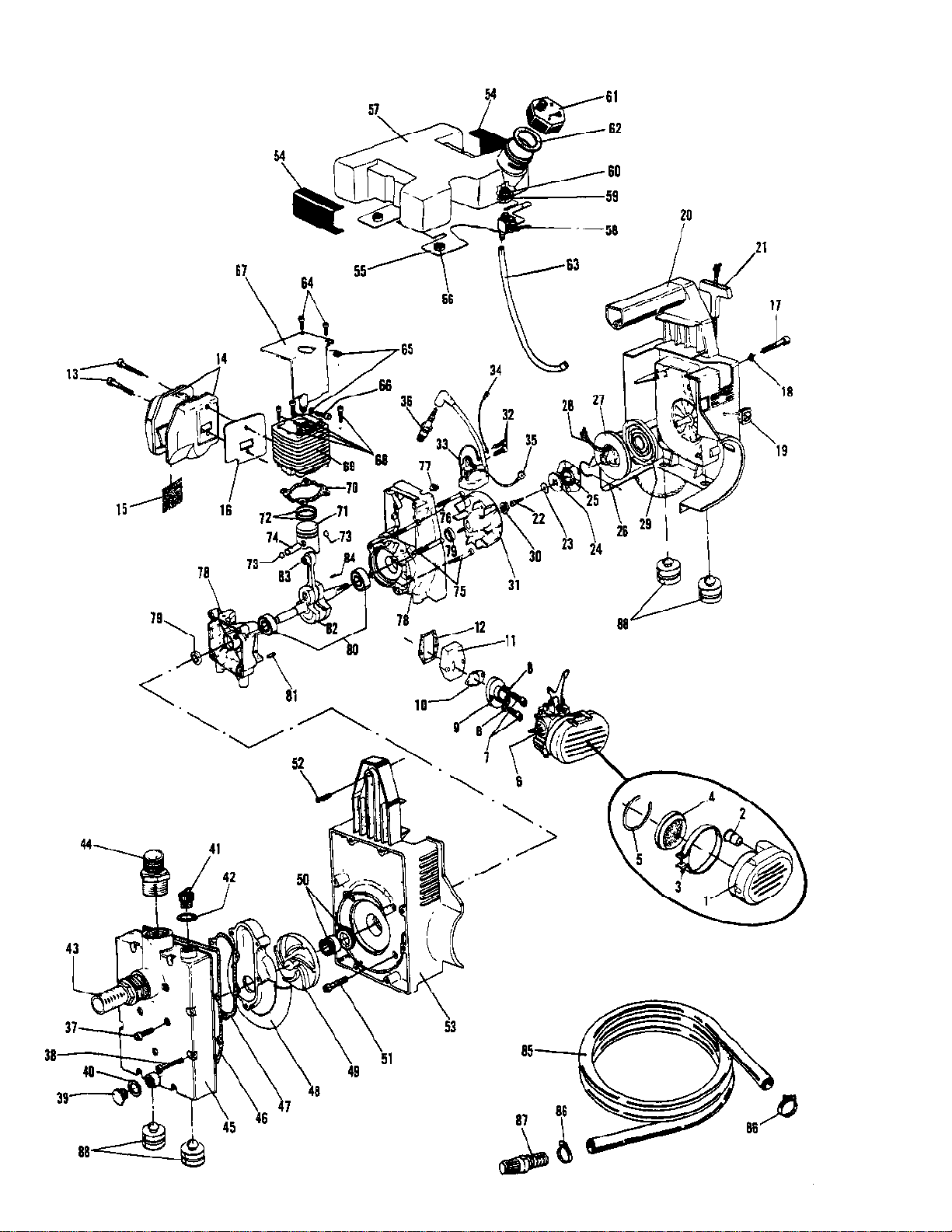

General Assembly
Page 2
11-400052-02 Super Aqua Mac 45 07/96 to 05/96 IPL 219560 Page 2 of 3
General Assembly
Ref # Part Number DescriptionQty
1 228282 Cover - Air Filter1
2 Tubes - Air Inlet Not available separately.2
3 228281 Clamp - Air Filter Cover1
4 Filter - Air Not available separately.1
5 Gasket - Air Filter Not available separately.1
6 228221 Carburetor1
7 235803 Screw - Holder2
8 236529 Washer2
9 228098 Holder - Carburetor1
10 235016 Gasket - Holder/Isolator1
11 235120 Isolator - Holder/Crankcase1
12 235015 Gasket - Isolator/Crankcase1
13 235213 Screw - Muffler2
14 235669 Muffler Assembly1
15 235665 Screen - Spark Arrester1
16 236346 Gasket - Muffler/Cylinder1
17 235804 Screw - Starter4
18 235248 Washer - Starter4
19 228277 Switch1
20 228162 Starter Assembly1
21 235944 Handle - Starter1
22 228159 Screw1
23 235163 Washer1
24 236339 Washer1
25 235926 Bushing1
26 235888 Spring - Starter1
27 236373 Drum/Rope Assembly - Starter1
28 236374 Rope - Starter1
29 235945 Spring - Rewind1
30 236617 Nut - Flywheel1
31 235680 Flywheel1
32 235806 Screw - Ignition2
33 228422 Ignition - CDI1
34 228291 Wire - Ground1
35 228290 Wire - Ground1
36 93018 Spark Plug1
37 236933 Screw - Scroll5
38 236558 Screw - Pump Housing8
39 228283 Plug - Drain1
40 228284 Gasket - Plug1
41 228285 Plug - Prime1
42 228286 O-Ring - Plug1
43 228287 Adaptor - Pickup/Strainer1
44 217132 Adaptor - Garden Hose1
45 228062 Cover - Pump1
46 228104 Gasket - Pump1
47 228103 Gasket - Scroll1
48 228063 Scroll1
49 228064 Impeller1
50 228164 Seal1
51 228253 Screw - Pump Body/Crankcase4
52 235205 Screw - Pump Body/Handle1
53 228061 Body - Pump1
54 228102 Cushion - Fuel Tank2
55 228740 Protector - Fuel Tank1
Page 3
11-400052-02 Super Aqua Mac 45 07/96 to 05/96 IPL 219560 Page 3 of 3
General Assembly
Ref # Part Number DescriptionQty
56 Spacer - Fuel Tank-Foam Not available separately.4
57 228292 Tank - Fuel1
58 228293 Petcock - Fuel1
59 236609 Washer - Petcock1
60 228294 Nut - Petcock1
61 216098 Cap - Fuel1
62 94707 Gasket - Fuel Cap1
63 228295 Fuel Hose1
64 235802 Screw - Cylinder Cover2
65 235248 Washer2
66 236381 Screw1
67 228100 Cover - Cylinder1
68 235214 Screw - Cylinder/Crankcase4
69 235479 Kit - Cylinder1
70 235135 Gasket - Cylinder/Crankcase1
71 235478 Kit - Piston1
72 235178 Ring - Piston2
73 235008 Spring - Retaining2
74 Pin - Piston Not available separately.1
75 235804 Screw - Crankcase2
76 235919 Screw - Crankcase2
77 236322 Grommet1
78 236678 Crankcase1
79 235229 Seal - Crankcase/Crankshaft2
80 235900 Bearing - Crankshaft2
81 236365 Pin - Crankcase1
82 228157 Crankshaft/Conn Rod Assembly1
83 235742 Bearing - Piston1
84 102164 Key - Flywheel1
85 228298 Hose - Water Pickup1
86 228299 Clamp - Hose2
87 228300 Pickup/Strainer - Hose1
88 228101 Bumper - Lower4
