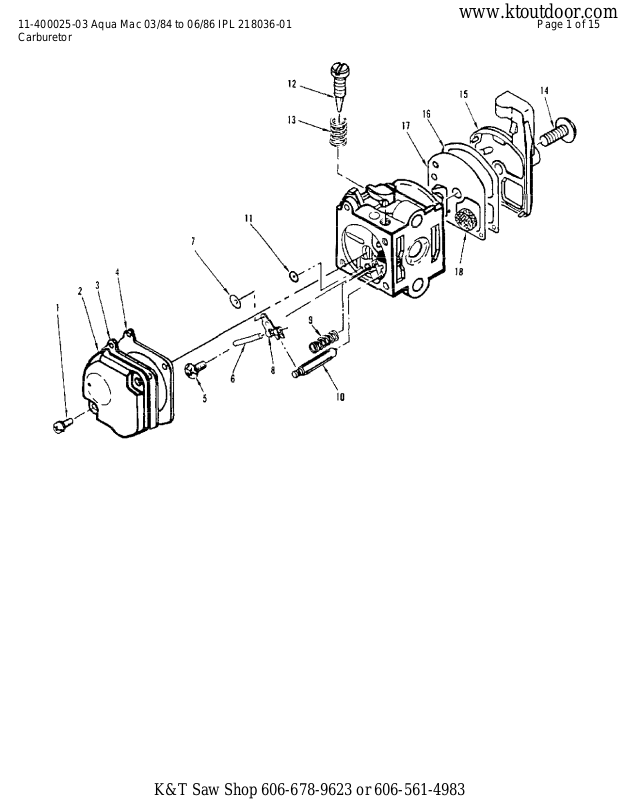

11-400025-03 Aqua Mac 03/84 to 06/86 IPL 218036-01 Page 1 of 15
www.ktoutdoor.com

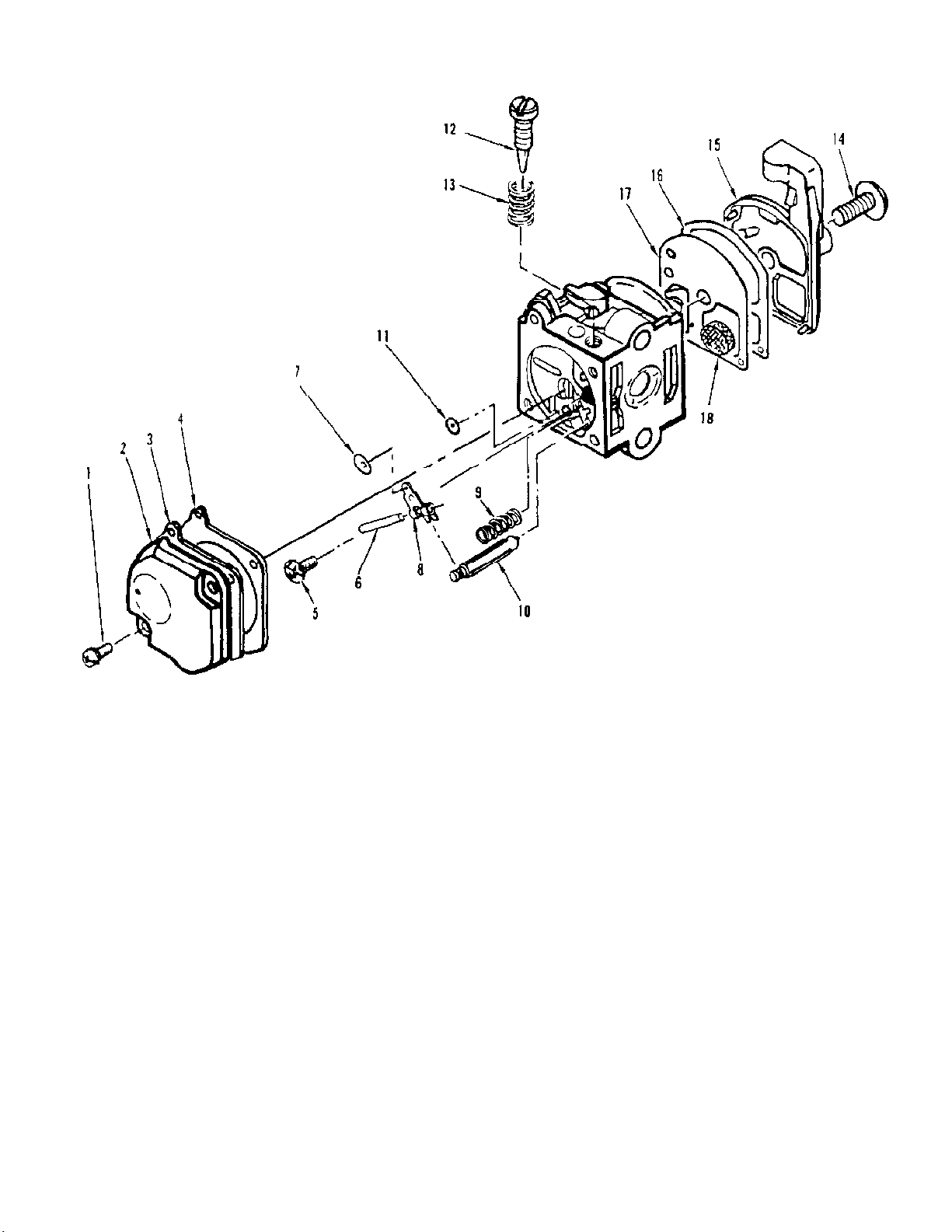

Carburetor
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-400025-03 Aqua Mac 03/84 to 06/86 IPL 218036-01 Page 2 of 15
www.ktoutdoor.com
Carburetor
Ref # Part Number DescriptionQty
217149 Carburetor Assembly (ZAMA CIS-M9)
1 Screw - Cover Not available separately.2
2 Cover - Diaphragm Not available separately.1
3 Gasket - Main Not available separately.1
4 Diaphragm - Main Not available separately.1
5 Screw - Lever Pin Not available separately.1
6 Pin - Lever Arm Not available separately.1
7 Disk Not available separately.1
8 Lever - Pin Arm. Not available separately.1
9 Spring - Lever Pin Not available separately.1
10 Valve - Needle Arm Not available separately.1
11 Plug - Welch Not available separately.1
12 Needle - Main Adjustment Not available separately.1
13 Spring - Adjustment Needle Not available separately.1
14 Screw - Fuel Pump Cover Not available separately.1
15 Cover - Fuel Pump Not available separately.1
16 Gasket - Fuel Pump Not available separately.1
17 Diaphragm - Fuel Pump Not available separately.1
18 Strainer Not available separately.1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-400025-03 Aqua Mac 03/84 to 06/86 IPL 218036-01 Page 3 of 15
www.ktoutdoor.com

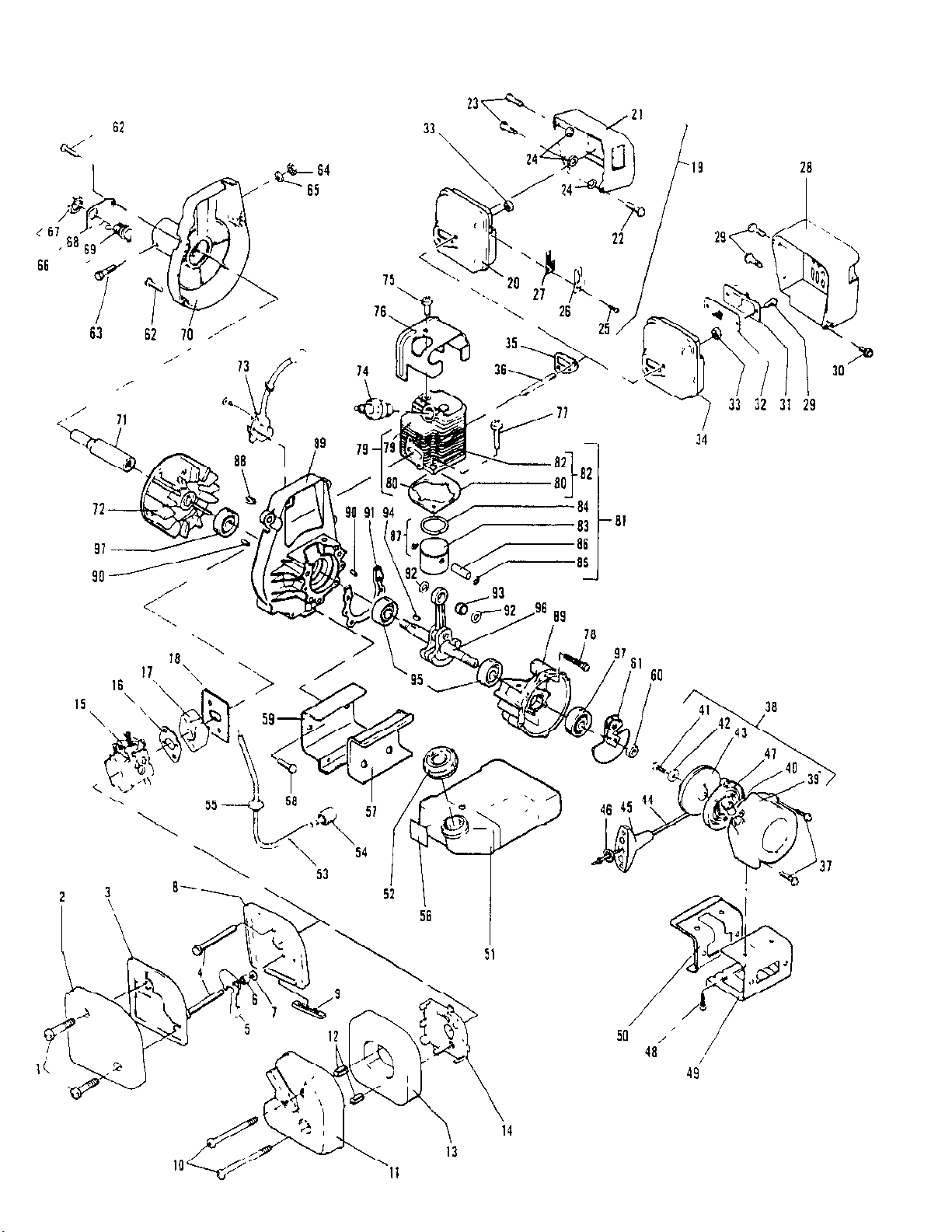

Engine Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-400025-03 Aqua Mac 03/84 to 06/86 IPL 218036-01 Page 4 of 15
www.ktoutdoor.com
Engine Assembly
Ref # Part Number DescriptionQty
1 217669 Screw - M4 x 25 (15-25 in. lb. torque)2
2 215988 Cover - Air Filter1
3 217376 Filter - Air1
4 216903 Screw - M5 x 55 (18-25 in. lb. torque)2
5 215991 Shutter - Choke1
6 215993 Spacer1
7 216591 Washer - M5 Flat1
8 216108 Kit - Air Box/Grommet1
9 215992 Grommet This is a new part number, different from the
1
one listed in the previous IPL for this unit.
10 219078 Screw - M5 X 69 Sems This is a new part number,
11 223196 Cover Asy - Choke This is a new part number,
12 219023 Insert - A/C Cover This is a new part number, different
13 219145 Filter - Air (Foam) This is a new part number, different
14 222758 Box - Air This is a new part number, different from the
15 Carburetor Assembly See "Carburetor Assembly"
16 218933 Gasket - Carburetor This is a new part number,
17 219070 Insulator - Carburetor This is a new part number,
2
different from the one listed in the previous IPL for this
unit. (18-25 in. lb. torque)
1
different from the one listed in the previous IPL for this
unit.
2
from the one listed in the previous IPL for this unit.
1
from the one listed in the previous IPL for this unit.
1
one listed in the previous IPL for this unit.
1
illustration and parts list.
1
different from the one listed in the previous IPL for this
unit.
1
different from the one listed in the previous IPL for this
unit.
18 216575 Gasket/Shield Insulator1
19 219963 Kit - Muffler/Shield This is a new part number, different
20 219152 Muffler Assembly This is a new part number, different
21 218962 Shield - Muffler This is a new part number, different
22 217669 Screw - M4 x 25 This is a new part number, different
23 219508 Screw - M4 x 17 This is a new part number, different
24 219079 Spacer - Muffler Shield This is a new part number,
1
from the one listed in the previous IPL for this unit.
1
from the one listed in the previous IPL for this unit.
1
from the one listed in the previous IPL for this unit.
1
from the one listed in the previous IPL for this unit.
(12-16 in. lb. torque)
2
from the one listed in the previous IPL for this unit.
(10-15 in. lb. torque)
3
different from the one listed in the previous IPL for this
unit.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-400025-03 Aqua Mac 03/84 to 06/86 IPL 218036-01 Page 5 of 15
www.ktoutdoor.com
Engine Assembly
Ref # Part Number DescriptionQty
25 219194 Screw - 5-20 x .438 This is a new part number,
2
different from the one listed in the previous IPL for this
unit. (12-16 in. lb. torque)
26 219150 Cover - Spark Arrestor This is a new part number,
27 219149 Screen - Spark Arrestor This is a new part number,
28 215753 Shield/Muffler1
29 216025 Screw - M4 x 8 (25-30 in. lb. torque)3
30 213177 Screw - M4.2 x 18.5 (12-16 in. lb. torque)1
31 217318 Cover - Screen This is a new part number, different
32 215516 Screen - Spark Arrestor1
33 222247 Nut - Stud This is a new part number, different from
34 215506 Muffler1
35 215515 Gasket - Muffler1
36 222480 Stud - Muffler This is a new part number, different
37 213177 Screw - M4.2 x 18.5 (12-16 in. lb. torque)2
38 218490 Starter Assembly This is a new part number, different
1
different from the one listed in the previous IPL for this
unit.
1
different from the one listed in the previous IPL for this
unit.
1
from the one listed in the previous IPL for this unit.
2
the one listed in the previous IPL for this unit. (41-50
in. lb. torque)
2
from the one listed in the previous IPL for this unit.
1
from the one listed in the previous IPL for this unit.
39 217711 Housing - Starter This is a new part number, different
40 217030 Guide - Rope1
41 215874 Screw - M4 x 9.5 (18-20 in. lb. torque)1
42 216590 Washer - M4 Flat1
43 216092 Drum/Rope Asy1
44 216093 Rope - Starter (36")1
45 216792 Handle - Starter1
46 218941 Washer - Nylon This is a new part number, different
47 217482 Spring - Starter This is a new part number, different
48 213177 Screw - M4.2 x 18.5 (12-16 in. lb. torque)2
49 215501 Bracket - Back1
50 215504 Cushion - Fuel Tank1
51 217021 Fuel Tank Assembly1
52 222347-01 Cap - Fuel This is a new part number, different from
53 217264 Hose - Fuel1
54 216985 Pickup - Fuel1
55 215495 Grommet1
56 217383 Decal - 40:11
57 215500 Cushion - Bracket1
58 216025 Screw - M4 x 8 (25-30 in. lb. torque)2
59 217455 Bracket - Tank/Shield1
1
from the one listed in the previous IPL for this unit.
1
from the one listed in the previous IPL for this unit.
1
from the one listed in the previous IPL for this unit.
1
the one listed in the previous IPL for this unit.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-400025-03 Aqua Mac 03/84 to 06/86 IPL 218036-01 Page 6 of 15
www.ktoutdoor.com
Engine Assembly
Ref # Part Number DescriptionQty
60 216583 Nut - M8 Hex (149-160 in. lb. torque)1
61 215525 Ratchet Assembly1
62 213177 Screw - M4.2 x 18.5 (12-16 in. lb. torque)4
63 217158 Screw - M5 x 351
64 217159 Nut - M5 Hex1
65 216591 Washer - M5 Flat1
66 219279 Plate Asy - Toggle Switch This is a new part number,
67 219917 Nut - 15/321
68 217381 Plate - Switch1
69 217648 Switch - Toggle1
70 217139 Housing - Fan1
71 217151 Coupling1
72 Flywheel Assemblies See "Flywheel & Ignition
1
different from the one listed in the previous IPL for this
unit.
1
Assemblies" illustration and parts list.
73 Ignition Assemblies See "Flywheel & Ignition
74 62345 Plug - Spark DJ8J (Champion) This is a new part
92879 Plug - Spark RDJ8 (Champion) This is a new part
75 213178 Screw - M5 x 8.5 (15-25 in. lb. torque)1
76 215540 Cover - Cylinder1
77 217320 Screw - M6 x 18 (70-80 in. lb. torque)2
78 213179 Screw - M5 x 28.5 (35-40 in. lb. torque)4
79 219081 Kit - Cylinder Gasket1
80 215542 Gasket - Cylinder1
81 222594 Kit - Cylinder/Piston This is a new part number,
82 219084 Kit - Cyl (Plated)/Gasket This is a new part number,
80 215542 Gasket1
83 218264 Piston (Alum) This is a new part number, different
1
Assemblies" illustration and parts list.
1
number, different from the one listed in the previous
IPL for this unit. (105-130 in. lb. torque)
1
number, different from the one listed in the previous
IPL for this unit. (105-130 in. lb. torque)
1
different from the one listed in the previous IPL for this
unit.
1
different from the one listed in the previous IPL for this
unit.
1
from the one listed in the previous IPL for this unit.
84 217475 Ring - Piston1
85 111026 Ring - Retaining This is a new part number, different
86 218275 Pin - Wrist This is a new part number, different from
87 219083 Kit - Piston (Chrome) This is a new part number,
84 217475 Ring - Piston1
85 216343 Ring - Retaining2
86 215551 Pin - Wrist1
2
from the one listed in the previous IPL for this unit.
1
the one listed in the previous IPL for this unit.
1
different from the one listed in the previous IPL for this
unit.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-400025-03 Aqua Mac 03/84 to 06/86 IPL 218036-01 Page 7 of 15
www.ktoutdoor.com
Engine Assembly
Ref # Part Number DescriptionQty
88 215541 Grommet1
89 217373 Crankcase Assembly1
218185 Crankcase Assembly This is a new part number,
90 213191 Pin4
91 215545 Gasket - C'Case1
92 213196 Washer2
93 213195 Bearing - Needle1
110984 Bearing - Needle This is a new part number, different
94 102164 Key - Flywheel1
95 216143 Bearing - Ball2
213282 Bearing - Roller This is a new part number, different
96 216444 Crankshaft Assembly1
218106 Crankshaft Assembly This is a new part number,
1
different from the one listed in the previous IPL for this
unit.
2
from the one listed in the previous IPL for this unit.
2
from the one listed in the previous IPL for this unit.
1
different from the one listed in the previous IPL for this
unit.
97 83859 Seal - Oil2
216500 Seal - Oil2
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-400025-03 Aqua Mac 03/84 to 06/86 IPL 218036-01 Page 8 of 15
www.ktoutdoor.com

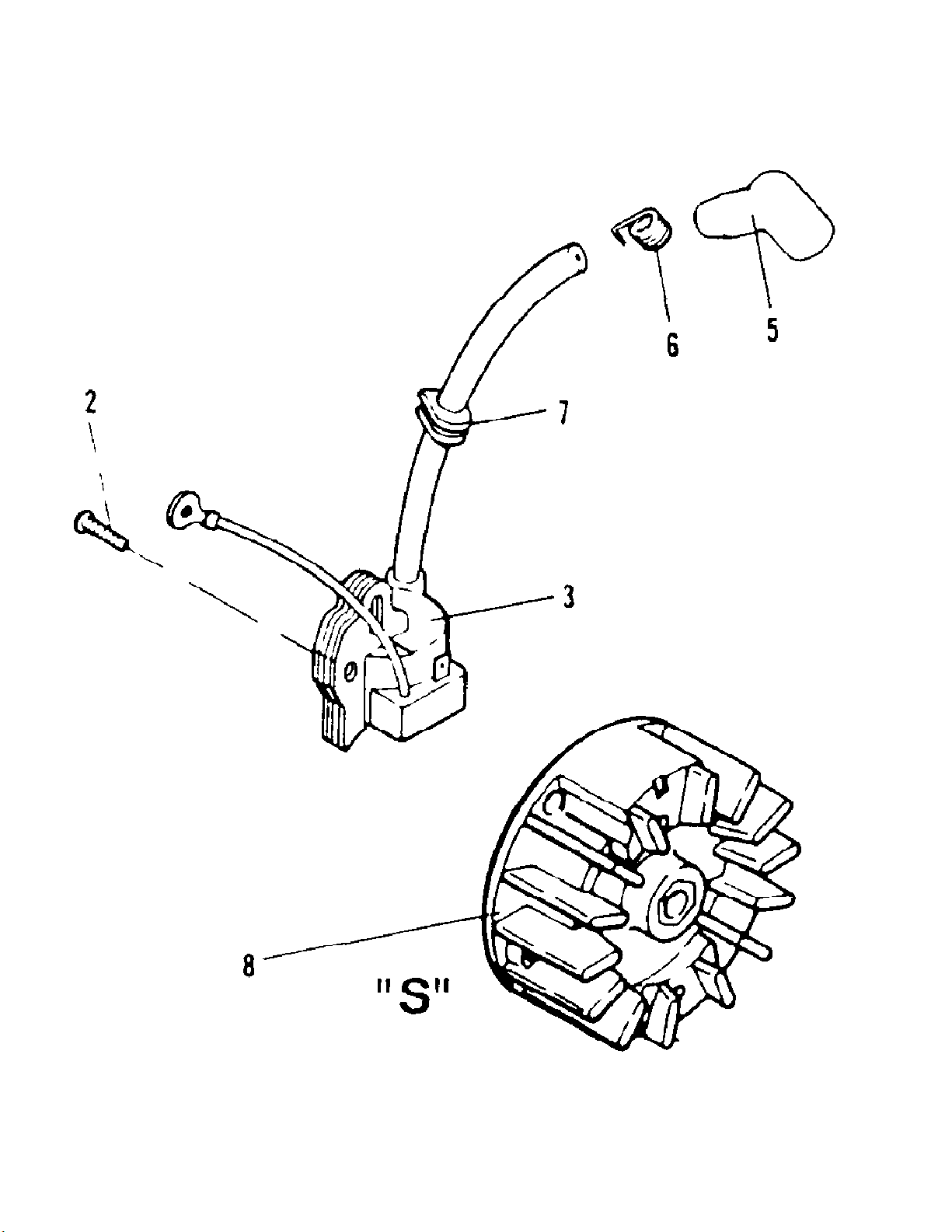

Ignition & Flywheel Assemblies (Black)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-400025-03 Aqua Mac 03/84 to 06/86 IPL 218036-01 Page 9 of 15
www.ktoutdoor.com
Ignition & Flywheel Assemblies (Black)
Ref # Part Number DescriptionQty
1 219383 Wire - Switch1
2 216022 Screw - M4 x 23.4 (13-16 in. lb. torque)6
3 219386 Ignition (Black)1
4 219848 Ignition (Cream)1
5 95266 Boot - Spark Plug1
6 102556 Connector1
7 215533-01 Grommet1
8 222430 Flywheel (Stamped "S")1
9 222308 Flywheel (Stamped "FL")1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-400025-03 Aqua Mac 03/84 to 06/86 IPL 218036-01 Page 10 of 15
www.ktoutdoor.com

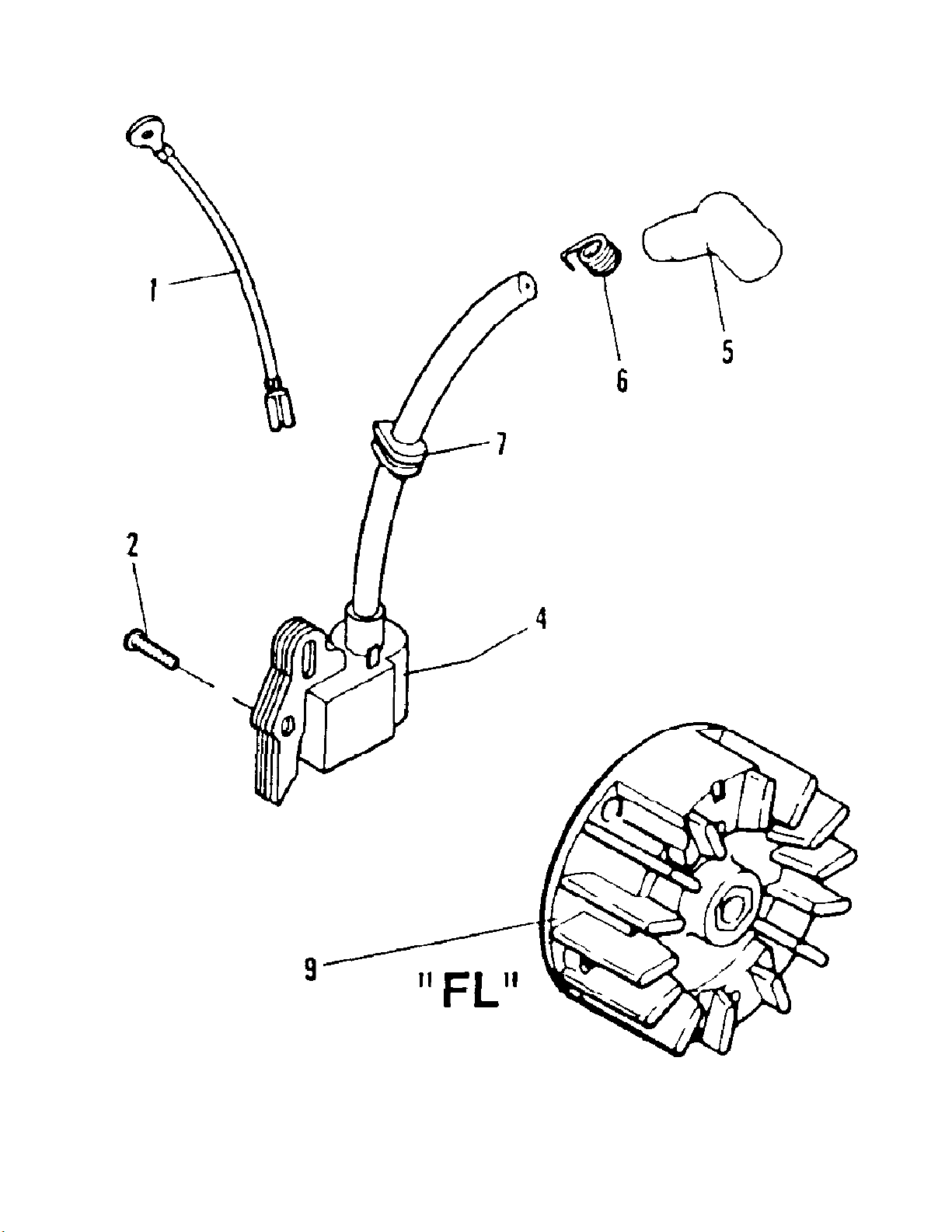

Ignition & Flywheel Assembly (Cream)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
11-400025-03 Aqua Mac 03/84 to 06/86 IPL 218036-01 Page 11 of 15
www.ktoutdoor.com
Ignition & Flywheel Assembly (Cream)
Ref # Part Number DescriptionQty
219958 Kit - Flywheel/Ignition1
1 219383 Wire - Switch1
2 UNKNOWN
9 222308 Flywheel Assembly ("FL")1
4 219848 Ignition (Cream)1
5 95266 Boot - Spark Plug1
6 102556 Connector - Spark1
7 215533-01 Grommet1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
11-400025-03 Aqua Mac 03/84 to 06/86 IPL 218036-01 Page 12 of 15
www.ktoutdoor.com
Special Tools
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 13
11-400025-03 Aqua Mac 03/84 to 06/86 IPL 218036-01 Page 13 of 15
www.ktoutdoor.com
Special Tools
Ref # Part Number DescriptionQty
215439 Tool - Piston Driving
215443 Plate - Pressure Test
215444 Gasket - Intake Plate
215445 Gasket - Exhaust
222785 Torx Drive T-25 (Cylinder)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 14
11-400025-03 Aqua Mac 03/84 to 06/86 IPL 218036-01 Page 14 of 15
www.ktoutdoor.com

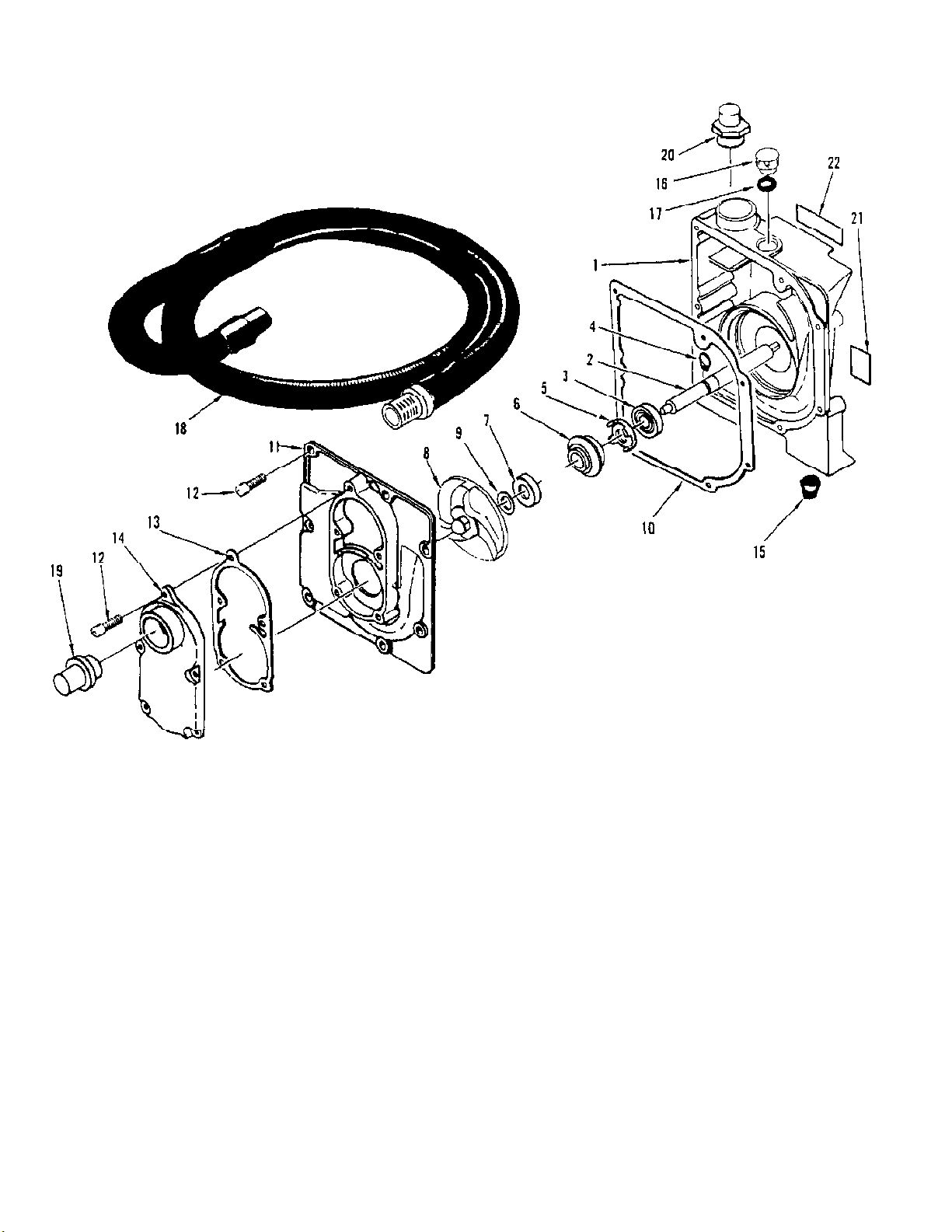

Water Pump Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 15
11-400025-03 Aqua Mac 03/84 to 06/86 IPL 218036-01 Page 15 of 15
www.ktoutdoor.com
Water Pump Assembly
Ref # Part Number DescriptionQty
1 217560 Housing - Anodized1
217559 Housing - Non-Anodized This is a new part number,
2 217129 Shaft1
217128 Shaft This is a new part number, different from the
3 213156 Bearing - Ball1
4 213186 Ring - Retaining1
5 217134 Spacer1
6 217135 Seal1
7 217137 Seal - Ring Assembly1
8 217561 Impeller - Anodized1
217130 Impeller - Non-Anodized This is a new part number,
1
different from the one listed in the previous IPL for this
unit. Factory stocked. Slow moving part.
1
one listed in the previous IPL for this unit. Factory
stocked. Slow moving part.
1
different from the one listed in the previous IPL for this
unit. Factory stocked. Slow moving part. Used on 11
and 12 lever - 02, 03 and 06 units only.
9 217138 Shim2
10 217141 Gasket - Housing1
11 217562 Centerpiece - Anodized1
217143 Centerpiece - Non-Anodized This is a new part
12 217523 Screw - M6 x 18.4012
217320 Screw - M6 x 18 Torx This is a new part number,
13 217146 Gasket - Inlet Cover1
14 217563 Cover - Anodized1
217148 Cover - Non-Anodized This is a new part number,
15 89403 Bumper - Lower2
16 217150 Plug - Pipe1
17 217152 Ring - "O"1
18 217874 Kit - Hose/Strainer1
217540 Hose1
19 217144 Insert - Hose1
20 217132 Adaptor1
21 217985 Decal - Caution (AM)1
22 217986 Decal - Caution (PP)1
12
1
number, different from the one listed in the previous
IPL for this unit. Factory stocked. Slow moving part.
Used on 11 and 12 lever - 02, 03 and 06 units only.
different from the one listed in the previous IPL for this
unit. Distributor stocked. Medium to slow moving part.
Used on 11 and 12 lever - 02, 03 and 06 units only.
1
different from the one listed in the previous IPL for this
unit. Factory stocked. Slow moving part.
K&T Saw Shop 606-678-9623 or 606-561-4983
Loading...
