Page 1
11-400020C MAC 95A 02/83 to 01/84 IPL 216941-R1 Page 1 of 9
www.ktoutdoor.com
Accessories
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-400020C MAC 95A 02/83 to 01/84 IPL 216941-R1 Page 2 of 9
www.ktoutdoor.com
Accessories
Ref # Part Number DescriptionQty
95898 Pkg - Weed/Grass Blade (MAC 95A)
95884 Pkg - Brush Blade (MAC 95A)
95886 40' Line (MAC 90A)
95892 Pkg - 1 lb. .095" Line (MAC 90A)
95902 Pkg - 5 lbs. .095" line (MAC 90A)
216863 Pkg - Spark Arrester Screen (MAC 90A/95A)
216767 Spindle Lock
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-400020C MAC 95A 02/83 to 01/84 IPL 216941-R1 Page 3 of 9
www.ktoutdoor.com

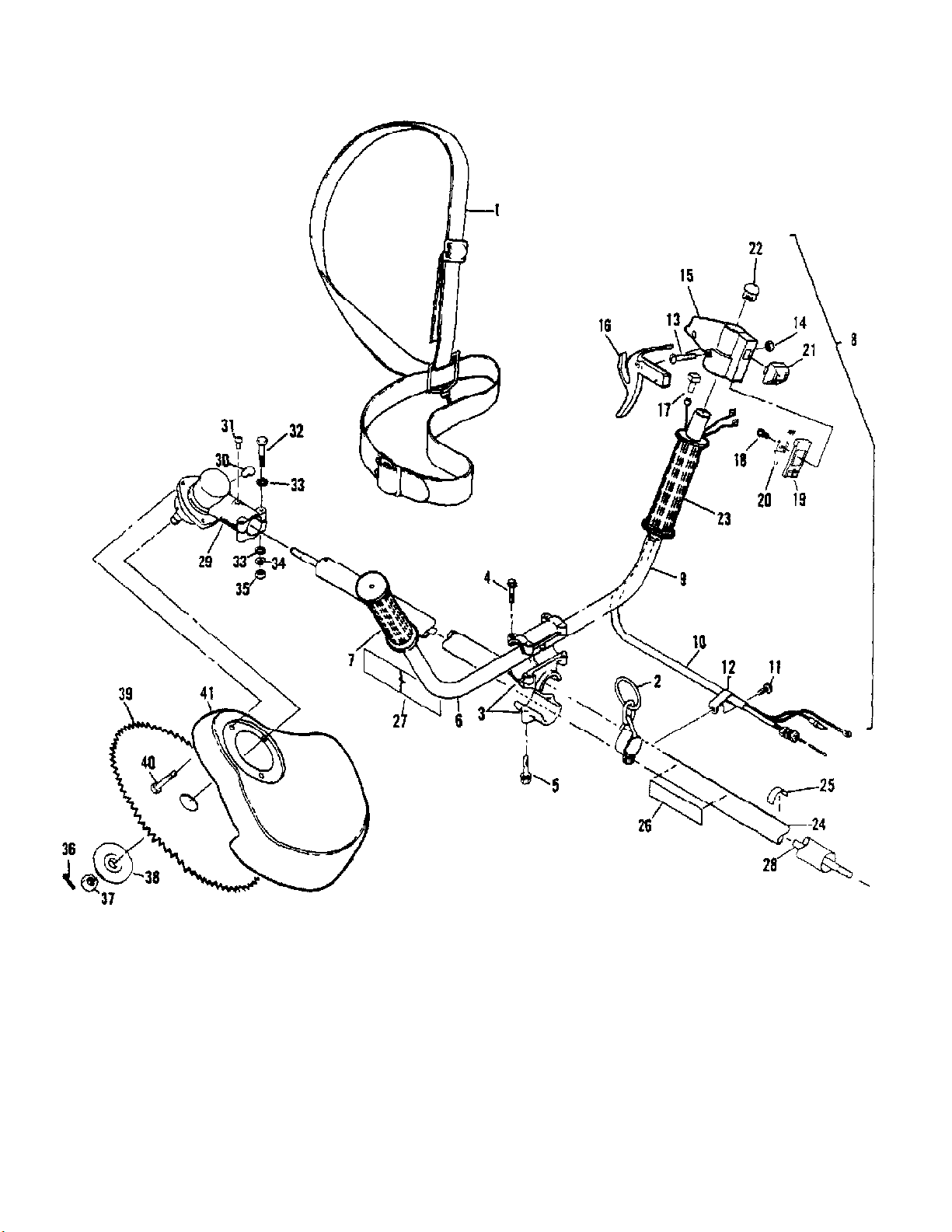

Drive Shaft, Brush Shield, Blade Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-400020C MAC 95A 02/83 to 01/84 IPL 216941-R1 Page 4 of 9
www.ktoutdoor.com
Drive Shaft, Brush Shield, Blade Assembly
Ref # Part Number DescriptionQty
1 216790 Harness Assembly1
2 216748 Ring Asy - Harness1
3 216753 Yolk - Handle Bar1
4 216781 Bolt - Hx M5 x 254
5 216782 Bolt - Hx M6 x 302
6 216868 Bar Asy - Handle1
7 94212 Grip - Left Hand1
8 216867 Bar Asy - Handle/Harness1
9 216787 Bar - Handle1
10 216372 Harness Asy - Wiring1
11 216789 Bolt - M5 x 131
12 216788 Clip - Wiring Harness1
13 216027 Screw - Pn M5 x 28.51
14 216585 Nut - Lock M51
15 215317 Housing - Trigger1
16 215318 Trigger - Throttle1
17 215323 Guide1
18 110706 Screw - Pn 8-18 x 1/21
19 215319 Base - Stop Switch1
20 215320 Contact - Switch1
21 68846 Button - Stop Switch1
22 95153 Plug - Tubing1
23 215322 Grip - Right Hand1
24 216922 Kit - Outer Housing1
25 Decal - Position Not available separately.1
26 Decal - Caution Not available separately.1
27 Decal - Name (MAC 95A) Not available separately.1
28 216747 Shaft - Drive1
29 216777 Housing Asy - Gear1
30 216632 Bolt - Hx M8 x 81
31 216795 Screw - Phl M5 x 121
32 216828 Bolt - Hx M5 x 402
33 216826 Washer - Flat M54
34 216824 Washer - Lock M52
35 216823 Nut - Hx M52
36 216778 Pin - Cotter1
37 216751 Nut - Hx M10 (L/H)1
38 216749 Flange - Collar1
39 95884 Blade - Brush1
40 213178 Screw - Pn M5 x 8.53
41 216499 Shield - Brush Cutter1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-400020C MAC 95A 02/83 to 01/84 IPL 216941-R1 Page 5 of 9
www.ktoutdoor.com

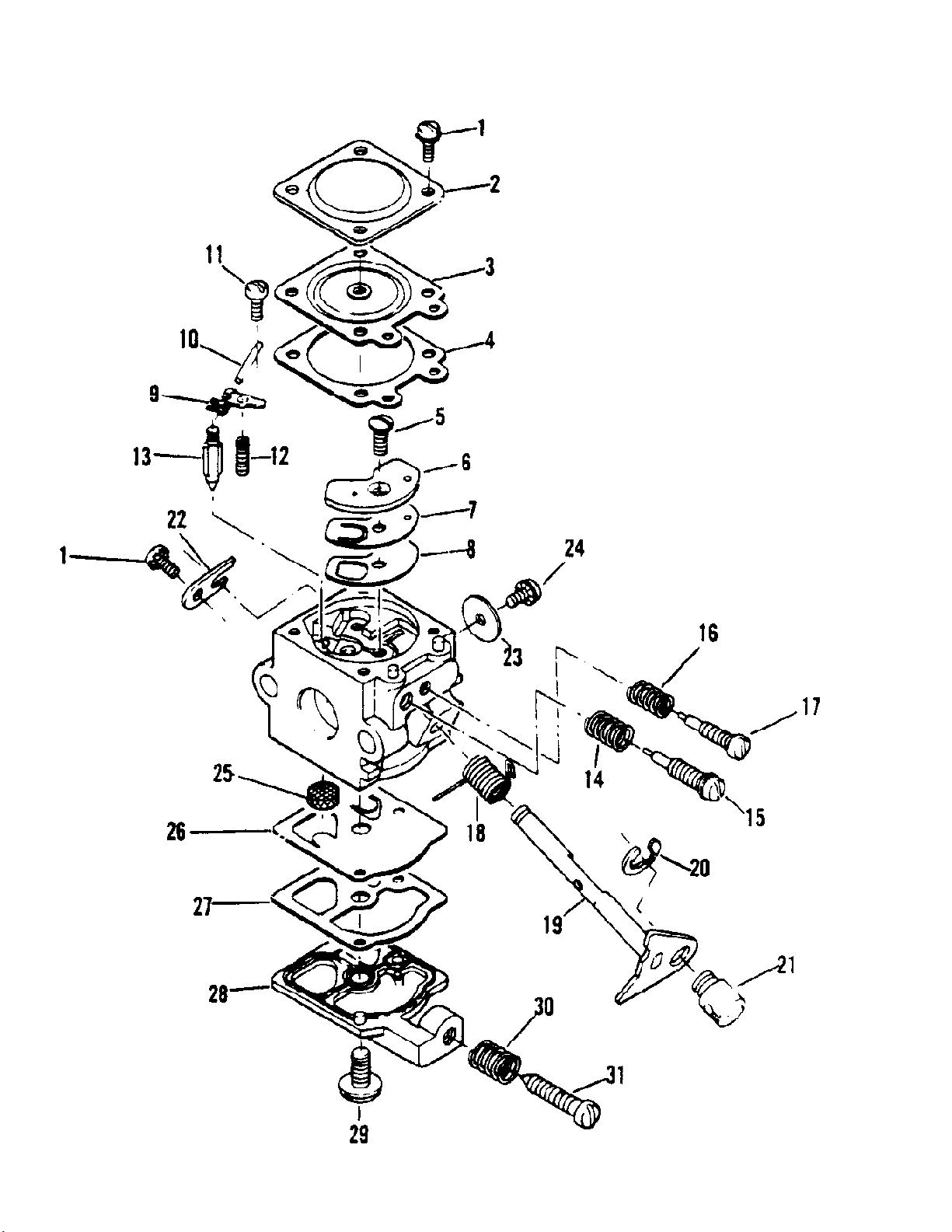

Carburetor Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-400020C MAC 95A 02/83 to 01/84 IPL 216941-R1 Page 6 of 9
www.ktoutdoor.com
Carburetor Assembly
Ref # Part Number DescriptionQty
216581 Carburetor Assembly (WA-147)1
1 Screw - Cover Not available separately.5
2 Cover - Diaphragm Not available separately.1
3 Diaphragm - Metering Not available separately.1
4 Gasket - Diaphragm Not available separately.1
5 Screw - Circuit Plate Not available separately.1
6 Plate - Circuit Not available separately.1
7 Diaphragm - Circuit Plate Not available separately.1
8 Gasket - Circuit Plate Not available separately.1
9 Lever - Metering Not available separately.1
10 Pin - Lever Not available separately.1
11 Screw - Lever Pin Not available separately.1
12 Spring - Lever Not available separately.1
13 Valve - Inlet Needle Not available separately.1
14 Spring - High Speed Needle Not available separately.1
15 Needle - High Speed Not available separately.1
16 Spring - Idle Needle Not available separately.1
17 Needle - Idle Not available separately.1
18 Spring - Throttle Return Not available separately.1
19 Shaft - Throttle Not available separately.1
20 Clip Not available separately.1
21 Swivel Not available separately.1
22 Clip - Throttle Shaft Not available separately.1
23 Valve - Throttle Not available separately.1
24 Screw - Throttle Valve Not available separately.1
25 Screen - Inlet Not available separately.1
26 Diaphragm - Fuel Pump Not available separately.1
27 Gasket - Fuel Pump Not available separately.1
28 Cover - Fuel Pump Not available separately.1
29 Screw - Pump Cover Not available separately.1
30 Spring - Idle Screw Not available separately.1
31 Screw - Idle Adjusting Not available separately.1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-400020C MAC 95A 02/83 to 01/84 IPL 216941-R1 Page 7 of 9
www.ktoutdoor.com

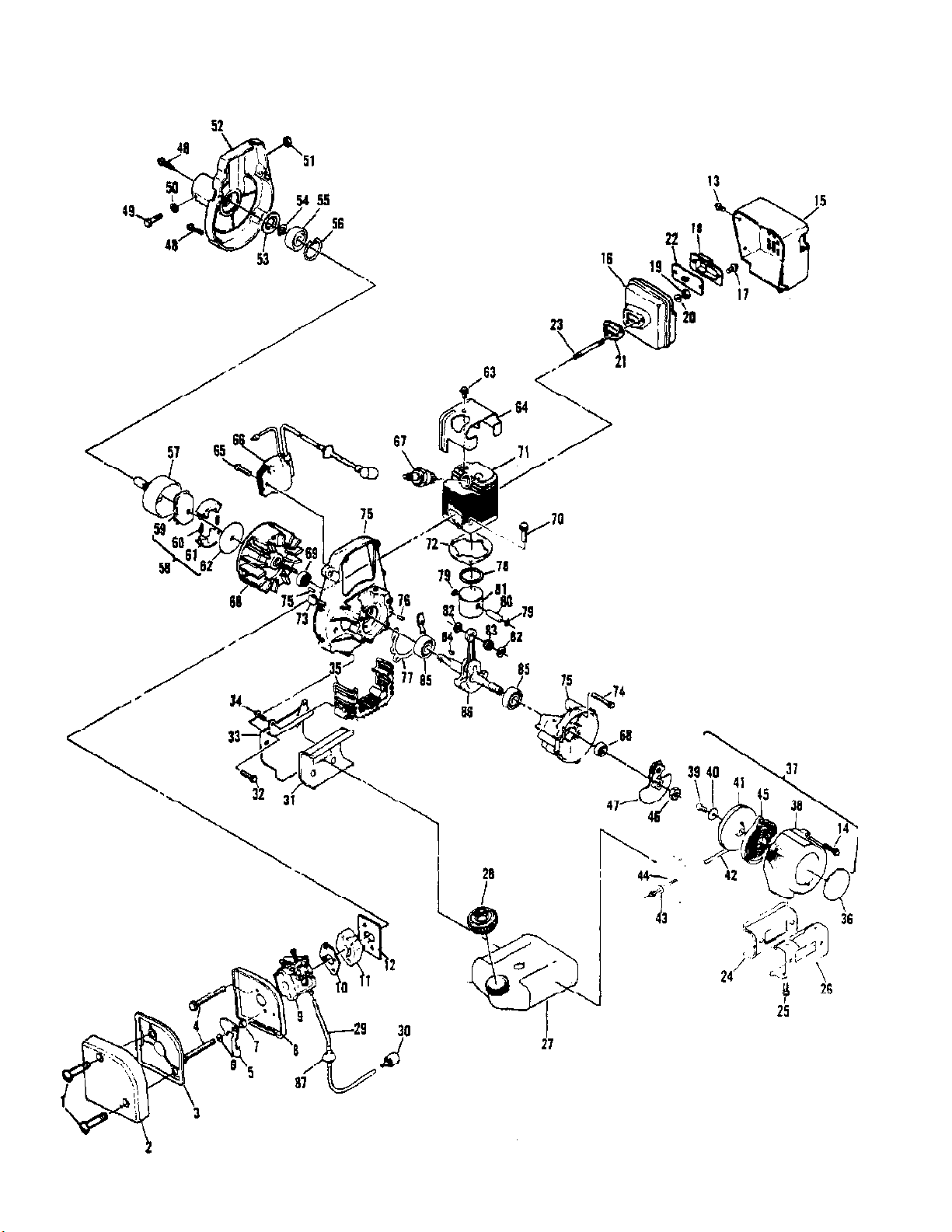

Engine Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-400020C MAC 95A 02/83 to 01/84 IPL 216941-R1 Page 8 of 9
www.ktoutdoor.com
Engine Assembly
Ref # Part Number DescriptionQty
1 216022 Screw - M4 x 212
2 215988 Cover - Air Cleaner1
3 215990 Filter - Air1
4 216903 Screw - M5 x 552
5 215991 Shutter - Choke1
6 216591 Washer - Flat M51
7 215993 Spacer1
8 216108 Kit - Airbox/Grommet1
9 Carburetor Assembly See "Carburetor Assembly"
10 215491 Gasket - Carburetor1
11 215771 Insulator - Carburetor1
12 216575 Gasket - Insulator1
13 216025 Screw - M4 x 82
14 213177 Screw - M4 x 18.503
15 215753 Shield - Muffler1
16 216920 Kit - Muffler1
17 216025 Screw - M4 x 82
18 215507 Cover/Cap Asy - Screen1
19 216585 Lock Nut - M52
20 216591 Washer - M52
21 215515 Gasket - Muffler1
22 95896 Spark Arrester Screen1
23 215517 Stud - Bolt2
24 215504 Cushion - Fuel Tank1
25 216025 Screw - M4 x 82
26 215501 Bracket - Back1
27 217021 Kit - Fuel Tank1
28 216346 Cap - Fuel Tank1
29 94405 Hose - Pickup1
30 216985 Pickup - Fuel1
31 215500 Cushion - Bracket1
32 216025 Screw - Special2
33 215497 Bracket Asy - Tank/Shield1
34 213176 Screw - M4 x 9.502
35 215531 Shield - Flywheel1
36 216604 Decal - Logo1
37 216919 Kit - Starter1
38 216325 Housing - Starter (Ptd)1
39 215874 Screw - M4 x 9.501
40 216590 Washer - Flat M41
41 216092 Drum/Rope Assembly1
42 216093 Rope - Starter1
43 216591 Washer - Starter Handle1
44 216792 Handle - Starter1
45 215522 Spring - Starter1
46 216583 Nut - M81
47 215525 Ratchet Assembly1
48 213177 Screw - M4 x 18.504
49 217158 Screw - Hx M5 x 251
50 216591 Washer - Flat M51
51 217159 Nut - Hx M5 x 0.81
52 216259 Housing - Fan1
53 215534 Plate - Thrust1
54 213188 Ring - Retaining1
K&T Saw Shop 606-678-9623 or 606-561-4983
1
illustration and parts list.
Page 9
11-400020C MAC 95A 02/83 to 01/84 IPL 216941-R1 Page 9 of 9
www.ktoutdoor.com
Engine Assembly
Ref # Part Number DescriptionQty
55 213187 Bearing - Ball1
56 213186 Ring - Retaining1
57 216837 Drum - Clutch1
58 216060 Kit - Clutch1
59 215536 Rotor - Clutch1
60 215537 Spring - Clutch2
61 215538 Shoe - Clutch2
62 215539 Plate - Side1
63 213178 Screw - M5 x 8.51
64 215540 Cover - Cylinder1
65 213177 Screw - M4 x 18.502
66 216329 Coil - Ignition1
67 214223 Spark Plug1
68 216686 Flywheel1
69 216500 Seal - Oil2
70 213180 Screw - M6 x 16.062
71 215690 Cylinder1
72 215542 Gasket - Cylinder1
73 215541 Grommet1
74 213179 Screw - M5 x 28.504
75 215718 Crankcase Asy1
76 213191 Pin4
77 215545 Gasket - Crankcase1
78 216611 Ring - Piston1
79 216343 Ring - Snap2
80 215551 Pin - Wrist1
81 215544 Piston1
82 213196 Washer2
83 213195 Bearing - Needle1
84 102164 Key - Woodruff1
85 216143 Bearing - Ball2
86 216444 Crankshaft Asy1
87 215495 Grommet1
K&T Saw Shop 606-678-9623 or 606-561-4983
