Page 1
11-400016-04 60A 11/86 to 01/88 IPL 218825-01 Page 1 of 19
www.ktoutdoor.com
Accessories & Replacement Parts
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-400016-04 60A 11/86 to 01/88 IPL 218825-01 Page 2 of 19
www.ktoutdoor.com
Accessories & Replacement Parts
Ref # Part Number DescriptionQty
219783 Semi-Auto Head .080 Used on Super Mac 60-S and
Super Eager Beaver II-S
219787 15' Line .080 Used on Super Mac 60-S and Super
Eager Beaver II-S
219785 15' Line on Spool .080 Used on Super Mac 60-S and
Super Eager Beaver II-S
217351-01 1-Lb. Bulk Line .080 Used on Super Mac 60-S and
Super Eager Beaver II-S
217352-01 5-Lb. Bulk Line .080 Used on Super Mac 60-S and
Super Eager Beaver II-S
219784 Semi-Auto Head .095 Used on Super Mac 80-S,
Super Mac 85-S, Super Eager Beaver II-S, Super
Eager Beaver III-S and Super Eager Beaver Special
219788 12' Line. 095 Used on Super Mac 80-S, Super Mac
85-S, Super Eager Beaver II-S, Super Eager Beaver
III-S and Super Eager Beaver Special
219786 12' Line on Spool .095 Used on Super Mac 80-S,
Super Mac 85-S, Super Eager Beaver II-S, Super
Eager Beaver III-S and Super Eager Beaver Special
216899-01 1-Lb. Bulk Line .095 Used on Super Mac 80-S, Super
Mac 85-S, Super Eager Beaver II-S, Super Eager
Beaver III-S and Super Eager Beaver Special
216900-01 5-Lb. Bulk Line .095 Used on Super Mac 80-S, Super
Mac 85-S, Super Eager Beaver II-S, Super Eager
Beaver III-S and Super Eager Beaver Special
219149 Spark Arrester Screen Used on Super Mac 60-S,
Super Mac 80-S, Super Mac 85-S, Super Eager
Beaver I-S, Super Eager Beaver II-S, Super Eager
Beaver III-S and Super Eager Beaver Special
219145 Air Filter Used on Super Mac 60-S, Super Mac 80-S,
Super Mac 85-S, Super Eager Beaver I-S, Super
Eager Beaver II-S, Super Eager Beaver III-S and
Super Eager Beaver Special
218201 Harness Kit Used on Super Mac 60-S, Super Mac
80-S, Super Mac 85-S, Super Eager Beaver I-S,
Super Eager Beaver II-S, Super Eager Beaver III-S
and Super Eager Beaver Special
217869 Debris Shield Kit Used on Super Mac 60-S, Super
Mac 80-S, Super Mac 85-S, Super Eager Beaver I-S,
Super Eager Beaver II-S, Super Eager Beaver III-S
and Super Eager Beaver Special
218213 4-Tooth Weed/Grass Blade Used on Super Mac 85-S
and Super Eager Beaver III-S
218212 3-Point Plastic Grass Blade Used on Super Mac 85-S
and Super Eager Beaver III-S
218211 3-Point Plastic Blade/Guard Kit Used on Super Mac
85-S and Super Eager Beaver III-S
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-400016-04 60A 11/86 to 01/88 IPL 218825-01 Page 3 of 19
www.ktoutdoor.com
Accessories & Replacement Parts
Ref # Part Number DescriptionQty
218200 Blade Guard Kit Used on Super Mac 85-S and Super
Eager Beaver III-S
216513 8-Tooth Weed/Grass Blade Used on Super Mac 85-S
and Super Eager BeaÔß
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-400016-04 60A 11/86 to 01/88 IPL 218825-01 Page 4 of 19
www.ktoutdoor.com

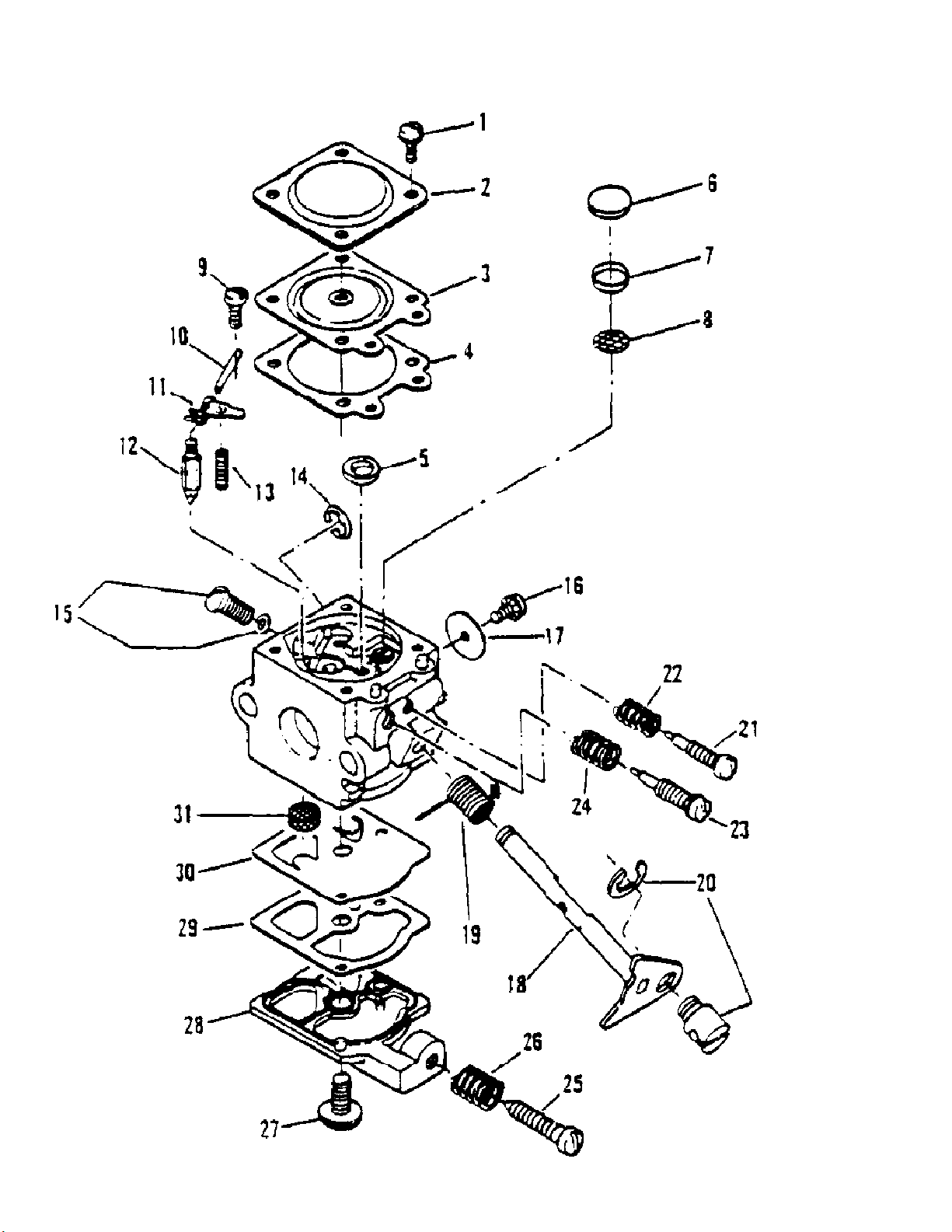

Carburetor (Walbro WT-37)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-400016-04 60A 11/86 to 01/88 IPL 218825-01 Page 5 of 19
www.ktoutdoor.com
Carburetor (Walbro WT-37)
Ref # Part Number DescriptionQty
218169 Carburetor - Walbro WT-37
1 Screw - Metering Cover Not available separately.4
2 Cover - Metering Diaphragm Not available separately.1
3 Diaphragm - Ass'y Metering Not available separately.1
4 Gasket - Metering Diaphragm Not available
5 Plug - Welch Not available separately.1
6 Plug - Welch Not available separately.1
7 Ring - Screen Retainer Not available separately.1
8 Screen - Check Valve Not available separately.1
9 Screw - Metering Lever Pin Not available separately.1
10 Pin - Metering Lever Not available separately.1
11 Lever - Metering Not available separately.1
12 Valve - Inlet Needle Not available separately.1
13 Spring - Metering Lever Not available separately.1
14 Ring - Throttle Shaft Not available separately.1
15 Governor - Check Valve Not available separately.1
16 Screw - Shutters Not available separately.2
17 Shutter - Throttle Not available separately.1
18 Shaft - Assembly Throttle Not available separately.1
19 Spring - Throttle Return Not available separately.1
20 Swivel Assembly Not available separately.1
21 Needle - Idle Not available separately.1
22 Spring - Needle Idle Not available separately.1
23 Spring - High Not available separately.1
24 Spring - Needle (high) Not available separately.1
25 Spring - Idle Adjust Not available separately.1
26 Spring - Idle Screw Not available separately.1
27 Screw - Pump Cover Not available separately.1
28 Cover - Fuel Pump Not available separately.1
29 Gasket - Fuel Pump Not available separately.1
30 Diaphragm - Fuel Pump Not available separately.1
31 Screen - Fuel Inlet Not available separately.1
218981 Repair Kit
218982 Gasket/Diaphragm Kit
1
separately.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-400016-04 60A 11/86 to 01/88 IPL 218825-01 Page 6 of 19
www.ktoutdoor.com

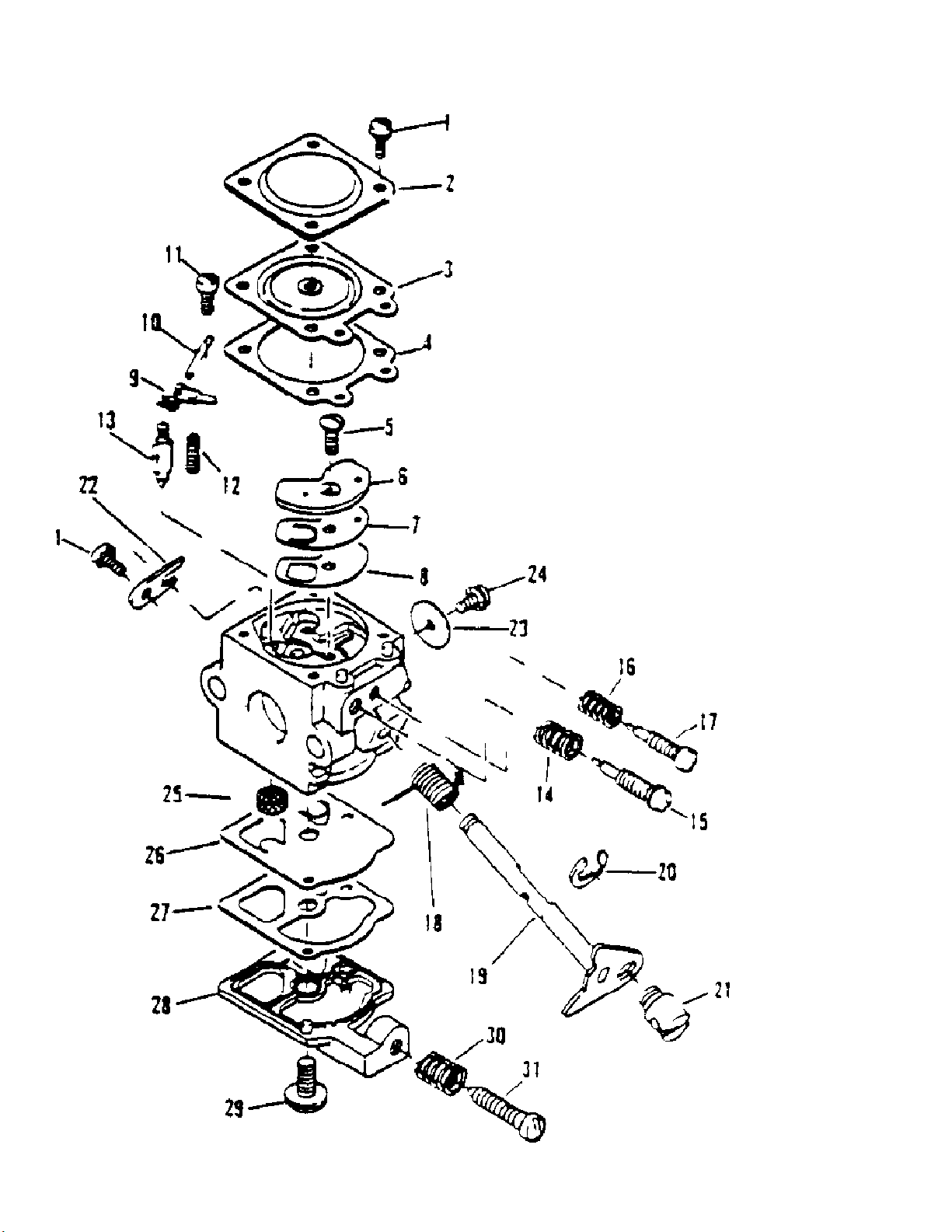

Carburetor Assembly (WA-146)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-400016-04 60A 11/86 to 01/88 IPL 218825-01 Page 7 of 19
www.ktoutdoor.com
Carburetor Assembly (WA-146)
Ref # Part Number DescriptionQty
215494 CARBURETOR (WA-146)1
1 SCREW - COVER Not available separately.1
2 COVER - DIAPHRAGM Not available separately.1
3 DIAPHRAGM - METERING Not available separately.1
4 GASKET - DIAPHRAGM Not available separately.1
5 SCREW - CIRCUIT PLATE Not available separately.1
6 PLATE - CIRCUIT Not available separately.1
7 DIAPHRAGM - CIRCUIT PLATE Not available
8 GASKET - CIRCUIT PLATE Not available separately.1
9 LEVER - METERING Not available separately.1
10 PIN - LEVER Not available separately.1
11 SCREW - LEVER PIN Not available separately.1
12 SPRING - LEVER Not available separately.1
13 VALVE - INLET & NEEDLE Not available separately.1
14 SPRING - HIGH SPEED NEEDLE Not available
1
separately.
1
separately.
15 NEEDLE - HIGH SPEED Not available separately.1
16 SPRING - IDLE NEEDLE Not available separately.1
17 NEEDLE - IDLE Not available separately.1
18 SPRING - THROTTLE RETURN Not available
19 SHAFT - THROTTLE Not available separately.1
20 CLIP Not available separately.1
21 SWIVEL Not available separately.1
22 CLIP - THROTTLE SHAFT Not available separately.1
23 VALVE - THROTTLE Not available separately.1
24 SCREW - THROTTLE VALVE Not available
25 SCREEN - INLET Not available separately.1
26 DIAPHRAGM - FUEL PUMP Not available
27 GASKET - FUEL PUMP Not available separately.1
28 COVER - FUEL PUMP Not available separately.1
29 SCREW - PUMP COVER Not available separately.1
30 SPRING - IDLE SCREW Not available separately.1
31 SCREW - IDLE ADJUSTING Not available
217111 Major Repair Kit
217110 Minor Repair Kit
1
separately.
1
separately.
1
separately.
1
separately.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-400016-04 60A 11/86 to 01/88 IPL 218825-01 Page 8 of 19
www.ktoutdoor.com

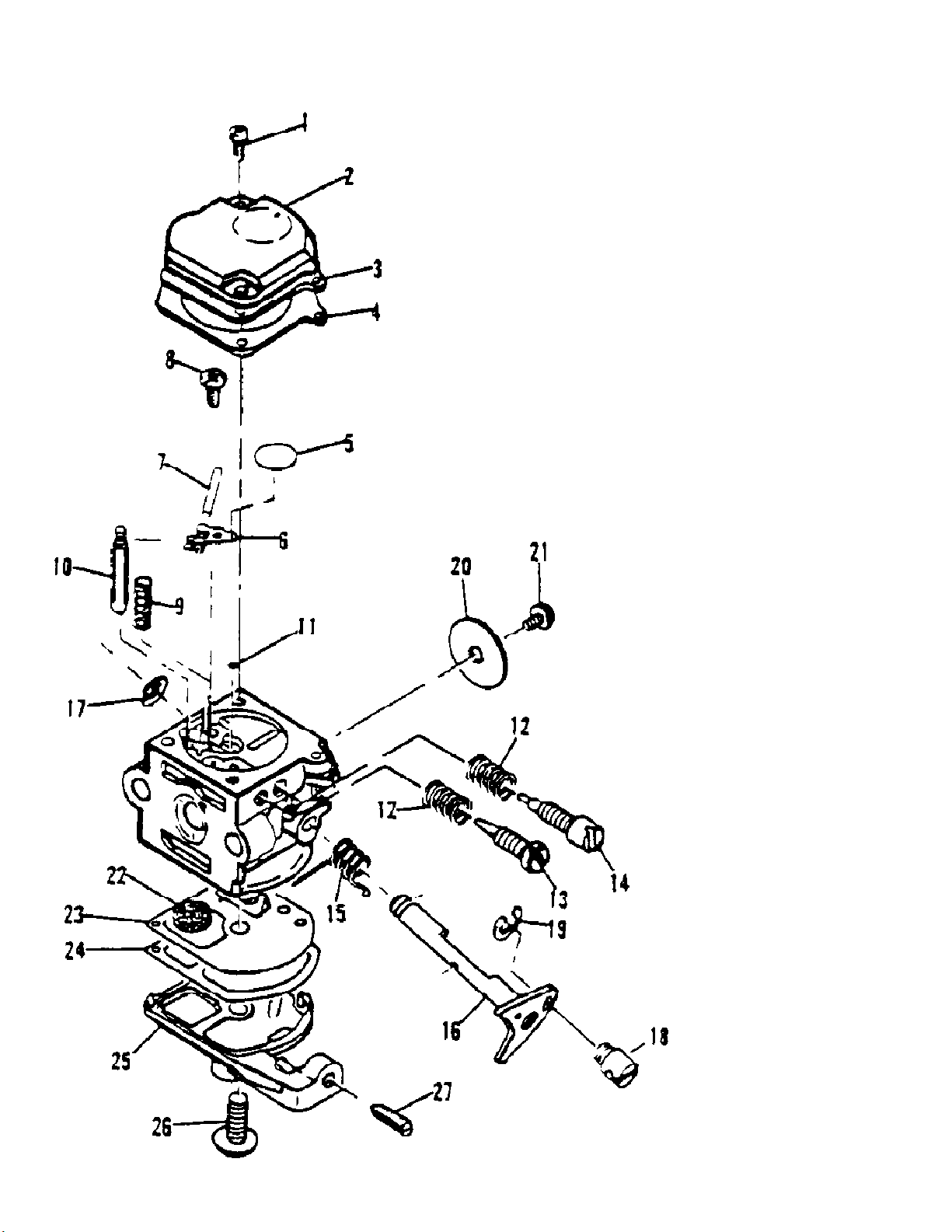

Carburetor Assembly (ZAMA C1S-M8)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-400016-04 60A 11/86 to 01/88 IPL 218825-01 Page 9 of 19
www.ktoutdoor.com
Carburetor Assembly (ZAMA C1S-M8)
Ref # Part Number DescriptionQty
215494-01 CARBURETOR ASY. (ZAMA C1S-M8)
1 SCREW - COVER Not available separately.2
2 CAP - MAIN Not available separately.1
3 DIAPHRAGM - MAIN Not available separately.1
4 GASKET - MAIN Not available separately.1
5 DISK Not available separately.1
6 ARM - NEEDLE VALVE Not available separately.1
7 PIN - ARM Not available separately.1
8 SCREW - PIN Not available separately.1
9 SPRING - ARM Not available separately.1
10 VALVE - NEEDLE Not available separately.1
11 PLUG - WELCH Not available separately.1
12 SPRING - NEEDLE Not available separately.2
13 NEEDLE - HIGH SPEED Not available separately.1
14 NEEDLE - IDLE Not available separately.1
15 SPRING - THROTTLE RETURN Not available
1
separately.
16 SHAFT ASSEMBLY - THROTTLE Not available
17 "E" RING Not available separately.1
18 POST Not available separately.1
19 "E" RING Not available separately.1
20 VALVE - THROTTLE Not available separately.1
21 SCREW - THROTTLE VALVE Not available
22 STRAINER Not available separately.1
23 DIAPHRAGM - FUEL PUMP Not available
24 GASKET - PUMP Not available separately.1
25 COVER - FUEL PUMP Not available separately.1
26 SCREW - PUMP COVER Not available separately.1
27 SCREW - IDLE ADJUSTING Not available
218071 Major Repair Kit
218073 Minor Repair Kit
1
separately.
1
separately.
1
separately.
1
separately.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-400016-04 60A 11/86 to 01/88 IPL 218825-01 Page 10 of 19
www.ktoutdoor.com

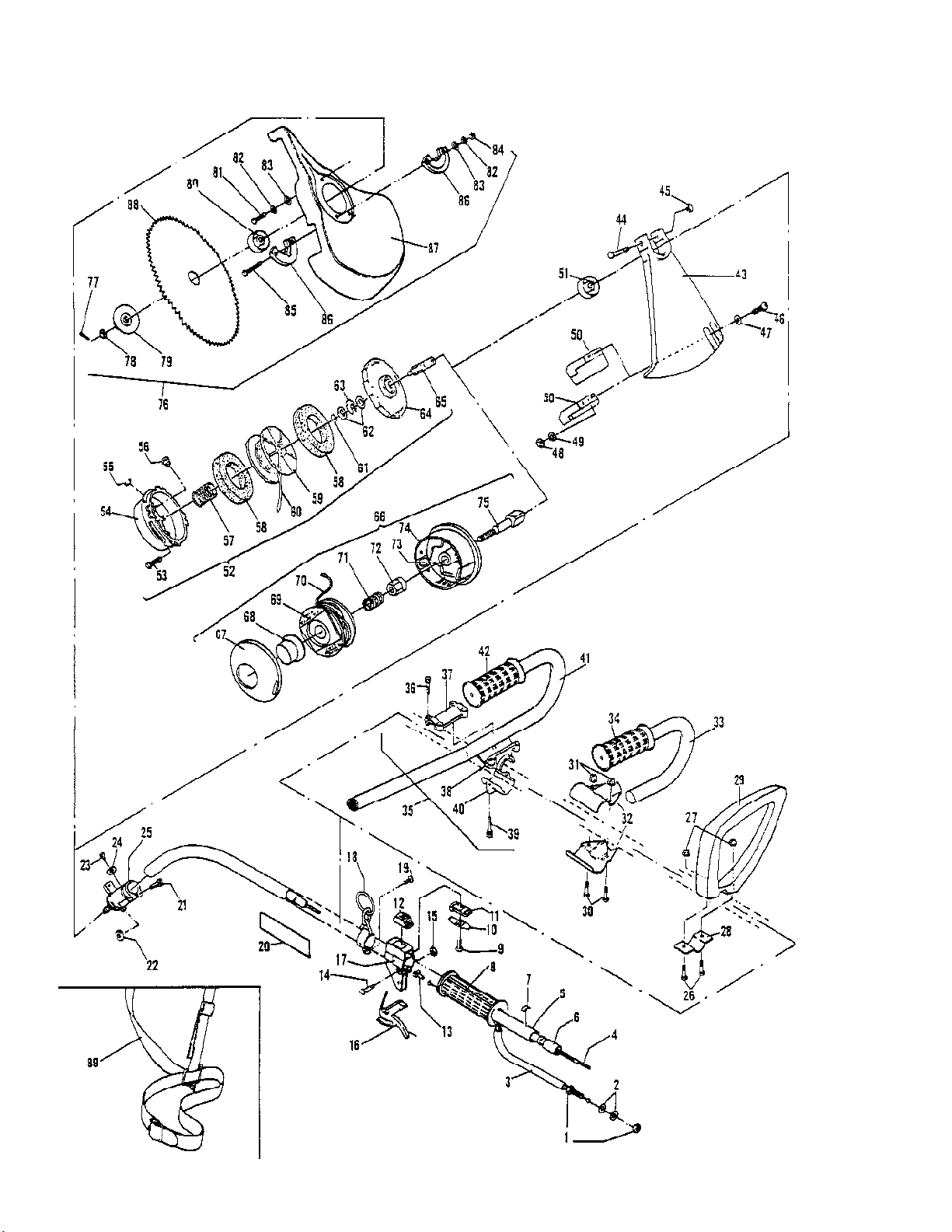

Drive Shaft/Shield/Cutter Assemblies
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
11-400016-04 60A 11/86 to 01/88 IPL 218825-01 Page 11 of 19
www.ktoutdoor.com
Drive Shaft/Shield/Cutter Assemblies
Ref # Part Number DescriptionQty
1 217403 Nut - Throttle Cable (18-26 inch pounds torque)2
2 216596 Washer - Throttle Cable2
3 217360 Cable - Throttle1
215306 Harness - Throttle Cable/Wire Assembly1
4 218285 Shaft - Flexible Drive 44"1
215324 Shaft - Flexible Drive 48"1
218326 Shaft - Flexible Drive 54"1
5 219561 Housing Asy - Outer 44"1
217361 Housing Asy - Outer 48"1
217362 Housing Asy - Outer 54"1
6 218282 Sleeve (For 44" Shaft)1
217366 Sleeve (For 48" Shaft)1
217367 Sleeve (For 54" Shaft)1
7 216603 Decal - Position1
8 218376 Grip - Solid Rubber1
215322 Grip - Waffle Design1
9 110706 Screw - Switch 9-18 x .501
10 215320 Contact - Switch (Stop)1
11 215319 Base - Switch (Stop)1
12 68846 Suction - Switch (Stop)1
13 215323 Guide - Throttle Cable1
14 216027 Screw - Trigger Housing1
15 217159 Nut - Trigger Housing1
16 215318 Trigger - Throttle1
17 217337 Trigger Hsg W/O Switch Hole1
215317 Trigger Hsg With Switch Hole1
18 218001 Ring Asy - Harness1
19 Bolt - Ring Not available separately.1
20 218295 Decal - Warning (For String Trimmer Only)1
219030 Decal - Warning (For String Trimmer/Brush Cutter
1
Only)
21 217937 Screw - 10-24 x 11
22 218315 Nut1
23 215874 Screw - M4 x 9.5 Torx1
24 217672 Washer - M4 Flat1
25 218283 Spindle Asy (For Use With String Trimmer Only)1
218241 Spindle Asy (For Use With String Trimmer/Brush
26 120041 Screw - Delta Handle (18-26 inch pounds torque)2
27 217159 Nut - Delta Handle M52
28 217442 Clamp - Delta Handle1
29 217444 Handle - Delta1
30 217935 Screw - "J" Handle (26-35 inch pounds torque)2
31 218315 Nut - "J" Handle2
32 215337 Clamp - "J" Handle2
33 217856 "J" Handle/Grip Asy1
34 94212 Grip1
35 218391 Clamp Asy - "J" Handle/Barrier Pole1
36 Screw - M5 x .8 Not available separately. (26-35 inch
37 Clamp - Top Not available separately.1
38 Clamp - Centerpiece Not available separately.1
1
Cutter Only)
4
pounds torque)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
11-400016-04 60A 11/86 to 01/88 IPL 218825-01 Page 12 of 19
www.ktoutdoor.com
Drive Shaft/Shield/Cutter Assemblies
Ref # Part Number DescriptionQty
39 Screw - M6 x 1 Not available separately. (44-52 inch
40 Clamp - Bottom Not available separately.1
41 218327 "J" Handle/Barrier/Grip Asy1
42 94212 Grip1
43 217869 Shield - Grass1
44 216595 Screw - Shield1
45 215871 Nut - Shield (18-26 inch pounds torque)1
46 217936 Screw - Knife 10-25 x .752
47 110582 Washer - Flat2
48 218315 Nut - Hex2
49 103174 Washer - Lock2
50 218516 Knife1
216587 Knife1
51 218214 Collar (For Use With String Head Only)1
52 217353 Head Asy - String - .0801
216821 Head Asy - String - .0951
53 218829 Screw - Locking1
54 217626-01 Hub Assembly1
55 217625 Ring - Retaining1
56 217624 Eyelet1
57 217622 Spring - Compression1
58 217619 Pad - Foam2
59 217350 Spool With 40Ft Of .080 Line1
216820 Spool With 30Ft Of .095 Line
60 217696 Line - 40Ft (.080)1
216898 Line - 40Ft (.095)1
61 217618 Ring - Retaining1
62 217616 Washer2
63 217617 Ring - Retaining1
64 217615 Plate - Rear1
65 217614 Drive - Adaptor1
66 219783 String Head With 15 Ft. Of .080 Line1
219784 String Head With 12 Ft. Of .095 Line1
67 219765 Cover1
68 219764 Button - Bump Feed1
69 219785 Spool With 15 Ft. Of .080 Line1
219786 Spool with 12 Ft. Of .095 Line1
70 219787 Line - 15Ft (.080)1
219788 Line - 12Ft (.095)1
71 219761 Spring1
72 219760 Nut1
73 219759 Eyelet2
74 219758 Housing1
75 219757 Drive - Adaptor1
76 218200 Kit - Blade Guard1
77 218159 Pin - Cotter1
78 218330 Nut - Locking
79 218075 Flange1
80 218094 Collar (For Use With Blade Only)
81 217935 Screw - 10-24 x .50 Torx (18-26 inch pounds torque)1
82 103174 Washer - Lock3
83 110582 Washer - Flat3
84 218315 Nut2
85 217936 Screw - 10" 24 x .75 Torx (18-26 inch pounds torque)2
K&T Saw Shop 606-678-9623 or 606-561-4983
2
pounds torque)
Page 13
11-400016-04 60A 11/86 to 01/88 IPL 218825-01 Page 13 of 19
www.ktoutdoor.com
Drive Shaft/Shield/Cutter Assemblies
Ref # Part Number DescriptionQty
86 218165 Clamp - Guard2
87 218329 Guard - Blade1
88 216514 Blade - Metal 80 Tooth1
89 218158 Harness1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 14
11-400016-04 60A 11/86 to 01/88 IPL 218825-01 Page 14 of 19
www.ktoutdoor.com

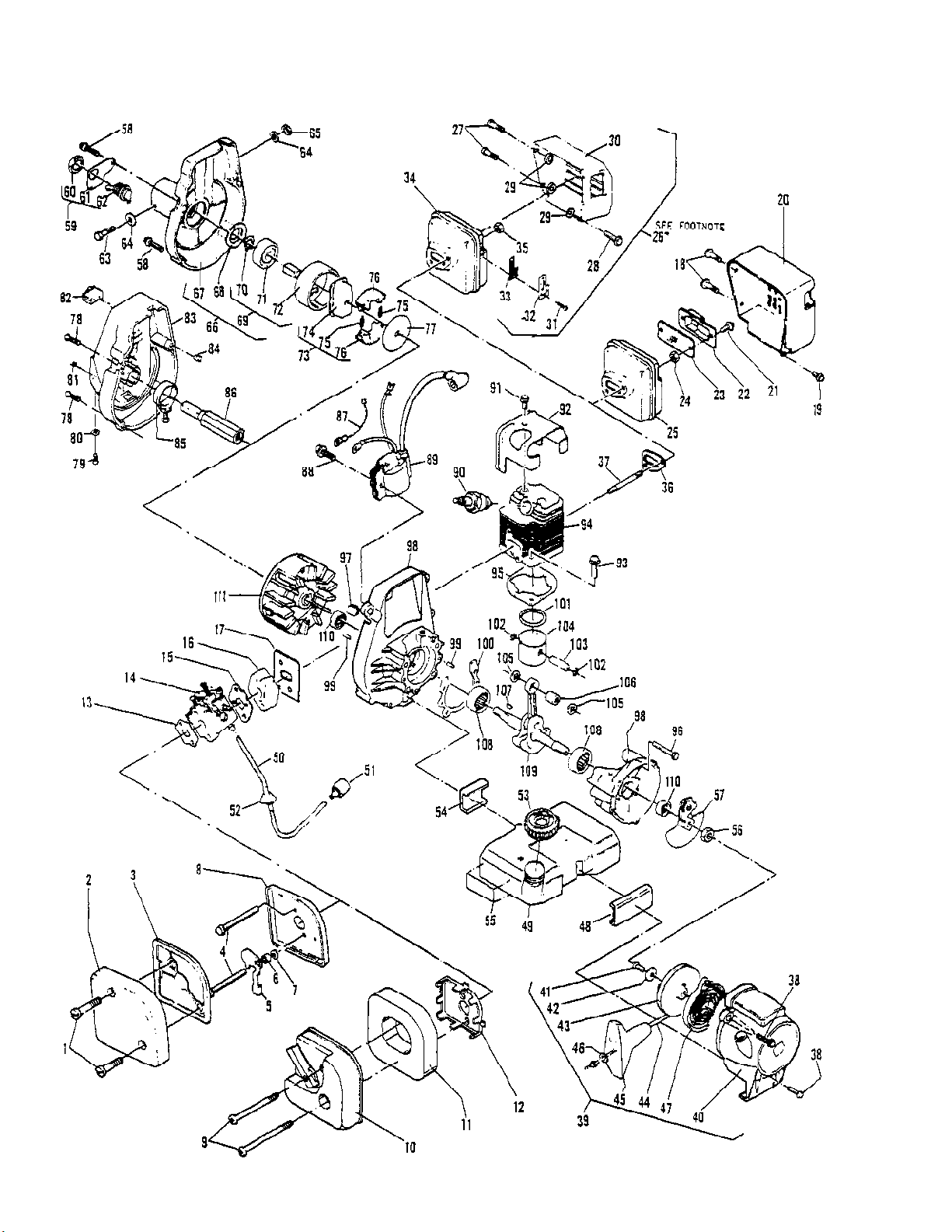

Engine Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 15
11-400016-04 60A 11/86 to 01/88 IPL 218825-01 Page 15 of 19
www.ktoutdoor.com
Engine Assembly
Ref # Part Number DescriptionQty
1 217669 Screw-Air Filter Cover (6-9 inch pound torque)2
2 215988 Cover-Air filter1
3 217376 Filter-Air1
4 216903 Screw-Carburetor M5 x 55 (18-25 inch pounds
5 215991 Shutter-Choke1
6 215993 Spacer-Shutter1
7 216591 Washer-Flat M51
8 216108 Airbox/Grommet Asy1
9 219078 Screw-Choke Cover (18-23 inch pounds torque)2
10 219098 Cover Assembly-Choke1
11 219145 Filter-Air (foam)1
12 219144 Box-Air1
13 216226 Gasket-Air Box/Carburetor1
14 Carburetor See "Carburetor Assembly (Zama
15 218933 Gasket-Carb./Insulator1
16 219070 Insulator-Carb./C'Case1
17 216575 Gasket-Insulator/C'Case1
18 216025 Screw-Muffler Shield M4 x 8 (13-15 inch pounds
2
torque)
1
C1S-M8) and (WA-146)" illustrations and parts lists.
2
torque)
19 216022 Screw-Muffler Shield (13-15 inch pounds torque)1
20 Shield-Muffler (Flocked) Not available separately.1
21 216025 Screw-Spark Arrester Cover (12-16 inch pounds
22 217318 Cover-Spark Arrester Screen1
23 215516 Screen-Spark Arrester1
24 217275 Nut-Flange M5 (41-51 inch pounds torque)2
25 215506 Muffler Assembly1
26 219963 Kit Muffler/Shield Asy1
27 219508 Screw-Muffler Shield (13-15 inch pounds torque)2
28 217669 Screw-Shield/Starter (12-16 inch pounds torque)1
29 219079 Spacer-Muffler3
30 218962 Shield-Muffler (Plastic)1
31 219194 Screw-Spark Arrester Cover (12-16 inch pounds
32 219150 Cover-Spark Arrester Screen1
33 219149 Screen-Spark Arrester1
34 219152 Muffler Assembly1
35 217275 Nut-Muffler M5 (41-50 inch pounds torque)2
36 215515 Gasket-Muffler1
37 215517 Stud-Muffler/Cylinder2
38 216022 Screw-Starter (13-15 inch pounds torque)2
39 217388 Starter Assembly1
219590 Starter Assembly1
40 217389 Housing/Guide Asy1
41 215874 Screw-Drum M4 x 9.50 (18-21 inch pounds torque)1
42 216590 Washer-M4 Flat1
43 216092 Drum/Rope Asy.1
44 216093 Rope-Starter1
45 216792 Handle-Starter1
46 218941 Washer-Nylon1
47 217482 Spring-Starter1
2
torque)
2
torque)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 16
11-400016-04 60A 11/86 to 01/88 IPL 218825-01 Page 16 of 19
www.ktoutdoor.com
Engine Assembly
Ref # Part Number DescriptionQty
48 217382 Cushion-Starter/Fuel Tank1
49 217387 Fuel Tank/Hose Asy.1
50 217264 Hose-Fuel1
51 216985 Pickup-Fuel1
52 215495 Grommet1
53 216346 Cap-Fuel1
54 217390 Cushion-C'Case/Fuel Tank1
55 217383 Decal-40.11
56 216583 Nut-Starter Ratchet (149-176 inch pounds torque)1
57 215525 Ratchet Asy. (Hand Tighten Only)1
58 213177 Screw-Fan Hsg. M4 x 18.501
59 219279 Switch/Plate Asy.4
60 104810 Nut-Switch1
61 217381 Plate-Switch1
62 217648 Switch-Toggle1
63 217158 Screw-Fan Hsg./Drive Shaft1
64 216591 Washer-Flat 152
65 217159 Nut-Hex M5 (35-43 inch pounds torque)1
66 218057 Housing Asy-Fan1
67 217533 Housing-Fan1
68 215534 Plate-Thrust1
69 218065 Drum Asy-Clutch1
70 213186 Ring-Retaining1
71 213187 Bearing-Ball1
72 218063 Drum-Clutch1
73 216060 Clutch Assembly1
74 215536 Rotor-Clutch1
75 215537 Spring-Clutch2
76 Shoe-Clutch Not available separately.2
77 215539 Plate-Side1
78 219508 Screw-Fan Housing4
79 215874 Screw-Drive Shaft Locating (9.8-12.5 In. Lb. Torque)1
80 217672 Washer1
81 219558 Nut-Square1
82 218648 Switch1
83 219595 Housing-Fan (W/Switch Hole)1
219596 Housing-Fan (W/O Switch Hole)1
84 219024 Spacer-Fan Housing4
85 219025 Clamp-Fan Hsg./Drive Shaft (25-30 In. Lb. Torque)1
86 217477 Coupling1
87 218649 Wire Asy-Ground1
88 213177 Screw-Ignition (12-16 inch pounds torque)2
89 217439 Ignition-Wabash1
90 62345 Spark Plug (105-130 inch pounds torque)1
91 213178 Screw-Cylinder Cover (15-25 inch pounds torque)1
92 215540 Cover-Cylinder1
93 217320 Screw-Cylinder M6 x 13 (70-80 inch pounds torque)2
94 217296 Cylinder1
95 215542 Gasket-Cylinder/C'Case1
96 213179 Screw-C'Case Halves (35-40 inch pounds torque)4
97 215541 Grommet1
98 217373 Crankcase Asy.1
218185 Crankcase Asy.1
99 213191 Pin4
100 215545 Gasket-Crankcase1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 17
11-400016-04 60A 11/86 to 01/88 IPL 218825-01 Page 17 of 19
www.ktoutdoor.com
Engine Assembly
Ref # Part Number DescriptionQty
101 217475 Ring-Piston1
102 216343 Ring-Snap2
111026 Ring-Snap2
103 215551 Pin-Wrist1
218275 Pin-Wrist1
104 217295 Piston1
218273 Piston1
105 213196 Washer2
106 213195 Bearing-Piston Pin1
110984 Bearing-Piston Pin1
107 102164 Key-Flywheel1
108 216143 Bearing-C'Shaft (Ball)2
213282 Bearing-C'Shaft (Roller)2
109 216444 Crankshaft/Con Rod Asy.1
218106 Crankshaft/Con Rod Asy.1
110 216500 Seal-Crankshaft2
83859 Seal-Crankshaft2
111 217378 Flywheel Asy.1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 18
11-400016-04 60A 11/86 to 01/88 IPL 218825-01 Page 18 of 19
www.ktoutdoor.com
Lubricants
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 19
11-400016-04 60A 11/86 to 01/88 IPL 218825-01 Page 19 of 19
www.ktoutdoor.com
Lubricants
Ref # Part Number DescriptionQty
93770 Lubricant, Case 6-Ounce Cans
85707 Lubricant, Case 16-Ounce Cans
85709 Lubricant, Case 1 Quart Bottles
K&T Saw Shop 606-678-9623 or 606-561-4983
Loading...
