11-4000101-07 MAC VAC INDOOR/OUTDOOR VACUUM, MULCHER 1911A SI 664 Page 1 of 2
www.ktoutdoor.com

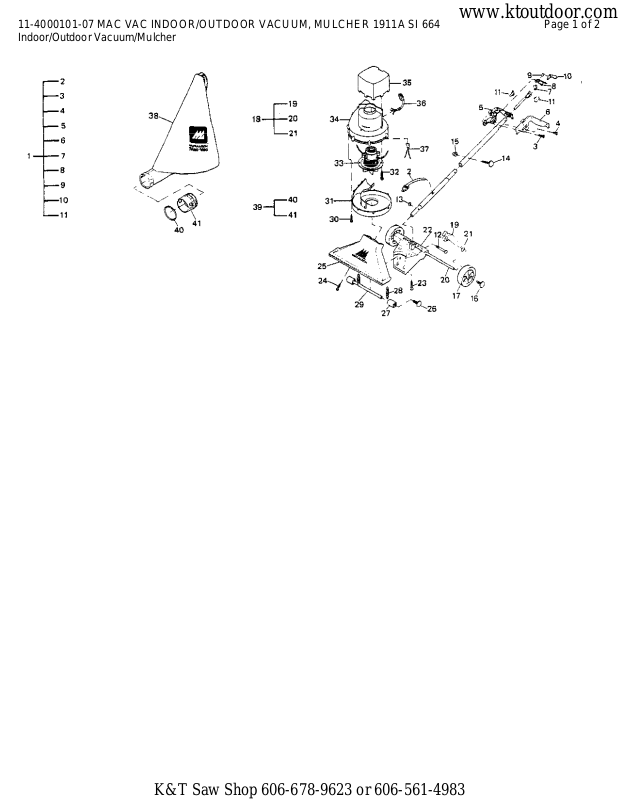

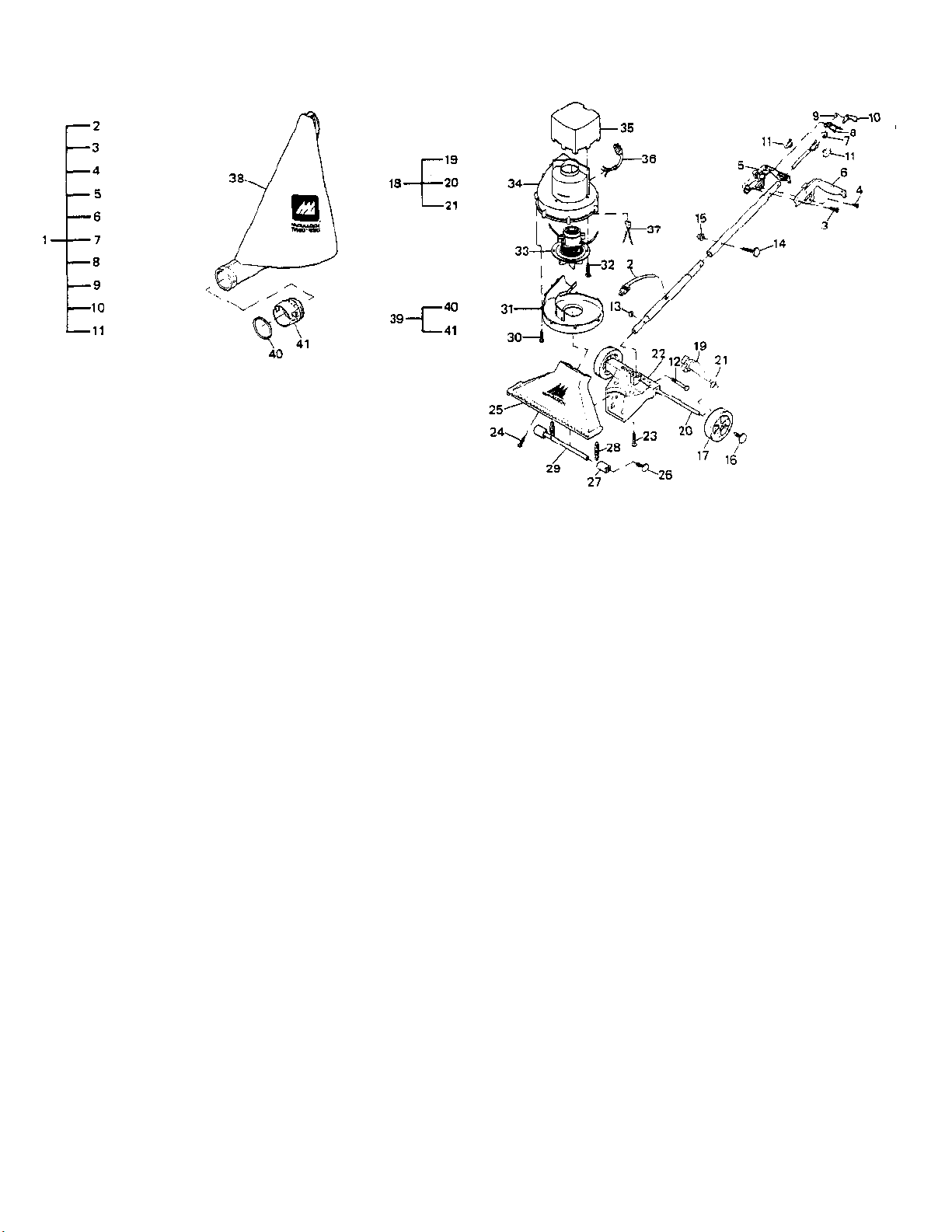

Indoor/Outdoor Vacuum/Mulcher
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-4000101-07 MAC VAC INDOOR/OUTDOOR VACUUM, MULCHER 1911A SI 664 Page 2 of 2
www.ktoutdoor.com
Indoor/Outdoor Vacuum/Mulcher
Ref # Part Number DescriptionQty
1 224521 HANDLE ASSEMBLY1
2 CORD - SWITCH1
3 224524 SCREW #10 X 7/8 Slotted flat head4
4 224523 SCREW #10 X 5/8 Slotted flat head2
5 224525 GRIP RIGHT-HALF1
6 224526 GRIP LEFT-HALF1
7 224522 SWITCH1
8 224527 TRIGGER1
9 224529 SPRING - TRIGGER1
10 224528 SAFETY LEVER1
11 224511 HOUSING SWITCH2
12 224507 SCREW 1/4-20 X 1-1/21
13 224508 HEX-NUT 1/4-201
14 224510 CARRIAGE BOLT1
15 224509 NUT - ACORN 1/4-201
16 224505 WHEEL - RETAINER2
17 224534 WHEEL 7" X 3/42
18 301280 KIT, KICKSTAND/AXLE1
19 82996 KICKSTAND1
20 32725-06 AXLE 14.68" LONG1
21 82997 SPRING - KICKSTAND1
22 224514 CARRIER1
23 224501 SCREW 1/4 X 1-1/4 Slotted hex head4
24 224502 SCREW #10 X 3/4 Phillips pan head2
25 224683 NOZZLE1
224512 NOZZLE1
26 224505 WHEEL-RETAINER2
27 224516 ROLLER2
28 224515 SPRING2
29 224504 AXLE 11.60" LONG1
30 224502 SCREW #10 X 3/4 Phillips pan head8
31 224532 BLOWER - HOUSING LOWER1
32 224501 SCREW 1/4 X 1-1/4 Slotted hex head4
33 224530 POWER UNIT1
34 224531 BLOWER - HOUSING UPPER1
35 224533 COVER1
36 224535 CORD 9" 3/18 AWG1
37 224536 RECEPTACLE1
38 224682 BAG1
82909-26 BAG1
39 224539 KIT, CONNECTOR1
40 GASKET
41 CONNECTOR BAG
