11-400008D MAC 95 04/80 to 04/81 IPL 213681-R1 Page 1 of 10
www.ktoutdoor.com
Accessories
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-400008D MAC 95 04/80 to 04/81 IPL 213681-R1 Page 2 of 10
www.ktoutdoor.com
Accessories
Ref # Part Number DescriptionQty
216513 Package - Weed/Grass Blade (Mac 95). Accessories
216514 Package - Brush Blade (Mac 95). Accessories
95874 Guard - Special (Mac 95). Accessories
216899 Pkg - 1 lb. .095" line (Mac 80/95). Accessories
216900 Pkg. - 5 lbs. .095" line (Mac 80/95). Accessories
95896 Pkg. - Spark Arrester Screen (Mac 80/95).
Accessories
214434 Wrench
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-400008D MAC 95 04/80 to 04/81 IPL 213681-R1 Page 3 of 10
www.ktoutdoor.com
Carburetor Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-400008D MAC 95 04/80 to 04/81 IPL 213681-R1 Page 4 of 10
www.ktoutdoor.com

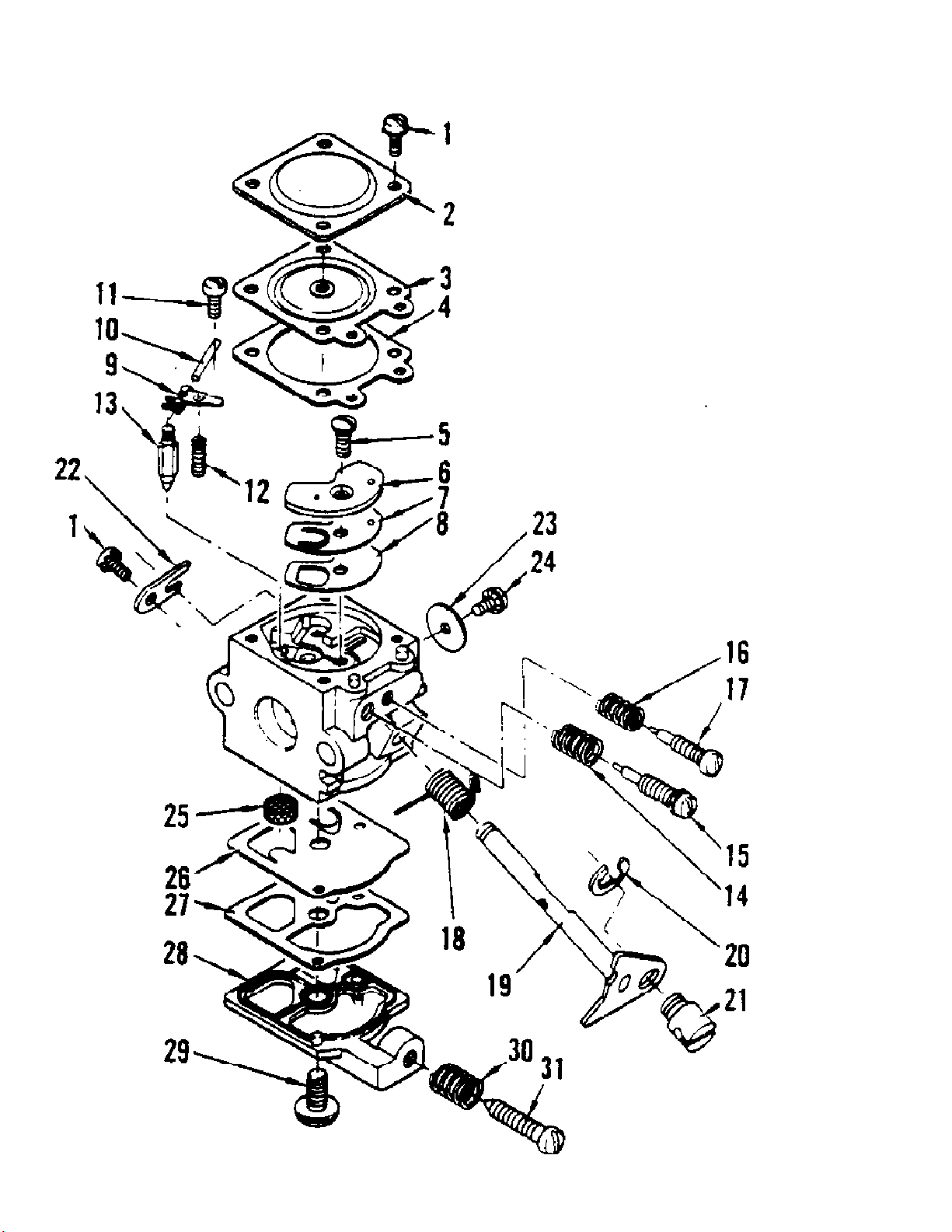

Carburetor Assembly
Ref # Part Number DescriptionQty
213918 Carburetor Assembly (WA-81)1
1 214428 Screw5
2 213994 Cover - Metering diaphragm1
3 213995 Diaphragm - Metering1
4 213996 Gasket - Metering diaphragm1
5 213997 Screw - Circuit plate1
6 213998 Plate - Circuit1
7 213999 Diaphragm - Circuit plate1
8 214000 Gasket - Circuit plate1
9 214001 Lever - Metering1
10 214002 Pin - Metering lever1
11 214429 Screw - Metering lever pin1
12 214003 Spring - Metering lever1
13 214427 Valve - Inlet needle1
14 214430 Spring - High speed needle1
15 214004 Needle - High speed1
16 215350 Spring - Idle needle1
17 214006 Needle - Idle1
18 214007 Spring - Throttle return1
19 215348 Shaft - Throttle1
20 214009 Clip1
21 214010 Swivel1
22 214011 Clip - Throttle shaft1
23 214012 Valve - Throttle1
24 214431 Screw - Throttle valve1
25 214013 Screen - Inlet1
26 214014 Diaphragm - Fuel pump1
27 214015 Gasket - Fuel pump1
28 214016 Cover - Fuel pump1
29 214017 Screw - Fuel pump cover1
30 214018 Spring - Idle screw1
31 214019 Screw - Idle adjustment1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-400008D MAC 95 04/80 to 04/81 IPL 213681-R1 Page 5 of 10
www.ktoutdoor.com
Drive Shaft & Cutter Head Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-400008D MAC 95 04/80 to 04/81 IPL 213681-R1 Page 6 of 10
www.ktoutdoor.com

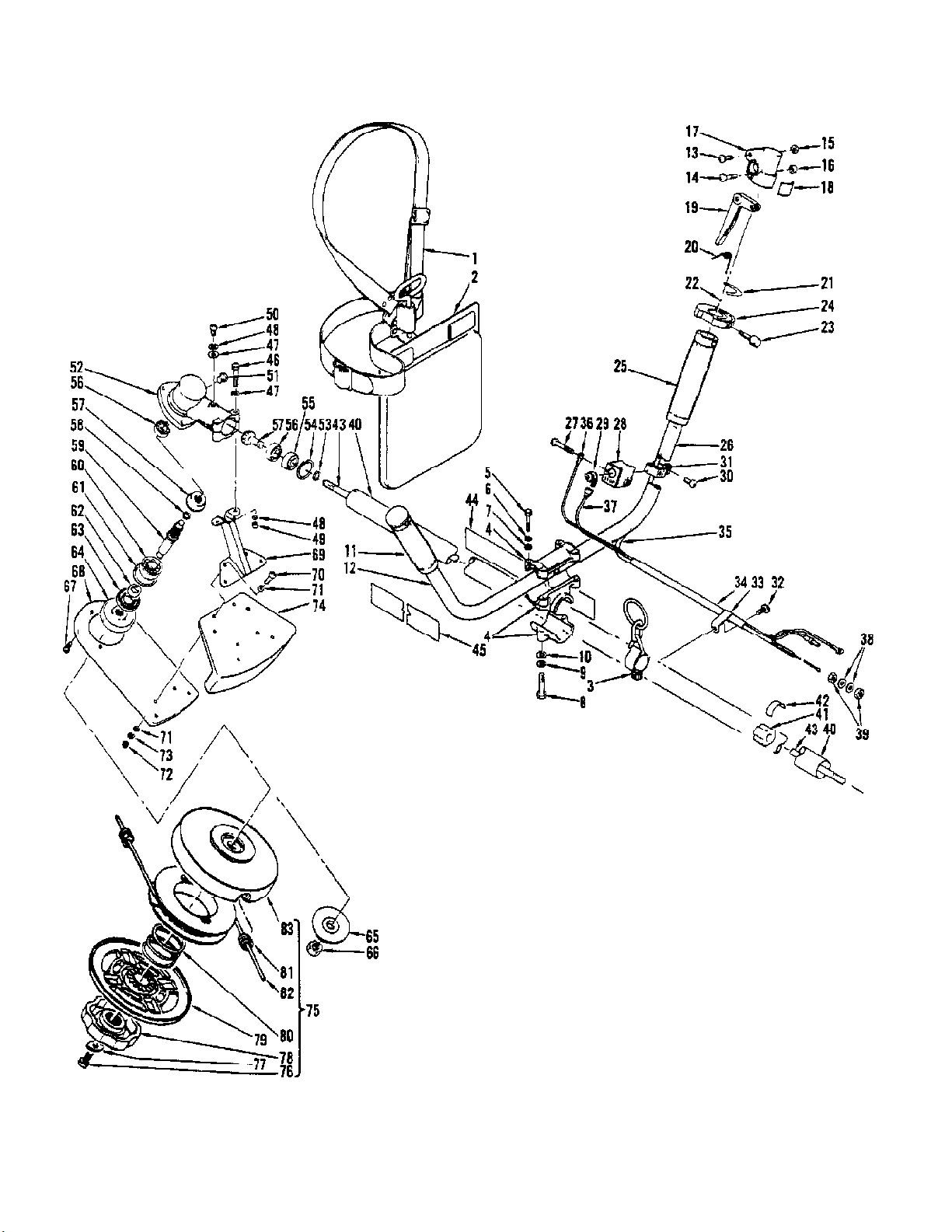

Drive Shaft & Cutter Head Assembly
Ref # Part Number DescriptionQty
1 214059 Strap - Shoulder1
2 214060 Cushion1
3 214051 Hook1
4 214052 Bracket Assembly - Handle1
5 216781 Bolt - M54
6 216824 Washer - Spring4
7 216826 Washer - M54
8 216782 Bolt - M62
9 216825 Washer - Spring1
10 214846 Nut - M62
11 214058 Grip1
12 214057 Handle - Left1
13 214862 Screw1
14 215340 Screw1
15 214858 Nut - Lock, M51
16 216823 Nut - M51
17 213985 Bracket - Throttle Trigger1
18 214437 Decal1
19 214032 Trigger - Throttle1
20 214033 Spring - Return1
21 214436 Decal1
22 214432 Clip - Retaining1
23 214035 Screw - Adjusting1
24 214034 Adjuster1
25 214036 Grip1
26 214047 Handle - Right1
27 214039 Screw1
28 214037 Bracket - Switch1
29 214041 Switch1
30 215341 Screw1
31 214038 Clamp1
32 216789 Screw - M51
33 216788 Clamp1
34 214046 Lead Assembly1
35 214045 Cable - Throttle1
36 214040 Lead - Ground1
37 215028 Cord - Lead1
38 214053 Washer - M62
39 213949 Nut - M62
40 216922 Housing Assembly1
41 214049 Bushing4
42 214853 Decal1
43 216747 Shaft - Drive1
44 215342 Decal1
45 215343 Decal1
215014 Gear Housing Assembly1
46 216832 Bolt2
47 214053 Washer - M63
48 216824 Washer3
49 216823 Nut - M52
50 216795 Screw - M51
51 216828 Bolt1
52 214118 Housing - Gear1
53 214113 Circlip1
54 214114 Circlip1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-400008D MAC 95 04/80 to 04/81 IPL 213681-R1 Page 7 of 10
www.ktoutdoor.com
Drive Shaft & Cutter Head Assembly
Ref # Part Number DescriptionQty
55 214115 Bearing - Ball1
56 214116 Bearing - Ball2
57 214117 Set - Gear1
58 214119 Circlip1
59 215344 Shaft - P.T.O.1
60 214121 Bearing - Ball1
61 213893 Circlip1
62 214122 Spacer1
63 214123 Seal - Oil1
64 214124 Plate - Oil1
65 216749 Plate - Blade1
66 216751 Nut - L/H1
216827 Guard Assembly1
67 214106 Screw3
68 215022 Bracket - Bottom1
69 215023 Bracket - Special1
70 216795 Screw - M54
71 216826 Washer - M58
72 216823 Nut - M54
73 216824 Washer1
74 214109 Shield - Debris1
75 216822 Cutter Head Assembly1
76 214452 Screw1
77 214451 Stopper1
78 214450 Nut1
79 214449 Cover1
80 214448 Spring1
81 214447 Eyelet2
82 216898 Line - .095" (40 Ft.)1
83 214446 Drum1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-400008D MAC 95 04/80 to 04/81 IPL 213681-R1 Page 8 of 10
www.ktoutdoor.com
Engine Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-400008D MAC 95 04/80 to 04/81 IPL 213681-R1 Page 9 of 10
www.ktoutdoor.com

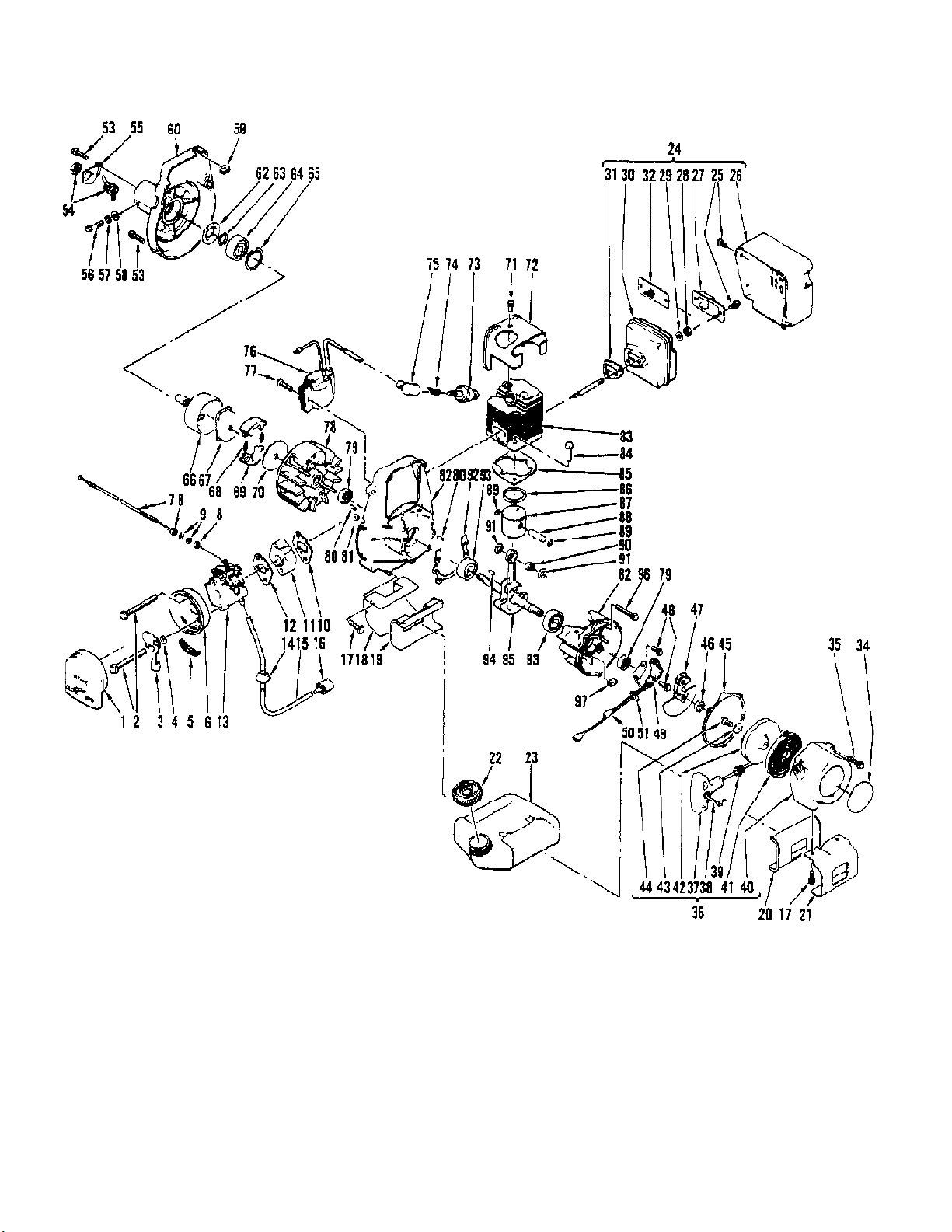

Engine Assembly
Ref # Part Number DescriptionQty
1 215013 Filter - Air1
2 213882 Screw - M52
3 213881 Shutter - Choke1
4 213880 Washer1
5 213879 Grommet1
6 213878 Case - Air Cleaner1
7 213919 Cable - Throttle1
7 214045 Cable - Throttle1
8 214846 Nut - M62
9 214053 Washer2
10 216575 Gasket - Insulator1
11 215771 Insulator1
12 215491 Gasket - Carburetor1
13 213918 Carburetor Assembly1
14 215495 Grommet1
15 213875 Hose - Fuel1
16 213876 Filter - Fuel1
17 213834 Screw - M44
18 213833 Bracket - Fuel Tank1
19 213832 Cushion1
20 213877 Cushion1
21 213869 Bracket - Fuel Tank1
22 216347 Cap Assembly - Fuel Tank1
23 213870 Tank - Fuel1
24 214435 Muffler Assembly1
24 213846 Muffler Assembly1
25 214874 Screw - M42
26 215753 Cover - Muffler1
27 213850 Lid - Muffler1
28 214858 Lock Nut2
29 216826 Washer - M53
30 213848 Body - Muffler1
31 213847 Gasket - Muffler1
32 95896 Screen1
33 213845 Stud Bolt2
34 215008 Decal1
35 213868 Screw - M43
36 213910 Recoil Starter Assembly1
37 213865 Handle - Starter1
38 216093 Rope - Starter1
39 213866 Guide - Rope1
40 213911 Case - Starter1
41 215522 Spring - Rewind1
42 213863 Drum - Recoil1
43 216590 Washer1
44 213834 Screw - M41
45 213861 Gasket - Starter Case1
46 213860 Nut - M81
47 213859 Ratchet Assembly1
48 213834 Screw - M42
49 213855 Set - Breaker Point1
50 215020 Lead - Ground1
51 213858 Grommet1
52 213856 Condenser1
53 213868 Screw - M44
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-400008D MAC 95 04/80 to 04/81 IPL 213681-R1 Page 10 of 10
www.ktoutdoor.com
Engine Assembly
Ref # Part Number DescriptionQty
54 214041 Switch Assembly1
55 213900 Bracket - Switch1
56 213899 Bolt - M51
57 216824 Washer - Spring1
58 216826 Washer - M51
59 213896 Grommet1
60 213914 Cover - Fan1
61 214453 Cover - Fan1
62 213895 Stopper1
63 213894 Circlip1
64 213957 Bearing - Ball1
65 213893 Circlip1
66 216837 Drum - Clutch1
67 213891 Boss - Clutch1
68 213890 Spring - Clutch2
69 213889 Shoe - Clutch2
70 213888 Plate - Side1
71 213844 Screw - M51
72 213843 Cover - Cylinder1
73 213913 Spark Plug1
74 213887 Connector - Spark Plug1
75 213886 Boot - Spark Plug1
76 213885 Coil - Ignition1
77 213868 Screw - M42
78 213884 Flywheel1
79 213829 Seal - Oil2
80 213828 Pin - Knock4
81 213831 Grommet1
82 213827 Set - Crankcase1
83 213841 Cylinder1
84 213842 Screw - M62
85 213840 Gasket - Cylinder1
86 213839 Ring - Piston1
87 213838 Piston1
88 213837 Pin - Piston1
89 213836 Circlip - Piston Pin2
90 213195 Bearing - Needle1
91 213196 Spacer - Piston Pin2
92 213826 Gasket - Crankcase1
93 213825 Bearing - Ball2
94 213835 Key - Woodruff1
95 213909 Crankshaft1
96 213830 Screw - M54
97 213857 Pad - Oil1
