Ref # Part Number DescriptionQty
216513 Package - Weed/Grass Blade (Mac 95). Accessories
216514 Package - Brush Blade (Mac 95). Accessories
95874 Guard - Special (Mac 95). Accessories
216899 Pkg - 1 lb. .095" line (Mac 80/95). Accessories
216900 Pkg. - 5 lbs. .095" line (Mac 80/95). Accessories
95896 Pkg. - Spark Arrester Screen (Mac 80/95).
Accessories
214434 Wrench
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-400007D MAC 80 04/80 to 04/81 IPL 213681-R1 Page 3 of 9
www.ktoutdoor.com
Carburetor Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-400007D MAC 80 04/80 to 04/81 IPL 213681-R1 Page 4 of 9
www.ktoutdoor.com

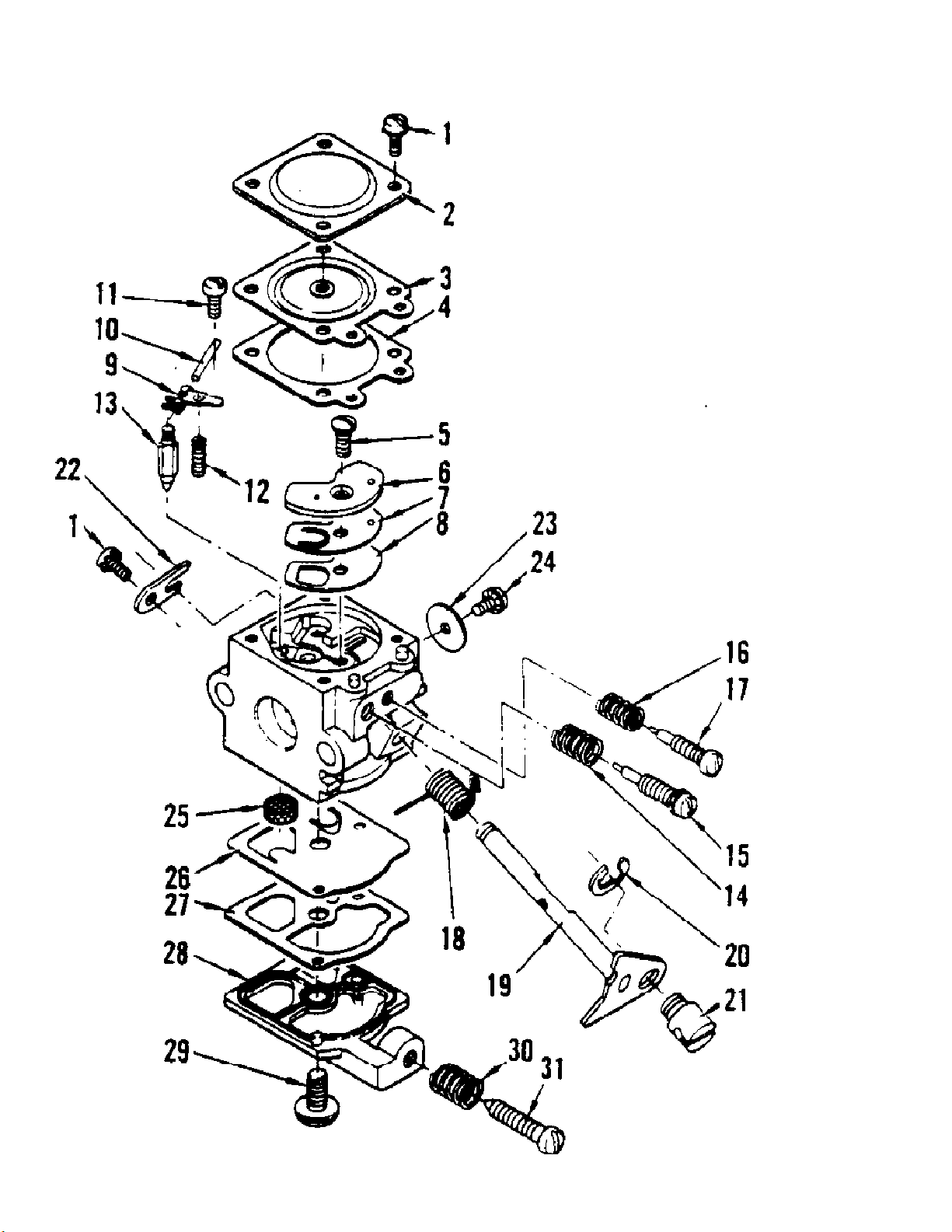

Carburetor Assembly
Ref # Part Number DescriptionQty
213918 Carburetor Assembly (WA-81)1
1 214428 Screw5
2 213994 Cover - Metering diaphragm1
3 213995 Diaphragm - Metering1
4 213996 Gasket - Metering diaphragm1
5 213997 Screw - Circuit plate1
6 213998 Plate - Circuit1
7 213999 Diaphragm - Circuit plate1
8 214000 Gasket - Circuit plate1
9 214001 Lever - Metering1
10 214002 Pin - Metering lever1
11 214429 Screw - Metering lever pin1
12 214003 Spring - Metering lever1
13 214427 Valve - Inlet needle1
14 214430 Spring - High speed needle1
15 214004 Needle - High speed1
16 215350 Spring - Idle needle1
17 214006 Needle - Idle1
18 214007 Spring - Throttle return1
19 215348 Shaft - Throttle1
20 214009 Clip1
21 214010 Swivel1
22 214011 Clip - Throttle shaft1
23 214012 Valve - Throttle1
24 214431 Screw - Throttle valve1
25 214013 Screen - Inlet1
26 214014 Diaphragm - Fuel pump1
27 214015 Gasket - Fuel pump1
28 214016 Cover - Fuel pump1
29 214017 Screw - Fuel pump cover1
30 214018 Spring - Idle screw1
31 214019 Screw - Idle adjustment1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-400007D MAC 80 04/80 to 04/81 IPL 213681-R1 Page 5 of 9
www.ktoutdoor.com
Drive Shaft & Cutter Head Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-400007D MAC 80 04/80 to 04/81 IPL 213681-R1 Page 6 of 9
www.ktoutdoor.com

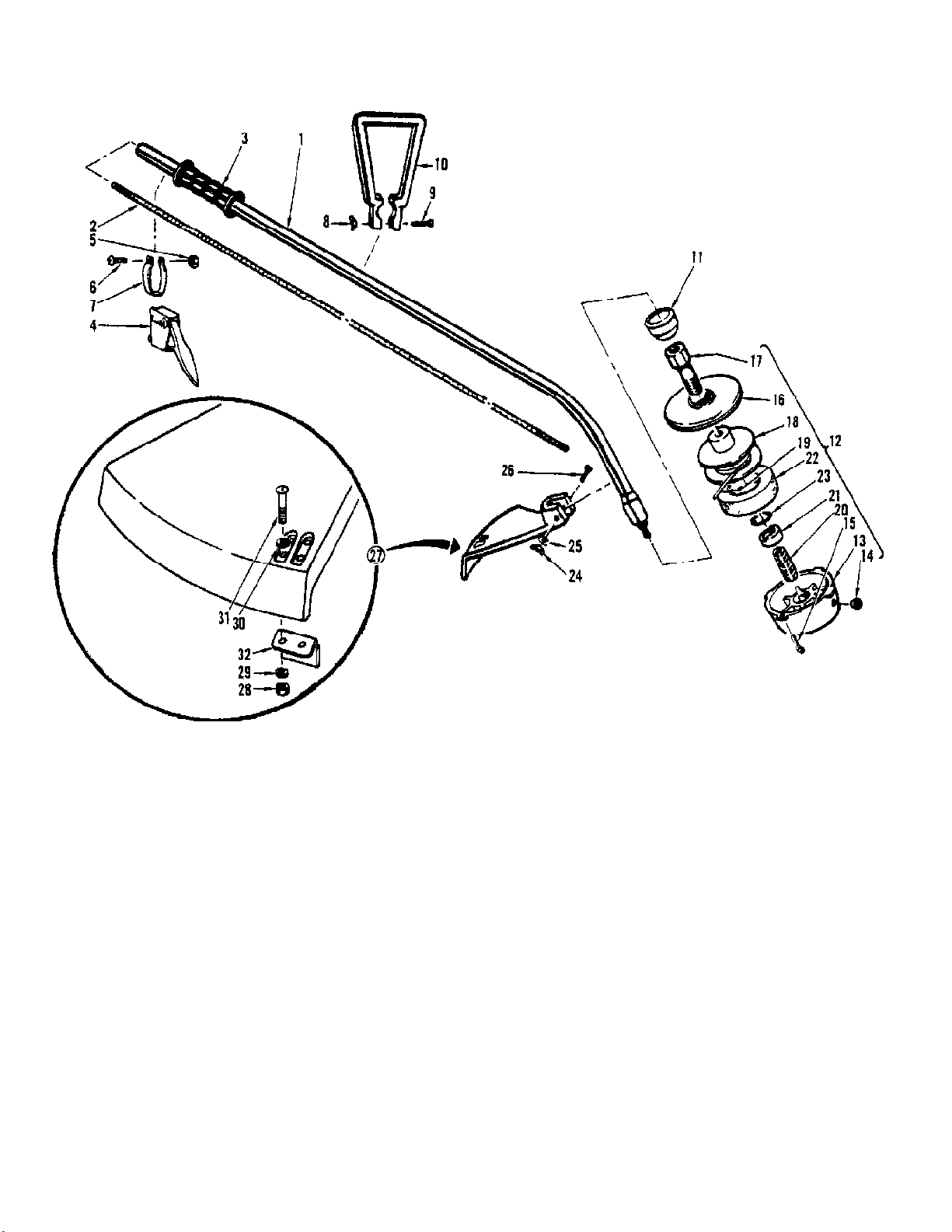

Drive Shaft & Cutter Head Assembly
Ref # Part Number DescriptionQty
1 213966 Shaft Assembly - Drive1
2 Shaft - Drive Not available separately1
3 213977 Grip - Shaft1
4 213972 Throttle Assembly1
5 213976 Nut - Throttle1
6 213975 Screw - Throttle1
7 213973 Clamp - Throttle1
8 213965 Nut - Wing1
9 213964 Screw - Hex1
10 213963 Handle - Guide1
11 213984 Adaptor1
12 216821 Cutter Head Assembly1
13 Hub Not available separately1
14 214140 Eyelet1
15 214141 Pin - Cotter1
16 214134 Plate - Rear1
17 214143 Sleeve - Drive Adapter1
18 95889 Spool/Line1
19 216899 Line - .095"1
20 214138 Spring - Compression1
21 214137 Nut - Drive Adapter1
22 214136 Hub1
23 214142 "O" Ring1
24 213965 Nut - Wing1
25 214053 Washer - M61
26 213964 Screw - Hex1
27 214026 Grass Shield Assembly1
28 216823 Nut - M52
29 216824 Washer - Spring2
30 216826 Washer - M52
31 214443 Screw - M52
32 214889 Cutter1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-400007D MAC 80 04/80 to 04/81 IPL 213681-R1 Page 7 of 9
www.ktoutdoor.com
Engine Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-400007D MAC 80 04/80 to 04/81 IPL 213681-R1 Page 8 of 9
www.ktoutdoor.com

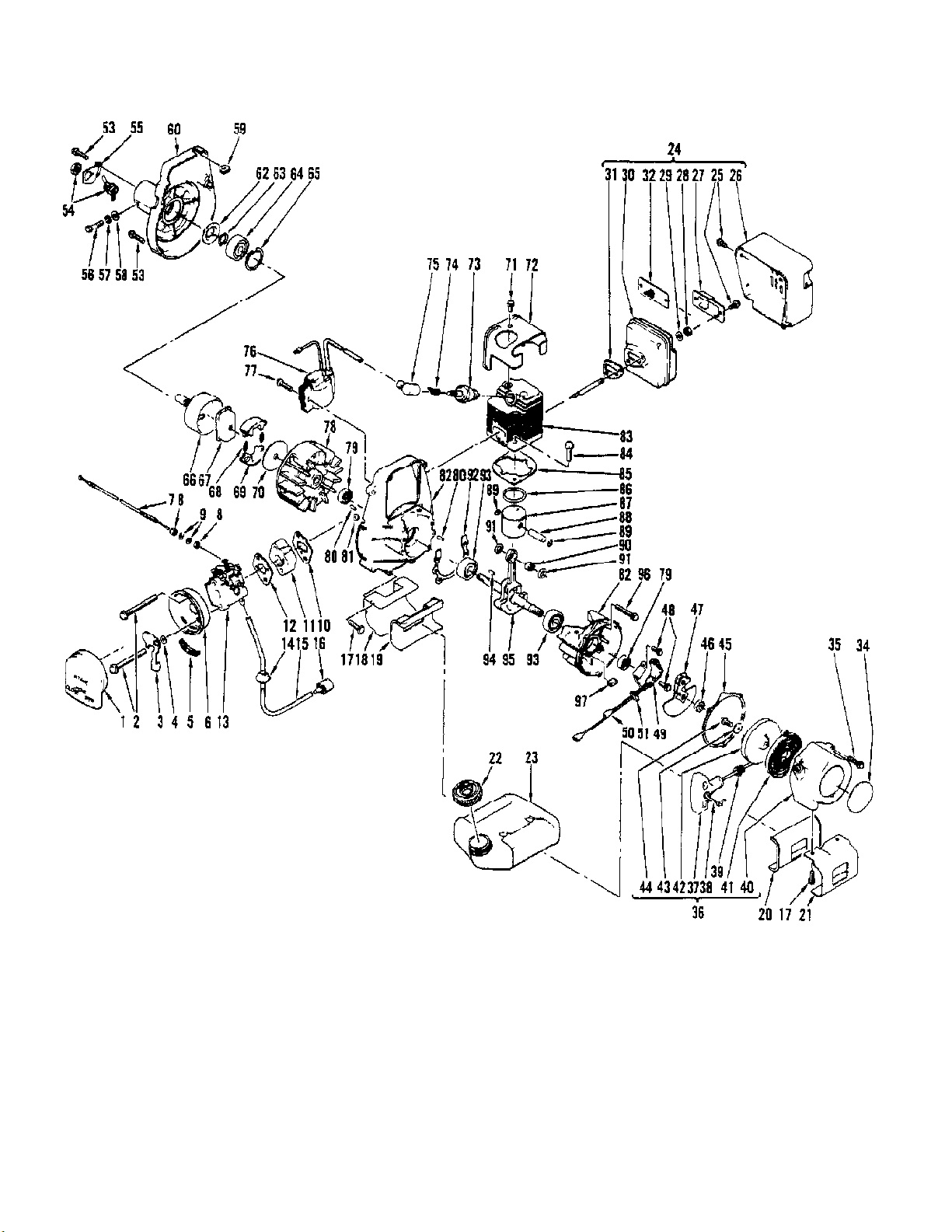

Engine Assembly
Ref # Part Number DescriptionQty
1 215013 Filter - Air1
2 213882 Screw - M52
3 213881 Shutter - Choke1
4 213880 Washer1
5 213879 Grommet1
6 213878 Case - Air Cleaner1
7 213919 Cable - Throttle1
7 214045 Cable - Throttle1
8 214846 Nut - M62
9 214053 Washer2
10 216575 Gasket - Insulator1
11 215771 Insulator1
12 215491 Gasket - Carburetor1
13 213918 Carburetor Assembly1
14 215495 Grommet1
15 213875 Hose - Fuel1
16 213876 Filter - Fuel1
17 213834 Screw - M44
18 213833 Bracket - Fuel Tank1
19 213832 Cushion1
20 213877 Cushion1
21 213869 Bracket - Fuel Tank1
22 216347 Cap Assembly - Fuel Tank1
23 213870 Tank - Fuel1
24 214435 Muffler Assembly1
24 213846 Muffler Assembly1
25 214874 Screw - M42
26 215753 Cover - Muffler1
27 213850 Lid - Muffler1
28 214858 Lock Nut2
29 216826 Washer - M53
30 213848 Body - Muffler1
31 213847 Gasket - Muffler1
32 95896 Screen1
33 213845 Stud Bolt2
34 215008 Decal1
35 213868 Screw - M43
36 213910 Recoil Starter Assembly1
37 213865 Handle - Starter1
38 216093 Rope - Starter1
39 213866 Guide - Rope1
40 213911 Case - Starter1
41 215522 Spring - Rewind1
42 213863 Drum - Recoil1
43 216590 Washer1
44 213834 Screw - M41
45 213861 Gasket - Starter Case1
46 213860 Nut - M81
47 213859 Ratchet Assembly1
48 213834 Screw - M42
49 213855 Set - Breaker Point1
50 215020 Lead - Ground1
51 213858 Grommet1
52 213856 Condenser1
53 213868 Screw - M44
