11-400006D MAC 70 04/80 to 04/81 IPL 213677 Page 1 of 9
www.ktoutdoor.com
Accessories
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-400006D MAC 70 04/80 to 04/81 IPL 213677 Page 2 of 9
www.ktoutdoor.com
Accessories
Ref # Part Number DescriptionQty
95892 Package - 1 lb. .095" line
95902 Package - 5 lbs. .095" line
214434 Wrench
95894 Package - Spark Arrester Screen
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-400006D MAC 70 04/80 to 04/81 IPL 213677 Page 3 of 9
www.ktoutdoor.com
Carburetor Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-400006D MAC 70 04/80 to 04/81 IPL 213677 Page 4 of 9
www.ktoutdoor.com
Carburetor Assembly

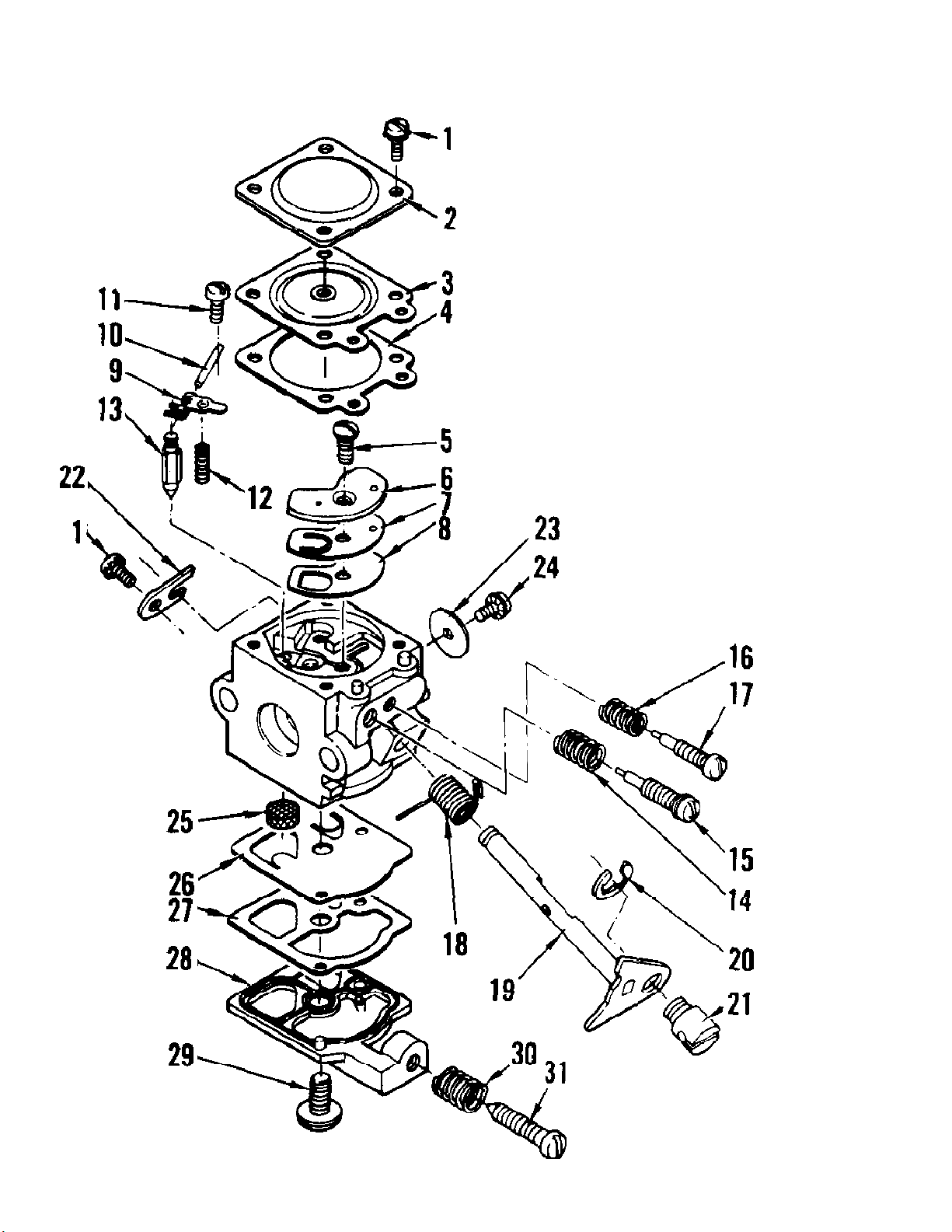

Ref # Part Number DescriptionQty
213947 Carburetor Assembly (WA-80)1
1 214428 Screw - Cover5
2 213994 Cover - Diaphragm1
3 213995 Diaphragm - Metering1
4 213996 Gasket - Diaphragm1
5 213997 Screw - Circuit plate1
6 213998 Plate - Circuit1
7 213999 Diaphragm - Circuit plate1
8 214000 Gasket - Circuit plate1
9 214001 Lever - Metering1
10 214002 Pin - Lever1
11 214429 Screw - Lever pin1
12 214433 Spring - Lever1
13 214427 Valve - Inlet needle1
14 214430 Spring - High speed needle1
15 214004 Needle - High speed1
16 214005 Spring - Idle needle1
17 214020 Needle - Idle1
18 214007 Spring - Throttle return1
19 214021 Shaft - Throttle1
20 214009 Clip1
21 214010 Swivel1
22 214011 Clip - Throttle shaft1
23 214022 Valve - Throttle1
24 214431 Screw - Throttle valve1
25 214013 Screen - Inlet1
26 214014 Diaphragm - Fuel pump1
27 214015 Gasket - Fuel pump1
28 214023 Cover - Fuel pump1
29 214017 Screw - Pump cover1
30 214024 Spring - Idle screw1
31 214025 Screw - Idle adjusting1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-400006D MAC 70 04/80 to 04/81 IPL 213677 Page 5 of 9
www.ktoutdoor.com
Drive Shaft & Cutter Head Assemblies
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-400006D MAC 70 04/80 to 04/81 IPL 213677 Page 6 of 9
www.ktoutdoor.com
Drive Shaft & Cutter Head Assemblies

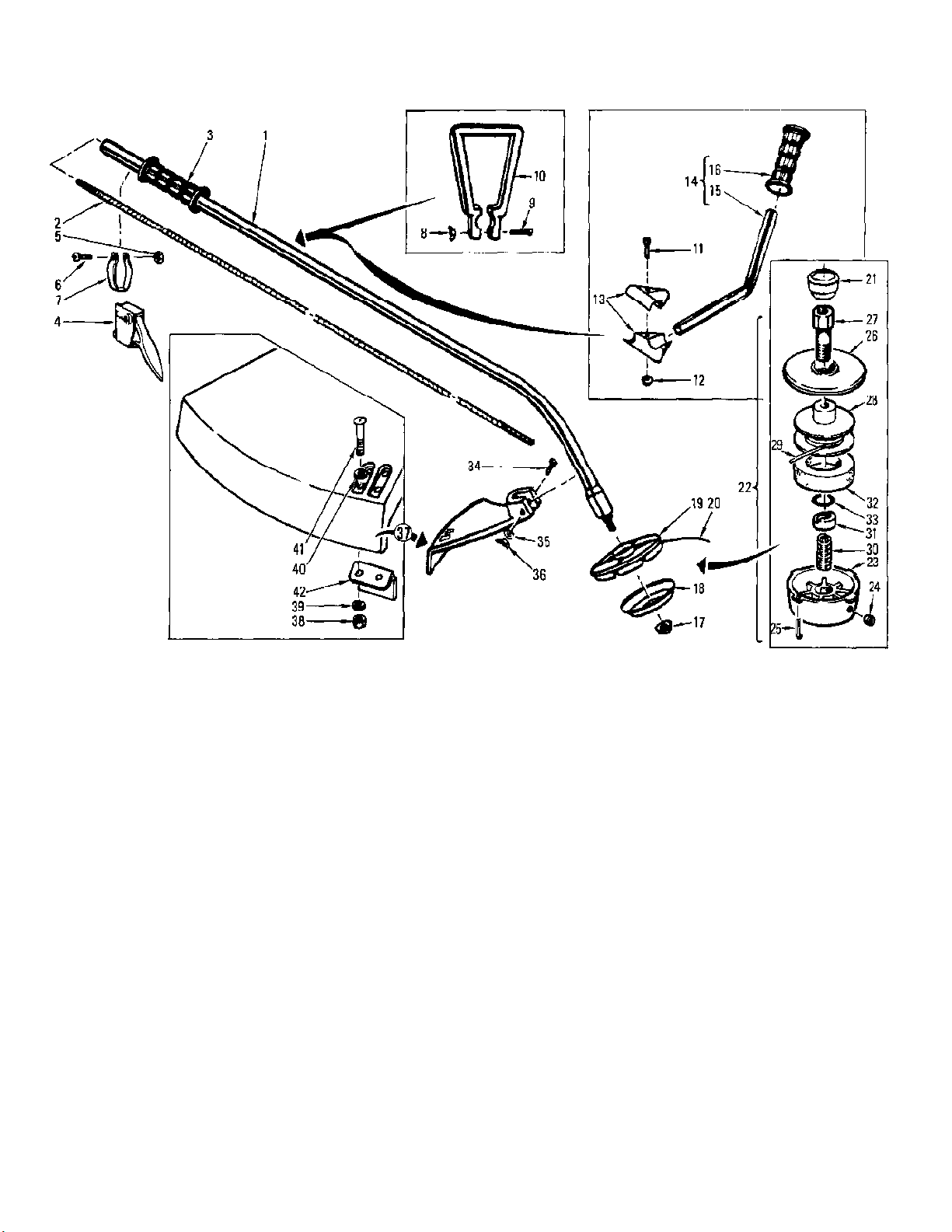

Ref # Part Number DescriptionQty
1 213966 Shaft Assembly - Drive1
2 213962 Shaft - Drive1
3 213977 Grip - Shaft1
4 213972 Throttle Assembly1
5 213976 Nut - Throttle1
6 213975 Screw - Throttle1
7 213973 Clamp - Throttle1
8 213965 Nut - Wing1
9 213964 Screw - Hx1
10 213963 Handle - Guide1
11 213978 Screw - Skt.2
12 213976 Nut - Hx 10-322
13 213979 Clamp - Handle2
14 213980 Handlebar/Grip1
15 213982 Handlebar1
16 213981 Grip - Handlebar1
17 213970 Nut - Kep1
18 213969 Cup - Glide1
19 95875 Cutter head/Line Assembly1
20 95886 Line - .095" (40 ft.)1
21 213984 Adaptor1
22 95881 Cutter Head Assembly1
23 214139 Hub1
24 214140 Eyelet1
25 214141 Pin - Cotter1
26 214134 Plate - Rear1
27 214143 Sleeve - Drive adapter1
28 95889 Spool/Line1
29 95892 Line - .095"1
30 214138 Spring - Compression1
31 214137 Nut - Drive adapter1
32 214136 Pad - Foam1
33 214142 "O" Ring1
34 213965 Nut - Wing1
35 214053 Washer - M61
36 213964 Screw - Hx1
37 214026 Grass Shield Assembly1
38 214044 Nut - M52
39 213898 Washer - Spring2
40 213853 Washer - M52
41 214443 Screw - 5 x 142
42 214442 Cutter1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-400006D MAC 70 04/80 to 04/81 IPL 213677 Page 7 of 9
www.ktoutdoor.com
Engine Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-400006D MAC 70 04/80 to 04/81 IPL 213677 Page 8 of 9
www.ktoutdoor.com
Engine Assembly

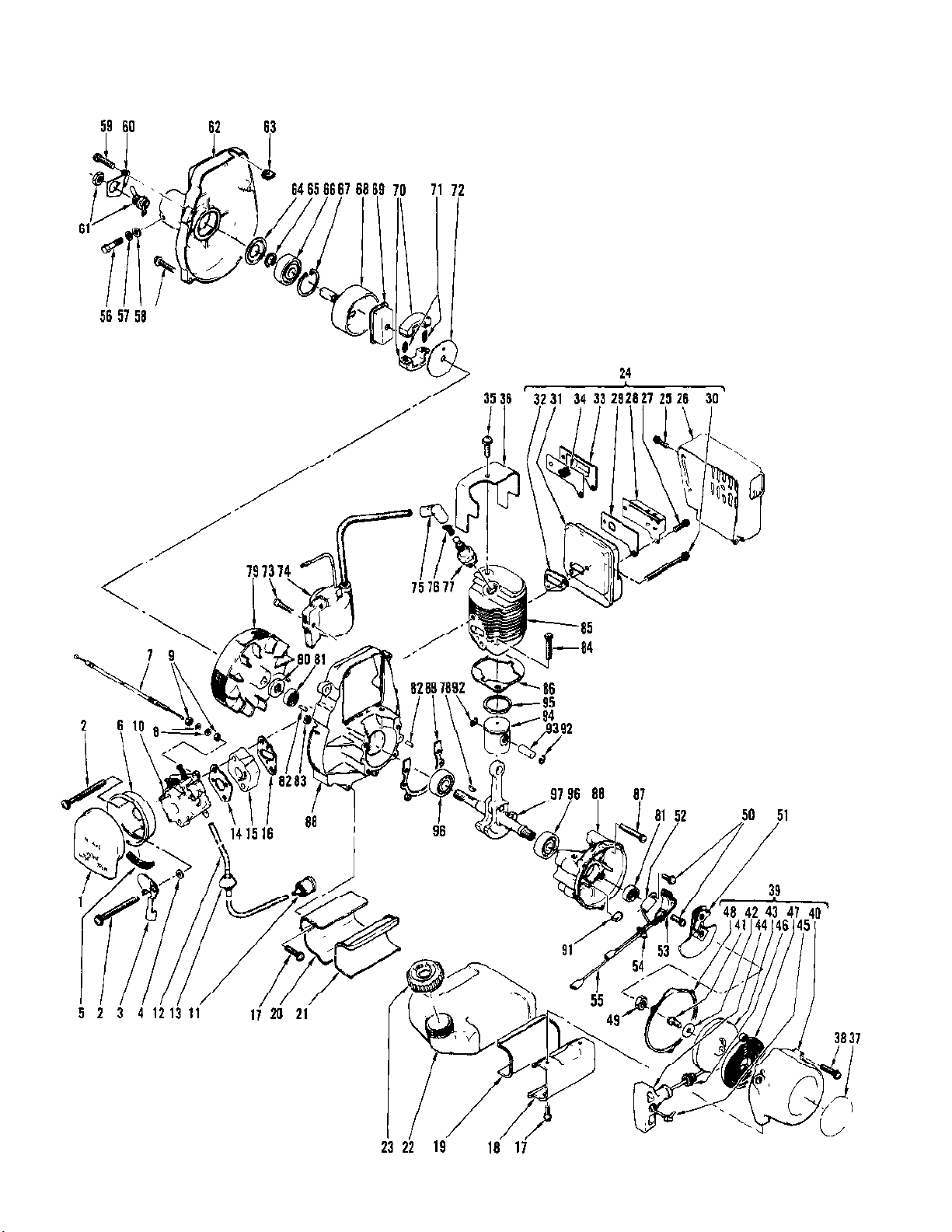

Ref # Part Number DescriptionQty
1 213883 Filter - Air1
2 213882 Screw - M52
3 213881 Shutter - Choke1
4 213880 Washer1
5 213879 Grommet1
6 213878 Case - Air cleaner1
7 213919 Cable - Throttle1
8 214053 Washer - M62
9 213949 Nut - M62
10 Carburetor Assembly See "Carburetor Assembly"
11 213876 Filter - Fuel1
12 213948 Hose - Fuel1
13 213874 Grommet1
14 213873 Gasket1
15 213946 Insulator1
16 213871 Gasket1
17 213834 Screw - M44
18 213943 Bracket - Fuel tank1
19 213961 Cushion1
20 213833 Bracket - Fuel tank1
21 213832 Cushion1
22 213944 Tank - Fuel1
23 213917 Cap Assembly - Fuel1
24 213930 Muffler Assembly1
24 213929 Muffler Assembly1
25 213940 Screw - M42
26 213938 Cover - Muffler1
27 213940 Screw - M42
28 213934 Lid - Muffler1
29 213933 Plate - Muffler1
30 213939 Screw - M52
31 213932 Body - Muffler1
32 213931 Gasket - Muffler1
33 213936 Holder - Screen1
34 213935 Screen - Spark arrester1
35 213844 Screw - M51
36 213843 Cover - Cylinder1
37 214444 Decal1
38 213868 Screw - M43
39 213910 Starter Assembly1
40 213911 Case - Starter1
41 213834 Screw - M41
42 213862 Washer1
43 213863 Drum - Starter1
44 213865 Handle - Starter1
45 213864 Rope - Starter1
46 213866 Guide - Rope1
47 213867 Spring - Rewind1
48 213861 Gasket - Starter case1
49 213860 Nut - M81
50 213834 Screw - M42
51 213859 Rachet Assembly1
52 213942 Condenser1
53 213941 Set - Breaker point1
K&T Saw Shop 606-678-9623 or 606-561-4983
1
illustration and parts list.
Page 9
11-400006D MAC 70 04/80 to 04/81 IPL 213677 Page 9 of 9
www.ktoutdoor.com
Engine Assembly
Ref # Part Number DescriptionQty
54 213858 Grommet1
55 214445 Lead - Ground1
56 213899 Bolt - M51
57 213898 Washer1
58 213853 Washer - M51
59 213868 Screw - M44
60 213900 Bracket - Switch1
61 213960 Switch Assembly1
62 213959 Cover - Fan1
63 213896 Grommet1
64 213895 Stopper1
65 213894 Circlip1
66 213957 Bearing - Ball1
67 213893 Circlip1
68 213892 Drum - Clutch1
69 213891 Boss - Clutch1
70 213954 Shoe - Clutch2
71 213955 Spring - Clutch2
72 213888 Plate - Side1
73 213868 Screw - M42
74 213953 Coil - Ignition1
75 213886 Boot - Spark plug1
76 213887 Connector - Spark plug1
77 213913 Spark Plug1
78 214027 Key - Woodruff1
79 213952 Flywheel1
80 213951 Spacer1
81 213829 Seal - Oil2
82 213828 Pin - Knock4
83 213831 Grommet1
84 213842 Screw - M62
85 213927 Cylinder1
86 213840 Gasket - Cylinder1
87 213830 Screw - M54
88 213921 Set - Crankcase1
89 213826 Gasket - Crankcase1
90 213832 Cushion1
91 213857 Pad - Oil1
92 213836 Circlip - Piston pin2
93 213837 Pin - Piston1
94 213925 Piston1
95 213926 Ring - Piston1
96 213825 Bearing - Ball2
97 213920 Crankshaft1
