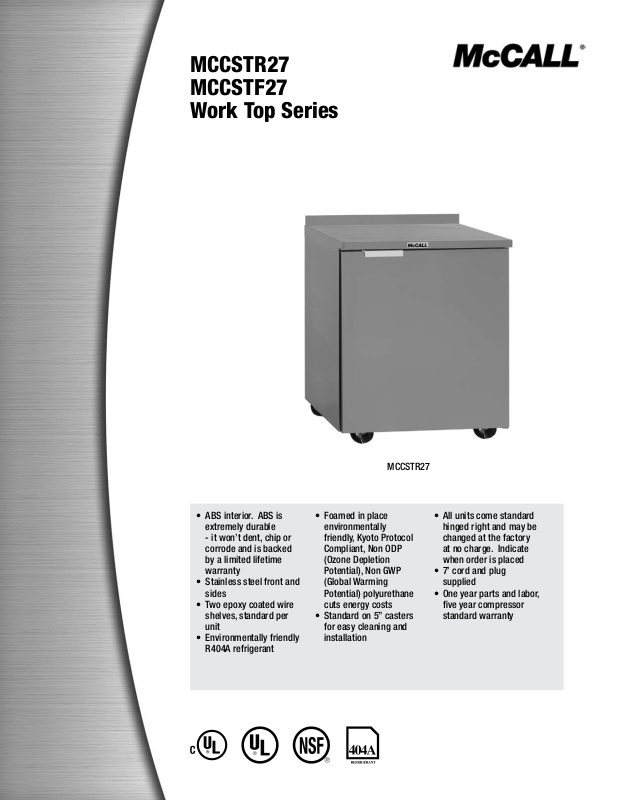

McCall MCCSTF27 User Manual
MCCSTR27
MCCSTF27
Work Top Series
ABS interior. ABS is
•
extremely durable
- it won’t dent, chip or
corrode and is backed
by a limited lifetime
warranty
Stainless steel front and
•
sides
Two epoxy coated wire
•
shelves, standard per
unit
Environmentally friendly
•
R404A refrigerant
MCCSTR27
Foamed in place
•
environmentally
friendly, Kyoto Protocol
Compliant, Non ODP
(Ozone Depletion
Potential), Non GWP
(Global Warming
Potential) polyurethane
cuts energy costs
Standard on 5” casters
•
for easy cleaning and
installation
All units come standard
•
hinged right and may be
changed at the factory
at no charge. Indicate
when order is placed
7’ cord and plug
•
supplied
One year parts and labor,
•
five year compressor
standard warranty
Exterior bottom shall be heavy-gauge
35.50"
90 cm
6.00"
15 cm
19.50"
50 cm
17.00"
43 cm
1.00"/3 cm
Rubber
Bumper
Interior Clear Dimension,
Left To Right: 21.25"/54 cm
A
B
C
D
E
Shelf Support
Spacing
A = 7.50"/19 cm
B = 4.00"/10 cm
C = 3.75"/9.5 cm
D = 2.75"/7 cm
E = 6.00"/15 cm
39.50"
100 cm
4.00"
10 cm
28.50"
72 cm
2.00"
5 cm
27.25"
69 cm
28.50"
72 cm
REF’G
27.25"
69 cm
39.50"
100 cm
24.75"
63 cm
Standard Door Hinging Is On Right
galvanized metal. Exterior ends shall be heavygauge stainless steel.
Base interior shall be one-piece thermoformed
ABS plastic material, with integral shelf supports.
ABS interior is backed by a limited lifetime
warranty. Base shall be fully insulated with highdensity foamed-in-place environmentally friendly,
Kyoto Protocol Compliant, Non ODP (Ozone
Depletion Potential), Non GWP (Global Warming
Potential) polyurethane.
Door shall have a heavy-gauge stainless steel
exterior, with a thermoformed ABS plastic interior
liner, and shall be fully insulated with foamedin-place polyurethane. Cabinet shall have (2)
adjustable epoxy-coated wire shelves installed.
REFRIGERATION SYSTEM - Refrigeration
system shall use HFC-404A refrigerant.
Compressor shall be 1/5 h.p., with condenser
coil and hot gas condensate evaporator
mounted on rear of cabinet. Evaporator coil and
temperature control shall be mounted on the
interior rear wall of the cabinet. Refrigerant flow
shall be controlled by a capillary tube. Cabinet
shall maintain 36°F to 40°F (2°C to 4°C) interior
cabinet temperature.
FREEZER SYSTEM - Freezer system shall
use HFC-404A refrigerant. Compressor shall
be 1/5 h.p., with condenser coil and hot gas
condensate evaporator mounted on rear of
cabinet. Evaporator coil and temperature control
shall be mounted on the interior rear wall of the
cabinet. Refrigerant flow shall be controlled by a
capillary tube. Cabinet shall maintain -5°F to 0°F
(-21°C to -18°C) interior cabinet temperature.
Electrical connections shall be 115 volt, 60
Hertz, single phase. Unit shall have a 7’ (2.1m)
long electrical cord and NEMA 5-15P plug. Cord
and plug shall be located on rear of cabinet, 16”
(40.6cm) above floor, 5” from the left side.
Equipment is mounted on 5” (13cm) diameter
plate casters with front two locking. Exterior top
shall be one-piece, heavy-gauge stainless steel
with front edge turned down to form nosing and
rear edge turned down.
MCCSTR27, MCCSTF27 Work Top Series
Specifications
MODEL
# OF
SHELVES
MCCSTR27 2 7.2 5.7 1/5 115/60/1 4.0 5-15P 176LBS./80KG. 1.88
MCCSTF27 2 7.2 5.7 1/5 115/60/1 5.8 5-15P 176LBS./80KG. 3.22
Specifications
SHELF AREA
SQ.FT.
INSTALLATION NOTE:
Refrigeration system is designed so that air will
flow under the unit, through the compressor
area and out the front of the unit. Any
restriction to this air flow path will void the
warranties.
STORAGE CAP.
CU.FT.
H.P.
HERTZ/PHASE
Plan View MCCSTR27/MCCSTF27
Elevation View MCCSTR27/MCCSTF27
VOLTS/
AMPS
NEMA
PLUG
SHIP WEIGHT
Door Clearance Detail
MCCSTR27/MCCSTF27
Right End View MCCSTR27/MCCSTF27
ENERGY
(KWH)
McCall Refrigeration
980 S. Isabella Rd.
McCall reserves the right to make changes to the
design or specifications without prior notice.
Mt. Pleasant, Michigan 48858
Phone: 888-732-2446
Fax: 800-669-0619
www.mccallrefrigeration.com
DSMCCSTRF27 ©2010 McCall 05/10
