Self-Contained
Solid Door Heated
Reach-In
Aluminum interior and
•
exterior, stainless front
Built in door locks with
•
heavy duty strikes
Low profile metal door
•
handle
Exterior digital
•
thermometer
Easy to use
•
electromechanical
control
Key lock shroud for
•
easy access to heating
system

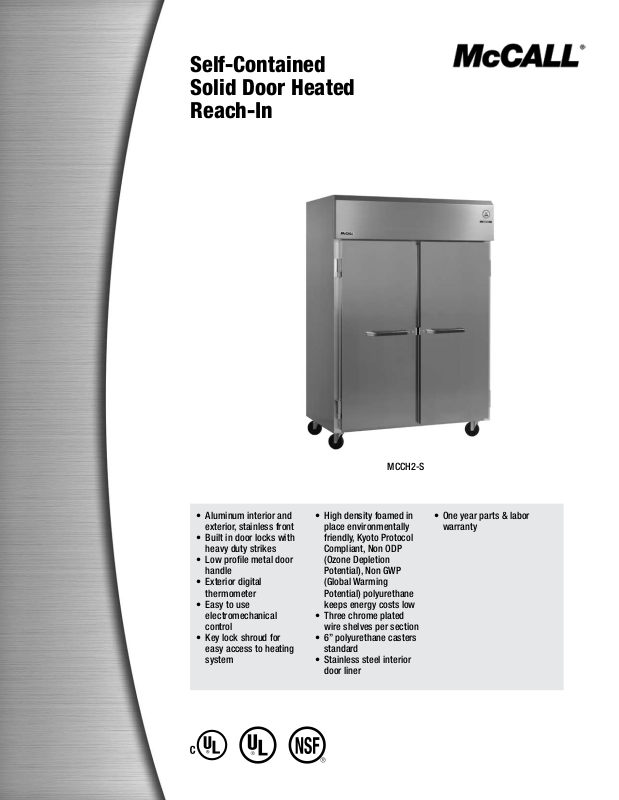

MCCH2-S
High density foamed in
•
place environmentally
friendly, Kyoto Protocol
Compliant, Non ODP
(Ozone Depletion
Potential), Non GWP
(Global Warming
Potential) polyurethane
keeps energy costs low
Three chrome plated
•
wire shelves per section
6” polyurethane casters
•
standard
Stainless steel interior
•
door liner
One year parts & labor
•
warranty
Page 2
Self-Contained Solid Door Heated Reach-In
30"
58"
6.12
81.12
29.00”
73.7cm
34.00”
86.4cm
56.00”
142.2cm
83.00”
210.8cm
25.00"
63.5cm
52.00"
132.1cm
79.00"
200.7cm
34.00”
86.4cm
34.00”
86.4cm
48.00”
121.9cm
44.00"
111.8cm
34.00”
86.4cm
56.00”
142.2cm
83.00”
210.8cm
52.00"
132.1cm
79.00"
200.7cm
34.00”
86.4cm
34.00”
86.4cm
83.00”
210.8cm
79.00"
200.7cm
34.00”
86.4cm
29.00”
73.7cm
34.00”
86.4cm
56.00”
142.2cm
83.00”
210.8cm
25.00"
63.5cm
52.00"
132.1cm
79.00"
200.7cm
34.00”
86.4cm
34.00”
86.4cm
48.00”
121.9cm
44.00"
111.8cm
34.00”
86.4cm
56.00”
142.2cm
83.00”
210.8cm
52.00"
132.1cm
79.00"
200.7cm
34.00”
86.4cm
34.00”
86.4cm
83.00”
210.8cm
79.00"
200.7cm
34.00”
86.4cm
6.12”
15.5cm
81.12”
206.0cm
75.00”
190.5cm
58.00”
147.3cm
30.00”
76.2cm
Specifications
MODEL VOLTAGE AMPS STORAGE CU.FT. SHELVES SQ.FT. NO. OF SHELVES UNIT H.P. MA X WATTS SHIP WEIGHT NEMA PLUG ENERGY (KWH)
MCCH1-S 120/208-240 9.0 24.96 12.81 3 N/A 2160
MCCH2-S 120/208-240 16.0 51.92 27.54 6 N/A 3840
MCCH3-S 120/208-240 11.4 78.89 42.47 9 N/A 4272
Specifications
Exterior: Models shall have corrosion
resistant aluminum on exterior cabinet sides
and will have stainless front and shroud.
Interior: Cabinet interior shall be corrosion
resistant heavy gauge aluminum. Bottom and
top surfaces shall be die stamped to provide
radius corners and recessed floor. Three wire
shelves are provided per section, standard
shelves are chrome plated. Shelves rest on
clips which are adjustable on 1” increments on
stainless steel pilasters affixed to the cabinet
interior. Pilasters are removable without tools
for cleaning. Mounted to the interior ceiling,
the interior incandescent light is controlled
automatically through a switch mounted in the
hinge assembly to protect against breakage.
Doors: Exterior shall be corrosion resistant
stainless steel. Interior liner shall be stainless
steel. Each door has two edge mount, self
closing, cam lift style hinges. Doors can be
removed from the cabinet without the use of
tools. Metal door handle is a low profile design
minimizing impact with aisle space. Keyed
door lock is mounted in the door next to the
handle. Lock engages into a heavy duty strike
mounted to the cabinet face. Door gaskets are
magnetic and mount to the door snapping in
place and are removable without tools.
Heating system: Cabinets are designed to
maintain temperatures between 120ºF and
200ºF. Heating elements are helical shaped,
with tubular fins. High speed blower provides
uniform airflow in the cabinet. Entire heating
system is mounted to the exterior of the
cabinet ceiling, outside the food zone. It is
assembled as one piece and can be removed
as one piece. Temperature is controlled by an
adjustable thermostat. System on/off switch is
located on the front exterior of the cabinet.
Electrical: Standard electrical is 120/208240 Volt, 60 Hz single phase. Connection
must be hard wired to junction box on the
exterior top of the cabinet.
Casters: Units are standard 6” high
polyurethane casters.

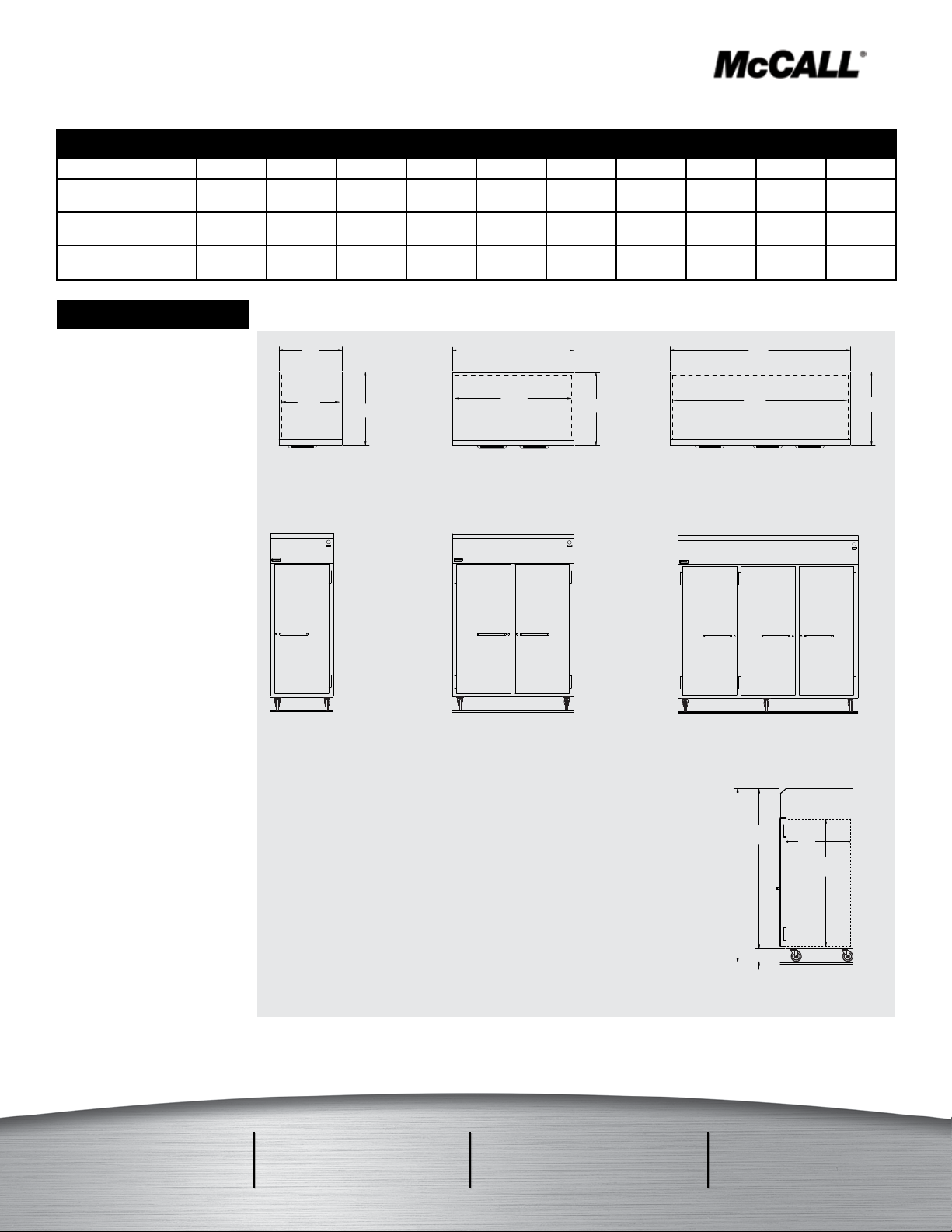

PLAN VIEW
MCCH1-S
ELEVATION VIEW
MCCH1-S
PLAN VIEW
MCCH2-S
ELEVATION VIEW
MCCH2-S
418lbs
(190kg)
650lbs
(295kg)
830lbs
(376kg)
N/A N/A
N/A N/A
N/A N/A
PLAN VIEW
MCCH3-S
ELEVATION VIEW
MCCH3-S
END VIEW
ALL MODELS
McCall reserves the right to make changes to the
design or specifications without prior notice.
McCall Refrigeration
980 S. Isabella Rd.
Mt. Pleasant, Michigan 48858
Phone: 888-732-2446
Fax: 800-669-0619
www.mccallrefrigeration.com
DSMCCH ©2010 McCall 05/10
