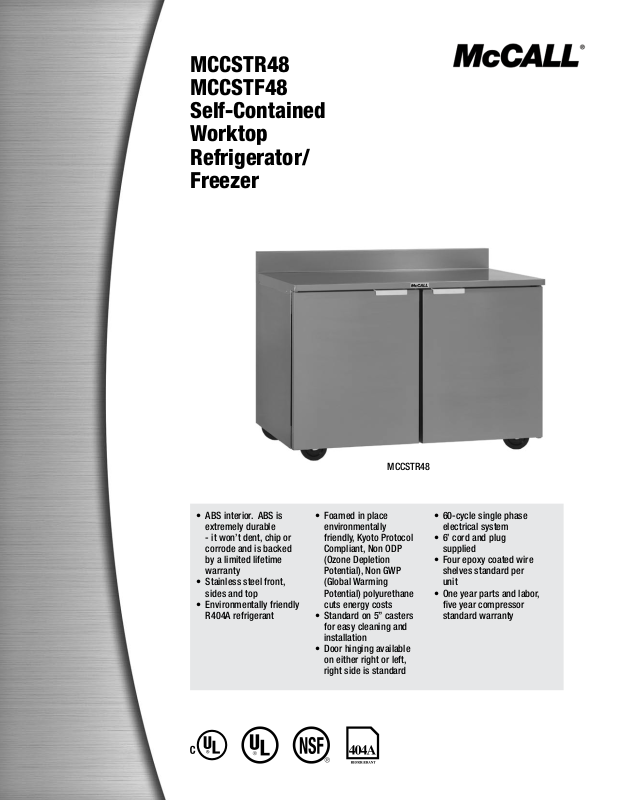

MCCSTR48
MCCSTF48
Self-Contained
Worktop
Refrigerator/
Freezer

ABS interior. ABS is

•
extremely durable

- it won’t dent, chip or
corrode and is backed
by a limited lifetime
warranty
Stainless steel front,

•
sides and top
Environmentally friendly

•
R404A refrigerant

MCCSTR48

Foamed in place

•
environmentally
friendly, Kyoto Protocol
Compliant, Non ODP
(Ozone Depletion
Potential), Non GWP
(Global Warming
Potential) polyurethane
cuts energy costs
Standard on 5” casters

•
for easy cleaning and
installation
Door hinging available

•
on either right or left,
right side is standard

60-cycle single phase

•
electrical system
6’ cord and plug

•
supplied
Four epoxy coated wire

•
shelves standard per
unit
One year parts and labor,

•
five year compressor
standard warranty

MCCSTR48, MCCSTF48 Self-Contained Worktop Refrigerator/Freezer

24.75"
63 cm

1.00"/25mm
Rubber Bumper

Specifications

MODEL

# OF

SHELVES

MCCSTR48 4 13.0 11.4 1/5 115/60/1 4.0 5-15P 234LBS./106KG. 2.04

MCCSTF48 4 13.0 11.4 1/3 115/60/1 5.6 5-15P 234LBS./106KG. 5.15

Specifications

Exterior top shall be one-piece, 22-gauge
stainless steel with front edge turned down to
form nosing and rear edge turned up to form
a 4” (10 cm) high backsplash. Exterior bottom
shall be heavy-gauge galvanized metal. Exterior
ends shall be 22-gauge stainless steel.

Base interior shall be one-piece thermoformed
ABS plastic material, with integral shelf
supports. Cabinet shall have (4) epoxy­coated wire shelves installed. Base shall be
fully insulated with high-density foamed-in­place environmentally friendly, Kyoto Protocol
Compliant, Non ODP (Ozone Depletion
Potential), Non GWP (Global Warming
Potential) polyurethane.

Doors shall have a 22-gauge stainless steel
exterior, with a thermoformed ABS plastic
interior liner, and shall be fully insulated with
foamed-in-place polyurethane.

Electrical connections shall be 115 volt,
60 Hertz, single phase. Unit shall have a 6’
(1.8m) long electrical cord and NEMA 5-15P
plug. Cord and plug shall be located on rear
of cabinet, 16” (41 cm) above floor, 12” (30
cm) from the left.

Equipment is mounted on 5” (13cm) diameter
plate casters with front two locking.

REFRIGERATOR ONLY - Refrigeration
system shall use HFC-404A refrigerant.
Compressor shall be 1/5 h.p., with condenser
coil and hot gas condensate evaporator
mounted on rear of cabinet. Evaporator coil
and temperature control shall be mounted on
the interior rear wall of the cabinet. Refrigerant
flow shall be controlled by a capillary tube.
Cabinet shall maintain 36°F to 40°F (2°F to
4°C) interior cabinet temperature.

FREEZER ONLY - Refrigeration system shall
use HFC-404A refrigerant. Compressor shall
be 1/3 h.p., with condenser coil and hot
gas condensate evaporator mounted on rear
of cabinet. Evaporator coil and temperature
control shall be mounted on the interior rear
wall of the cabinet. Refrigerant flow shall be
controlled by a capillary tube. Cabinet shall
maintain -5°F to 0°F (-21°to -18°C) interior
cabinet temperature.

SHELF AREA

SQ.FT.

IN STA LLA TIO N NO TE:

Refrigerati on system is designed so that air wi ll
flow under the unit, through the comp res sor area
and o ut the to p rear of the unit. Any restriction to
this air fl ow path will void th e w arranties.

VOLUME

CU.FT.

H.P.

HERTZ/PHASE

48.06”

122 cm

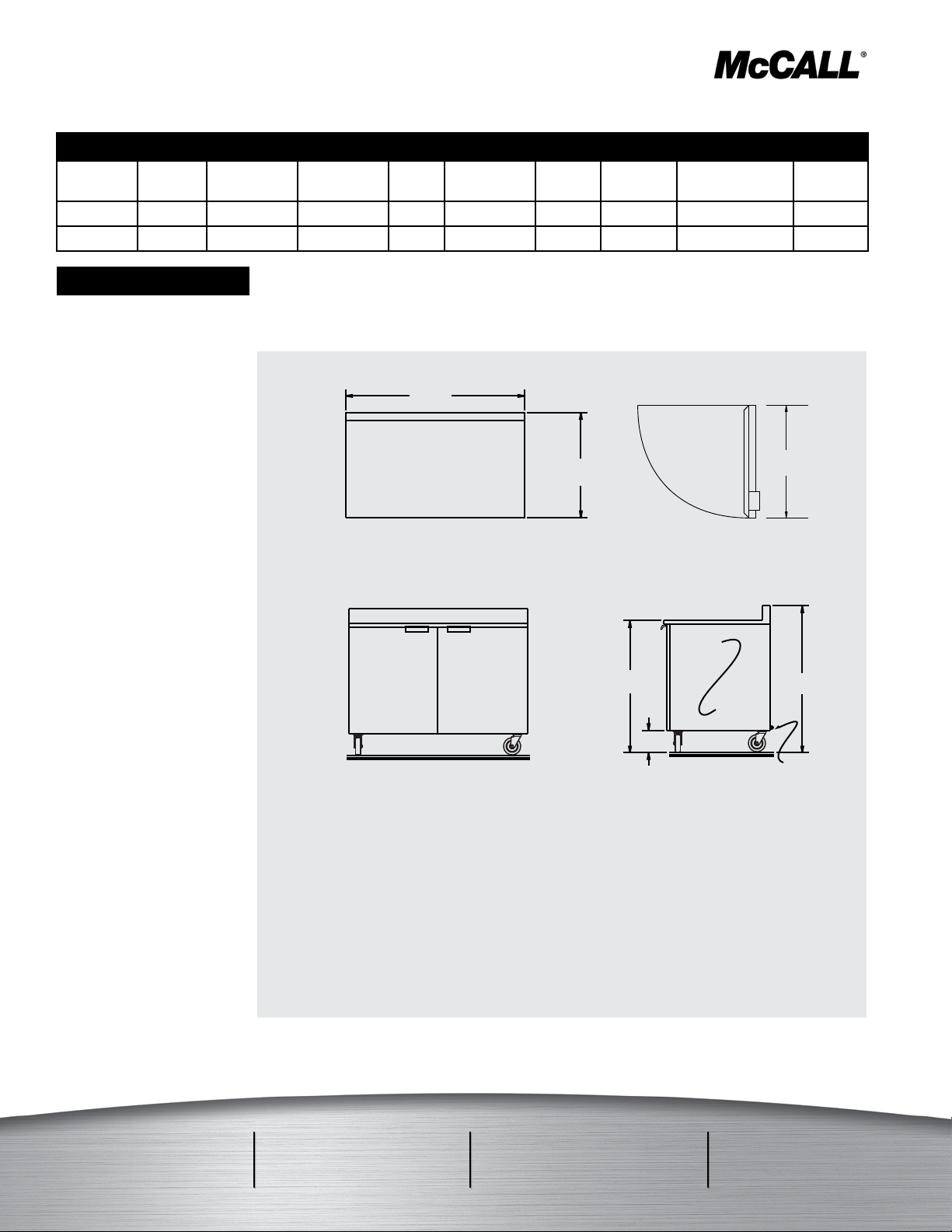

Plan V iew

Front Elevation

VOLTS/

AMPS

28.38”
72 cm

NEMA

PLUG

35.50”
90 cm

6.00”

15 cm

SHIP WEIGHT

Door Clearance Detail

End Elevati on

21.75”
55 cm

39.50”

100 cm

ENERGY

(KWH/DAY)

McCall reserves the right to make changes to the
design or specifications without prior notice.

McCall Refrigeration
980 S. Isabella Rd.
Mt. Pleasant, Michigan 48858

Phone: [phone]
Fax: [phone]
www.mccallrefrigeration.com

DSMCCSTRF48 ©2010 McCall 10/10
