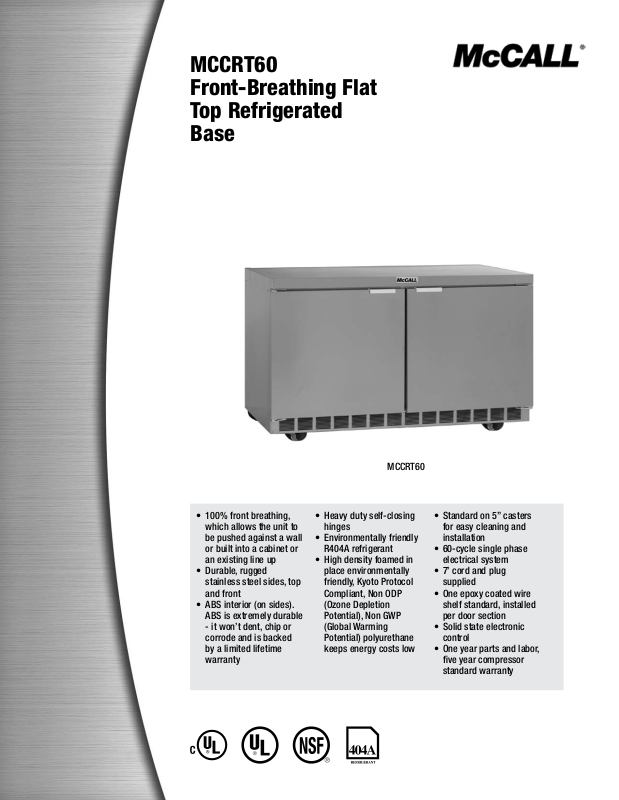

McCall MCCRT60 User Manual
MCCRT60
Front-Breathing Flat
Top Refrigerated
Base
100% front breathing,
•
which allows the unit to
be pushed against a wall
or built into a cabinet or
an existing line up
Durable, rugged
•
stainless steel sides, top
and front
ABS interior (on sides).
•
ABS is extremely durable
- it won’t dent, chip or
corrode and is backed
by a limited lifetime
warranty
MCCRT60
Heavy duty self-closing
•
hinges
Environmentally friendly
•
R404A refrigerant
High density foamed in
•
place environmentally
friendly, Kyoto Protocol
Compliant, Non ODP
(Ozone Depletion
Potential), Non GWP
(Global Warming
Potential) polyurethane
keeps energy costs low
Standard on 5” casters
•
for easy cleaning and
installation
60-cycle single phase
•
electrical system
7’ cord and plug
•
supplied
One epoxy coated wire
•
shelf standard, installed
per door section
Solid state electronic
•
control
One year parts and labor,
•
five year compressor
standard warranty
MCCRT60 Front-Breathing Flat Top Refrigerated Base
31.50" [80.01]
SHELF
ALT. SHELF
NOSE OF UNIT
TO EDGE OF DOOR
25.94" [65.89]
DOOR WIDTH DIMENSION
55.75" [141.61]
INTERIOR DIMENSION
30.66" [77.88]
60.13" [152.72]
21.94" [55.73]
26.86" [68.22]
20.75" [52.70]
6.11" [15.52]
7.53" [19.10]
12.98" [33.00]
17.35" [44.08]
23.79" [60.43]
35.34" [89.76]
36" [91.44]
NOSE OF UNIT
TO EDGE OF DOOR
25.94" [65.89]
DOOR WIDTH DIMENSION
55.75" [141.61]
INTERIOR DIMENSION
30.66" [77.88]
31.50" [80.01]
SHELF
ALT. SHELF
NOSE OF UNIT
TO EDGE OF DOOR
25.94" [65.89]
DOOR WIDTH DIMENSION
55.75" [141.61]
INTERIOR DIMENSION
30.66" [77.88]
21.94" [55.73]
26.86" [68.22]
20.75" [52.70]
6.11" [15.52]
7.53" [19.10]
12.98" [33.00]
17.35" [44.08]
23.79" [60.43]
Specifications
MODEL
# OF
SHELVES
MCCRT60 2 7.36 15.7 1/5 115/60/1 3.9 5-15P 340LBS./154KG. 2.75
Specifications
Exterior top is one-piece, 22-gauge
stainless steel with integral square nosing
on the front.
Exterior back and bottom are two-piece
24-gauge galvanized steel.
Exterior ends are stainless steel.
Interior sides are thermoformed ABS
plastic with shelves supported on plugs.
Interior back is one-piece 22-gauge
stainless steel. Interior bottoms are
thermofoamed ABS plastic. Base is fully
insulated with high-density foamed in
place polyurethane.
Refrigeration system uses HFC404A refrigerant. Compressor is 1/5
H.P., with condenser coil and hot gas
condensate evaporator mounted on
rear of the cabinet. Evaporator coils are
located on the interior rear wall of the
cabinet. Refrigerant flow is controlled
by a capillary tube. Cabinet maintains an
interior cabinet temperature of 36°F to
40°F (2°C to 4°C).
Electronic, solid state control, mounted
on the exterior rear of the cabinet, allows
unit to maintain precise temperatures in
heavy duty conditions.
Electrical connection is 115 volt, 60
Hertz, single phase. Unit has a 7’ (2.1m)
long electrical cord and NEMA 5-15P
plug.
Casters Equipment is mounted on 5”
(13cm) diameter casters, with front two
locking. Equipment clearance above the
floor is 2.5” (6.35cm).
Door has a 24-gauge stainless steel
exterior, with thermoformed ABS plastic
interior liner.
SHELF AREA
SQ.FT.
STORAGE
CAP.CU.FT.
H.P.
VOLTS/
HERTZ/PHASE
MCCRT60 ELEVATION VIEW
MCCRT60 ISO VIEW
INSTALLATION NOTE:
Refrigeration system is designed so that air will
flow under the unit, through the compressor area
and out the front of the unit. Any restriction to this
air flow path will void the warranties.
AMPS
NEMA
PLUG
SHIP WEIGHT
MCCRT60 RIGHT SIDE VIEW
PLEASE NOTE:
Air flow through the louver on the back of the unit
is not necessary for operation, however, any air
which passes through the louver is beneficial.
ENERGY
KWH
McCall reserves the right to make changes to the
design or specifications without prior notice.
McCall Refrigeration
980 S. Isabella Rd.
Mt. Pleasant, Michigan 48858
Phone: 888-732-2446
Fax: 800-669-0619
www.mccallrefrigeration.com
DSMCCRT60 ©2010 McCall 05/10
