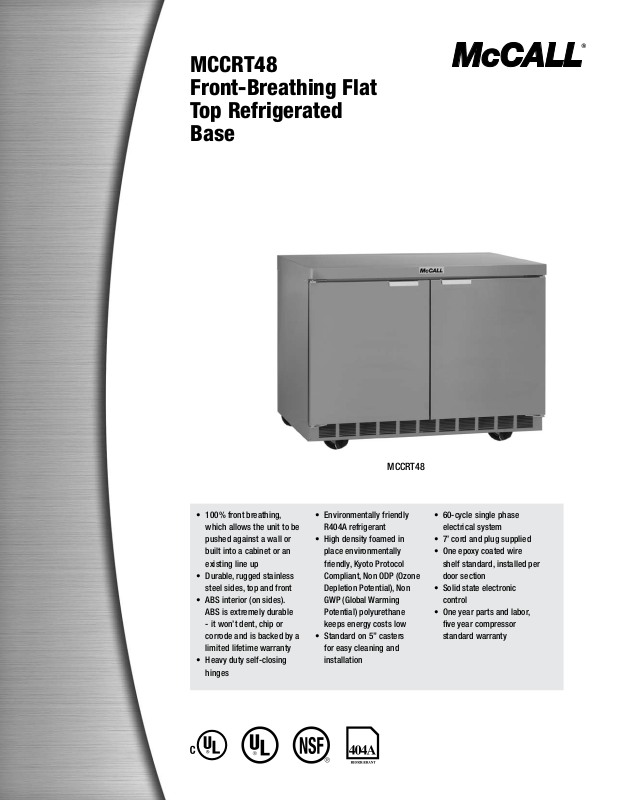

MCCRT48
Front-Breathing Flat
Top Refrigerated
Base
100% front breathing,
•
which allows the unit to be
pushed against a wall or
built into a cabinet or an
existing line up
Durable, rugged stainless
•
steel sides, top and front
ABS interior (on sides).
•
ABS is extremely durable
- it won’t dent, chip or
corrode and is backed by a
limited lifetime warranty
Heavy duty self-closing
•
hinges
MCCRT48
Environmentally friendly
•
R404A refrigerant
High density foamed in
•
place environmentally
friendly, Kyoto Protocol
Compliant, Non ODP (Ozone
Depletion Potential), Non
GWP (Global Warming
Potential) polyurethane
keeps energy costs low
Standard on 5” casters
•
for easy cleaning and
installation
60-cycle single phase
•
electrical system
7’ cord and plug supplied
•
One epoxy coated wire
•
shelf standard, installed per
door section
Solid state electronic
•
control
One year parts and labor,
•
five year compressor
standard warranty
31.50" [80.01]
SHELF
ALT. SHELF
22.66" [57.56]
NOSE OF UNIT
TO EDGE OF DOOR
35.34" [89.76]
36" [91.44]
48.13" [122.30]
43.75" [111.13]
19.94" [50.65]
INTERIOR DIMENSION
DOOR WIDTH DIMENSION
21.94" [55.73]
26.86" [68.22]
20.75" [52.70]
6.11" [15.52]
7.53" [19.10]
12.98" [33.00]
17.35" [44.08]
23.79" [60.43]
22.66" [57.56]
NOSE OF UNIT
TO EDGE OF DOOR
43.75" [111.13]
19.94" [50.65]
INTERIOR DIMENSION
DOOR WIDTH DIMENSION
31.50" [80.01]
SHELF
ALT. SHELF
22.66" [57.56]
NOSE OF UNIT
TO EDGE OF DOOR
43.75" [111.13]
19.94" [50.65]
INTERIOR DIMENSION
DOOR WIDTH DIMENSION
21.94" [55.73]
26.86" [68.22]
20.75" [52.70]
6.11" [15.52]
7.53" [19.10]
12.98" [33.00]
17.35" [44.08]
23.79" [60.43]
MCCRT48 Front-Breathing Flat Top Refrigerated Base
Specifications
MODEL
# OF
SHELVES
MCCRT48 2 4.18 10.7 1/5 115/60/1 3.9 5-15P 335LBS./152KG. 2.61
Specifications
Exterior top is one-piece, 22-gauge
stainless steel with integral square nosing
on the front.
Exterior back and bottom are two-piece
24-gauge galvanized steel.
Exterior ends are stainless steel.
Interior sides are thermoformed ABS
plastic with shelves supported on plugs.
Interior back is one-piece 22-gauge
stainless steel. Interior bottoms are
thermofoamed ABS plastic. Base is fully
insulated with high-density foamed in
place polyurethane.
Refrigeration system uses HFC404A refrigerant. Compressor is 1/5
H.P., with condenser coil and hot gas
condensate evaporator mounted on
rear of the cabinet. Evaporator coils are
located on the interior rear wall of the
cabinet. Refrigerant flow is controlled
by a capillary tube. Cabinet maintains an
interior cabinet temperature of 36°F to
40°F (2°C to 4°C).
Solid state control, mounted on the
exterior rear of the cabinet, allows unit to
maintain precise temperatures in heavy
duty conditions.
Electrical connection is 115 volt, 60
Hertz, single phase. Unit has a 7’ (2.1m)
long electrical cord and NEMA 5-15P
plug.
Casters Equipment is mounted on 5”
(13cm) diameter casters, with front two
locking. Equipment clearance above the
floor is 2.5” (6.35cm).
Door has a 24-gauge stainless steel
exterior, with thermoformed ABS plastic
interior liner.
McCall reserves the right to make changes to the
design or specifications without prior notice.
McCall Refrigeration
980 S. Isabella Rd.
Mt. Pleasant, Michigan 48858
SHELF AREA
SQ.FT.
STORAGE CAP.
CU.FT.
H.P.
VOLTS/
HERTZ/PHASE
MCCRT48 ELEVATION VIEW
MCCRT48 ISO VIEW
INSTALLATION NOTE:
Refrigeration system is designed so that air will
flow under the unit, through the compressor
area and out the front of the unit. Any
restriction to this air flow path will void the
warranties.
DSMCCRT48 ©2010 McCall 05/10
Phone: 888-732-2446
Fax: 800-669-0619
www.mccallrefrigeration.com
AMPS
NEMA
PLUG
SHIP WEIGHT
MCCRT48 RIGHT SIDE VIEW
PLEASE NOTE:
Air flow through the louver on the back of the
unit is not necessary for operation, however,
any air which passes through the louver is
beneficial.
ENERGY
KWH
