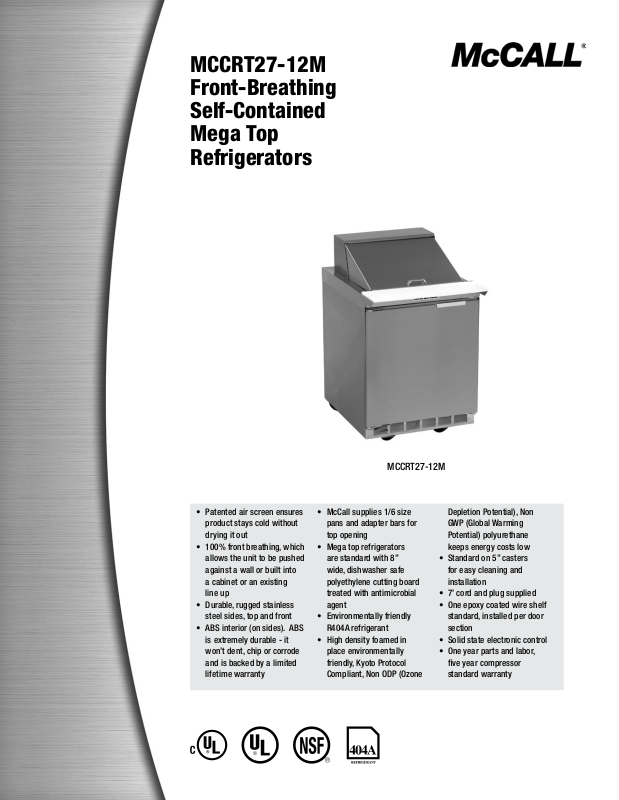

MCCRT27-12M
Front-Breathing
Self-Contained
Mega Top
Refrigerators
Patented air screen ensures
•
product stays cold without
drying it out
100% front breathing, which
•
allows the unit to be pushed
against a wall or built into
a cabinet or an existing
line up
Durable, rugged stainless
•
steel sides, top and front
ABS interior (on sides). ABS
•
is extremely durable - it
won’t dent, chip or corrode
and is backed by a limited
lifetime warranty
MCCRT27-12M
McCall supplies 1/6 size
•
pans and adapter bars for
top opening
Mega top refrigerators
•
are standard with 8”
wide, dishwasher safe
polyethylene cutting board
treated with antimicrobial
agent
Environmentally friendly
•
R404A refrigerant
High density foamed in
•
place environmentally
friendly, Kyoto Protocol
Compliant, Non ODP (Ozone
Depletion Potential), Non
GWP (Global Warming
Potential) polyurethane
keeps energy costs low
Standard on 5” casters
•
for easy cleaning and
installation
7’ cord and plug supplied
•
One epoxy coated wire shelf
•
standard, installed per door
section
Solid state electronic control
•
One year parts and labor,
•
five year compressor
standard warranty
25.67" [65.20]
36.12" [91.75]
33.59" [85.31]
Interior Dimension
22.75" [57.79]
SHELF
ALT. SHELF
3.88 [9.87]
17.35" [44.08]
23.79" [60.43]
20.75" [52.70]
26.86" [68.22]
21.94" [55.73]
31.50" [80.01]
3.14 [7.97]
27.14" [68.93]
8.50" [29.59]
12.98" [33.00]
7.53" [19.10]
6.11" [15.52]
4.96"
21.63"
27.13"
MCCRT27-12M Front View
MCCRT27-12M Isometric View
To Edge Of Door
Nose Of Unit
MCCRT27-12M Right Interior View
Pan Cutout Configuration
MCCRT27-12M Front-Breathing Self-Contained Mega Top Refrigerators
Specifications
MODEL
1/6 SIZE PAN
CAPACITY
MCCRT27-12M 12 1 3.24 5.7 1/5 115/60/1 7.2 5-15P
Specifications
Exterior top is one-piece, 22-gauge
stainless steel with integral 2.12” (5.1cm)
square nosing on the front. Top has one
opening to accept twelve 1/6-size 4”
(10.1cm) or 6” (15.2cm) deep pans or two
12” x 20” (30.5cm x 50.8cm) full size pans,
4” (10.1cm) or 6” (15.2cm) deep. Adapter
bars and 1/6 size pans are supplied by McCall.
Telescoping cover is constructed of 20-gauge
stainless steel. Temperature in top opening to
maintain 33°F (1°C) to 41°F (5°C), with pans
recessed 2.5” (6.4cm) at 86°F ambient room
temperature, meeting NSF 7 requirements.
One 27” x 8” x .5” (69cm x 20.3cm x 1.3cm)
polyethylene cutting board treated with
antimicrobial agent is mounted on the top at
the front edge.
Exterior back and bottom are two-piece
24-gauge galvanized steel. Exterior ends are
stainless steel.
Interior sides are thermoformed ABS plastic
with pilaster shelf supports and clips. Base is
fully insulated with high-density foamed in
place environmentally friendly, Kyoto Protocol
Compliant, Non ODP (Ozone Depletion
Potential), Non GWP (Global Warming
Potential) polyurethane.
Refrigeration system uses HFC-404A
refrigerant. Compressor is 1/5 H.P., with
condenser coil and hot gas condensate
evaporator mounted on rear of the cabinet.
Evaporator coils are located on the interior
rear wall of the cabinet. Refrigerant flow
is controlled by a capillary tube. Cabinet
maintains an interior cabinet temperature of
36°F to 40°F (2°C to 4°C).
Electrical connection is 115 volt, 60 Hertz,
single phase. Unit has a 7’ (2.1m) long
electrical cord and NEMA 5-15P plug.
Casters: Equipment is mounted on 5”
(13cm) diameter plate casters with front two
locking. Equipment clearance above the floor
is 2.5” (6.35cm).
Doors have a 24-gauge stainless steel
exterior, with thermoformed ABS plastic interior
liner. Cabinet has one adjustable epoxy-coated
wire shelf.
# OF
SHELVES
SHELF AREA
SQ.FT.
STORAGE
CAP.CU.FT.
INSTALLATION NOTE:
Refrigeration system is designed so that air will
flow under the unit, through the compressor
area and out the front of the unit. Any
restriction to this air flow path will void the
warranties.
H.P.
VOLTS/HERTZ/
PHASE
AMPS
NEMA
PLUG
PLEASE NOTE:
Air flow through the louver on the back of the
unit is not necessary for operation, however,
any air which passes through the louver is
beneficial.
SHIP
WEIGHT
240lbs/
109kg
ENERGY
KWH
4.82
McCall reserves the right to make changes to the
design or specifications without prior notice.
McCall Refrigeration
980 S. Isabella Rd.
Mt. Pleasant, Michigan 48858
Phone: 888-732-2446
Fax: 800-669-0619
www.mccallrefrigeration.com
DSMCCRT27-12M ©2010 McCall
02/10
