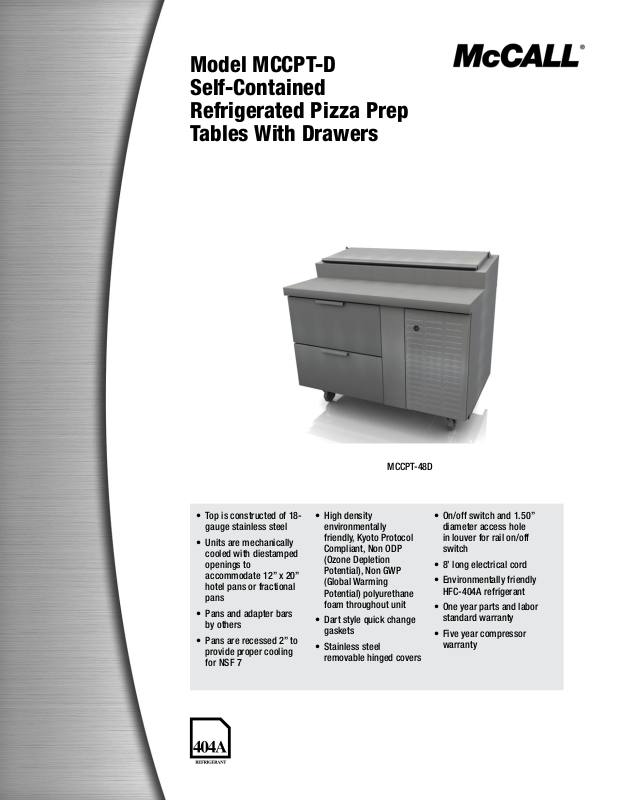

McCall MCCPT-48D User Manual

Model MCCPT-D
Self-Contained
Refrigerated Pizza Prep
Tables With Drawers

Top is constructed of 18-

•
gauge stainless steel

Units are mechanically

•
cooled with diestamped
openings to
accommodate 12” x 20”
hotel pans or fractional
pans

Pans and adapter bars

•
by others

Pans are recessed 2” to

•
provide proper cooling
for NSF 7

MCCPT-48D

High density

•
environmentally
friendly, Kyoto Protocol
Compliant, Non ODP
(Ozone Depletion
Potential), Non GWP
(Global Warming
Potential) polyurethane
foam throughout unit

Dart style quick change

•
gaskets

Stainless steel

•
removable hinged covers

On/off switch and 1.50”

•
diameter access hole
in louver for rail on/off
switch

8’ long electrical cord

•

Environmentally friendly

•
HFC-404A refrigerant

One year parts and labor

•
standard warranty

Five year compressor

•
warranty

Model MCCPT-D Self-Contained Refrigerated Pizza Prep Tables With Drawers

48.00”

122cm

33.00”
84cm

15.00”
38cm

54.00”

137cm

18.00”
46cm

72.00”

183cm

31.50”
80cm

99.00”

251cm

81.00”

206cm

18.00”
46cm

42.00”

107cm

6.13”
16cm

7.63”

19cm

36.00”
91cm

Plan View

MCCPTD-48

Plan View

MCCPTD-72

Plan View

MCCPTD-99

Elevation View

MCCPTD-48

Elevation View

MCCPTD-72

Elevation View

MCCPTD-99

End View

All Models

27" REF'G

Drawer R404A

27" REF'G

Drawer R404A

27" REF'G

Drawer R404A

27" REF'G

Drawer R404A

27" REF'G

Drawer R404A

27" REF'G

Drawer R404A

27" REF'G

Drawer R404A

27" REF'G

Drawer R404A

27" REF'G

Drawer R404A

27" REF'G

Drawer R404A

27" REF'G

Drawer R404A

27" REF'G

Drawer R404A

15.50”
39cm

28.18”
72cm

Specifications

Model

Pan Capacity (1/3) # Of 12x20 Pans in Drawers H.P. Voltage Amps Nema Plug Ship Weight

MCCPT-48D

MCCPT-72D

MCCPT-99D

6 4 1/4 115 10.0

9 8 1/2 115 14.0

12 12 1/2

-DC Models are standard with drawers and a 19” polyethylene cutting board.

Specifications

Exterior Top: Constructed of one-piece 18-gauge stainless
steel, with integral 2.12" (5cm) high square nosing at the
front. Top has a mechanically cooled refrigerated raised rail
at the rear with openings to accommodate pans (provided
by others). Rail interior is 22-gauge stainless steel. Raised
rail openings have 18-gauge stainless steel removable lids.
Unit is equipped with separate expansion valve and on/off
switch for refrigerated rail. Temperature in top openings
maintains 33°F (1°C) to 41°F (5°C) with pans recessed
2” (5cm) at 86°F ambient room temperature, meeting NSF
7 requirements.

Exterior Back, Bottom and Sides: Back and bottom
are 24-gauge galvanized steel. Exterior ends are finished
with aluminum.

Base Interior: Stainless steel back and bottom. Base
interior sides and door frames are thermoformed ABS
plastic. Each interior door section has (1) 25” (64cm) deep
removable epoxy coated wire shelf. Base is insulated with
2” (5cm) high density foamed in place polyurethane. End
of base has a machine compartment with condensing unit
installed.

Drawers: Full Extension Plus drawer system is a complete
drawer system, which can operate independent of the unit
it’s installed in. Drawer system is sized to hold 12” x 20” x 6“
deep hotel pans and smaller fractional pans. Drawer system
is all stainless steel construction for maximum durability.
Drawer track rollers are made of Delrin and do not require
grease for operation. Intermediate tracks are removable
without tools and house Delfield’s “anti-friction binary roller
system”. Drawer boxes are designed with “easy pan grip
flanges”. Tracks are designed with a stay shut feature that
holds the drawer gasket tight to the base front on uneven
floors. Exterior drawer fronts are made of stainless steel;
and an interior made of ABS plastic with formed in channels
to house the snap-in dart style santoprene gasket. A
galvanized brace is foamed in place to be an integral part
of the drawer front assembly. Each drawer front is injected
with 1.87” of high density polyurethane foam between the
exterior and interior.

Refrigeration System: HFC-404A refrigerant. Cabinet
has a blower coil assembly with expansion valve located in
coil housing. Base is equipped with independently controlled
thermostat, solenoid valve and condensate evaporator.
Refrigerated base maintains temperature of 36°F (2°C) to
40°F (4°C). 1.5” (4cm) diameter access hole in louver for
recessed on/off rail switch. Main power switch is located
behind the louvered panel.

Electrical Connections: 115 volt, 60 Hertz, single
phase. Unit is wired with 3-wire, grounded, maximum 8’
(2.4m) cord and plug.

Casters: Equipment is mounted on 5” (13cm) diameter
casters; overall height of casters is 6.13” (16cm).

McCall reserves the right to make changes to the
design or specifications without prior notice.

NOTE: Pans and adapter
pans are not included.

115 14.0

C = Condensing Unit
J = Junction Box with 8ft/2.4m cord and plug

Mechanical Access

(Plan View) All Models

Drawer Clearance Detail

All Models

5-15P 520lbs / 236kg

5-20P 635lbs / 288kg

5-20P 805lbs /365kg

J

C

Mechanical Access

Behind Louver

(1) 12” x 20” S/S Pan

(1) 12” x 20” S/S Pan

27” Drawer Conguration
