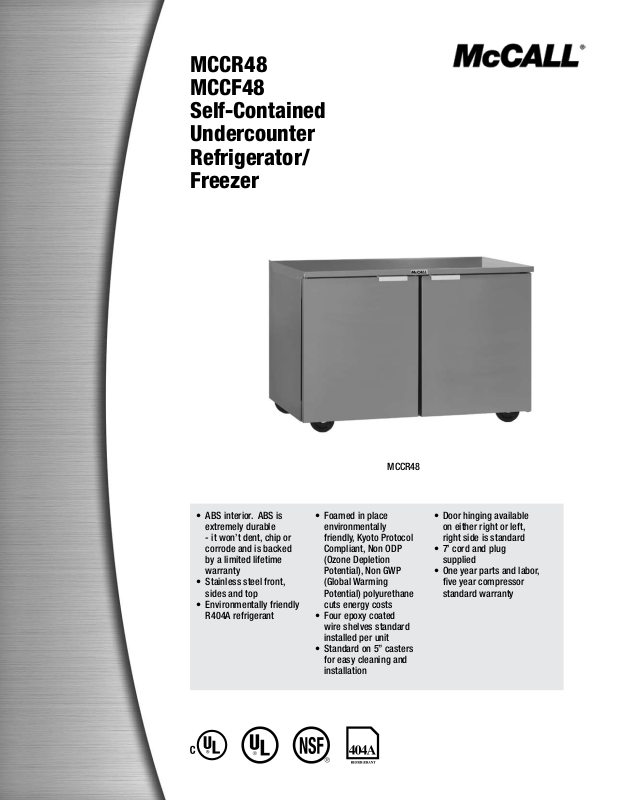

McCall MCCF48 User Manual
MCCR48
MCCF48
Self-Contained
Undercounter
Refrigerator/
Freezer
ABS interior. ABS is
•
extremely durable
- it won’t dent, chip or
corrode and is backed
by a limited lifetime
warranty
Stainless steel front,
•
sides and top
Environmentally friendly
•
R404A refrigerant
MCCR48
Foamed in place
•
environmentally
friendly, Kyoto Protocol
Compliant, Non ODP
(Ozone Depletion
Potential), Non GWP
(Global Warming
Potential) polyurethane
cuts energy costs
Four epoxy coated
•
wire shelves standard
installed per unit
Standard on 5” casters
•
for easy cleaning and
installation
Door hinging available
•
on either right or left,
right side is standard
7’ cord and plug
•
supplied
One year parts and labor,
•
five year compressor
standard warranty
MCCR48, MCCF48 Self-Contained Undercounter Refrigerator/Freezer
21.75”
55 cm
6.00”
15 cm
35.50”
90 cm
6.00”
15 cm
1.00”/2.5cm
Rubber
Bumper
35.50”
90 cm
48.06”
122 cm
28.38”
72 cm
Specifications
MODEL
# OF
SHELVES
MCCR48 4 13.0 11.4 1/5 115/60/1 4.0 5-15P 236LBS./107KG. 2.04
MCCF48 4 13.0 11.4 1/3 115/60/1 5.6 5-15P 236LBS./107KG. 5.15
Specifications
Exterior top shall be one-piece, 22-gauge stainless
steel with front edge turned down to form nosing and
rear edge turned down.
Exterior bottom shall be one-piece, 14-gauge
galvanized metal. Exterior ends shall be 22-gauge
stainless steel.
Base interior shall be one-piece thermoformed
ABS plastic material, with integral shelf supports.
ABS interior is backed by a limited lifetime warranty.
Cabinet shall have (4) epoxy-coated wire shelves
installed. Base shall be fully insulated with highdensity foamed-in-place environmentally friendly,
Kyoto Protocol Compliant, Non ODP (Ozone
Depletion Potential), Non GWP (Global Warming
Potential) polyurethane.
Doors shall have a 22-gauge stainless steel exterior,
with a thermoformed ABS plastic interior liner,
and shall be fully insulated with foamed-in-place
polyurethane. Door handles shall be black, recessed
ABS.
Electrical connections shall be 115 volt, 60
Hertz, single phase. Unit shall have a 7’ (2.1m) long
electrical cord and NEMA 5-15P plug. Cord and
plug shall be located on rear of cabinet, 16” (41 cm)
above floor, 12” (30 cm) from left side.
Equipment is mounted on 5” (13cm) diameter plate
casters with front two locking.
REFRIGERATION SYSTEM - Refrigeration system
shall use HFC-404A refrigerant. Compressor shall be
1/5 h.p., with condenser coil and hot gas condensate
evaporator mounted on rear of cabinet. Evaporator
coil and temperature control shall be mounted on
the interior rear wall of the cabinet. Refrigerant flow
shall be controlled by a capillary tube. Cabinet shall
maintain 36°F to 40°F (2°C to 4°C) interior cabinet
temperature.
FREEZER SYSTEM - Refrigeration system shall
use HFC-404A refrigerant. Compressor shall be 1/3
h.p., with condenser coil and hot gas condensate
evaporator mounted on the rear of cabinet.
Evaporator coil and temperature control shall be
mounted on the interior rear wall of the cabinet.
Refrigerant flow shall be controlled by a capillary
tube. Cabinet shall maintain -5°F to 0°F (-21°C to
-18°C) interior cabinet temperature.
SHELF AREA
SQ.FT.
IN ST ALLAT ION NOTE :
Refrigera ti on s yste m is desi gned so t hat air will
flow un der the unit, thro ugh the compressor area
and out th e f ront of the unit. A ny rest rict ion t o thi s
air flow pa th will voi d th e warrantie s.
PL EA SE NO TE:
Air flow throug h th e lo uver o n the back o f the unit
is n ot necessary for oper at ion, h owever, any air
which pas se s through t he l ouver is be nefi cial.
STORAGE CAP.
CU.FT.
H.P.
VOLTS/
HERTZ/PHASE
Plan View
Models MCCR48 And MCCF48
Elevation View
Models MCCR48 And MCCF48
AMPS
NEMA
PLUG
Models MCCR48 And MCCF48
Models MCCR48 And MCCF48
SHIP WEIGHT
Door Clearance Detail
End View
ENERGY
(KWH)
McCall reserves the right to make changes to the
design or specifications without prior notice.
