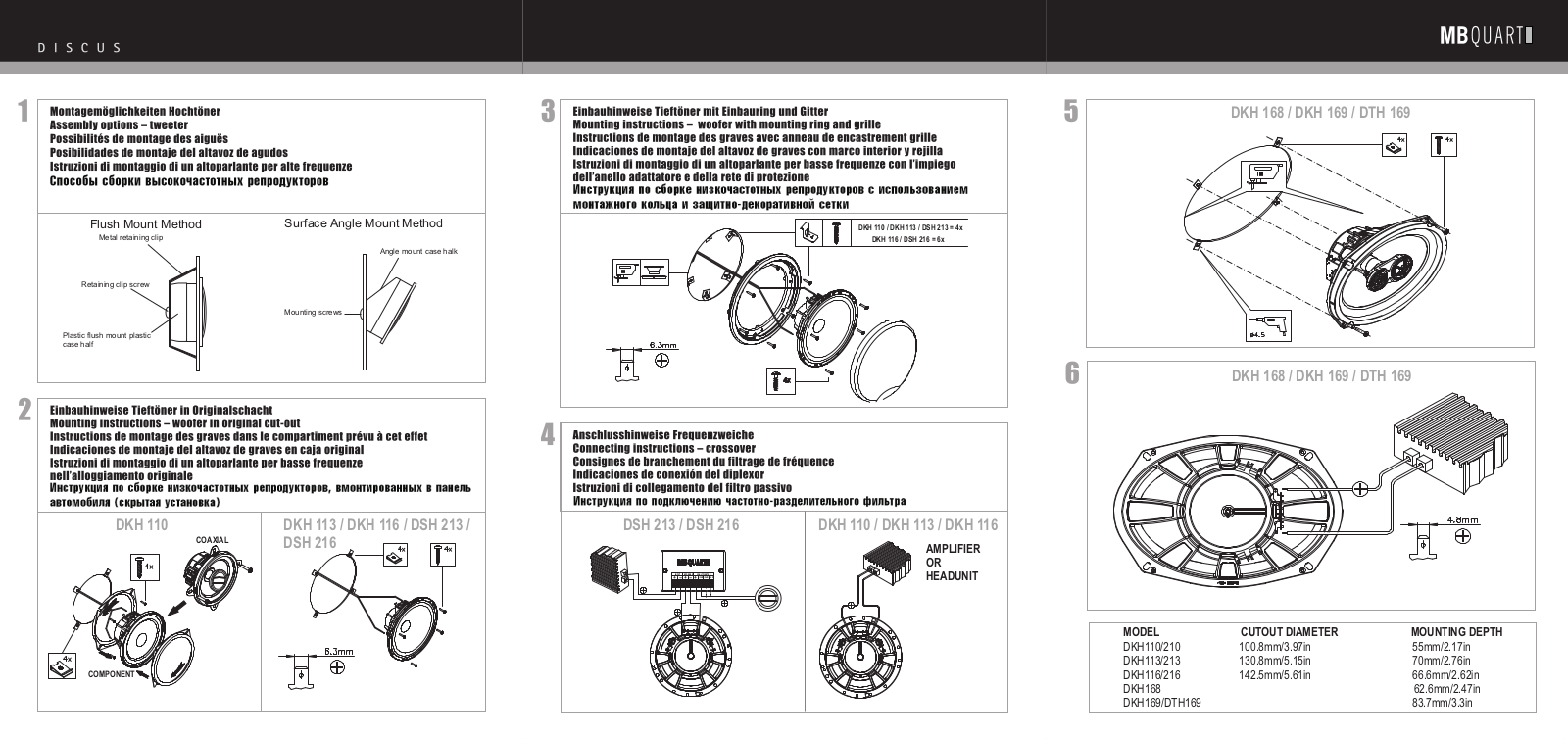

DKH 168 / DKH 169 / DTH 169
Flush Mount Method
Metal retaining clip
Retaining clip screw
Plastic flush mount plastic
case half
Surface Angle Mount Method
Angle mount case halk
Mounting screws
DKH 110 / DKH 113 / DSH 213 = 4x
DKH 116 / DSH 216 = 6x
DKH 168 / DKH 169 / DTH 169
DKH 110
COMPONENT
COAXIAL
DKH 113 / DKH 116 / DSH 213 /
DSH 216
DSH 213 / DSH 216
INPUT
MID BASS
VARI-TWEETER
3dB-0dB-6dB
-
-
+-+ +
DKH 110 / DKH 113 / DKH 116
AMPLIFIER
OR
HEADUNIT
MODEL CUTOUT DIAMETER MOUNTING DEPTH
DKH110/210 100.8mm/3.97in 55mm/2.17in
DKH113/213 130.8mm/5.15in 70mm/2.76in
DKH116/216 142.5mm/5.61in 66.6mm/2.62in
DKH168 62.6mm/2.47in
DKH169/DTH169 83.7mm/3.3in
