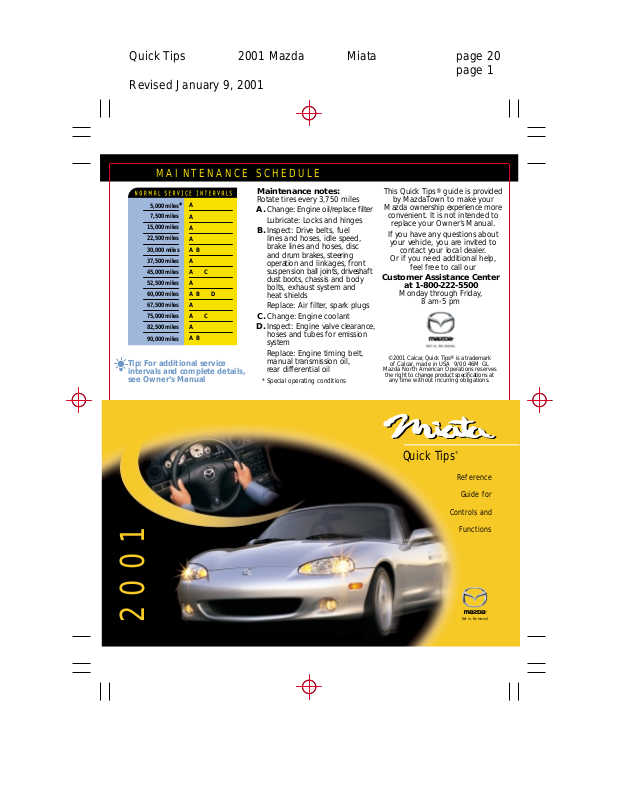

MAINTENANCE SCHEDULE

Maintenance notes:

Rotate tires every 3,750 miles A.Change: Engine oil/replace filter

Lubricate: Locks and hinges

B.Inspect: Drive belts, fuel

lines and hoses, idle speed, brake lines and hoses, disc and drum brakes, steering operation and linkages, front suspension ball joints, driveshaft dust boots, chassis and body bolts, exhaust system and heat shields

Replace: Air filter, spark plugs

C.Change: Engine coolant D.Inspect: Engine valve clearance,

hoses and tubes for emission system

Replace: Engine timing belt, manual transmission oil, rear differential oil

* Special operating conditions

This Quick Tips®guide is provided

by MazdaTown to make your

Mazda ownership experience more

convenient. It is not intended to

replace your Owner’s Manual.

If you have any questions about

your vehicle, you are invited to

contact your local dealer.

Or if you need additional help,

feel free to call our

Customer Assistance Center

at 1-800-222-5500

Monday through Friday,

8 am-5 pm

5,000 miles*

7,500 miles 15,000 miles 22,500 miles 30,000 miles 37,500 miles 45,000 miles 52,500 miles 60,000 miles 67,500 miles 75,000 miles 82,500 miles 90,000 miles

A B

A C

A B D

A C

A B

A A

Tip: For additional service intervals and complete details, see Owner’s Manual

of Calcar, made in USA 9/00 46M GL

Mazda North American Operations reserves

the right to change product specifications at

any time without incurring obligations.

Reference

Guide for

Controls and

Functions

Get in. Be moved.

2001

Quick Tips

DRIVER’S VIEW

1. Door locks,

see Switches

2. Air vents

Twist vents to direct airflow

3. Instrument panel lighting selector,

see Interior Lights

4. Turn signal/lighting control lever,

see Driver Controls

5. Instrument cluster,

see Instrument Cluster

6. Wiper/washer/ Cruise control* lever,

see Driver Controls

7. Hazard warning switch

Press on/off

8. Audio system,

see Audio System

9. Climate control system,

see Climate Controls

10. Rear window defogger switch

Press on/off

11. Cigarette lighter

12. Gearshift lever,

see Transmission

13. Ashtray/cup holder

14. Power-window switches,

see Switches

15. Center console,

see Console/Trunk

16. Fuel door release lever

Pull to open fuel door

17. Remote trunk-lid release

Pull to open trunk

18. Parking-brake lever,

see Console/Trunk

19. Passenger-side air bag deactivation switch,

see Child Seats

20. Power outside mirror switch, see Switches

21. Horn/air bag

Press for horn

22. Fuse panel

23. Hood release handle

Pull to open partially

24. Cruise control main switch*,

see Driver Controls

25. Fog light switch,

see Driver Controls

Driver’s

View

Quick Tips 2001 Mazda Miata page 2

page 3

Revised January 9, 2001

Key

Operates ignition and all locks

Tip: Use key number plate to purchase a new key; store in a safe place separate from vehicle

Immobilizer system

Prevents engine from running unless coded key used, see Owner’s Manual

Remote entry system*, see

Owner’s Manual

mph

x1000r/min

100

120

140

160

180 200 220 240

100

120

140

km/h

22 3 4 65 7

17 16

14 13

21 20222325 24

11 12

*Denotes optional equipment

Always check the Owner’s Manual for more operating information and safety features

LOCK

INSTRUMENT CLUSTER

Always check the Owner’s Manual for more operating information and safety features

Instrument

Cluster

Instrument

Cluster

Quick Tips 2001 Mazda Miata page 4

page 5

Revised January 9, 2001

mph

x1000r/min

100

120

140

160

180

200 220

240

100

120

140

km/h

CHEF

A B

00000.0

2 4

6 9

1 518 17 11141516 1213 10

8. Turn signal/hazard warning on

9. Immobilizer system on, see Driver’s View

10. Check engine

Dealer inspection required

11. Odometer/trip odometer selector

Press to select odometer or trip odometer A/B; press and hold to reset selected trip odometer

12. Air bag readiness

If light flashes or stays on, the air bags may not operate in an accident; dealer inspection required

13. Always fasten safety belts

14. Odometer/trip odometer display

15.

Brake system

Parking brake on/low brake fluid

16. Charging system warning light

Possible alternator or charging system malfunction, dealer inspection required

17. Anti-lock Brake System (ABS)*

Indicates ABS malfunction, dealer inspection required

18. Overdrive off indicator (Automatic transmission)*

Lights when the overdrive button is in the off position

GAUGES

1. Fuel gauge

12.7-gallon/48-liter tank

2. Tachometer

Avoid red zone

3. Engine oil pressure gauge

If outside normal range, stop vehicle safely and turn off engine, check oil level

4. Speedometer

5. Coolant temperature gauge

If above normal range, stop vehicle safely and turn off engine; check coolant level when safe

6. Cruise control on*

Lights when cruise control is set

7. High beams on,

see Driver Controls

*Denotes optional equipment

WARNING LIGHTS

+ 7 hidden pages
